Industrial-Grade Underwater Drone for Professional Scenario
Stronger Power, 4 Knots Speed
Up to 2 Hours of Battery Life with 300Wh Battery (Standard)
Up to 5 Hours of Battery Life with 700Wh Battery (Optional)
Unlimited Battery Life with AC Power
More Advanced Exclusive Accessories
Depth Rating 490ft / 150m
4K UHD EIS Camera

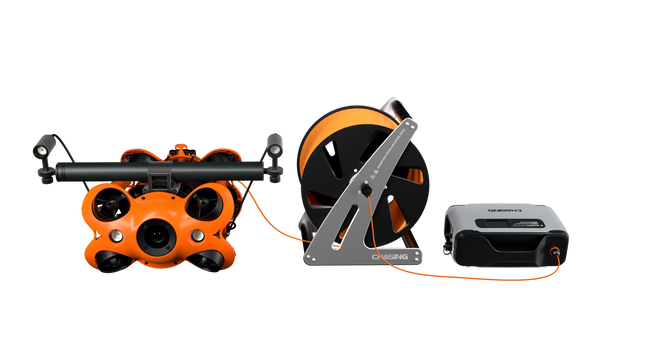

CHASING M2 PRO is a light industrial underwater ROV designed for professional users and industrial applications. It works with various power supply and has stronger powered motors. The drone can be mounted more so as to greatly meet the needs of various scenarios.
Stronger Power, More Accessories, Various Power Supply (AC & DC)
Industrial Application
Underwater Search and Rescue
Water Conservancy and Hydropower Inspection
Scientific Exploration
Hull & Dock Inspection
Aquaculture Inspection
Omni Movement, Multi-Angle Shooting

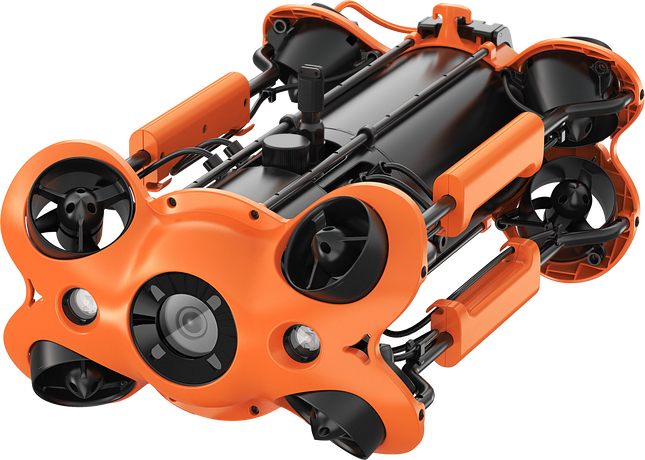

CHASING M2 PRO has 8 vectored thrusters layout which allows OMNI movement in all directions. Under any posture, the depth can be set with one key, which can ensure the drone to accurately hover to to achieve any perspective shooting, observation and operation needs of any angle of view.
Forward and Backward
Floating and Diving
Lateral Movement
Turn Left / Turn Right
±90° Pitch and Tilt
Rolling 360° ( Side-to-side & Forward and back)

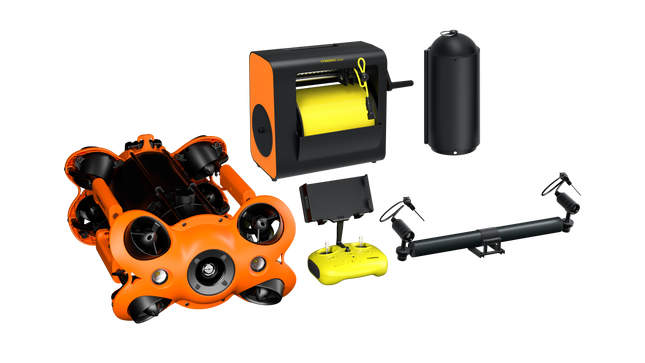

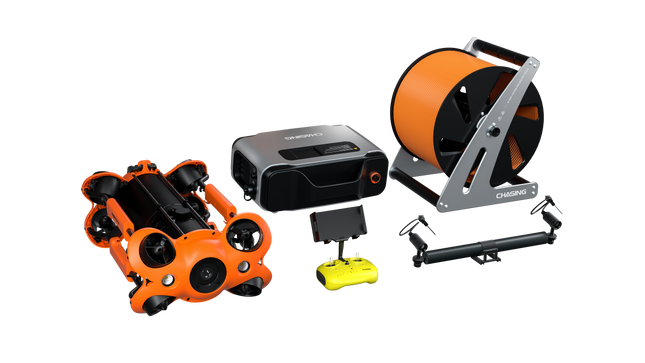

More Exclusive Accessories to Meet More Professional Scenarios

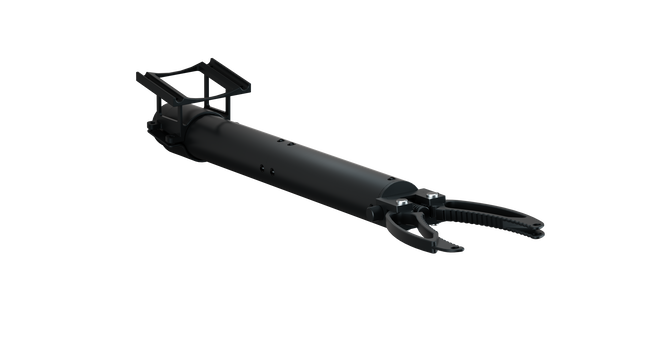

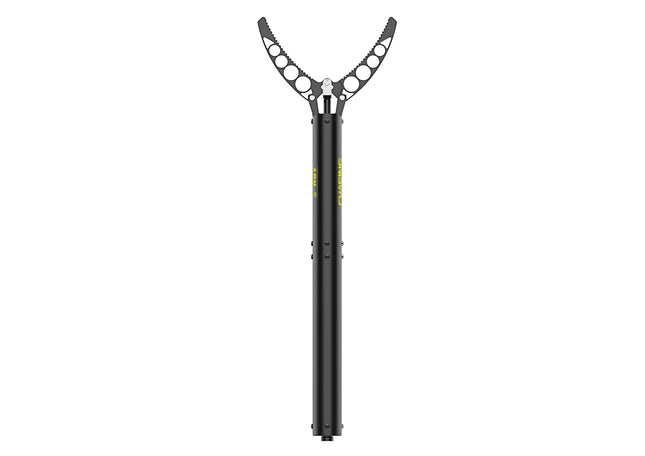

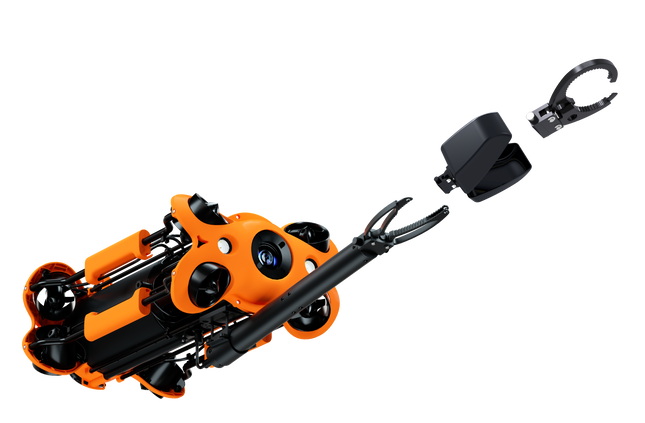

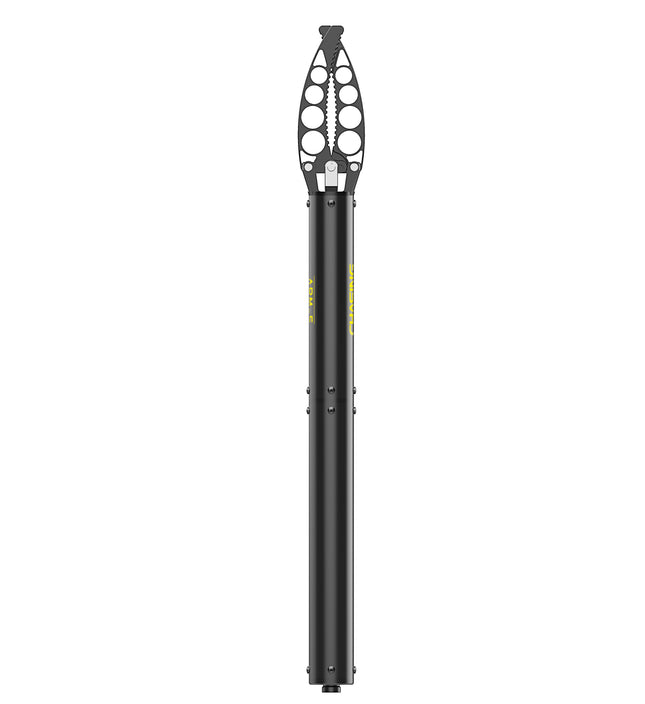

Not only compatible with CHASING M2's attachments such as Grabber Claw, Diving Light and Laser Scaler etc, but also compatible with Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and other M2 PRO exclusive enhanced accessories.
Control ConsoleUSBL Underwater PositioningMultibeam SonarAuxiliary Camera

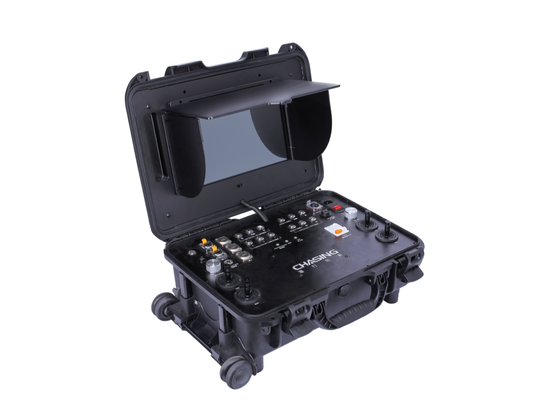

The control console is used for operating the underwater ROV and all accessories. The keys are well laid out for more professional control. With the high brightness screen, the picture is clearly visible even in daylight.

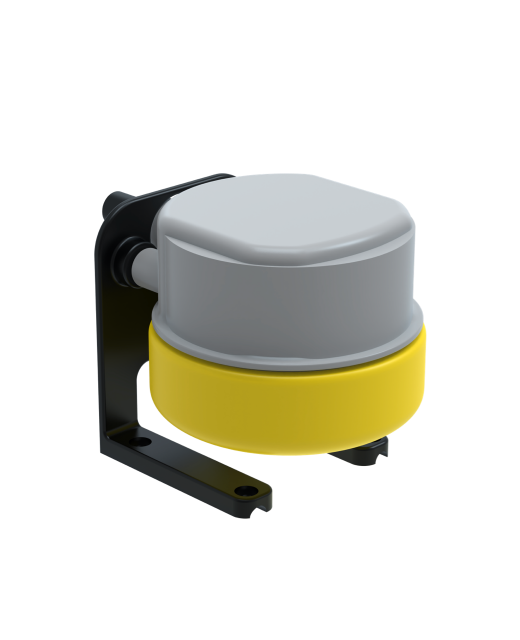

It can accurately locate the location of underwater drones and record their movement tracks. Combination solution: USBL + Unmanned Surface Vehicle + Control Console + Docking Station.
It generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water.Combination solution: Multibeam Sonar (support other brands) + Sonar Tether + Docking Station.
Observe objects simultaneously in dual-view with two cameras. Combination solution: Auxiliary Camera and Docking Station.
Unlimited Battery Life with AC & DC Power Supply
CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable, The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.

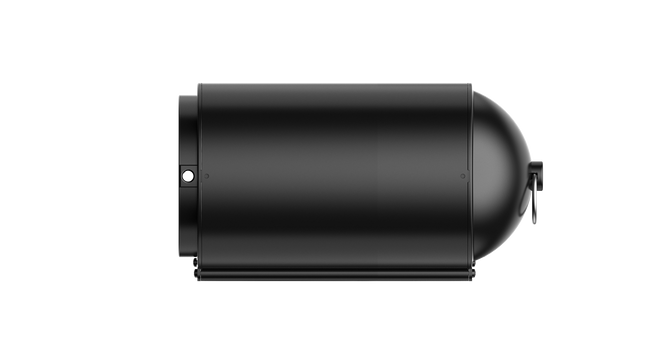

Removable batteryAC power supply
Stronger Power Anti-Stuck Motor, 4 Knots Anti-Flow
The anti-stuck motor is 150W and the power has been upgraded by 50% compared to the Chasing M2 motor, which can resist the flow of water at 4 knots (2m/s) in all directions.
Dive Up to 150 Meters to Explore More Unknowns
The waterproof level of CHASING M2 PRO has been upgraded to 150 meters (490 FT), diving deeper and exploring more underwater unknowns.
150 Meters
Maximum working depth
-10℃~45℃
Operating temperature
2 m/s(4 Knots)
Maximum speed
Up to 5 Hours
Runtime
4K EIS Image Stabilization Camera for Clearer Shooting
Built-in 4K/12M pixel camera, 1/2.3 SONY CMOS, EIS stabilization feature. With 4000 lumens LED lights, the camera of CHASING M2 PRO can capture every detail clearly underwater.
4K
Video resolution
12M
Max. photo pixel
152°
FOV
F1.8
Lens
User Friendly Interaction
Live broadcast
Social media sharing
HDMI output
Taking photos while recording video
Time-lapse photography & Slow motion
Quick editing features
Three Devices Shared at the Same Time
CHASING M2 PRO supports three devices to watch underwater images simultaneously and meet the needs for multiple viewers.
Removable SD Memory Card, Download Anytime and Anywhere
The 128G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.
Product Specifications
CHASING M2 PRO
Max Depth
490 ft (150 m)
Video Bitrate
60 M
Tether Length
656 ft / 984 ft / 1312 ft
SD Card Storage
128 G
Video Resolution
3840 x 2160 (UHD)
Photo Resolution
12 M
Drone
Size
18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
Weight
≈5.7 kg
Max Depth
490 ft (150 m)
Max Speed
4 Knots (2 m/s)
Runtime
Up to 4 hours
Battery
300 Wh
Working Temperature
-10℃~45℃
Control Console
Size
19" x 14.8" x 7" (484 x 375 x 178 mm)
Weight
8 kg
Dispaly
1920 x 1080, 1000 cd/m2
Working Temperature
-10 ℃ ~ 45 ℃
Power Supply
21.6 V
Interface
RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1, AC output to ROV x 1
Camera
CMOS
1/2.3 inch
Lens
F1.8
Focus
1m
ISO Range
100-6400
FOV
152°
Max Resolution
12 Meg pixel
Format
JPEG/DNG
Video
UHD: 3840*2160 (4K) 30fpsFHD: 1920*1080 (1080p) 30/60/120fps
Slow Motion
720p: 8x (240 fps)1080p: 4x (120 fps)
Time Lapse
4K / 1080p supported
Video Bitrats
60 M
Video Format
MP4
SD Card
128 G

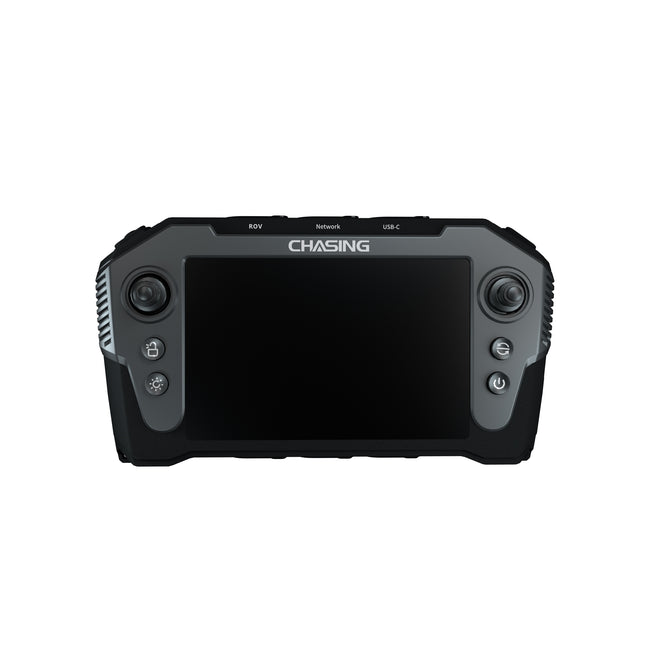

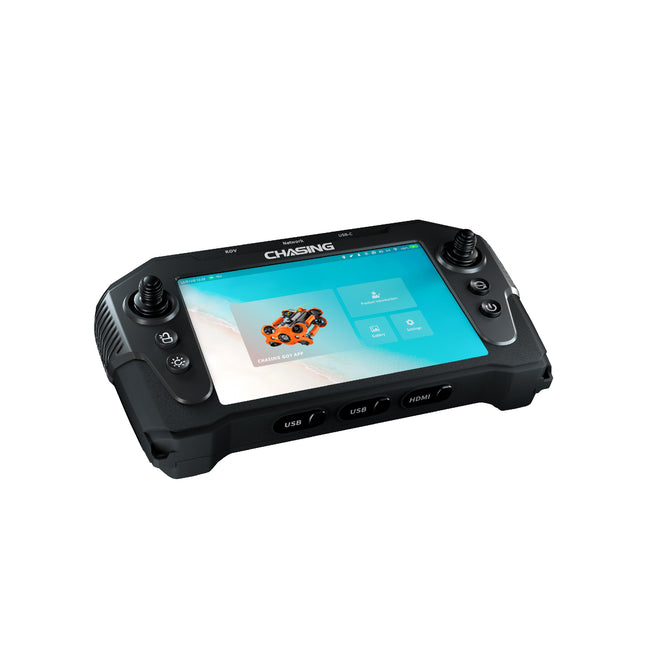

Remote Controller
Size
6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
Weight
685 g
Battery
2500 mAh
Runtime
≥ 6 hours (depending on the environment)
Wireless
Wi-Fi supported
HDMI
Support
Handle Spring
Maximum support 10 inch
Sensor
IMU
3 axis gyro & accelerometer & compass
Depth Sensor
< ± 0.25 m
Temperature Sensor
< ± 2 ℃
Charger
Power
2.9A / 25.2V
ROV Charging Time
4.5 H
RC Charging Time
2 H
LED
Brightness
2 x 2000 Lumens
Color Temperature
5000 K - 5500 K
CRI
85
Dimming
Three gears

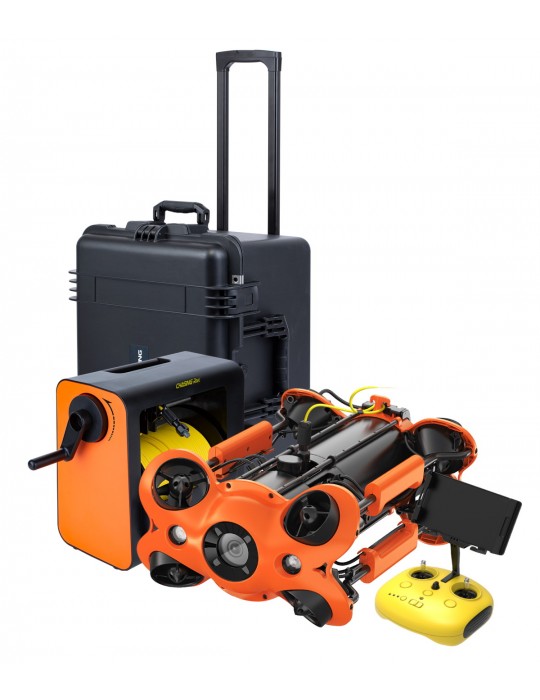

In The Box
Name
Qty
Illustration
Name
Qty
Illustration
Drone
1
Remote Controller
1
3 in 1 Charger & Power Cord
1
Carrying Case
1

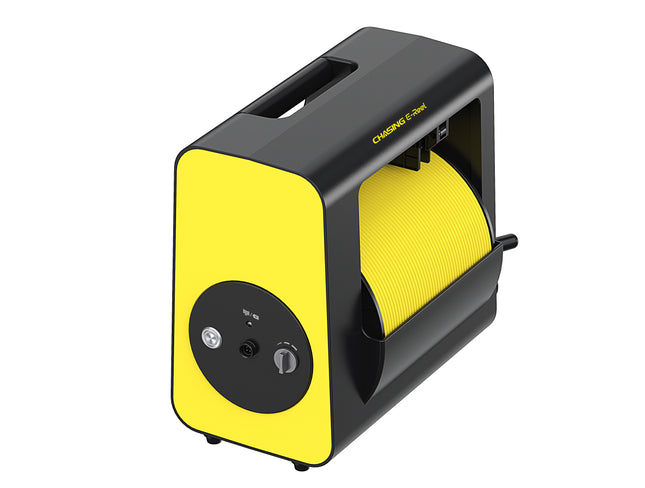

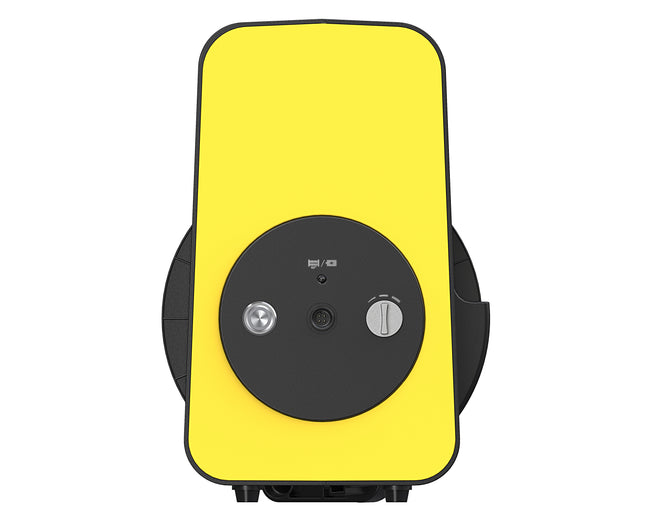

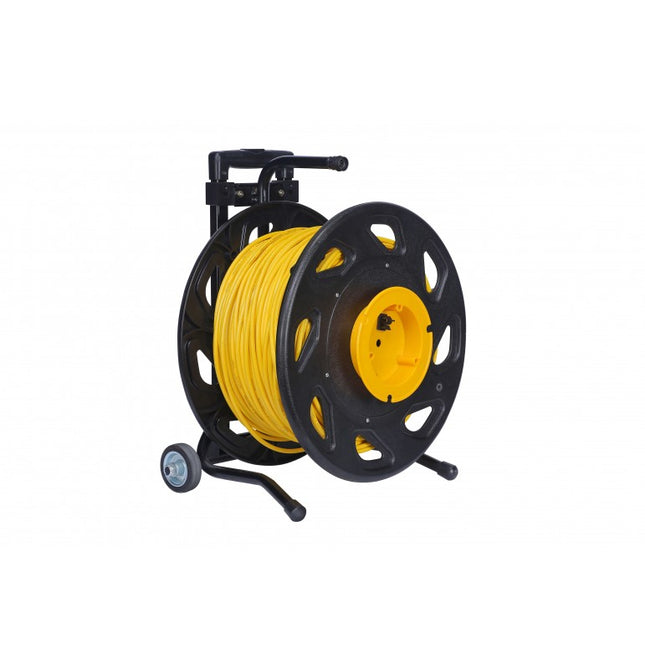

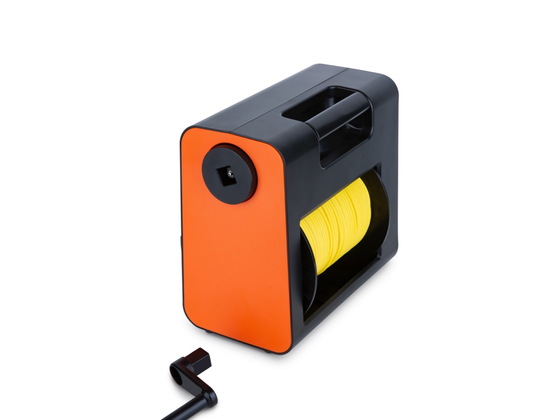

Tether & Winder
1
GoPro Mounting Base
1
M3*8 Screws
4
Sun Shade
1
Type-C to Type-C Data Cable
1
Type-C to Micro-USB Data Cable
1
Type-C to Lighting Data Cable
1
Towel
1
O-rings
18
Support Documents
4
Industrial-Grade Underwater Drone for Professional Scenario
Stronger Power, 4 Knots Speed
Up to 2 Hours of Battery Life with 300Wh Battery (Standard)
Up to 5 Hours of Battery Life with 700Wh Battery (Optional)
Unlimited Battery Life with AC Power
More Advanced Exclusive Accessories
Depth Rating 490ft / 150m
4K UHD EIS Camera
CHASING M2 PRO is a light industrial underwater ROV designed for professional users and industrial applications. It works with various power supply and has stronger powered motors. The drone can be mounted more so as to greatly meet the needs of various scenarios.
Stronger Power, More Accessories, Various Power Supply (AC & DC)
Industrial Application
Underwater Search and Rescue
Water Conservancy and Hydropower Inspection
Scientific Exploration
Hull & Dock Inspection
Aquaculture Inspection
Omni Movement, Multi-Angle Shooting
CHASING M2 PRO has 8 vectored thrusters layout which allows OMNI movement in all directions. Under any posture, the depth can be set with one key, which can ensure the drone to accurately hover to to achieve any perspective shooting, observation and operation needs of any angle of view.
Forward and Backward
Floating and Diving
Lateral Movement
Turn Left / Turn Right
±90° Pitch and Tilt
Rolling 360° ( Side-to-side & Forward and back)
More Exclusive Accessories to Meet More Professional Scenarios
Not only compatible with CHASING M2's attachments such as Grabber Claw, Diving Light and Laser Scaler etc, but also compatible with Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and other M2 PRO exclusive enhanced accessories.
Control ConsoleUSBL Underwater PositioningMultibeam SonarAuxiliary Camera
The control console is used for operating the underwater ROV and all accessories. The keys are well laid out for more professional control. With the high brightness screen, the picture is clearly visible even in daylight.
It can accurately locate the location of underwater drones and record their movement tracks. Combination solution: USBL + Unmanned Surface Vehicle + Control Console + Docking Station.
It generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water.Combination solution: Multibeam Sonar (support other brands) + Sonar Tether + Docking Station.
Observe objects simultaneously in dual-view with two cameras. Combination solution: Auxiliary Camera and Docking Station.
Unlimited Battery Life with AC & DC Power Supply
CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable, The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.
Removable batteryAC power supply
Stronger Power Anti-Stuck Motor, 4 Knots Anti-Flow
The anti-stuck motor is 150W and the power has been upgraded by 50% compared to the Chasing M2 motor, which can resist the flow of water at 4 knots (2m/s) in all directions.
Dive Up to 150 Meters to Explore More Unknowns
The waterproof level of CHASING M2 PRO has been upgraded to 150 meters (490 FT), diving deeper and exploring more underwater unknowns.
150 Meters
Maximum working depth
-10℃~45℃
Operating temperature
2 m/s(4 Knots)
Maximum speed
Up to 5 Hours
Runtime
4K EIS Image Stabilization Camera for Clearer Shooting
Built-in 4K/12M pixel camera, 1/2.3 SONY CMOS, EIS stabilization feature. With 4000 lumens LED lights, the camera of CHASING M2 PRO can capture every detail clearly underwater.
4K
Video resolution
12M
Max. photo pixel
152°
FOV
F1.8
Lens
User Friendly Interaction
Live broadcast
Social media sharing
HDMI output
Taking photos while recording video
Time-lapse photography & Slow motion
Quick editing features
Three Devices Shared at the Same Time
CHASING M2 PRO supports three devices to watch underwater images simultaneously and meet the needs for multiple viewers.
Removable SD Memory Card, Download Anytime and Anywhere
The 128G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.
Product Specifications
CHASING M2 PRO
Max Depth
490 ft (150 m)
Video Bitrate
60 M
Tether Length
656 ft / 984 ft / 1312 ft
SD Card Storage
128 G
Video Resolution
3840 x 2160 (UHD)
Photo Resolution
12 M
Drone
Size
18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
Weight
≈5.7 kg
Max Depth
490 ft (150 m)
Max Speed
4 Knots (2 m/s)
Runtime
Up to 4 hours
Battery
300 Wh
Working Temperature
-10℃~45℃
Control Console
Size
19" x 14.8" x 7" (484 x 375 x 178 mm)
Weight
8 kg
Dispaly
1920 x 1080, 1000 cd/m2
Working Temperature
-10 ℃ ~ 45 ℃
Power Supply
21.6 V
Interface
RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1, AC output to ROV x 1
Camera
CMOS
1/2.3 inch
Lens
F1.8
Focus
1m
ISO Range
100-6400
FOV
152°
Max Resolution
12 Meg pixel
Format
JPEG/DNG
Video
UHD: 3840*2160 (4K) 30fpsFHD: 1920*1080 (1080p) 30/60/120fps
Slow Motion
720p: 8x (240 fps)1080p: 4x (120 fps)
Time Lapse
4K / 1080p supported
Video Bitrats
60 M
Video Format
MP4
SD Card
128 G
Remote Controller
Size
6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
Weight
685 g
Battery
2500 mAh
Runtime
≥ 6 hours (depending on the environment)
Wireless
Wi-Fi supported
HDMI
Support
Handle Spring
Maximum support 10 inch
Sensor
IMU
3 axis gyro & accelerometer & compass
Depth Sensor
< ± 0.25 m
Temperature Sensor
< ± 2 ℃
Charger
Power
2.9A / 25.2V
ROV Charging Time
4.5 H
RC Charging Time
2 H
LED
Brightness
2 x 2000 Lumens
Color Temperature
5000 K - 5500 K
CRI
85
Dimming
Three gears
In The Box
Drone ×1
Remote Controller ×1
Reel with 200m Tether ×1
GoPro Mounting Base ×1
Power Cord ＆ 3 in 1 Charger ×1
Carrying Case ×1
Type-C to Type-C Data Cable ×1
Type-C to Lighting Data Cable ×1
Type-C to Micro-USB Data Cable ×1
Sun Shade ×1
M3X8 Screws ×4
Support Documents ×4
O-rings ×18
Towel×1
300Wh Battery ×2

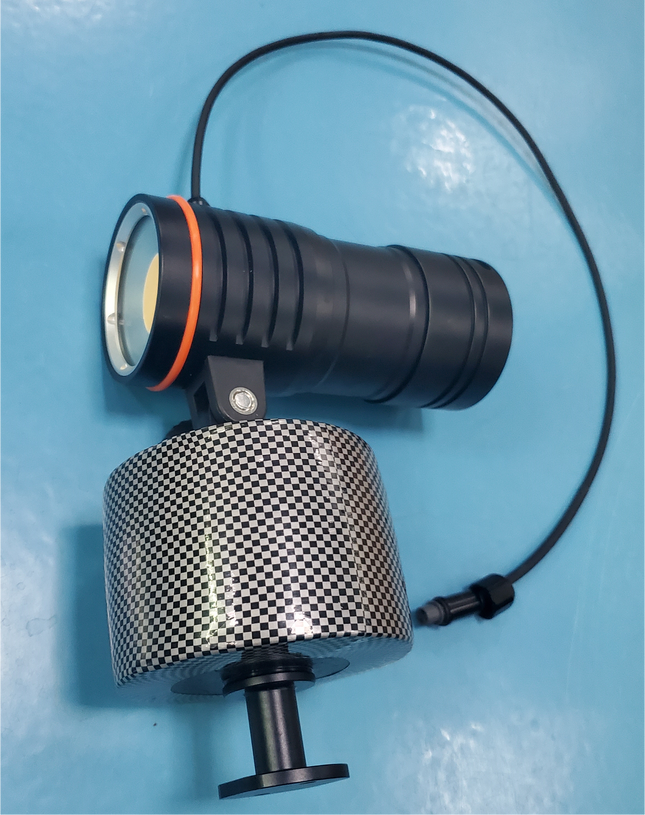

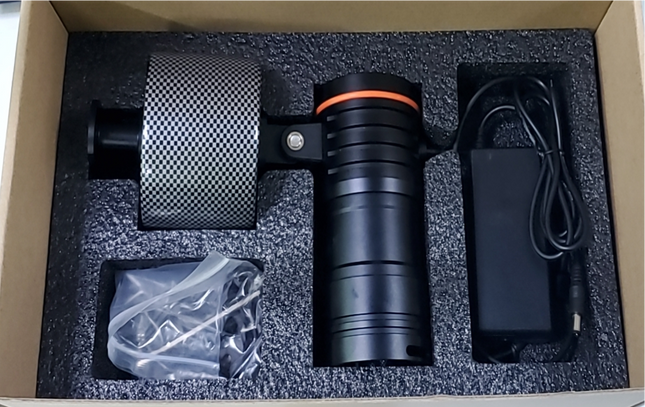

Floodlight 2 ×1
Industrial-Grade Underwater Drone for Professional Scenario
Stronger Power, 4 Knots Speed
Up to 2 Hours of Battery Life with 300Wh Battery (Standard)
Up to 5 Hours of Battery Life with 700Wh Battery (Optional)
Unlimited Battery Life with AC Power
More Advanced Exclusive Accessories
Depth Rating 490ft / 150m
4K UHD EIS Camera
CHASING M2 PRO is a light industrial underwater ROV designed for professional users and industrial applications. It works with various power supply and has stronger powered motors. The drone can be mounted more so as to greatly meet the needs of various scenarios.
Stronger Power, More Accessories, Various Power Supply (AC & DC)
Industrial Application
Underwater Search and Rescue
Water Conservancy and Hydropower Inspection
Scientific Exploration
Hull & Dock Inspection
Aquaculture Inspection
Omni Movement, Multi-Angle Shooting
CHASING M2 PRO has 8 vectored thrusters layout which allows OMNI movement in all directions. Under any posture, the depth can be set with one key, which can ensure the drone to accurately hover to to achieve any perspective shooting, observation and operation needs of any angle of view.
Forward and Backward
Floating and Diving
Lateral Movement
Turn Left / Turn Right
±90° Pitch and Tilt
Rolling 360° ( Side-to-side & Forward and back)
More Exclusive Accessories to Meet More Professional Scenarios
Not only compatible with CHASING M2's attachments such as Grabber Claw, Diving Light and Laser Scaler etc, but also compatible with Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and other M2 PRO exclusive enhanced accessories.
Control ConsoleUSBL Underwater PositioningMultibeam SonarAuxiliary Camera
The control console is used for operating the underwater ROV and all accessories. The keys are well laid out for more professional control. With the high brightness screen, the picture is clearly visible even in daylight.
It can accurately locate the location of underwater drones and record their movement tracks. Combination solution: USBL + Unmanned Surface Vehicle + Control Console + Docking Station.
It generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water.Combination solution: Multibeam Sonar (support other brands) + Sonar Tether + Docking Station.
Observe objects simultaneously in dual-view with two cameras. Combination solution: Auxiliary Camera and Docking Station.
Unlimited Battery Life with AC & DC Power Supply
CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable, The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.
Removable batteryAC power supply
Stronger Power Anti-Stuck Motor, 4 Knots Anti-Flow
The anti-stuck motor is 150W and the power has been upgraded by 50% compared to the Chasing M2 motor, which can resist the flow of water at 4 knots (2m/s) in all directions.
Dive Up to 150 Meters to Explore More Unknowns
The waterproof level of CHASING M2 PRO has been upgraded to 150 meters (490 FT), diving deeper and exploring more underwater unknowns.
150 Meters
Maximum working depth
-10℃~45℃
Operating temperature
2 m/s(4 Knots)
Maximum speed
Up to 5 Hours
Runtime
4K EIS Image Stabilization Camera for Clearer Shooting
Built-in 4K/12M pixel camera, 1/2.3 SONY CMOS, EIS stabilization feature. With 4000 lumens LED lights, the camera of CHASING M2 PRO can capture every detail clearly underwater.
4K
Video resolution
12M
Max. photo pixel
152°
FOV
F1.8
Lens
User Friendly Interaction
Live broadcast
Social media sharing
HDMI output
Taking photos while recording video
Time-lapse photography & Slow motion
Quick editing features
Three Devices Shared at the Same Time
CHASING M2 PRO supports three devices to watch underwater images simultaneously and meet the needs for multiple viewers.
Removable SD Memory Card, Download Anytime and Anywhere
The 128G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.
Product Specifications
CHASING M2 PRO
Max Depth
490 ft (150 m)
Video Bitrate
60 M
Tether Length
656 ft / 984 ft / 1312 ft
SD Card Storage
128 G
Video Resolution
3840 x 2160 (UHD)
Photo Resolution
12 M
Drone
Size
18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
Weight
≈5.7 kg
Max Depth
490 ft (150 m)
Max Speed
4 Knots (2 m/s)
Runtime
Up to 4 hours
Battery
300 Wh
Working Temperature
-10℃~45℃
Control Console
Size
19" x 14.8" x 7" (484 x 375 x 178 mm)
Weight
8 kg
Dispaly
1920 x 1080, 1000 cd/m2
Working Temperature
-10 ℃ ~ 45 ℃
Power Supply
21.6 V
Interface
RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1, AC output to ROV x 1
Camera
CMOS
1/2.3 inch
Lens
F1.8
Focus
1m
ISO Range
100-6400
FOV
152°
Max Resolution
12 Meg pixel
Format
JPEG/DNG
Video
UHD: 3840*2160 (4K) 30fpsFHD: 1920*1080 (1080p) 30/60/120fps
Slow Motion
720p: 8x (240 fps)1080p: 4x (120 fps)
Time Lapse
4K / 1080p supported
Video Bitrats
60 M
Video Format
MP4
SD Card
128 G
Remote Controller
Size
6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
Weight
685 g
Battery
2500 mAh
Runtime
≥ 6 hours (depending on the environment)
Wireless
Wi-Fi supported
HDMI
Support
Handle Spring
Maximum support 10 inch
Sensor
IMU
3 axis gyro & accelerometer & compass
Depth Sensor
< ± 0.25 m
Temperature Sensor
< ± 2 ℃
Charger
Power
2.9A / 25.2V
ROV Charging Time
4.5 H
RC Charging Time
2 H
LED
Brightness
2 x 2000 Lumens
Color Temperature
5000 K - 5500 K
CRI
85
Dimming
Three gears
In The Box
Drone (Excl Battery) ×1
Remote Controller ×1
GoPro Mounting Base ×1
Power Cord ＆ 3 in 1 Charger ×1
Carrying Case ×1
Type-C to Type-C Data Cable ×1
Type-C to Lighting Data Cable ×1
Type-C to Micro-USB Data Cable ×1
Sun Shade ×1
M3X8 Screws ×4
Support Documents ×4
O-rings ×18
Towel×1
Shorebase Power Supply System with 200m Tether x1
Floodlight 2 ×1
CHASING E-Reel is easy to use, it can retract the tether within 3-9 minutes, and can be used more than 30 times on a single charge. Let you get rid of the trouble of manual winding and enjoy the underwater exploration.
Product Description
CHASING E-Reel
CHASING E-Reel is easy to use, it can retract the tether within 3-9 minutes, and can be used more than 30 times on a single charge. Let you get rid of the trouble of manual winding and enjoy the underwater exploration.
Anti-blast Automatic Wiring Design
The E-Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-blast technology. It can ensure automatic wiring smooth, and has good explosion-proof wire effet.
200 Meters Cable, 200 Seconds Take-Up
The E-Reel supports up to 200 meters tether, take-up speed three gears adjustable. The fastest take-up time is 200 seconds. Hands free, Let you get rid of the trouble of manual winding and better enjoy the underwater exploration.
IP65 Waterproof
Waterproofing is added to the structure, and the comprehensive waterproofing grade reaches IP65, which can prevent water splashing. Users can use it safely on the shore or on the ship.
4800mAh Large Capacity Battery
The E-Reel is equipped with 4800mAh large capacity battery, which is higher than the battery life level of the industry. The frequency of power discharge is up to 30 times in full power state. E-Reel also supports manual retracting and unwinding.
Replaceable Cable
Users can replace 50 meters, 100 meters or 200 meters tether as needed and use with CHASING M2 or GLADIUS MINI.
Product Specifications
Size: 280 x 150 x 270 mm/span>
Weight: 2.9 kg
Max Storage Length: 200 meters
Battery Capacity: 4800 mAh
Number of Cycles: > 300 times
Runtime: 30 times
Winding Speed: 3 gears
Take-Up Speed (200m): Fast speed 200s / Low speed 9min
Operating Temperature: -10℃~45℃
Charger Power: 25.2V 1.5A / 2.9A
Charging Time: 2H (2.9A) / 3.5H (1.5A)
In The Box
E-Reel × 1
Handle × 1
Charger × 1
3 Meters Tether × 1
Note: Excludes Main 100 or 200 meter tether.
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Availability: In Stock
Product Description
CHASING Reel
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Anti-blast Automatic Wiring Design
The CHASING Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-blast technology. It can ensure automatic wiring smooth, and has good explosion-proof wire effet.
IP65 Waterproof
Waterproofing is added to the structure, and the comprehensive waterproofing grade reaches IP65, which can prevent water splashing. Users can use it safely on the shore or on the ship.
Replaceable Cable
Users can replace 50 meters, 100 meters or 200 meters tether as needed and use with GLADIUS MINI, GLADIUS MINI S, CHASING M2 or CHASING M2 PRO.
Specifications
Size:296*189*279 mm
Weight:2.56 kg
Max Storage Length:200 meters
Waterproof Grade:IP65
CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads.
Product Description
CHASING Grabber Arm 2
CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads.
Solve Multiple Difficult Underwater Work
With grabbing force of 7kg and an adjustable opening and closing distance of up to 170mm, the grabber arm can easily achieve underwater clamping, dragging, sampling and other difficult operations with different tool heads.
10° Elevation Design for Better Vision Experience
10° elevation design brings you perfect vision experience to better operate the grabber arm.
Aluminum Alloy Material, Small and Easy to Install
Aluminum alloy arm body and high reliable sealing connector. Small, portable and easy to install.
Two-Jaw Clamp
Max Opening170 mm
Max Grabbing Force7 kg
Body Weight446 g
Clamp Weight76 g
Max Diving Depth100 m
Body Size380 x 35 x 35 mm
Clamp Size125 x 53 x 22 mm
Circular Claw
Max Opening170 mm
Max Grabbing Force7 kg
Circular Claw Weight98 g
Max Diving Depth100 m
Circular Claw Size113 x 71 x 22 mm
Sediment Sampler
Max Opening170 mm
Max Grabbing Force7 kg
Sediment Sampler Weight325 g
Max Diving Depth100 m
Sediment Sampler Size178 x 120 x 85 mm
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
Product Description
CHASING Robot Arm
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
3kg Clamping Force, 12kg Drag Force
With maximum 3kg clamping force and 12kg drag force, the robot arm can easily complete underwater operations.
Smooth Experience and Powerful Functions
With a 120mm opening and closing distance and a 1.5-second single opening and closing time, the robot arm operates smoothly and can grab a variety of items.
Aluminum Alloy Material, Compact Size
Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.
Product Specifications
Size: 460 x 33.5 mm
Weight: 370g
Weight in Water: 50g
Max Grasping Force: 3kg
Max Drag Force: 12kg
Opening and Closing Distance: 120mm
Max Depth: 100 meters
Single Opening / Closing Time: 1.5s
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Product Description

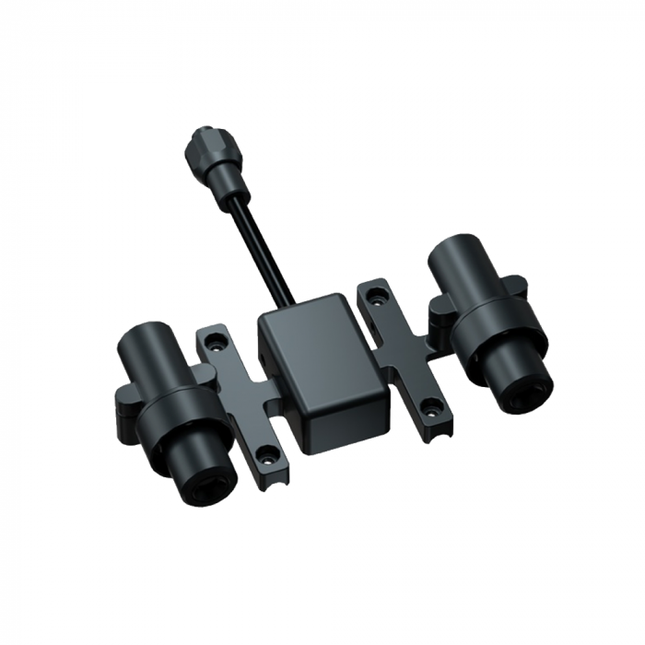

CHASING Laser Scaler
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Quickly Complete Underwater Range-Finding
CHASING Laser Scaler can quickly measure the size and distance of underwater objects, cracks, and so on, thereby reducing the risk and cost of manual operations.
Specifications
Size132x70x36.5 mm
Weight≈190 g
Working Temperature-10 ℃ - 45 ℃
Beam Exit Diameter3-5 mm
Laser Spacing10±0.5 cm
Laser ColorRed
Multi-interface Docking Station
The multi-interface docking station is an exclusive advanced accessory custom-developed for CHASING M2 PRO ROV. It enables that multiple accessories can be mounted on the ROV at the same time, meeting the needs of different scenarios.
Product Description

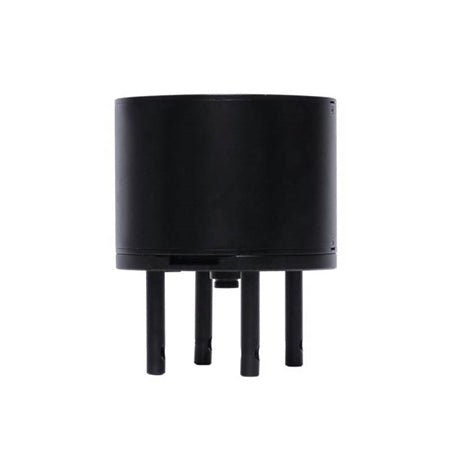

Multi-interface Docking Station
The multi-interface docking station is an exclusive advanced accessory custom-developed for CHASING M2 PRO ROV. It enables that multiple accessories can be mounted on the ROV at the same time, meeting the needs of different scenarios.
7-Interfaces-layout Supports Simultaneous Mounting of Multiple Accessories
The docking station with 7-interface design can be used to expand advanced accessories such as AC power supply system, auxiliary cameras, laser scaler, multi-beam sonar, USBL positioning system, floodlight and other advanced accessories to meet your needs for simultaneous use of multiple accessories.
General interface（Floodlight/USBL/ Laser scaler）Tether socket / AC power tether socketMultibeam sonar interfaceAuxiliary camera interface
Fixed Collocation, Combined Use
The three accessories of USBL positioning system, multibeam sonar, and auxiliary camera must be used together with the docking station to work on the ROV.
USBL positioning systemMultibeam sonarAuxiliary camera
Multi-interface Docking Station Specifications
Size:120*157 mm
Weight:≈1050g (in the air)
Power Supply:Output 16V
Interface:UART*3, RJ45*2
CHASING Distance Lock Sonar
CHASING Distance Lock Sonar is specially designed for CHASING M2 and CHASIGN M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.
Product Description
CHASING Distance Lock Sonar
CHASING Distance Lock Sonar is specially designed for CHASING M2 and CHASIGN M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.
Lock the Distance in Four Directions Separately
The sonar can automatically calculate the distance between it and the obstacles in the front, left, right, and bottom of the ROV. After setting the distance to the obstacles on the App, ROV can perform automatic lock-distance inspection and automatic collision avoidance.
Efficient Automatic Inspection
In the lock-distance mode, the ROV can automatically inspect from top to bottom around the fishing nets or any column-shaped facilities, thereby reducing the difficulty of underwater operations and making various inspections more accurate and efficient.
Specifications
ApplicationUnderwater collision avoidance and Underwater fixed range
Range0.25m - 5m
Blind SpotLess than 20 cm
Measurement Accuracy±25mm
Resolution1 mm
Launch Angle13° ± 2°, 26° between axis-1 and axis-2
Power Supply 10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage)
Storage Temperature -20 ℃ - 60 ℃ (non-frozen environment)
Probe InstallationFixed installation
Protection LevelIP68
Sonar Installation Base (default)64 × 64.8 × 79mm
Sonar Installation Base (optional)64 × 64.8 × 153mm
Sonar Installation Base Weight (default)54g
Sonar Installation Base Weight (optional)108g
Maximum Diving Depth150 m
Size of Distance Lock SonarUpper cover: 81.3 × 30mm, Housing: 79.3 × 55.9mm
Weight of Distance Lock Sonar286 ± 5 g
CommunicationTTL communication
CHASING Adapter Box is a adapter device for the AC power supply system and the USBL underwater positioning system. It is used to convert AC and receive sonar signals from the USBL, allowing the ROV to achieve unlimited battery life and positioning functions.
Product Description
CHASING Adapter Box
CHASING Adapter Box is a adapter device for the AC power supply system and the USBL underwater positioning system. It is used to convert AC and receive sonar signals from the USBL, allowing the ROV to achieve unlimited battery life and positioning functions.
Convert AC and Sonar Signals
After connecting to the AC power supply system and the USBL underwater positioning system, CHASING Adapter Box can convert AC and sonar signals into forms usable by the ROV to achieve unlimited battery life and positioning functions.
AC
USBL
Battery Life up to 5 Hours
CHASING Adapter Box has a built-in 4800 mAh lithium battery with a battery life of up to 5 hours. When the AC power supply system is working, it can continuously replenish power for CHASING Adapter Box.
Small Size and Easy to Carry
CHASING Adapter Box's dimensions are 340 x 282 x 133 mm, and it weighs only 1.5 kg. The device's small size makes it easy to carry.
Specifications
Size340×282×133 mm
Weight3.3 kg
Battery LifeUp to 5 hours
Charging Time2 hours
Battery4800 mAh
Network PortRJ45*1
USBLUSBL*1
AC InputAC Intput*1
AC OutputAC Output*1
CHASING Control Console
CHASING Control Console is a professional underwater drone control platform designed for high-end professional users. It is used to control the ROV, USV, AC Power, USBL, Grabber Claw, Multibeam Sonar, External Light and other professional accessories, and its ergonomic design makes underwater work more professional and convenient.
Product Description
CHASING Control Console
CHASING Control Console is a professional underwater drone control platform designed for high-end professional users. It is used to control the ROV, USV, AC Power, USBL, Grabber Claw, Multibeam Sonar, External Light and other professional accessories, and its ergonomic design makes underwater work more professional and convenient.
Viewable in Direct Sunlight
The control console has a 13-inch 1000cd/m2 high-brightness display, which makes the images on the screen clear and viewable under sunlight.
Ergonomic Design Improves the Control Experience
The console is equipped with a variety of switches, buttons, and interfaces, with four height-adjustable brackets, which can be adapted to various complex terrains to bring you a more professional and relaxed working experience.
Foldable Suitcase Shape, Easy to Carry
Its exterior is designed with two rollers similar to those of a suitcase, and it is easy to carry after folding. The aluminum alloy material is more sturdy and durable.
Specifications
Size:19" x 14.8" x 7" (484 x 375 x 178 mm)
Weight:11 kg
Working Temperature:-10℃~45℃
Screen Size:13.3 Inch
Resolution:1920×1080
Display Brightness:1000 cd/㎡
Interface:RJ45 × 2 , USB 2.0 Host × 2 , QC 3.0 USB × 1
AC Input:200 V ~ 240 V
AC Output:220V
Runtime:8 hours
Battery:226.8 Wh
Charge Time:4.5 Hours with 3A Charger
The CHASING AC POWER SYSTEM is an exclusive advanced accessory for the CHASING M2 PRO underwater ROV. When used with the CHASING Control Console, it enables the ROV to support a mixture of AC power and battery power to achieve unlimited runtime.
Availability: Call for ETA
Product Description

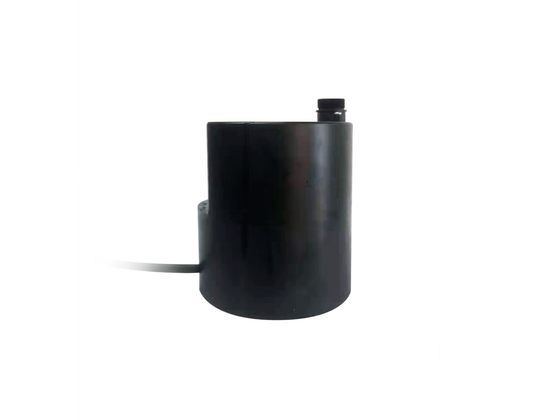

CHASING AC Power System
The CHASING AC POWER SYSTEM is an exclusive advanced accessory for the CHASING M2 PRO underwater ROV. When used with the CHASING Control Console, it enables the ROV to support a mixture of AC power and battery power to achieve unlimited runtime.
Use with Control Console to Achieve Unlimited Battery Life
After connecting the AC power supply to the control console and connecting the control console to the AC power supply module via an AC cable, the system will continuously supply power to the underwater ROV to achieve unlimited working hours.
4-core AC Cable in Either 100m/200m Lengths
The 4-core AC cable provides communication and power supply capabilities for the underwater ROV up to a maximum of 200 meters.
Manual Winder for Easy Cable Management
The AC power supply system is equipped with a winder to facilitate cable management and put an end to the troubles of winding.
Specifications
Size:118*148.5mm
Weight:≈1200g
In-out:Input AC200-240V, Output DC25.2V 10A
Power:250W
Cable length:100 meters
Wire diameter:6.5mm
Core wire:Silver-coated copper 27AWG*2 + 25AWG*2
The CHASING AC POWER SYSTEM is an exclusive advanced accessory for the CHASING M2 PRO underwater ROV. When used with the CHASING Control Console, it enables the ROV to support a mixture of AC power and battery power to achieve unlimited runtime.
Availability: Call for ETA
Product Description
CHASING AC Power System
The CHASING AC POWER SYSTEM is an exclusive advanced accessory for the CHASING M2 PRO underwater ROV. When used with the CHASING Control Console, it enables the ROV to support a mixture of AC power and battery power to achieve unlimited runtime.
Use with Control Console to Achieve Unlimited Battery Life
After connecting the AC power supply to the control console and connecting the control console to the AC power supply module via an AC cable, the system will continuously supply power to the underwater ROV to achieve unlimited working hours.
4-core AC Cable in Either 100m/200m Lengths
The 4-core AC cable provides communication and power supply capabilities for the underwater ROV up to a maximum of 200 meters.
Manual Winder for Easy Cable Management
The AC power supply system is equipped with a winder to facilitate cable management and put an end to the troubles of winding.
Specifications
Size:118*148.5mm
Weight:≈1200g
In-out:Input AC200-240V, Output DC25.2V 10A
Power:250W
Cable length: 200 meters
Wire diameter:6.5mm
Core wire:Silver-coated copper 27AWG*2 + 25AWG*2
CHASING M2 PRO Battery
The large-capacity lithium battery of Chasing M2 PRO is removable and can be charged independently. Multiple batteries are used by turns, which can greatly extend underwater working time.
300Wh Battery
Battery Capacity: 14AH
Diameter: 120mm
Length: 290mm
Weight: 2550g
Runtime: Up to 3 hours
High-Brightness Touch Scree
CHASING Waterproof Remote Controller with Screen is provided with a 7-inch touch screen with a brightness maximally up to 700nit.
5-Point Industrial Touch Design
The touch screen adopts 5-point industrial touch design, which is easy to operate and responsive. The remote controller is equipped with a light shield, making the screen still clear under the direct sunlight.
IP65 Waterproof Rating
CHASING Waterproof Remote Controller with Screen has IP65 waterproof rating, sustainable in short-light rain, moderate rain, and seawater splash causing by waves.
Multiple Uncomplicated Shortcut Keys to Achieve Human-Computer Integration
The remote controller has 6 uncomplicated shortcut keys. The new spring-based control sticks are used with screen-side keys and wavy wheel to flexibly adjust the floodlight brightness, complete underwater motions, switch the photo/video mode, and perform other shortcut actions. The multi-functional key is used to switch the right lever to control the ROV horizontal rolling angle / the grabber arm to achieve human-machine integration and smooth operation.
6 Commonly Used Ports, Satisfying Various Requirement
In addition to the ROV connection port, the remote controller is also equipped with 1 network port (used for network cable connection or connection to two remote controllers through the network port to enter the "Observer Mode"), 1 USB-C port (used to charge the remote controller), 2 USB ports (used to insert a USB flash drive and connect a mobile phone for data transmission), and 1 HDMI port (used to connect an external display screen).
Extreme Temperature Endurance
CHASING Waterproof Remote Controller with Screen maintains stable performance at -10℃ to 55℃ environment.
Intelligent and Energy-Saving
Equipped with intelligent high temperature warning interface, which will give a prompt warning if the controller is overheating in case of outdoor service to ensure the best user experience. You can choose the energy-saving mode, the controller will automatically shut down after 5 minutes of standby.
Ultra-Long Battery Life
CHASING Waterproof Remote Controller with Screen, has a built-in 7000mAh battery, can work continuously for about 5 hours at 20℃-25℃ at full load.
3 Modes of Connection, Multiple Entertainment Function
The remote controller supports three connection methods: WIFI, external mobile network card and wired network. It can not only complete work tasks, but also can be used as a tablet computer - listening to music, watching movies, etc., without interference from complex signal environments, and keeping the transmitted data confidential.
Specifications
Basic Parameters
External Dimension
292×156×79mm (without light shield)
Total Weight
1.3kg
Display
7.02 inches, 700cd/m², 1920×1200
Touch Screen
5-point industrial touch
I/O Interface
USB2.0×2, Ethernet port, Type-C, HDMI, ROV port
Remote-control Lever, Key Type and Quantity
Single-shaft leverx3, dual-shaft hall control stickx2, key switchx6
Applicable Adapter Specification
Output: 5.0V 3.0A 15.0W/9V 3A/15V 3A/20.0V 3.25A
What’s in the Box
Remote controller
×1
Light shield of remote controller
×1
USB-C to USB-C connector data cable
×1
USB-A to USB-C connector data cable
×1
HDMI socket cover
×1
Network interface socket cover
×2
ROV socket cover
×1
USB socket cover
×2
Document package
×1

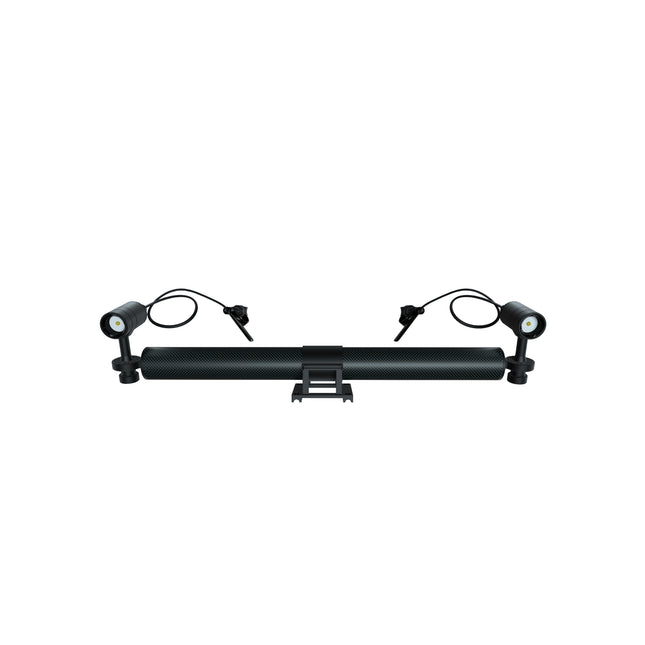

CHASING Floodlight 2
CHASING Floodlight 2 is an accessory specially engineered and developed for the CHASING underwater drones. The external illumination has adjustable beam angles ranging from 0° to 360°, significantly decreasing the visual interference of floating debris reflection.
0° - 360° Adjustable Beam Angle
Dual lamp sources allow the adjustment from 0° to 360° horizontal beam angles, adjustment spacing is 15°, meeting various needs of underwater applications with maximized illumination area.
External Illumination, Minimized Visual Interference of Floating Debris
The external illumination can minimize the visual interference of floating debris and significantly increase the image quality.
Aircraft-Grade Aluminium & Carbon Fiber, Lightweight & Corrosion-Resistant
The HA III Military grade hard-anodized surface makes CHASING Floodlight 2 lightweight, corrosion-resistant and perfectly working at 150m deep water. The slim-shaped unit only weighs 432g (15.3oz), which is easy to carry and store.
Specifications
Floodlight
Dimensions
418mm
Weight
≈432g
Angle of Depression
-10°
Horizontal Angle
360° adjustable
Pressure Resistance Depth
150m
Brightness
2 x 2000lm
What’s in the Box
Floodlight
×1
Brass separator
×4
M3x8 screws
×8
