Most versatile professional 3-axis stabilization system
Monocoque carbon fiber frame design
High torque motors supporting cameras up to 30 lbs
Fine tune balancing for precision control
Self-heating hot-swappable batteries
On-board power for camera and accessories
Integrated camera controls
Built-in GPS & compatible with DJI A3 Flight Controller
Availability: Special Order
Product Description
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Operation Modes:Underslung ModeUpright ModeBriefcase ModeHandheld, Car Mount, Aerial & Tripod Mode
Axis Modes:3-axisPan-LockRoll-360 (enabled through firmware update)
BUILT-IN FUNCTIONS
Built-in, independent IMU moduleDJI Advanced 32-Bit ARM ProcessorDJI Specialized Gimbal Drive Motors with EncodersDual Battery SystemBluetooth ModuleD-Bus Receiver Supported2.4 GHz/5.8 GHz ReceiverTemperature SensorsBuilt-in Touch PanelBuilt-in GPSUSB Type-C ConnectionPower and Video Signal through Slip Ring
MECHANICAL AND ELECTRICAL CHARACTERISTICS
Working Current Static current: 300 mA (@22.8 V)Dynamic current: 500 mA (@22.8 V)Locked motor current: Max 15 A (@22.8 V)Run Time: 8 hours2.5 hours (when powering gimbal, camera and accessories at the same time)Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)Weight Including handle bar: 14 lb (6.4 kg)Excluding handle bar: 11 lb (5.0 kg)Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)
PERIPHERAL
Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 245 mmMaximum height measured from top of the camera base plate: 165 mmMaximum width: 180 mmAccessory Power Connections: 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)GCU Input Power Intelligent Battery: 4280 mAh-22.8 VConnections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-CPC Assistant Software Requirements: Windows 7 or above; Mac OS X 10.11 or aboveMobile Assistant Software Requirements: iOS 9 or above; Android 4.4 or above
WORKING PERFORMANCE
Load Weight: (Reference Value) 30 lbs (13.6 kg)Angular Vibration Range: ± 0.02°Maximum Controlled Rotation Speed Pan axis: 360°/sTilt axis: 360°/sRoll axis: 360°/sMechanical Endpoint Range Pan axis control: 360° continuous rotationTilt axis control: ±135°Roll axis control: ±220°Controlled Rotation Range Pan axis control: 360° continuous rotationTilt axis control: ±135°Roll axis control: ±30°
Warranty
WARRANTY DETAILS
Gimbal Mechanics: 12 MonthsGimbal Motors: 6 MonthsRemote Controller: 12 MonthsSmart Battery: 3 MonthsBattery Charger: 6 MonthsThumb Controller: 12 Months
In The Box
IN THE BOX
Ronin 2 Gimbal x 1Grip x 1 Remote Controller x 1TB50 Intelligent Battery x 2Dual TB50 Battery Mount x 1Battery Charger x 1Quad Charging Hub x 1Battery Charger Power Cable x 1Ronin 2 Power Hub x 1Camera Top Cross Bar x 1Camera Base Plate x 1Accessory Mount x 115mm Rod x 215mm Focus Rod Mount x 1Ronin 2 Universal Mount x 1Top Mounting Block x 1Motion Block x 1Water Tight Protective Case x 1ARRI Alexa Mini Power Cable x 1ARRI Alexa Mini Start/Stop Cable x 1RED Power Cable x 1RED RCP Control Cable x 1Ronin 2 Power Cable x 12-pin Power Cable x 1DC Power Cable x 1Triple P-TAP breakout box x 1SDI IN Cable x 1SDI OUT Cable x 1USB Type-C Data Cable x 1UART to D-BUS Cable x 1Hex Tool x 1
Audio adapter that supports external 3.5mm microphone for higher quality recording.
Product Description
The 3.5mm Adapter allows the user to plug in an external 3.5mm microphone into Osmo Pocket for higher-quality sound recording.
It's recommended to use audio-technica atr-6550, Rode VideoMic Pro, Rode VideoMicro, Azden sgm-990, Sennheiser MKE400, Sony ecm-ds70p, DJI fm-15 FlexiMic and other mainstream brands with 3.5mm microphones.
COMPATIBILITY
Osmo Pocket
Capture everything up close or from a distance in true living colour. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
Product Description
All the Sensors You Need - In One
Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
Zoom Camera
VISUAL SENSOR
LASER RANGE FINDER
INGRESS PROTECTION
20 MP
12 MP
3m - 1200m
Level IP44
"H" FOR HYBRID
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
ALL-IN-ONE
INTELLIGENT WAYS TO COLLECT DATA
AI SPOT-CHECK
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
HIGH-RES GRID PHOTO
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
APPLICATION
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Weight: Zenmuse H20: 678±5 gDimensions: Zenmuse H20: 150×114×151 mmIngress Protection Rating: IP44Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)Storage Temperature: -20° to 60° CLaser Safety: Class 1M (IEC 60825-1:2014)Supported Aircraft: Matrice 300 RTK
GIMBAL
Angular Vibration Range: ±0.01°Mount: DetachableControllable RangePitch: -120° to +30°Yaw: ±320°Mechanical RangePitch: -132.5° to +42.5°Yaw: ±330°Roll: -90° to +60°
ZOOM CAMERA
Sensor: 1/1.7" CMOS, 20 MPLensDFOV: 66.6°-4°Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)Focus Mode: MF/AF-C/AF-SExposure Mode: Auto, ManualExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedElectronic Shutter Speed: 1 ~ 1/8000 sISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution3840x2160@30fps, 1920x1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 5184 × 3888Photo Format: JPEG
WIDE CAMERA
Sensor: 1/2.3" CMOS, 12 MPLensDFOV: 82.9°Focal length: 4.5 mm (equivalent: 24 mm)Aperture: f/2.8Focus: 1 m to ∞Exposure Mode: AutoExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedShutter Speed: 1 ~ 1/8000ISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution: 1920×1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 4056 x 3040Photo Format: JPEG
LASER RANGEFINDER
Wavelength: 905 nmMeasurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)Measurement accuracy± (0.2 m + D×0.15%)D is the distance to a vertical surface
FEATURES
Hybrid Optical Zoom: 23×Max. Zoom: 200×One-Click CaptureOne-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneouslyPoint to AimDouble click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interestHigh-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.Night Scene: Supported (zoom camera)Timestamp: Including GPS, date, and time
STORAGE
Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)Recommended Micro SD CardsTOSHIBA EXCERIA PRO 32GB micro SD HC IISanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC ITOSHIBA EXCERIA PRO 64GB micro SD XC IISanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC ISAMSUNG_EVO_128GB_micro SD 3 XC ITOSHIBA EXCERIA M303E 32GB micro SD HC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303 128GB micro SD XC ISAMSUNG_EVO_64GB_micro SD 3 XC I
In The Box
IN THE BOX
Gimbal and Camera x 1
Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
Product Description
All the Sensors You Need - In One
Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
THERMAL SENSITIVITY
VISUAL SENSOR
LASER RANGE FINDER
INGRESS PROTECTION
< 50 MK
12 MP
3m - 1200m
Level IP44
ALL-IN-ONE
INTELLIGENT WAYS TO COLLECT DATA
AI SPOT-CHECK
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
HIGH-RES GRID PHOTO
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
VISUALIZE TEMPERATURES IMMEDIATELY
INTELLIGENT FEATURES
TEMP ALARM
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
COLOUR PALETTES
Adjust the colours applied to the thermal data based on the needs of specific scenarios.
R-JPEG IMAGES
Images captured by the Zenmuse H20T are in the R-Jpeg format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
ISOTHERMS
Visualize a specific band of temperatures to find what is important.
GAIN MODES
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences: Low Gain Mode covers a wider temperature range.
APPLICATION
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Weight: Zenmuse H20T: 828±5 gDimensions: Zenmuse H20T: 167×135×161 mmIngress Protection Rating: IP44Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)Storage Temperature: -20° to 60° CLaser Safety: Class 1M (IEC 60825-1:2014)Supported Aircraft: Matrice 300 RTK
GIMBAL
Angular Vibration Range: ±0.01°Mount: DetachableControllable RangePitch: -120° to +30°Yaw: ±320°Mechanical RangePitch: -132.5° to +42.5°Yaw: ±330°Roll: -90° to +60°
ZOOM CAMERA
Sensor: 1/1.7" CMOS, 20 MPLensDFOV: 66.6°-4°Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)Focus Mode: MF/AF-C/AF-SExposure Mode: Auto, ManualExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedElectronic Shutter Speed: 1 ~ 1/8000 sISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution3840x2160@30fps, 1920x1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 5184 × 3888Photo Format: JPEG
WIDE CAMERA
Sensor: 1/2.3" CMOS, 12 MPLensDFOV: 82.9°Focal length: 4.5 mm (equivalent: 24 mm)Aperture: f/2.8Focus: 1 m to ∞Exposure Mode: AutoExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedShutter Speed: 1 ~ 1/8000ISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution: 1920×1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 4056 x 3040Photo Format: JPEG
THERMAL CAMERA
Sensor: Uncooled VOx MicrobolometerLensDFOV: 40.6°Focal length: 13.5 mm (equivalent: 58 mm)Aperture: f/1.0Focus: 5 m to ∞Digital Zoom: 1x, 2x, 4x, 8xVideo Resolution: 640×512 @ 30 HzVideo Format: MP4Image Resolution: 640×512Image Format: R-JPEG (16 bit)Pixel Pitch: 12 μmSpectral Band: 8-14 μmSensitivity (NETD): ≤50 mK @ f/1.0Temperature Measurement Method: Spot Meter, Area MeasurementScene Range-40 °C to 150 °C (High Gain)-40 °C to 550 °C (Low Gain)Temperature alert: SupportedFFC: Auto/ manualPalette: White-hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
LASER RANGEFINDER
Wavelength: 905 nmMeasurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)Measurement accuracy± (0.2 m + D×0.15%)D is the distance to a vertical surface
FEATURES
Hybrid Optical Zoom: 23×Max. Zoom: 200×One-Click CaptureOne-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneouslyPoint to AimDouble click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interestHigh-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.Night Scene: Supported (zoom camera)Timestamp: Including GPS, date, and time
STORAGE
Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)Recommended Micro SD CardsTOSHIBA EXCERIA PRO 32GB micro SD HC IISanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC ITOSHIBA EXCERIA PRO 64GB micro SD XC IISanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC ISAMSUNG_EVO_128GB_micro SD 3 XC ITOSHIBA EXCERIA M303E 32GB micro SD HC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303 128GB micro SD XC ISAMSUNG_EVO_64GB_micro SD 3 XC I
In The Box
IN THE BOX
Gimbal and Camera x 1
DJI DL/DL-S Lenses are professional prime lenses specially designed for aerial photography. Featured light-weighting carbon fiber casing, those lenses are able to reduce the payload of the gimbal and camera, improving the stability when shooting. With the DJI DL mount (diameter: 58mm), the lenses can be mounted onto Zenmuse X7, providing varying focal lengths. When used with Zenmuse X7, the focal length multiplier is 1.5 when taking stills.
COMPATIBILITY
Zenmuse X7
Zenmuse X9
Product Specifications
Focal Length: 24mm 35mm Equivalent: 36mmAperture Range: f2.8 - f16Weight (balancing ring and lens hood included): Approx 178g Filter Diameter: 46 mm
DJI DL/DL-S Lenses are professional prime lenses specially designed for aerial photography. Featured light-weighting carbon fiber casing, those lenses are able to reduce the payload of the gimbal and camera, improving the stability when shooting. With the DJI DL mount (diameter: 58mm), the lenses can be mounted onto Zenmuse X7, providing varying focal lengths. When used with Zenmuse X7, the focal length multiplier is 1.5 when taking stills.
COMPATIBILITY
Zenmuse X7
Zenmuse X9
Product Specifications
Focal Length: 35 mm 35mm Equivalent: 53 mmAperture Range: f2.8 - f16Weight (balancing ring and lens hood included): Approx 179g Filter Diameter: 46 mm
DJI DL/DL-S Lenses are professional prime lenses specially designed for aerial photography. Featured light-weighting carbon fiber casing, those lenses are able to reduce the payload of the gimbal and camera, improving the stability when shooting. With the DJI DL mount (diameter: 58mm), the lenses can be mounted onto Zenmuse X7, providing varying focal lengths. When used with Zenmuse X7, the focal length multiplier is 1.5 when taking stills.
COMPATIBILITY
Zenmuse X7Zenmuse X9
Product Specifications
Focal Length: 50mm 35mm Equivalent: 75mmAperture Range: f2.8 - f16Weight (balancing ring and lens hood included): Approx 182g Filter Diameter: 46 mm

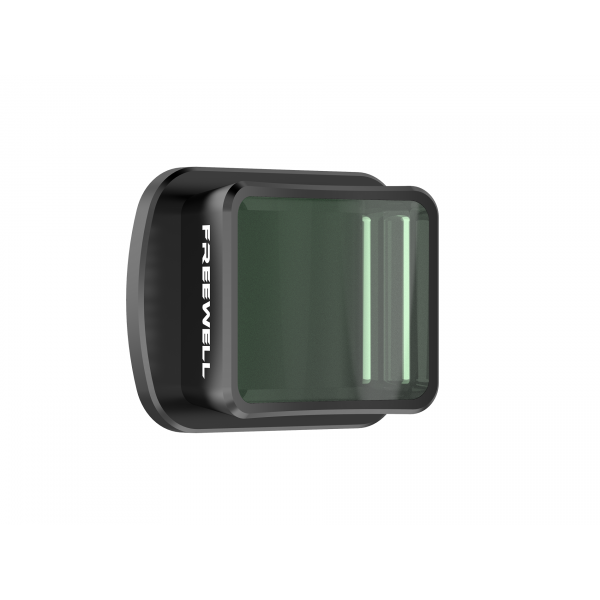

- Create the cinema looking footage.
- Made of optical glass with CNC GimbalSafe technology Frame.
- Adds wider screen with black bars on top & bottom
Availability: In Stock
Product Description
- Create the cinema looking footage.
- Made of optical glass with CNC GimbalSafe technology Frame.
- Adds wider screen with black bars on top & bottom
Professional-level results are effortless with DJI RSC 2. This compact stabilizer for mirrorless and DSLR cameras features a foldable design and intuitive features, empowering filmmakers, one-man crews, and content creators everywhere.
Product Description
FOLDABLE, COMPACT, AMAZING
DJI RSC 2’s foldable design means easy transportation and storage, along with expanded shooting options.Get creative with RSC 2’s six configurations, delivering versatility that simplifies even the most complex shots.When folded, RSC 2 is just 7 × 7.5 inches, making it as portable as it is powerful.
COMPATIBLE WITH DSLR AND MIRRORLESS CAMERAS
https://www.dji.com/nz/support/compatibility
TITAN: DJI STABILIZATION EVOLVED
No one makes camera stabilizers like DJI. Our Titan Stabilization Algorithm captures smoother footage than ever. Need more? SuperSmooth mode compensates for micromovements and increases torque, stabilizing even 100mm zoom lenses.
FEEL THE FOCUS
The Front Dial offers precise focusing in any scenario and single-handed operation.
DUAL-LAYER CAMERA MOUNTING PLATE (MANFROTTO + ARCA)
The Manfrotto + Arca dual-layer camera mounting plate is compatible with popular brands.Switch to portrait mode with just a tap to bring professional-grade footage to your social media content.
HANDLE ANY SHOT
Dual HandleGet maximum control for shots that demand it.
Hand GripUse as a tripod and also as a grip extension.
NATOCan be used for a briefcase handle and various other accessories.
1/4-20" with ARRI Positioning HolesProvides more possibilities when using RSC 2 in a folded configuration.
Built-In OLED ScreenA 1-inch built-in OLED screen gives you complete control, right at your fingertips.
BatteryCharge less and shoot longer thanks to RSC 2’s advanced battery, which provides a 14-hour runtime and supports fast charging.
MORE WAYS TO CREATE
TimelapseCapture the passage of time with a steady frame.
Roll 360Spin your camera for a rolling shot.
Panorama With a steady pan from the gimbal, create gigapixel panoramas from your camera.
Lightweight Carrying CaseThis redesigned carrying case has a splash-proof body with dedicated compartments for all RSC 2 parts.
Highlights
1.2kg Weight / 3kg Tested Payload 1'' OLED Screen Max 14hr Fast-Charge BatteriesQuick Switch to Vertical Shooting Titan Stabilization Algorithm Foldable Design
Product Specifications
PRODUCT SPECIFICATIONS
PERIPHERAL
Accessory Connections
NATO portM4 Mounting Hole1/4”-20 Mounting HoleCold Shoe MountVideo Transmission/ Follow Focus Motor Port (USB-C)RSS Camera Control Port (USB-C)
Follow Focus Motor Port (USB-C)
Battery
Model: RB2-3400mAh -7.2 VType: 18650 2SCapacity: 3400mAhEnergy: 24.48 WhMax Battery Life: 14 hoursCharging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)Charging temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.0; USB-C
Ronin App Requirements
iOS 11 or above;Android 7.0 or above
WORKING PERFORMANCE
Load Weight (Reference Value)
3.0 kg (Handheld)
Maximum Controlled Rotation Speed
Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Range
Pan axis: 360° continuous rotation
Roll axis: -240° to +95°
Tilt axis: -112° to +214°
MECHANICAL AND ELECTRICAL CHARACTERISTICS
Operating Frequency
2.4000-2.4835 GHz
Transmission Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)
Quick-Release Plate (Upper/Lower) Approx. 102 g
Extended Grip/Tripod (Metal): Approx. 226 g
Extended Grip/Tripod (Plastic): Approx. 160 g
Gimbal Dimensions
Folded: 260×210×75 mm (including the handle)
Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)
Warranty
WARRANTY DETAILS
Standard warranty
In The Box
IN THE BOX
Carrying Case x 1
Gimbal (Built-In Battery) x 1
USB-C Charging Cable (40 cm) x 1
Lens Support x 1
Extended Grip/Tripod (Metal) x 1
Quick-Release Plate (Arca-Swiss/Manfrotto) x 1
Camera Riser x 1
Phone Holder x 1
Focus Motor x 1
Focus Motor Rod Mount Kit x 1
Focus Gear Strip x 1
Image Transmitter x 1
Cold Shoe to 1/4''-20 Adapter x 1
USB-C Power Cable (20 cm) x 1
Mini-HDMI to HDMI Cable (20 cm) x 1
Mini-HDMI to Mini-HDMI Cable (20 cm) x 1
Mini-HDMI to Micro-HDMI Cable (20 cm) x 1
Multi-Camera Control Cable (USB-C, 30 cm) x 2
Multi-Camera Control Cable (Sony Multi, 30 cm) x 1
Multi-Camera Control Cable (Micro-USB, 30 cm) x 1
Multi-Camera Control Cable (Mini-USB, 30 cm) x 1
Hook-and-Loop Strap x 2
D-Ring Camera Mounting Screw 1/4"-20 x 2
M4 Screw (10 mm) x 6
Allen Wrench (3 mm) x 1
Screw 1/4"-20 x 1
The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
Product Description
Due to be released Q1 2021
The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
Key Features
Accuracy without GCPs: 3cm horizontally/5cm vertically.
High Efficiency 3 km2 covered in a single flight.
45 MP Full-frame Sensor
Smart Oblique Capture
Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
TimeSync 2.0 - synchronization at the microsecond level
Product Specifications
PRODUCT SPECIFICATIONS
Dimensions: 198×166×129 mm
Weight Approx:. 787 g
Power: 13 W
IP Rating: IP4X
Supported Aircraft: Matrice 300 RTK
Operating Temperature Range: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: -20° to 60° C (-4° to 140° F)
Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm *
* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.
CAMERA
Sensor: Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm
Supported Lenses: DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
Supported SD Cards: SD: UHS-1 rating or above; Max capacity: 128 GB
Storage Files: Photo / GNSS Raw Observation Data/ Image Log File
Photo Size: 3:2 (8192×5460)
Operation Modes Capture, Record, Playback
Minimum photo interval: 0.7 s
Shutter Speed: Mechanical Shutter Speed: 1/2000-1/8 s
Electronic Shutter Speed: 1/8000-8 s
Aperture Range: f/2.8-f/16
ISO Range: Photo: 100-25600
Video: 100-3200
VIDEO
Video Format: MP4
Video Resolution: 16:9 (3840×2160)
Frame Rate: 60fps
GIMBAL
Stabilized System: 3-axis (tilt, roll, pan)
Angular Vibration Range: 0.01°
Mount: Detachable DJI SKYPORT
Mechanical Range: Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320

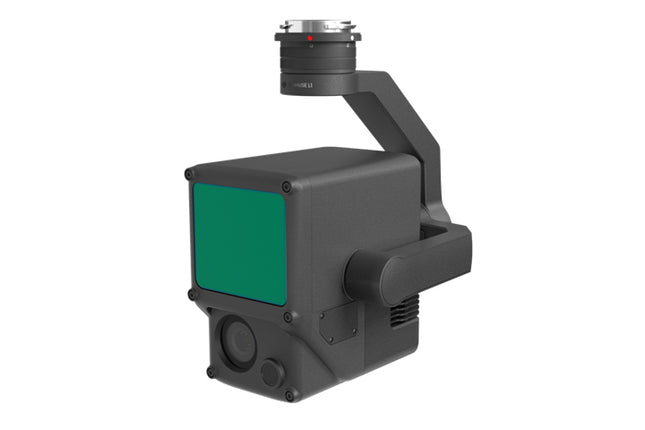

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal.
Product Description
Due to be released Q1 2021
The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.
Key Features
Integrates a Lidar module, an RGB camera, and a high-accuracy IMU
Point Rate: 240,000pts/s
IP44 Ingress Protection Level
High Accuracy: Vertical: 5 cm / Horizontal: 10 cm
Supports 3 Returns
Point Cloud LiveView
High Efficiency 2 km2 covered in a single flight
Detection Range: 450 m (80% reflectivity, 0 klx)
Visualise Data As You Fly
Livox Lidar Module
•Frame Lidar with up to 100% effective point cloud results
•Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
•Point Rate: 240,000 pts/s
•Supports 3 returns
•Line Scan Mode and Non-repetitive Petal Scan Mode
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Dimensions: 152×110×169 mm
Weight Approx: 900 g
Power: 30 W
IP Rating: IP44
Supported Aircraft: Matrice 300 RTK
Operating Temperature Range: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: -20° to 60° C (-4° to 140° F)
SYSTEM PERFORMANCE
Detection Range: 450 m @ 80% reflectivity, 0 klx <br>;190 m @ 10% reflectivity, 100 klx
Point Rate Single return: 240,000 pts/s <br>;Multiple return: 480,000 pts/s
System Accuracy Horizontal: 10 cm @ 50 m <br>;Vertical: 5 cm @ 50 m
Real-time Point Cloud Coloring Modes: True color; coloring by reflectivity; coloring by elevation
LIDAR
Ranging Accuracy: 3 cm @ 100 m
Maximum Returns Supported: 3
Scan Modes: Repetitive line scan mode, non-repetitive petal scan mode
FOV: Repetitive line scan: 70.4°×4.5°<br>； Non-repetitive petal scan: 70.4°×77.2°
Laser Safety: Class 1
INERTIAL NAVIGATION SYSTEM
IMU Update Frequency: 200 Hz
Accelerometer Range: ±8 g
Angular Velocity Meter Range: ±2000 dps
Yaw Accuracy: Real-time: 0.18°, Post-processing: 0.08°
Pitch / Roll Accuracy: Real-time: 0.03°, Post-processing: 0.025°
AUXILIARY POSITIONING VISION SENSOR
Resolution: 1280×960
FOV: 95°
RGB MAPPING CAMERA
Sensor Size: 1 inch
Effective Pixels: 20 MP
Photo Size: 4864×3648 (4:3); 5472×3648 (3:2)
Focal Length: 8.8 mm / 24 mm (Equivalent)
Shutter Speed: Mechanical Shutter Speed: 1/2000 - 8 s / Electronic Shutter Speed: 1/8000 - 8 s
ISO: Video: 100 – 3200 (Auto), 100 – 6400 (Manual)
Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)"
Aperture Range: f/2.8 - f/11
GIMBAL
Stabilized System: 3-axis (tilt, roll, pan)
Angular Vibration Range: 0.01°
Mount: Detachable DJI SKYPORT
Mechanical Range: Tilt: -120° to +30°; Pan: ±320°
Operation Modes: Follow/Free/Re-center
DATA STORAGE
Raw Data Storage: Photo/IMU/Point cloud data storage
Point Cloud Data Storage: Real-time modeling data storage
Supported microSD Cards: microSD: Class 10 or UHS-1 rating or above; Max capacity: 256 GB
POST-PROCESSING SOFTWARE
Supported Software: DJI Terra
Data Format: DJI Terra supports exporting standard format point cloud models:
Point cloud format: PNTS/LAS/PLY/PCD/S3MB format
Reconstruction model format: B3DM/OSGB/PLY/OBJ/S3MB format
Pocket-sized and extremely portable, DJI Pocket 2 is a tiny camera that lets you single-handedly record memorable moments. Equipped to stabilize movement and take sharp photos and smooth videos, Pocket 2 gives you the freedom to create magic at hand.
Product Description
SMALL GIMBAL CAMERA, BIG MOMENTS
DJI Pocket 2 fits perfectly in your hand, bag, or pocket so that you can take it anywhere. When your journey begins or something suddenly catches your eye, Pocket 2 is ready to capture it all.
SINGLE-HANDED CAPTURE
Begin shooting in one second to capture photos and videos at the speed of life.
Glamour EffectsGlamour Effects lets you always share your best selfie. Boasting a 93° angle view, Pocket 2 allows for more flexible capture and perfectly-composed shots for social media.
High-Definition PanoramaGet the whole mountain range with 180° panorama or everyone in a group selfie with a 3×3 panorama. You won’t believe how such a small camera can take such a big shot.
ActiveTrack 3.0No matter how you move, Pocket 2 keeps you and your friends in the shot with ActiveTrack 3.0.
TimelapseTimelapse lets you turn hours into seconds. Motionlapse adds a smooth camera movement. Hyperlapse uses EIS to keep a stable frame as you travel through time. [1]
Story ModeStory mode uses video and music templates to make exciting mini-movies in just a few taps.
AI EditorNot into editing? AI Editor automatically combines your clips with transitions and music to create share-worthy content.
MOTORIZED STABILIZATION
Hollywood-Quality Smoothness
What’s the secret to DJI Pocket 2? A 3-axis gimbal stabilizes the camera for smooth video on the move. This technology is also great for creative photos like handheld long-exposure shots.
IMAGE QUALITY YOU’LL LOVE/LIKE/SUBSCRIBE
1/1.7-Inch Sensor
64MP Photo
4K/60fps Video
Hybrid AF 2.0
We packed the DJI Pocket 2 camera with photo and video abilities that let you create share-worthy content and make moments last forever.
HDR VideoA good life is full of color, so show it all. With HDR video, the Pocket 2 separates exposure levels by area and layers the image so that the footage pops with life-like detail.
8x ZoomIf you’re looking for crazy detail, Pocket 2 is insane. When taking 64MP photos, the stabilized camera takes sharp 8x zoom shots. [3]
INCREDIBLE VIDEO, IMMERSIVE SOUND
DJI Matrix Stereo technology records audio with so much real detail, it lets you relive the scene.
Stereo RecordingFour microphones on the handle provide surround-sound audio, letting you relive the magic.
SoundTrackPocket 2 adjusts the direction of audio enhancement wherever the camera is pointing, so your subject is clearly heard.
Audio ZoomAs the video zooms in, so does the audio, creating a more dynamic soundtrack.
Directional AudioPocket 2 lets you record sound in three distinct sound patterns to suit the scene.
Highlights
Pocket-Sized3-Axis Stabilized CameraActiveTrack 3.0AI EditorExcellent Image QualityDJI Matrix Stereo
Product Specifications
Weight
117 g
Dimensions
124.7×38.1×30 mm
Max. Operation Time
140 min (1080/24fps with camera only)
Operating Temperature Range
0° to 40° (32° to 104° F)
GIMBAL
Mechanical Range
Pan: -250° to +90°,
Tilt: -180° to +70°
Roll: ±90°
Controllable Range
Tilt: -100° to 50°
Pan: -230° to +70°
Roll: ±45°
Max Control Speed (tilt)
120 °/s
Stabilization
3 axis
Angular Vibration Range
±0.005°
Camera
Sensor
1/1.7” CMOS
Effective pixels: 64M"
Lens and Aperture
FOV 93° F1.8
(Format Equivalent: 20 mm)
ISO Range
100- 6400 (video); 100- 6400 (photo)
Shutter Speed
8s - 1/8000s
Max Image Size
9216 × 6912 pixels, 64 Megapixel
Still Photography Modes
1. Single Shot: 16 MP/64 MP
2. Countdown:3s/5s/7s
3. Panorama: 3x3, 180°
Video Resolution
4K Ultra HD: 3840×2160 24/25/30/48/50/60p
2.7K: 2720×1530 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60p
Slow Motion
1080 8x
1080 4x
In The Box
DJI Pocket 2 x 1
DJI Pocket 2 Cover x 1
DJI Pocket 2 Mini Control Stick x 1
DJI Pocket 2 Tripod Mount (1/4") x 1
DJI Wrist Strap x 1
Power Cable x 1
Osmo Pocket Smartphone Adapter (Lightning) x 1
Osmo Pocket Smartphone Adapter (USB-C) x 1
Pocket-sized and extremely portable, DJI Pocket 2 is a tiny camera that lets you single-handedly record memorable moments. Equipped to stabilize movement and take sharp photos and smooth videos, Pocket 2 gives you the freedom to create magic at hand.
Product Description
SMALL GIMBAL CAMERA, BIG MOMENTS
DJI Pocket 2 fits perfectly in your hand, bag, or pocket so that you can take it anywhere. When your journey begins or something suddenly catches your eye, Pocket 2 is ready to capture it all.
SINGLE-HANDED CAPTURE
Begin shooting in one second to capture photos and videos at the speed of life.
Glamour EffectsGlamour Effects lets you always share your best selfie. Boasting a 93° angle view, Pocket 2 allows for more flexible capture and perfectly-composed shots for social media.
High-Definition PanoramaGet the whole mountain range with 180° panorama or everyone in a group selfie with a 3×3 panorama. You won’t believe how such a small camera can take such a big shot.
ActiveTrack 3.0No matter how you move, Pocket 2 keeps you and your friends in the shot with ActiveTrack 3.0.
TimelapseTimelapse lets you turn hours into seconds. Motionlapse adds a smooth camera movement. Hyperlapse uses EIS to keep a stable frame as you travel through time. [1]
Story ModeStory mode uses video and music templates to make exciting mini-movies in just a few taps.
AI EditorNot into editing? AI Editor automatically combines your clips with transitions and music to create share-worthy content.
MOTORIZED STABILIZATION
Hollywood-Quality Smoothness
What’s the secret to DJI Pocket 2? A 3-axis gimbal stabilizes the camera for smooth video on the move. This technology is also great for creative photos like handheld long-exposure shots.
IMAGE QUALITY YOU’LL LOVE/LIKE/SUBSCRIBE
1/1.7-Inch Sensor
64MP Photo
4K/60fps Video
Hybrid AF 2.0
We packed the DJI Pocket 2 camera with photo and video abilities that let you create share-worthy content and make moments last forever.
HDR VideoA good life is full of color, so show it all. With HDR video, the Pocket 2 separates exposure levels by area and layers the image so that the footage pops with life-like detail.
8x ZoomIf you’re looking for crazy detail, Pocket 2 is insane. When taking 64MP photos, the stabilized camera takes sharp 8x zoom shots. [3]
INCREDIBLE VIDEO, IMMERSIVE SOUND
DJI Matrix Stereo technology records audio with so much real detail, it lets you relive the scene.
Stereo RecordingFour microphones on the handle provide surround-sound audio, letting you relive the magic.
SoundTrackPocket 2 adjusts the direction of audio enhancement wherever the camera is pointing, so your subject is clearly heard.
Audio ZoomAs the video zooms in, so does the audio, creating a more dynamic soundtrack.
Directional AudioPocket 2 lets you record sound in three distinct sound patterns to suit the scene.
Highlights
Pocket-Sized3-Axis Stabilized CameraActiveTrack 3.0AI EditorExcellent Image QualityDJI Matrix Stereo
Product Specifications
Weight
117 g
Dimensions
124.7×38.1×30 mm
Max. Operation Time
140 min (1080/24fps with camera only)
Operating Temperature Range
0° to 40° (32° to 104° F)
GIMBAL
Mechanical Range
Pan: -250° to +90°,
Tilt: -180° to +70°
Roll: ±90°
Controllable Range
Tilt: -100° to 50°
Pan: -230° to +70°
Roll: ±45°
Max Control Speed (tilt)
120 °/s
Stabilization
3 axis
Angular Vibration Range
±0.005°
Camera
Sensor
1/1.7” CMOS
Effective pixels: 64M"
Lens and Aperture
FOV 93° F1.8
(Format Equivalent: 20 mm)
ISO Range
100- 6400 (video); 100- 6400 (photo)
Shutter Speed
8s - 1/8000s
Max Image Size
9216 × 6912 pixels, 64 Megapixel
Still Photography Modes
1. Single Shot: 16 MP/64 MP
2. Countdown:3s/5s/7s
3. Panorama: 3x3, 180°
Video Resolution
4K Ultra HD: 3840×2160 24/25/30/48/50/60p
2.7K: 2720×1530 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60p
Slow Motion
1080 8x
1080 4x
In The Box
DJI Pocket 2 x 1
DJI Pocket 2 Cover x 1
DJI Pocket 2 Mini Control Stick x 1
DJI Pocket 2 Tripod Mount (1/4") x 1
DJI Wrist Strap x 1
Power Cable x 1
Osmo Pocket Smartphone Adapter (Lightning) x 1
Osmo Pocket Smartphone Adapter (USB-C) x 1
DJI Pocket 2 Do-It-All Handle x 1DJI Wireless Microphone Transmitter + DJI Wireless Microphone Windscreen x 1DJI Pocket 2 Micro Tripod x 1DJI Pocket 2 Wide-Angle Lens x 1
Comfortable to hold, the DJI Pocket 2 Do-It-All Handle has a built-in Wi-Fi and Bluetooth module, wireless mic receiver, and 1/4" threaded hole.
Product Description
Comfortable to hold, the DJI Pocket 2 Do-It-All Handle has a built-in Wi-Fi and Bluetooth module, wireless mic receiver, and 1/4" threaded hole. Connect it to the DJI Mimo app via Wi-Fi and you can control Pocket 2 from your smartphone. It can record sound wirelessly with the DJI Wireless Microphone Transmitter, or connect to external earphones/headphones via the 3.5mm audio adapter. When previewing footage, the built-in speaker can playback audio. The 1/4" threaded hole at the bottom is compatible with tripods and additional accessories.
TipBefore detaching the handle, press down the unlock toggle, then unplug the handle vertically.
HighlightsWireless connectionImproves handling comfortDo-it-all designWireless mic receiverSupports external microphone and earphonesThe built-in speaker can play audio of your footage1/4" thread hole for tripod and additional accessories
Product Specifications
Dimensions: 50×28.6×22.8 mm
Weight:36.3 g
Operating Frequency:Wi-Fi: 2.400-2.4835 GHz, 5.725-5.850 GHz*
Bluetooth/GFSK: 2.400-2.4835 GHz
Transmitter Power (EIRP):Wi-Fi2.4 GHz 2.4G: ≤30 dBm (FCC), ≤19 dBm (CE/SRRC/MIC)5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth: ＜4 dBm
GFSK: <13 dBm (FCC/SRRC), ＜10 dBm (CE/MIC)
Operating Temperature: 0° to 40°C (3° to 104°F)
* 5.8 GHz is not supported in some regions. Always observe local laws and regulations.
In The Box
DJI Pocket 2 Do-It-All Handle x 1
Sends audio signal wirelessly for convenient use
Product Description
An audio transmitter that connects to an external microphone to send audio signal to DJI Pocket 2 wirelessly, freeing users from additional wiring. The DJI Wireless Microphone Windscreen covers the microphone to eliminate noise generated by wind. When used with the DJI Pocket 2 Do-It-All Handle, the linking button can control the shutter.
Highlights
Wireless sound transmission for convenient usePortableUse with DJI Wireless Microphone Windscreen to eliminate noise generated by windLong battery life of up to six hoursRemote shutter control (requires DJI Pocket 2 Do-It-All Handle and DJI Pocket 2)
Product Specifications
Dimensions: 50×28.6×22.8 mmWeight: 21.4 gBattery Type: LiPoBattery Capacity: 320mAhPrinciple of Acoustics: Pre-polarized pressure transducerAudio Pickup: OmnidirectionalFrequency Range: 50 Hz -20 kHzExternal Mic Input: 20 Hz - 20 kHzMaximum SPL: 116dBSPL (1kHz@1% THD)Analog Input: 3.5mm inputAdapter: 5 V/2 A, 5 V/1 A, 5 V/0.5 AOperating Temperature: 0° to 40°C (3° to 104°F)Frequency: 2.400-2.4835GHZPower: 2.4GHz <13dBm(FCC); <10dBm(CE); <12dBm(SRRC); <10dBm(MIC)Charging Time: 60 minutes
In The Box
DJI Wireless Microphone Transmitter x 1

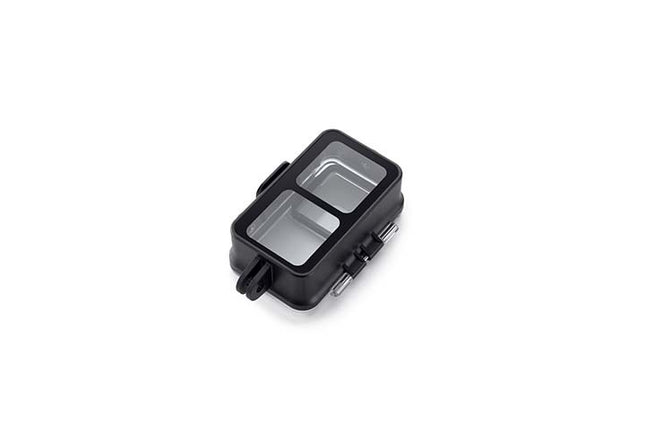

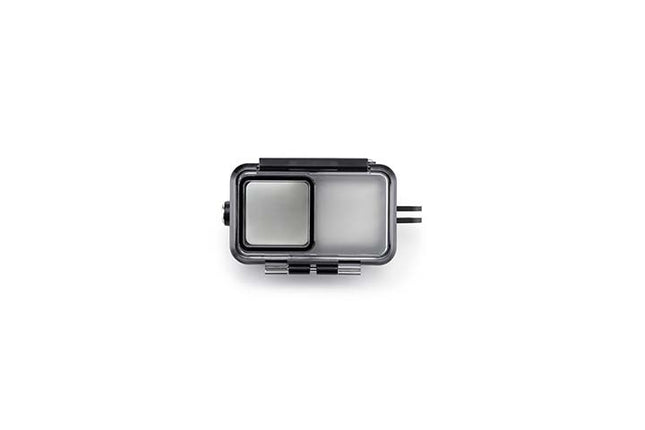

Waterproof at up to 60 m Two mounting brackets for more scenarios
Product Description
Waterproof at up to 60 m, the DJI Pocket 2 Waterproof Case enables Pocket 2 to capture high-quality under-water images that are glare and distortion-free. The internal clamp keeps the gimbal in place. The shutter/record Button and two mounting brackets on the outer surface further improve shooting experience.
Tips
Please check that DJI Pocket 2 is powered off before placing it into the waterproof case, and
make sure the securing ring is completely tightened. DJI takes no responsibility for any damage or loss resulting from improper use of DJI Pocket 2 underwater.
The camera cannot be adjusted when using the waterproof case.
Make sure the anti-fog insert works properly. Replace the anti-fog insert regularly.
Clean the waterproof case after using. Make sure the waterproof case is clean at all times.
Product Specifications
Dimensions: 72.6×81.6×169.9 mmWeight: 112.6 gMax Depth of Usage under Water: 60 m
In The Box
DJI Pocket 2 Waterproof Case x 1Anti-fog Insert × 3Osmo Pocket Compatibility Pad × 1
FOV increases to 110° with no distortion.
Product Description
Equivalent focal length increases to 15mm, capturing more within the frame. The magnetic design simplifies mounting and detachment.
Product Specifications
Dimensions: 17.8×15.2×6.7 mmWeight: 3.3 gFOV:110° (DJI Pocket 2)90° (Osmo Pocket)
In The Box
DJI Pocket 2 Wide-Angle Lens x 1
Small, foldable, and portable, the DJI Pocket 2 Micro Tripod allows DJI Pocket 2 to stand stably on flat surfaces.
Product Description
Small, foldable, and portable, the DJI Pocket 2 Micro Tripod allows DJI Pocket 2 to stand stably on flat surfaces for more convenient shooting.
HighlightsSuper-compact and portableCan be stably placed on many surfacesCan be stored in the DJI Pocket 2 Case
Product Specifications
Dimensions:17.8×15.2×6.7 mm (folded)117.6×117.6×25 mm (unfolded)Weight: 26.6 g
In The Box
DJI Pocket 2 Micro Tripod x 1
DJI OM Magnetic Phone Clamp 3 attaches to your smartphone quickly and easily for a secure connection with the gimbal. This convenient attachment is thin, lightweight, and reliably secure. It's also carefully designed to avoid covering buttons on your mobile device and works smoothly with large phones.
Tips
DJI OM Magnetic Clamp 3 contains magnets. Please keep it away from magnetic cards, IC cards, pacemakers, hard disks, RAM chips, and other objects that are subject to interference.
Compatibility
Osmo Mobile 6Osmo Mobile SEDJI OM 5DJI OM 4 SEDJI OM 4
Magnetic design with adjustable brightness and color temperature.
Product Description
As an independent accessory designed for low-light shooting, the DJI OM Fill Light Phone Clamp features a magnetic design that is seamlessly compatible with DJI OM 5 and DJI OM 4 Series. It features built-in LED auxiliary lights with three brightness levels and three color temperature options, letting you highlight subjects with excellent lighting wherever you go.
Highlights
Built-in LED auxiliary lights with three brightness levels and three color temperature options let you highlight subjects with excellent lighting wherever you go.
Tips
Designed with a closed magnetic circuit, the DJI OM Fill Light Phone Clamp will not affect the performance of the phone attached to it. However, some phones may require calibration after mounting. The magnetic design may influence other magnetic products. Do not put the phone clamp near a bank card, cardiac pacemaker, hard drive, or similar devices.
Additionally, some phones using magnetic signals to transmit data may be affected. In this case, we suggest you remove the phone clamp before using this function.
Compatibility
DJI OM 5DJI OM 4 SEDJI OM 4

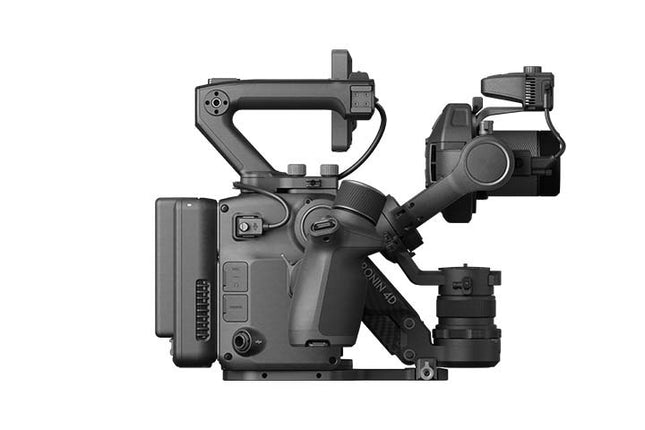

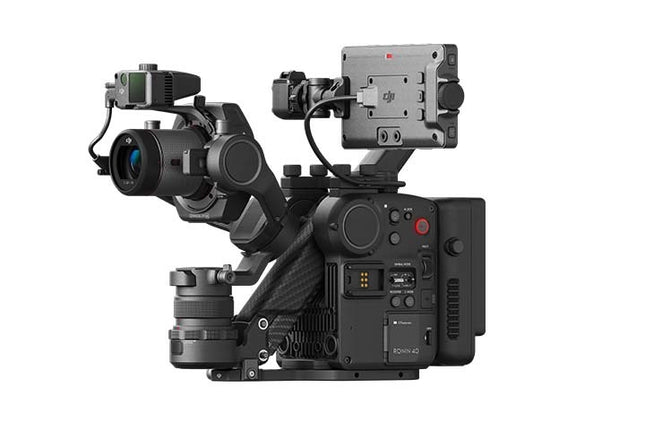

With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.
INTEGRATED AND MODULAR: BOTH REALIZED IN ONE CAMERA
DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting. Users can now enjoy compact convenience along with the expansive possibilities from modular accessories.
Main BodyZenmuse X9-6K Gimbal CameraDL 35mm F2.8 LensTop HandleHigh-Bright Main MonitorHand Grips 4D Expansion Plate (SDI/XLR/TC)4D Video TransmitterTB50 Battery CompartmentTB50 Intelligent BatteryLiDAR Range FinderX9 Focus Motor
PROCESSING POWER
Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a cinema camera today. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.
X9-8K
X9-6K
Max Recording Specs
8K/75fps
6K/60fps
4K/120fps
Dynamic Range
14+ Stops
14+ Stops
Native ISO
800/4000
800/5000
RESOLUTION
DCI 6K (6008×3168)/48fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 6K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.
HIGH ISO
Zenmuse X9 supports dual native ISO (X9-6K: 800/5000), which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.
DYNAMIC RANGE
With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.
COLOR SCIENCE
With the DJI Cinema Color System (DCCS) and robust computing power provided by CineCore 3.0, Zenmuse X9 is able to give images a cinematic look by retaining authentic and accurate colors. It also supports the industry-standard ACES workflow for effortless compatibility with the color tones of other cinema cameras.
BUILT-IN 9-STOP ND FILTERS
X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.
DL LENSES
X9’s standard DL mount supports three compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just about 180 g. More DJI lenses will be available in the future.
INTERCHANGEABLE MOUNTS
X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica M. Ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.
WIRELESS CONTROL
Whether you’re using manual or autofocus lenses, dedicated modules mounted to X9 can achieve wireless lens control and even autofocusing.
4-AXIS STABILIZATION
DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.
When this compact body combines with its powerful stabilization capabilities, complex camera movements that used to be very costly to achieve are now easily attainable.
INTEGRATED GIMBAL CAMERA
Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.
The compact and portable gimbal system allows shooting to begin without the need for tedious manual balancing. This also delivers stable footage, even with lenses that have a shifting center of gravity during use.
With a highly integrated body and robust motor force, Ronin 4D offers the best stabilizing and tracking performance of the entire Ronin Series so far at an incredibly light weight. Additionally, it can switch to Sport mode with the press of a button, allowing the gimbal to react quickly to the cinematographer's movements.
It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.
ACTIVETRACK PRO
DJI’s proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 combine in ActiveTrack Pro, which enables cinema-standard tracking shots, even in just one take. This technology also allows subjects to be tracked from longer distances and features composition adjustment with continuous autofocusing to keep subjects in focus during tracking shots.
LIDAR WAVEFORM
DJI Ronin 4D makes manual focusing easier than ever. The visualized focus assistance technology displays the ranging points on the main and remote monitors in a simplified top-down view. This provides an innovative and intuitive LiDAR Waveform to locate focus points quickly and allow focus adjustments with extreme precision. Even operators with little or no experience can become adept at manual focusing quickly.
LIDAR RANGE MEASUREMENT
The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.
AUTOFOCUS
With the new LiDAR Focusing System, Ronin 4D is able to maintain focus even when there is severe motion blur caused by subjects moving quickly. With the focus motor mounted, autofocus is available even on manual lenses. Continuous autofocusing on subjects can be enabled together with ActiveTrack Pro, making it especially convenient for solo operators.
AUTOMATED MANUAL FOCUS
Automated Manual Focus (AMF) mode gives you the accuracy and flexibility of manual focus with the convenience of autofocus. The focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point. The focus wheel on the right hand grip even features dynamic damping with electromagnetic technology. This gives cinematographers a physical sense of focus changes, providing a more intuitive and modern focusing experience that is unrivaled in the industry today.
VIDEO TRANSMISSION PERFORMANCE
Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, which offers a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4GHz and 5.8GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.
DJI's proprietary chip powers the imaging system, video transmitter, video receiver, and remote monitor of Ronin 4D. Together, these components form a streamlined wireless transmission system, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.Integrated DesignThe 4D Video Transmitter can be directly mounted onto Ronin 4D and powered by the battery of the main body. With a built-in wireless video receiver, the High-Bright Remote Monitor has a 7-inch, 1,500-nit high-bright, wide color gamut touchscreen display that can output both HDMI and SDI signals through the expansion module. Its compact and lightweight body provides optimum portability and efficient setup so users can start shooting immediately.
COORDINATED SHOOTING
The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds. Two transmission modes are available. The first is Broadcast mode, which sets no limit on the number of receivers and is suitable for monitoring with large crews. The second is Control mode, which supports the coordinated operation of two receivers.
The High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus. This enables remote control of focus and gimbal movements with high precision, starting and stopping of recording, and camera setting adjustments to meet the highest standards of coordinated shooting on sets. In addition, the built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.
MONITORING
High-Bright Main Monitor: The 5.5-inch 1000-nit adjustable screen can be mounted to various points on the main body.Exposure Assistance: Exposure waveform, false color, and zebra.Focus Assistance: LiDAR waveform, peaking (aperture and color peaking), and focus magnification (2x and 4x).Tools Overlay: Customizable frame guides, safe zone, and center marker.Color Preview: Supports customizable LUT input.Multi-link independent monitoring: video recording, main monitor, main body HDMI, and remote monitor feeds can load independent LUTs.
STORAGE
Ronin 4D has a built-in CFexpress Type-B slot along with a USB 3.1 Type-C expansion port for recording directly to an external media disk. It also offers internal recording of the highest-specification videos with DJI PROSSD 1TB, which can be directly connected to a computer via USB-C cable to access media without a traditional SSD reader. These storage choices provide solutions for high cost-effectiveness and to those who want an unrivaled combination of performance and stability.
SOUND RECORDING
Ronin 4D is equipped with built-in microphones that support dual-channel 24-bit audio recording. It also provides 3.5mm jacks and XLR microphone ports for more audio input solutions.
BATTERY LIFE
Just like Ronin 2 and Inspire 2, DJI Ronin 4D uses TB50 Intelligent Batteries, which offer up to 2.5 hours of shooting time and can be fully charged in just 1.5 hours. Auto-heating is also supported to enable reliable functionality in severely cold conditions.
MAIN BODY PORTS
Main Monitor Port: Connect to the main monitor via a designated cable.3.5mm Stereo Jack: Monitor audio in real time.Microphone Jack: For 3.5mm microphone or line input.HDMI Type-A Output Port: Supports output of 1080p/60fps. Power Input Port: Supports 12 V to 30 V power input.Timecode Port: For timecode input and output.SDI Port: Supports 3D-SDI signal output.XLR Port: For microphone and line input, supports 48 V phantom power.
REMOTE MONITOR PORTS
3.5mm Stereo Jack: Monitor audio in real time. microSD Card Slot: For internal recording of video feed.HDMI Type-A Input Port: Supports input of 1080p/60fps.Type-C Port: For UVC live streaming and firmware updates.Power Input Port: 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro).HDMI Type-A Output Port: Supports output of 1080p/60fps.SDI Port: 3D-SDI signal output.
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Main Body Dimensions (length×width×height): 235×115×160 mmOverall Dimensions (length×width×height): 309×290×277 mm* ( *Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.)Gimbal Weight: Approx. 1.04 kgMain Body Weight: Approx. 1.45 kgOverall Weight: Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)Max Operating Time: Approx. 150 minutes* (*Measured with a fully charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-Axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-Axis will reduce operating time.)Intelligent Features: ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)Storage Temperature : -20° to 60° C (-4° to 140° F)Operating Temperature: -10° to 40° C (14° to 104° F)
CAMERA
Sensor Size: 35mm full-frame CMOS image sensorBase Lens Mount: DX Mount, and support for other mount unitsSupported Lens Mounts: DL Mount (standard), M Mount, and E MountDL Lens: DJI DL 24mm F2.8 LS ASPH, DJI DL 35mm F2.8 LS ASPH, DJI DL 50mm F2.8 LS ASPHDynamic Range: 14+ stopsWhite Balance: Manual 2,000-11,000 Kelvin and tint adjustment, supports AWBGamma: D-Log, Rec.709, HLGEI Range: X9-8K: EI 200-12800, Dual Native ISO 800/4000X9-6K: EI 200-12800, Dual Native ISO 800/5000Shutter Speed: Electronic Rolling Shutter 1/24s-1/8000sND: Built-in 9-stop ND filters:Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5)，64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)Focus Control*: Autofocus, Manual Focus, Automated Manual Focus (* Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.)X9-6K Max Bit Rate: 6008×3168, 48fpsRAW 3.4GbpsX9-8K Max Bit Rate: 8192×4320, 60fpsRAW 3.95GbpsSupported File System: exFATRecording Format: Apple ProRes RAW HQ/Apple ProRes RAWApple ProRes 422 HQ/Apple ProRes 422*H.264 (4:2:0 10-bit)(* Supported through a future firmware update.)Storage Media: DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSDDJI PROSSD 1TB Recording Format: No restriction on recording formatCFexpress 2.0 Type B Recording Format*: ProRes 422 HQ:6K: 23.976/24/25/29.97/30fpsC4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fpsH.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fpsUSB-C SSD Recording Format*: ProRes 422 HQ:C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps2K: 23.976/24/25/29.97/30/48/50/59.94/60fpsH.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps2K: 23.976/24/25/29.97/30/48/50/59.94/60fpsBuilt-in Mic: Built-in 2-ch stereoAudio Format: LPCM 2-ch, 24-bit 48kHz
GIMBAL
Mechanical Range: Pan: ±330°, Tilt: -75° to 175°, Roll: -90° to 230°, Z-Axis Range: approx 130mm* (* Stabilization range of the Z-Axis is subject to change based on Z-Axis modes and usage scenarios and may be smaller than the mechanical range.)Controllable Range: Pan: ±285°, Tilt: -55° to +155°, Roll: ±35°, Max Control Speed (°/s): DJI Master Wheels or DJI Force Pro:Tilt: 360°/sRoll: 360°/sPan: 360°/sRonin 4D Hand Grip:Tilt: 120°/sRoll: 120°/sPan: 120°/sMaximum Z-axis Payload: 2000 g (including 1040 g gimbal)Angular Vibration Range: ±0.01°
LIDAR RANGE FINDER
Weight: 88 gDimensions (length×width×height): 71×47×34 mmOperating Temperature: -10° to 40° C (14° to 104° F)LiDAR Range Measurement Precision: 0.3-1m (±1%）1-10m (±1.5%）FOV*: 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)Safety Rating: Class 1 (IEC 60825-1:2014) (safe for human eyes)Operating Environment: Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)DO NOT use in environments with dense fog or aim it at or through glass surfaces.Laser Wavelength: 940 nmSingle Pulse Width: Two kinds of pulses emit in circulation: 5ns and 33.4ns.Max Laser Power: 6 W
MAIN MONITOR
Screen Size: 5.5 inches (diagonal)Resolution: 1920×1080Refresh Rate: 60HzMax Brightness: 1000 cd/m²Screen: Rotational LCD touchscreen
BATTERY
Battery Type: TB50 Intelligent BatteryCapacity: 4280 mAhEnergy: 97.58 WhVoltage: 22.8 VMax Charging Voltage: 26.1 VMax Charging Power: 180 WCharging Temperature Range: 5° to 40° C (41° to 104° F)Charging Time: Approx. 1.5 hours (with standard 86W power adapter)
DJI O3 PRO VIDEO TRANSMISSION
Max Transmission Distance: 20,000 ft (approx. 6km, FCC-compliant)* (* Unobstructed, free of interference.)Max Transmission Resolution and Frame Rate: 1920×1080 @60fpsMinimum End-to-End Latency: 100 ms or 68 ms* (* 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.)Wireless Frequency: Non DFS frequency band:2.400-2.483 GHz5.150-5.250 GHz5.725-5.850 GHz:
DFS Frequency Band*:5.250-5.350 GHz5.470-5.600 GHz5.650-5.725 GHz (* Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.)Transmitter Power (EIRP): 2.400-2.4835 GHz:≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)5.150-5.250 GHz<23 dBm (FCC/SRRC/CE/MIC)5.250-5.350 GHz:<30 dBm (FCC); <23 dBm (SRRC/CE/MIC)5.470-5.600 GHz, 5.650-5.725 GHz:<30 dBm (FCC);<23 dBm (CE/MIC)5.725-5.850 GHz:<33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)Max Bandwidth: 40 MHzMax Bitrate: 50 Mbps
INTERFACE
Main Body: 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)3.5mm Stereo Output Jack × 1USB3.1 Type-C Data Port × 16-pin 1B DC-IN (DC 12-30 V) × 1Battery Mount Power Port (female) × 14D Expansion Plate Data Port (female) × 1High-Bright Main Monitor Port × 1Hand Grips Port × 2Top Handle Port × 1HDMI Type-A Video Output Port × 1*X9 Gimbal: LiDAR Range Finder/ Focus Motor Port × 2TB50 Battery Mount: Battery Mount Power Port (male) × 1TB50 Battery Port × 1
4D VIDEO TRANSMITTER
Dimensions: 89×21×137 mm4D Video Transmitter Port: 4D Expansion Plate Data Port (male) × 1SMA Antenna Connector × 4USB 3.1 Type-C Data Port × 1Battery Mount Power Port (female) × 1Battery Mount Power Port (male) × 1
REMOTE MONITOR
Dimensions: 216×58×166 mm (includes monitor cage)Screen Size: 7 inches (diagonal)Max Brightness: 1500 cd/m²Screen Resolution: 1920×1200Refresh Rate: 60HzMax Battery Life: Approx. 2 hours*Operating Temperature: 0° to 40° C (32° to 104° F)Storage Temperature: -20° C to 60° C (-4° to 140° F)Power System: DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)Remote Monitor Port: 3.5mm Stereo Jack × 1microSD Card Slot × 1* (*This port is currently not available. Will support internal recording in a future firmware update.)HDMI Type-A Video Input Port × 1* (*This port is currently not available. Will support HDMI 1.4 in a future firmware update.)Remote Monitor Expansion Plate High-Speed Port (female) × 1Remote Monitor Accessory Expansion Port × 1USB 3.1 Type-C Data Port × 1Remote Monitor Expansion Port: Remote Monitor Expansion High-Speed Port (male) × 1HDMI 1.4 Type-A Video Output Port × 16-pin 1B DC-IN (DC 6.8-17.6 V) × 13G-SDI (Level A) BNC Video Output Port × 1
In The Box
IN THE BOX
Zenmuse X9-6K Gimbal Camera × 1DL Mount × 1DL Mount Body Cap × 1DL Mount Lens Cap × 1X9 Gimbal Base Cap × 1Ronin 4D Gimbal Base Cap × 1Main Body × 1Hand Grips × 2Hand Grip Extended Control Sticks × 1Top Handle × 1High-Bright Main Monitor × 1TB50 Battery Mount × 1TB50 Intelligent Battery × 1Hand Grip Straps × 2Power Adapter × 1AC Power Cable × 8TB50 Charging Adapter × 1Base Plate × 1LiDAR Range Finder/Focus Motor Cable × 1USB-A to USB-C Cable × 1Ronin 4D Carrying Case × 13mm Ball-End Hex Key × 110mm 1/4"-20 Screw × 6LiDAR Range Finder × 1LiDAR Range Finder Holder × 1C-Shaped DL Mount Ring × 13mm M2-3 Screw × 21.5mm Ball-End Hex Key × 1LiDAR Range Finder Quick Start Guide × 1DJI Ronin 4D Quick Start Guide × 1
With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.
Availability: Pre Order
Product Description

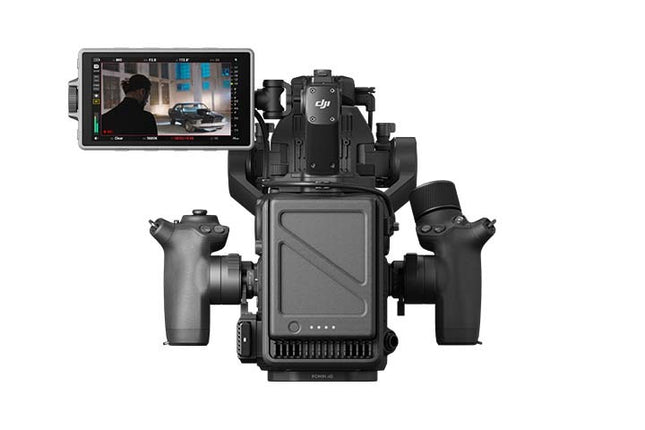

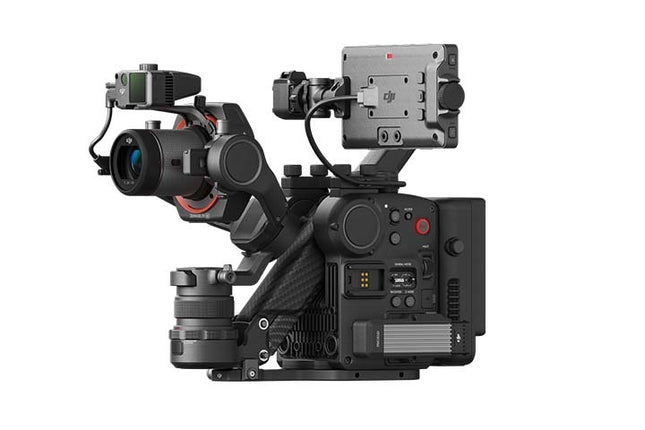

With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.
INTEGRATED AND MODULAR: BOTH REALIZED IN ONE CAMERA
DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting. Users can now enjoy compact convenience along with the expansive possibilities from modular accessories.
Main BodyZenmuse X9-8K Gimbal CameraDL 35mm F2.8 LensTop HandleHigh-Bright Main MonitorHand Grips 4D Expansion Plate (SDI/XLR/TC)4D Video TransmitterTB50 Battery CompartmentTB50 Intelligent BatteryLiDAR Range FinderX9 Focus Motor
PROCESSING POWER
Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a cinema camera today. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.
X9-8K
X9-6K
Max Recording Specs
8K/75fps
6K/60fps
4K/120fps
Dynamic Range
14+ Stops
14+ Stops
Native ISO
800/4000
800/5000
RESOLUTION
DCI 8K (8192×4320)/60fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 8K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.
HIGH ISO
Zenmuse X9 supports dual native ISO (X9-8K: 800/4000), which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.
DYNAMIC RANGE
With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.
COLOR SCIENCE
With the DJI Cinema Color System (DCCS) and robust computing power provided by CineCore 3.0, Zenmuse X9 is able to give images a cinematic look by retaining authentic and accurate colors. It also supports the industry-standard ACES workflow for effortless compatibility with the color tones of other cinema cameras.
BUILT-IN 9-STOP ND FILTERS
X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.
DL LENSES
X9’s standard DL mount supports three compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just about 180 g. More DJI lenses will be available in the future.
INTERCHANGEABLE MOUNTS
X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica M. Ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.
WIRELESS CONTROL
Whether you’re using manual or autofocus lenses, dedicated modules mounted to X9 can achieve wireless lens control and even autofocusing.
4-AXIS STABILIZATION
DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.
When this compact body combines with its powerful stabilization capabilities, complex camera movements that used to be very costly to achieve are now easily attainable.
INTEGRATED GIMBAL CAMERA
Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.
The compact and portable gimbal system allows shooting to begin without the need for tedious manual balancing. This also delivers stable footage, even with lenses that have a shifting center of gravity during use.
With a highly integrated body and robust motor force, Ronin 4D offers the best stabilizing and tracking performance of the entire Ronin Series so far at an incredibly light weight. Additionally, it can switch to Sport mode with the press of a button, allowing the gimbal to react quickly to the cinematographer's movements.
It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.
ACTIVETRACK PRO
DJI’s proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 combine in ActiveTrack Pro, which enables cinema-standard tracking shots, even in just one take. This technology also allows subjects to be tracked from longer distances and features composition adjustment with continuous autofocusing to keep subjects in focus during tracking shots.
LIDAR WAVEFORM
DJI Ronin 4D makes manual focusing easier than ever. The visualized focus assistance technology displays the ranging points on the main and remote monitors in a simplified top-down view. This provides an innovative and intuitive LiDAR Waveform to locate focus points quickly and allow focus adjustments with extreme precision. Even operators with little or no experience can become adept at manual focusing quickly.
LIDAR RANGE MEASUREMENT
The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.
AUTOFOCUS
With the new LiDAR Focusing System, Ronin 4D is able to maintain focus even when there is severe motion blur caused by subjects moving quickly. With the focus motor mounted, autofocus is available even on manual lenses. Continuous autofocusing on subjects can be enabled together with ActiveTrack Pro, making it especially convenient for solo operators.
AUTOMATED MANUAL FOCUS
Automated Manual Focus (AMF) mode gives you the accuracy and flexibility of manual focus with the convenience of autofocus. The focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point. The focus wheel on the right hand grip even features dynamic damping with electromagnetic technology. This gives cinematographers a physical sense of focus changes, providing a more intuitive and modern focusing experience that is unrivaled in the industry today.
VIDEO TRANSMISSION PERFORMANCE
Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, which offers a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4GHz and 5.8GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.
DJI's proprietary chip powers the imaging system, video transmitter, video receiver, and remote monitor of Ronin 4D. Together, these components form a streamlined wireless transmission system, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.Integrated DesignThe 4D Video Transmitter can be directly mounted onto Ronin 4D and powered by the battery of the main body. With a built-in wireless video receiver, the High-Bright Remote Monitor has a 7-inch, 1,500-nit high-bright, wide color gamut touchscreen display that can output both HDMI and SDI signals through the expansion module. Its compact and lightweight body provides optimum portability and efficient setup so users can start shooting immediately.
COORDINATED SHOOTING
The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds. Two transmission modes are available. The first is Broadcast mode, which sets no limit on the number of receivers and is suitable for monitoring with large crews. The second is Control mode, which supports the coordinated operation of two receivers.
The High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus. This enables remote control of focus and gimbal movements with high precision, starting and stopping of recording, and camera setting adjustments to meet the highest standards of coordinated shooting on sets. In addition, the built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.
MONITORING
High-Bright Main Monitor: The 5.5-inch 1000-nit adjustable screen can be mounted to various points on the main body.Exposure Assistance: Exposure waveform, false color, and zebra.Focus Assistance: LiDAR waveform, peaking (aperture and color peaking), and focus magnification (2x and 4x).Tools Overlay: Customizable frame guides, safe zone, and center marker.Color Preview: Supports customizable LUT input.Multi-link independent monitoring: video recording, main monitor, main body HDMI, and remote monitor feeds can load independent LUTs.
STORAGE
Ronin 4D has a built-in CFexpress Type-B slot along with a USB 3.1 Type-C expansion port for recording directly to an external media disk. It also offers internal recording of the highest-specification videos with DJI PROSSD 1TB, which can be directly connected to a computer via USB-C cable to access media without a traditional SSD reader. These storage choices provide solutions for high cost-effectiveness and to those who want an unrivaled combination of performance and stability.
SOUND RECORDING
Ronin 4D is equipped with built-in microphones that support dual-channel 24-bit audio recording. It also provides 3.5mm jacks and XLR microphone ports for more audio input solutions.
BATTERY LIFE
Just like Ronin 2 and Inspire 2, DJI Ronin 4D uses TB50 Intelligent Batteries, which offer up to 2.5 hours of shooting time and can be fully charged in just 1.5 hours. Auto-heating is also supported to enable reliable functionality in severely cold conditions.
MAIN BODY PORTS
Main Monitor Port: Connect to the main monitor via a designated cable.3.5mm Stereo Jack: Monitor audio in real time.Microphone Jack: For 3.5mm microphone or line input.HDMI Type-A Output Port: Supports output of 1080p/60fps. Power Input Port: Supports 12 V to 30 V power input.Timecode Port: For timecode input and output.SDI Port: Supports 3D-SDI signal output.XLR Port: For microphone and line input, supports 48 V phantom power.
REMOTE MONITOR PORTS
3.5mm Stereo Jack: Monitor audio in real time. microSD Card Slot: For internal recording of video feed.HDMI Type-A Input Port: Supports input of 1080p/60fps.Type-C Port: For UVC live streaming and firmware updates.Power Input Port: 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro).HDMI Type-A Output Port: Supports output of 1080p/60fps.SDI Port: 3D-SDI signal output.
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Main Body Dimensions (length×width×height): 235×115×160 mmOverall Dimensions (length×width×height): 309×290×277 mm* ( *Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.)Gimbal Weight: Approx. 1.04 kgMain Body Weight: Approx. 1.45 kgOverall Weight: Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)Max Operating Time: Approx. 150 minutes* (*Measured with a fully charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-Axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-Axis will reduce operating time.)Intelligent Features: ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)Storage Temperature : -20° to 60° C (-4° to 140° F)Operating Temperature: -10° to 40° C (14° to 104° F)
CAMERA
Sensor Size: 35mm full-frame CMOS image sensorBase Lens Mount: DX Mount, and support for other mount unitsSupported Lens Mounts: DL Mount (standard), M Mount, and E MountDL Lens: DJI DL 24mm F2.8 LS ASPH, DJI DL 35mm F2.8 LS ASPH, DJI DL 50mm F2.8 LS ASPHDynamic Range: 14+ stopsWhite Balance: Manual 2,000-11,000 Kelvin and tint adjustment, supports AWBGamma: D-Log, Rec.709, HLGEI Range: X9-8K: EI 200-12800, Dual Native ISO 800/4000X9-6K: EI 200-12800, Dual Native ISO 800/5000Shutter Speed: Electronic Rolling Shutter 1/24s-1/8000sND: Built-in 9-stop ND filters:Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5)，64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)Focus Control*: Autofocus, Manual Focus, Automated Manual Focus (* Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.)X9-6K Max Bit Rate: 6008×3168, 48fpsRAW 3.4GbpsX9-8K Max Bit Rate: 8192×4320, 60fpsRAW 3.95GbpsSupported File System: exFATRecording Format: Apple ProRes RAW HQ/Apple ProRes RAWApple ProRes 422 HQ/Apple ProRes 422*H.264 (4:2:0 10-bit)(* Supported through a future firmware update.)Storage Media: DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSDDJI PROSSD 1TB Recording Format: No restriction on recording formatCFexpress 2.0 Type B Recording Format*: ProRes 422 HQ:6K: 23.976/24/25/29.97/30fpsC4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fpsH.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fpsUSB-C SSD Recording Format*: ProRes 422 HQ:C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps2K: 23.976/24/25/29.97/30/48/50/59.94/60fpsH.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps2K: 23.976/24/25/29.97/30/48/50/59.94/60fpsBuilt-in Mic: Built-in 2-ch stereoAudio Format: LPCM 2-ch, 24-bit 48kHz
GIMBAL
Mechanical Range: Pan: ±330°, Tilt: -75° to 175°, Roll: -90° to 230°, Z-Axis Range: approx 130mm* (* Stabilization range of the Z-Axis is subject to change based on Z-Axis modes and usage scenarios and may be smaller than the mechanical range.)Controllable Range: Pan: ±285°, Tilt: -55° to +155°, Roll: ±35°, Max Control Speed (°/s): DJI Master Wheels or DJI Force Pro:Tilt: 360°/sRoll: 360°/sPan: 360°/sRonin 4D Hand Grip:Tilt: 120°/sRoll: 120°/sPan: 120°/sMaximum Z-axis Payload: 2000 g (including 1040 g gimbal)Angular Vibration Range: ±0.01°
LIDAR RANGE FINDER
Weight: 88 gDimensions (length×width×height): 71×47×34 mmOperating Temperature: -10° to 40° C (14° to 104° F)LiDAR Range Measurement Precision: 0.3-1m (±1%）1-10m (±1.5%）FOV*: 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)Safety Rating: Class 1 (IEC 60825-1:2014) (safe for human eyes)Operating Environment: Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)DO NOT use in environments with dense fog or aim it at or through glass surfaces.Laser Wavelength: 940 nmSingle Pulse Width: Two kinds of pulses emit in circulation: 5ns and 33.4ns.Max Laser Power: 6 W
MAIN MONITOR
Screen Size: 5.5 inches (diagonal)Resolution: 1920×1080Refresh Rate: 60HzMax Brightness: 1000 cd/m²Screen: Rotational LCD touchscreen
BATTERY
Battery Type: TB50 Intelligent BatteryCapacity: 4280 mAhEnergy: 97.58 WhVoltage: 22.8 VMax Charging Voltage: 26.1 VMax Charging Power: 180 WCharging Temperature Range: 5° to 40° C (41° to 104° F)Charging Time: Approx. 1.5 hours (with standard 86W power adapter)
DJI O3 PRO VIDEO TRANSMISSION
Max Transmission Distance: 20,000 ft (approx. 6km, FCC-compliant)* (* Unobstructed, free of interference.)Max Transmission Resolution and Frame Rate: 1920×1080 @60fpsMinimum End-to-End Latency: 100 ms or 68 ms* (* 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.)Wireless Frequency: Non DFS frequency band:2.400-2.483 GHz5.150-5.250 GHz5.725-5.850 GHz:
DFS Frequency Band*:5.250-5.350 GHz5.470-5.600 GHz5.650-5.725 GHz (* Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.)Transmitter Power (EIRP): 2.400-2.4835 GHz:≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)5.150-5.250 GHz<23 dBm (FCC/SRRC/CE/MIC)5.250-5.350 GHz:<30 dBm (FCC); <23 dBm (SRRC/CE/MIC)5.470-5.600 GHz, 5.650-5.725 GHz:<30 dBm (FCC);<23 dBm (CE/MIC)5.725-5.850 GHz:<33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)Max Bandwidth: 40 MHzMax Bitrate: 50 Mbps
INTERFACE
Main Body: 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)3.5mm Stereo Output Jack × 1USB3.1 Type-C Data Port × 16-pin 1B DC-IN (DC 12-30 V) × 1Battery Mount Power Port (female) × 14D Expansion Plate Data Port (female) × 1High-Bright Main Monitor Port × 1Hand Grips Port × 2Top Handle Port × 1HDMI Type-A Video Output Port × 1*X9 Gimbal: LiDAR Range Finder/ Focus Motor Port × 2TB50 Battery Mount: Battery Mount Power Port (male) × 1TB50 Battery Port × 1
4D VIDEO TRANSMITTER
Dimensions: 89×21×137 mm4D Video Transmitter Port: 4D Expansion Plate Data Port (male) × 1SMA Antenna Connector × 4USB 3.1 Type-C Data Port × 1Battery Mount Power Port (female) × 1Battery Mount Power Port (male) × 1
REMOTE MONITOR
Dimensions: 216×58×166 mm (includes monitor cage)Screen Size: 7 inches (diagonal)Max Brightness: 1500 cd/m²Screen Resolution: 1920×1200Refresh Rate: 60HzMax Battery Life: Approx. 2 hours*Operating Temperature: 0° to 40° C (32° to 104° F)Storage Temperature: -20° C to 60° C (-4° to 140° F)Power System: DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)Remote Monitor Port: 3.5mm Stereo Jack × 1microSD Card Slot × 1* (*This port is currently not available. Will support internal recording in a future firmware update.)HDMI Type-A Video Input Port × 1* (*This port is currently not available. Will support HDMI 1.4 in a future firmware update.)Remote Monitor Expansion Plate High-Speed Port (female) × 1Remote Monitor Accessory Expansion Port × 1USB 3.1 Type-C Data Port × 1Remote Monitor Expansion Port: Remote Monitor Expansion High-Speed Port (male) × 1HDMI 1.4 Type-A Video Output Port × 16-pin 1B DC-IN (DC 6.8-17.6 V) × 13G-SDI (Level A) BNC Video Output Port × 1
In The Box
IN THE BOX
Zenmuse X9-8K Gimbal Camera × 1DL Mount × 1DL Mount Body Cap × 1DL Mount Lens Cap × 1X9 Gimbal Base Cap × 1Ronin 4D Gimbal Base Cap × 1Main Body × 1Hand Grips × 2Hand Grip Extended Control Sticks × 1Top Handle × 1High-Bright Main Monitor × 1TB50 Battery Mount × 1TB50 Intelligent Battery × 1Hand Grip Straps × 2Power Adapter × 1AC Power Cable × 8TB50 Charging Adapter × 1Base Plate × 1LiDAR Range Finder/Focus Motor Cable × 1USB-A to USB-C Cable × 1Ronin 4D Carrying Case × 13mm Ball-End Hex Key × 110mm 1/4"-20 Screw × 6LiDAR Range Finder × 1LiDAR Range Finder Holder × 1C-Shaped DL Mount Ring × 13mm M2-3 Screw × 21.5mm Ball-End Hex Key × 1LiDAR Range Finder Quick Start Guide × 1DJI Ronin 4D Quick Start Guide × 1PROSSD 1TB × 1PROSSD Mount × 1USB-C to USB-C Cable × 1

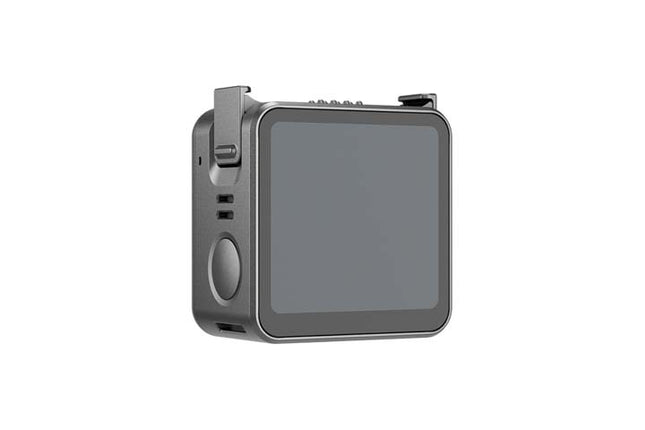

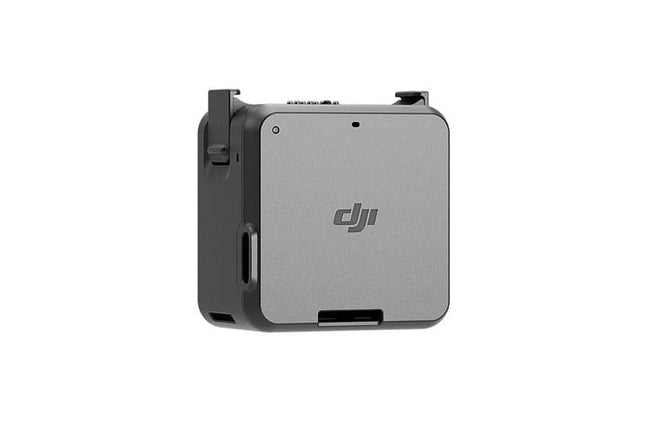

When connected, DJI Action 2 offers dual OLED touchscreens, so you can flexibly switch between screens and effortlessly take perfect selfies.
The module includes an OLED front screen, a microSD card slot, and three microphones, making it perfect for vlogging and taking selfies. With the magnetic lock, it can be attached to the Camera Unit. When connected, DJI Action 2's battery life increases to a maximum of 160 minutes, offers dual OLED touchscreens and a 4-mic Matrix Stereo, supports Audio Zoom and Directional Audio, and can be used with an external microphone.
Highlights
When connected, DJI Action 2 offers dual OLED touchscreens, so you can flexibly switch between screens and effortlessly take perfect selfies. Battery life is increased to a maximum of 160 minutes, and the 4-mic Matrix Stereo, Audio Zoom, and Directional Audio are supported.
Tips
The Front Touchscreen Module is not waterproof or dustproof and should be used with the Waterproof Case for underwater activities.
Compatibility
DJI Action 2
Product Specifications
Dimensions: 39×41.6×24.6 mm
Weight: 64 g
Touchscreen: 1.76 inches 350 ppi 500±50 cd/m² 446×424
Built-In Battery
Battery Type: LiPo 2S
Capacity: 1300 mAh
Energy: 5 Wh
Voltage: 7.7 V
Charging Temperature: 0° to 40° C (32° to 104° F)
Charging Temperature: 5° to 60° C (41° to 140° F)
Operating Time*: Camera Unit + Front Touchscreen Module: 160 minutes
Charging Time**: Camera Unit + Front Touchscreen Module: 90 minutes
*Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled and should be used for reference only.
**Tested in a laboratory environment when using a 5V/2A USB adapter and should be used for reference only.
In The Box
DJI Action 2 Front Touchscreen Module × 1
