COMPACT DRONE OPTIMISED FOR AERIAL SURVEYING

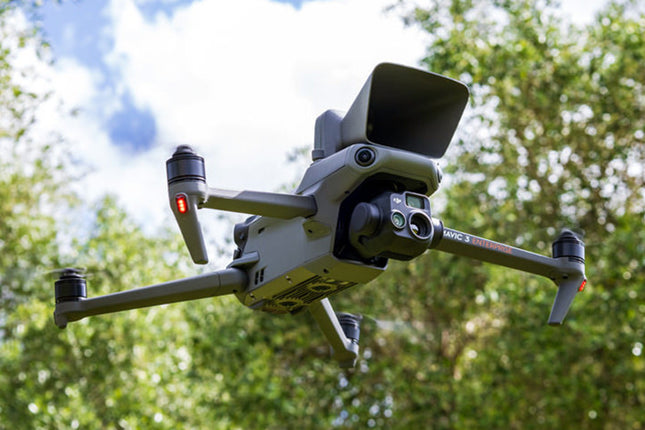

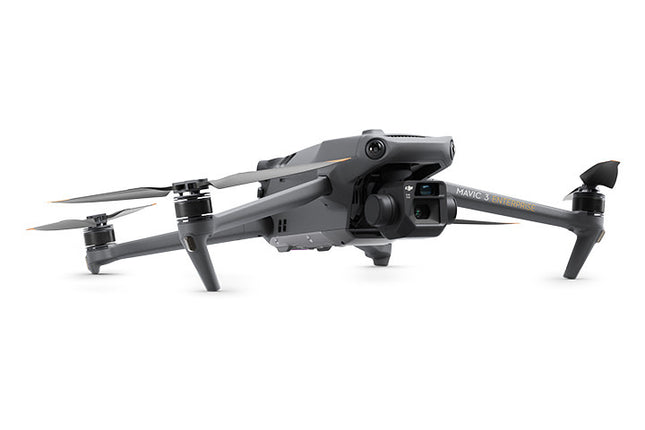

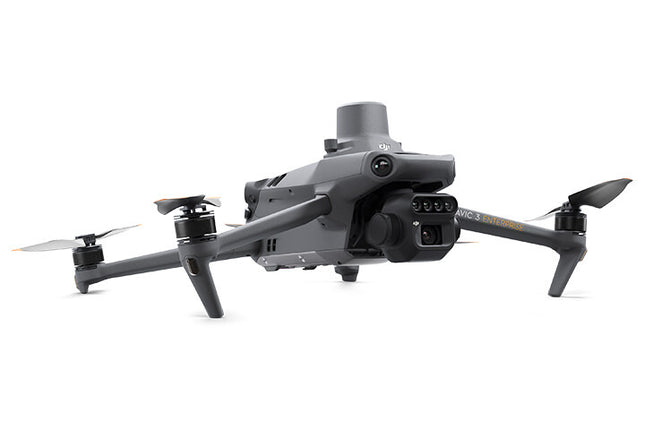

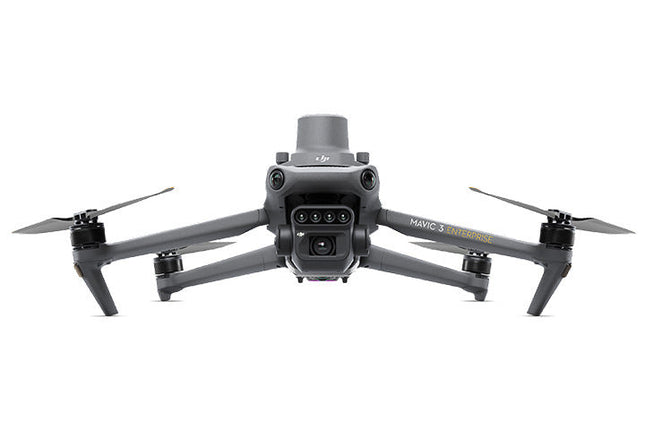

The DJI Mavic 3 Enterprise is a new generation of portable drone for land surveying.
Optimised for drone mapping, this lightweight all-in-one solution features a 4/3 inch Hasselblad 20MP sensor with mechanical shutter.
The DJI M3E is a highly-efficient surveying solution: A large pixel size, 0.7s shooting shutter interval and a 45 minute flight time means that it can cover up to 16km2 in a single day.
Combine with the RTK Module to achieve GCP-free, centimetre accurate mapping data.
A versatile solution, the Mavic 3 Enterprise can achieve up to 56x hybrid zoom, making it ideal for inspection missions.
Benefit from enhanced flight safety features, robust data security protocols and access to a full software suite, including DJI FlightHub 2.
KEY FEATURES
Optimised for Surveying: Large pixel size
Wide Camera: 4/3 CMOS camera; 20MP; Mechanical shutter
Tele Camera: 12MP; 56x hybrid zoom
Lightweight, compact, and portable: 915g airframe
Ultra-long battery life: 45 minutes maximum flying time
Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
Accessories: Including RTK Module for centimetre-level precision.
Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.
Entry-level Survey Drone: The price point and size makes the M3E a great entry level surveying drone.
CAMERA
HIGH-CLASS SENSOR ENGINEERED FOR PRECISION DRONE SURVEYING
The camera on the Mavic 3 Enterprise enables it to be deployed as a specialised tool for aerial surveying and precision inspection missions.
Its integrated payload features wide and tele cameras.
The Mavic 3E’s large pixel size and Intelligent Low-Light Mode combine to offer significantly improved performance in dim conditions.
Wide Camera
4/3 CMOS Hasselblad sensor, 20MP
Large pixel size (3.3um) and shooting interval of 0.7s increase surveying efficiency
Mechanical shutter: Prevents motion blur and ensures no jelly effect under high-speed movement
Equivalent focal length: 24mm
Tele Camera
½ inch CMOS, 12MP
162mm Equivalent Focal Length
Up to 56x hybrid zoom
ENHANCED SURVEYING EFFICIENCY
MORE DATA IN A SINGLE FLIGHT
The Mavic 3 Enterprise is more portable, efficient and expandable compared to DJI’s other compact drone mapping solution: The Phantom 4 RTK.
With greater battery life, larger pixel size and shorter shooting interval, the Mavic 3 Enterprise is up to eight times more efficient than the P4 RTK (1cm GSD).
Tests show that, with a 5cm GSD, the orthophoto efficiency of the Mavic 3 Enterprise can reach 2.25 square kilometres: 1.9 times that of the Phantom 4 RTK.
NEXT GENERATION TRANSMISSION AND SAFETY FEATURES
GREATER PEACE OF MIND DURING FLIGHTS
The Mavic 3 Enterprise has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.
DATA SECURITY
PROTECT YOUR SENSITIVE DATA
The Mavic 3 Enterprise offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
CONTROLLER
PROFESSIONAL REMOTE CONTROLLER FOR PROFESSIONAL MISSIONS
The Mavic 3 Enterprise is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
Built-in microphone for clear communication. Can be used with the loud speaker module.
1.5 hours to fully charged, 3 hours of battery life
Enhanced CPU and GPU performance
Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear.
ACCESSORY ECOSYSTEM
GET MORE FROM EACH FLIGHT
The Mavic 3 Enterprise is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission.
RTK Module: Enables surveying professionals to achieve centimetre-level accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.

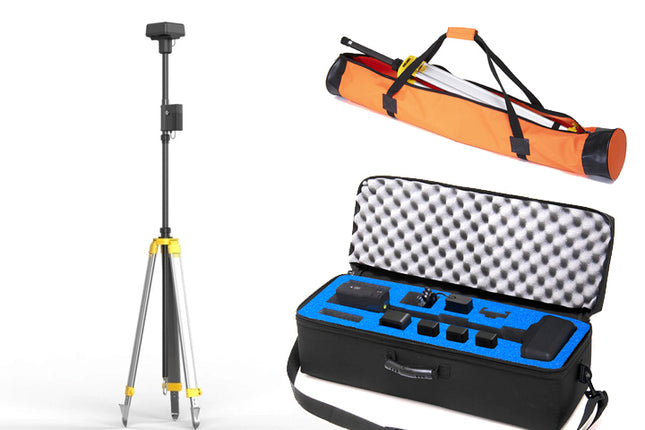

The D-RTK 2 Mobile Station: The Mavic 3 Enterprise is compatible with the D-RTK 2 Base Station - DJI’s upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
SUPPORTED BY DJI ENTERPRISE SOFTWARE
The Mavic 3 Enterprise Series drones are at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aerial platforms to reach their full potential as tools for data gathering, mapping, fleet management and flight operations.
DJI PILOT 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FLIGHTHUB 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
DJI TERRA
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
DJI THERMAL ANALYSIS TOOL 3.0
Helps professionals analyse, annotate and process images captured by the Mavic 3 Thermal using DTAT 3.0 to detect temperature abnormalities during inspections.
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008

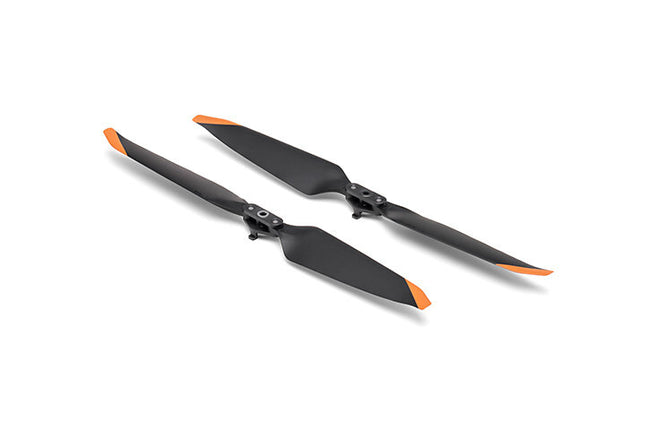

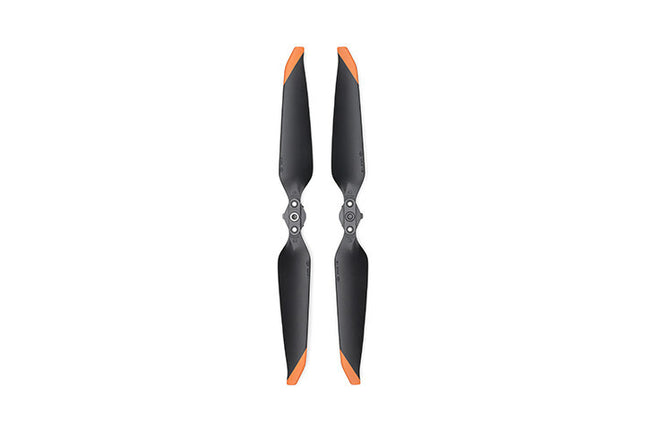

Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC

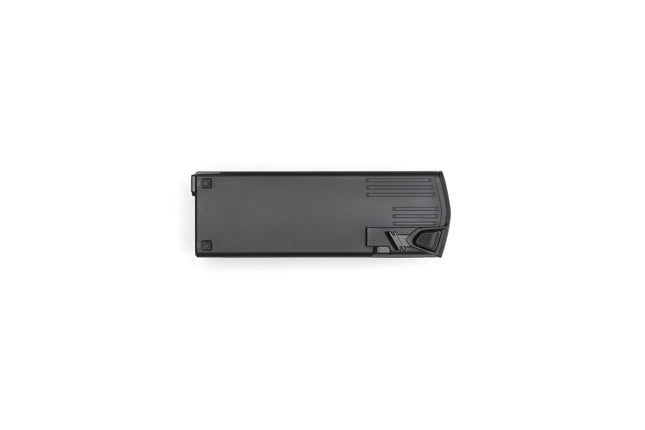

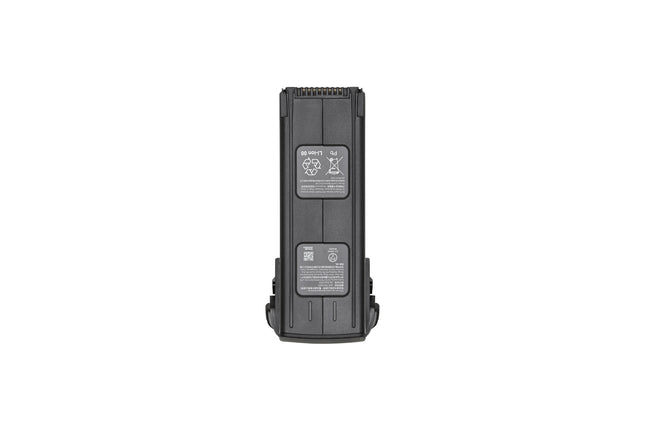

BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)

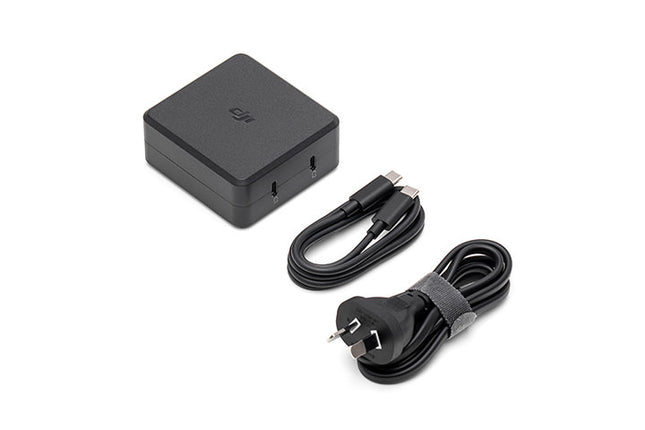

CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.

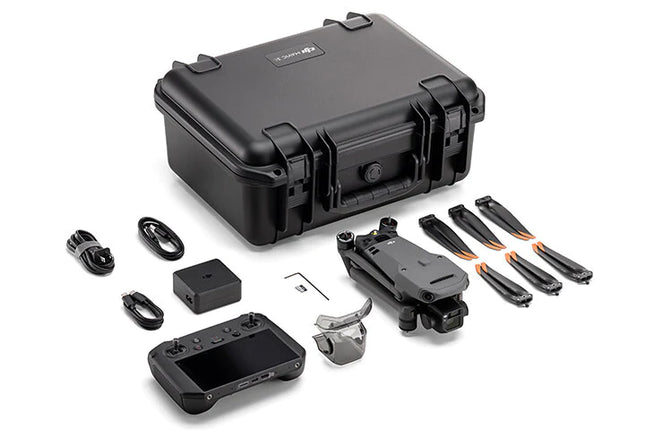

IN THE BOX
Mavic 3E Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3E) NZ × 1
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.

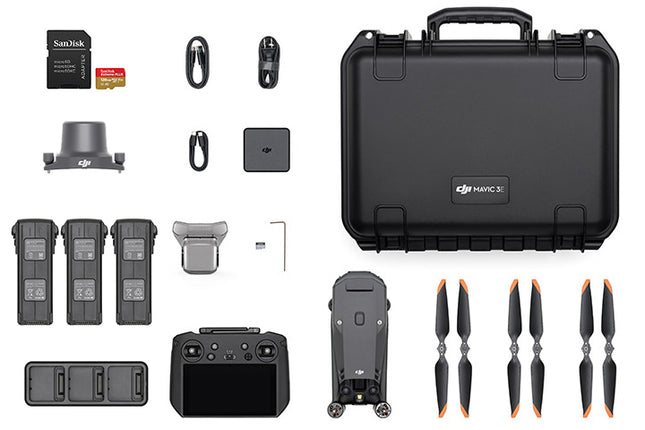

IN THE BOX
Mavic 3E Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3E) NZ × 1
Purchase through us and you get FREE Care Enterprise Basic Cover with your Mavic 3 Enterprise

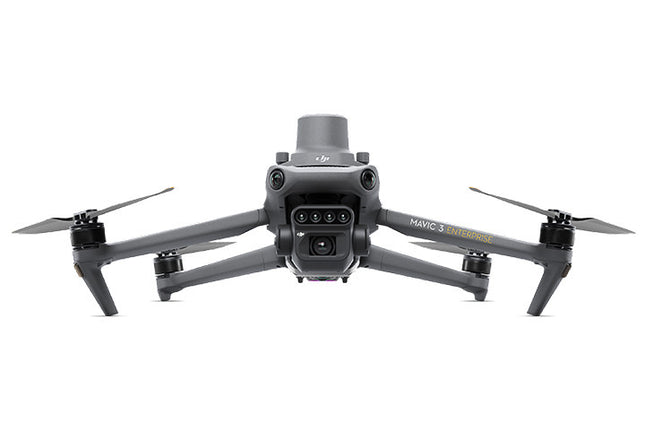

COMPACT DRONE OPTIMISED FOR AERIAL SURVEYING
The DJI Mavic 3 Enterprise is a new generation of portable drone for land surveying.
Optimised for drone mapping, this lightweight all-in-one solution features a 4/3 inch Hasselblad 20MP sensor with mechanical shutter.
The DJI M3E is a highly-efficient surveying solution: A large pixel size, 0.7s shooting shutter interval and a 45 minute flight time means that it can cover up to 16km2 in a single day.
Combine with the RTK Module to achieve GCP-free, centimetre accurate mapping data.
A versatile solution, the Mavic 3 Enterprise can achieve up to 56x hybrid zoom, making it ideal for inspection missions.
Benefit from enhanced flight safety features, robust data security protocols and access to a full software suite, including DJI FlightHub 2.
KEY FEATURES
Optimised for Surveying: Large pixel size
Wide Camera: 4/3 CMOS camera; 20MP; Mechanical shutter
Tele Camera: 12MP; 56x hybrid zoom
Lightweight, compact, and portable: 915g airframe
Ultra-long battery life: 45 minutes maximum flying time
Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
Accessories: Including RTK Module for centimetre-level precision.
Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.
Entry-level Survey Drone: The price point and size makes the M3E a great entry level surveying drone.
CAMERA
HIGH-CLASS SENSOR ENGINEERED FOR PRECISION DRONE SURVEYING
The camera on the Mavic 3 Enterprise enables it to be deployed as a specialised tool for aerial surveying and precision inspection missions.
Its integrated payload features wide and tele cameras.
The Mavic 3E’s large pixel size and Intelligent Low-Light Mode combine to offer significantly improved performance in dim conditions.
Wide Camera
4/3 CMOS Hasselblad sensor, 20MP
Large pixel size (3.3um) and shooting interval of 0.7s increase surveying efficiency
Mechanical shutter: Prevents motion blur and ensures no jelly effect under high-speed movement
Equivalent focal length: 24mm
Tele Camera
½ inch CMOS, 12MP
162mm Equivalent Focal Length
Up to 56x hybrid zoom
ENHANCED SURVEYING EFFICIENCY
MORE DATA IN A SINGLE FLIGHT
The Mavic 3 Enterprise is more portable, efficient and expandable compared to DJI’s other compact drone mapping solution: The Phantom 4 RTK.
With greater battery life, larger pixel size and shorter shooting interval, the Mavic 3 Enterprise is up to eight times more efficient than the P4 RTK (1cm GSD).
Tests show that, with a 5cm GSD, the orthophoto efficiency of the Mavic 3 Enterprise can reach 2.25 square kilometres: 1.9 times that of the Phantom 4 RTK.
NEXT GENERATION TRANSMISSION AND SAFETY FEATURES
GREATER PEACE OF MIND DURING FLIGHTS
The Mavic 3 Enterprise has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.
DATA SECURITY
PROTECT YOUR SENSITIVE DATA
The Mavic 3 Enterprise offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
CONTROLLER
PROFESSIONAL REMOTE CONTROLLER FOR PROFESSIONAL MISSIONS
The Mavic 3 Enterprise is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
Built-in microphone for clear communication. Can be used with the loud speaker module.
1.5 hours to fully charged, 3 hours of battery life
Enhanced CPU and GPU performance
Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear.
ACCESSORY ECOSYSTEM
GET MORE FROM EACH FLIGHT
The Mavic 3 Enterprise is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission.
RTK Module: Enables surveying professionals to achieve centimetre-level accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.
The D-RTK 2 Mobile Station: The Mavic 3 Enterprise is compatible with the D-RTK 2 Base Station - DJI’s upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
SUPPORTED BY DJI ENTERPRISE SOFTWARE
The Mavic 3 Enterprise Series drones are at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aerial platforms to reach their full potential as tools for data gathering, mapping, fleet management and flight operations.
DJI PILOT 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FLIGHTHUB 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
DJI TERRA
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
DJI THERMAL ANALYSIS TOOL 3.0
Helps professionals analyse, annotate and process images captured by the Mavic 3 Thermal using DTAT 3.0 to detect temperature abnormalities during inspections.
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.

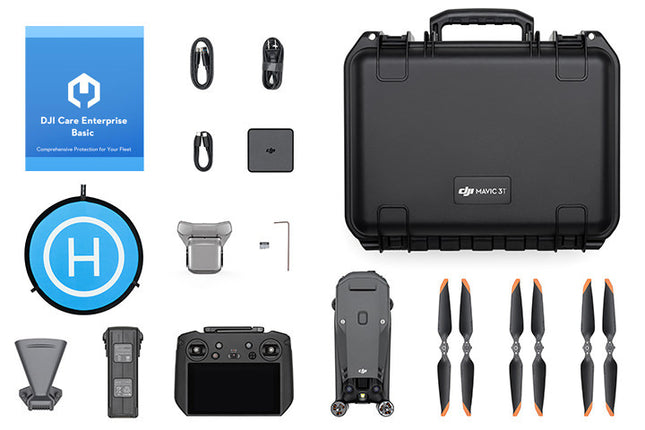

IN THE BOX
Mavic 3E Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3E) NZ × 1
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.
IN THE BOX
DJI MAVICE 3 ENTERPRISE
Mavic 3E Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3E) NZ × 1
EXTRAS IN SURVEY COMBO
RTK Module × 1Intelligent Flight Battery × 3Mavic 3 Enterprise Series Battery Charging Hub (100W) × 1SanDisk Extreme 128GB Micro SD Card with Adapter × 1
NEW STANDARD FOR PORTABLE COMMERCIAL DRONES
The DJI Mavic 3 Thermal is a new generation of multi-sensor, lightweight and compact commercial drone.
Especially suited for the emergency services and inspection missions, the quickly-deployable Mavic 3T has powerful imaging capabilities and enhanced 45 minutes flight time.
This versatile drone supports visual data collection, including hybrid zooming, and high-resolution thermal.
Integrate with a range of accessories to boost operations, including RTK Module for centimetre-level positioning, and high volume loud-speaker - especially suited to public safety and search and rescue missions.
Benefit from enhanced safety features, the new DJI RC Pro Enterprise smart controller with high-bright screen, and upgraded drone data security.
Make the most from your drone data with a comprehensive software suite, including compatibility with the all-in-one cloud operations management software, DJI FlightHub 2; and the DJI Terra mapping software.
KEY FEATURES
Versatile Data Collection: Thermal, wide, and hybrid zooming
Wide Camera: 48MP
Tele Camera: 12MP; 56x hybrid zoom
Thermal Sensor: 640 x 512 @ 30fps. Use with DJI Thermal Analysis Tool
Lightweight, compact, and portable: 920g airframe
Ultra-long battery life: 45 minutes maximum flying time
Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
Accessories: Including RTK Module and Loud Speaker.
Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.
CAMERA
VERSATILE DATA COLLECTION: WIDE, ZOOM, AND THERMAL
Collect visual and thermal data with the M3T for a variety of aerial insights: Ideal for public safety, inspection and night operations.
And with a simultaneous split-screen zoom, the M3T’s thermal and zoom cameras support 28× continuous side-by-side digital zoom for easy comparisons.
Wide Camera
½ inch CMOS, 48MP
24mm Equivalent Focal Length
Tele Camera
½ inch CMOS, 12MP
162mm Equivalent Focal Length
Up to 56x hybrid zoom
Thermal Camera
Uncooled VOx Microbolometer
640 x 512 @ 30fps px resolution
40mm Equivalent Focal Length
61° Display Field of View (DFOV)
Thermal Insights: Point and area temperature; high temperature alerts; colour palettes; isotherms
NEXT GENERATION TRANSMISSION AND SAFETY FEATURES
GREATER PEACE OF MIND DURING FLIGHTS
The Mavic 3 Thermal has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.
DATA SECURITY
PROTECT YOUR SENSITIVE DATA
The Mavic 3T offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
CONTROLLER
PROFESSIONAL REMOTE CONTROLLER FOR PROFESSIONAL MISSIONS
The M3T is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
Built-in microphone for clear communication. Can be used with the loud speaker module.
1.5 hours to fully charged, 3 hours of battery life
Enhanced CPU and GPU performance
Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear
ACCESSORY ECOSYSTEM
GET MORE FROM EACH FLIGHT
The Mavic 3 Thermal is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission.
RTK Module: Enables surveying professionals to achieve centimetre-level accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
SUPPORTED BY DJI ENTERPRISE SOFTWARE
The Mavic 3 Enterprise Series drones are at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aerial platforms to reach their full potential as tools for data gathering, mapping, fleet management and flight operations.
DJI PILOT 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FLIGHTHUB 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
DJI TERRA
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.
IN THE BOX
Mavic 3T Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3T) NZ × 1
THE ULTIMATE TOOL FOR NEW ZEALAND FARMERS
The Mavic 3 Thermal Barking Drone is the successor to the DJI Mavic 2 Enterprise Barking drone.The Barking Drone is extremely popular for its portability and high-quality camera, it is designed with a smart port on top of the craft that allows the addition of modular accessories, such as a loudspeaker. The loudspeaker can be used to play recorded audio, including a siren sound or dog barking, it can play back at a sound level which is able to be heard from hundreds of metres away. Stock respond quickly and effectively to the sound.
The Barking Drone also sports a 12-megapixel camera with 56x hybrid zoom and is capable of capturing 4K footage. Farmers utilise the camera for a range of tasks from checking stock, examining troughs, assessing hard-to-reach fencelines and using the zoom for close inspections. This has made these operations even easier than ever before. In cold climates, you can be sure the drone will perform thanks to the batteries impressive -10° to 40° operating range.
NEW STANDARD FOR PORTABLE COMMERCIAL DRONES
The DJI Mavic 3 Thermal is a new generation of multi-sensor, lightweight and compact commercial drone.
Especially suited for the emergency services and inspection missions, the quickly-deployable Mavic 3T has powerful imaging capabilities and enhanced 45 minutes flight time.
This versatile drone supports visual data collection, including hybrid zooming, and high-resolution thermal.
Integrate with a range of accessories to boost operations, including RTK Module for centimetre-level positioning, and high volume loud-speaker - especially suited to public safety and search and rescue missions.
Benefit from enhanced safety features, the new DJI RC Pro Enterprise smart controller with high-bright screen, and upgraded drone data security.
Make the most from your drone data with a comprehensive software suite, including compatibility with the all-in-one cloud operations management software, DJI FlightHub 2; and the DJI Terra mapping software.
KEY FEATURES
Versatile Data Collection: Thermal, wide, and hybrid zooming
Wide Camera: 48MP
Tele Camera: 12MP; 56x hybrid zoom
Thermal Sensor: 640 x 512 @ 30fps. Use with DJI Thermal Analysis Tool
Lightweight, compact, and portable: 920g airframe
Ultra-long battery life: 45 minutes maximum flying time
Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
Accessories: Including RTK Module and Loud Speaker.
Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.
CAMERA
VERSATILE DATA COLLECTION: WIDE, ZOOM, AND THERMAL
Collect visual and thermal data with the M3T for a variety of aerial insights: Ideal for public safety, inspection and night operations.
And with a simultaneous split-screen zoom, the M3T’s thermal and zoom cameras support 28× continuous side-by-side digital zoom for easy comparisons.
Wide Camera
½ inch CMOS, 48MP
24mm Equivalent Focal Length
Tele Camera
½ inch CMOS, 12MP
162mm Equivalent Focal Length
Up to 56x hybrid zoom
Thermal Camera
Uncooled VOx Microbolometer
640 x 512 @ 30fps px resolution
40mm Equivalent Focal Length
61° Display Field of View (DFOV)
Thermal Insights: Point and area temperature; high temperature alerts; colour palettes; isotherms
NEXT GENERATION TRANSMISSION AND SAFETY FEATURES
GREATER PEACE OF MIND DURING FLIGHTS
The Mavic 3 Thermal has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.
DATA SECURITY
PROTECT YOUR SENSITIVE DATA
The Mavic 3T offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
CONTROLLER
PROFESSIONAL REMOTE CONTROLLER FOR PROFESSIONAL MISSIONS
The M3T is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
Built-in microphone for clear communication. Can be used with the loud speaker module.
1.5 hours to fully charged, 3 hours of battery life
Enhanced CPU and GPU performance
Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear
ACCESSORY ECOSYSTEM
GET MORE FROM EACH FLIGHT
The Mavic 3 Thermal is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission.
RTK Module: Enables surveying professionals to achieve centimetre-level accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
SUPPORTED BY DJI ENTERPRISE SOFTWARE
The Mavic 3 Enterprise Series drones are at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aerial platforms to reach their full potential as tools for data gathering, mapping, fleet management and flight operations.
DJI PILOT 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FLIGHTHUB 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
DJI TERRA
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.
IN THE BOX
MAVIC 3 THERMAL
Mavic 3T Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1
BARKING DRONE COMBO ALSO INCLUDES
DJI Care Enterprise Basic (Mavic 3T) NZ × 1DJI Mavic 3 Intelligent Flight Battery × 1DJI Mavic 3 Enterprise Series Speaker × 1Drone Landing Pad (75cm) × 1
NEW STANDARD FOR PORTABLE COMMERCIAL DRONES
The DJI Mavic 3 Thermal is a new generation of multi-sensor, lightweight and compact commercial drone.
Especially suited for the emergency services and inspection missions, the quickly-deployable Mavic 3T has powerful imaging capabilities and enhanced 45 minutes flight time.
This versatile drone supports visual data collection, including hybrid zooming, and high-resolution thermal.
Integrate with a range of accessories to boost operations, including RTK Module for centimetre-level positioning, and high volume loud-speaker - especially suited to public safety and search and rescue missions.
Benefit from enhanced safety features, the new DJI RC Pro Enterprise smart controller with high-bright screen, and upgraded drone data security.
Make the most from your drone data with a comprehensive software suite, including compatibility with the all-in-one cloud operations management software, DJI FlightHub 2; and the DJI Terra mapping software.
KEY FEATURES
Versatile Data Collection: Thermal, wide, and hybrid zooming
Wide Camera: 48MP
Tele Camera: 12MP; 56x hybrid zoom
Thermal Sensor: 640 x 512 @ 30fps. Use with DJI Thermal Analysis Tool
Lightweight, compact, and portable: 920g airframe
Ultra-long battery life: 45 minutes maximum flying time
Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
Accessories: Including RTK Module and Loud Speaker.
Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.
CAMERA
VERSATILE DATA COLLECTION: WIDE, ZOOM, AND THERMAL
Collect visual and thermal data with the M3T for a variety of aerial insights: Ideal for public safety, inspection and night operations.
And with a simultaneous split-screen zoom, the M3T’s thermal and zoom cameras support 28× continuous side-by-side digital zoom for easy comparisons.
Wide Camera
½ inch CMOS, 48MP
24mm Equivalent Focal Length
Tele Camera
½ inch CMOS, 12MP
162mm Equivalent Focal Length
Up to 56x hybrid zoom
Thermal Camera
Uncooled VOx Microbolometer
640 x 512 @ 30fps px resolution
40mm Equivalent Focal Length
61° Display Field of View (DFOV)
Thermal Insights: Point and area temperature; high temperature alerts; colour palettes; isotherms
NEXT GENERATION TRANSMISSION AND SAFETY FEATURES
GREATER PEACE OF MIND DURING FLIGHTS
The Mavic 3 Thermal has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.
DATA SECURITY
PROTECT YOUR SENSITIVE DATA
The Mavic 3T offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
CONTROLLER
PROFESSIONAL REMOTE CONTROLLER FOR PROFESSIONAL MISSIONS
The M3T is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
Built-in microphone for clear communication. Can be used with the loud speaker module.
1.5 hours to fully charged, 3 hours of battery life
Enhanced CPU and GPU performance
Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear
ACCESSORY ECOSYSTEM
GET MORE FROM EACH FLIGHT
The Mavic 3 Thermal is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission.
RTK Module: Enables surveying professionals to achieve centimetre-level accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
SUPPORTED BY DJI ENTERPRISE SOFTWARE
The Mavic 3 Enterprise Series drones are at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aerial platforms to reach their full potential as tools for data gathering, mapping, fleet management and flight operations.
DJI PILOT 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FLIGHTHUB 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
DJI TERRA
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
PRODUCT SPECIFICATIONS
AIRCRAFT
Weight (with propellers, without accessories) [1]DJI Mavic 3E: 915 gDJI Mavic 3T: 920 g
Max Takeoff WeightDJI Mavic 3E: 1,050 gDJI Mavic 3T: 1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode)8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)
Max Flight Time (no wind)45 mins [4]
Max Hover Time (no wind)38 mins
Max Flight Distance32 km
Max Tilt Angle30° (Normal Mode)35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for EnterpriseBeaconBuilt into the aircraft
WIDE CAMERA
SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MPDJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
LensDJI Mavic 3E:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞
DJI Mavic 3T:FOV: 84°Format Equivalent: 24 mmAperture: f/2.8Focus: 1 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedDJI Mavic 3E:Electronic Shutter: 8-1/8000 sMechanical Shutter: 8-1/2000 s
DJI Mavic 3T:Electronic Shutter: 8-1/8000 s
Max Image SizeDJI Mavic 3E: 5280×3956DJI Mavic 3T: 8000×6000
Still Photography ModesDJI Mavic 3E:Single: 20 MPTimed: 20 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sJPEG+RAW: 3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 20 MPPanorama: 20 MP (raw image)
DJI Mavic 3T:Single: 12 MP/48 MPTimed: 12 MP/48 MPJPEG: 2/3/5/7/10/15/20/30/60 s*Panorama: 12 MP (raw image); 100 MP (stitched image)Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatDJI Mavic 3E: JPEG/DNG (RAW)DJI Mavic 3T: JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
TELE CAMERA
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°Format Equivalent: 162 mmAperture: f/4.4Focus: 3 m to ∞
ISO RangeDJI Mavic 3E: 100-6400DJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000×3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3E:Single: 12 MPTimed: 12 MPJPEG: 0.7/1/2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
DJI Mavic 3T:Single: 12 MPTimed: 12 MPJPEG: 2/3/5/7/10/15/20/30/60 sSmart Low-light Shooting: 12 MP
Video ResolutionH.2644K: 3840×2160@30fpsFHD: 1920×1080@30fps
BitrateDJI Mavic 3E:4K: 130 MbpsFHD: 70 Mbps
DJI Mavic 3T:4K: 85 MbpsFHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
THERMAL CAMERA [5]
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 61°Format Equivalent: 40 mmAperture: f/1.0Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode)0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit)R-JPEG (16-bit)
Video Resolution640×512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesDJI Mavic 3T:Single: 640×512Timed: 640×512JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
GIMBAL
Stabilization3-axis (tilt, roll, pan)
Mechanical RangeDJI Mavic 3E:Tilt: -135° to 100°Roll: -45° to 45°Pan: -27° to 27°
DJI Mavic 3T:Tilt: -135° to 45°Roll: -45° to 45°Pan: -27° to 27°
Controllable RangeTilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
SENSING
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 mDetection Range: 0.5-200 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 mEffective Sensing Speed: Flight Speed ≤12 m/sFOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 mEffective Sensing Speed: Flight Speed ≤15 m/sFOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 mEffective Sensing Speed: Flight Speed ≤6 m/sFOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
VIDEO TRANSMISSION
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) [7]DJI Mavic 3E:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
DJI Mavic 3T:FCC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km
Max Transmission Distance (Obstructed) [8]Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed[9]15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC PRO ENTERPRISE
Video Transmission SystemDJI O3 Enterprise Transmission
Max Transmission Distance (unobstructed, free of interference) [7]FCC: 15 kmCE/SRRC/MIC: 8 km
Video Transmission Operating Frequency [6]2.400-2.4835 GHz5.725-5.850 GHz
Antenna4 Antennas, 2T4R
Video Transmission Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
Wi-Fi Protocol802.11 a/b/g/n/ac/axSupport 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency [6]2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth ProtocolBluetooth 5.1
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
Screen Resolution1920×1080
Screen Size5.5 inches
Screen60 fps
Brightness1,000 nits
Touchscreen Control10-point multi-touch
BatteryLi-ion (5000 mAh @ 7.2 V)
Charging TypeRecommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
Rated Power12 W
Storage CapacityInternal Storage (ROM): 64 GBSupports a microSD card for expanded capacity.
Charging TimeApprox. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)Approx. 2 hours (with a USB charger at 12 V)Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
Operating TimeApprox. 3 hours
Video Output PortMini-HDMI port
Operating Temperature Range-10° to 40° C (14° to 104° F)
Storage Temperature-30° to 60° C (-22° to 140° F) (within one month)-30° to 45° C (-22° to 113° F) (one to three months)-30° to 35° C (-22° to 95° F) (three to six months)-30° to 25° C (-22° to 77° F) (more than six months)
Charging Temperature5° to 40° C (41° to 104° F)
Supported DJI Aircraft[10]DJI Mavic 3EDJI Mavic 3T
GNSSGPS+Galileo+GLONASS
DimensionsAntennas folded and controller sticks unmounted:183.27×137.41×47.6 mm (L×W×H)Antennas unfolded and controller sticks mounted:183.27×203.35×59.84 mm (L×W×H)
WeightApprox. 680 g
ModelRM510B
STORAGE
Supported Memory Cards
Aircraft:U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD CardsRemote Controller:SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO Plus 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:SanDisk Extreme 32GB V30 A1 microSDHCSanDisk Extreme PRO 32GB V30 A1 microSDHCSanDisk Extreme 512GB V30 A2 microSDXCLexar 1066x 64GB V30 A2 microSDXCKingston Canvas Go! Plus 64GB V30 A2 microSDXCKingston Canvas React Plus 64GB V90 A1 microSDXCKingston Canvas Go! Plus 128GB V30 A2 microSDXCKingston Canvas React Plus 128GB V90 A1 microSDXCKingston Canvas React Plus 256GB V90 A2 microSDXCSamsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)
CHARGER
Input100-240 V (AC Power), 50-60 Hz, 2.5 AOutput Power100 WOutputMax. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
CHARGING HUB
InputUSB-C: 5-20 V, 5.0 A
OutputBattery Port: 12-17.6 V, 8.0 A
Rated Power100 W
Charging TypeThree batteries charged in sequence
Charging Temperature Range5° to 40° C (41° to 104° F)
RTK MODULE
Dimensions50.2×40.2×66.2 mm (L×W×H)
Weight24±2 g
InterfaceUSB-C
PowerApprox. 1.2 W
RTK Positioning AccuracyRTK Fix:Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
SPEAKER
Dimensions114.1×82.0×54.7 mm (L×W×H)
Weight85±2 g
InterfaceUSB-C
Rated Power3 W
Max Volume [11]110 dB @ 1 m
Effective Broadcast Distance [11]100 m @ 70 dB
Bit Rate16 Kbps/32 Kbps
Operating Temperature Range-10° to 40° C (14° to 104° F)
OTHER
Notes[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.[3] Max wind speed resistance during takeoff and landing.[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.
IN THE BOX
DJI MAVIC 3 ENTERPRISE THERMAL
Mavic 3T Aircraft × 1Mavic 3 Intelligent Flight Battery × 1microSD Card 64GB × 1Gimbal Protector × 1Mavic 3 Enterprise Series Propellers (Pair) × 3RC Pro Enterprise × 1Screwdriver × 1USB-C Power Adapter (100W) × 1100W Power Adaptor AC Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Protector Case × 1DJI Care Enterprise Basic (Mavic 3T) NZ × 1
COMBO INCLUDES
DJI Mavic 3 Intelligent Flight Battery × 3SanDisk Extreme 128GB Micro SD Card with Adapter × 1DJI Mavic 3 Enterprise Series Battery Charging Hub (100W) × 1
NEW STANDARD FOR PORTABLE MULTISPECTRAL DRONES
The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.
It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.
The Mavic 3M includes an RTK module that achieves centimetre-level positioning.
The Mavic 3 Multispectral is a highly-portable drone: It's foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.
MAVIC 3M CAMERAS
The DJI Mavic 3M has a newly-upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras. This enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.
It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.
MULTISPECTRAL CAMERAS
The Mavic 3M has four 5MP multispectral cameras. Infact, the Mavic 3M is the world’s smallest 4-band multispectral drone camera.
Its built-in camera array combines Green, Red, Red Edge, and Near Infrared sensors.
Near Infrared: 860 nm ± 26 nm
Red: 650 nm ± 16 nm
Red Edge: 730 nm ± 16 nm
Green: 560nm ± 16 nm
These sensors support the NDVI, GNDVI, and NDRE vegetation indexes to provide farmers with vital information.
NDVI: Makes it possible to detect plants under stress, differentiate between crops, and determine at which stage they are in their growing cycle.
NDRE: Provides insights on chlorophyll content in leaves.
GNDVI: Useful for estimating photosynthetic activity, as well as water and nitrogen content in the plant canopy.
RGB CAMERA
Beyond its multispectral capabilities, the Mavic 3M has a visual camera to empower agriculture and mapping workflows.
It features:
20MP wide camera; 4/3 CMOS
Mechanical shutter (1/2000s fastest mechanical shutter speed)
0.7 second interval shooting - high-speed burst when RGB camera is used
Large pixel size: 3.3μm pixels
Improved low-light software
With these key features, the Mavic 3M is engineered for rapid aerial surveys and data quality.
These camera specs, together with the drone’s 43 minute maximum flight time, mean that the Mavic 3M can capture data across up to 2 square kilometers in a single flight.
SUNLIGHT SENSOR
The Mavic 3M has a built-in sunlight sensor that captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction.
This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
RTK MODULE INCLUDED
The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and - crucially - without the need for Ground Control Points.
The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre.
ENHANCED SAFETY FEATURES
The Mavic 3M has an advanced suite of safety features.
Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and - when using Avoid mode - reroute your flight path accordingly.
Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.
AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.
O3 Transmission: The Mavic 3M comes with DJI’s O3 transmission technology. It sets the standard for video and control stability and provides a reliable link between pilot and aircraft. The Mavic 3M has a transmission range of 8km (CE).
The Mavic 3M comes with Enterprise Shield cover (Basic, 1 year).
SMART TERRAIN FOLLOW
The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.
By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.
For situations when you weren't able to import a DSM or local elevation data pre-flight, the Mavic 3M's collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.
INTELLIGENT FIELD SCOUTING
The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.
It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.
It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.
MAVIC 3E CUSTOMISATION
Build a solution tailored to your needs with Cloud API and MSDK.
Cloud APIThe Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2's built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.
MSDKThe Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.
FULL SOFTWARE SUITE
The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.
SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.
Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.
The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.
*Please note that the DJI Smart Agricultural Platform will be supported in Q2 of 2023.
PRODUCT SPECIFICATIONS
AIRCRAFT
NET WEIGHT (WITH PROPELLERS AND RTK MODULE) [1]
951 g
MAX TAKEOFF WEIGHT
1,050 g
DIMENSIONS (FOLDED/UNFOLDED)
Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
DIAGONAL LENGTH
Diagonal: 380.1 mm
MAX ASCENT SPEED
6 m/s (Normal Mode)
8 m/s (Sport Mode)
MAX DESCENT SPEED
6 m/s (Normal Mode)
6 m/s (Sport Mode)
MAX FLIGHT SPEED (AT SEA LEVEL, NO WIND)
15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) [2]
MAX WIND SPEED RESISTANCE
12 m/s [3]
MAX TAKE-OFF ALTITUDE ABOVE SEA LEVEL
6000 m (without a payload)
MAX FLIGHT TIME (WITHOUT WIND)
43 minutes [4]
MAX HOVER TIME (WITHOUT WIND)
37 minutes [4]
MAX FLIGHT DISTANCE
32 km [6]
MAX TILT ANGLE
30° (Normal Mode)
35° (Sport Mode)
MAX ANGULAR VELOCITY
200°/s
GNSS
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
HOVERING ACCURACY RANGE
Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
OPERATING TEMPERATURE
-10° to 40° C (14° to 104° F)
INTERNAL STORAGE
N/A
MOTOR MODEL NUMBER
2008
PROPELLER MODEL NUMBER
9453F Enterprise Edition
LIGHT SENSOR
Built-in module
RGB CAMERA
IMAGE SENSOR
4/3 CMOS
Effective Pixels: 20 MP
LENS
FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞
ISO RANGE
100-6400
SHUTTER SPEED
Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s
MAX IMAGE SIZE
5280×3956
PHOTO SHOOTING MODE
Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)
VIDEO RESOLUTION
H.264:
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
MAX VIDEO BITRATE
4K: 130Mbps
FHD: 70Mbps
SUPPORTED FILE SYSTEM
exFAT
IMAGE FORMAT
JPEG/DNG (RAW)
VIDEO FORMAT
MP4 (MPEG-4 AVC/H.264)
MULTISPECTRAL CAMERA
IMAGE SENSOR
1/2.8-inch CMOS, effective pixels: 5 MP
LENS
FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus
MULTISPECTRAL CAMERA BAND
Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;
GAIN RANGE
1x-32x
SHUTTER SPEED
Electronic Shutter: 1/30~1/12800 s
MAX IMAGE SIZE
2592×1944
IMAGE FORMAT
TIFF
VIDEO FORMAT
MP4 (MPEG-4 AVC/H.264)
PHOTO SHOOTING MODE
Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s
VIDEO RESOLUTION
H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE
MAX VIDEO BITRATE
Stream: 60 Mbps
GIMBAL
STABILIZATION SYSTEM
3-axis mechanical gimbal (tilt, roll, pan)
MECHANICAL RANGE
Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°
CONTROLLABLE RANGE
Tilt: -90° to 35°
Pan: Uncontrollable
MAX CONTROL SPEED (TILT)
100°/s
ANGULAR VIBRATION RANGE
±0.007°
SENSING SYSTEM
SENSING SYSTEM TYPE
Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
FORWARD
Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°
BACKWARD
Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°
LATERAL
Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°
UPWARD
Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°
DOWNWARD
Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°
OPERATING ENVIRONMENT
Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)
VIDEO TRANSMISSION
VIDEO TRANSMISSION SYSTEM
DJI O3 Image Transmission Industry Edition
LIVE VIEW QUALITY
Remote Controller: 1080p/30fps
OPERATING BAND [7]
2.400-2.4835 GHz
5.725-5.850 GHz
MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
MAX TRANSMISSION DISTANCE (OBSTRUCTED) [9]
Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
MAX DOWNLOAD SPEED
15 MB/s (with DJI RC Pro Industry Edition)
LATENCY (DEPENDING ON ENVIRONMENT AND MOBILE DEVICE)
Approximately 200 milliseconds
ANTENNAS
4 antennas, 2 transmitting and 4 receiving
TRANSMITTER POWER (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
OTHER
Supports the DJI Cellular module
DJI RC PRO ENTERPRISE EDITION
IMAGE TRANSMISSION SYSTEM
DJI O3 Image Transmission Industry Edition
MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
OPERATING BAND OF IMAGE TRANSMISSION [7]
2.400-2.4835 GHz
5.725-5.850 GHz
ANTENNAS
4 antennas, 2 transmitting and 4 receiving
OPERATING BAND OF IMAGE TRANSMISSION AND TRANSMITTER POWER (EIRP)
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
WI-FI PROTOCOL
802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi
WI-FI OPERATING BAND [7]
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
WI-FI OPERATING BAND AND TRANSMITTER POWER (EIRP)
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
BLUETOOTH PROTOCOL
Bluetooth 5.1
BLUETOOTH OPERATING BAND
2.400-2.4835 GHz
BLUETOOTH TRANSMITTER POWER (EIRP)
<10 dBm
SCREEN RESOLUTION
1920×1080
SCREEN SIZE
5.5 inches
SCREEN FRAME RATE
60 fps
SCREEN BRIGHTNESS
1,000 nits
TOUCH-SCREEN
10-point multi-touch
BATTERY
Lithium-ion battery (5000 mAh, 7.2 V)
CHARGING TYPE
100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
RATED POWER
12 Watts
STORAGE CAPACITY
Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity
CHARGING TIME
Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
OPERATING TIME
Approx. 3 hours
VIDEO OUTPUT PORT
Mini-HDMI Port
OPERATING TEMPERATURE
-10° to 40° C (14° to 104°F)
STORAGE TEMPERATURE RANGE
<1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
SUPPORTED DJI AIRCRAFT [10]
DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M
GNSS
GPS + Galileo + GLONASS
DIMENSIONS
Antenna is folded and no control sticks are installed:
183.27×137.41×47.6 mm (Length×Width×Height)
Antenna unfolded and control sticks are installed:
183.27×203.35×59.84 mm (Length×Width×Height)
WEIGHT
Approx. 680 g
MODEL NUMBER
RM510B
STORAGE
SUPPORTED MICROSD CARDS
Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
RECOMMENDED MICROSD CARDS
Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
CAPACITY
5000 mAh
STANDARD VOLTAGE
15.4 V
MAX CHARGING VOLTAGE
17.6 V
BATTERY TYPE
LiPo 4S
CHEMICAL SYSTEM
Lithium Cobalt
ENERGY
77 watt-hours
WEIGHT
335.5 g
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
BATTERY CHARGER
INPUT
100V to 240V (AC), 50Hz to 60Hz, 2.5A
OUTPUT POWER
100 Watts
OUTPUT
Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.
CHARGING HUB
INPUT
USB-C: 5V to 20V, 5.0A
OUTPUT
Battery Port: 12V to 17.6V, 8.0A
RATED POWER
100 Watts
CHARGING TYPE
3 batteries on charging rotation
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
RTK MODULE
DIMENSIONS
50.2×40.2×66.2 mm (Length×Width×Height)
WEIGHT
24±2 g
INTERFACE
USB-C
POWER
Approximately 1.2 watts
RTK POSITION ACCURACY
Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
FOOTNOTES
1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
2. The max speed in the EU cannot exceed 19 m/s.
3. Max wind resistance during takeoff and landing.
4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
10. The DJI RC Plus will support more DJI aircraft in the future.
IN THE BOX
Aircraft × 1Intelligent Flight Battery × 1RTK Module × 1MicroSD card × 1Remote Controller × 1Propeller (pair) × 3Charger × 1Power Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Carrying Case × 1Screwdriver × 1Manuals × 1
FEATURES
NEW STANDARD FOR PORTABLE MULTISPECTRAL DRONES
The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.
It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.
The Mavic 3M includes an RTK module that achieves centimetre-level positioning.
The Mavic 3 Multispectral is a highly-portable drone: It's foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.
MAVIC 3M CAMERAS
The DJI Mavic 3M has a newly-upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras. This enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.
It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.
MULTISPECTRAL CAMERAS
The Mavic 3M has four 5MP multispectral cameras. Infact, the Mavic 3M is the world’s smallest 4-band multispectral drone camera.
Its built-in camera array combines Green, Red, Red Edge, and Near Infrared sensors.
Near Infrared: 860 nm ± 26 nm
Red: 650 nm ± 16 nm
Red Edge: 730 nm ± 16 nm
Green: 560nm ± 16 nm
These sensors support the NDVI, GNDVI, and NDRE vegetation indexes to provide farmers with vital information.
NDVI: Makes it possible to detect plants under stress, differentiate between crops, and determine at which stage they are in their growing cycle.
NDRE: Provides insights on chlorophyll content in leaves.
GNDVI: Useful for estimating photosynthetic activity, as well as water and nitrogen content in the plant canopy.
RGB CAMERA
Beyond its multispectral capabilities, the Mavic 3M has a visual camera to empower agriculture and mapping workflows.
It features:
20MP wide camera; 4/3 CMOS
Mechanical shutter (1/2000s fastest mechanical shutter speed)
0.7 second interval shooting - high-speed burst when RGB camera is used
Large pixel size: 3.3μm pixels
Improved low-light software
With these key features, the Mavic 3M is engineered for rapid aerial surveys and data quality.
These camera specs, together with the drone’s 43 minute maximum flight time, mean that the Mavic 3M can capture data across up to 2 square kilometers in a single flight.
SUNLIGHT SENSOR
The Mavic 3M has a built-in sunlight sensor that captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction.
This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
RTK MODULE INCLUDED
The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and - crucially - without the need for Ground Control Points.
The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre.
ENHANCED SAFETY FEATURES
The Mavic 3M has an advanced suite of safety features.
Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and - when using Avoid mode - reroute your flight path accordingly.
Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.
AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.
O3 Transmission: The Mavic 3M comes with DJI’s O3 transmission technology. It sets the standard for video and control stability and provides a reliable link between pilot and aircraft. The Mavic 3M has a transmission range of 8km (CE).
The Mavic 3M comes with Enterprise Shield cover (Basic, 1 year).
SMART TERRAIN FOLLOW
The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.
By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.
For situations when you weren't able to import a DSM or local elevation data pre-flight, the Mavic 3M's collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.
INTELLIGENT FIELD SCOUTING
The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.
It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.
It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.
MAVIC 3E CUSTOMISATION
Build a solution tailored to your needs with Cloud API and MSDK.
Cloud APIThe Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2's built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.
MSDKThe Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.
FULL SOFTWARE SUITE
The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.
SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.
Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.
The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.
*Please note that the DJI Smart Agricultural Platform will be supported in Q2 of 2023.
PRODUCT SPECIFICATIONS
AIRCRAFT
NET WEIGHT (WITH PROPELLERS AND RTK MODULE) [1]
951 g
MAX TAKEOFF WEIGHT
1,050 g
DIMENSIONS (FOLDED/UNFOLDED)
Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
DIAGONAL LENGTH
Diagonal: 380.1 mm
MAX ASCENT SPEED
6 m/s (Normal Mode)
8 m/s (Sport Mode)
MAX DESCENT SPEED
6 m/s (Normal Mode)
6 m/s (Sport Mode)
MAX FLIGHT SPEED (AT SEA LEVEL, NO WIND)
15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) [2]
MAX WIND SPEED RESISTANCE
12 m/s [3]
MAX TAKE-OFF ALTITUDE ABOVE SEA LEVEL
6000 m (without a payload)
MAX FLIGHT TIME (WITHOUT WIND)
43 minutes [4]
MAX HOVER TIME (WITHOUT WIND)
37 minutes [4]
MAX FLIGHT DISTANCE
32 km [6]
MAX TILT ANGLE
30° (Normal Mode)
35° (Sport Mode)
MAX ANGULAR VELOCITY
200°/s
GNSS
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
HOVERING ACCURACY RANGE
Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
OPERATING TEMPERATURE
-10° to 40° C (14° to 104° F)
INTERNAL STORAGE
N/A
MOTOR MODEL NUMBER
2008
PROPELLER MODEL NUMBER
9453F Enterprise Edition
LIGHT SENSOR
Built-in module
RGB CAMERA
IMAGE SENSOR
4/3 CMOS
Effective Pixels: 20 MP
LENS
FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞
ISO RANGE
100-6400
SHUTTER SPEED
Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s
MAX IMAGE SIZE
5280×3956
PHOTO SHOOTING MODE
Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)
VIDEO RESOLUTION
H.264:
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
MAX VIDEO BITRATE
4K: 130Mbps
FHD: 70Mbps
SUPPORTED FILE SYSTEM
exFAT
IMAGE FORMAT
JPEG/DNG (RAW)
VIDEO FORMAT
MP4 (MPEG-4 AVC/H.264)
MULTISPECTRAL CAMERA
IMAGE SENSOR
1/2.8-inch CMOS, effective pixels: 5 MP
LENS
FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus
MULTISPECTRAL CAMERA BAND
Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;
GAIN RANGE
1x-32x
SHUTTER SPEED
Electronic Shutter: 1/30~1/12800 s
MAX IMAGE SIZE
2592×1944
IMAGE FORMAT
TIFF
VIDEO FORMAT
MP4 (MPEG-4 AVC/H.264)
PHOTO SHOOTING MODE
Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s
VIDEO RESOLUTION
H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE
MAX VIDEO BITRATE
Stream: 60 Mbps
GIMBAL
STABILIZATION SYSTEM
3-axis mechanical gimbal (tilt, roll, pan)
MECHANICAL RANGE
Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°
CONTROLLABLE RANGE
Tilt: -90° to 35°
Pan: Uncontrollable
MAX CONTROL SPEED (TILT)
100°/s
ANGULAR VIBRATION RANGE
±0.007°
SENSING SYSTEM
SENSING SYSTEM TYPE
Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
FORWARD
Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°
BACKWARD
Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°
LATERAL
Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°
UPWARD
Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°
DOWNWARD
Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°
OPERATING ENVIRONMENT
Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)
VIDEO TRANSMISSION
VIDEO TRANSMISSION SYSTEM
DJI O3 Image Transmission Industry Edition
LIVE VIEW QUALITY
Remote Controller: 1080p/30fps
OPERATING BAND [7]
2.400-2.4835 GHz
5.725-5.850 GHz
MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
MAX TRANSMISSION DISTANCE (OBSTRUCTED) [9]
Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
MAX DOWNLOAD SPEED
15 MB/s (with DJI RC Pro Industry Edition)
LATENCY (DEPENDING ON ENVIRONMENT AND MOBILE DEVICE)
Approximately 200 milliseconds
ANTENNAS
4 antennas, 2 transmitting and 4 receiving
TRANSMITTER POWER (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
OTHER
Supports the DJI Cellular module
DJI RC PRO ENTERPRISE EDITION
IMAGE TRANSMISSION SYSTEM
DJI O3 Image Transmission Industry Edition
MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
OPERATING BAND OF IMAGE TRANSMISSION [7]
2.400-2.4835 GHz
5.725-5.850 GHz
ANTENNAS
4 antennas, 2 transmitting and 4 receiving
OPERATING BAND OF IMAGE TRANSMISSION AND TRANSMITTER POWER (EIRP)
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
WI-FI PROTOCOL
802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi
WI-FI OPERATING BAND [7]
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
WI-FI OPERATING BAND AND TRANSMITTER POWER (EIRP)
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
BLUETOOTH PROTOCOL
Bluetooth 5.1
BLUETOOTH OPERATING BAND
2.400-2.4835 GHz
BLUETOOTH TRANSMITTER POWER (EIRP)
<10 dBm
SCREEN RESOLUTION
1920×1080
SCREEN SIZE
5.5 inches
SCREEN FRAME RATE
60 fps
SCREEN BRIGHTNESS
1,000 nits
TOUCH-SCREEN
10-point multi-touch
BATTERY
Lithium-ion battery (5000 mAh, 7.2 V)
CHARGING TYPE
100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
RATED POWER
12 Watts
STORAGE CAPACITY
Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity
CHARGING TIME
Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
OPERATING TIME
Approx. 3 hours
VIDEO OUTPUT PORT
Mini-HDMI Port
OPERATING TEMPERATURE
-10° to 40° C (14° to 104°F)
STORAGE TEMPERATURE RANGE
<1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
SUPPORTED DJI AIRCRAFT [10]
DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M
GNSS
GPS + Galileo + GLONASS
DIMENSIONS
Antenna is folded and no control sticks are installed:
183.27×137.41×47.6 mm (Length×Width×Height)
Antenna unfolded and control sticks are installed:
183.27×203.35×59.84 mm (Length×Width×Height)
WEIGHT
Approx. 680 g
MODEL NUMBER
RM510B
STORAGE
SUPPORTED MICROSD CARDS
Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
RECOMMENDED MICROSD CARDS
Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
BATTERY
CAPACITY
5000 mAh
STANDARD VOLTAGE
15.4 V
MAX CHARGING VOLTAGE
17.6 V
BATTERY TYPE
LiPo 4S
CHEMICAL SYSTEM
Lithium Cobalt
ENERGY
77 watt-hours
WEIGHT
335.5 g
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
BATTERY CHARGER
INPUT
100V to 240V (AC), 50Hz to 60Hz, 2.5A
OUTPUT POWER
100 Watts
OUTPUT
Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.
CHARGING HUB
INPUT
USB-C: 5V to 20V, 5.0A
OUTPUT
Battery Port: 12V to 17.6V, 8.0A
RATED POWER
100 Watts
CHARGING TYPE
3 batteries on charging rotation
CHARGING TEMPERATURE
5° to 40° C (41° to 104° F)
RTK MODULE
DIMENSIONS
50.2×40.2×66.2 mm (Length×Width×Height)
WEIGHT
24±2 g
INTERFACE
USB-C
POWER
Approximately 1.2 watts
RTK POSITION ACCURACY
Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
FOOTNOTES
1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
2. The max speed in the EU cannot exceed 19 m/s.
3. Max wind resistance during takeoff and landing.
4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
10. The DJI RC Plus will support more DJI aircraft in the future.
IN THE BOX
DJI MAVIC 3 MULTISPECTRAL
Aircraft × 1Intelligent Flight Battery × 1RTK Module × 1MicroSD card × 1Remote Controller × 1Propeller (pair) × 3Charger × 1Power Cable × 1USB-C Cable × 1USB-C to USB-C Cable × 1Carrying Case × 1Screwdriver × 1Manuals × 1
DJI CARE ENTERPRISE BASIC (MAVIC 3M) NZ
DJI Care Enterprise Basic (Mavic 3M) NZ × 1
DJI MAVIC 3 ENTERPRISE SERIES BATTERY KIT
DJI Mavic 3 Intelligent Flight Battery × 3DJI Mavic 3 Battery Charging Hub (100W) × 1
SANDISK EXTREME 128GB MICRO SD CARD WITH ADAPTER
SanDisk Extreme 128GB Micro SD Card × 1MicroSD/microSDHC/microSDXC Adapter × 1
The Mavic 3 Battery offers a max flight time of 46 minutes (40 minutes when hovering).
Product Description
Thanks to the higher capacity Intelligent Flight Batteries and the new propulsion system, Mavic 3 provides a max flight time of 46 minutes and a max hover time of 40 minutes.
Product Specifications
Model: BWX260-5000-15.4
Capacity: 5000 mAh
Battery Type: LiPo 4S
Charging Temperature: 5° to 40° C (41° to 104° F)
Max Charging Power: 65 W
DJI Mavic 3 Enterprise Series Battery Kit includes three Intelligent Flight Batteries and one DJI Mavic 3 Battery Charging Hub (100W) to meet the needs of long-duration operations.
Highlights
Includes three Intelligent Flight Batteries and one DJI Mavic 3 Battery Charging Hub (100W) to meet the needs for long-duration operations.
Tips
1. It is recommended to use the DJI USB-C Power Adapter (100W) to provide power supply for the DJI Mavic 3 Battery Charging Hub (100W).
2. The charging hub is only compatible with BWX260-5000-15.4 Intelligent Flight Batteries. DO NOT attempt to use the charging hub with other battery models.
3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.
4. DO NOT attempt to touch the metal terminals on the battery case.
5. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
Intelligent Flight Battery:
Model: BWX260-5000-15.4Capacity: 5000 mAhWeight: 335.5 gBattery Type: LiPo 4SCharging Temperature: 5° to 40° C (41° to 104° F)
DJI Mavic 3 Battery Charging Hub (100W):Model: CHX265-100Dimensions: 150×55×28 mm (L×W×H)Weight: 116 gOperating Temperature: 5° to 40° C (41° to 104° F)Input: 5-20 V, max 5 ACompatible Power Adapter: DJI USB-C Power Adapter (100W)Charging Time: Approx. 1 h 10 mins (single battery)*
* Tested using the DJI USB-C Power Adapter (100W).
IN THE BOX
DJI Mavic 3 Intelligent Flight Battery × 3
DJI Mavic 3 Battery Charging Hub (100W) × 1
Transmits sound over long distances to make rescue and other emergency missions more efficient. Can save several audio recordings and supports auto loop playback.
Highlights
Transmits sound over long distances to make rescue and other emergency missions more efficient. Can save audio recordings and auto loop playback.
Tips
DO NOT use the speaker too close to people or in urban areas where noise-sensitive structures are concentrated, as the loudness could lead to accidents or injuries.
It is recommended to use the DJI RC Pro Enterprise remote controller to play vocals or import a vocal source for the best playback effect. It is not recommended to play single-frequency sounds such as an alarm to avoid irreversible damage to the speaker.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
Dimensions: 114.1×82.0×54.7 mm (L×W×H)Weight: 85±2 gInterface: USB-CRated Power: 3 WMax Volume: 110 dB @ 1 m*Effective Broadcast Distance: 100 m @ 70 dB*Bit Rate: 16 Kbps/32 KbpsOperating Temperature: -10° to 40° C
* All data was measured in an experimental environment and is for reference only. The actual situation will be slightly different due to different software versions, sound sources, environment types, and other conditions. The final result is subject to actual use.
IN THE BOX
Speaker × 1
When connected to a 100W portable charger or car charger, the DJI Mavic 3 Battery Charging Hub (100W) can expand the charging port number to three.
It charges batteries in sequence from high to low power level, which greatly enhances charging efficiency.
Highlights
When connected to a 100W portable charger or car charger, DJI Mavic 3 Battery Charging Hub (100W) can charge up to three batteries in sequence.
Tips
1. The charging hub is for expanding the charging interfaces only. It is recommended to use a DJI USB-C Power Adapter (100W) to provide power supply.
2. The charging hub is only compatible with BWX260-5000-15.4 Intelligent Flight Batteries. DO NOT attempt to use the charging hub with other battery models.
3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.
4. DO NOT attempt to touch the metal terminals on the battery case.
5. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
DJI Mavic 3 Battery Charging Hub (100W):Model: CHX265-100Dimensions: 150×55×28 mm (L×W×H)Weight: 116 gOperating Temperature: 5° to 40° C (41° to 104° F)Input: 5-20 V, max 5 ACompatible Power Adapter: DJI USB-C Power Adapter (100W)Charging Time: Approx. 1 h 10 mins (single battery)*
* Tested using the DJI USB-C Power Adapter (100W).
IN THE BOX
DJI Mavic 3 Battery Charging Hub (100W) × 1
DJI USB-C Power Adapter (100W) is used to charge the DJI Mavic 3 Enterprise series aircraft, DJI RC Pro Enterprise remote controller, or mobile devices with a USB-C port by connecting to a power outlet.
Highlights
Charge DJI Mavic 3 Enterprise series aircraft, DJI RC Pro Enterprise remote controller, or mobile devices with a USB-C port using a power outlet.
Tips
1. DO NOT attempt to touch the metal terminals on the battery case.
2. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
3. The charger varies in different regions. Plugs for different regions are available for purchase on the DJI online store.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
Dimensions: 73.5×70×32 mm (L×W×H)Weight: 268±5 gInput Voltage: 100-240 V AC, 50-60 Hz, 2.5 AOutput: Max. 100 W (total)When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.Output Power: 100 WOperating Temperature: 5° to 40° CCharging Time*: When charging the DJI Mavic 3 Enterprise aircraft solely, it takes 1 hour and 20 minutes to fully charge. When charging the DJI RC Pro Enterprise solely, it takes 1 hour and 30 minutes to fully charge.
* Devices will take longer to charge if both the Intelligent Flight Battery and remote controller or other devices are being charged simultaneously.
IN THE BOX
DJI USB-C Power Adapter (100W) × 1
Each propeller blade has been put through precise dynamic balancing tests to increase flight time with reduced noise, higher aerodynamic efficiency, and lower power consumption. The new safety design causes less damage to people or other objects in the event of an accident.
Highlights
Propellers undergo dynamic balancing tests to maximize durability and aerodynamic efficiency while minimizing noise and power consumption.
Tips
1. Mount the propellers in strict accordance with the user manual instructions.
2. If there is any damage to a propeller, replace it immediately.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
Dimensions: Diameter×Thread Pitch: 9.4×5.3 inchesIndividual Weight: 8.5 g
IN THE BOX
Propellers (pair) × 1
DJI Mavic 3 Enterprise Series RTK Module is compatible with DJI Mavic 3 Enterprise Series aircraft. It provides centimeter-level precision positioning when used with the Network RTK service, Custom Network RTK service, or D-RTK 2 Mobile Station.
Highlights
Compatible with DJI Mavic 3 Enterprise Series aircraft. Enables centimeter-level positioning with low power consumption and powerful performance.
Tips
To ensure positioning accuracy, use in open areas that are clear of buildings and other obstacles.
Compatibility
DJI Mavic 3 Enterprise Series aircraft
PRODUCT SPECIFICATIONS
Dimensions: 50.2×40.2×66.2 mm (L×W×H)Weight: 24±2 gInterface: USB-CRated Power: Approx. 1.2 WRTK Positioning Accuracy: RTK fix: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppmSystem and Frequency Points:GPS: L1C/A L2C/L2PBDS: B1I B2IGLO: G1 G2GAL: E1 E5bQZSS: L1 L2
IN THE BOX
RTK Module × 1
D-RTK 2 HIGH-ACCURACY MOBILE STATION
Supports four satellite navigation systems: GPS, GLONASS, BeiDou, and Galileo
Supports both Ocusync 2.0 and 4G connectivity
Supported for multiple DJI aircraft models'
Still Detection: The RTK station should always maintain still during the operation. However, if the station has been moved or tilted accidentally, its Still Detection feature would automatically detect its changed stationary state and report the captured data as the unreliable result.
Compatible:Phantom 4 RTK, P4 Multispectral, Agras T16, Agras T30Matrice 300 RTK.
IN THE BOX
Base Station 2 x 1Tripod x 1Carrying Case x 1Power Cable x 1Micro USB Cable x 1
Go Professional D-RTK Ground Station Bag × 1Go Professional D-RTK Tripod Bag × 1
DJI RC Pro Control Sticks are detachable and can be stored inside the remote controller for convenient storage and transportation.
Product Description
DJI RC Pro Control Sticks are detachable and can be stored inside the remote controller for convenient storage and transportation.
Compatibility
DJI RC Pro
In The Box
DJI RC Pro Control Sticks (pair) × 1
Sandisk Extreme Micro SDXC 128GB 160MB/s C10 U3
Fast enough to keep up with the action
Product Description Get extreme speeds for fast transfer app performance and 4K UHD. Ideal for your Android smartphone action cameras or drones this high-performance microSD card does 4K UHD video recording Full HD video and high-resolution photos. The super-fast SanDisk Extreme microSDXC memory card reads up to 160MB/s and writes up to 90MB/s.* Plus it's A2-rated so you can get fast application performance for an exceptional smartphone experience.
Features
Read speeds up to 160 MB/s write speeds up to 90 MB/s and minimum write speeds of 30 MB/s
Class 10 App Performance Class 2 (A2) Video Speed Class 30 (V30) and UHS Speed Class 3 (U3)
Water / temperature / shock / x-ray proof
SanDisk Memory Zone included
RescuePRO Deluxe one-year file recovery software (download offer)
SD adapter included
128GB Storage Capacity
A2 / UHS-I / V30 / U3 / Class 10
Max Read Speed: 160 MB/s
Max Write Speed: 90 MB/s
SanDisk Extreme Micro SDXC 256GB Actioncam 160MB Product Description Get extreme speeds for fast transfer app performance and 4K UHD. Ideal for your Android smartphone action cameras or drones this high-performance microSD card does 4K UHD video recording Full HD video and high-resolution photos. The super-fast SanDisk Extreme microSDXC memory card reads up to 160MB/s and writes up to 90MB/s. Plus it's A2-rated so you can get fast application performance for an exceptional smartphone experience.
Specification
Capacity
256 GB
Read Speed
up to 160 MB/s
Write Speed
up to 90 MB/s
Form Factor
microSDXC
Sandisk Extreme Pro 256GB Micro SDXC Card
Dramatically Reduces Your Transfer Time
Product Description Get extreme speeds for fast transfer app performance and 4K UHD. Ideal for your Android smartphone action cameras or drones this high-performance microSD card does 4K UHD video recording Full HD video and high-resolution photos. With up to 400GB the super-fast SanDisk Extreme PRO microSDXC UHS-I memory card reads up to 170MB/s and writes up to 90MB/s. Plus itÕs A2-rated so you can get fast application performance for an exceptional smartphone experience.
Specifications:
Capacity:
256 GB
Read Speed:
up to 200 MB/s
Write Speed:
up to 90 MB/s
Form Factor:
Mircro SDXC
Video Speed:
C10 U3 V30
DJI Care Enterprise Basic offers coverage for 2 replacements per year. Please note that should you require a replacement, there will still be a small fee. Pricing is as follows:
Mavic 3 Enterprise Thermal: NZD $899.00 for the first replacement and NZD $949.00 for the second replacement. NZD $799.00 to renew for a second year.
* Please note DJI Care Enterprise Basic covers Aircraft, gimbal, camera, battery, propellers and controller. It does not cover damage to any additional payloads.
DJI Care Enterprise Basic is a service plan specially designed for DJI Enterprise drones. Providing complete accidental coverage and premium protection options that allow two drone replacements within a year of subscription - DJI Care Enterprise Basic offers the most comprehensive reassured flying experience ever developed specifically for the needs of commercial drone fleets. DJI Care Enterprise Basic allows you to fly with peace of mind and focus on the task at hand.
DJI Care Enterprise Basic is flexible and customizable
Care Enterprise Basic comes into effect at 0:00 on the start date and expires at 23:59 on the expiration date, as specified in the service agreement. For damage to drones or payloads caused by operator error or accident during normal use and operation. Two replacements are offered, and each replacement costs a small additional fee.
WATER DAMAGE COVERAGE
Fly fearlessly with Care Enterprise Basic, replace your aircraft even if its water damaged. Replacement units are also provided for: Crash & Collision Damage, Signal Interference, and other accidents caused by User Error.
THE DJI CARE ENTERPRISE BASIC REPAIR PROCESS
When applying for a repair please contact support@ferntech.co.nz an indicate that you have purchased DJI Care Enterprise Basic. From here our helpful team will supply you with a service form and details on how to get your product back to us.
Once Ferntech receives your damaged item the process will begin to get your product repaired.
Once an assessment is performed we will select the cheapest option to either have your product repaired or replaced under your DJI Care Enterprise Basic policy. Please let us know if you would like to have your product replaced even if a repair is cheaper.
Shipping fees back to your address are covered by DJI Care Enterprise Basic.
DJI Care Enterprise Basic and the corresponding product must be purchased from New Zealand. DJI Care Enterprise Basic only supports aircraft purchased from official or authorised channels.
If you want to purchase DJI Care Enterprise Basic for your aircraft which is activated over 48 hours, you can take the DJI Care Enterprise Basic video verification. To accomplish the video verification, please follow the guide below and visit DJI Care Customer Upload portal.
DJI Care Enterprise Basic offers coverage for 2 replacements per year. Please note that should you require a replacement, there will still be a small fee. Pricing is as follows:
Mavic 3 Enterprise: NZD $699.00 for the first replacement and NZD $749.00 for the second replacement. NZD $599.00 to renew for a second year.
* Please note DJI Care Enterprise Basic covers Aircraft, gimbal, camera, battery, propellers and controller. It does not cover damage to any additional payloads.
DJI Care Enterprise Basic is a service plan specially designed for DJI Enterprise drones. Providing complete accidental coverage and premium protection options that allow two drone replacements within a year of subscription - DJI Care Enterprise Basic offers the most comprehensive reassured flying experience ever developed specifically for the needs of commercial drone fleets. DJI Care Enterprise Basic allows you to fly with peace of mind and focus on the task at hand.
DJI Care Enterprise Basic is flexible and customizable
Care Enterprise Basic comes into effect at 0:00 on the start date and expires at 23:59 on the expiration date, as specified in the service agreement. For damage to drones or payloads caused by operator error or accident during normal use and operation. Two replacements are offered, and each replacement costs a small additional fee.
WATER DAMAGE COVERAGE
Fly fearlessly with Care Enterprise Basic, replace your aircraft even if its water damaged. Replacement units are also provided for: Crash & Collision Damage, Signal Interference, and other accidents caused by User Error.
THE DJI CARE ENTERPRISE BASIC REPAIR PROCESS
When applying for a repair please contact support@ferntech.co.nz an indicate that you have purchased DJI Care Enterprise Basic. From here our helpful team will supply you with a service form and details on how to get your product back to us.
Once Ferntech receives your damaged item the process will begin to get your product repaired.
Once an assessment is performed we will select the cheapest option to either have your product repaired or replaced under your DJI Care Enterprise Basic policy. Please let us know if you would like to have your product replaced even if a repair is cheaper.
Shipping fees back to your address are covered by DJI Care Enterprise Basic.
DJI Care Enterprise Basic and the corresponding product must be purchased from New Zealand. DJI Care Enterprise Basic only supports aircraft purchased from official or authorised channels.
If you want to purchase DJI Care Enterprise Basic for your aircraft which is activated over 48 hours, you can take the DJI Care Enterprise Basic video verification. To accomplish the video verification, please follow the guide below and visit DJI Care Customer Upload portal.
Where top speeds meet high capacity
SanDisk Extreme® PRO microSDXC™ UHS-I CARD 512GB 200MB/S
Improve your workflow efficiency With SanDisk QuickFlow Technology9, this card optimizes performance for timesaving media offloads with quick read speeds up to 200MB/s8 (64GB - 1TB). Pair with the SanDisk Professional PRO-READER SD and microSD™ to achieve maximum speeds (sold separately).Write speeds of up to 140MB/SCapture fast-action photos or shoot 4K UHD video2 with write speeds of up to 140MB/s.8 The SanDisk Extreme PRO microSDXC UHS-I Card lets you shoot more and faster.Great for capturing 4K UHD videoIdeal for recording outdoor adventures, weekend trips, or sporting events without skipping frames. With up to 1TB1, the SanDisk Extreme PRO microSD UHS-I card lets you capture uninterrupted 4K UHD2 and Full HD video with its UHS Speed Class 3 (U3) and Video Speed Class 30 (V30) ratings.4Load apps faster with A2Get faster app performance for an outstanding smartphone experience thanks to the SanDisk Extreme PRO microSD card’s A25 Specification.Durable design for use in extreme environmentsSanDisk Extreme PRO microSDHC™ and microSDXC™ UHS-I Cards are shockproof, temperature-proof, waterproof, and X-ray-proof,3 so you can enjoy your adventures without worrying about the durability of your memory card.
Specifications
Capacity: 512 GBCombatibility:Compatible with SDXC and SDXC UHS-I enabled host devices. Dimensions (L x W x H): 10.92mm x 14.99mm x 1.02mmSequential Read Performance: up to 200MB/s Sequential Write Performance: up to 140MB/s
Disclosures
Not all devices support microSDXC memory card formats. Check with your device manufacturer for more details. 1.1GB=1,000,000,000 bytes. Actual user storage less.2.Compatible device required. Full HD (1920x1080) and 4K UHD (3840 x 2160) support may vary based upon host device, file attributes and other factors. See www.sandisk.com/HD3.Card only. See www.sandisk.com/proof for additional information and limitations.4.UHS Speed Class 3 (U3) designates a performance option designed to support real-time video recording with UHS-enabled host devices. Video Speed Class 30 (V30), sustained video capture rate of 30MB/s, designates a performance option designed to support real-time video recording with UHS-enabled host devices. See www.sdcard.org/consumers/speed.5.For 64GB-1TB ONLY: A2 performance is 4000 read IOPS, 2000 write IOPS. For 32GB: A1 performance is 1500 read IOPS, 500 write IOPS. Results may vary based on host device, app type and other factors.6. Registration required; terms and conditions apply. 7. www.sandisk.com/wug8.For 256GB-1TB: Up to 200MB/s read speeds, engineered with proprietary technology to reach speeds beyond UHS-I 104MB/s, require compatible devices capable of reaching such speeds. Up to 140MB/s write speeds. For 64GB-128GB: Up to 200MB/s read speeds, engineered with proprietary technology to reach speeds beyond UHS-I 104MB/s, require compatible devices capable of reaching such speeds. Up to 90MB/s write speeds. For 32GB: Up to 100MB/s read speeds; up to 90MB/s write speeds. Based on internal testing; performance may be lower depending upon host device interface, usage conditions and other factors. 1MB=1,000,000 bytes.9. SanDisk® QuickFlow™ Technology is only available for 64GB, 128GB, 256GB, 512GB, and 1TB capacities.
Sandisk Extreme Pro 32GB Micro SD Card
Dramatically Reduces Your Transfer Time
Performance Clocking in at up to 275MB/s the SanDisk Extreme PRO microSDXC UHS-II Card delivers the fastest transfer speeds that you've ever experienced. So offloading content from your card is a snap. And the time you would have spent waiting for files to transfer goes back into your day. Security The card comes with a RescuePRO Deluxe data recovery software download offer. This software makes it easy to recover files that have been accidentally deleted (download required). Compatibility Compatible with microSDHC microSDXC microSDHC UHS-I microSDXC UHS-I microSDHC UHS-II and microSDXC UHS-II supporting action camera interchangeable-lens camera drone smartphone and tablet host devices Extreme durability SanDisk Extreme PRO microSDXC UHS-II Cards are shockproof temperature-proof waterproof and X-ray-proof4 so you can enjoy your adventures without worrying about the durability of your memory card.
Specifications:
Capacity:
32 GB
Transfer Speed:
up to 275 MB/s
Form Factor:
Mircro SD
Video Speed:
C10 U3
Sandisk Extreme Pro 64GB Micro SDXC Card
Dramatically Reduces Your Transfer Time
Product Description Get extreme speeds for fast transfer app performance and 4K UHD. Ideal for your Android smartphone action cameras or drones this high-performance microSD card does 4K UHD video recording Full HD video and high-resolution photos. With up to 400GB the super-fast SanDisk Extreme PRO microSDXC UHS-I memory card reads up to 170MB/s and writes up to 90MB/s. Plus itÕs A2-rated so you can get fast application performance for an exceptional smartphone experience.
Specifications:
Capacity:
64 GB
Read Speed:
up to 170 MB/s
Write Speed:
up to 90 MB/s
Form Factor:
Mircro SDXC
Video Speed:
C10 U3 V30
