Industrial-Grade Underwater ROV
Flexible
Stable
Endless exploration

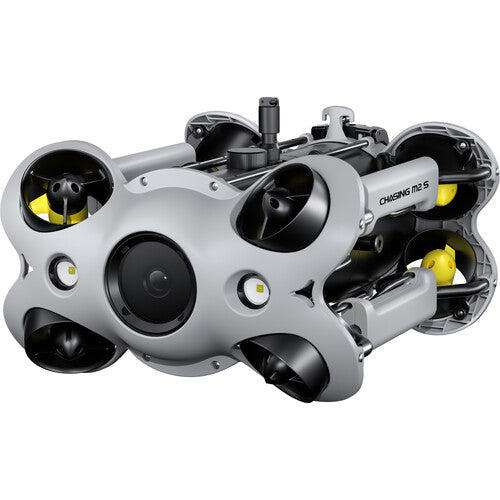

CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.
C-Sense Control System, Flexible and Stable
NeptuneX intelligent flight control system
8 vectored-thrusters and Butterfly wing outline
Apex anti-stuck C-Motor 3.0
Flagship airtight structure
NeptuneX Intelligent Flight Control System
The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.
NeptuneX Intelligent Flight Control System
The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.
8 Vectored-Thrusters and Butterfly Wing Outline
CHASING M2 S remains the symmetrical vector layout of the eight thrusters and the streamlined design of the butterfly wing outline at front and rear to protect the propellers. It supports 360-degree omnidirectional movement that has high posture response speed and great stability.
Apex Anti-stuck C-Motor 3.0
The third-generation Apex Anti-stuck C-Motor 3.0 used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.
Flagship Airtight Structure
Fully innovate the waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations.
C-Sense Control System, Flexible and Stable
Multiple accessories
Swappable battery
A wide working range
Portable and convenient
All scenarios application
Multiple Accessories
Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.
Swappable Battery
CHASING M2 S has a default 97.68Wh battery that can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optinal to meet the needs of long-time operation.
A Wide Working Range
CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance.
400m
Maximum movement radius
200m
Movement radius
100m
Maximum depth to dive
Portable and Convenient
CHASING M2 S is portable and has a compact body. Single-person operation and quick deployment brings an effective operating experience under a variety of scenarios.
HD Visual Image Transmission System
4K EIS Image Stabilization Camera
Upgraded CHASING Aquavision image algorithm
User friendly interaction
4K EIS Image Stabilization Camera and 4000lm LED Lights
CHASING M2 S has 4K EIS image stabilization camera and two 2000lm LED lights, which can clearly capture every detail underwater.
4K Video
12 Megapixel
1/2.3 SONY CMOS
F2.8 Aperture
EIS Image Stabilization
4000lm LED lights
Upgraded CHASING Aquavision Image Algorithm
The color restoration algorithm design based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade image transparency, clarity, color layering, and noise.
CHASING M2 S Specs
Camera
Image Sensor
12 MP CMOS
Resolution
Video Capture: 4KStreaming: 60 Mb/s Video Resolution: 3840 x 2160 (4K), 30 fps; 1920 x 1080 (1080p), 30/60/120 fps
Lens
Aperture: f/2.8Angle of View: 150°
Lights
2 x 2000-Lumen LEDsColor Temperature: 5000-5500 k
Memory
64 GB
ROV
Depth Rating
328' / 100 m
Connectivity
328' / 100 m Tether
Battery Capacity
ROV: 97.68 WhRemote Controller: 2500 mAh
Operating Temperature
14 to 113° / -10 to 45°C
Dimensions
ROV: 14.9 x 10.5 x 6.5" / 38.0 x 26.7 x 16.5 cmRemote Controller: 6.3 x 6.1 x 4.9" / 16.0 x 15.5 x 12.5 cm
Weight
ROV: 9.9 lb / 4.5 kgRemote Controller: 1.5 lb / 685 g
Packaging Info
Package Weight
32.685 lb
Box Dimensions (LxWxH)
22.7 x 19.2 x 18.7"

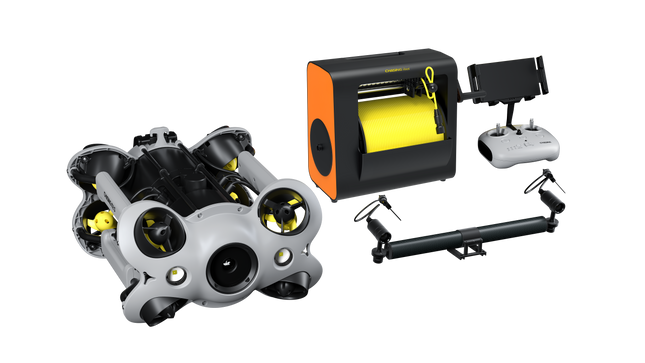

In the Box
M2 S ROV VEHICLE *1M2 S REMOTE CONTROL *1Spare M2 S LEFT THRUSTER *1Spare M2 S RIGHT THRUSTER *1M2 UNIVERSAL CHARGER *1ADAPTER CABLE (NZ) *1EPP CASE *1M2 CHARGING ADAPTER CABLE *1TOWEL *1GOPRO MOUNT *1 ROV MAINTENANCE MANUAL (GENERAL EDITION) *1RC3 CONTROLLER USER MANUAL (GENERAL EDITION) *1WARRANTY CARD *1
Industrial-Grade Underwater ROV
Flexible
Stable
Endless exploration
CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.
C-Sense Control System, Flexible and Stable
NeptuneX intelligent flight control system
8 vectored-thrusters and Butterfly wing outline
Apex anti-stuck C-Motor 3.0
Flagship airtight structure
NeptuneX Intelligent Flight Control System
The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.
NeptuneX Intelligent Flight Control System
The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.
8 Vectored-Thrusters and Butterfly Wing Outline
CHASING M2 S remains the symmetrical vector layout of the eight thrusters and the streamlined design of the butterfly wing outline at front and rear to protect the propellers. It supports 360-degree omnidirectional movement that has high posture response speed and great stability.
Apex Anti-stuck C-Motor 3.0
The third-generation Apex Anti-stuck C-Motor 3.0 used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.
Flagship Airtight Structure
Fully innovate the waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations.
C-Sense Control System, Flexible and Stable
Multiple accessories
Swappable battery
A wide working range
Portable and convenient
All scenarios application
Multiple Accessories
Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.
Swappable Battery
CHASING M2 S has a default 97.68Wh battery that can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optinal to meet the needs of long-time operation.
A Wide Working Range
CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance.
400m
Maximum movement radius
200m
Movement radius
100m
Maximum depth to dive
Portable and Convenient
CHASING M2 S is portable and has a compact body. Single-person operation and quick deployment brings an effective operating experience under a variety of scenarios.
HD Visual Image Transmission System
4K EIS Image Stabilization Camera
Upgraded CHASING Aquavision image algorithm
User friendly interaction
4K EIS Image Stabilization Camera and 4000lm LED Lights
CHASING M2 S has 4K EIS image stabilization camera and two 2000lm LED lights, which can clearly capture every detail underwater.
4K Video
12 Megapixel
1/2.3 SONY CMOS
F2.8 Aperture
EIS Image Stabilization
4000lm LED lights
Upgraded CHASING Aquavision Image Algorithm
The color restoration algorithm design based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade image transparency, clarity, color layering, and noise.
CHASING M2 S Specs
Camera
Image Sensor
12 MP CMOS
Resolution
Video Capture: 4KStreaming: 60 Mb/s Video Resolution: 3840 x 2160 (4K), 30 fps; 1920 x 1080 (1080p), 30/60/120 fps
Lens
Aperture: f/2.8Angle of View: 150°
Lights
2 x 2000-Lumen LEDsColor Temperature: 5000-5500 k
Memory
64 GB
ROV
Depth Rating
328' / 100 m
Connectivity
328' / 100 m Tether
Battery Capacity
ROV: 97.68 WhRemote Controller: 2500 mAh
Operating Temperature
14 to 113° / -10 to 45°C
Dimensions
ROV: 14.9 x 10.5 x 6.5" / 38.0 x 26.7 x 16.5 cmRemote Controller: 6.3 x 6.1 x 4.9" / 16.0 x 15.5 x 12.5 cm
Weight
ROV: 9.9 lb / 4.5 kgRemote Controller: 1.5 lb / 685 g
Packaging Info
Package Weight
32.685 lb
Box Dimensions (LxWxH)
22.7 x 19.2 x 18.7"
In the Box
M2 S ROV VEHICLE x1
M2 S REMOTE CONTROL x1
M2 S LEFT THRUSTER x1
M2 S RIGHT THRUSTER x1
MANUAL REEL 200m TETHER x1
FLOODLIGHT 2 x1
M2 UNIVERSAL CHARGER x1
ADAPTER CABLE (NZ) x1
EPP CASE x1
M2 CHARGING ADAPTER CABLE x1
TOWEL x1
GOPRO MOUNT x1
ROV MAINTENANCE MANUAL (GENERAL EDITION) x1
RC3 CONTROLLER USER MANUAL (GENERAL EDITION) x1
WARRANTY CARD x1
Industrial-Grade Underwater ROV
Flexible
Stable
Endless exploration
CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.
C-Sense Control System, Flexible and Stable
NeptuneX intelligent flight control system
8 vectored-thrusters and Butterfly wing outline
Apex anti-stuck C-Motor 3.0
Flagship airtight structure
NeptuneX Intelligent Flight Control System
The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.
NeptuneX Intelligent Flight Control System
The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.
8 Vectored-Thrusters and Butterfly Wing Outline
CHASING M2 S remains the symmetrical vector layout of the eight thrusters and the streamlined design of the butterfly wing outline at front and rear to protect the propellers. It supports 360-degree omnidirectional movement that has high posture response speed and great stability.
Apex Anti-stuck C-Motor 3.0
The third-generation Apex Anti-stuck C-Motor 3.0 used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.
Flagship Airtight Structure
Fully innovate the waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations.
C-Sense Control System, Flexible and Stable
Multiple accessories
Swappable battery
A wide working range
Portable and convenient
All scenarios application
Multiple Accessories
Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.
Swappable Battery
CHASING M2 S has a default 97.68Wh battery that can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optinal to meet the needs of long-time operation.
A Wide Working Range
CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance.
400m
Maximum movement radius
200m
Movement radius
100m
Maximum depth to dive
Portable and Convenient
CHASING M2 S is portable and has a compact body. Single-person operation and quick deployment brings an effective operating experience under a variety of scenarios.
HD Visual Image Transmission System
4K EIS Image Stabilization Camera
Upgraded CHASING Aquavision image algorithm
User friendly interaction
4K EIS Image Stabilization Camera and 4000lm LED Lights
CHASING M2 S has 4K EIS image stabilization camera and two 2000lm LED lights, which can clearly capture every detail underwater.
4K Video
12 Megapixel
1/2.3 SONY CMOS
F2.8 Aperture
EIS Image Stabilization
4000lm LED lights
Upgraded CHASING Aquavision Image Algorithm
The color restoration algorithm design based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade image transparency, clarity, color layering, and noise.
CHASING M2 S Specs
Camera
Image Sensor
12 MP CMOS
Resolution
Video Capture: 4KStreaming: 60 Mb/s Video Resolution: 3840 x 2160 (4K), 30 fps; 1920 x 1080 (1080p), 30/60/120 fps
Lens
Aperture: f/2.8Angle of View: 150°
Lights
2 x 2000-Lumen LEDsColor Temperature: 5000-5500 k
Memory
64 GB
ROV
Depth Rating
328' / 100 m
Connectivity
328' / 100 m Tether
Battery Capacity
ROV: 97.68 WhRemote Controller: 2500 mAh
Operating Temperature
14 to 113° / -10 to 45°C
Dimensions
ROV: 14.9 x 10.5 x 6.5" / 38.0 x 26.7 x 16.5 cmRemote Controller: 6.3 x 6.1 x 4.9" / 16.0 x 15.5 x 12.5 cm
Weight
ROV: 9.9 lb / 4.5 kgRemote Controller: 1.5 lb / 685 g
Packaging Info
Package Weight
32.685 lb
Box Dimensions (LxWxH)
22.7 x 19.2 x 18.7"

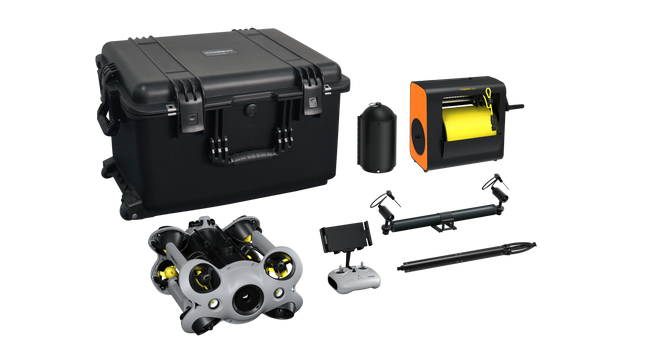

In the Box
M2 S ROV VEHICLE x1
M2 S REMOTE CONTROL x1
M2 S LEFT THRUSTER x1
M2 S RIGHT THRUSTER x1
MANUAL REEL 200m TETHER x1
FLOODLIGHT 2 x1
GRABBER CLAW A x1

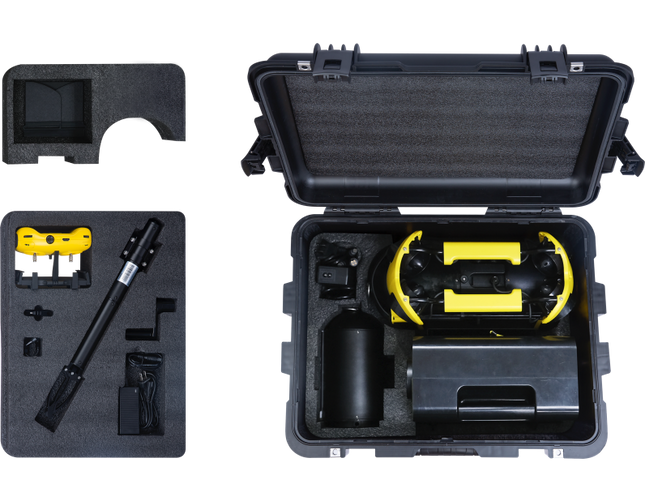

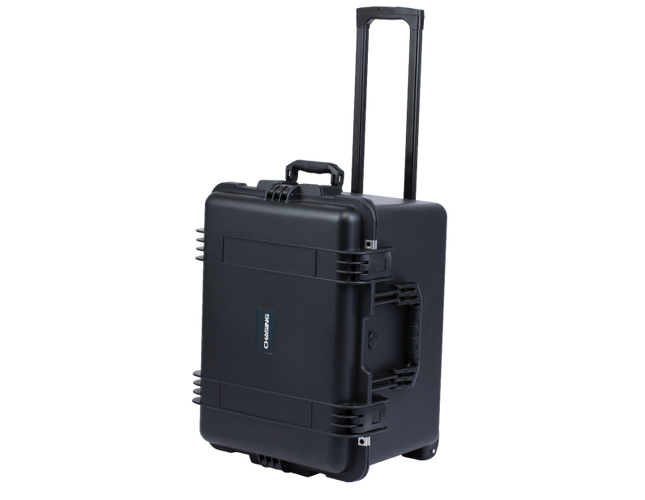

ABS CARRY CASE x1

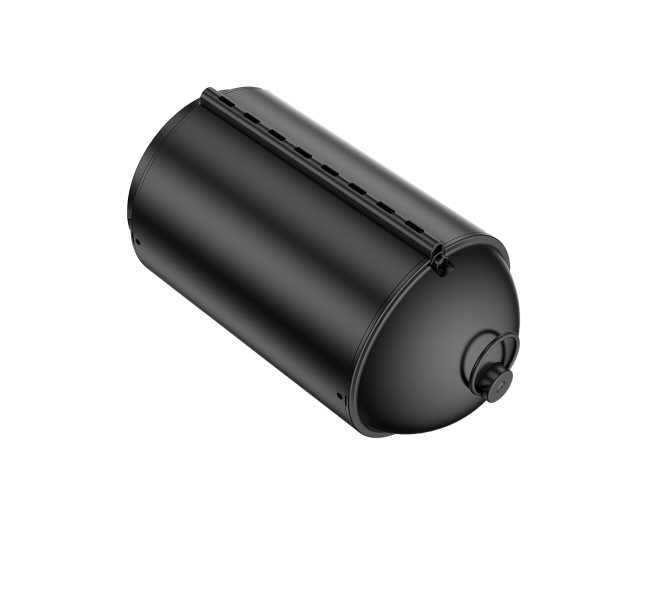

200WH BATTERY x1
M2 UNIVERSAL CHARGER x1
ADAPTER CABLE (NZ) x1
EPP CASE x1
M2 CHARGING ADAPTER CABLE x1
TOWEL x1
GOPRO MOUNT x1
ROV MAINTENANCE MANUAL (GENERAL EDITION) x1
RC3 CONTROLLER USER MANUAL (GENERAL EDITION) x1
WARRANTY CARD x1
CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads.
Product Description
CHASING Grabber Arm 2
CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads.
Solve Multiple Difficult Underwater Work
With grabbing force of 7kg and an adjustable opening and closing distance of up to 170mm, the grabber arm can easily achieve underwater clamping, dragging, sampling and other difficult operations with different tool heads.
10° Elevation Design for Better Vision Experience
10° elevation design brings you perfect vision experience to better operate the grabber arm.
Aluminum Alloy Material, Small and Easy to Install
Aluminum alloy arm body and high reliable sealing connector. Small, portable and easy to install.
Two-Jaw Clamp
Max Opening170 mm
Max Grabbing Force7 kg
Body Weight446 g
Clamp Weight76 g
Max Diving Depth100 m
Body Size380 x 35 x 35 mm
Clamp Size125 x 53 x 22 mm
Circular Claw
Max Opening170 mm
Max Grabbing Force7 kg
Circular Claw Weight98 g
Max Diving Depth100 m
Circular Claw Size113 x 71 x 22 mm
Sediment Sampler
Max Opening170 mm
Max Grabbing Force7 kg
Sediment Sampler Weight325 g
Max Diving Depth100 m
Sediment Sampler Size178 x 120 x 85 mm
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
Product Description
CHASING Robot Arm
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
3kg Clamping Force, 12kg Drag Force
With maximum 3kg clamping force and 12kg drag force, the robot arm can easily complete underwater operations.
Smooth Experience and Powerful Functions
With a 120mm opening and closing distance and a 1.5-second single opening and closing time, the robot arm operates smoothly and can grab a variety of items.
Aluminum Alloy Material, Compact Size
Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.
Product Specifications
Size: 460 x 33.5 mm
Weight: 370g
Weight in Water: 50g
Max Grasping Force: 3kg
Max Drag Force: 12kg
Opening and Closing Distance: 120mm
Max Depth: 100 meters
Single Opening / Closing Time: 1.5s
CHASING E-Reel is easy to use, it can retract the tether within 3-9 minutes, and can be used more than 30 times on a single charge. Let you get rid of the trouble of manual winding and enjoy the underwater exploration.
Product Description
CHASING E-Reel
CHASING E-Reel is easy to use, it can retract the tether within 3-9 minutes, and can be used more than 30 times on a single charge. Let you get rid of the trouble of manual winding and enjoy the underwater exploration.
Anti-blast Automatic Wiring Design
The E-Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-blast technology. It can ensure automatic wiring smooth, and has good explosion-proof wire effet.
200 Meters Cable, 200 Seconds Take-Up
The E-Reel supports up to 200 meters tether, take-up speed three gears adjustable. The fastest take-up time is 200 seconds. Hands free, Let you get rid of the trouble of manual winding and better enjoy the underwater exploration.
IP65 Waterproof
Waterproofing is added to the structure, and the comprehensive waterproofing grade reaches IP65, which can prevent water splashing. Users can use it safely on the shore or on the ship.
4800mAh Large Capacity Battery
The E-Reel is equipped with 4800mAh large capacity battery, which is higher than the battery life level of the industry. The frequency of power discharge is up to 30 times in full power state. E-Reel also supports manual retracting and unwinding.
Replaceable Cable
Users can replace 50 meters, 100 meters or 200 meters tether as needed and use with CHASING M2 or GLADIUS MINI.
Product Specifications
Size: 280 x 150 x 270 mm/span>
Weight: 2.9 kg
Max Storage Length: 200 meters
Battery Capacity: 4800 mAh
Number of Cycles: > 300 times
Runtime: 30 times
Winding Speed: 3 gears
Take-Up Speed (200m): Fast speed 200s / Low speed 9min
Operating Temperature: -10℃~45℃
Charger Power: 25.2V 1.5A / 2.9A
Charging Time: 2H (2.9A) / 3.5H (1.5A)
In The Box
E-Reel × 1
Handle × 1
Charger × 1
3 Meters Tether × 1
Note: Excludes Main 100 or 200 meter tether.
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Availability: In Stock
Product Description
CHASING Reel
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Anti-blast Automatic Wiring Design
The CHASING Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-blast technology. It can ensure automatic wiring smooth, and has good explosion-proof wire effet.
IP65 Waterproof
Waterproofing is added to the structure, and the comprehensive waterproofing grade reaches IP65, which can prevent water splashing. Users can use it safely on the shore or on the ship.
Replaceable Cable
Users can replace 50 meters, 100 meters or 200 meters tether as needed and use with GLADIUS MINI, GLADIUS MINI S, CHASING M2 or CHASING M2 PRO.
Specifications
Size:296*189*279 mm
Weight:2.56 kg
Max Storage Length:200 meters
Waterproof Grade:IP65
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Product Description
CHASING M2 Battery
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Independent Charging
The battery can be charged independently after removing from the M2, and the underwater working time is unlimitedly expanded.
Two Optional Specifications
97.68Wh Battery
Battery Capacity: 4400mAh
Diameter: 120mm
Length:183.5mm
Weight:1.4kg
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Product Description
CHASING M2 Battery
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Independent Charging
The battery can be charged independently after removing from the M2, and the underwater working time is unlimitedly expanded.
200Wh Battery
Battery Capacity: 9360mAh
Diameter: 120mm
Length:223.5mm
Weight:1.9kg
CHASING Carrying Case has the design process of military-police protection structure which can also receive M2, E-Reel, Robot Arm, optional battery, etc., providing one-stop solution for the storage of products and various optional accessories.
Product Description
CHASING Carrying Case
CHASING Carrying Case has the design process of military-police protection structure which can also receive M2, E-Reel, Robot Arm, optional battery, etc., providing one-stop solution for the storage of products and various optional accessories.
Modified PP Alloy Injection Molding, Strong Pressure
The case is made of modified PP alloy material, which can resist low temperature of -40℃, and it can be used in the environment of -20℃ ~ 60℃ for a long time. It has IK08 impact resistance level, which is well good for prevent deformation caused by impact.
External Automatic Exhaust Valve, Waterproof Case Easy to Open and Close
The front part of the case is equipped with an automatic exhaust valve with a sealing ring. It is made of permeable non-woven fabric, which can automatically adjust the pressure difference inside and outside the case while waterproof, making it easy to open and close the case body. There is also a mute spring lock, which is easy to operate with one hand and can prevent the case from opening when it falls down.
High Bearing Capacity, One-hand Operation
The pull rod is of high strength aluminum alloy structure. There has 2 wide nylon polyurethane rollers under the bottom, and supported by stainless steel bearings, ultra high bearing capacity.
Three Handles Design
Three-handle design, even in the outdoor inconvenience to use the rod under the circumstances, but also easy to transport the case.
Antiseismic, Protective Equipment Safety
The case has military-police protection structure，and the top cover and the bottom of case has a sponge, which can enhance protection and light practical. Preset anti-theft keyhole to provide additional security.
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Product Description
CHASING Laser Scaler
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Quickly Complete Underwater Range-Finding
CHASING Laser Scaler can quickly measure the size and distance of underwater objects, cracks, and so on, thereby reducing the risk and cost of manual operations.
Specifications
Size132x70x36.5 mm
Weight≈190 g
Working Temperature-10 ℃ - 45 ℃
Beam Exit Diameter3-5 mm
Laser Spacing10±0.5 cm
Laser ColorRed
CHASING Adapter Box is a adapter device for the AC power supply system and the USBL underwater positioning system. It is used to convert AC and receive sonar signals from the USBL, allowing the ROV to achieve unlimited battery life and positioning functions.
Product Description
CHASING Adapter Box
CHASING Adapter Box is a adapter device for the AC power supply system and the USBL underwater positioning system. It is used to convert AC and receive sonar signals from the USBL, allowing the ROV to achieve unlimited battery life and positioning functions.
Convert AC and Sonar Signals
After connecting to the AC power supply system and the USBL underwater positioning system, CHASING Adapter Box can convert AC and sonar signals into forms usable by the ROV to achieve unlimited battery life and positioning functions.
AC
USBL
Battery Life up to 5 Hours
CHASING Adapter Box has a built-in 4800 mAh lithium battery with a battery life of up to 5 hours. When the AC power supply system is working, it can continuously replenish power for CHASING Adapter Box.
Small Size and Easy to Carry
CHASING Adapter Box's dimensions are 340 x 282 x 133 mm, and it weighs only 1.5 kg. The device's small size makes it easy to carry.
Specifications
Size340×282×133 mm
Weight3.3 kg
Battery LifeUp to 5 hours
Charging Time2 hours
Battery4800 mAh
Network PortRJ45*1
USBLUSBL*1
AC InputAC Intput*1
AC OutputAC Output*1
CHASING Distance Lock Sonar
CHASING Distance Lock Sonar is specially designed for CHASING M2 and CHASIGN M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.
Product Description
CHASING Distance Lock Sonar
CHASING Distance Lock Sonar is specially designed for CHASING M2 and CHASIGN M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.
Lock the Distance in Four Directions Separately
The sonar can automatically calculate the distance between it and the obstacles in the front, left, right, and bottom of the ROV. After setting the distance to the obstacles on the App, ROV can perform automatic lock-distance inspection and automatic collision avoidance.
Efficient Automatic Inspection
In the lock-distance mode, the ROV can automatically inspect from top to bottom around the fishing nets or any column-shaped facilities, thereby reducing the difficulty of underwater operations and making various inspections more accurate and efficient.
Specifications
ApplicationUnderwater collision avoidance and Underwater fixed range
Range0.25m - 5m
Blind SpotLess than 20 cm
Measurement Accuracy±25mm
Resolution1 mm
Launch Angle13° ± 2°, 26° between axis-1 and axis-2
Power Supply 10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage)
Storage Temperature -20 ℃ - 60 ℃ (non-frozen environment)
Probe InstallationFixed installation
Protection LevelIP68
Sonar Installation Base (default)64 × 64.8 × 79mm
Sonar Installation Base (optional)64 × 64.8 × 153mm
Sonar Installation Base Weight (default)54g
Sonar Installation Base Weight (optional)108g
Maximum Diving Depth150 m
Size of Distance Lock SonarUpper cover: 81.3 × 30mm, Housing: 79.3 × 55.9mm
Weight of Distance Lock Sonar286 ± 5 g
CommunicationTTL communication
CHASING Floodlight 2
CHASING Floodlight 2 is an accessory specially engineered and developed for the CHASING underwater drones. The external illumination has adjustable beam angles ranging from 0° to 360°, significantly decreasing the visual interference of floating debris reflection.
0° - 360° Adjustable Beam Angle
Dual lamp sources allow the adjustment from 0° to 360° horizontal beam angles, adjustment spacing is 15°, meeting various needs of underwater applications with maximized illumination area.
External Illumination, Minimized Visual Interference of Floating Debris
The external illumination can minimize the visual interference of floating debris and significantly increase the image quality.
Aircraft-Grade Aluminium & Carbon Fiber, Lightweight & Corrosion-Resistant
The HA III Military grade hard-anodized surface makes CHASING Floodlight 2 lightweight, corrosion-resistant and perfectly working at 150m deep water. The slim-shaped unit only weighs 432g (15.3oz), which is easy to carry and store.
Specifications
Floodlight
Dimensions
418mm
Weight
≈432g
Angle of Depression
-10°
Horizontal Angle
360° adjustable
Pressure Resistance Depth
150m
Brightness
2 x 2000lm
What’s in the Box
Floodlight
×1
Brass separator
×4
M3x8 screws
×8
