Autel EVO Max 4T - A Leader of Drone Intelligence
The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
15sTake Off
8K 10xOptical Zoom
IP43Weather Rating
Hot-SwappableBatteries
NavigationIn GPS Denied Environments
12.4 milesTransmission Range
42 MinutesFlight Time
720°Obstacle Avoidance
Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
No Blind SpotsUltimate Obstacle AvoidanceEVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
The EVO Max 4T with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.
Platform CapabilityEVO Max 4T redefines portability with its powerful platform and all weather design.
42 mins
Max. Flight Time
23,000 ft
Service Ceiling
12.4 miles
Image Transmission Range
27 mph*
Max. Wind Resistance

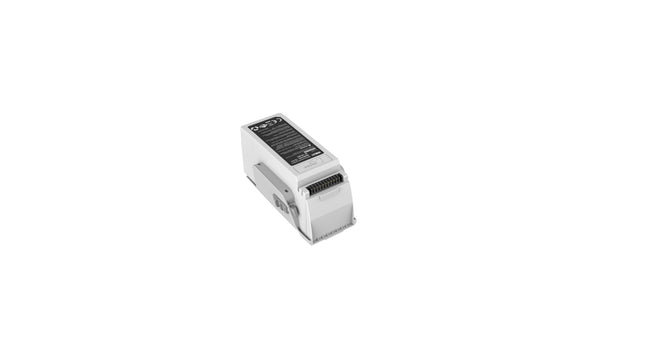

Hot-Swappable BatteryAutel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
8070 mAh
Capacity
14.88V
Voltage
LiPo 4S
Battery Type
120wh
Energy
520g
Net Weight
Support
Hot Swap
Autel Autonomy
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Binocular Vision System
Millimeter Wave RadarA-Mesh 1.0The Drone Industry's First Mesh Networking TechnologyEVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
Strong Anti-Interference
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
12.4 miles
Image Transmission Distance
<150ms
Latency
1080p/60fps
Real-Time Image Quality
900MHz/2.4GHz/5.2GHz/5.8GHz**
Frequency Bands
This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.Mission Ready PayloadThe payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.
50MP
Wide Camera
48MP
Zoom Camera
8K 10x
Optical Zoom
160x
Max. Hybrid Zoom
640x512
Thermal Resolution
Laser RangefinderMeasuring Range:
5 - 1200m
Measurement Accuracy:
+1m
Wide Camera50MP1/1.28" CMOSAperture: f/1.9DFVO: 85°Equivalent: 23 mm
Zoom Camera48MP8K 10x Optical Zoom160x Max. Hybrid ZoomAperture: f/2.8-f/4.8
Thermal Camera640x512Aperture: 13mm16x Digital ZoomTemperature MeasurementRange: -20°C to 550°C
Chase the Heat and Explore the NightStarlight Camera(4N*)Super Zoom*SupersensitivityStrong Infrared PerceptionAccurate RangingStarlight camera only exists in EVO MAX 4N, use this new camera to explore the night of locking and tracking targets.Autel Enterprise App PlatformThe Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features
3D Map Planning
Plan, create, and execute 3D waypoint mission plan on a 3D map.
Quick Mission*
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Mission Reproduction*
With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
Spiral Mission*
Supports helical flight search in a designated area for SAR.
Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.
Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.
Polygon Mission
Supports one-click automatic generation of polygon flight areas.
Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.
Data Security
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
AR Scene*
Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
Accessories
Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
RTK Module (optional)
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Aircraft
Weight
3.5 lbs (1600g, battery and gimbal included)
Dimensions
576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers)
Diagonal Wheelbase
1.52 ft (464mm)
Max Ascent Speed
8m/s
Max Descent Speed
6m/s
Max Horizontal Speed (windless near sea level)
22m/s
Max Service Ceiling Above Sea Level
23000ft (7000m)
Max Flight Time (windless)
42 mins
Max Hovering Time (windless)
40 mins
Max Wind Resistance
27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating
IP43
Max Tilt Angle
35°
Max Angular Velocity
Pitch: 300°/s; Yaw: 120°/s
Operating Temperature
-4°F to 122°F (-20℃ - 50℃)
Operating Frequency
2.4G/5.2G*/5.8G/900MHz*
Transmitter Power (EIRP)
2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
Hovering Accuracy
Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled);
Gimbal
Mechanical Range
Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
Controllable Range
-90° to 45°
Stable system
3-axis mechanical gimbal (pitch, tilt, roll)
Max Control Speed (pitch)
200º/s
Angular Vibration Range
<0.005°
Zoom Camera (Telephoto)
Sensor
1/2" CMOS, Effective pixels: 48M
Lens
Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
Exposure Compensation
±3EV 0.3EV/step
ISO Range
Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
Shutter Speed
Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max Photo Size
8000×6000
Max Video Resolution
7680×4320
Wide Camera
Sensor
1/1.28 CMOS, Effective pixels: 50M
Lens
DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
Exposure Compensation
±3EV 0.3EV/step
ISO Range
Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
Shutter Speed
Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max. Video Resolution
3840×2160
Photo Size
8192*6144 4096*3072
Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 64°Aperture: 13mmFocus: f/1.2
Infrared Temperature MeasurementAccuracy
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
Video Resolution
640*512
Photo Size
640*512
Pixel Pitch
12 um
Temperature Measurement Method
Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range
-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert
High and low temperature alarm thresholds, reporting coordinates and temperaturevalues
Laser Range Finder
Measurement Accuracy
±1m
Measuring Range
1.2km
Image Transmission
Operating Frequency
2.4G/5.2G*/5.8G/900MHz*
Max Transmission Distance (unobstructed, free of interference)
20km
Independent Networking
7.9-inch Smart Controller
Transmitter Power (EIRP)
2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC)
Autonomy
Non-GPS Hovering and Manual Flight
Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height
Non-GPS Return-to-Home
Within 500m flight height, horizontal error of Return-to-Home point < 30cm
Automatic Obstacle Rerouting
High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m
Multi-target Recognition and Tracking
Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%
Millimeter-wave Radar
Frequency
60Ghz~64Ghz
Size
38*14*2mm
Weight
2g
EIRP
18dbm
Distance Detection Range
For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m
Ranging Accuracy
For Obstacle Avoidance：0.1m For Height Measurement：0.02m
Speed Measurement Range
± 60m/s（4D Mode）；±28m/s（3D Mode）；
Speed Measurement Accuracy
≤1%
Max. Tracking Target Number
32
Visual Sensing System
Obstacle Sensing Range
Forward/Upward/Downward/Backward/Sideward: 0.2~50m
FOV
Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V)
7.9-inch smart controller
Screen
7.9 inch, 2000nits max. brightness, 2048*1536 resolution
External Battery
Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
Operating Time
3 hours (Max. brightness) 4.5 hours (50% brightness)
Max Transmission Distance (with interference)
FCC: 20km CE: 7km
Storage
128G
GNSS
GPS+GLONASS+Galileo+Beidou
Operating Temperature
-20℃ to 40℃
Protocol
WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
Operating Frequency
2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz
Transmitter Power (EIRP)
2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm
Aircraft Battery
Capacity
8070mAh
Voltage
14.88V
Battery Type
LiPo 4S
Energy
120wh
Net Weight
520g
Charging Temperature
5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Hot Swap
Support
Autel EVO Max 4T Package List
Leader In Picture Quality And Flight Intelligence
Exceptional Image Quality
With Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, higher frame rates. The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.
1-Inch
CMOS
20MP
6K/30FPS
Video
F2.8~F11
Aperture
Moonlight Algorithm 2.0
Succeed in night photography with EVO II Pro V3's 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.
4K HDR Video
For the ultimate in picture quality, the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.
Post-Production Flexibility with 12-bit DNG
The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.
Hyper-Lapse Photography in 6K
You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
Autel SkyLink 2.0
The EVO II Pro V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.
15KM
Fly farther with HD video transmission up to 15km.
QHD
Obtain critical details with QHD video within 1km.
2.4G/5.8G/900MHz
Support tri-band communication and automatically frequency hop for maximum anti-interference capability.
*900MHz is only applicable for FCC countries.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.
Maximum Performance Endless Possibilities
40 minutes
Maximum Flight Time
9.3miles (15km)
Maximum Transmission Range
27mph (12m/s)
Maximum Wind Resistance
45mph (20m/s)
Maximum Flight Speed
Autel Smart Controller SE
Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.
6.4-InchOLED Screen
15km Transmission Range
Removable Battery
3rd Party Apps
-10℃ to 40℃ Operating Temperature
Live Deck 2: Stream Anywhere
EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
1080P/60FPS Video Stream
Three Auto-Switch Bands
Transmission Range
5-Hour Battery Life
IP43 Resistance
EVO II Pro V3
Technical Specifications
Aircraft
Takeoff weight
1191 g
Max takeoff weight
2000 g
Wheelbase
397 mm
Size(L*W*H)
230x130x108 mm (folded) 457x558x108 mm (unfolded)
Maximum service ceiling altitude
7000 m
Max ascent speed
8 m/s (Ludicrous)
Max descent speed
4 m/s (Ludicrous)
Max horizontal flight speed
20m/s (Ludicrous)
Max flight distance (no wind)
25 km
Max tilt angle
33° (Ludicrous)
Max angular velocity
120°/s
Max flight time (no wind)
40 min
Max hovering time (no wind)
35 min
Operating temperature range
-10℃ ~ 40℃
Maximum resistance to wind
12 m/s (Take-off and landing)
Operating frequency
902-928MHz (FCC Only)2.400-2.4835GHz5.725-5.850GHz (non-Japan)5.650-5.755GHz (Japan Only)
Transmission power
900MFCC/ ISED：≤31dBm2.4GFCC/ ISED：≤32dBmSRRC/CE/MIC/RCM：≤20dBm5.8G (non-Japan) ; 5.7G (Japan)FCC/ISED/SRRC/MIC：≤33dBmCE/ RCM：≤14dBm
Hovering accuracy
Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GPS works normally)Horizontal: ±0.3 m (when the visual positioning is working normally);±1.5 m (when GPS works normally)
GNSS
GPS/Beidou/Glonass/Gallieo
Internal storage
8GB
SD storage
max. support 256GB (UHS-3 or Class 10)
Gimbal
Gimbal
3-axis stabilization
Mechanical range
Tilt: -135° to +45°;Pan: -100° to +100°
Controllable rotation range
Tilt: -90° to +30°;Pan: -90° to +90°
Max control speed (Tilt)
300°/s
Angular Vibration Range
±0.005°
Remote controller and image transmission
Operating frequency
902-928MHz (FCC Only)2.400-2.4835GHz5.725-5.850GHz (non-Japan)5.650-5.755GHz (Japan Only)
Transmission power
FCC：≤33dBmCE：≤20dBm@2.4G，≤14dBm@5.8GSRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference)
FCC：15kmCE：8km
Display screen
2340x1080 60fps
Battery
1900mAh
Operating time
~2 hours (Max. Brightness)~3 hours (50% Brightness)
Charging time
90 minutes
Internal Storage
ROM 128GB + expandable storage via micro-SD card
Sensing system
Sensing system type
Omnidirectional sensing system
Forward
Accurate measurement range: 0.5-18 mEffective sensing speed:<12m/sViewing angle: Horizontal: 60°, Vertical: 80°
Backward
Accurate measurement range: 0.5-16 mEffective sensing speed:<12m/sViewing angle: Horizontal: 60°, Vertical: 80°
Upward
Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: Horizontal: 65°, Vertical: 50°
Downward
Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: horizontal: 100°, vertical: 80°
Left and right
Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: horizontal: 65°, vertical: 50°
Operating Environment
Forward, Backward and Sides:Surface with clear pattern and adequate lighting (lux > 15)Upward:Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)Downward:Surface with clear pattern and adequate lighting (lux > 15)Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
Camera
Sensor
1 inch CMOS; 20M pixels
Lens
FOV: 82°Equivalent focal length: 29 mmAperture: f/2.8 - f/11Focus range: 0.5 m to infinity
ISO range
Video: 100-44000Photo: 100-6400
Shutter speed
Photo mode: 1/8000 ~ 8sOther: 1/8000 ~ 1/frame rates
Zoom
1-16x (up to 3x lossless zoom)
Photo mode
Single shot/Burst shooting/AEB/Time Lapse/HDR
Maximum photo size
5472*3648 (3:2)5472*3076 (16:9)3840*2160 (16:9)
Image Format
JPG (default) / DNG / JPG+DNG
Photo mode
5472x3076P30/P25/P243840x2160P60/P50/P48/P30/P25/P242720x1528P60/P50/P48/P30/P25/P241920x1080P60/P50/P48/P30/P25/P24
Video format
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max bitrate
120Mbps
Supported file system
FAT32/exFAT
Battery
Capacity
7100 mAh
Voltage
11.55 V
Battery type
LiPo 3S
Energy
82 Wh
Weight
365 g
Charging temperature range
5℃ to 45℃
Storage temperature and humidity
-10~30℃，65±20%RH
Recommended storage temperature
22-28℃
Max charging power
93W
Charging time
90 minutes
Charger
Input
100-240 V, 50/60 Hz, 1.5A
Output
13.2 V ⎓ 5 A5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage
13.2±0.1V
Rated power
66W
Multi-Charger
Voltage
13.2 V
Charging temperature range
5℃ to 45℃
In The Box
Autel Evo 2 Pro Rugged Bundle V3
Smart Controller V3
2x Battery
Gimbal Cover
Pair of Spare Propellers
Smart Controller USB-C Charging Cable
Smart Controller Power Brick
Pair of Spare Controller Sticks
32GB SD Card
Smart Controller Hanging Neck Strap
Battery Charger with Power Cord & Converter
PowerVision’s PowerEgg X is a multi-function device that can be used as an autonomous personal AI camera, a handheld 3-axis AI camera, or a high-performance drone.
• In the autonomous personal AI camera mode, the AI algorithm and robotics technology capabilities enable the PowerEgg X to perform facial recognition, deep learning, and a tracking field of view up to 170°.
• When switched into the handheld mode, the PowerEgg X captures your life moments using its three-axis mechanical-stability augmentation gimbal and Autonomous Personal AI camera. It has a battery life of 3.5 hours and produces 4K/60fps UHD images.
• The PowerEgg X is also a high-performance drone equipped with a 4K/60fps camera and tri-axial mechanical stability augmentation technologies. It can be used for highly dynamic aerial photography. Besides, PowerVision’s patented SyncVoice technology allows users to narrate in real-time by using their mobile phone’s microphone or a wireless earphone. The narration is then automatically synchronized with pictures, effectively ending silent-aerial photography.
Product Description
Product Specifications
PowerEgg X in AI Camera Mode
Dimensions
7 x 4 x 4 in
Weight
1.2 lb
Operating Temperature Range
32 F - 104 F
Operating Time
4 hrs
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Transmission Power
CE(EIRP): ≤18.2dBm FCC: ≤21dBm IC: ≤21dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
PowerEgg X in Drone Mode
Dimensions
19 x 25 x 5 in
Weight
1.9 lb
Diagonal Distance
16.8 in
Max Ascent Speed
11.2 mph
Max Descent Speed
6.7 mph
Max Speed
40 mph
Max Service Ceiling Above Sea Level
2.5 mi
Max Flight Time
30 mins
Max Flight Distance
3.7 mi
Max Wind Resistance Level
Level 5
Operating Temperature Range
32 F - 104 F
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Transmitter Power
CE(EIRP): ≤17.3dBm FCC: ≤27dBm IC: ≤27dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
GNSS
GPS + GLONASS
Gimbal
Mechanical Range
AI-Camera Mode:Vertical: -90° ~ +20°Horizontal: -55° ~﹢55°Drone Mode:Vertical: -90° ~ +20°
Camera
Sensor
1/2.8 inch CMOSEffective Pixels: 12 million
Lens
FOV: 78.4°Focal Length: 27mmAperture: f/1.8Shooting Range: 1 m to ∞
ISO Range
Video: 100 - 3200Photo: 100 - 6400
Shutter Speed
Electronic Shutter: 8–1/8000s
Max Image Size
4000 x 3000
Still Photography Modes
Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV BiasInterval: 3/5/7/10/15/30/60s
Video Resolution
4K: 3840x2160 24/25/30/48/50/60pFHD: 1920x1080 24/25/30/48/50/60/120pHD: 1280x720 24/25/30/48/50/60/120/240p
Max Video Bitrate
75 Mbps
Supported File Systems
FAT32 (≤32 GB)exFAT (>32 GB)
Photo Format
JPEG / RAW
Video Format
MP4 / MOV (H.265/H.264/MPEG-4 AVC)
Supported SD Card
Micro SDClass 10 or UHS-3 rating requiredMax capacity: 128 GB
Internal Storage
6 GB
Remote Controller
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Max Transmission Distance(Unobstructed, free of interference)
FCC: 3.7 miCE: 1.85 miSRRC: 1.85 mi
Operating Temperature Range
32 - 104 F
Transmission Power
CE(EIRP): ≤18.3dBm FCC: ≤27dBm IC: ≤27dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
Battery Capacity
3500 mAh
Operating Current/Voltage
1700 mA @ 3.7 V(USB connected with mobile device)
Supported Mobile Device Size
Max thickness: 0.32 inWidth range: 2.6 - 3.3 in
Supported Port Type
Lightning, Micro USB (Type-B), USB-C
Charger
Input
100 - 240 V, 50/60 Hz
Output
13.3 V / 3.76 AUSB-A: 5 V / 2 A
Rated Power
50 W
Intelligent Battery
Energy
43.32 Wh
Capacity
3800 mAh
Voltage
11.4 V
Max Charging Voltage
13.2 V
Battery Type
LiPo 3S
Weight
0.5 lb
Charging Temperature Range
50 - 113 F
Max Charging Power
50 W
App
Mobile App Name
Vision+ 2
Live View Quality
1080p@30fps
Latency
AI-Camera Mode: 170msDrone Mode: 217ms
Required Operating System
iOS 10.0 or later, Android 5.0 or later
In The Box
PowerEgg X Wizard
PowerEgg X
* 1
Remote Controller
* 1
Wrist Strap
* 1
Full Set of Arms & Propellers
* 1
Spare Pair of Propellers
* 3
Intelligent Battery
* 2
Intelligent Charger
* 1
AC Cable
* 1
Micro USB Cable
* 1
Lightning Cable
* 1
USB-C Cable
* 1
Screws
* 18
Screwdriver
* 1
Block for Groove
* 1
Gimbal Protector
* 1
Storage Pack
* 1
Tripod Converter
* 1
Short Tripod
* 1
Waterproof Housing
* 1
Pair of Water-landing Floats
* 1
Storage Bag of Arms
* 1
Mini 10p to USB 2.0 A Adaptor
* 1
2000nit super-bright screen4.5 Ultra-long battery life(5800mAH) * 128GB Internal memory
-20~40C working temperatureCustomized OS System8-core processor(Samsung Exynos 8895 8-core)13KM Image transmission distance
Note: This unit Only works with the Version 2 Autel EVO 2 Units.
Product Description
Product Specifications
In The Box
1x Evo 2 Smart Remote
The EVO Lite is the first drone in the world to introduce a four-axis gimbal design, enabling you to shoot vertical videos for easy editing and sharing on mobile devices.
The EVO Lite+ is equipped with a 1-inch CMOS image sensor and Autel's intelligent moonlight algorithm, the EVO Lite+ can capture crisp, vibrant details at night with low noise — even when the ISO is cranked up high.
1" CMOS
F2.8~F11
6K/30P Video
20MP
Product Description
Product Specifications
Performance
Maximum Horizontal Speed
42 mph / 67.6 km/h
Maximum Ascent Speed
18 mph / 29.0 km/h
Maximum Descent Speed
9 mph / 14.5 km/h
Maximum Wind Resistance
38 mph / 61.2 km/h
Flight Ceiling
3.1 Miles / 5 km
Maximum Flight Time
42 Minutes
Maximum Hover Time
40 Minutes
Maximum Tilt Angle
33°
Hovering Accuracy
±1.6' / 0.5 m Vertical with GPS±0.3' / 0.1 m Vertical with Vision Positioning±4.9' / 1.5 m Horizontal with GPS±1.0' / 0.3 m Horizontal with Vision Positioning
Flight Control System
GNSS Support
GPS
Remote Controller / Transmitter
Operating Frequency
2.4 GHz (2400.000 - 2483.5)5.8 GHz (5725.000 - 5850.000)
Maximum Operating Distance
7.4 Miles / 11.9 km
Connectivity
1 x USB Type-C
Battery Capacity
3900 mAh
App Operating System Requirements
Android 8 and lateriOS 12 and later
Display Resolution
1920 x 1080
Operating Temperature
32 to 104°F / 0 to 40°C
Camera
Sensor Type
1" CMOS Sensor
Sensor Resolution
Effective: 20 Megapixel
Focal Length
29mm (35mm Equivalent)
Maximum Aperture
f/2.8 to 11
Minimum Focus Distance
19.7" / 0.5 m
ISO Sensitivity
Video: 100 to 6400Photo: 100 to 6400
Shutter Speed
Electronic Shutter1/8000 to 1 Seconds in Auto Mode1/8000 to 8 Seconds in Manual Mode
Video Format
5472 x 3076p at 24/25/30 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)3840 x 2160p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)2720 x 1528p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)1920 x 1080p at 24/25/30/48/50/60/120 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
Broadcast Resolution
None
Still Image Support
DNG / JPEG20 MP (5472 x 3648)(5472 x 3076)(3840 x 2160)
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Photo Modes
Auto-Exposure Bracketing (AEB), Single Shot
Gimbal
Number of Axes
3 (Pitch, Roll, Yaw)
Flight Battery
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Capacity
6175 mAh / 68.7 Wh
Battery Configuration
3 S / 12.75 V
Maximum Charging Power
78 W
Charging Temperature
41 to 113°F / 5 to 45°C
Charger
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Output Voltage
12.8 V, 5 A
Power Rating
64 W
General
Number of Rotors
4
Diagonal Size
14.5" / 368 mm
Overall Dimensions
8.3 x 3.3 x 4.1" / 210.0 x 85.0 x 104.0 mm (Folded)16.9 x 3.3 x 20.4" / 430.0 x 85.0 x 517.0 mm (Unfolded)
Weight
1.8 lb / 820 g
In The Box
Autel EVO Lite Plus
Battery
Simple Remote Controller
Remote Controller Charger
Adapter
USB-to-Lightning Cable
USB Type-C Cable
USB Type-B Cable
Gimbal Cover
Spare Propeller
AUTEL EVO NANO SERIES
Make every moment matterEVO Nano+ is packed a 1/1.28-inch(0.8-inch) CMOS sensor capable of 50 MP photos. A RYYB color filter array design with a large aperture of f/1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low- light conditions. Track fast-moving subjects with incredible precision through PDAF + CDAF autofocus system; Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.
Product Description
Product Specifications
Performance
Maximum Horizontal Speed
33 mph / 53.1 km/h
Maximum Ascent Speed
13 mph / 20.9 km/h
Maximum Descent Speed
9 mph / 14.5 km/h
Maximum Wind Resistance
24.2 mph / 38.9 km/h
Flight Ceiling
13,000' / 4 km
Maximum Flight Time
30 Minutes
Maximum Hover Time
28 Minutes
Maximum Tilt Angle
33°
Hovering Accuracy
±1.6' / 0.5 m Vertical with GPS±0.3' / 0.1 m Vertical with Vision Positioning±4.9' / 1.5 m Horizontal with GPS±1.0' / 0.3 m Horizontal with Vision Positioning
Flight Control System
GNSS Support
GPS
Remote Controller / Transmitter
Operating Frequency
2.4 GHz (2400.000 - 2483.5)5.8 GHz (5725.000 - 5850.000)
Maximum Operating Distance
7.4 Miles / 11.9 km
Connectivity
1 x USB Type-C
Battery Capacity
3900 mAh
App Operating System Requirements
Android 8 and lateriOS 12 and later
Display Resolution
1280 x 720
Operating Temperature
32 to 104°F / 0 to 40°C
Camera
Sensor Type
1/1.28" CMOS Sensor
Sensor Resolution
Effective: 50 Megapixel
Focal Length
23mm (35mm Equivalent)
Maximum Aperture
f/1.9
Minimum Focus Distance
19.7" / 0.5 m
ISO Sensitivity
Video: 100 to 6400Photo: 100 to 6400
Shutter Speed
Electronic Shutter1/8000 to 1 Seconds in Auto Mode1/8000 to 8 Seconds in Manual Mode
Video Format
3840 x 2160p at 24/25/30 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)2720 x 1528p at 24/25/30 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)1920 x 1080p at 24/25/30/48/50/60 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
Broadcast Resolution
None
Still Image Support
DNG / JPEG(4096 x 3072)(3840 x 2160)
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Photo Modes
Auto-Exposure Bracketing (AEB), Single Shot
Gimbal
Number of Axes
3 (Pitch, Roll, Yaw)
Control Range
Pitch: -125 to 35°Roll: -34 to 33°
Control Accuracy
±25°
Flight Battery
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Capacity
2250 mAh / 17.32 Wh
Battery Configuration
2 S / 8.8 V
Maximum Charging Power
30 W
Charging Temperature
41 to 113°F / 5 to 45°C
Charger
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Output Voltage
12 V, 2.5 A9 V, 3 A5 V, 3 A
Power Rating
30 W
General
Number of Rotors
4
Diagonal Size
9.1" / 231 mm
Overall Dimensions
5.5 x 2.0 x 3.5" / 140.0 x 50.0 x 90.0 mm (Folded)10.4 x 2.0 x 12.2" / 264.0 x 50.0 x 310.0 mm (Unfolded)
Weight
0.5 lb / 249 g
In The Box
Autel EVO Nano Plus
3x Battery
Simple Remote Controller
Remote Controller Charger
Adapter
Multi-Charger
Travel Bag
Propeller Holder
USB-to-Lightning Cable
USB Type-C Cable
USB Type-B Cable
Gimbal Cover
3x Spare Propeller
8x Spare Screw
Screwdriver
PowerVision’s PowerEgg X is a multi-function device that can be used as an autonomous personal AI camera, a handheld 3-axis AI camera, or a high-performance drone.
• In the autonomous personal AI camera mode, the AI algorithm and robotics technology capabilities enable the PowerEgg X to perform facial recognition, deep learning, and a tracking field of view up to 170°.
• When switched into the handheld mode, the PowerEgg X captures your life moments using its three-axis mechanical-stability augmentation gimbal and Autonomous Personal AI camera. It has a battery life of 3.5 hours and produces 4K/60fps UHD images.
• The PowerEgg X is also a high-performance drone equipped with a 4K/60fps camera and tri-axial mechanical stability augmentation technologies. It can be used for highly dynamic aerial photography. Besides, PowerVision’s patented SyncVoice technology allows users to narrate in real-time by using their mobile phone’s microphone or a wireless earphone. The narration is then automatically synchronized with pictures, effectively ending silent-aerial photography.
Product Specifications
PowerEgg X in AI Camera Mode
Dimensions
7 x 4 x 4 in
Weight
1.2 lb
Operating Temperature Range
32 F - 104 F
Operating Time
4 hrs
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Transmission Power
CE(EIRP): ≤18.2dBm FCC: ≤21dBm IC: ≤21dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
PowerEgg X in Drone Mode
Dimensions
19 x 25 x 5 in
Weight
1.9 lb
Diagonal Distance
16.8 in
Max Ascent Speed
11.2 mph
Max Descent Speed
6.7 mph
Max Speed
40 mph
Max Service Ceiling Above Sea Level
2.5 mi
Max Flight Time
30 mins
Max Flight Distance
3.7 mi
Max Wind Resistance Level
Level 5
Operating Temperature Range
32 F - 104 F
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Transmitter Power
CE(EIRP): ≤17.3dBm FCC: ≤27dBm IC: ≤27dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
GNSS
GPS + GLONASS
Gimbal
Mechanical Range
AI-Camera Mode:Vertical: -90° ~ +20°Horizontal: -55° ~﹢55°Drone Mode:Vertical: -90° ~ +20°
Camera
Sensor
1/2.8 inch CMOSEffective Pixels: 12 million
Lens
FOV: 78.4°Focal Length: 27mmAperture: f/1.8Shooting Range: 1 m to ∞
ISO Range
Video: 100 - 3200Photo: 100 - 6400
Shutter Speed
Electronic Shutter: 8–1/8000s
Max Image Size
4000 x 3000
Still Photography Modes
Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV BiasInterval: 3/5/7/10/15/30/60s
Video Resolution
4K: 3840x2160 24/25/30/48/50/60pFHD: 1920x1080 24/25/30/48/50/60/120pHD: 1280x720 24/25/30/48/50/60/120/240p
Max Video Bitrate
75 Mbps
Supported File Systems
FAT32 (≤32 GB)exFAT (>32 GB)
Photo Format
JPEG / RAW
Video Format
MP4 / MOV (H.265/H.264/MPEG-4 AVC)
Supported SD Card
Micro SDClass 10 or UHS-3 rating requiredMax capacity: 128 GB
Internal Storage
6 GB
Remote Controller
Operating Frequency
FCC/IC: 2412~2462MHzCE: 2412~2472MHzSRRC: 2412~2472MHzMIC: 2412~2472MHz
Max Transmission Distance(Unobstructed, free of interference)
FCC: 3.7 miCE: 1.85 miSRRC: 1.85 mi
Operating Temperature Range
32 - 104 F
Transmission Power
CE(EIRP): ≤18.3dBm FCC: ≤27dBm IC: ≤27dBm MIC: ≤10mw/MHzSRRC(EIRP): ≤20dBm
Battery Capacity
3500 mAh
Operating Current/Voltage
1700 mA @ 3.7 V(USB connected with mobile device)
Supported Mobile Device Size
Max thickness: 0.32 inWidth range: 2.6 - 3.3 in
Supported Port Type
Lightning, Micro USB (Type-B), USB-C
Charger
Input
100 - 240 V, 50/60 Hz
Output
13.3 V / 3.76 AUSB-A: 5 V / 2 A
Rated Power
50 W
Intelligent Battery
Energy
43.32 Wh
Capacity
3800 mAh
Voltage
11.4 V
Max Charging Voltage
13.2 V
Battery Type
LiPo 3S
Weight
0.5 lb
Charging Temperature Range
50 - 113 F
Max Charging Power
50 W
App
Mobile App Name
Vision+ 2
Live View Quality
1080p@30fps
Latency
AI-Camera Mode: 170msDrone Mode: 217ms
Required Operating System
iOS 10.0 or later, Android 5.0 or later
In The Box
PowerEgg X Explorer
PowerEgg X
* 1
Remote Controller
* 1
Wrist Strap
* 1
Full Set of Arms & Propellers
* 1
Spare Pair of Propellers
* 1
Intelligent Battery
* 1
Intelligent Charger
* 1
AC Cable
* 1
Micro USB Cable
* 1
Lightning Cable
* 1
USB-C Cable
* 1
Screws
* 6
Screwdriver
* 1
Block for Groove
* 1
Gimbal Protector
* 1
Storage Pack
* 1
Tripod Converter
* 1
Short Tripod
-
Waterproof Housing
-
Pair of Water-landing Floats
-
Storage Bag of Arms
-
Mini 10p to USB 2.0 A Adaptor
-
1/2” 48MP CMOS Sensor: The upgraded 1/2” 48MP CMOS sensor, bringing a large 1.6um pixel size based on the "Quad Bayer" pixel technology, can effectively reduce noise during nighttime aerial filming. Built-in native exposure control with signal processing technology ensures a 4X higher dynamic range than that of traditional CMOS sensors.
Super Night Scene Shooting: Based on multi-frame fusion noise reduction technology and the large aperture of the 1/2” sensor, the FIMI X8SE 2022 V2 ensures that the camera will capture at night the details you need to create your blockbuster.
Megaphone: Once mounted onto the drone, the device can remotely transmit voices or sounds. It can also store multiple audio files, support text-to-audio, and automatic loop playback, and shout in real-time. With a max transmission range of 100 meters, tasks such as search and rescue are quicker and easier than ever before. *The range depends on the circumstances. In complex environments with noise, the best range is within 50 meters. The maximum control distance of the megaphone is up to 10 km.
Release and drop: The device can carry and drop a payload of up to 200g, allowing the drone to fly over obstacles and deliver urgently needed materials. *The payload should not exceed 200g, and the smaller size of the load; better the drone will handle the flight. Note that when carrying a load, the drone’s speed and deceleration distance are affected.
RokLink 10km Transmission System: The upgraded 3rd generation RokLink high-definition digital image transmission system with adaptive stream-encoding technology provides a superior transmission distance of up to 10km and transmission delay as low as 130ms, helping you explore and capture the beauty of greater distances.
3-Axis Mechanical Gimbal: The 3rd generation of the LOS stabilization algorithm, a sensor with high precision control and an accuracy of 0.005°, and a fully closed loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbusters
Level 8 Wind Resistance: The power system, combined with the lightweight design of the drone, brings a higher thrust-to-weight ratio and supports up to Level 8 wind resistance.
Remote ID: Thanks to integration of Remote ID, the FIMI X8SE 2022 V2 provides safe and legal flight experiences around the globe, meeting both FAA and EASA flight requirements.
Rainproof and Snowproof: Designed to be rainproof and snowproof, your flights will no longer be affected by the weather. Even if you encounter rain or snow, you can still fly safely and have the drone return home without worry.
A Large F1.6 Aperture: The larger aperture of the FIMI X8SE 2022 V2 allows for more light to come through, effectively reducing noise. With greater light sensitivity, it accurately captures more colors and details during low-light videography.
SAR(Search and Rescue) Mode
Its light body, 10KM long-range, uninterrupted video transmission, and extended battery life allowing flight times of up to 35 minutes combined with its accurate GPS make the X8SE 2022 V2 a good choice for search and rescue missions.
Precision Landing
The FIMI X8SE 2022 V2 utilizes the downside camera to recognize the launch pad and land right on the pad.
3-Axis Mechanical Gimbal
The 3rd generation of the LOS stabilization algorithm, a senor with high precision control and an accuracy of 0.005°, and a fully closed-loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbuster.
Smart Tracking Modes
Tell your story using the smart tracking mode.
Trace: Track your target from different views.
Profile: Follow your subject from a parallel perspective.
Lock: Follow your subject from a fixed perspective.
Circular Flights
Free your hands and create precise circular flights.
Compatible with TX10 remote controller
The FIMI X8SE 2022 V2 drone is fully compatible with a new generation of remote controllers with built-in screens. Flying a drone has never been so convenient or offered a more professional flight experience.
Fimi X8 SE 2022 V2 Specs
Performance
Maximum Horizontal Speed
40.3 mph / 18 m/s
Maximum Ascent Speed
11.2 mph / 5 m/s
Maximum Descent Speed
8.9 mph / 4 m/s
Flight Ceiling
0.5 Miles / 800 m
Maximum Flight Time
35 Minutes
Hovering Accuracy
: ±0.3' / 0.1 mGNSSHorizontal: ±1.6' / 0.5 m
Camera
Sensor Type
1/2"-Type CMOS Sensor
Sensor Resolution
Effective: 48 Megapixel
Minimum Aperture
f/1.6
Broadcast Resolution
None
Still Image Support
Yes
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Gimbal
Number of Axes
3 (Pitch, Roll, Yaw)
Control Accuracy
±0.005°
Flight Control System
GNSS Support
GPS, GLONASS, BeiDou
Remote Controller / Transmitter
Operating Frequency
2.4 GHz (2.400 to 2.484)
Maximum Operating Distance
Not Specified by Manufacturer
App Compatible
Yes*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
General
Rotor Configuration
4
Diagonal Size
14.6" / 372 mm
Overall Dimensions
8.0 x 4.2 x 2.9" / 204.0 x 106.0 x 72.6 mm
Weight
1.7 lb / 768 g (Including Propellers, Battery)
1/2” 48MP CMOS Sensor: The upgraded 1/2” 48MP CMOS sensor, bringing a large 1.6um pixel size based on the "Quad Bayer" pixel technology, can effectively reduce noise during nighttime aerial filming. Built-in native exposure control with signal processing technology ensures a 4X higher dynamic range than that of traditional CMOS sensors.
Super Night Scene Shooting: Based on multi-frame fusion noise reduction technology and the large aperture of the 1/2” sensor, the FIMI X8SE 2022 V2 ensures that the camera will capture at night the details you need to create your blockbuster.
Megaphone: Once mounted onto the drone, the device can remotely transmit voices or sounds. It can also store multiple audio files, support text-to-audio, and automatic loop playback, and shout in real-time. With a max transmission range of 100 meters, tasks such as search and rescue are quicker and easier than ever before. *The range depends on the circumstances. In complex environments with noise, the best range is within 50 meters. The maximum control distance of the megaphone is up to 10 km.
Release and drop: The device can carry and drop a payload of up to 200g, allowing the drone to fly over obstacles and deliver urgently needed materials. *The payload should not exceed 200g, and the smaller size of the load; better the drone will handle the flight. Note that when carrying a load, the drone’s speed and deceleration distance are affected.
RokLink 10km Transmission System: The upgraded 3rd generation RokLink high-definition digital image transmission system with adaptive stream-encoding technology provides a superior transmission distance of up to 10km and transmission delay as low as 130ms, helping you explore and capture the beauty of greater distances.
3-Axis Mechanical Gimbal: The 3rd generation of the LOS stabilization algorithm, a sensor with high precision control and an accuracy of 0.005°, and a fully closed loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbusters
Level 8 Wind Resistance: The power system, combined with the lightweight design of the drone, brings a higher thrust-to-weight ratio and supports up to Level 8 wind resistance.
Remote ID: Thanks to integration of Remote ID, the FIMI X8SE 2022 V2 provides safe and legal flight experiences around the globe, meeting both FAA and EASA flight requirements.
Rainproof and Snowproof: Designed to be rainproof and snowproof, your flights will no longer be affected by the weather. Even if you encounter rain or snow, you can still fly safely and have the drone return home without worry.
A Large F1.6 Aperture: The larger aperture of the FIMI X8SE 2022 V2 allows for more light to come through, effectively reducing noise. With greater light sensitivity, it accurately captures more colors and details during low-light videography.
SAR(Search and Rescue) Mode
Its light body, 10KM long-range, uninterrupted video transmission, and extended battery life allowing flight times of up to 35 minutes combined with its accurate GPS make the X8SE 2022 V2 a good choice for search and rescue missions.
Precision Landing
The FIMI X8SE 2022 V2 utilizes the downside camera to recognize the launch pad and land right on the pad.
3-Axis Mechanical Gimbal
The 3rd generation of the LOS stabilization algorithm, a senor with high precision control and an accuracy of 0.005°, and a fully closed-loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbuster.
Smart Tracking Modes
Tell your story using the smart tracking mode.
Trace: Track your target from different views.
Profile: Follow your subject from a parallel perspective.
Lock: Follow your subject from a fixed perspective.
Circular Flights
Free your hands and create precise circular flights.
Compatible with TX10 remote controller
The FIMI X8SE 2022 V2 drone is fully compatible with a new generation of remote controllers with built-in screens. Flying a drone has never been so convenient or offered a more professional flight experience.
Fimi X8 SE 2022 V2 Specs
Performance
Maximum Horizontal Speed
40.3 mph / 18 m/s
Maximum Ascent Speed
11.2 mph / 5 m/s
Maximum Descent Speed
8.9 mph / 4 m/s
Flight Ceiling
0.5 Miles / 800 m
Maximum Flight Time
35 Minutes
Hovering Accuracy
: ±0.3' / 0.1 mGNSSHorizontal: ±1.6' / 0.5 m
Camera
Sensor Type
1/2"-Type CMOS Sensor
Sensor Resolution
Effective: 48 Megapixel
Minimum Aperture
f/1.6
Broadcast Resolution
None
Still Image Support
Yes
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Gimbal
Number of Axes
3 (Pitch, Roll, Yaw)
Control Accuracy
±0.005°
Flight Control System
GNSS Support
GPS, GLONASS, BeiDou
Remote Controller / Transmitter
Operating Frequency
2.4 GHz (2.400 to 2.484)
Maximum Operating Distance
Not Specified by Manufacturer
App Compatible
Yes*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
General
Rotor Configuration
4
Diagonal Size
14.6" / 372 mm
Overall Dimensions
8.0 x 4.2 x 2.9" / 204.0 x 106.0 x 72.6 mm
Weight
1.7 lb / 768 g (Including Propellers, Battery)
The Autel EVO II Fly More Kit includes 2Pcs 7100mAh intelligent flight batteries, a battery charging hub, 2 pairs of folding propellers, and a shoulder bag to store and carry it all. This official fly-more kit will keep an EVO II drone in the air for longer, allowing you to make the most of your flight time whether it's to scope out some amazing scenery, take photos and videos, or just for flying fun!
Availability: Back Order
Product Description
EVO II Fly More Kit
The Autel EVO II Fly More Kit includes 2Pcs 7100mAh intelligent flight batteries, a battery charging hub, 2 pairs of folding propellers, and a shoulder bag to store and carry it all. This official fly-more kit will keep an EVO II drone in the air for longer, allowing you to make the most of your flight time whether it's to scope out some amazing scenery, take photos and videos, or just for flying fun!
Note: The EVO II Fly More Bundle compatible with EVO II Series only (8k/ Pro 6k/ Dual).
Upgrade Your Flight With The Fly More Kit
1 x Shoulder Bag
Perfectly protected and portable storage for your kit for you to carry to your destination comfortably.
2 x Flight Batteries
7100mAh intelligent flight batteries, each come with up to 35/40 minutes of hover/flight time.
1 x Charging Hub
Charge up to 4 EVO batteries with the standard EVO II charger for more time in the air.
4 x Low Noise Propellers (2 Pairs)
Easy to change and ideal backup should you reach some difficult flying conditions.
What’s in the Box
1 x EVO II Shoulder Bag
2 x EVO II Flight Batteries
4 x EVO II Low Noise Propellers (2 Pairs)
1 x EVO II Charging Hub
Roklink 6km Transmission System
Level 8 Wind Resistance
Large F1.6 Aperture
Foldable and portable design
3-axis Mechanical Gimbal
HDR Video and Photo
Super Night Scene Shooting
Product Description
Product Specifications
In The Box
1 x RC Quadcopter( with camera)1 x Transmitter1 x 11.4V 4500mAh Lipo Battery3 x USB Cable4 x Propeller1 x AC Cable1 x Charger2 x Manual
The EVO Max 4T Battery, with a capacity of 8070mAh, is a powerful 14.88V LiPo 4S battery that offers 42 minutes of flight time, has auto self-heating in low temperatures, and is hot-swapping in between flights to reduce downtime and get you in the air as quickly as possible.
Capacity: 8070mAhVoltage: 14.88VBattery Type: LiPo 4SEnergy: 120whNet Weight: 1.15 lbs (520g)Hot Swap: SupportedCharging Temperature: -4°F to 113°F (-20ºC to 45ºC)When the temperature is lower than 41° F (5° C), the selfheating function will be automatically activated. There should be at least around 10% of the remaining power for heating.)
Intelligent LiPo battery with 3800 mAh and 11.4V for use with PowerVision PowerEgg X.
Charges in 1.5 hours and provides for a 30-minute flight in drone mode and 3.5-hour filming in AI camera modePower indicator lighting systemSmart battery sleek design
POWEREGG X INTELLIGENT BATTERY SPECIFICATION
Watt Hours
43.32 Wh
Capacity
3800 mAh
Voltage
11.4 V
Max Charging Voltage
13.2 V
Charging Temperature
50F - 113F
Charging Time
~1.5 hrs
Max Charging Power
50 W
Battery Type
LiPo 3S
World's Smallest Smartphone Gimbal
Pocket-sized gimbal with advanced AI tracking & PowerFollow that doubles as a wireless power bank.
Product Description
The PowerVision S1 Gimbal is a wireless passthrough charging power bank, a 3-axis stabiliser, a selfie stick, a photo and video editor, magnetic system, and a tripod all wrapped into one beautiful package -the perfect companion for smartphones.
Key Features:
Shoot like a pro
Be it live streaming, vlogging, or capturing valuable memories in a concert or sporting event, PowerVision S1 has it all covered with its extensive photo and video functionalities. This all-in-one solution utilises the smallest micro 3-axis mobile phone stabiliser in the world. No shakes, no blurs, just perfection. For those who are a one-person team, never worry about being out of frame again with the PowerFollow feature. This nifty device also allows users to enable gesture control to signal when to start, stop, pause & capture. It's compatible with live streaming, video conferencing, and social apps. Welcome to a world of perfectly focused imagery on demand.
Mini but powerful
The PowerVision S1 team was inspired to develop this product as "Mobile phones have become a modern-day essential and are portals for self-expression, advertising, and convenience. The development of devices has been significant throughout the years and is the reason why some devices are classified as obsolete. We thought about contributing to the improvements by creating an all-in-one solution for every device."
Stay 100%
This stylish piece includes a built-in power bank with passthrough wireless charging. Say goodbye to frustrating wires and welcome the extended battery life. There is no need to keep an eye on the device as it seamlessly sticks in place with its innovative magnetic connection feature.
About PowerVision
The PowerVision Group was founded in 2009 and is a company with a clear mission to innovate the future. It pushes the boundaries of possibilities, intending to change the world through innovative artificial intelligence. At the heart of the company is a corporate culture that prides itself on continuous learning, innovation, and technological excellence. PowerVision is the only company in the world producing aerial, water surface, and underwater robotic devices.
Product Specifications
Magnetic Phone Holder
Weight
36g
Compatible Phone Width
67 – 84 mm
Compatible Phone Thickness
7.0 -10 mm
Vision+S1 App
To ensure optimal performance of Vision+S1 App, make sure that your device is using iOS version 10.0 or Android version 7.0 or higher.
PowerVision S1
Folded Dimensions
141.5 × 58.4 ×27.9mm
Unfolded Dimensions
258.5 × 58.4 ×59.3mm
Weight
298g
Compatible Payload Weight
220±60g
Compatible Phone Length
164mm Max.
Universal Mount
1/4″-20 UNC Port
Battery
Type
Li-ion
Energy
15.86Wh/1030mAh 15.4VCapacity equal to 4120 mAh 3.85V
Max Working Time
15 hrsUnder ideal conditions with the gimbal fully balanced.
Charging Time
2hrsMeasured with a 18W charger.
Working Temperature
0 – 40℃
Charging Temperature
5 – 40℃
Max Charging Power
18W，5V/3A 9V/2A 12V/1.5A
Magnetic Car Mount
Weight
92g
Installation Method
Air Outlet Plug-in TypeConsole Bonded Type
Charging Output
Wireless Output
10W Max.
USB-C Output
PowerOff：18W Max.PowerOn：5W Max.
Charging Port
USB-C
Gimbal
Mechanical Range
Pan：±150°Tilt：±90°Roll：-214.8° – 96°
Max Control Speed
120°/s
Wireless
Model
BLE5.0
In The Box
PowerVision S1 Gimbal
Magnetic Universal Phone Mount
Magnetic Car Mount
PowerSeeker is an easy-to-use fishfinding solution for fishermen on the move. It accurately determines fish location up to 262 ft deep underwater, while detecting water temperature, water depth, and underwater topography at the same time.You can use the PowerSeeker from a boat or from the shore, in any kind of water. With an operating temperature range from 14°F to 104°F, the PowerSeeker is the perfect companion for all kinds of fishing practices, including ice-fishing!The PowerSeeker creates its own WiFi, so you can use it to reach previously inaccessible fishing spots. All the data is transmitted in real-time to the Vision+ App on your phone, providing fishing enthusiasts a more efficient and intelligent experience.The PowerSeeker can also be used with PowerVision’s PowerEye, PowerRay and PowerDolphin to enhance your fishing experience.
Availability: Back Order - ETA 1 Week From Order
Product Description
Key Features:
• Detects fish location, water temperature, water depth, and underwater topography.
• Detection depth ranges from 2 ft to 262 ft. Wi-Fi connection is up to 328 ft.
• Works in different water environments, such as riverbanks, open ocean, lakes, shorelines, rivers, etc.
• Works as a stand-alone device or with PowerVision products.
Product Specifications
PowerSeeker Specs
Size
Diameter 2.66 in
Weight
3.9 oz
Frequency
120 KHZ
Detection Angle
30°
Detection Depth
2 - 262 ft
Depth Accuracy
3.9 in
Connection
Wi-Fi
Connection Range
328 ft
Battery Capacity
3.7V, 1000 mAh
Operating Time
~4 hrs
Charging Time
~2.5 hrs
Operating Temperature
14 F - 104 F
World's Smallest Smartphone Gimbal
Pocket-sized gimbal with advanced AI tracking & PowerFollow that doubles as a wireless power bank.
Product Description
The PowerVision S1 Gimbal is a wireless passthrough charging power bank, a 3-axis stabiliser, a selfie stick, a photo and video editor, magnetic system, and a tripod all wrapped into one beautiful package -the perfect companion for smartphones.
Key Features:
Shoot like a pro
Be it live streaming, vlogging, or capturing valuable memories in a concert or sporting event, PowerVision S1 has it all covered with its extensive photo and video functionalities. This all-in-one solution utilises the smallest micro 3-axis mobile phone stabiliser in the world. No shakes, no blurs, just perfection. For those who are a one-person team, never worry about being out of frame again with the PowerFollow feature. This nifty device also allows users to enable gesture control to signal when to start, stop, pause & capture. It's compatible with live streaming, video conferencing, and social apps. Welcome to a world of perfectly focused imagery on demand.
Mini but powerful
The PowerVision S1 team was inspired to develop this product as "Mobile phones have become a modern-day essential and are portals for self-expression, advertising, and convenience. The development of devices has been significant throughout the years and is the reason why some devices are classified as obsolete. We thought about contributing to the improvements by creating an all-in-one solution for every device."
Stay 100%
This stylish piece includes a built-in power bank with passthrough wireless charging. Say goodbye to frustrating wires and welcome the extended battery life. There is no need to keep an eye on the device as it seamlessly sticks in place with its innovative magnetic connection feature.
About PowerVision
The PowerVision Group was founded in 2009 and is a company with a clear mission to innovate the future. It pushes the boundaries of possibilities, intending to change the world through innovative artificial intelligence. At the heart of the company is a corporate culture that prides itself on continuous learning, innovation, and technological excellence. PowerVision is the only company in the world producing aerial, water surface, and underwater robotic devices.
Product Specifications
Magnetic Phone Clamp
Weight
36g
Compatible Phone Width
67 – 84 mm
Compatible Phone Thickness
7.0 -10 mm
Vision+S1 App
To ensure optimal performance of Vision+S1 App, make sure that your device is using iOS version 10.0 or Android version 7.0 or higher.
PowerVision S1
Folded Dimensions
141.5 × 58.4 ×27.9mm
Unfolded Dimensions
258.5 × 58.4 ×59.3mm
Weight
298g
Compatible Payload Weight
220±60g
Compatible Phone Length
164mm Max.
Universal Mount
1/4″-20 UNC Port
Battery
Type
Li-ion
Energy
15.86Wh/1030mAh 15.4VCapacity equal to 4120 mAh 3.85V
Max Working Time
15 hrsUnder ideal conditions with the gimbal fully balanced.
Charging Time
2hrsMeasured with a 18W charger.
Working Temperature
0 – 40℃
Charging Temperature
5 – 40℃
Max Charging Power
18W，5V/3A 9V/2A 12V/1.5A
Charging Output
Wireless Output
10W Max.
USB-C Output
PowerOff：18W Max.PowerOn：5W Max.
Charging Port
USB-C
Gimbal
Mechanical Range
Pan：±150°Tilt：±90°Roll：-214.8° – 96°
Max Control Speed
120°/s
Wireless
Model
BLE5.0
In The Box
PowerVision S1 Gimbal
Magnetic Phone Clamp
The Autel Robotics EVO II Battery Charging Hub allows you to connect four EVO II batteries and charge two simultaneously, all while optimising the charge and redistributing the load for each battery based on real-time electric current data.
7100mAh rechargeable battery for the EVO II, Provides up to 40 minutes of flight time.
Extend your flight time with additional batteries for your EVO II. The 7100mAh rechargeable Autel Robotics EVO II Battery provides up to 40 minutes of flight time in forward motion and 35 minutes at a hover.
Allows you to safely charge your EVO II batteries while on the go.
Charge your batteries on the go with the Autel Robotics EVO II Car Charger. With built-in safety features such as under voltage and overheat detection you can confidently recharge your batteries without returning home.
