Suitable For: AC200MAX / EP500ProNever Run out of PowerBLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC (Sold separately), car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.Versatile Power SourceThe 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.Give Your Devices More RuntimeB230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.Home Backup and Trip Power BankThe AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.BATTERY INFOCapacity: 2,048Wh (51.2V,40Ah)Cell Chemistry: Lithium Iron Phosphate (LiFePO4)Lifecycle: 3,500+ Cycles to 80% Original CapacityShelf-Life: Recharge to 80% Every 3-6 MonthsManagement System: MPPT Controller, BMS, etc.OUTPORTSUSB-C Port: 1 x 100W Max.USB-A Port: 1 x 18W USB-A12V DC Outlets: 1 x 12V/10A (Car Outlet)INPUTAC Input: 500W Max.Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)Max Input: 500WRECHARGE TIMEAC Adapter (500W): ˜5.5~6 HoursSolar Panel(500W): ˜4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)12V/24V Car Outlet (100W/200W): ˜10 or 20 HoursGENERALCompatibility: AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)Pass-through Charging: YesWeight: 48lbs (21.8kg)Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)Operating Temperature: 32°F-104°F (0-40°C)Storage Temperature: -4-104?(-20-40?)Certification: UL, CEC, DOE, FCC, CA Prop 65
Swappable & Modular Battery, More possibilities for mobile power.For a Powered-up and Chilled-out JourneyWhether on an RV trip, camping under the stars, or enjoying the tranquil lakeside, the hot-swappable battery delivers uninterrupted power while ensuring optimal convenience. Experience the freedom of a seamless energy supply - empowering every moment of your adventure.Cost-saving andConstant EnergyMalfunctions? It's a breeze to replace the battery without breaking the bank. You can reserve multiple battery packs to ensure seamless spare power is always on call.Endless PowerExtended AdventureTap into multiple energy solutions just for your needs. With 2 swappable batteries, the MultiCooler keeps your food fresh for up to 6 days, or the AC180T provides a power feast to feed your phones, cameras, projectors, laptops, and more, adding a touch of convenience to your outdoor escapades.

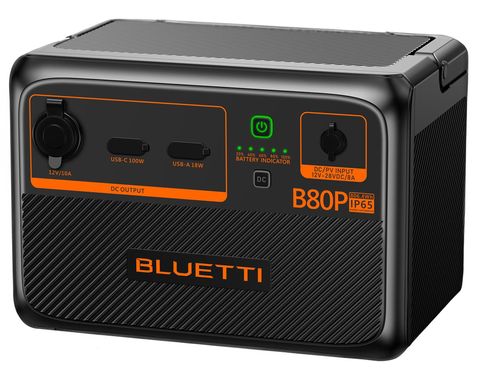

Made to Withstand and LastThe BLUETTI B80 is built with reliable LiFePO4 battery cells for a lifespan of over 10 years. It's IP65-rated to resist water and dust, so you can keep going in all weather. Backed by an industry-leading 6-year warranty, you can always enjoy peace of mind.Specifications806Wh capacity1x USB C 100W1x USB A 15WCigarettes Lighter output 120WAC Charging power 600W200W charging powerDimensions: 290*205*234mmWeight: 9.88kg

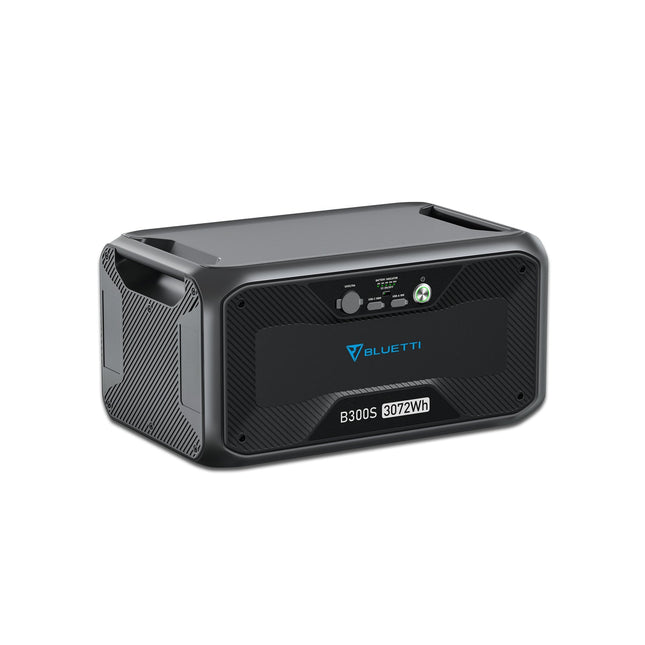

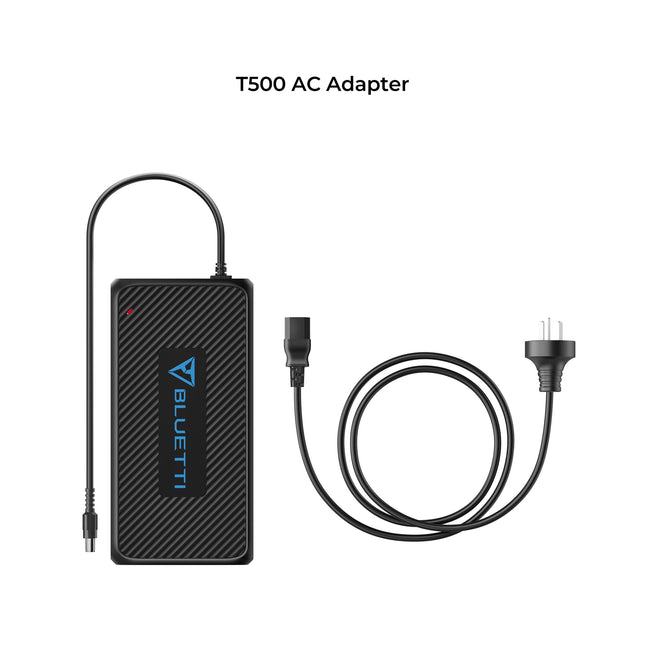

B230/B300/B300S (T500 AC Adapter )Used to charge BLUETTI power station or external battery packs via AC wall socket.AC200P/EB200P/AC200Max (T500 AC Adapter + XT90 To DC7909 Cable [Sold Sperately] ) T500: Used to charge the BLUETTI AC200P/EB200P/AC200Max with dual adapters simultaneously at a Max 1,000W rate.EP500 (T500 AC Adapter + DC7909 To Aviation Plug Cable [Sold Sperately] ) Used to charge the BLUETTI EP500 with dual AC wall sockets simultaneously at a Max 1,100W rate.EP500Pro/AC300/AC500 (T500 AC Adapter + DC7909 To MC4 Cable [Sold Sperately] ) Used to charge the BLUETTI EP500Pro/AC300 with two or three AC wall sockets simultaneously.

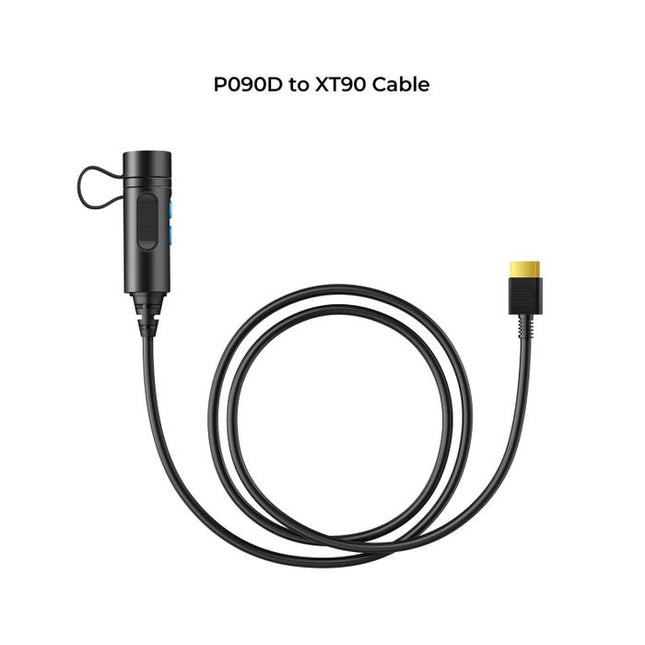

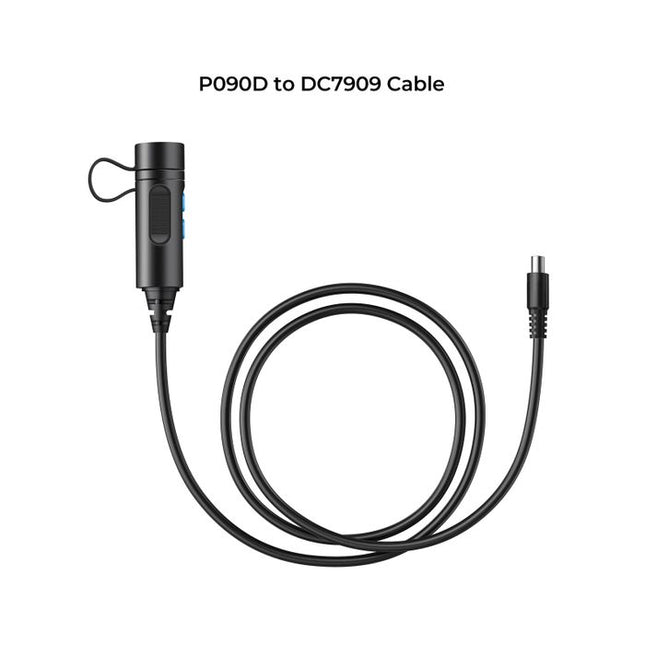

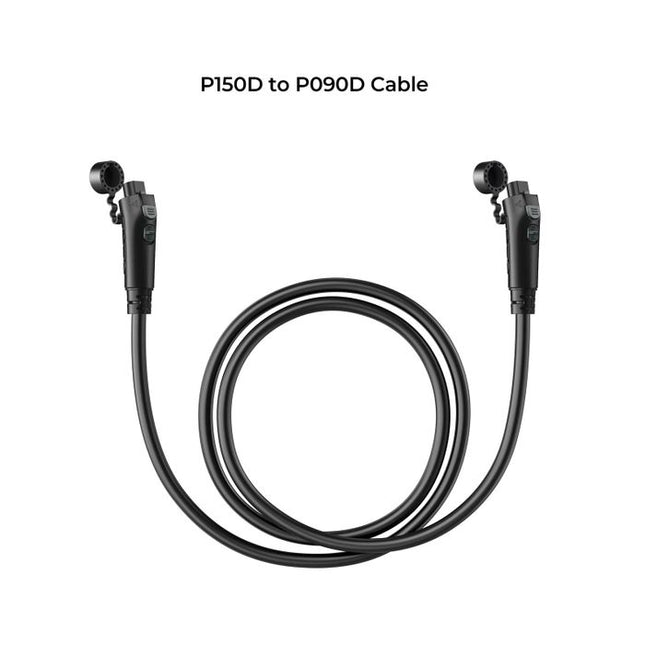

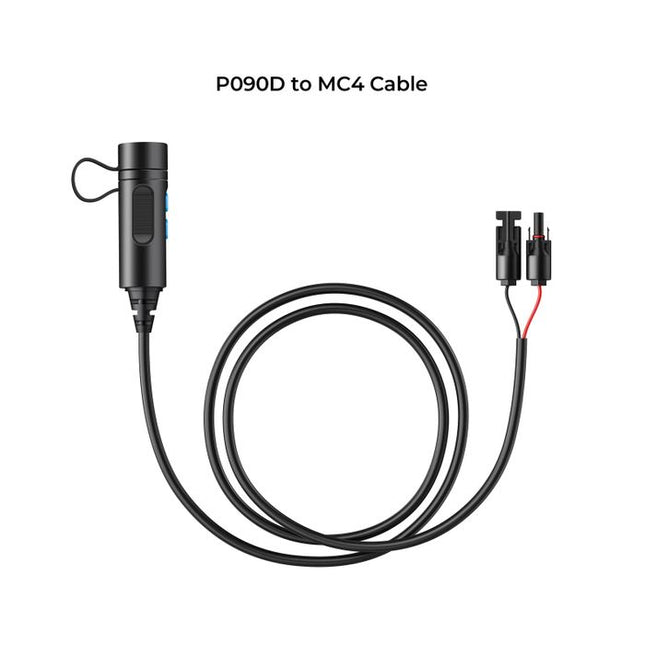

By using this cable, you can connect the B230/B300 external battery packs to your current Bluetti power stations.Note: To enable the standalone power output at the P090D port (power bank mode) of B230/B300, press and hold the power button for about 10 seconds till the indicator flashes.P090D To DC7909Applicable Models: AC180, Length: 59in/150cm.P090D To XT90Applicable Models: AC200MAX, Length: 59in/150cm.P090D To MC4Applicable Models: EP500Pro, Length: 59in/150cm.P090D To P150DApplicable Models: AC500(Only for B300 connected to AC500), Length: 31in/80cm.
By using this cable, you can connect the B230/B300 external battery packs to your current Bluetti power stations.Note: To enable the standalone power output at the P090D port (power bank mode) of B230/B300, press and hold the power button for about 10 seconds till the indicator flashes.P090D To DC7909Applicable Models: AC180, Length: 59in/150cm.P090D To XT90Applicable Models: AC200MAX, Length: 59in/150cm.P090D To MC4Applicable Models: EP500Pro, Length: 59in/150cm.P090D To P150DApplicable Models: AC500(Only for B300 connected to AC500), Length: 31in/80cm.

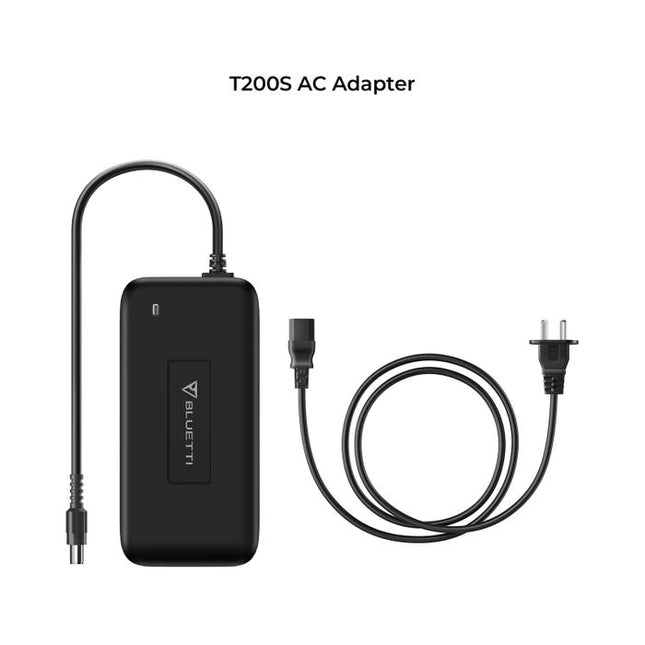

Experience the most convenient way to charge your B80/EB55/EB70. Just plug this adapter into any wall outlet and watch your B80/EB55/EB70 charge quickly and efficiently.
By using this cable, you can connect the B230/B300 external battery packs to your current Bluetti power stations.Note: To enable the standalone power output at the P090D port (power bank mode) of B230/B300, press and hold the power button for about 10 seconds till the indicator flashes.P090D To DC7909Applicable Models: AC180, Length: 59in/150cm.P090D To XT90Applicable Models: AC200MAX, Length: 59in/150cm.P090D To MC4Applicable Models: EP500Pro, Length: 59in/150cm.P090D To P150DApplicable Models: AC500(Only for B300 connected to AC500), Length: 31in/80cm.
By using this cable, you can connect the B230/B300 external battery packs to your current Bluetti power stations.Note: To enable the standalone power output at the P090D port (power bank mode) of B230/B300, press and hold the power button for about 10 seconds till the indicator flashes.P090D To DC7909Applicable Models: AC180, Length: 59in/150cm.P090D To XT90Applicable Models: AC200MAX, Length: 59in/150cm.P090D To MC4Applicable Models: EP500Pro, Length: 59in/150cm.P090D To P150DApplicable Models: AC500(Only for B300 connected to AC500), Length: 31in/80cm.
Quick and simple assembly and removal.Dual sealed rings for better water/moisture resistance.Resistant to ultraviolet radiation and high/low temperatures.
Quick and simple assembly and removal.Dual sealed rings for better water/moisture resistance.Resistant to ultraviolet radiation and high/low temperatures.
Quick and simple assembly and removal.Dual sealed rings for better water/moisture resistance.Resistant to ultraviolet radiation and high/low temperatures.

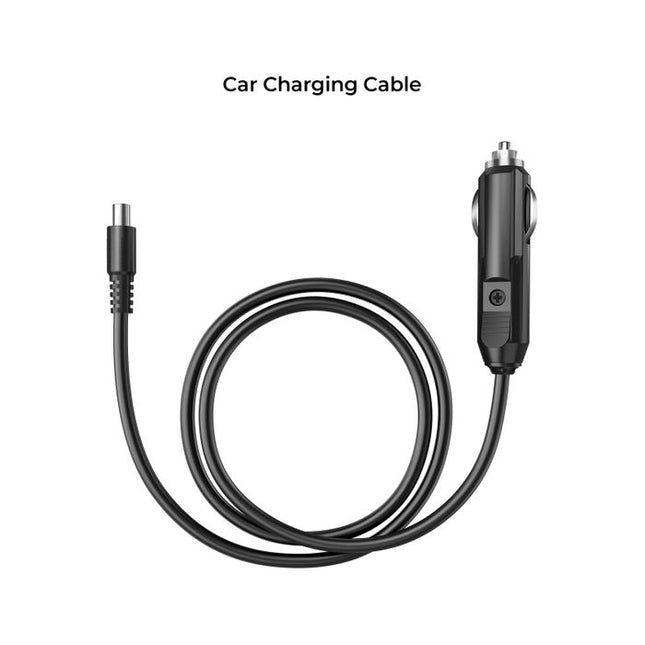

While on the move, charge your B80, EB3A, EB70 by connecting them to your car's cigarette lighter port with this cable. Now you have mobile power wherever you go.Length: 28.3in/72cm
6x Faster Charging Speed
The Charger 1 delivers up to 560W of power— 6X faster than a traditional car charger. Now you can fully charge a 1kWh power station in just 2.5 hours, making it a game-changer for your on-the-go charging experience.
Why Choose Charger 1?
High Security
High Security
Auto On/Off
Super Temperature Control
With adjustable voltage, it adapts to all BLUETTI power stations and 95% other models on the market.
Multi-Layer Protection in Every Charge
Protect Your Vehicle Battery
Protect The Charger 1
Protect Your Power Station
Prevents your car battery from draining, so you can start your vehicle anytime.
Monitor and Control While Driving
With the BLUETTI app, you can easily check the charging status, adjust the voltage directly from your phone, and ensure everything is running smoothly.
Easy Steps to Install
Easy Install in 4 Steps
Check the Compatibility Table and Installing Your BLUETTI Charger 1 With Ease.
Step 1 : Prepare your installation

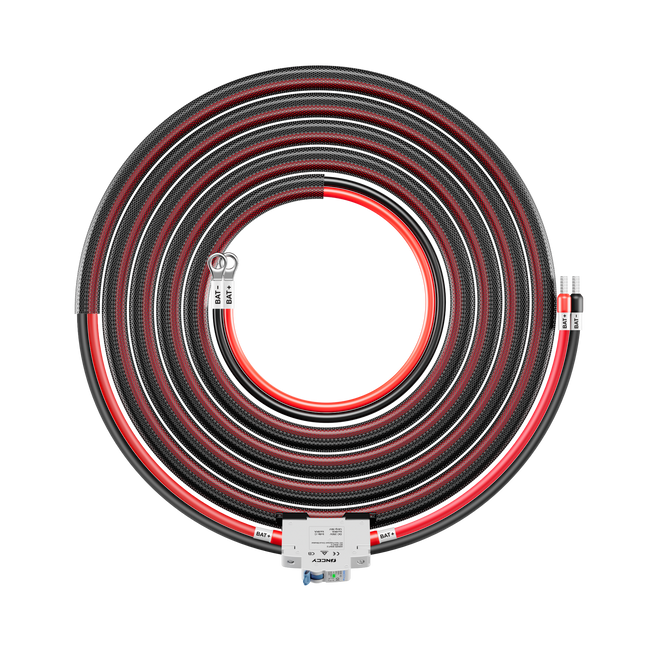

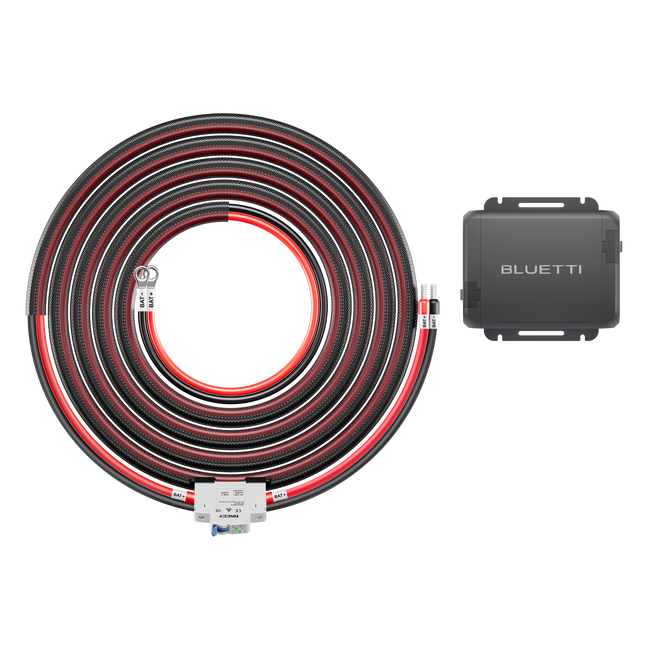

1. Check all components in place, including a 6AWG DC input cable. 2. Prepare the tools. 3. Ready your power station and solar charging cable.
Step 2: Connect to Charger 1
1. Switch off the circuit breaker on the 6AWG DC input cable. 2. Connect the 6AWG input cable and the MC4 output cable to the Charger 1. 3. Connect the output cable to your power station via a solar charging cable.
Step 3 : Connect to Car battery
1. Run the input cable through your car to the car battery. 2. Attach the cable to the car battery terminals, red to the positive, black to the negative.
Step 4 : Start Charging
1. Switch on the circuit breaker. Set the proper voltage before turn on the Charger 1 on App. 2. Find a place to secure the Charger 1 properly.
Tech Specs

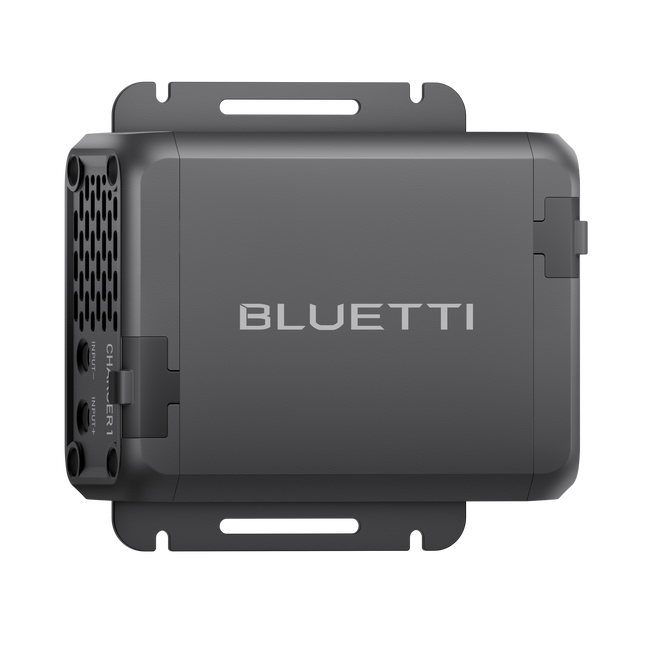

BLUETTI Charger 1
Output
Default Voltage
27V
Voltage Range (with 12V battery)
15.0V to 56.0V (adjustable via app)
Voltage Range (with 24V battery)
27.0V to 56.0V (adjustable via app)
Current
10A
Power
560W
Input
Input Voltage
12V -14V / 22.5V - 28V
Input Amperage
50A - 12V / 25A - 24V
General
Product Function
Increase output voltage (To charge power station)
Compatibility
All BLUETTI power stations & 95% other models on the market.
Protections
Short circuit/anti-reverse/under-voltage/over-temperature
Cooling
Fan cooling
Surge Protection
60A Circuit Breaker (Optional)
Operating Temperature
-20°C to 60°C / -4°F to 140°F
Protection Grade
IP20
Noise
50dB Max.
Weight
Approx. 1.2kg / 2.645lbs
Dimensions (L x W x D)
145mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in
Warranty
2 Years
App Connection
Bluetooth
IN THE BOX
Charger 1 DC-DC Charger
x 1
MC4 Output Cable
x 1
Hex Socket Screw
x 4
Self-tapping Screw
x 6
Hex Socket Wrench
x 1
OT Terminal
x 4
Tube Terminal (red, positive)
x 2
Tube Terminal (black, negative)
x 2
User Manual
x 1
