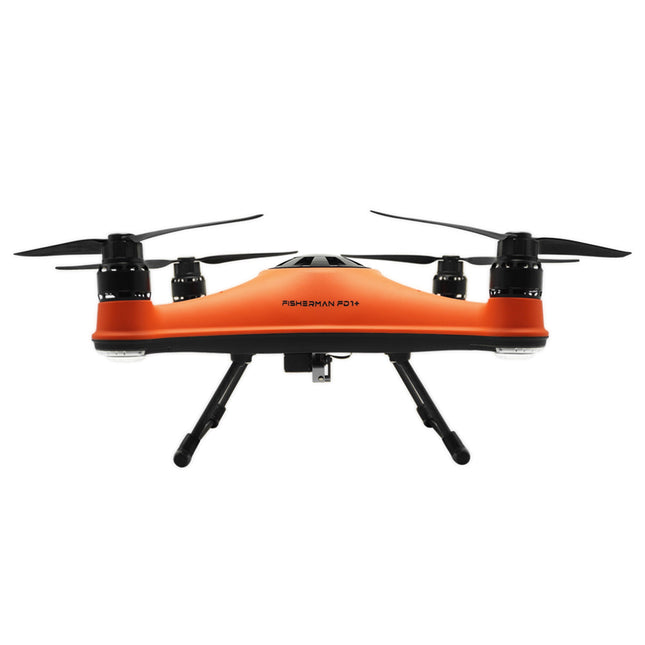

Swellpro Fisherman FD1+ Fishing Drone
Cast Further, Catch Bigger
The SwellPro Fisherman FD1+ is an entry-level waterproof fishing drone specifically designed for those who are new to drone fishing. Without the complexities of an onboard camera and live view screen, FD1+ strips back to its most essential job - taking your bait where it’s never gone before, making it the most cost-effective option on the market.
4.8 LBS / 2.2 KGBait Capacity
The new FD1+’s propulsion system is optimized to provide higher strength and higher efficiency than its predecessor, allowing the drone to lift baits weighing up to 2.2 kg with astonishing ease. This means that anglers can take advantage of heavy-duty baits to attract the biggest fish, confident that the drone will handle the load reliably.
Smooth Control ESCs
The integration of sine wave ESCs in the FD1+ ensures gentle and progressive motor acceleration, increasing stability when the drone starts lifting additional weights off the ground. The precise control provided by these ESCs also allows for delicate maneuvering and stable hovering, which is essential when positioning baits at specific GPS coordinates.
High Torque Motors
FD1+ is equipped with 4 brushless motors with low KV rating that are capable of producing high torque to generate enough thrust to lift heavy baits.
S6 Flight Controller
With improved responsiveness, the new S6 flight controller actively makes real-time adjustments to maintain the FD1+‘s altitude and balance, ensuring stable operation even with heavy baits attached.
High Voltage Batteries
FD1+ is powered by a high-voltage lihv 6S battery with the aim to increase the drone’s lifting capacity. With high power-to-weight ratio, the FD1+’s flight battery enable the drone to carry heavy baits without sacrificing flight stability, and has enough thrust to operate in challenging conditions such as strong winds.
GPS 9.0
With improved satellites connectivity, the latest 9th-gen GPS provides unparalleled precision and stability when anglers are navigating FD1+ to the specific fishing spot. The drone will maintain its position and course even in windy condition.
Calibration-free
Thanks to the S6 flight controller, anglers can deploy the FD1+ for fishing swiftly, bypassing the complicated calibration process. FD1+ can automatically calibrate its sensors to maintain stability and control during flight.
Cruise Mode
The cruise mode controls the FD1+ to automatically fly at a constant speed and direction, making long-distance drone-casting effortless. Without constantly adjusting the drone’s flight, anglers can focus more on the fishing aspects.
Auto-Return
When FD1+ is out of sight, a press of a button can automatically bring the drone back to the take-off point. The auto-return feature can also be triggered in emergencies such as low battery or signal loss.
Slide-in Battery
Replacing the FD1+ battery is a breeze. Simply pop open the hatch, slide the battery into its slot, press the power button, and you're all set! Rest assured, the hatch is completely watertight, thanks to its rubber seal, ensuring everything stays dry when sealed.
Screw-on Propellers
The propeller's threaded design of FD1+ ensures a straightforward setup, securely fastening the propellers to prevent them from detaching during high-thrust situations when the motors are working at high speeds.
IP67Saltwater-proof
The aircraft of FD1+ is entirely sealed, then air-pressure tested and dunk tested to guarantee 100% waterproof. The fuselage is made from marine-grade ABS to increase strength and prevent distortion.
Corrosion-free
The waterproof motors, waterproof bait release and internal electronics of FD1+ are coated with corrosion-resistant coating - adding an extra layer of protection against the salty air.
Self-Floating Design
We designed the FD1+ with sufficient buoyancy on the aircraft itself The drone can keep floating when landing on the water and take off again.
40 MPH Wind Resistance
With its robust propulsion system and the precision of GPS 9.0 technology, FD1+ is capable of holding its position and stability even in wind speeds reaching 40 mph / 35 knots.
Automatic Flip
Should the fishing drone inadvertently flip over in the water, the joysticks can be utilized to right it, restoring it to its upright orientation, after which you can pilot it safely back to shore.
Specifications
Aircraft:
Waterproof Rating: IP67Weight: 1578g (Without battery); 2291g (With Battery)Max Take-Off Weight: 4491gSize (W/O Propeller): 628*628*218mm (With propellers); 372*372*202mm (Without propellers)Max Ascent Speed: 3m/sMax Descent Speed: 2m/sMax Flight Speed: GPS:10m/s; ATTI:18m/s (Without payload), 14m/s (With max payload)Max Tilt Angle: 30°Max Altitude From Takeoff Point: 120m defaultMax Flight Distance: 1300mMax Image Transmission Distance: 1300mMax Payload Capacity: 2200g(4.8lb)Max Wind Speed Resistance: 18m/sMax Flight Time(Hovering): 27 mins (no wind & no load)Hovering Precision: ±0.5mWorking Temperature: -10°C~40°C Satellite Positioning Systems: GPS + Galileo + BeiDou
Remote Controller:
Size: 174*89*190mmWeight: 378g(Without battery)Operating Frequency: 2.402-2.478GHMBandwidth: 500KHzModulation Type: GFSKSensitivity: -92dBTransmitter Power: < 20dBBattery: 6V (1.5V AA*4)Channel: 6
Flight Battery:
Nominal Capacity: 4200mAhNominal Voltage: 23.1VMax Charging Voltage: 26.4VType: 6S LIHVSize: 153.6*82.4*48.3mmWeight: 716gWorking Temperature: 0°C - 40°C Charging Time: 120 minsMax Charging Current: 5A
Charger:
Input: 100~240VOutput: 22.2V-6AMax Charging Power: 150WSupported Battery Types and Cells: 6S LIHVSize: 143*100*60mmWeight: 454.6gWorking Temperature: 0°C ~60°C Storage Temperature: 0°C ~60°C
Bait Release:
Waterproof Rating: IP67Max Payload Capacity: 2200g(4.8lb)Size: 75*50*37.5 mmWeight: 100g

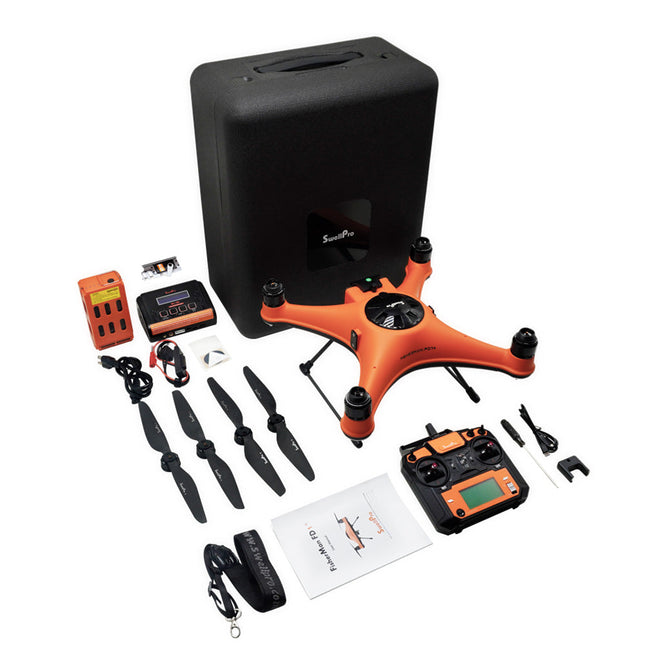

What's in the Box?
Aircraft
x1
Remote Controller
x1
Dual Payload Release
x1
Propellers(Pair)
x2
Flight Battery
x1
Battery Charger & Cable
x1
Power Adapter
x1
USB-C Cable
x1

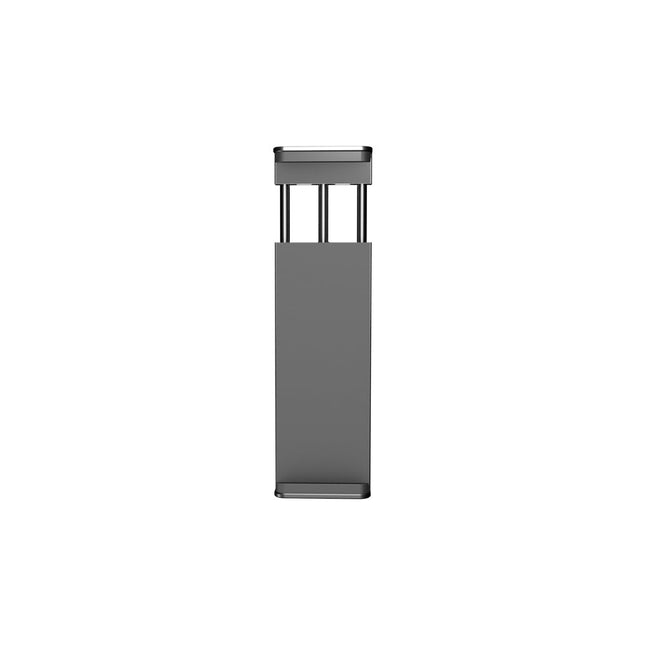

Phone Mount
x1
Carry Case
x1
Fisherman FD3
Fisherman FD3 is the most easy-to-use and reliable waterproof fishing drone ever made by SwellPro. It consolidates several advantages from its fishing drone siblings: the power-efficiency from FD1, the ease-of-use from SD4, the enhanced safety from Max. Fisherman FD3 comes in 2 versions: the advanced version features a 4K camera video system while the basic version dedicates 100% of its power to carrying baits.
4.8 LBS / 2.2 KG Bait Capacity
27 Min Flight Time
S5 Flight Controller
GPS 9.0 Precise Positioning
Calibration-free Flight Sensors
Slide-in Battery
IP67 Saltwater-proof
Level 7 Wind Resistance
Auto-Fish
FDFly APP
4.8 LBS / 2.2 KGBait Capacity
Fisherman FD3 is reliable for carrying baits of up to 4.8 lbs or 2.2 kg into the ocean. The great lifting power is drawn from a high capacity and high voltage 6S battery, high thrust motors and large-sized carbon fiber propellers. New electronic speed controllers enable excellent power-to-payload ratio and extended flight time.
Max Flight Time With Baits
The flight time of FD3 can range from 9 minutes to 27 minutes on a single battery charge, largely depending on the weight of baits you attach to the drone.
no baits ~ 27 minutes
1 KG / 2.2 lbs ~ 14 minutes
2 KG / 4.4 lbs ~ 9 minutes
The Safest Drone on the Surf
S5 Flight ControllerThe AlphaGo for Fishing Drone
100% faster than S4.Refined algorithms for improved flight stability and altitude control.Higher tolerance for heat, interference, and vibration.More real-time data feedback for an interactive and safe control.The new S5 flight controller powers the FD3 to reaches new heights in the performance of fishing drones.
Calibration-free
The S5 can automatically calibrate the flight sensors and eliminate magnetic interference to ensure an accurate and reliable flight performance in different locations. You don’t need to calibrate the FD3 in any beach of the world.
Pendulum-free
The S5 is fine-tuned to increase stability and reduce pendulum effect while the drone is carrying a swaying baited line.
Auto-drop & Return
Fisherman FD3 can automatically release the baits and fly back to the shore in case of low battery and loss of signal.
GPS 9.0Your Path to Seamless Drone Fishing
The latest 9th-gen GPS, compared with predecessors, makes great improvements in assisting FD3's flight by providing accurate positioning, navigation, and several safety features.
Higher accuracy
Being able to acquire up to 30 satellites, FD3 ensures precise navigation and maintains stable hovering in place.
Faster Acquisition
With stronger signal reception, FD picks up satellites more quickly than ever and reduces the time required to unlock motors.
Multi-satellite
FD3 can access multiple satellite systems including GPS, GlONASS, Galileo, and BeiDou for better signal quality and accuracy.
Interference-free
Advanced signal processing technology is implemented in the GPS receiver to filter out interference and noise.
IP67 Saltwater-proof
The aircraft of FD3 is entirely sealed, then air-pressure tested and dunk tested to guarantee 100% waterproof. The fulsage is made from marine-grade ABS to increase durability and survivability under great water pressure.
Corrosion-free
The waterproof motors, waterproof bait release and internal electronics of FD3 are coated with corrosion-resistant coating - adding an extra layer of protection against the salty air above the ocean.
Self-Floating Design
We designed FD3 with sufficient buoyancy on the aircraft itself. The drone can keep floating when landing on the water. Then, you can control it to take off again from the water and fly back to the shore.
Automatic Flip
If the FD3 accidentally capsizes in the water, you can use the joysticks to flip it back to its normal position, and take off!
Level 7 Wind Resistance
Thanks to the strong propulsion system and the GPS 9.0, FD3 can maintain a stable position and attitude in winds up to 20 m/s (38mph).
The Simplest Fishing Drone On the Earth
Slide-in Battery
Swapping battery is super easy. Open the hatch door, slide the battery into the compartment, hit the power button, then you are good to go! The hatch door is 100% waterproof with a rubber seal when closed.
Screw-on Propellers
The threaded propeller mount allows for easy installation and keep the propellers from flying off the fast-spinning motors when the FD3 requires lots of thrust.

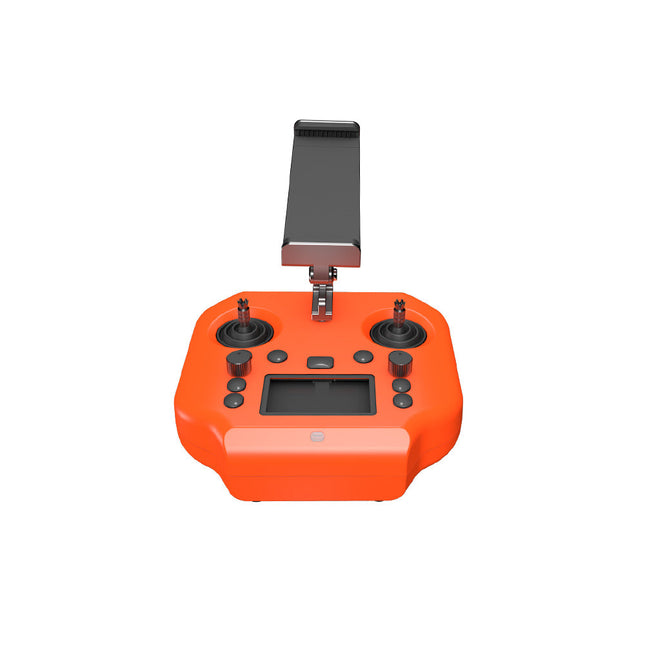

Fisherman-friendly Remote Controller
The remote controller of FD3 has a sleek game-console design for maximum comfort. The interface is clean with well-labeled buttons for intuitive control. Pilots can rely on the on-screen telemetry, video feedback and voice alerts to get situational awareness of the aircraft in real-time. A splash-proof and sand-proof body allows the remote controller to survive on the beach. There is no room for mistakes when you are controlling the FD3.
The basic remote controller has a an inbuilt monochrome display that only shows flight telemetry.
Specifications
AIRCRAFT:
Waterproof rating: IP67Drone weight: 5.5 lbs / 2.54 kg (including battery, propellers, gimbal camera, and payload release module)Size (w/o propeller): 14.6*14.6*7.9 in / 372*372*202mmMax ascend speed: 7 mph / 3 m/sMax descent speed: 4.5 mph / 2 m/sMax flight speed: -GPS: 22 mph / 10 m/s-ATTI: 40 mph / 18 m/s (without payload); 31 mph / 14 m/s (with payload)Max tilt angle: 30°Max altitude from take-off point: 393 ft / 120 mMax flight distance: 1 mile / 1500 mMax image transmission distance: 0.74 mile / 1200 mMax payload capacity: 4.4 lbs / 2 kgFlight time: up to 27 mins (no wind & no load)Max wind speed resistance: 40 mph / 18 m/s / 35 knotsHovering precision: ±1.6 feet / ±0.5 mSatellite positioning system: GPS/GalileoRC transmitter power: 2.405-2.475GHz, <33 dBm(FCC), <20 dBm(CE)Image transmitter power(for Advanced Version only): 5.725-5.825GHz,<33 dBm(FCC),<14 dBm(CE)Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃Certifications: CE/FCC/ROHS/RCM
REMOTE CONTROLLER:
Weight: 1.56 lbs / 709 gWaterproof rating: IP54Size: 11*7.5*3 inch / 276*190*74 mmOperating Frequency: 2.405-2.475 GHz, 5.725 - 5.825 GHz (advanced version); 2.405-2.475 GHz (basic version)Transmitter Power (EIRP): 2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)Sensitivity: -92 dBBattery: 2S 3000 mAhWorking time: 5 hours (advanced version); 9 hours (basic version)Charging time: 3 hoursPower input: 5V/2A USB-CMulti-color display (advanced version):-Screen size: 5 inch-Screen resolution: 800*480 px-Screen brightness: 500 cd/m2-Screen Aspect ratio: 16:9Monochrome display (basic version):-Screen size: 3.5 inchLanguage: EnglishWorking temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃
FLIGHT BATTERY:
Capacity: 4200 mAhVoltage: 23.1VType: 6S LIHVSize: 6*3.2*1.9 in / 153.6*82.4*48.3mmWeight: 1.57 lbs / 716 gWorking temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃Charging Time: 120 minsMax Charging current: 5A
CHARGER:
Input: 100 - 240VOutput: 25.2VMax charging power: 150WSupported battery types and cell: 6S LIHVSize: 5.6*4*2.4 inch / 143*100*60 mmPower cable: 3.9 feet / 1.2 mCharging cable: 1.6 feet / 0.5 mWeight: 1 lb / 454.6 gWorking & storage temperature: 32℉ ~ 140℉ / 0℃ ~ 60℃Available types of power adapters:-Type I: Australia & New Zealand
CAMERA:
Waterproof rating: IP67Stabilization: 1-axis (tilt)Tilt range: -90° to 0°Weight: 0.38 lbs / 176.5 gSize: 3.1*2.7*2.7 inch / 79*69*70 mmImage sensor: 1/2.3 CMOS, 12MLens: F4.5mm f/2.65, FOV: 92.6°ISO range: 100 - 3200Shutter speed: 16 - 1/16000 sVideo resolution: 4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fpsPhoto resolution: 4000*3000 (4:3), 3840*2160 (16:9)Max video bitrate: 60 MbpsPhoto format: JPEG / DNG (RAW)Video format: MP4 /MOVSupported memory card: microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 ratingWorking temperature: 14℉ ~ 104℉ / -10℃ - 40°C
What’s in the box?
Advance Version
Aircraft x 1 Remote controller x 1Flight battery x 1Charger x 1Propellers x 2 (pairs)Camera x 1Bait release x 1USB-C cable x 1Charging cable x 1Power adapter x 1Phone mount x 1 Carry case x 1
FISHERMAN MAX
This is Fisherman Max. The newest member in SwellPro drone fishing fleet, and the most powerful one. It’s the fishing drone that anglers all over the world have been waiting for. Why? Because it can maximize all the positive outcomes that a land-based game fishing of lifetime can have.
7.7 LBS / 3.5 KG Bait Capacity
Target a wider option of species with a wider option of baits. Take fishing success rate to the next level.
4K Camera
Find fish spots and record your fishing trip of lifetime in 4K.
Multi-Color Display
Live video feed for Increasing bait cast accuracy without using a phone.
1 MILE / 1.5 KM Casting Range
Cast baits far out into the ocean without using a kayak.
Foldable Design
Super easy to carry to the beach.
IP67 Waterproof
100% waterproof aircraft and splash-proof remote controller.
Level 6 Wind Resistance
Hover and fly stably in strong winds with high-thrust motors.
Auto-Fish (Beta)
Automatically fly to marked fishing spots on the APP to drop baits.
Save Return
Automatically drop baits and return to beach in case of emergency.
Specifications
Aircraft
Waterproof rating: IP67Drone weight (including battery): 8.3 lbs / 3.78 kgSize (w/o propeller): unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm Max ascend speed: 7 mph / 3 m/sMax descent speed: 4.5 mph / 2 m/sMax flight speed: ATTI: 45 mph / 20 m/s ; GPS: 22 mph / 10 m/sMax tilt angle: 25°Max flight altitude: 1 mile /1500 mMax flight distance: 1 mile / 1500 mMax image transmission distance: 0.7 mile / 1200 mMax payload capacity: 7.7 lbs / 3.5 kgFlight time: up to 30 mins ( no wind & no load)Max wind speed resistance: 40 mph / 18 m/s / 35 knotsHovering precision: ±1.6 feet / ±0.5 mSatellite positioning system: GPS/GalileoMotor: 4114 ~ 400KvESC: 40APropellers: #1655 carbon fiberOperation frequency: 2.405 ~ 2.475 GHz | 5.725 ~ 5.825 GHz Transmitter power (EIRP): <33 dBm (FCC), <20 dBm (CE) | <33 dBm (FCC), <14 dBm (CE)Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃Certifications: CE/FCC/ROHS/RCM
Remote Controller
Weight: 1.56 lbs / 709 gWaterproof rating: IP54Size: 11*7.5*3 inch / 276*190*74 mm Operating Frequency: 2.405-2.475 GHz; 5.725 - 5.825 GHzTransmitter Power (EIRP): 2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)Latency: 20 msBattery: 3000mAhWorking time: 4 hoursCharging time: 3 hoursPower input: 5V/2A USB-CScreen size: 5 inch Screen resolution: 800*480 pxScreen brightness: 500 cd/m2Aspect ratio: 16:9Language: EnglishWorking temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃
Flight Battery
Capacity: 4500 mAhVoltage: 22.2VType: 6S LiPoSize: 8.6*4.7*2.5 inch / 219*119*65 mm Weight: 2.8 lbs / 1255 gWorking temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃Charging Time: 80 minsMax Charging current: 8A
Charger
Input: 100 - 240VOutput: 25.2VMax charging power: 200WSupported battery types and cell: 6S LiPoSize: 5.6*4*2.4 inch / 143*100*60 mmPower cable: 3.9 feet / 1.2 mCharging cable: 1.6 feet / 0.5 mWeight: 1 lbs / 454.6 gWorking temperature: 32℉ ~ 140℉ / 0℃ ~ 60℃Available types of power adapter: Type A: USA, Canada, Mexico & JapanType B: Europe, South America & AsiaType G: United Kingdom, Ireland, Malta & SingaporeType I: Australia & New Zealand
Camera
Waterproof rating: IP67Stabilization: 1-axis (tilt)Tilt range: -90° to 0°Weight: 0.38 lbs / 176.5 gSize: 3.1*2.7*2.7 inch / 79*69*70 mmImage sensor: SONY IMX377Lens: F4.53mm f/2.65, FOV: 92.6°ISO range: 100 - 3200Shutter speed: 16 - 1/16000 sVideo resolution: 4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fpsPhoto resolution: 4000*3000 (4:3), 3840*2160 (16:9)Max video bitrate: 60 MbpsPhoto format: JPEG / DNG (RAW)Video format: MP4 /MOVSupported memory card: microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 ratingWorking temperature: 14℉ ~ 104℉ / -10℃ - 40°C
What’s in the box?
Aircraft x 1 Remote controller x 1Flight battery x 1Charger x 1Propellers x 2 (1 Set)Gimbal Camera (GC1-M) x 1Dual bait release (DPL) x 1Float (FL-FD2) x 1 (set)USB-C cable x 1Charging cable x 1Power adapter x 1Carry case x 1
Lightweight and durable carbon-fiber propellers
Better aerodynamic efficiency and higher lifting capacity
Full carbon fiber, strong, durable, reliable and lightweight
Easy to install & remove
Product Description
Overview
The 1242 Quick Release Carbon Fiber Propeller is specially designed for the SplashDrone.
Highlights
Better aerodynamic efficiency and higher lifting capacity. Full carbon fiber, strong, durable, reliable and lightweight. Easy to install & remove.
In The Box
Propeller pair × 1
Compatibility
SplashDrone 4, SplashDrone 3/3+, FD1
Overview:
Large-sized Fisherman FD3/FD1+ carbon fiber propellers and anti-loose design make the flight safer and more stable, providing fishermen with an excellent flight experience.
Tips:
One pair of Carbon Fiber Propellers include 1 x clockwise propeller and 1 x counter-clockwise propeller.
Specifications:
Material: carbon fiber
In the box: Carbon Fiber Propellers x 1 pair
Compatibility: Fisherman FD3
Overview:
The propellers of Fisherman Max are made from carbon fiber for high durability. With large size and steep pitch, the propellers can generate a large amount of thrust for the aircraft to lift up 3.5 kg baits. The propellers can be quickly secured to the motors using a threaded mount mechanism.
Tips:
One pair of Fisherman Max Carbon Fiber Propellers include 1 x clockwise propeller and 1 x counter-clockwise propeller.
Specifications:
Weight: 90 gLength: 16 inchPitch: 5.5 inchMaterial: carbon fiber
In the box: Carbon Fiber Propellers x 1 pair
Overview
The flight battery boasts 4500 mAH which is the largest capacity you will ever find on a fishing drone. It powers Fisherman Max to stay up in the air for 30 minutes without load. The high capacity and high voltage allow anglers to cast as many baits as possible before needing a recharge. The flight battery is also waterproof like the aircraft.
Specification:
Capacity: 4500 mAhVoltage: 22.2VType: 6S LiPoSize: 8.6*4.7*2.5 inch / 219*119*65 mm Weight: 2.8 lbs / 1255 gWorking temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃Charging Time: 80 minsMax Charging current: 8ASafe Charging current: 4~5A
In the box: Fisherman MAX Flight Battery x 1pcs
Compatibility: Fisherman Max
Overview
With a 4200mAh 6S LiHV Flight Battery, Fisherman FD3 and FD1+ Fishing Drone flight time can range from 9 to 27 minutes, largely depending on the weight of the baits you attach to the drone.
Specification:
Capacity: 4200 mAhVoltage: 23.1VType: 6S LIHVSize: 6*3.2*1.9 in / 153.6*82.4*48.3mmWeight: 1.57 lbs / 716 gWorking temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃Charging Time: 120 minsMax Charging current: 5A
In the box: Flight Battery x 1pcs
Compatibility: Fisherman FD3, FD1+
IB4 Intelligent Battery is specially designed for SplashDrone 4. It has an internal battery management system, teamed with 6600mAh of high-performance lithium technology cells to provide up to 30 minutes of flight time.
Product Description
Overview
IB4 Intelligent Battery is specially designed for SplashDrone 4. It has an internal battery management system, teamed with 6600mAh of high-performance lithium technology cells to provide up to 30 minutes of flight time.
Highlights
Real-time battery indicator. Fast, easy, slide in battery replacement. Integrated BMS to ensure battery health, safety and lifespan.
Specification
Capacity: 6600mAh Voltage: 14.8V Type: 4S LiPo Weight: 730g (+/-5g) Size: 153.6*82.4*48.3mm Working Temperature: 5℃-40℃ Maximum Charging Power: 84.5W
In The Box
Intelligent battery×1
Compatibility
SplashDrone 4
SwellPro Fisherman flight battery is specific designed to fit Fisherman's internal chamber to maximize Fisherman flight time. It features a 98.8Wh high voltage lithium-polymer battery.
Battery type: 4S LiHVVoltage: 15.2 VCapacity: 6500 mAh | 98.8WhWeight: 630 g
With a large battery capacity, the Actiontech 2S 2500mAh LiPo Battery for Splash Drone 3 Plus is a handy solution for extending the runtime of your compatible drone’s radio controller.
Special design for SplashDrone 3+ controller.
High capacity, extended operating time.
