Roklink 6km Transmission System
Level 8 Wind Resistance
Large F1.6 Aperture
Foldable and portable design
3-axis Mechanical Gimbal
HDR Video and Photo
Super Night Scene Shooting
Product Description
Product Specifications
In The Box

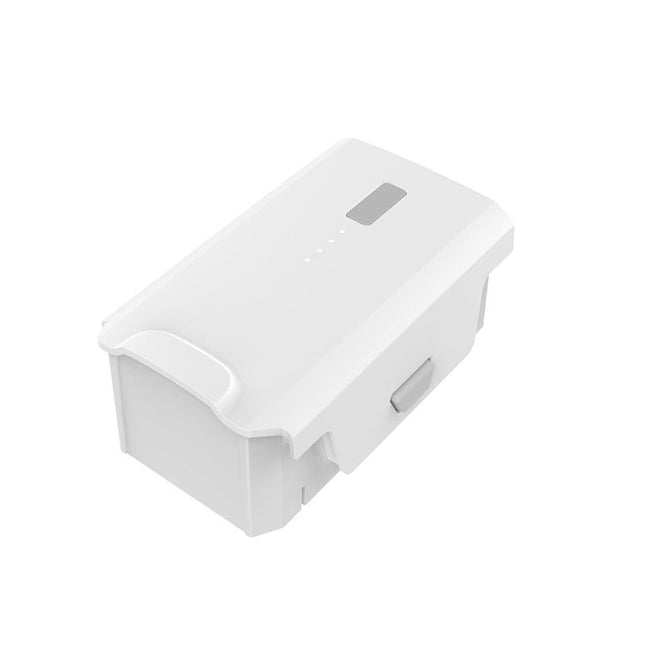

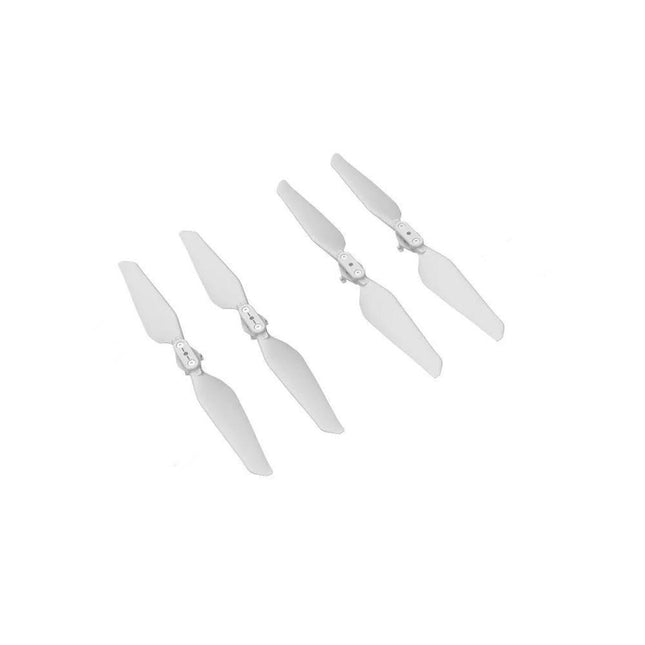

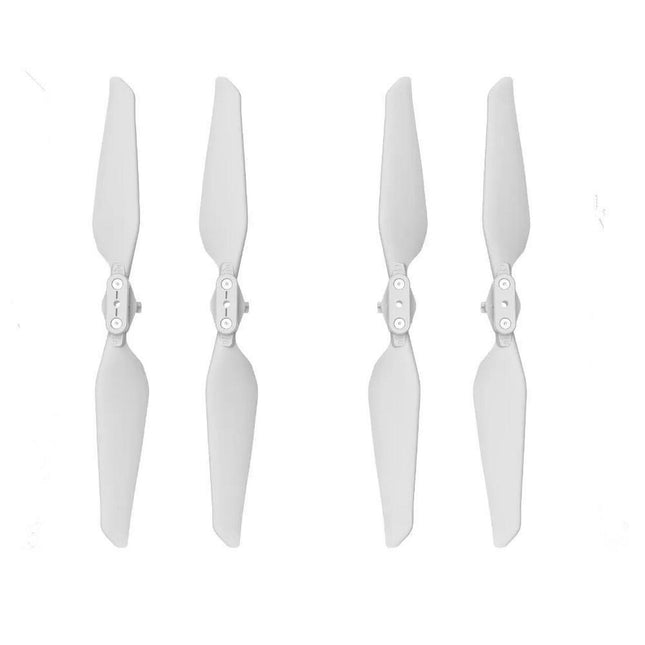

1 x RC Quadcopter( with camera)1 x Transmitter1 x 11.4V 4500mAh Lipo Battery3 x USB Cable4 x Propeller1 x AC Cable1 x Charger2 x Manual
1/2” 48MP CMOS Sensor: The upgraded 1/2” 48MP CMOS sensor, bringing a large 1.6um pixel size based on the "Quad Bayer" pixel technology, can effectively reduce noise during nighttime aerial filming. Built-in native exposure control with signal processing technology ensures a 4X higher dynamic range than that of traditional CMOS sensors.
Super Night Scene Shooting: Based on multi-frame fusion noise reduction technology and the large aperture of the 1/2” sensor, the FIMI X8SE 2022 V2 ensures that the camera will capture at night the details you need to create your blockbuster.
Megaphone: Once mounted onto the drone, the device can remotely transmit voices or sounds. It can also store multiple audio files, support text-to-audio, and automatic loop playback, and shout in real-time. With a max transmission range of 100 meters, tasks such as search and rescue are quicker and easier than ever before. *The range depends on the circumstances. In complex environments with noise, the best range is within 50 meters. The maximum control distance of the megaphone is up to 10 km.
Release and drop: The device can carry and drop a payload of up to 200g, allowing the drone to fly over obstacles and deliver urgently needed materials. *The payload should not exceed 200g, and the smaller size of the load; better the drone will handle the flight. Note that when carrying a load, the drone’s speed and deceleration distance are affected.
RokLink 10km Transmission System: The upgraded 3rd generation RokLink high-definition digital image transmission system with adaptive stream-encoding technology provides a superior transmission distance of up to 10km and transmission delay as low as 130ms, helping you explore and capture the beauty of greater distances.
3-Axis Mechanical Gimbal: The 3rd generation of the LOS stabilization algorithm, a sensor with high precision control and an accuracy of 0.005°, and a fully closed loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbusters
Level 8 Wind Resistance: The power system, combined with the lightweight design of the drone, brings a higher thrust-to-weight ratio and supports up to Level 8 wind resistance.
Remote ID: Thanks to integration of Remote ID, the FIMI X8SE 2022 V2 provides safe and legal flight experiences around the globe, meeting both FAA and EASA flight requirements.
Rainproof and Snowproof: Designed to be rainproof and snowproof, your flights will no longer be affected by the weather. Even if you encounter rain or snow, you can still fly safely and have the drone return home without worry.
A Large F1.6 Aperture: The larger aperture of the FIMI X8SE 2022 V2 allows for more light to come through, effectively reducing noise. With greater light sensitivity, it accurately captures more colors and details during low-light videography.
SAR(Search and Rescue) Mode
Its light body, 10KM long-range, uninterrupted video transmission, and extended battery life allowing flight times of up to 35 minutes combined with its accurate GPS make the X8SE 2022 V2 a good choice for search and rescue missions.
Precision Landing
The FIMI X8SE 2022 V2 utilizes the downside camera to recognize the launch pad and land right on the pad.
3-Axis Mechanical Gimbal
The 3rd generation of the LOS stabilization algorithm, a senor with high precision control and an accuracy of 0.005°, and a fully closed-loop servo system all contribute to perfectly eliminating jitters in real-time, allowing you to enjoy silky smoothness in your blockbuster.
Smart Tracking Modes
Tell your story using the smart tracking mode.
Trace: Track your target from different views.
Profile: Follow your subject from a parallel perspective.
Lock: Follow your subject from a fixed perspective.
Circular Flights
Free your hands and create precise circular flights.
Compatible with TX10 remote controller
The FIMI X8SE 2022 V2 drone is fully compatible with a new generation of remote controllers with built-in screens. Flying a drone has never been so convenient or offered a more professional flight experience.
Fimi X8 SE 2022 V2 Specs
Performance
Maximum Horizontal Speed
40.3 mph / 18 m/s
Maximum Ascent Speed
11.2 mph / 5 m/s
Maximum Descent Speed
8.9 mph / 4 m/s
Flight Ceiling
0.5 Miles / 800 m
Maximum Flight Time
35 Minutes
Hovering Accuracy
: ±0.3' / 0.1 mGNSSHorizontal: ±1.6' / 0.5 m
Camera
Sensor Type
1/2"-Type CMOS Sensor
Sensor Resolution
Effective: 48 Megapixel
Minimum Aperture
f/1.6
Broadcast Resolution
None
Still Image Support
Yes
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Gimbal
Number of Axes
3 (Pitch, Roll, Yaw)
Control Accuracy
±0.005°
Flight Control System
GNSS Support
GPS, GLONASS, BeiDou
Remote Controller / Transmitter
Operating Frequency
2.4 GHz (2.400 to 2.484)
Maximum Operating Distance
Not Specified by Manufacturer
App Compatible
Yes*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
General
Rotor Configuration
4
Diagonal Size
14.6" / 372 mm
Overall Dimensions
8.0 x 4.2 x 2.9" / 204.0 x 106.0 x 72.6 mm
Weight
1.7 lb / 768 g (Including Propellers, Battery)
