Chasing M2 PRO Max

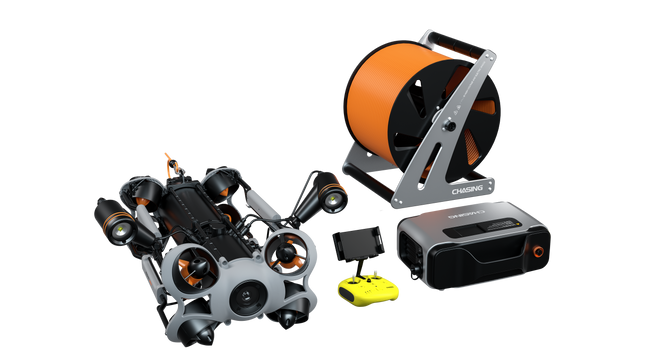

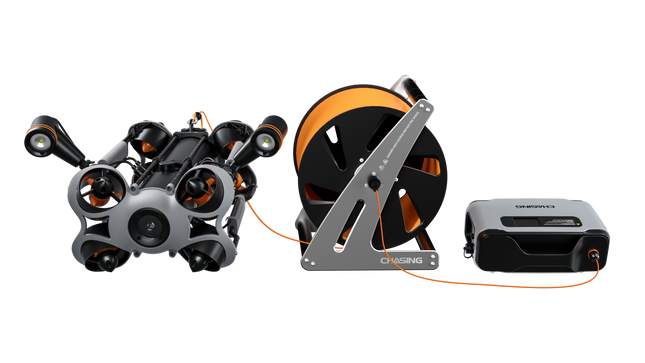

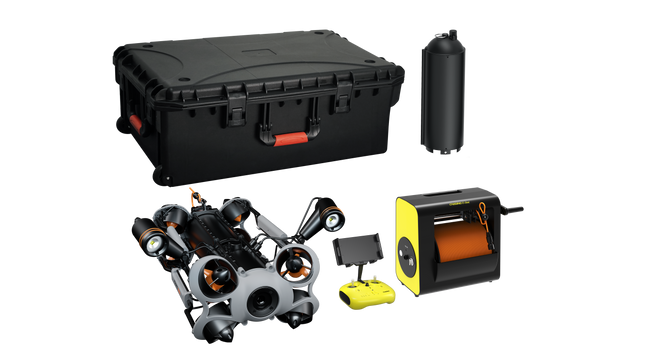

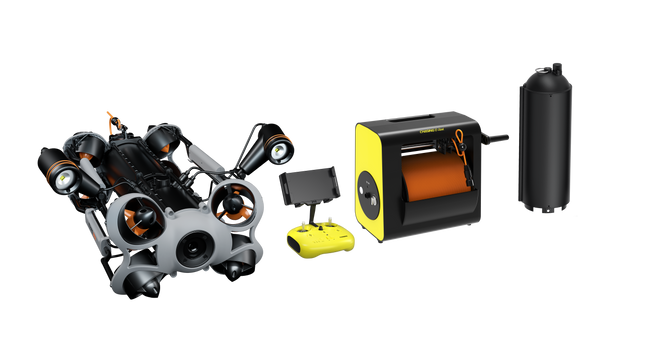

CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users. It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.       Product Specifications CHASING M2 PRO MAX Maximum Depth 200m Video Maximum Stream 60M Maximum Battery Life ＞4h Micro SD Card Memory 128G Maximum Image Resolution 12 M Normal Video FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps ROV Size 608 x 294 x 196 mm (Excluding the floodlight) Weight ≈8 KG Maximum Depth 200m Pull (forward / drift upwards / traverse) 5.7 / 4.0 / 3.6 KG Maximum Battery Life ＞4h Battery 302.4Wh Operating Temperature -10 ℃ ~ 45 ℃ E-Reel Size 296x189x279 mm Weight 3.5 KG Max Storage Length 200 meters Battery Capacity 4800 mAh Number of Cycles >300 times Runtime 30 times Wiping Speed 3 gears Take-Up Speed (200m) Fast speed 220 s Low speed 9 min Operating Temperature -10℃~45℃ Charging Time 2 H (12 V ) / 4 H (25.2 V) Remote Controller Size 160 x 155 x 125 mm Weight 685 g Battery Capacity 2500 mAh Battery Life ≥6H (Depend on working condition) Wi-Fi Support HDMI support USB support Phone / Tablet Clip Maximum support 10 inches LED Lights Brightness 2 x 4000 lm Color Temperature 5000 K ~ 5500 K CRI 85 Dimming Three adjustable Sensor IMU Three-axis gyroscope acceleration compass Depth Sensor ＜±0.25 m Temperature Sensor ＜±2 ℃ Adapter Adapter 8 A / 25.2 V ROV Charging Time 2.5 H Remote Controller Charging Time 2 H Camera CMOS 1/2.3’’ Aperture f/1.8 Focal Length 0.3m~∞ ISO Range 100-6400 Field of View 150° Maximum Image Resolution 12 M Image File Types JPEG / DNG Normal Video UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps Slow Motion Video 720p: 8x (240fps) 1080p: 4x (120fps) Time-Lapse Video 4K / 1080p Video Maximum Stream 60 M Video Type MP4 Micro SD Card Memory 128 G Packing List Name Qty Illustration Name Qty Illustration Drone 1 CHASING E-Reel 200m tether 1 Charging cable & 3-in-1 Charger 1 Remote Controller 1 Data cable 3 Carrying case 1 Backpack for accessories 1 Towel 1 23.6 x 1.8 O-rings 2 19 x 1.8 O-rings 4 12.5 x 1.5 O-rings 4 M3 x 8 Combination screw 10 M3 x 8 Machine screw 5 M5 small flat washer 6 M5 spring washer 6 Cross/Hexagon dual-purpose screwdriver 1 Flat wrench 1 Sealing cover of the tether socket 1 Sealing cover of the peripheral socket 2 Thruster shield 8 Left/Right floodlight Spare parts for mounting support 2 Information Kit 1

Read more less

CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users. It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.     Product Specifications CHASING M2 PRO MAX Maximum Depth 200m Video Maximum Stream 60M Maximum Battery Life ＞4h Micro SD Card Memory 128G Maximum Image Resolution 12 M Normal Video FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps ROV Size 608 x 294 x 196 mm (Excluding the floodlight) Weight ≈8 KG Maximum Depth 200m Pull (forward / drift upwards / traverse) 5.7 / 4.0 / 3.6 KG Maximum Battery Life ＞4h Battery 302.4Wh Operating Temperature -10 ℃ ~ 45 ℃ E-Reel Size 296x189x279 mm Weight 3.5 KG Max Storage Length 200 meters Battery Capacity 4800 mAh Number of Cycles >300 times Runtime 30 times Wiping Speed 3 gears Take-Up Speed (200m) Fast speed 220 s Low speed 9 min Operating Temperature -10℃~45℃ Charging Time 2 H (12 V ) / 4 H (25.2 V) Remote Controller Size 160 x 155 x 125 mm Weight 685 g Battery Capacity 2500 mAh Battery Life ≥6H (Depend on working condition) Wi-Fi Support HDMI support USB support Phone / Tablet Clip Maximum support 10 inches LED Lights Brightness 2 x 4000 lm Color Temperature 5000 K ~ 5500 K CRI 85 Dimming Three adjustable Sensor IMU Three-axis gyroscope acceleration compass Depth Sensor ＜±0.25 m Temperature Sensor ＜±2 ℃ Adapter Adapter 8 A / 25.2 V ROV Charging Time 2.5 H Remote Controller Charging Time 2 H Camera CMOS 1/2.3’’ Aperture f/1.8 Focal Length 0.3m~∞ ISO Range 100-6400 Field of View 150° Maximum Image Resolution 12 M Image File Types JPEG / DNG Normal Video UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps Slow Motion Video 720p: 8x (240fps) 1080p: 4x (120fps) Time-Lapse Video 4K / 1080p Video Maximum Stream 60 M Video Type MP4 Micro SD Card Memory 128 G In The Box: Drone ×1 CHASING E-Reel 200m ×1 Charging cable & 3-in-1 Charger  ×1 Remote Controller  ×1 Data cable  ×3 Carrying case  ×1 Backpack for accessories ×1 Towel ×1 23.6X1.8 O-rings ×2 19X1.8 O-rings ×4 12.5X1.5 O-rings ×4 M3X8 Combination screw ×10 M3X8 Machine screw ×5 M5 small flat washer ×6 M5 spring washer ×6 Cross/Hexagon dual-purpose screwdriver ×1 Flat wrench ×1 Sealing cover of the tether socket ×1 Sealing cover of the peripheral socket ×2 Thruster shield ×8 Left/Right floodlight Spare parts for mounting support ×2 Information Kit ×1 300Wh Battery  ×2

Read more less

CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users. It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.     Product Specifications CHASING M2 PRO MAX Maximum Depth 200m Video Maximum Stream 60M Maximum Battery Life ＞4h Micro SD Card Memory 128G Maximum Image Resolution 12 M Normal Video FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps ROV Size 608 x 294 x 196 mm (Excluding the floodlight) Weight ≈8 KG Maximum Depth 200m Pull (forward / drift upwards / traverse) 5.7 / 4.0 / 3.6 KG Maximum Battery Life ＞4h Battery 302.4Wh Operating Temperature -10 ℃ ~ 45 ℃ E-Reel Size 296x189x279 mm Weight 3.5 KG Max Storage Length 200 meters Battery Capacity 4800 mAh Number of Cycles >300 times Runtime 30 times Wiping Speed 3 gears Take-Up Speed (200m) Fast speed 220 s Low speed 9 min Operating Temperature -10℃~45℃ Charging Time 2 H (12 V ) / 4 H (25.2 V) Remote Controller Size 160 x 155 x 125 mm Weight 685 g Battery Capacity 2500 mAh Battery Life ≥6H (Depend on working condition) Wi-Fi Support HDMI support USB support Phone / Tablet Clip Maximum support 10 inches LED Lights Brightness 2 x 4000 lm Color Temperature 5000 K ~ 5500 K CRI 85 Dimming Three adjustable Sensor IMU Three-axis gyroscope acceleration compass Depth Sensor ＜±0.25 m Temperature Sensor ＜±2 ℃ Adapter Adapter 8 A / 25.2 V ROV Charging Time 2.5 H Remote Controller Charging Time 2 H Camera CMOS 1/2.3’’ Aperture f/1.8 Focal Length 0.3m~∞ ISO Range 100-6400 Field of View 150° Maximum Image Resolution 12 M Image File Types JPEG / DNG Normal Video UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps Slow Motion Video 720p: 8x (240fps) 1080p: 4x (120fps) Time-Lapse Video 4K / 1080p Video Maximum Stream 60 M Video Type MP4 Micro SD Card Memory 128 G   In The Box: Drone (Excl Battery) ×1 Shorebase Power Supply System ×1 Charging cable & 3-in-1 Charger  ×1 Remote Controller  ×1 Data cable  ×3 Carrying case  ×1 Backpack for accessories ×1 Towel ×1 23.6X1.8 O-rings ×2 19X1.8 O-rings ×4 12.5X1.5 O-rings ×4 M3X8 Combination screw ×10 M3X8 Machine screw ×5 M5 small flat washer ×6 M5 spring washer ×6 Cross/Hexagon dual-purpose screwdriver ×1 Flat wrench ×1 Sealing cover of the tether socket ×1 Sealing cover of the peripheral socket ×2 Thruster shield ×8 Left/Right floodlight Spare parts for mounting support ×2 Information Kit ×1

Read more less

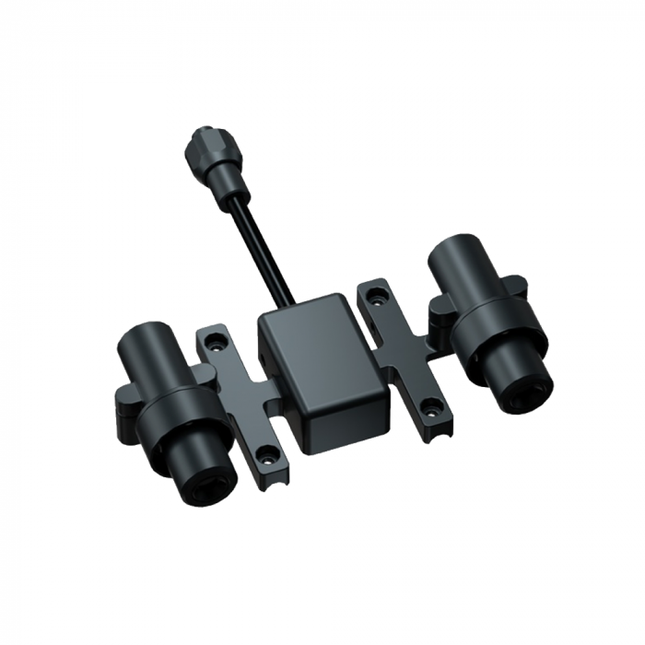

CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on. Product Description CHASING Laser Scaler CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on. Quickly Complete Underwater Range-Finding CHASING Laser Scaler can quickly measure the size and distance of underwater objects, cracks, and so on, thereby reducing the risk and cost of manual operations. Specifications Size132x70x36.5 mm Weight≈190 g Working Temperature-10 ℃ - 45 ℃ Beam Exit Diameter3-5 mm Laser Spacing10±0.5 cm Laser ColorRed

Read more less

CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads. Product Description CHASING Grabber Arm 2 CHASING Grabber Arm 2 with a standard two-jaw clamp is a replaceable robotic arm developed for Chasing M2 and Chasing M2 Pro underwater drones. It supports quick replacement of sediment sampler, circular claw, and other tool heads. Solve Multiple Difficult Underwater Work With grabbing force of 7kg and an adjustable opening and closing distance of up to 170mm, the grabber arm can easily achieve underwater clamping, dragging, sampling and other difficult operations with different tool heads. 10° Elevation Design for Better Vision Experience 10° elevation design brings you perfect vision experience to better operate the grabber arm. Aluminum Alloy Material, Small and Easy to Install Aluminum alloy arm body and high reliable sealing connector. Small, portable and easy to install. Two-Jaw Clamp Max Opening170 mm Max Grabbing Force7 kg Body Weight446 g Clamp Weight76 g Max Diving Depth100 m Body Size380 x 35 x 35 mm Clamp Size125 x 53 x 22 mm Circular Claw Max Opening170 mm Max Grabbing Force7 kg Circular Claw Weight98 g Max Diving Depth100 m Circular Claw Size113 x 71 x 22 mm Sediment Sampler Max Opening170 mm Max Grabbing Force7 kg Sediment Sampler Weight325 g Max Diving Depth100 m Sediment Sampler Size178 x 120 x 85 mm

Read more less
