DJI RS 4
Gripping Storytelling
The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.
2nd-Gen Native Vertical Shooting
Joystick Mode Switch
Zoom/Gimbal Control
Teflon™-Coated Axis Arms
Smoother Balancing
3kg (6.6lbs) Payload Capacity
Extended Tilt Axis
RSA Communication Port
Extensive Control Ecosystem
High-Capacity Battery Grip
Approx. 2.5x Battery Runtime [1]
Quick Launch
2nd-Gen Native Vertical Shooting

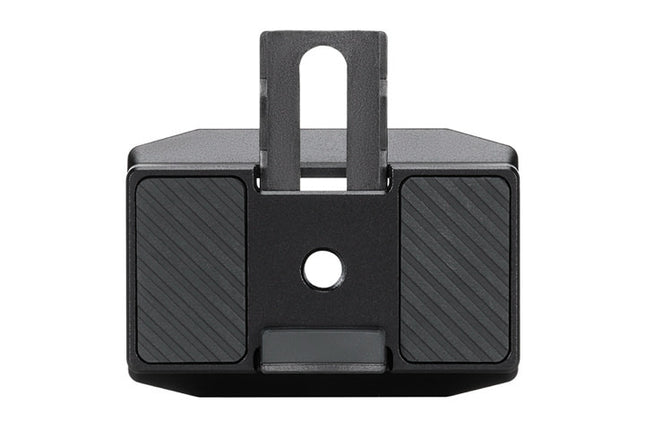

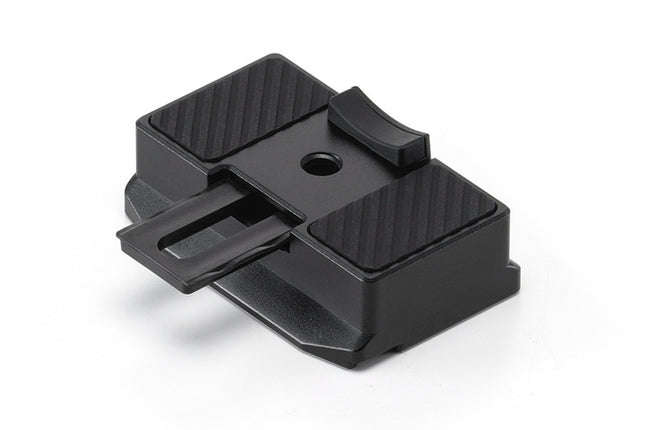

DJI RS 4 features a newly designed horizontal plate, enabling the second generation of native vertical shooting for faster and simpler operation. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for an easy switch to vertical shooting, [2] paving the way for efficient vertical video creation.
2nd-Gen Automated Axis Locks
The automated axis locks allow RS 4 to quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when locked, further reducing gimbal shake.
Our Smoothest Balancing Experience Yet
DJI RS 4 features a Teflon™ coating for all three axes, resulting in reduced friction and smoother balancing.
When switching cameras or lenses, the fine-tuning knob on the tilt axis can move the camera forward or backward, achieving precise, millimeter-level balancing.

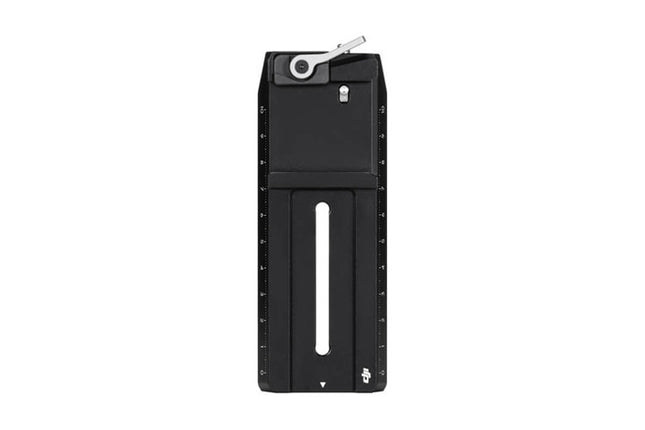

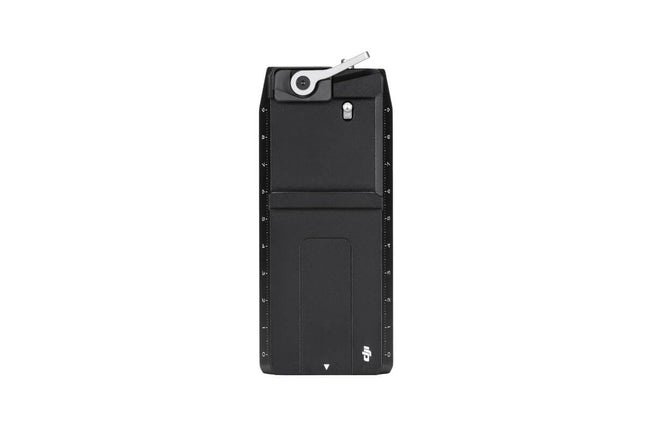

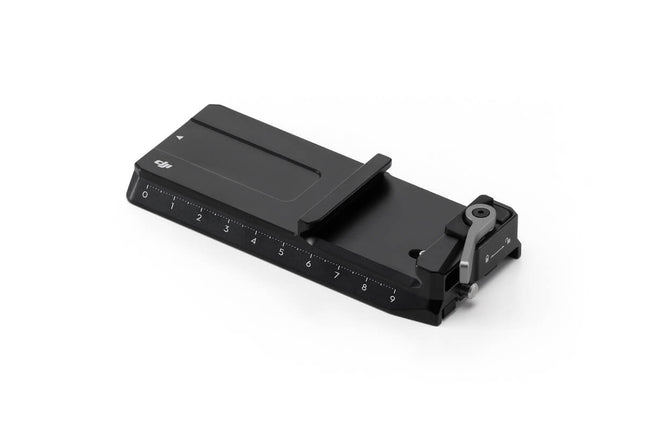

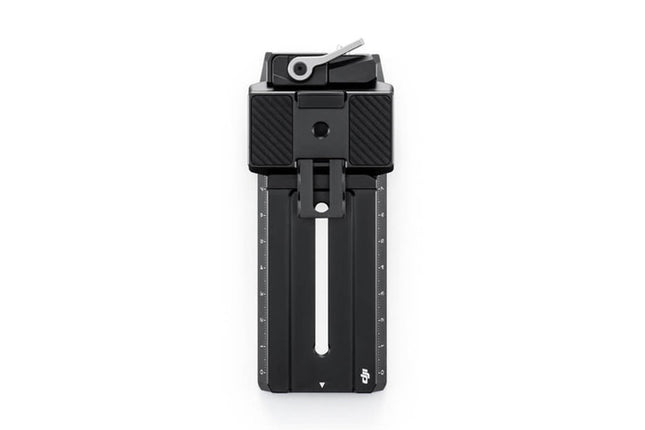

The upper quick-release plate has an added adjustable placement guide to ensure secure camera mounting.
Automatic Screen Lock
The OLED touchscreen incorporates a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick modes at a low brightness. This not only prevents accidental touches but also helps to conserve battery power.
Powerful Stabilization
Excellent Payload Capacity
The lightweight body boasts a 3kg (6.6lbs) payload capacity. It can carry mainstream mirrorless camera and lens combinations, enabling comfortable holding with robust power.
Compared with the previous generation, RS 4's tilt axis has been extended by 8.5 mm, offering expanded balancing space. This allows you to mount mainstream mirrorless camera and lens combinations along with accessories like ND filters, broadening the scope for creative potential.
4th-Gen RS Stabilization Algorithm
DJI has comprehensively optimized the next-generation RS stabilization algorithm for different usage scenarios. It strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, RS 4 offers significantly improved stability when vertical shooting, easily steadying dynamic shots like running or low-angle perspectives.
Professional Creation
DJI RS 4 supports the professional-grade features of DJI PRO products, delivering superior performance that makes solo creation more efficient.
Bluetooth Wireless Control
DJI RS 4 can remotely control camera shutter and lens zoom with Dual-Mode Bluetooth technology. In zoom control mode, you can use the joystick to control Power Zoom for PZ lenses and Clear Image Zoom, [3] obtaining a native zoom experience. A camera only needs to be paired once, after which it can reconnect seamlessly and automatically.
Support for DJI Focus Pro Motor

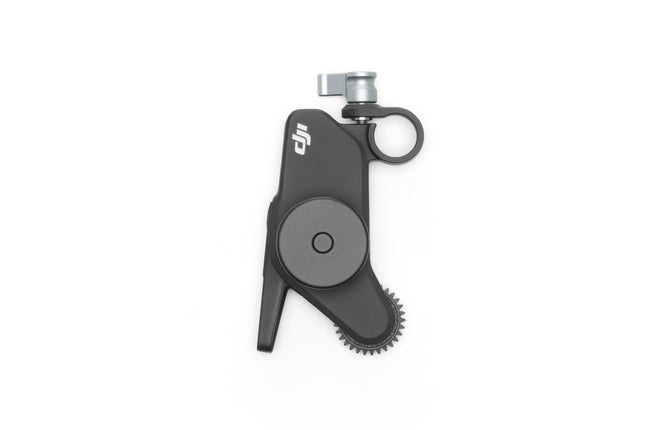

When paired with the new DJI Focus Pro Motor, [4] DJI RS 4 allows you to control the lens focus via dial or adjust the lens zoom via joystick. This smooth operation enables efficient lens control.
Motor Speed [5]
Universal Rod
Increased by 30%
15 mm
Trigger Function Customization
The trigger function can be customized to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement. This is particularly useful for shooting rotational footage or simulating POV.
Gimbal Mode Switch
By toggling the gimbal mode switch, you can quickly switch between PF, PTF, and FPV modes. You can also set FPV mode to 3D Roll 360 mode or Custom mode according to the shooting requirements, ensuring RS 4 is precision-ready.
Intelligent Features
Motionlapse
Track
Panorama
Accessory Ecosystem
RSA Communication Port
DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle [6] and third-party accessories like control handles [6] and remote-control ring handles. [6] You can flexibly switch between different shooting setups according to your creative needs.
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilizers such as RS 4, RS 4 Pro, and RS 3 Pro with more features for extensive scenarios.
Features
Set gimbal position
Control gimbal rotation
Get motor and attitude information
Control camera focus and shooting
Applications
Build a virtual studio system that can use a PC or console to control the RS stabilizer. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.
Mount the RS stabilizer on a slider and link the two through programming for four-dimensional control. You can customize the shooting track to get effortlessly expressive camera movements.
Related Downloads
DJI RS SDK Documentation
DJI RS SDK Demo Software
RS Stabilizer External Interface Diagram
DJI RS SDK
DJI RS SDK is currently only available in English and Chinese. If you have requests or questions, please visit the DJI Forum for more details.
Thanks to DJI RS SDK protocol, third-party manufacturers and individual developers can develop customized functions for RS 4, meeting a wider range of shooting requirements.
DJI RS BG70 High-Capacity Battery Grip
The new BG70 High-Capacity Battery Grip [6] can extend RS 4's battery runtime to 29.5 hours. [7] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.
Max Battery Runtime
PD Fast Charging
Rapid Full Charge [8]
Max Power Output
29.5 Hours
45 W
2.5 Hours
18 W
Support for DJI Ronin Image Transmitter
Both independent cinematographers and small crews can utilize the Ronin Image Transmitter [6] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and more, achieving an integrated shooting experience with monitoring and control capabilities.
Extensive Accessory Ecosystem
DJI RS series accessories, [6] such as the RS BG30 Battery Grip, RS Focus Motor (2022), and Ronin Image Transmitter, are all compatible with RS 4.
* The DJI Ronin app is required for activation when using DJI RS 4 for the first time.
1. Data was measured by comparing the battery runtime of DJI RS 4 equipped with the DJI RS BG70 High-Capacity Battery Grip and that of DJI RS 4 equipped with the DJI RS BG21 Battery Grip. Battery runtime was measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
The gimbal requires rebalancing after switching between horizontal and vertical shooting.
For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.
The DJI RS 4 Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.
Compared with the DJI RS Focus Motor (2022).
Sold separately.
Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
Measured in a 25° C (77° F) indoor environment.
Specs
Peripheral
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports1/4"-20 Mounting HoleCold ShoeVideo Transmission Port (USB-C)RSS Camera Control Port (USB-C)Focus Motor Port (USB-C)
Battery
Model: BHX711-3000-7.2VType: LiPo 2SCapacity: 3000 mAhEnergy: 21 WhMax Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.1Charging Port (USB-C)
Ronin App Requirements
iOS 11.0 or aboveAndroid 8.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
3 kg (6.6 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/sTilt: 360°/sRoll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotationRoll Axis: -95° to +240°Tilt Axis: -112° to +214°
Mechanical & Electrical Properties
Operating Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1066 g (2.35 lbs)Grip: Approx. 203 g (0.45 lbs)Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
Dimensions
Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
Connections
Power/Communication Port (USB-C)HDMI Port (Mini HDMI)RSS Camera Control Port (USB-C)
Expansion Port
Cold Shoe
Operating Frequency
2.400-2.4835 GHz5.725-5.850 GHz
Weight
126 g (0.27 lbs)
Dimensions
82×63×24 mm (L×W×H)
Transmitter Power (EIRP)
2.400-2.4835 GHz:< 25 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:< 25 dBm (FCC/SRRC)< 14 dBm (CE)
Battery
Capacity: 2970 mAhCompatible Charger: 5 V/2 ACharging Time: Approx. 2.5 hoursOperating Time: Approx. 3.5 hours
Transmission Range
200 m (SRRC/FCC)100 m (CE)Measured in an unobstructed environment free of interference.
Latency
60 ms
Operating Current/Voltage
900 mA/3.7 V
Operating Temperature
0° to 45° C (32° to 113° F)
In The Box
DJI RS 4 Gimbal Stabiliser
BG21 Battery Grip
Quick-Release Plate (Arca-Swiss/Manfrotto)
Extended Grip/Tripod (Plastic)
Lens-Fastening Support
Multi-Camera Control Cable (USB-C, 30 cm)
USB-C Charging Cable (40 cm)
DJI Logo Sticker
Screw Kit
DJI RS 4
Gripping Storytelling
The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.
2nd-Gen Native Vertical Shooting
Joystick Mode Switch
Zoom/Gimbal Control
Teflon™-Coated Axis Arms
Smoother Balancing
3kg (6.6lbs) Payload Capacity
Extended Tilt Axis
RSA Communication Port
Extensive Control Ecosystem
High-Capacity Battery Grip
Approx. 2.5x Battery Runtime [1]
Quick Launch
2nd-Gen Native Vertical Shooting
DJI RS 4 features a newly designed horizontal plate, enabling the second generation of native vertical shooting for faster and simpler operation. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for an easy switch to vertical shooting, [2] paving the way for efficient vertical video creation.
2nd-Gen Automated Axis Locks
The automated axis locks allow RS 4 to quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when locked, further reducing gimbal shake.
Our Smoothest Balancing Experience Yet
DJI RS 4 features a Teflon™ coating for all three axes, resulting in reduced friction and smoother balancing.
When switching cameras or lenses, the fine-tuning knob on the tilt axis can move the camera forward or backward, achieving precise, millimeter-level balancing.
The upper quick-release plate has an added adjustable placement guide to ensure secure camera mounting.
Automatic Screen Lock
The OLED touchscreen incorporates a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick modes at a low brightness. This not only prevents accidental touches but also helps to conserve battery power.
Powerful Stabilization
Excellent Payload Capacity
The lightweight body boasts a 3kg (6.6lbs) payload capacity. It can carry mainstream mirrorless camera and lens combinations, enabling comfortable holding with robust power.
Compared with the previous generation, RS 4's tilt axis has been extended by 8.5 mm, offering expanded balancing space. This allows you to mount mainstream mirrorless camera and lens combinations along with accessories like ND filters, broadening the scope for creative potential.
4th-Gen RS Stabilization Algorithm
DJI has comprehensively optimized the next-generation RS stabilization algorithm for different usage scenarios. It strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, RS 4 offers significantly improved stability when vertical shooting, easily steadying dynamic shots like running or low-angle perspectives.
Professional Creation
DJI RS 4 supports the professional-grade features of DJI PRO products, delivering superior performance that makes solo creation more efficient.
Bluetooth Wireless Control
DJI RS 4 can remotely control camera shutter and lens zoom with Dual-Mode Bluetooth technology. In zoom control mode, you can use the joystick to control Power Zoom for PZ lenses and Clear Image Zoom, [3] obtaining a native zoom experience. A camera only needs to be paired once, after which it can reconnect seamlessly and automatically.

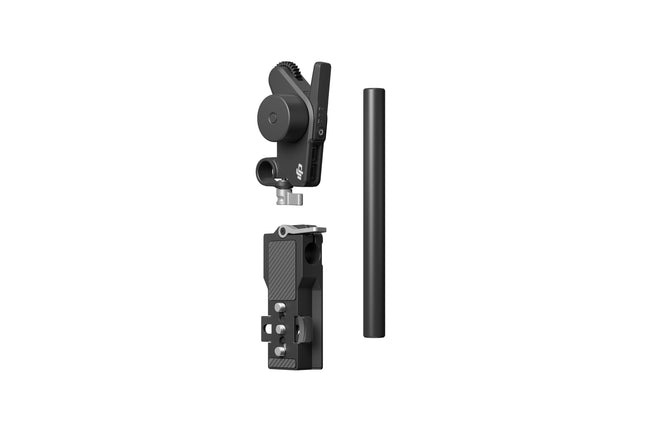

Support for DJI Focus Pro Motor
When paired with the new DJI Focus Pro Motor, [4] DJI RS 4 allows you to control the lens focus via dial or adjust the lens zoom via joystick. This smooth operation enables efficient lens control.
Motor Speed [5]
Universal Rod
Increased by 30%
15 mm
Trigger Function Customization
The trigger function can be customized to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement. This is particularly useful for shooting rotational footage or simulating POV.
Gimbal Mode Switch
By toggling the gimbal mode switch, you can quickly switch between PF, PTF, and FPV modes. You can also set FPV mode to 3D Roll 360 mode or Custom mode according to the shooting requirements, ensuring RS 4 is precision-ready.
Intelligent Features
Motionlapse
Track
Panorama
Accessory Ecosystem
RSA Communication Port
DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle [6] and third-party accessories like control handles [6] and remote-control ring handles. [6] You can flexibly switch between different shooting setups according to your creative needs.
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilizers such as RS 4, RS 4 Pro, and RS 3 Pro with more features for extensive scenarios.
Features
Set gimbal position
Control gimbal rotation
Get motor and attitude information
Control camera focus and shooting
Applications
Build a virtual studio system that can use a PC or console to control the RS stabilizer. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.
Mount the RS stabilizer on a slider and link the two through programming for four-dimensional control. You can customize the shooting track to get effortlessly expressive camera movements.
Related Downloads
DJI RS SDK Documentation
DJI RS SDK Demo Software
RS Stabilizer External Interface Diagram
DJI RS SDK
DJI RS SDK is currently only available in English and Chinese. If you have requests or questions, please visit the DJI Forum for more details.
Thanks to DJI RS SDK protocol, third-party manufacturers and individual developers can develop customized functions for RS 4, meeting a wider range of shooting requirements.

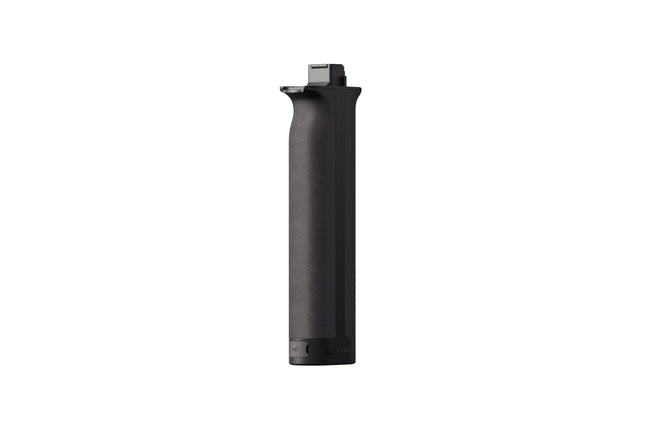

DJI RS BG70 High-Capacity Battery Grip
The new BG70 High-Capacity Battery Grip [6] can extend RS 4's battery runtime to 29.5 hours. [7] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.
Max Battery Runtime
PD Fast Charging
Rapid Full Charge [8]
Max Power Output
29.5 Hours
45 W
2.5 Hours
18 W

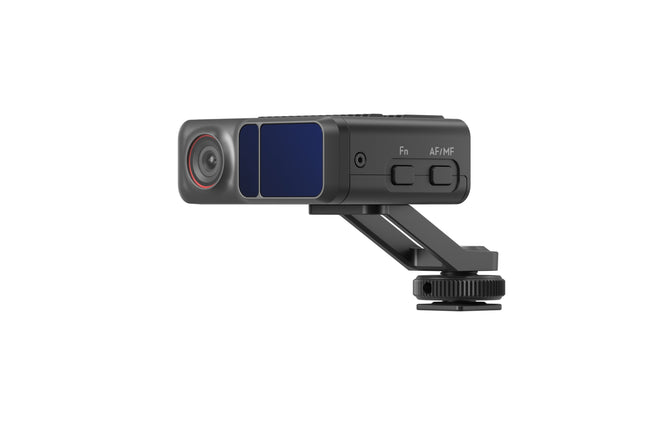

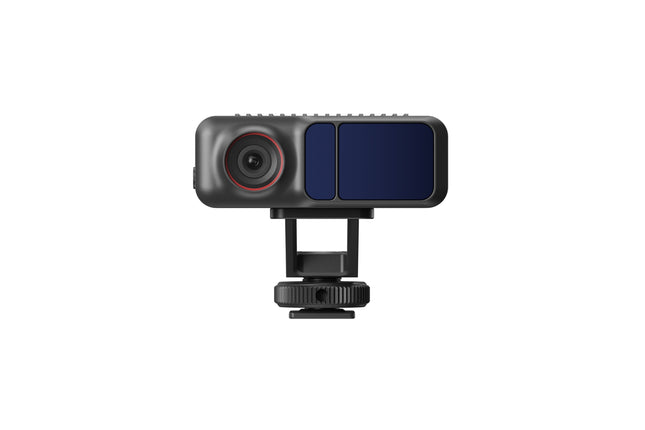

Support for DJI Ronin Image Transmitter
Both independent cinematographers and small crews can utilize the Ronin Image Transmitter [6] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and more, achieving an integrated shooting experience with monitoring and control capabilities.
Extensive Accessory Ecosystem
DJI RS series accessories, [6] such as the RS BG30 Battery Grip, RS Focus Motor (2022), and Ronin Image Transmitter, are all compatible with RS 4.
* The DJI Ronin app is required for activation when using DJI RS 4 for the first time.
1. Data was measured by comparing the battery runtime of DJI RS 4 equipped with the DJI RS BG70 High-Capacity Battery Grip and that of DJI RS 4 equipped with the DJI RS BG21 Battery Grip. Battery runtime was measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
The gimbal requires rebalancing after switching between horizontal and vertical shooting.
For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.
The DJI RS 4 Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.
Compared with the DJI RS Focus Motor (2022).
Sold separately.
Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
Measured in a 25° C (77° F) indoor environment.
Specs
Peripheral
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports1/4"-20 Mounting HoleCold ShoeVideo Transmission Port (USB-C)RSS Camera Control Port (USB-C)Focus Motor Port (USB-C)
Battery
Model: BHX711-3000-7.2VType: LiPo 2SCapacity: 3000 mAhEnergy: 21 WhMax Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.1Charging Port (USB-C)
Ronin App Requirements
iOS 11.0 or aboveAndroid 8.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
3 kg (6.6 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/sTilt: 360°/sRoll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotationRoll Axis: -95° to +240°Tilt Axis: -112° to +214°
Mechanical & Electrical Properties
Operating Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1066 g (2.35 lbs)Grip: Approx. 203 g (0.45 lbs)Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
Dimensions
Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
Connections
Power/Communication Port (USB-C)HDMI Port (Mini HDMI)RSS Camera Control Port (USB-C)
Expansion Port
Cold Shoe
Operating Frequency
2.400-2.4835 GHz5.725-5.850 GHz
Weight
126 g (0.27 lbs)
Dimensions
82×63×24 mm (L×W×H)
Transmitter Power (EIRP)
2.400-2.4835 GHz:< 25 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:< 25 dBm (FCC/SRRC)< 14 dBm (CE)
Battery
Capacity: 2970 mAhCompatible Charger: 5 V/2 ACharging Time: Approx. 2.5 hoursOperating Time: Approx. 3.5 hours
Transmission Range
200 m (SRRC/FCC)100 m (CE)Measured in an unobstructed environment free of interference.
Latency
60 ms
Operating Current/Voltage
900 mA/3.7 V
Operating Temperature
0° to 45° C (32° to 113° F)
In The Box
DJI RS 4 Gimbal Stabiliser Combo
BG21 Battery Grip
Quick-Release Plate (Arca-Swiss/Manfrotto)
Extended Grip/Tripod (Plastic)
Briefcase Handle
Lens-Fastening Support
Multi-Camera Control Cable (USB-C, 30 cm)
USB-C Charging Cable (40 cm)
Screw Kit
Carrying Case
Focus Pro Motor
Focus Pro Motor Rod Mount Kit
FIZ Sticker
DJI Logo Sticker
Focus Gear Strip

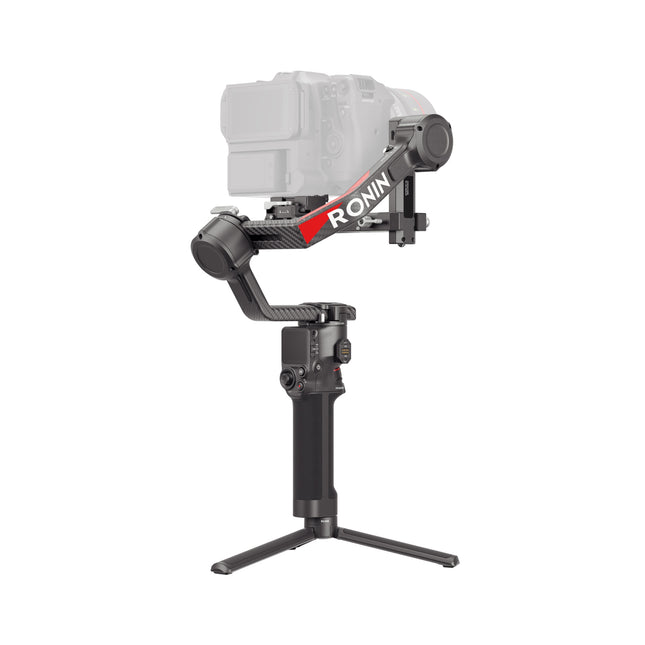

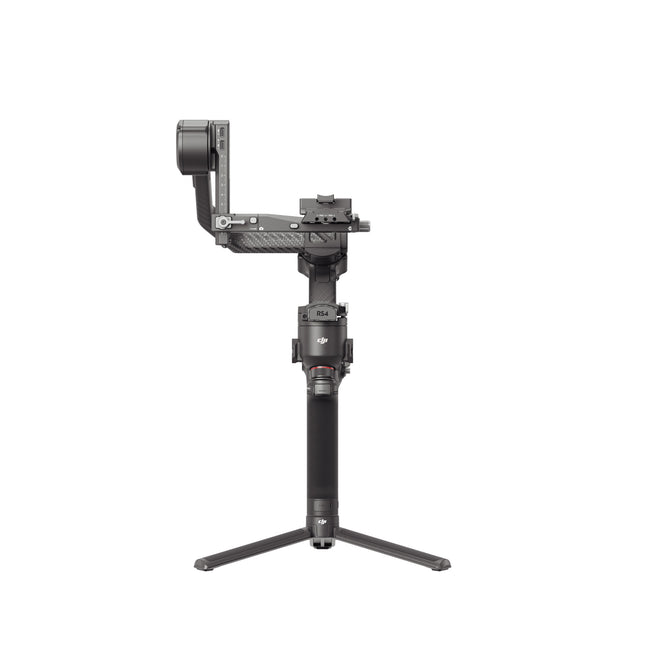

The DJI RS 4 Pro expansive flagship stabiliser integrates seamlessly with the DJI Focus Pro lens control system, DJI Transmission, and an extensive control ecosystem. This synergy empowers the film and television industry with a full-scale production solution that unites stabilisation, transmission, monitoring, focusing, and control. It broadens the horizons of creative possibilities, enabling cinematographers to harness their full potential and showcase their skills.
PACKED WITH CAPABILITIES
POWERFUL PAYLOAD
Equipped with carbon fibre axis arms, DJI RS 4 Pro boasts a 4.5kg (10lbs) payload capacity as well as robust power and torque, easily accommodating mainstream mirrorless/cinema camera and lens setups.
2ND-GEN NATIVE VERTICAL SHOOTING
Designed with an all-new horizontal plate, RS 4 Pro enables the second generation of native vertical shooting for further elevated efficiency. Without the need for additional accessories, cinematographers can simply release the horizontal plate and secure it into the vertical position for an effortless switch to vertical shooting. [1]
SMOOTH BALANCING
The roll axis now has dual rolling bearings, facilitating easier adjustments.
All three axes feature a Teflon™ coating with a low friction coefficient, ensuring smooth balancing even when mounting heavy cameras.
When switching cameras or lenses, a fine-tuning knob on the tilt axis allows you to move the camera forward or backward, achieving precise, millimetre-level balancing.
The upper quick-release plate has added an adjustable placement guide to prevent the camera from loosening or shifting.
AUTOMATIC SCREEN LOCK
The OLED touchscreen incorporates a new auto-lock feature, preventing accidental touches during shooting. When the screen is locked, it can still display the current gimbal and joystick modes at a low brightness, reducing power consumption.
2ND-GEN AUTOMATED AXIS LOCKS
With the next-generation automated axis locks, DJI RS 4 Pro can quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. In addition, the axis locks have been upgraded to achieve smaller gaps, further reducing gimbal shakes when locked.
RANGING POINTS
MAX FOCUS DISTANCE [6]
FOV
LIDAR REFRESH RATE
76,800
20 m
70°
30 Hz
A leap of 77%, [5] sharpening human subject edge detection while effectively reducing focus hunting.
The human-subject focus distance is approximately three times that of the previous generation, [5]effortlessly handling long-distance focusing with telephoto lenses.
Beneficial for edge compositions and close-up shots, providing a larger framing space.
Focus on moving subjects with confidence with faster subject information collection and the enhanced speed of the Focus Pro Motor. [4]
Next-Gen ActiveTrack Pro
Leveraging the all-new Focus Pro LiDAR [3] and AI algorithms, the next-gen ActiveTrack Pro enables RS 4 Pro's three-axis gimbal to steadfastly track your subject. Even if the subject is briefly obscured, it can quickly relocate and retain focus. ActiveTrack Pro also exhibits excellent recognition and tracking performance in scenarios involving multiple subjects or when the subject is at a distance.
DUAL FOCUS & ZOOM MOTORS FOR ELEVATED PERFORMANCE
DJI Focus Pro Motor
DJI RS 4 Pro introduces a new joystick mode switch, allowing cinematographers to control either the gimbal movement or the lens zoom via joystick. When used with the Focus Pro Motor [4] in zoom control mode, it can perform Power Zoom for PZ lenses, Clear Image Zoom, [7] and external focus motor zoom for a native, precise, and convenient focusing experience.
MOTOR SPEED [5]
UNIVERSAL ROD
LOWEST LATENCY [8]
Increased by 30%
20 m
10 ms
More responsive focus, zoom, and aperture controls.
More mainstream and versatile.
Rapid response for seamless operation.
High-Efficiency Lens Control
When paired with two Focus Pro Motors, [4] DJI RS 4 Pro allows cinematographers to precisely control the focus by rotating the dial and adjusting the lens zoom via joystick, facilitating smooth and effortless lens control.
REMOTE CONTROL SYSTEM FOR PROFESSIONAL COLLABORATION
DJI Focus Pro Hand Unit
DJI Focus Pro ushers in innovative LiDAR autofocus technology and introduces a high-precision magnetic-damping manual control unit: Focus Pro Hand Unit. [3]
CONTROL CHANNELS
COMMUNICATION DISTANCE
ELECTRONIC MARKING
BLUETOOTH FUNCTIONALITY
FIZ
160 m
A-B Points
Start/Stop Recording
Supports FIZ control, mastering the power of focus, iris, and zoom with ease.
Supports vehicle shoots and long-distance one-takes, etc.
Provides spring-back tactile feedback for endpoints, facilitating more accurate focusing on a fixed path or two subjects in static positions.
Enables remote start/stop recording of the camera, [7]improving shooting efficiency with cable cams, jibs, and other carriers.
In collaborative team shooting, the gimbal operator can control the RS 4 Pro gimbal through devices such as DJI Master Wheels, DJI Ronin 4D Hand Grips, and DJI High-Bright Remote Monitor. [3] The focus puller can also enable LiDAR Waveform on the High-Bright Remote Monitor for intelligent focus assistance [9] to enable more precise control with the Focus Pro Hand Unit.
EFFICIENT OPERATION, FLEXIBLE CREATION
BLUETOOTH WIRELESS CONTROL
TRIGGER FUNCTION CUSTOMISATION
GIMBAL MODE SWITCH
INTELLIGENT FEATURES
DJI RS 4 Pro adopts Dual-Mode Bluetooth technology and supports wireless shutter and wireless zoom control. After switching joystick mode to zoom control, cinematographers can use the joystick to perform Power Zoom for PZ lenses as well as Clear Image Zoom. [7]
The trigger function can be customised to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement. This is particularly useful for shooting rotational footage or simulating POV.
Toggle to instantly switch the gimbal mode between PF, PTF, and FPV. You can also replace FPV mode with 3D Roll 360 mode or Custom mode based on your preference and shooting requirements, ensuring a seamless operation.
RS 4 Pro can automatically capture Motionlapse footage, Track videos, and Panorama images, intelligently producing high-quality short videos.
EXCEPTIONAL PERFORMANCE, EXTENDED BATTERY RUNTIME
HIGH-CAPACITY BATTERY GRIP
Keep filming–with the DJI RS BG70 High-Capacity Battery Grip [3] extend RS 4 Pro's battery runtime to 29 hours. [10] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.
MAX BATTERY RUNTIME [10]
PD FAST CHARGING
RAPID FULL CHARGE[11]
MAX POWER OUTPUT
29 Hours
45 W
2.5 Hours
18 W
CONTROL ECOSYSTEM, ENHANCED LINEUP
With the Focus Pro AMF lens control system seamlessly integrated, the DJI PRO ecosystem has been elevated further to offer a robust lineup that opens up new possibilities in film and television production.
FOCUS CONTROL ECOSYSTEM
DJI Focus Pro provides a comprehensive and powerful lens control solution to RS 4 Pro cinematographers. Both solo creations and team collaborations can easily access intelligent LiDAR autofocus as well as multi-channel control of focus, aperture, and zoom, for dynamic mastery over every focus moment.
VIDEO TRANSMISSION ECOSYSTEM
SUPPORT FOR DJI TRANSMISSION
INTEGRATED INSTALLATION AND POWER SUPPLY
INTELLIGENT FOCUS ASSISTANCE
GIMBAL / FOCUS / CAMERA PARAMETER CONTROL
MIRROR CONTROL MODE
DJI RS 4 Pro can power the Focus Pro LiDAR [3] and DJI Video Transmitter [3]simultaneously via the Focus Pro LiDAR to DJI Transmission Cable Hub, [3]eliminating the need for an external V-mount battery. The DJI Video Transmitter can also be easily and directly mounted on the bottom of RS 4 Pro via the cold shoe for easy installation, reducing the burden for handheld setup.
With the Ronin 4D Hand Grips [3]and High-Bright Remote Monitor, [3]you can select LiDAR focus subjects, switch focus modes, and enable LiDAR Waveform. [9]
In conjunction with the Ronin 4D Hand Grips, [3] Focus Pro Hand Unit, [3] Master Wheels, [3] and High-Bright Remote Monitor, [3] you can remotely control the gimbal, focus, and camera parameters, achieving an integrated creative process that encompasses reception, monitoring, and control.
When RS 4 Pro is mounted to carriers like a jib, cable cam, or vehicle suction cup mount, you can directly control the core menu operations for Sony and other mirrorless cameras via Mirror Control mode on the High-Bright Remote Monitor, [3] without having to detach your camera.
Support for DJI Ronin Image Transmitter
Both solo cinematographers and small crews can utilise the Ronin Image Transmitter [3] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and many other features, achieving an integrated shooting experience with monitoring and control capabilities.
Professional Solutions
DJI RS 4 Pro supports various handheld configurations, including briefcase, dual-grip, and ring-mount setups. [12]Additionally, it can use DJI RS SDK protocol to establish solutions with car mounts, jibs, Steadicam, cable cams, and sliders, [12] meeting full-scenario creative needs.
DJI RS SDK CREATES A JOINT ECOSYSTEM WITH DEVELOPERS
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilisers such as RS 4 Pro, RS 3 Pro, and RS 4 with more features for extensive scenarios.
Features
Set gimbal positionControl gimbal rotationGet motor and attitude informationControl camera focus and shooting
Applications
1. Build a virtual studio system that can use a PC or console to control the RS stabiliser. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.2. Mount the RS stabiliser on a slider and link the two through programming for four-dimensional control. You can customise the shooting track to get effortlessly expressive camera movements.
Note: DJI RS SDK is currently available only in English and Chinese. If you have requests or questions, please visit the DJI Forum for more details.
SOLO CREATIONS, DOUBLE THE EFFICIENCY
PROFESSIONAL VEHICLE SHOOTS, ALL IN ONE GO
DIVERSE MOUNTING, BOUNDLESS CREATIVITY
When paired with Focus Pro, RS 4 Pro allows solo cinematographers to experience more accurate, distant, and intelligent LiDAR autofocus, gaining precise control over the cinematic expression in dynamic shooting scenarios.
With the DJI PRO ecosystem's lightweight vehicle-shooting solution, cinematographers can revel in a seamlessly integrated experience of stabilisation, monitoring, and dual-channel control of the gimbal and focus.
Based on RS SDK protocol, third-party manufacturers and individual developers can create customised solutions for RS 4 Pro, assisting cinematographers to effortlessly complete complex shoots with a jib, Steadicam, cable cam, or slider.
DJI RS 4 Pro, DJI Focus Pro LiDAR, DJI Focus Pro Motor
DJI RS 4 Pro, DJI Focus Pro LiDAR, DJI Focus Pro Motor, DJI Transmission (High-Bright Monitor Combo), DJI Ronin 4D Hand Grips Combo, DJI Focus Pro LiDAR to DJI Transmission Cable Hub, DJI Ronin External GPS Module
DJI RS 4 Pro, DJI Focus Pro LiDAR (Optional), DJI Focus Pro Motor, DJI Focus Pro Hand Unit, DJI Focus Pro LiDAR to DJI Transmission Cable Hub (Optional), DJI Transmission, DJI Master Wheels
Notes:
* The DJI Ronin app is required for activation when using DJI RS 4 Pro for the first time.1. The gimbal requires rebalancing after switching between horizontal and vertical shooting.2. Compared with DJI RS 3 Pro.3. Sold separately.4. The DJI RS 4 Pro Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.5. Compared with the DJI LiDAR Range Finder (RS).6. Requires enabling the 2x zoom display function on the DJI RS 4 Pro touchscreen.7. For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.8. This value indicates the response latency between the DJI Focus Pro Hand Unit and the DJI Focus Pro Motor.9. LiDAR Waveform is only available when DJI RS 4 Pro is paired with a DJI Focus Pro Motor.10. Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).11. Measured in a 25° C (77° F) indoor environment.12. Setting up any of the shooting solutions requires one or more accessories that are sold separately.
PRODUCT SPECIFICATIONS
PERIPHERAL
Accessory Port: Ronin Series Accessories (RSA)/NATO Ports1/4"-20 Mounting HoleCold ShoeVideo Transmission/LiDAR Range Finder Port (USB-C)RSS Camera Control Port (USB-C)Focus Motor Port (USB-C)Battery: Model: BG30-1950mAh-15.4VType: LiPo 4SCapacity: 1950 mAhEnergy: 30 WhMax Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.)Suggested Charging Temperature: 5° to 40° C (41° to 104° F)Connections: Bluetooth 5.1Charging Port (USB-C)Ronin App Requirements: iOS 11.0 or aboveAndroid 8.0 or aboveLanguages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
WORKING PERFORMANCE
Tested Payload: 4.5 kg (10 lbs)Maximum Controlled Rotation Speed: Pan: 360°/sTilt: 360°/sRoll: 360°/sMechanical Range: Pan Axis: 360° continuous rotationRoll Axis: -95° to +240°Tilt Axis: -112° to +214°
MECHANICAL & ELECTRICAL PROPERTIES
Operating Frequency: 2.400-2.4835 GHzBluetooth Transmitter Power: < 8 dBmOperating Temperature: -20° to 45° C (-4° to 113° F)Weight: Gimbal: Approx. 1242 g (2.74 lbs)Grip: Approx. 265 g (0.58 lbs)Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)Dimensions: Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI RONIN IMAGE TRANSMITTER
Connections: Power/Communication Port (USB-C)HDMI Port (Mini HDMI)RSS Camera Control Port (USB-C)Expansion Port: Cold Shoe
Operating Frequency: 2.400-2.4835 GHz5.725-5.850 GHzWeight: 126 g (0.27 lbs)Dimensions: 82×63×24 mm (L×W×H)Transmitter Power (EIRP): 2.400-2.4835 GHz:< 25 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:< 25 dBm (FCC/SRRC)< 14 dBm (CE)Battery: Capacity: 2970 mAhCompatible Charger: 5 V/2 ACharging Time: Approx. 2.5 hoursOperating Time: Approx. 3.5 hoursTransmission Range: 200 m (SRRC/FCC)100 m (CE)Measured in an unobstructed environment free of interference.Latency: 60 msOperating Current/Voltage: 900 mA/3.7 VOperating Temperature: 0° to 45° C (32° to 113° F)
IN THE BOX
Gimbal × 1BG30 Battery Grip × 1Quick-Release Plate (Arca-Swiss/Manfrotto) × 1Extended Grip/Tripod (Metal) × 1Briefcase Handle × 1Lens-Fastening Support (Extended) × 1Multi-Camera Control Cable (USB-C, 30 cm) × 1USB-C Charging Cable (40 cm) × 1DJI Logo Sticker × 1Screw Kit × 1Carrying Case × 1
The DJI RS 4 Pro expansive flagship stabiliser integrates seamlessly with the DJI Focus Pro lens control system, DJI Transmission, and an extensive control ecosystem. This synergy empowers the film and television industry with a full-scale production solution that unites stabilisation, transmission, monitoring, focusing, and control. It broadens the horizons of creative possibilities, enabling cinematographers to harness their full potential and showcase their skills.
PACKED WITH CAPABILITIES
POWERFUL PAYLOAD
Equipped with carbon fibre axis arms, DJI RS 4 Pro boasts a 4.5kg (10lbs) payload capacity as well as robust power and torque, easily accommodating mainstream mirrorless/cinema camera and lens setups.
2ND-GEN NATIVE VERTICAL SHOOTING
Designed with an all-new horizontal plate, RS 4 Pro enables the second generation of native vertical shooting for further elevated efficiency. Without the need for additional accessories, cinematographers can simply release the horizontal plate and secure it into the vertical position for an effortless switch to vertical shooting. [1]
SMOOTH BALANCING
The roll axis now has dual rolling bearings, facilitating easier adjustments.
All three axes feature a Teflon™ coating with a low friction coefficient, ensuring smooth balancing even when mounting heavy cameras.
When switching cameras or lenses, a fine-tuning knob on the tilt axis allows you to move the camera forward or backward, achieving precise, millimetre-level balancing.
The upper quick-release plate has added an adjustable placement guide to prevent the camera from loosening or shifting.
AUTOMATIC SCREEN LOCK
The OLED touchscreen incorporates a new auto-lock feature, preventing accidental touches during shooting. When the screen is locked, it can still display the current gimbal and joystick modes at a low brightness, reducing power consumption.
2ND-GEN AUTOMATED AXIS LOCKS
With the next-generation automated axis locks, DJI RS 4 Pro can quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. In addition, the axis locks have been upgraded to achieve smaller gaps, further reducing gimbal shakes when locked.
RANGING POINTS
MAX FOCUS DISTANCE [6]
FOV
LIDAR REFRESH RATE
76,800
20 m
70°
30 Hz
A leap of 77%, [5] sharpening human subject edge detection while effectively reducing focus hunting.
The human-subject focus distance is approximately three times that of the previous generation, [5]effortlessly handling long-distance focusing with telephoto lenses.
Beneficial for edge compositions and close-up shots, providing a larger framing space.
Focus on moving subjects with confidence with faster subject information collection and the enhanced speed of the Focus Pro Motor. [4]
Next-Gen ActiveTrack Pro
Leveraging the all-new Focus Pro LiDAR [3] and AI algorithms, the next-gen ActiveTrack Pro enables RS 4 Pro's three-axis gimbal to steadfastly track your subject. Even if the subject is briefly obscured, it can quickly relocate and retain focus. ActiveTrack Pro also exhibits excellent recognition and tracking performance in scenarios involving multiple subjects or when the subject is at a distance.
DUAL FOCUS & ZOOM MOTORS FOR ELEVATED PERFORMANCE
DJI Focus Pro Motor
DJI RS 4 Pro introduces a new joystick mode switch, allowing cinematographers to control either the gimbal movement or the lens zoom via joystick. When used with the Focus Pro Motor [4] in zoom control mode, it can perform Power Zoom for PZ lenses, Clear Image Zoom, [7] and external focus motor zoom for a native, precise, and convenient focusing experience.
MOTOR SPEED [5]
UNIVERSAL ROD
LOWEST LATENCY [8]
Increased by 30%
20 m
10 ms
More responsive focus, zoom, and aperture controls.
More mainstream and versatile.
Rapid response for seamless operation.
High-Efficiency Lens Control
When paired with two Focus Pro Motors, [4] DJI RS 4 Pro allows cinematographers to precisely control the focus by rotating the dial and adjusting the lens zoom via joystick, facilitating smooth and effortless lens control.
REMOTE CONTROL SYSTEM FOR PROFESSIONAL COLLABORATION
DJI Focus Pro Hand Unit
DJI Focus Pro ushers in innovative LiDAR autofocus technology and introduces a high-precision magnetic-damping manual control unit: Focus Pro Hand Unit. [3]
CONTROL CHANNELS
COMMUNICATION DISTANCE
ELECTRONIC MARKING
BLUETOOTH FUNCTIONALITY
FIZ
160 m
A-B Points
Start/Stop Recording
Supports FIZ control, mastering the power of focus, iris, and zoom with ease.
Supports vehicle shoots and long-distance one-takes, etc.
Provides spring-back tactile feedback for endpoints, facilitating more accurate focusing on a fixed path or two subjects in static positions.
Enables remote start/stop recording of the camera, [7]improving shooting efficiency with cable cams, jibs, and other carriers.
In collaborative team shooting, the gimbal operator can control the RS 4 Pro gimbal through devices such as DJI Master Wheels, DJI Ronin 4D Hand Grips, and DJI High-Bright Remote Monitor. [3] The focus puller can also enable LiDAR Waveform on the High-Bright Remote Monitor for intelligent focus assistance [9] to enable more precise control with the Focus Pro Hand Unit.
EFFICIENT OPERATION, FLEXIBLE CREATION
BLUETOOTH WIRELESS CONTROL
TRIGGER FUNCTION CUSTOMISATION
GIMBAL MODE SWITCH
INTELLIGENT FEATURES
DJI RS 4 Pro adopts Dual-Mode Bluetooth technology and supports wireless shutter and wireless zoom control. After switching joystick mode to zoom control, cinematographers can use the joystick to perform Power Zoom for PZ lenses as well as Clear Image Zoom. [7]
The trigger function can be customised to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement. This is particularly useful for shooting rotational footage or simulating POV.
Toggle to instantly switch the gimbal mode between PF, PTF, and FPV. You can also replace FPV mode with 3D Roll 360 mode or Custom mode based on your preference and shooting requirements, ensuring a seamless operation.
RS 4 Pro can automatically capture Motionlapse footage, Track videos, and Panorama images, intelligently producing high-quality short videos.
EXCEPTIONAL PERFORMANCE, EXTENDED BATTERY RUNTIME
HIGH-CAPACITY BATTERY GRIP
Keep filming–with the DJI RS BG70 High-Capacity Battery Grip [3] extend RS 4 Pro's battery runtime to 29 hours. [10] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.
MAX BATTERY RUNTIME [10]
PD FAST CHARGING
RAPID FULL CHARGE[11]
MAX POWER OUTPUT
29 Hours
45 W
2.5 Hours
18 W
CONTROL ECOSYSTEM, ENHANCED LINEUP
With the Focus Pro AMF lens control system seamlessly integrated, the DJI PRO ecosystem has been elevated further to offer a robust lineup that opens up new possibilities in film and television production.
FOCUS CONTROL ECOSYSTEM
DJI Focus Pro provides a comprehensive and powerful lens control solution to RS 4 Pro cinematographers. Both solo creations and team collaborations can easily access intelligent LiDAR autofocus as well as multi-channel control of focus, aperture, and zoom, for dynamic mastery over every focus moment.
VIDEO TRANSMISSION ECOSYSTEM
SUPPORT FOR DJI TRANSMISSION
INTEGRATED INSTALLATION AND POWER SUPPLY
INTELLIGENT FOCUS ASSISTANCE
GIMBAL / FOCUS / CAMERA PARAMETER CONTROL
MIRROR CONTROL MODE
DJI RS 4 Pro can power the Focus Pro LiDAR [3] and DJI Video Transmitter [3]simultaneously via the Focus Pro LiDAR to DJI Transmission Cable Hub, [3]eliminating the need for an external V-mount battery. The DJI Video Transmitter can also be easily and directly mounted on the bottom of RS 4 Pro via the cold shoe for easy installation, reducing the burden for handheld setup.
With the Ronin 4D Hand Grips [3]and High-Bright Remote Monitor, [3]you can select LiDAR focus subjects, switch focus modes, and enable LiDAR Waveform. [9]
In conjunction with the Ronin 4D Hand Grips, [3] Focus Pro Hand Unit, [3] Master Wheels, [3] and High-Bright Remote Monitor, [3] you can remotely control the gimbal, focus, and camera parameters, achieving an integrated creative process that encompasses reception, monitoring, and control.
When RS 4 Pro is mounted to carriers like a jib, cable cam, or vehicle suction cup mount, you can directly control the core menu operations for Sony and other mirrorless cameras via Mirror Control mode on the High-Bright Remote Monitor, [3] without having to detach your camera.
Support for DJI Ronin Image Transmitter
Both solo cinematographers and small crews can utilise the Ronin Image Transmitter [3] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and many other features, achieving an integrated shooting experience with monitoring and control capabilities.
Professional Solutions
DJI RS 4 Pro supports various handheld configurations, including briefcase, dual-grip, and ring-mount setups. [12]Additionally, it can use DJI RS SDK protocol to establish solutions with car mounts, jibs, Steadicam, cable cams, and sliders, [12] meeting full-scenario creative needs.
DJI RS SDK CREATES A JOINT ECOSYSTEM WITH DEVELOPERS
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilisers such as RS 4 Pro, RS 3 Pro, and RS 4 with more features for extensive scenarios.
Features
Set gimbal positionControl gimbal rotationGet motor and attitude informationControl camera focus and shooting
Applications
1. Build a virtual studio system that can use a PC or console to control the RS stabiliser. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.2. Mount the RS stabiliser on a slider and link the two through programming for four-dimensional control. You can customise the shooting track to get effortlessly expressive camera movements.
Note: DJI RS SDK is currently available only in English and Chinese. If you have requests or questions, please visit the DJI Forum for more details.
SOLO CREATIONS, DOUBLE THE EFFICIENCY
PROFESSIONAL VEHICLE SHOOTS, ALL IN ONE GO
DIVERSE MOUNTING, BOUNDLESS CREATIVITY
When paired with Focus Pro, RS 4 Pro allows solo cinematographers to experience more accurate, distant, and intelligent LiDAR autofocus, gaining precise control over the cinematic expression in dynamic shooting scenarios.
With the DJI PRO ecosystem's lightweight vehicle-shooting solution, cinematographers can revel in a seamlessly integrated experience of stabilisation, monitoring, and dual-channel control of the gimbal and focus.
Based on RS SDK protocol, third-party manufacturers and individual developers can create customised solutions for RS 4 Pro, assisting cinematographers to effortlessly complete complex shoots with a jib, Steadicam, cable cam, or slider.
DJI RS 4 Pro, DJI Focus Pro LiDAR, DJI Focus Pro Motor
DJI RS 4 Pro, DJI Focus Pro LiDAR, DJI Focus Pro Motor, DJI Transmission (High-Bright Monitor Combo), DJI Ronin 4D Hand Grips Combo, DJI Focus Pro LiDAR to DJI Transmission Cable Hub, DJI Ronin External GPS Module
DJI RS 4 Pro, DJI Focus Pro LiDAR (Optional), DJI Focus Pro Motor, DJI Focus Pro Hand Unit, DJI Focus Pro LiDAR to DJI Transmission Cable Hub (Optional), DJI Transmission, DJI Master Wheels
Notes:
* The DJI Ronin app is required for activation when using DJI RS 4 Pro for the first time.1. The gimbal requires rebalancing after switching between horizontal and vertical shooting.2. Compared with DJI RS 3 Pro.3. Sold separately.4. The DJI RS 4 Pro Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.5. Compared with the DJI LiDAR Range Finder (RS).6. Requires enabling the 2x zoom display function on the DJI RS 4 Pro touchscreen.7. For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.8. This value indicates the response latency between the DJI Focus Pro Hand Unit and the DJI Focus Pro Motor.9. LiDAR Waveform is only available when DJI RS 4 Pro is paired with a DJI Focus Pro Motor.10. Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).11. Measured in a 25° C (77° F) indoor environment.12. Setting up any of the shooting solutions requires one or more accessories that are sold separately.
PRODUCT SPECIFICATIONS
PERIPHERAL
Accessory Port: Ronin Series Accessories (RSA)/NATO Ports1/4"-20 Mounting HoleCold ShoeVideo Transmission/LiDAR Range Finder Port (USB-C)RSS Camera Control Port (USB-C)Focus Motor Port (USB-C)Battery: Model: BG30-1950mAh-15.4VType: LiPo 4SCapacity: 1950 mAhEnergy: 30 WhMax Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.)Suggested Charging Temperature: 5° to 40° C (41° to 104° F)Connections: Bluetooth 5.1Charging Port (USB-C)Ronin App Requirements: iOS 11.0 or aboveAndroid 8.0 or aboveLanguages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
WORKING PERFORMANCE
Tested Payload: 4.5 kg (10 lbs)Maximum Controlled Rotation Speed: Pan: 360°/sTilt: 360°/sRoll: 360°/sMechanical Range: Pan Axis: 360° continuous rotationRoll Axis: -95° to +240°Tilt Axis: -112° to +214°
MECHANICAL & ELECTRICAL PROPERTIES
Operating Frequency: 2.400-2.4835 GHzBluetooth Transmitter Power: < 8 dBmOperating Temperature: -20° to 45° C (-4° to 113° F)Weight: Gimbal: Approx. 1242 g (2.74 lbs)Grip: Approx. 265 g (0.58 lbs)Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)Dimensions: Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI RONIN IMAGE TRANSMITTER
Connections: Power/Communication Port (USB-C)HDMI Port (Mini HDMI)RSS Camera Control Port (USB-C)Expansion Port: Cold Shoe
Operating Frequency: 2.400-2.4835 GHz5.725-5.850 GHzWeight: 126 g (0.27 lbs)Dimensions: 82×63×24 mm (L×W×H)Transmitter Power (EIRP): 2.400-2.4835 GHz:< 25 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:< 25 dBm (FCC/SRRC)< 14 dBm (CE)Battery: Capacity: 2970 mAhCompatible Charger: 5 V/2 ACharging Time: Approx. 2.5 hoursOperating Time: Approx. 3.5 hoursTransmission Range: 200 m (SRRC/FCC)100 m (CE)Measured in an unobstructed environment free of interference.Latency: 60 msOperating Current/Voltage: 900 mA/3.7 VOperating Temperature: 0° to 45° C (32° to 113° F)
IN THE BOX
Gimbal × 1BG30 Battery Grip × 1Quick-Release Plate (Arca-Swiss/Manfrotto) × 1Extended Grip/Tripod (Metal) × 1Briefcase Handle × 1Lens-Fastening Support (Extended) × 1Multi-Camera Control Cable (USB-C, 30 cm) × 2USB-C Charging Cable (40 cm) × 1Screw Kit × 1Carrying Case × 1USB-C Power Cable (20 cm) × 1Mini-HDMI to Mini-HDMI Cable (20 cm) × 1Mini-HDMI to HDMI Cable (20 cm) × 1Mini-HDMI to Micro-HDMI Cable (20 cm) × 1Ronin Image Transmitter × 1Focus Pro Motor × 1DJI Logo Sticker × 1FIZ Sticker × 1Focus Pro Motor Rod Mount Kit × 1Focus Gear Strip × 1Lower Quick-Release Plate (Extended) × 1Phone Holder × 1
The battery grip can power DJI RS 4 Pro for up to 29 hours or DJI RS 4 for up to 29.5 hours. It also supports powering your camera and accessories with up to 18 watts via the USB-C port at the bottom, catering to prolonged creative sessions.
In The Box
RS BG70 High-Capacity Battery Grip × 1
Specifications
Charging Input Voltage: 16.8 V ⎓ 4 A
Rated Capacity: 4800 mAh
Rated Energy: 69.12 Wh
Compatibility
DJI RS 4 Pro
DJI RS 4
DJI RS 3 Pro
DJI RS 3
The upper quick-release plate has added an adjustable placement guide, which fits flush against the bottom of the camera to serve as a stopper. Even when used with a single 1/4" screw, it can secure the camera in place, preventing loosening or shifting.
CompatibilityDJI RS 4 ProDJI RS 4DJI RS 3 ProDJI RS 3DJI RS 2
PRODUCT SPECIFICATIONS
Weight: 32 gDimensions: 55×38×16.3 mm (L×W×H)
The lower quick-release plate features a scale on both sides and a serrated slot design on the bottom. This complements the fine-tuning knob on the gimbal's tilt axis, allowing cinematographers to perform precise, millimeter-level adjustments when changing cameras or lenses. It also facilitates a swift transition between tripods and stabilizers for the camera.
In The Box
Lower Quick-Release Plate × 1
Specifications
Weight: 70 g
Dimensions: 113×49.5×22 mm (L×W×H)
Compatibility
DJI RS 4
DJI RS 3
DJI RS 2
FEATURES
The lower quick-release plate features a scale on both sides and a serrated slot design on the bottom. This complements the fine-tuning knob on the gimbal's tilt axis, allowing cinematographers to perform precise, millimeter-level adjustments when changing cameras or lenses. It also facilitates a swift transition between tripods and stabilizers for the camera.
CompatibilityDJI RS 4 ProDJI RS 4DJI RS 3 ProDJI RS 3DJI RS 2
PRODUCT SPECIFICATIONS
Weight: 80 gDimensions: 129.6×49.5×22 mm (L×W×H)
The motor speed has increased by 30% for more responsive control over focus, zoom, and aperture. The motor is compatible with 15mm universal rods. The latency is as low as 10 milliseconds, ensuring swift control response when paired with the DJI Focus Pro Hand Unit. The motor features a built-in RF antenna that allows for linking with the DJI Focus Pro Hand Unit. When paired with the DJI Focus Pro Grip, the grip can power the motor via the USB-C port.
Tips
The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.
DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.
In The Box
Focus Pro Motor × 1
Motor Rod Mount Kit × 1
Focus Gear Strip × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 1
FIZ Sticker × 1
15mm Rod × 1
10mm 1/4"-20 Screw × 2
Specifications
2.4GHz Transmitter Power (EIRP): < 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)
2.4GHz Transmission Distance: 160 m*/100 m**
* Measured under FCC standard in an unobstructed environment free of interference.
** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.
Dimensions: 100×61×34 mm (L×W×H)
Weight: 123 g
Rod Diameter: 15 mm
Output Gear Teeth: 30
Output Gear Module: 0.8
Compatibility
DJI RS 4 Pro
DJI RS 4
DJI RS 3 Pro
DJI RS 3
DJI Focus Pro Grip
DJI Focus Pro Hand Unit
DJI Ronin 4D Flex
The LiDAR boasts 76,800 ranging points, a leap of 77% in quantity, sharpening human-subject edge detection while effectively reducing focus hunting. The max focus distance is 20 meters, and the human-subject focus distance is approximately three times that of the previous generation, effortlessly handling long-distance focusing with telephoto lenses. The 70° FOV is beneficial for edge compositions and close-up shots, providing a larger framing space. The LiDAR refresh rate of 30 Hz allows for faster subject information collection, ensuring more confident focusing on moving subjects. When paired with the DJI Focus Pro Motor, the LiDAR can enable autofocus for manual lenses that have been calibrated.
Tips
When the stabilizer's screen is in 1x mode, the LiDAR's ToF sensor operates within a 10-meter sensing range by default. To extend to a 20-meter focus distance, you can tap the + icon on the screen to enable 2x zoom display.
In The Box
Focus Pro LiDAR × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 1
Specifications
Ranging Points: 76,800
Sensing Range: 0.5-20 m
FOV:
Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm (wide-angle mode)
Ranging Accuracy: ±1% to 3% (affected by the distance)
Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V
Operating Temperature: -20° to 45° C (-4° to 113° F)
Main Body Dimensions: 68×25×57 mm (L×W×H)
Weight: 140 g
Compatibility
DJI RS 4 Pro
DJI RS 3 Pro
DJI Focus Pro Grip
