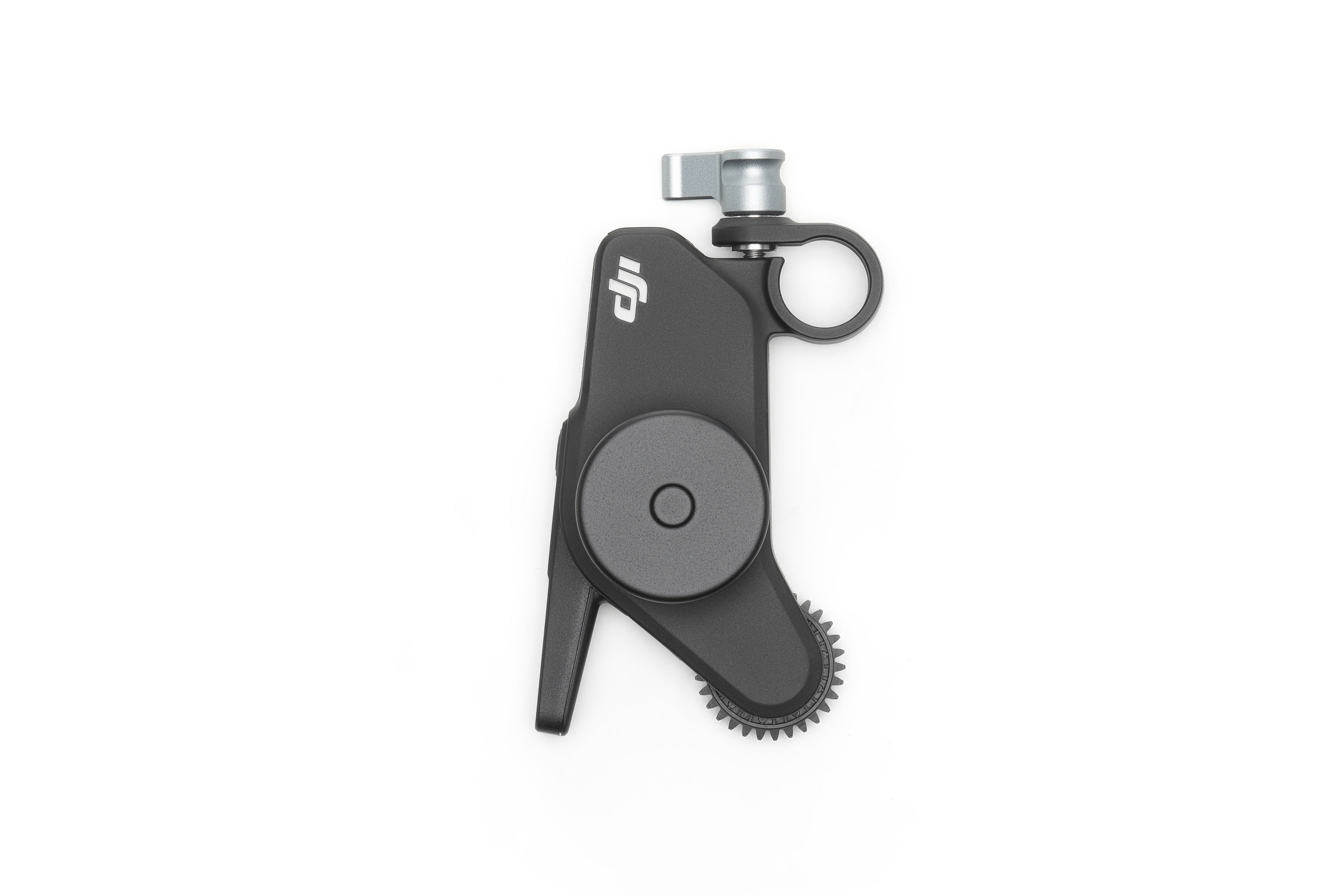

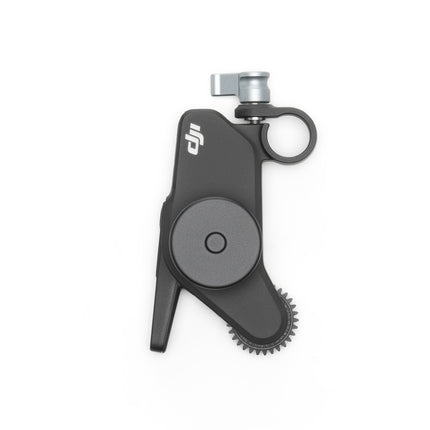

The motor speed has increased by 30% for more responsive control over focus, zoom, and aperture. The motor is compatible with 15mm universal rods. The latency is as low as 10 milliseconds, ensuring swift control response when paired with the DJI Focus Pro Hand Unit. The motor features a built-in RF antenna that allows for linking with the DJI Focus Pro Hand Unit. When paired with the DJI Focus Pro Grip, the grip can power the motor via the USB-C port.

Tips

The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.

DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.

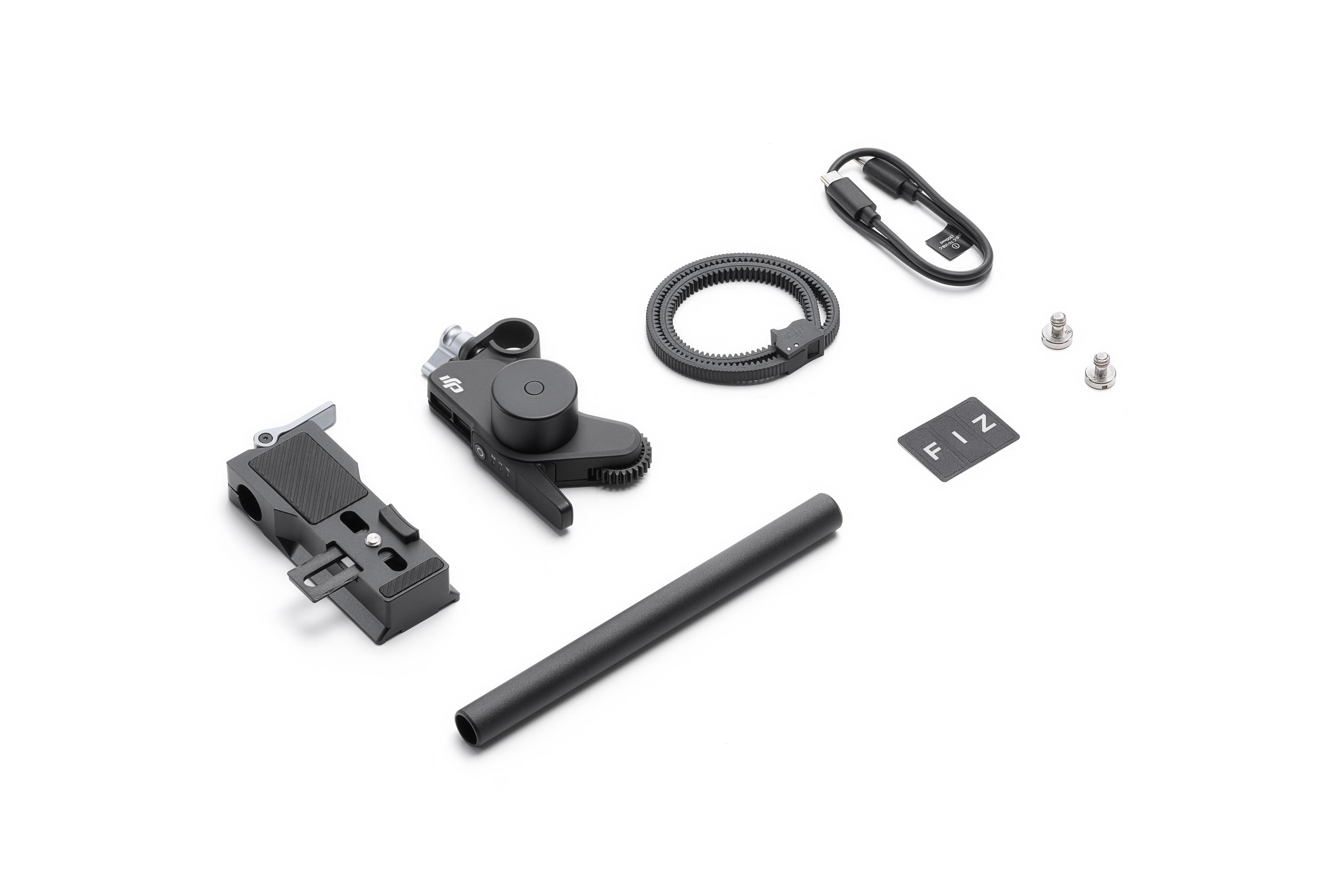

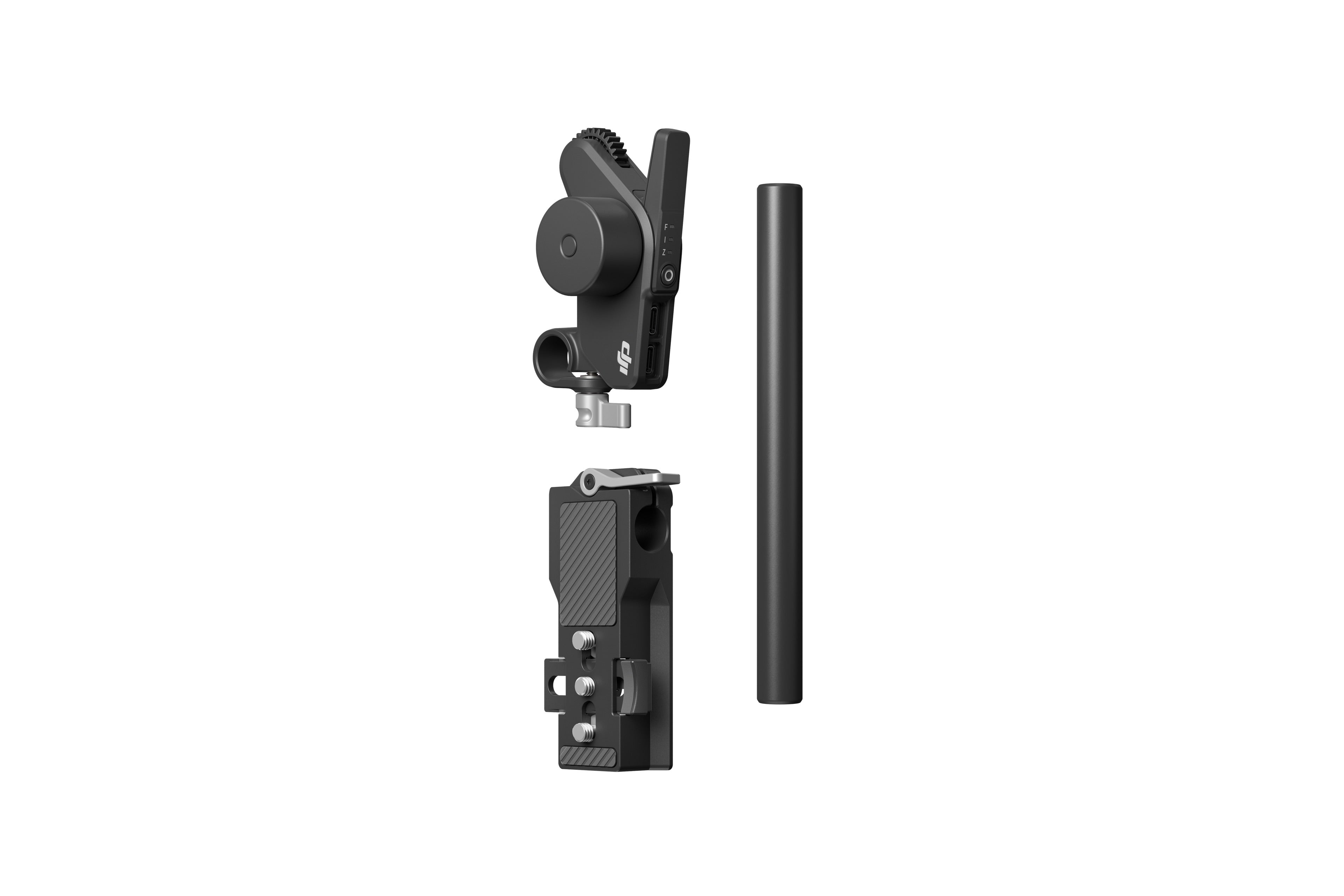

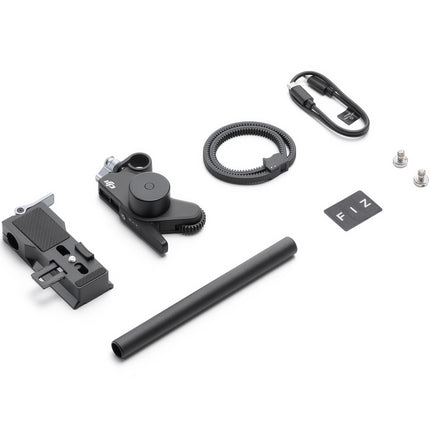

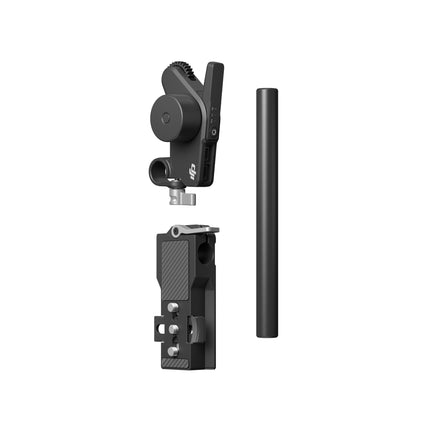

In The Box

Focus Pro Motor × 1

Motor Rod Mount Kit × 1

Focus Gear Strip × 1

Multi-Camera Control Cable (USB-C, 30 cm) × 1

FIZ Sticker × 1‌

15mm Rod × 1

10mm 1/4"-20 Screw × 2

Specifications

2.4GHz Transmitter Power (EIRP): ‌< 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)

2.4GHz Transmission Distance: 160 m*/100 m**

‌* Measured under FCC standard in an unobstructed environment free of interference.

‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.

Dimensions: 100×61×34 mm (L×W×H)

Weight: 123 g

Rod Diameter: 15 mm

Output Gear Teeth: 30

Output Gear Module: 0.8

Compatibility

DJI RS 4 Pro

DJI RS 4

DJI RS 3 Pro

DJI RS 3

DJI Focus Pro Grip

DJI Focus Pro Hand Unit

DJI Ronin 4D Flex
