The Konus Konusmall monocular gives you the possibility to carry the power of observation anywhere. The reduced dimensions the optical quality and the special rubber covering makes this monocular an indispensable item for travelling trekking following sport events and so on. Field of view at 1000m: 100m Focusing: individual Exit pupil mm: 2.5mm Weight: 60g Tripod adaptable: no
The Konus Konusmall-2 has a 7x to17x zoom magnification and a 30mm objective diameter lens. Featuring a practical rubber coated body dual focusing system and multi-coated optics to make focusing fast accurate and clear. Field of view at 1000m: 80.5m at 7x and 45.5m at 17x Focusing: individual Exit pupil mm: 4.2m at 7x and 1.7m at 17x Weight: 156g Length: 128mm Tripod adaptable: yes Strap included
Perfect to keep in your pack pocket purse or glove box the Konus Konusmall-3 8-24x40 Monocular lives up to its name sporting a compact and lightweight design to deliver magnified views without weighing you down. Outfitted with a broad zoom range that provides low to high magnifications and anti-reflection multicoatings on the generously sized objective to boost brightness and contrast while helping to limit light loss and eye fatigue. The monocular lets you take in sweeping views at low power and dial up the magnification for detailed observations at longer distances. A dual focusing system provides fast coarse and precise fine focusing through the use of slip-resistant focusing rings and a convenient twist-up eyecup makes for comfortable use with or without eyewear. For those long observation sessions or to limit hand shake and vibration the Konusmall has a standard 1/4 inch -20 threaded tripod mount to make attaching to window mounts quick release plates or photo/video/field tripods fast and easy. To document what you see for easy sharing and posting Konus includes a universal smartphone digiscoping adapter that allows you to capture the view through your eyepiece. 8x-24x Zoom Power 40mm Objective Diameter Multi-Coated Lenses Dual Focus System Tripod Attachment Smartphone Adapter Case Included

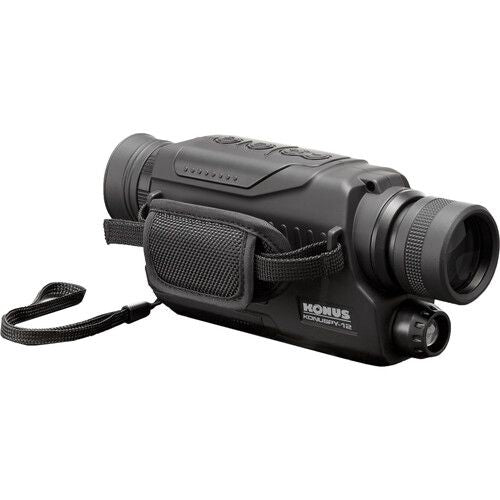

8x Digital MagnificationTotal Power from 5x to 40xUse in the Daytime and NighttimeColor Views in Day, Black/White at NightRecord Photos & Video to SD Memory CardBuilt-In Infrared IlluminatorStandard 1/4"-20 Tripod Mounting SocketCase, Wrist Lanyard, Hand Strap IncludedRuns on Three User-Supplied AA BatteriesUtilizing a highly sensitive imaging sensor, the Konus KonuSpy-12 5x32 Digital Night Vision Monocular allows you to see in the dark at ranges up to 220 yards, and unlike conventional intensifier-tube based NVDs you can use it during the day as a regular monocular. It has 5x optical magnification and up to 8x digital zoom, providing you with as much as 40x power to make detailed observations in bright daylight or complete darkness. A built-in infrared (IR) illuminator provides light for the sensor when there is no ambient light available. Since it uses an imaging sensor, Konus provided the option to capture photos and video that can be stored to an SD memory card that you need to get separately. A standard tripod mount allows you to use it hands-free for vibration-free viewing and videos that are rock steady. The KonuSpy runs on three user-supplied AA batteries and comes with a case, wrist lanyard, and a padded adjustable hand strap.SpecificationsLens System: 32mm Magnification: 5xDigital Magnification: 8x (40x Combined Zoom)Field of View: 60' @ 1000 yd / 19.9 m @ 1000 mExit Pupil Diameter: 8 mmInterpupillary Adjustment: NoneDiopter Adjustment: YesNight Vision Infrared Illuminator: Yes, Built-InMemory Card Slot: SDBattery: 3 x AATripod Mounting Thread: 1/4"-20 FemaleDimensions: Not Specified by ManufacturerWeight: 292 g
he Thermal Excellence

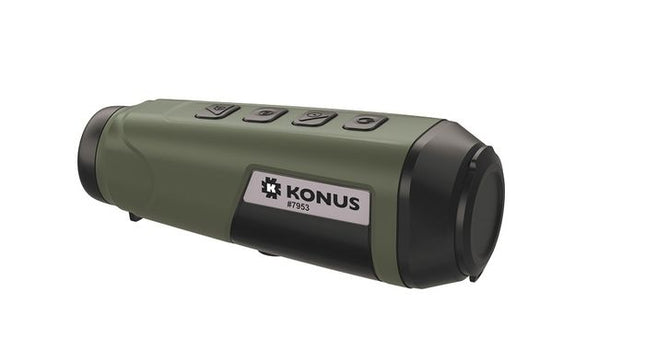

While being very compact and competitively priced, our #7953 model is among the most versatile of the market. It lets you choose between 4 different palettes, it comes with a photo/video recording function and it is also able to transfer the thermal images via Wi-Fi, so that you can see them live on your cellphone if you want. And, having a 0.6x-2.4x zoom system and a bigger display with enhanced field of view, this unit dramatically outperforms the competition from an optical standpoint as well.
Specifications
Handheld Thermal Monocular Camera160x120 Pixels Resolution, High Sensivity DetectorBuilt-In Rechargeable Lithium BatteryWi-Fi Hot SpotDigital Zoom From 0.6X To 2.4X8Gb Internal MemoryWaterproof Up To 3.3Ft DepthPhoto And Video Recording Function
Technical Data
Detection Range (Standard Car Size): 559M – 1833.9FTDetection Range (Average Human Size): 200M – 656.1FTRecognition Range (Standard Car Size): 140M – 45 FTRecognition Range (Average Human Size): 46M – 150.9FTIdentification Range (Standard Car Size): 70M – 229.6FTIdentification Range (Averge Human Size): 23M – 75.4FTWeight: 250G – 8.81OZLength: 158.3MM – 6.23″
Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays Max Resolution: 160X120 Pixel Interval: 17μmResponse Waveband: 8 μm To 14 μmNetd: less than 35mk (@25°C), F#=1.0 Lens (Focal Length): 6.2mm Field Of View: 14.7°x18.7° (Hxv) Digital Zoom: from 0.6x to 2.4xAperture: F1.1 Magnification: 0.6x to 2.4x
Image Display
Monitor: 0.2 inch, LCOS, 720×540FFC (Flat Field Correction): Auto, Manual, External CorrectionPalettes: Black Hot,White Hot, Red Hot, Fusion Frame Frequency: 50Hz
Smart Function:
Highest Temperature Spot TrackingWi-Fi Hot SpotStand-By Mode
System:
Storage: Buit-In Memory Module (8Gb)Record VideoCapture Snapshot
Power Supply:
Battery Type: Built-In 18650 Lithium BatteryBattery Operating Time: 10 Hrs. continuously running with CVBS and WI-FI hot spot off (@25°C), 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)Battery Capacity Display
General:
Power: 5V DC/2A, 1.5W, Type-C interface Working Temperature: -20°C to 55°C (-4°F to 131°F)Protection Level: Submersible Waterproof Rating Ip-67Dimension: 158.3mmx61mmx57mm (6.23″x2.40″x2.24″)Weight: 250G (0.55lb)

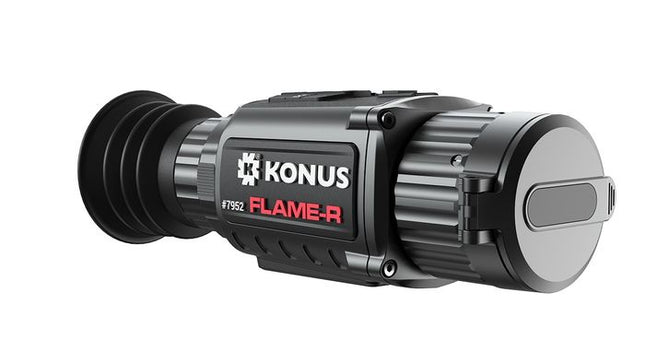

The Thermal Domination Power and technology come together to provide you with a supremely versatile unit that can be used as thermal riflescope or hand-held monocular for countless hunting, tactical or surveillance purposes. Fully waterproof, our #7952 model features a huge 2.5x-20x zoom magnification range to go along with 5 selectable digital reticles in 3 colors and with a special mount for Picatinny rails. Its thermal vision is available in 4 different palettes with 256×192 resolution and you can also take pictures or record videos of what you observe.
Features
Includes A Mounting System For Picatinny Rails5 Selectable Reticles In 3 Different Colors (Green, White, Red)Also Works As Hand-Held Thermal MonocularFeatures 5 Selectable Reticle TypesWaterproof Up To 3.3 Ft DepthZoom Magnification 2.5X-20X4 Different PalettesBuild-In Rechargeable Lithium BatteryWi-Fi Hot SpotVideo Recording Function
Technical Specifications
Detection Range (Standard Car Size) – 2428M Detection Range (Average Human Size) – 792 M Recognition Range (Standard Car Size) – 607 MRecognition Range (Average Human Size) – 198 M Identification Range (Standard Car Size) – 303 M Identification Range (Average Human Size) – 99MWeigth: 430GLength: 187.2mmThermal ModuleImage Sensor: Vanadium Oxide Uncooled Focal Plane ArraysMax Resolution: 256×195 PixelsResponse Waveband: 8µm To 12µmNETD: Less Than 35Mk (@25°C) F#01.0Lens (Focal Length): 19 mmMRAD: 1.13 MradField Of View: 9.24″X6.94″ (Hxv)Digital Zoom: 1X-2X-4X-8XAperture: F1.0Magnification 2.47XImage DisplayMonitor: 0.39 Inch – Oled – 1024×768Ffc (Flat Field Correction): Auto, Manual, External CorrectionPalettes: Black Hot, White Hot, Red Hot, FusionFrame Frequency: 50HzSmart FunctionHot Track: YesWi-Fi: YesStand-By Mode: YesSystem: Storage: Built-In Memory Module (16Gb)On Board Video Recording: YesCapture Snapshot: YesPower Supply:Battery Type: Two CR123A (3V) Lithium Or Two Rcr123 Rechargeable BatteriesBattery Operating Time: Fino A 5 Ore Continuamente Acceso (Con La Funzione Wi-Fi Hot Spot Spenta)
