Description
DJI RS 4
Gripping Storytelling
The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.
|
2nd-Gen Native Vertical Shooting
|
Joystick Mode Switch
Zoom/Gimbal Control
|
Teflon™-Coated Axis Arms
Smoother Balancing
|
|
3kg (6.6lbs) Payload Capacity
Extended Tilt Axis
|
RSA Communication Port
Extensive Control Ecosystem
|
High-Capacity Battery Grip
Approx. 2.5x Battery Runtime [1]
|
Quick Launch
2nd-Gen Native Vertical Shooting
DJI RS 4 features a newly designed horizontal plate, enabling the second generation of native vertical shooting for faster and simpler operation. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for an easy switch to vertical shooting, [2] paving the way for efficient vertical video creation.
2nd-Gen Automated Axis Locks
The automated axis locks allow RS 4 to quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when locked, further reducing gimbal shake.
Our Smoothest Balancing Experience Yet
DJI RS 4 features a Teflon™ coating for all three axes, resulting in reduced friction and smoother balancing.
When switching cameras or lenses, the fine-tuning knob on the tilt axis can move the camera forward or backward, achieving precise, millimeter-level balancing.
The upper quick-release plate has an added adjustable placement guide to ensure secure camera mounting.
Automatic Screen Lock
The OLED touchscreen incorporates a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick modes at a low brightness. This not only prevents accidental touches but also helps to conserve battery power.
Powerful Stabilization
Excellent Payload Capacity
The lightweight body boasts a 3kg (6.6lbs) payload capacity. It can carry mainstream mirrorless camera and lens combinations, enabling comfortable holding with robust power.
Compared with the previous generation, RS 4's tilt axis has been extended by 8.5 mm, offering expanded balancing space. This allows you to mount mainstream mirrorless camera and lens combinations along with accessories like ND filters, broadening the scope for creative potential.
4th-Gen RS Stabilization Algorithm
DJI has comprehensively optimized the next-generation RS stabilization algorithm for different usage scenarios. It strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, RS 4 offers significantly improved stability when vertical shooting, easily steadying dynamic shots like running or low-angle perspectives.
Professional Creation
DJI RS 4 supports the professional-grade features of DJI PRO products, delivering superior performance that makes solo creation more efficient.
Bluetooth Wireless Control
DJI RS 4 can remotely control camera shutter and lens zoom with Dual-Mode Bluetooth technology. In zoom control mode, you can use the joystick to control Power Zoom for PZ lenses and Clear Image Zoom, [3] obtaining a native zoom experience. A camera only needs to be paired once, after which it can reconnect seamlessly and automatically.
Support for DJI Focus Pro Motor
When paired with the new DJI Focus Pro Motor, [4] DJI RS 4 allows you to control the lens focus via dial or adjust the lens zoom via joystick. This smooth operation enables efficient lens control.
|
Motor Speed [5]
|
Universal Rod
|
|
Increased by 30%
|
15 mm
|
Trigger Function Customization
The trigger function can be customized to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement. This is particularly useful for shooting rotational footage or simulating POV.
Gimbal Mode Switch
By toggling the gimbal mode switch, you can quickly switch between PF, PTF, and FPV modes. You can also set FPV mode to 3D Roll 360 mode or Custom mode according to the shooting requirements, ensuring RS 4 is precision-ready.
Intelligent Features
|
Motionlapse
|
Track
|
Panorama
|
Accessory Ecosystem
RSA Communication Port
DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle [6] and third-party accessories like control handles [6] and remote-control ring handles. [6] You can flexibly switch between different shooting setups according to your creative needs.
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilizers such as RS 4, RS 4 Pro, and RS 3 Pro with more features for extensive scenarios.
Features
|
Set gimbal position
|
Control gimbal rotation
|
Get motor and attitude information
|
Control camera focus and shooting
|
Applications
- Build a virtual studio system that can use a PC or console to control the RS stabilizer. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.
- Mount the RS stabilizer on a slider and link the two through programming for four-dimensional control. You can customize the shooting track to get effortlessly expressive camera movements.
Related Downloads
|
DJI RS SDK Documentation
|
DJI RS SDK Demo Software
|
RS Stabilizer External Interface Diagram
|
DJI RS SDK
DJI RS SDK is currently only available in English and Chinese. If you have requests or questions, please visit the DJI Forum for more details.
Thanks to DJI RS SDK protocol, third-party manufacturers and individual developers can develop customized functions for RS 4, meeting a wider range of shooting requirements.
DJI RS BG70 High-Capacity Battery Grip
The new BG70 High-Capacity Battery Grip [6] can extend RS 4's battery runtime to 29.5 hours. [7] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.
|
Max Battery Runtime
|
PD Fast Charging
|
Rapid Full Charge [8]
|
Max Power Output
|
|
29.5 Hours
|
45 W
|
2.5 Hours
|
18 W
|
Support for DJI Ronin Image Transmitter
Both independent cinematographers and small crews can utilize the Ronin Image Transmitter [6] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and more, achieving an integrated shooting experience with monitoring and control capabilities.
Extensive Accessory Ecosystem
DJI RS series accessories, [6] such as the RS BG30 Battery Grip, RS Focus Motor (2022), and Ronin Image Transmitter, are all compatible with RS 4.
* The DJI Ronin app is required for activation when using DJI RS 4 for the first time.
1. Data was measured by comparing the battery runtime of DJI RS 4 equipped with the DJI RS BG70 High-Capacity Battery Grip and that of DJI RS 4 equipped with the DJI RS BG21 Battery Grip. Battery runtime was measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
- The gimbal requires rebalancing after switching between horizontal and vertical shooting.
- For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.
- The DJI RS 4 Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.
- Compared with the DJI RS Focus Motor (2022).
- Sold separately.
- Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
- Measured in a 25° C (77° F) indoor environment.
Peripheral
-
Battery
-
Model: BHX711-3000-7.2V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
-
Languages Supported by the Touchscreen
-
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
-
Tested Payload
-
3 kg (6.6 lbs)
Mechanical & Electrical Properties
-
Operating Frequency
-
2.400-2.4835 GHz
-
Bluetooth Transmitter Power
-
< 8 dBm
-
Dimensions
-
Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
-
Dimensions
-
82×63×24 mm (L×W×H)
-
Operating Current/Voltage
-
900 mA/3.7 V

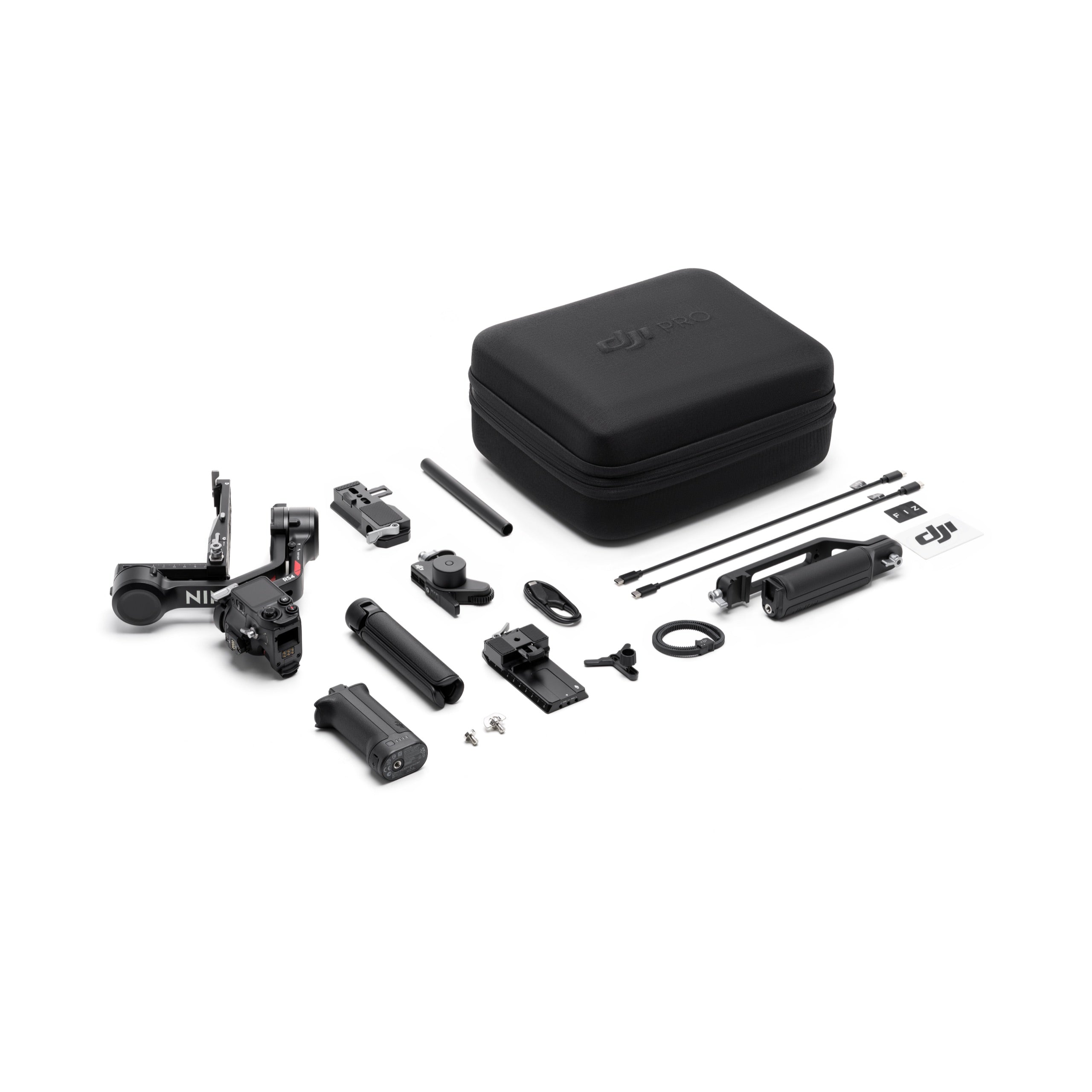

In The Box
- DJI RS 4 Gimbal Stabiliser Combo
- BG21 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Plastic)
- Briefcase Handle
- Lens-Fastening Support
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- Screw Kit
- Carrying Case
- Focus Pro Motor
- Focus Pro Motor Rod Mount Kit
- FIZ Sticker
- DJI Logo Sticker
- Focus Gear Strip
