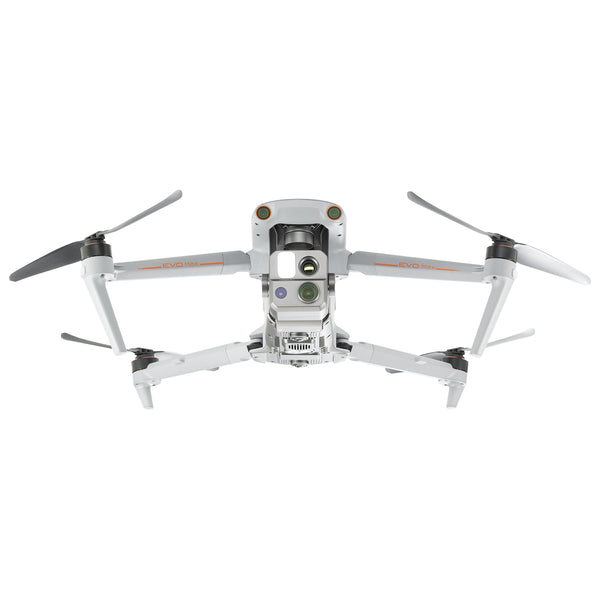

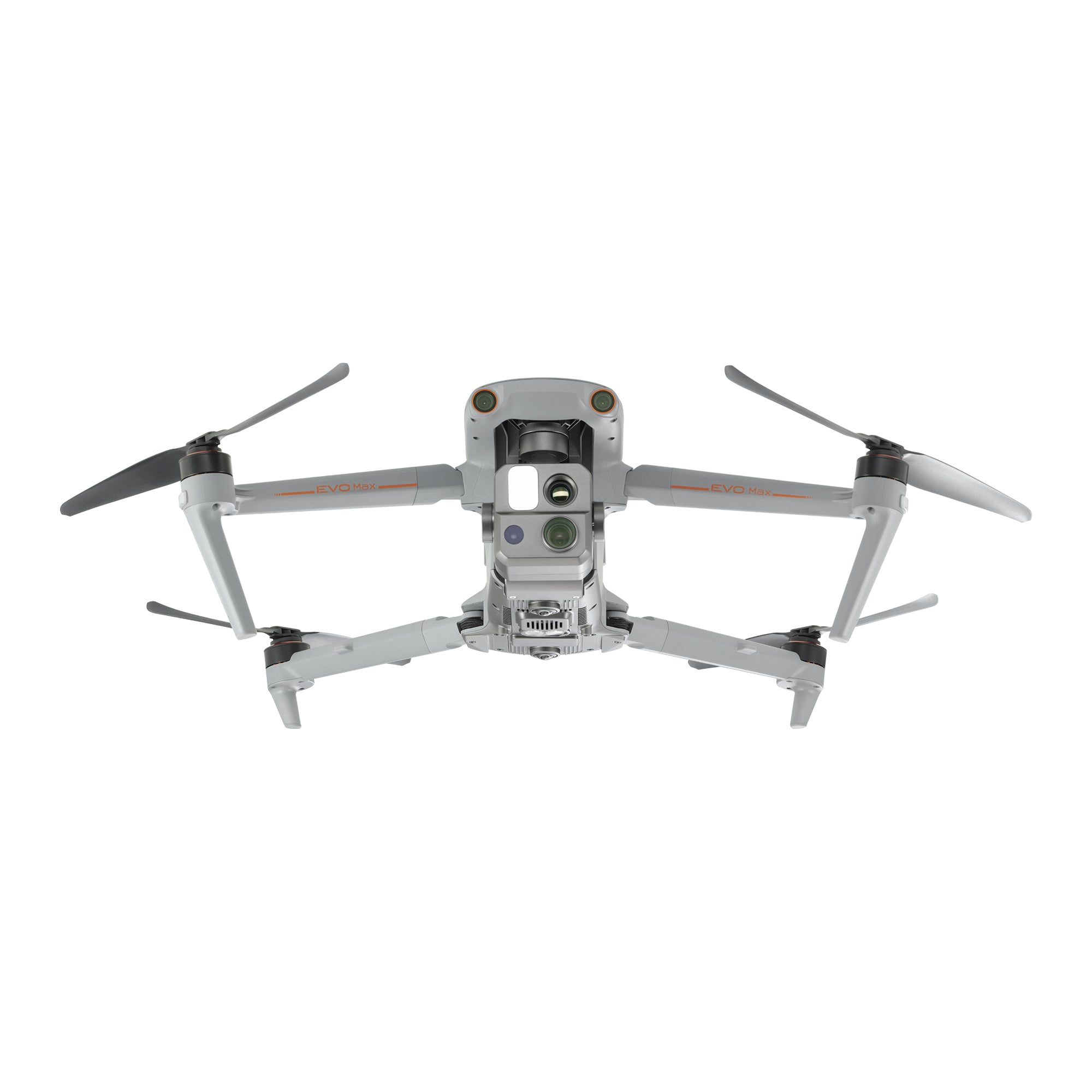

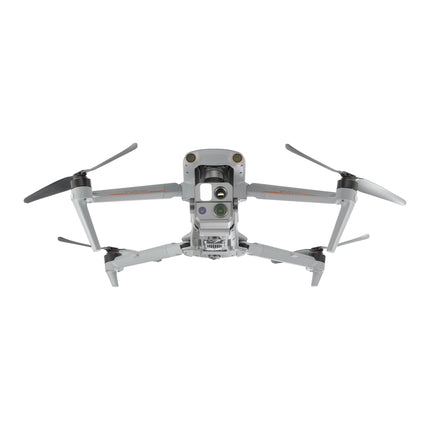

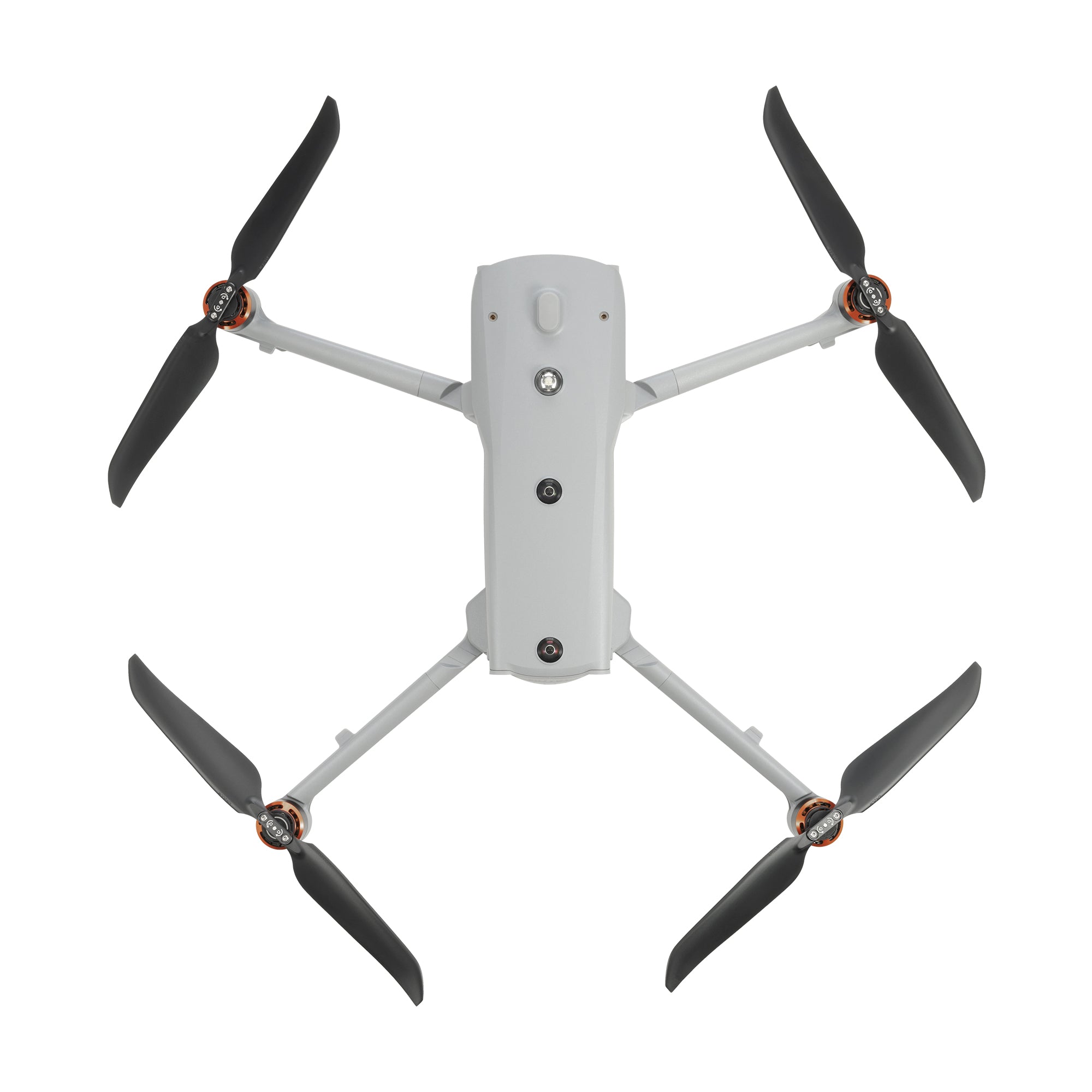

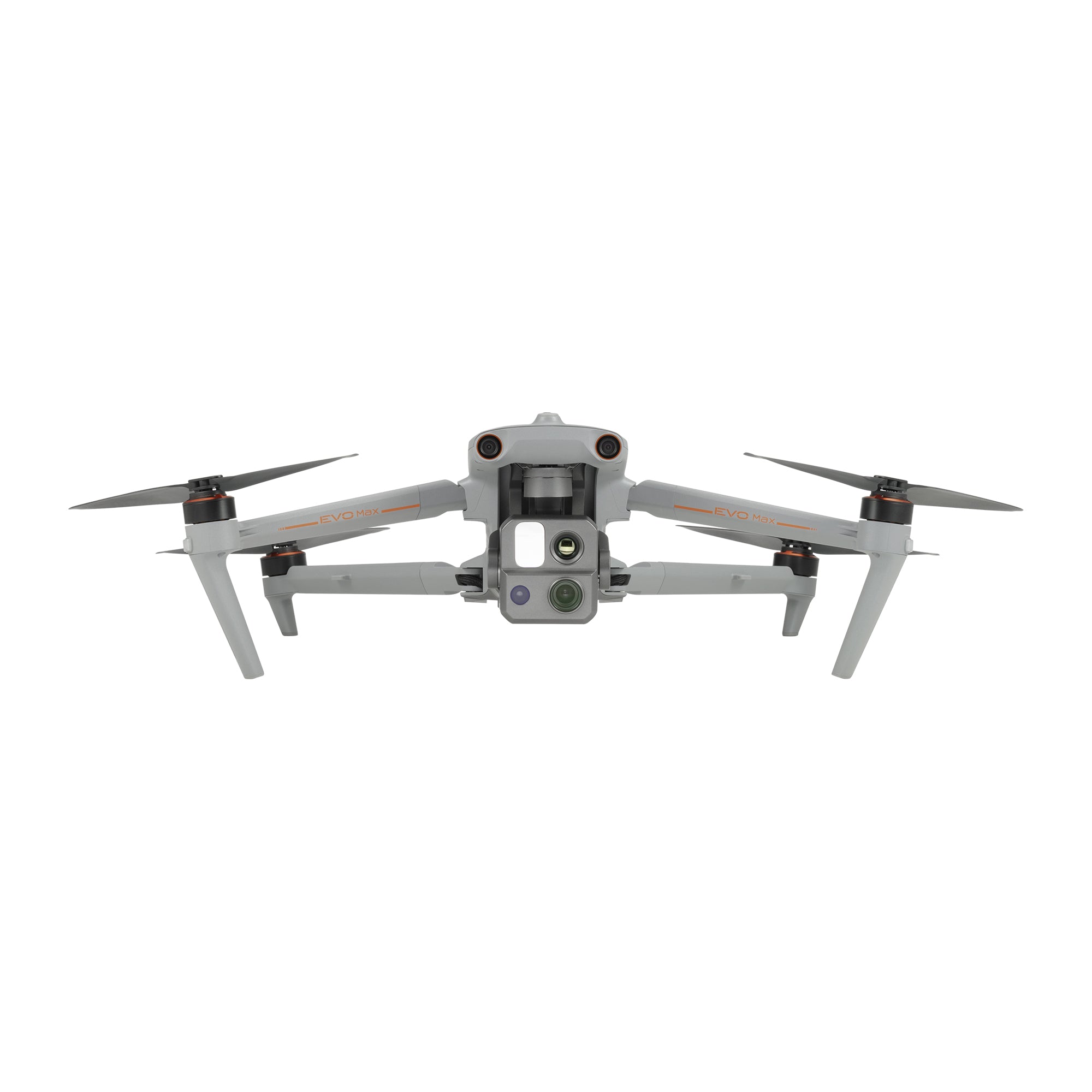

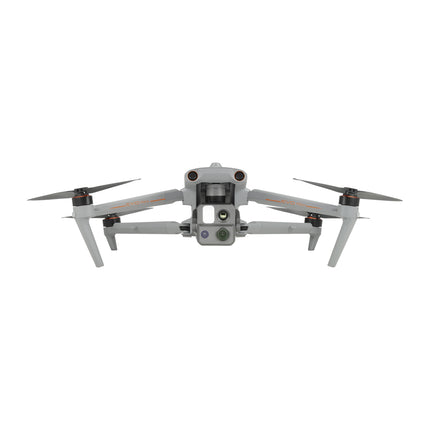

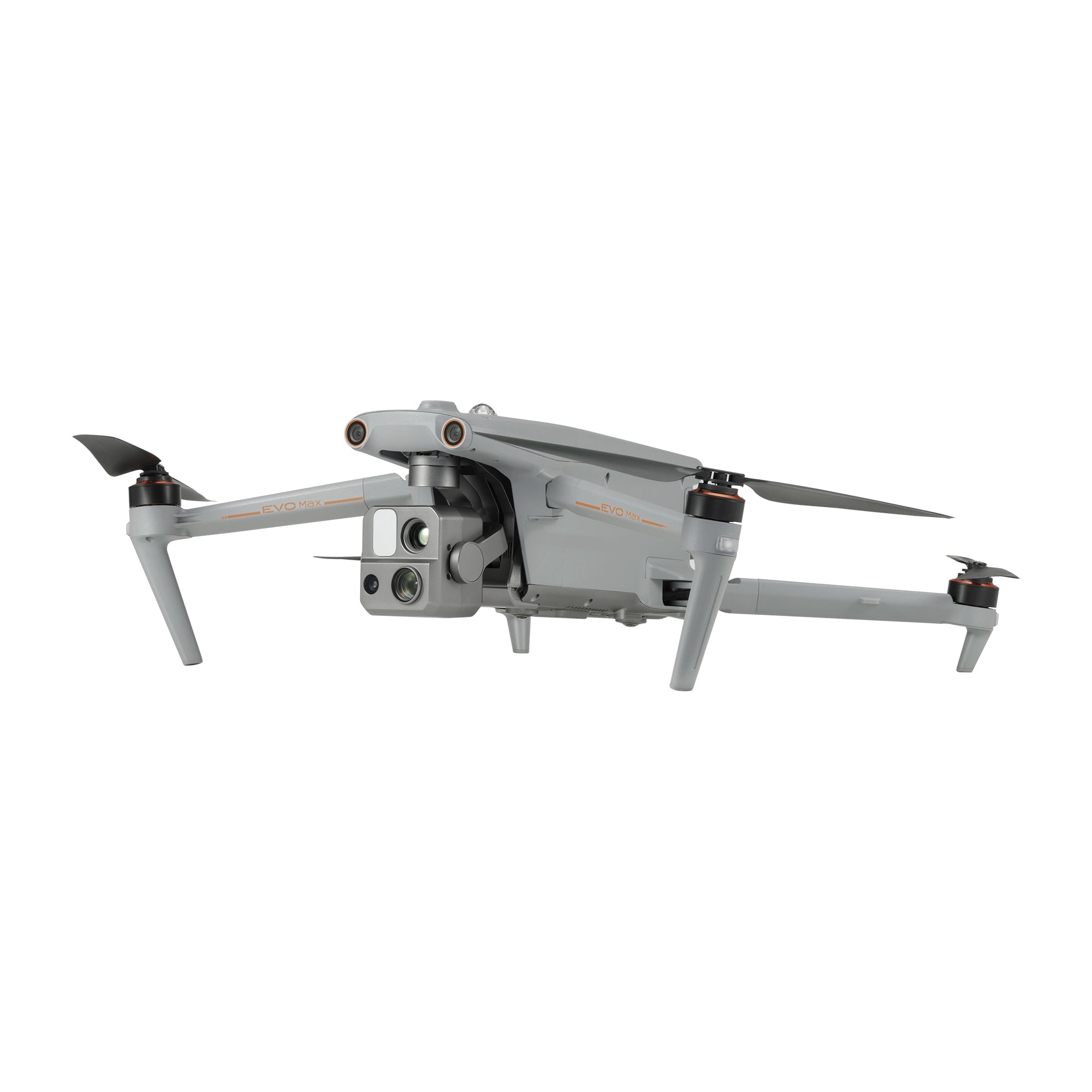

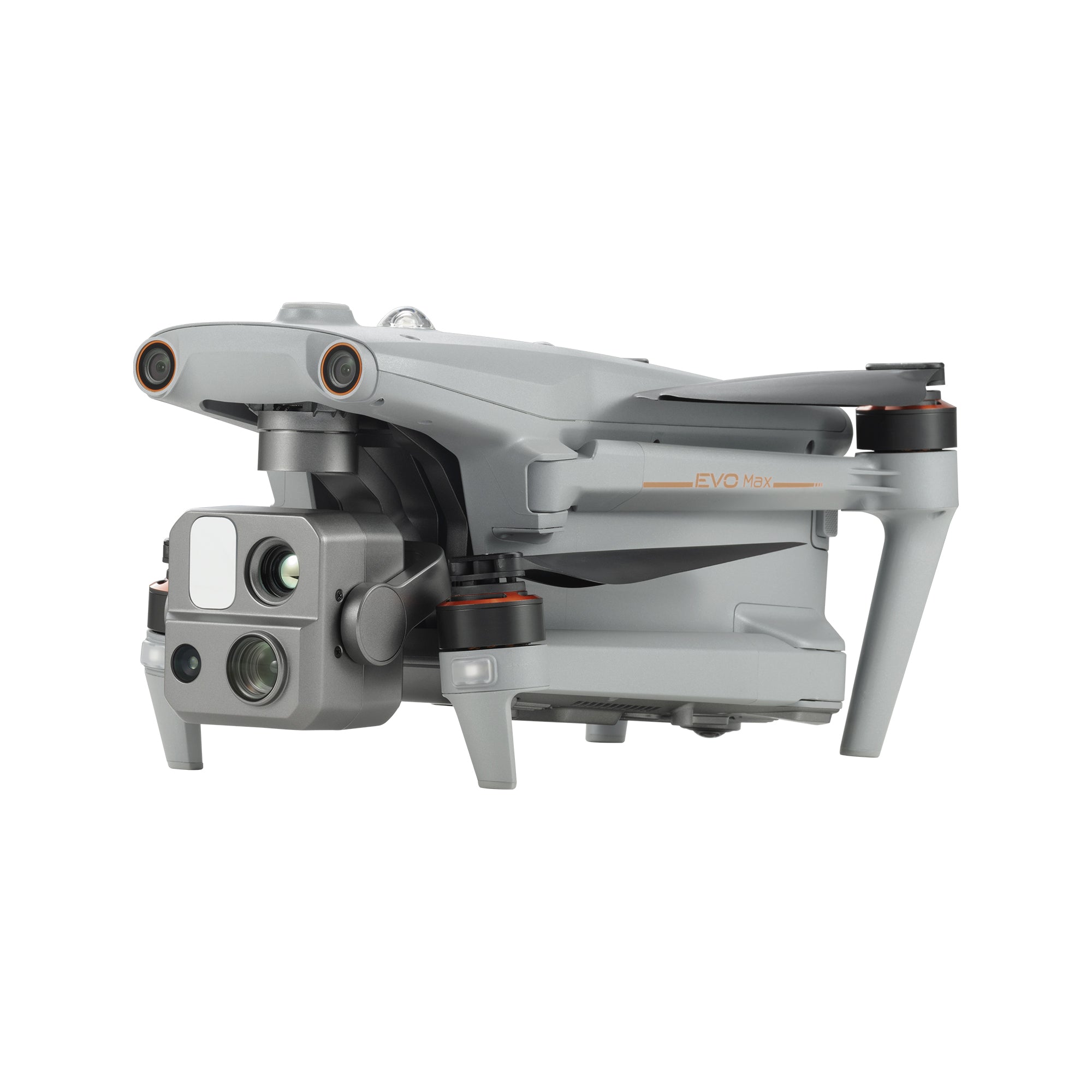

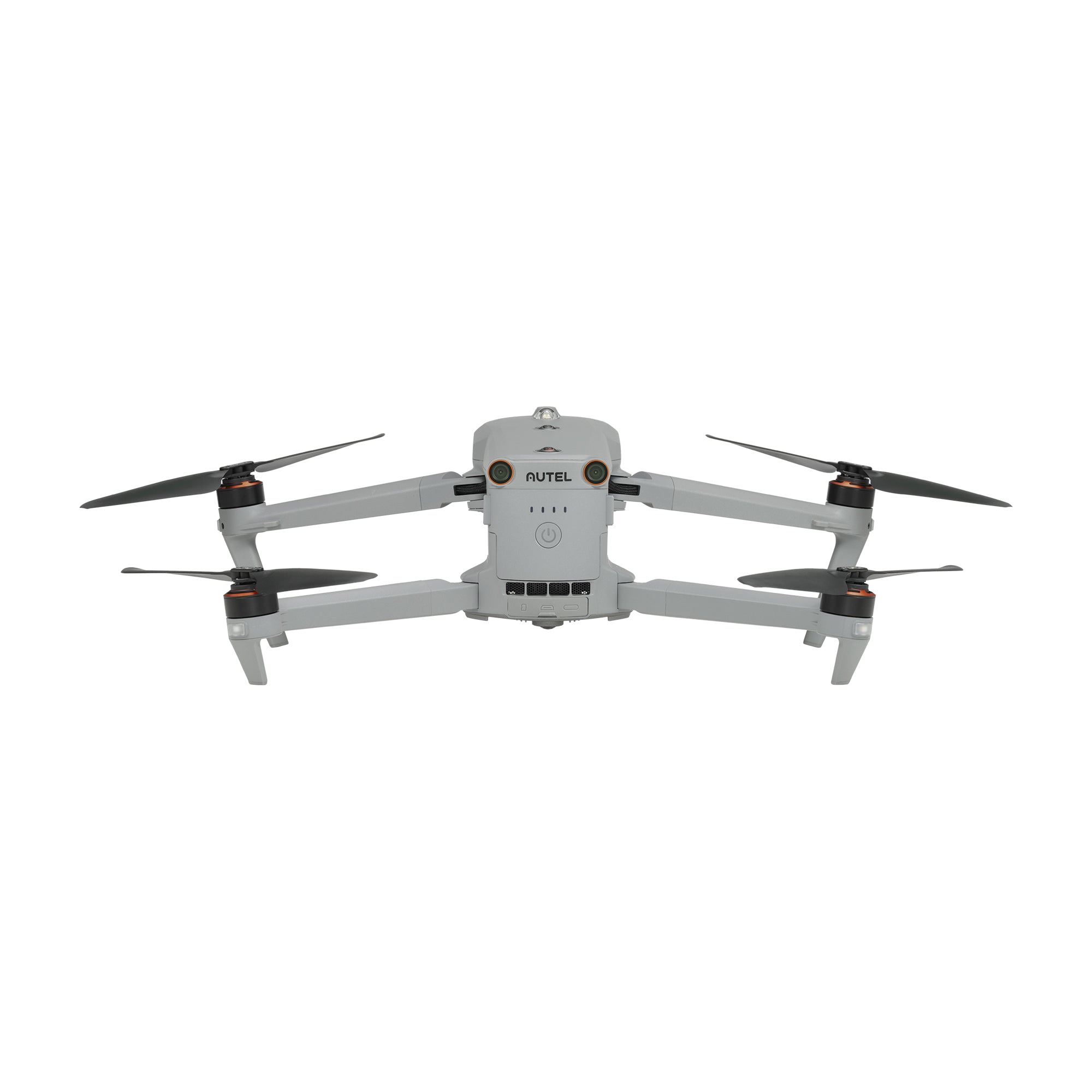

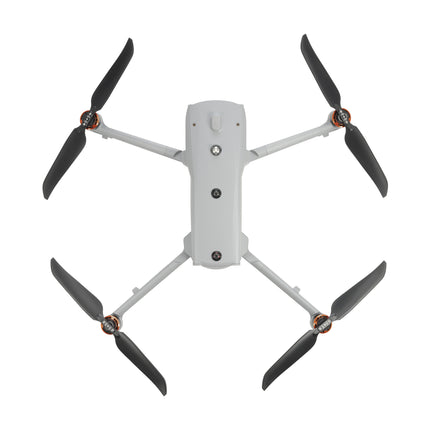

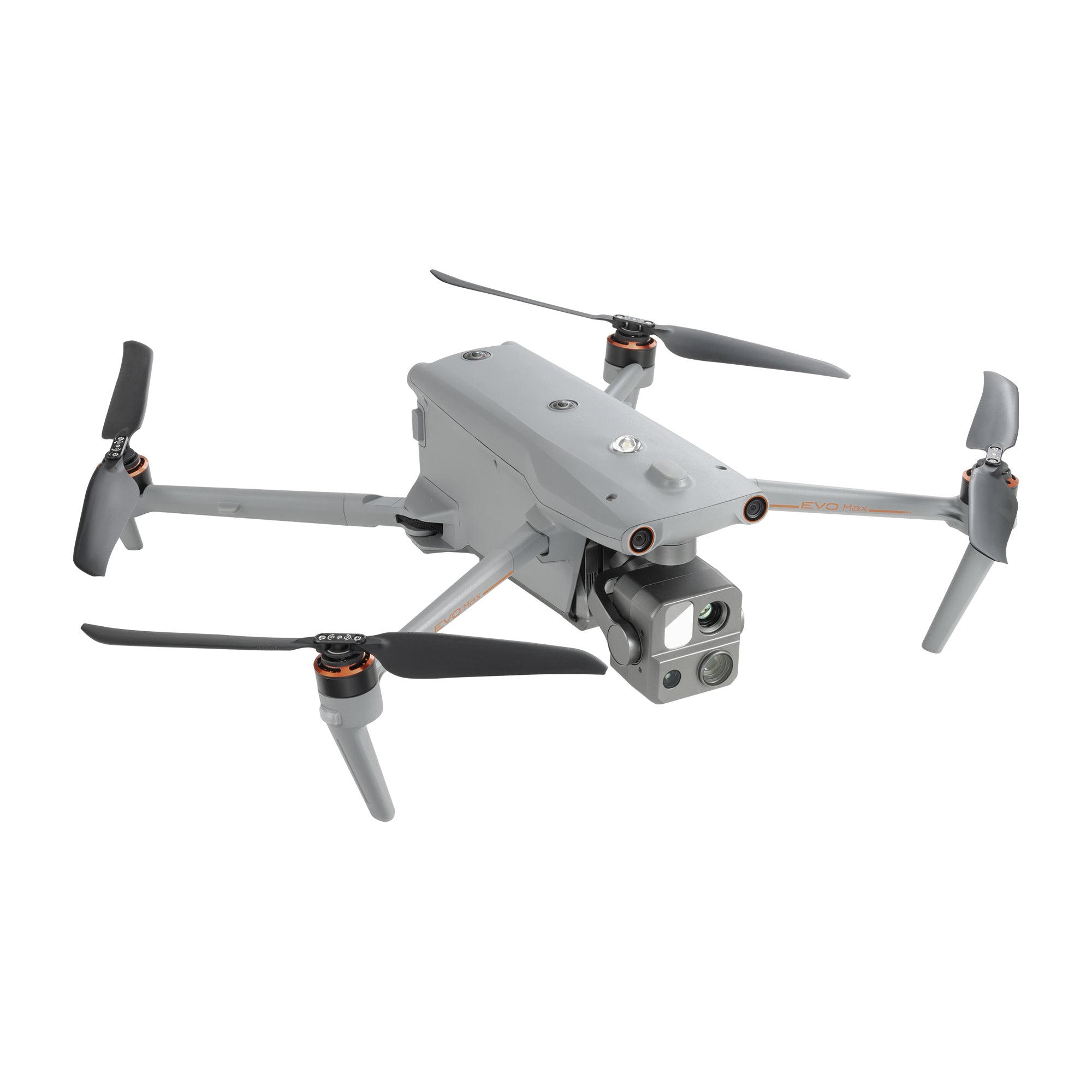

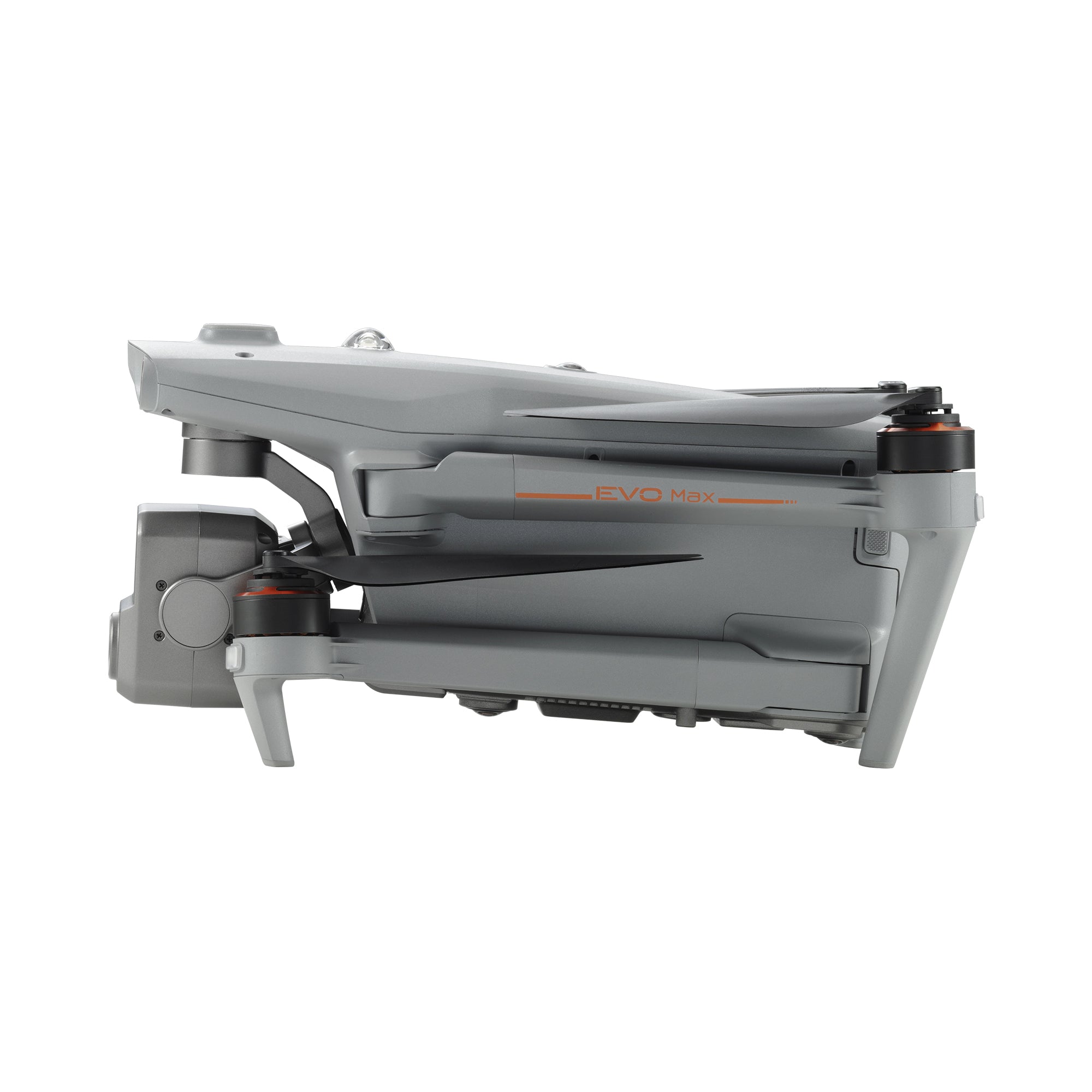

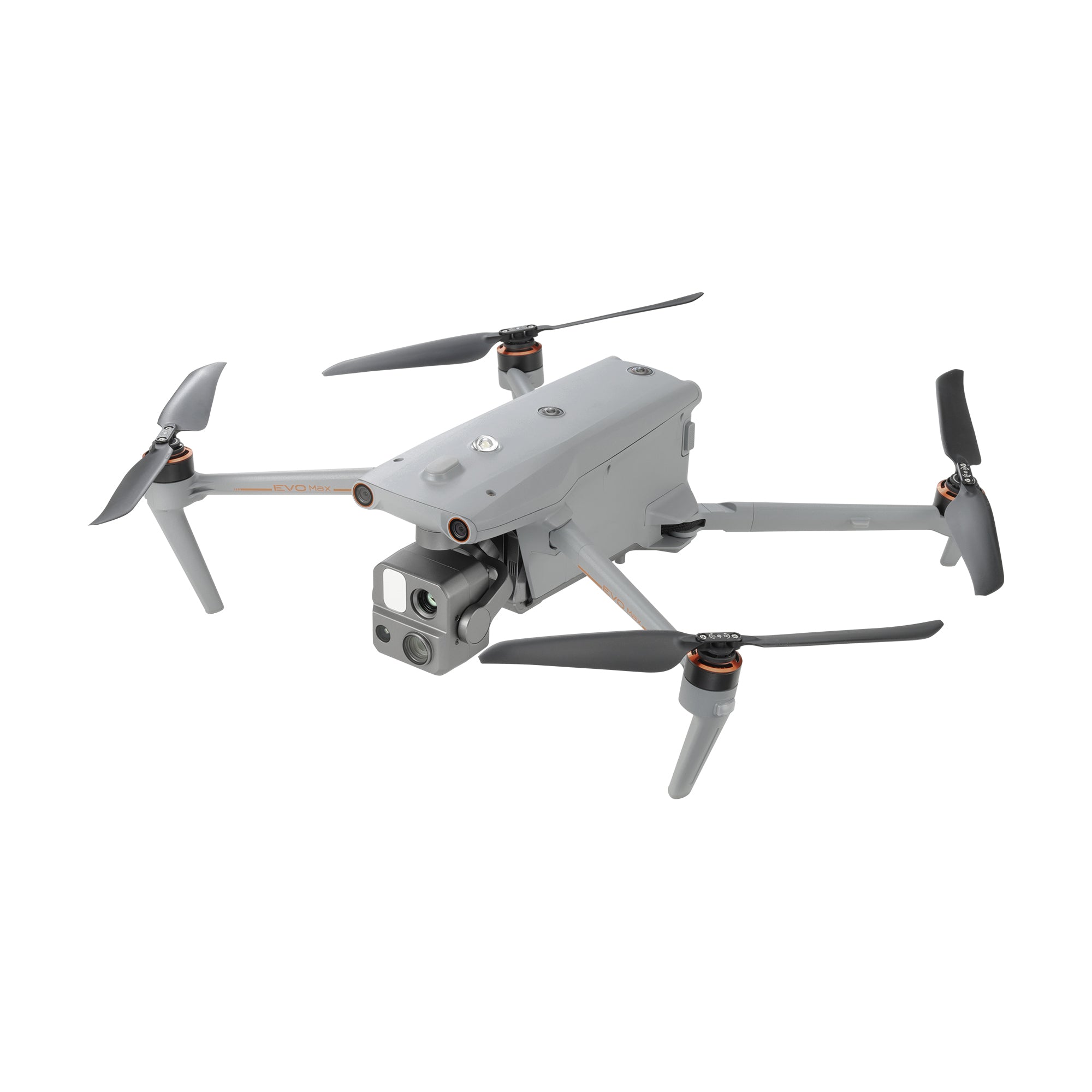

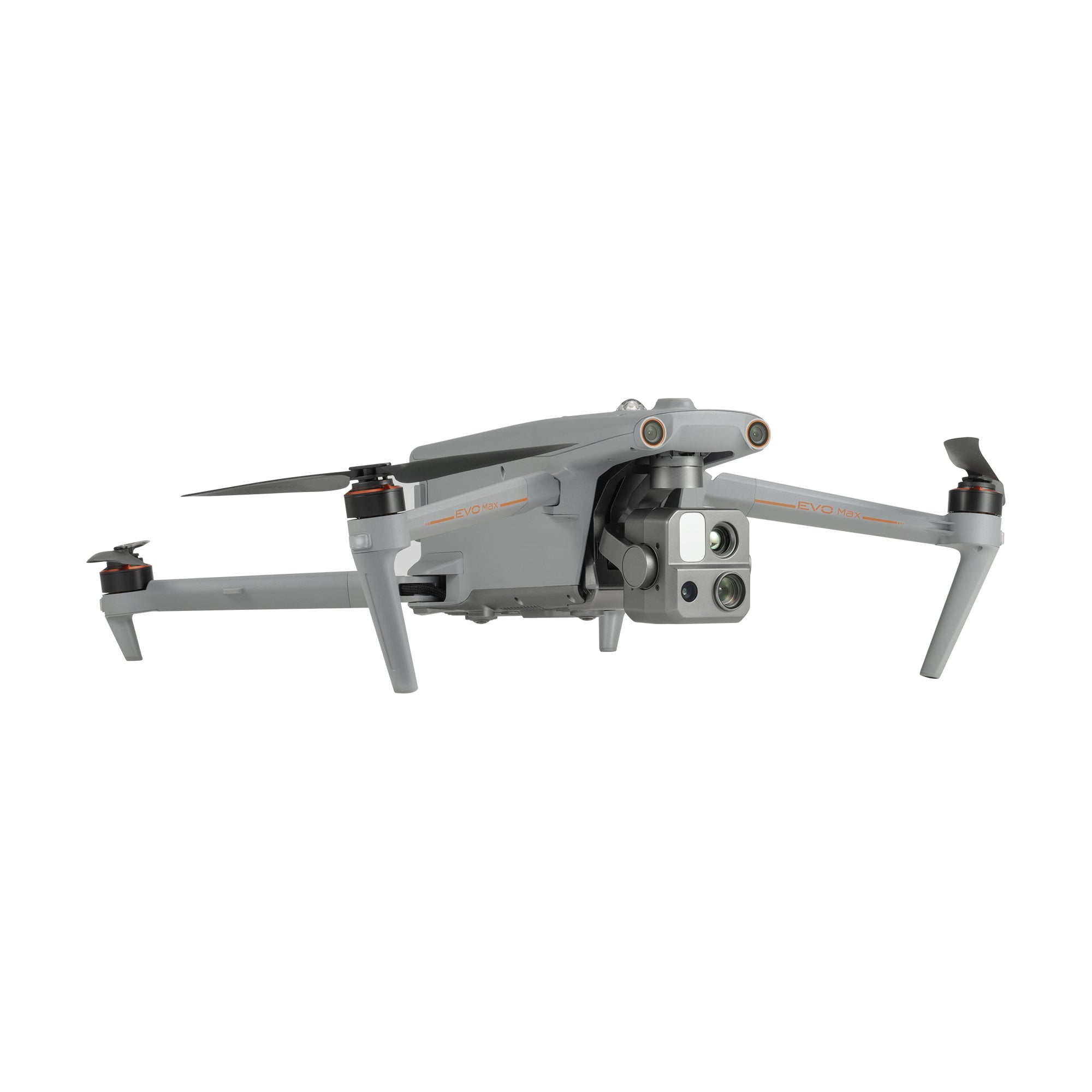

Autel EVO Max 4T - A Leader of Drone Intelligence
The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
Navigation
In GPS Denied Environments
12.4 miles
Transmission Range
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
No Blind SpotsUltimate Obstacle AvoidanceEVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
The EVO Max 4T with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
Max. Flight Time
Service Ceiling
Image Transmission Range
Max. Wind Resistance
Hot-Swappable Battery
Autel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
8070 mAh
Capacity
14.88V
Voltage
LiPo 4S
Battery Type
120wh
Energy
520g
Net Weight
Support
Hot Swap
Autel Autonomy
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Binocular Vision System
Millimeter Wave Radar
A-Mesh 1.0
The Drone Industry's First Mesh Networking Technology
EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
Image Transmission Distance
Latency
Real-Time Image Quality
900MHz/2.4GHz/5.2GHz/5.8GHz**
Frequency Bands
This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

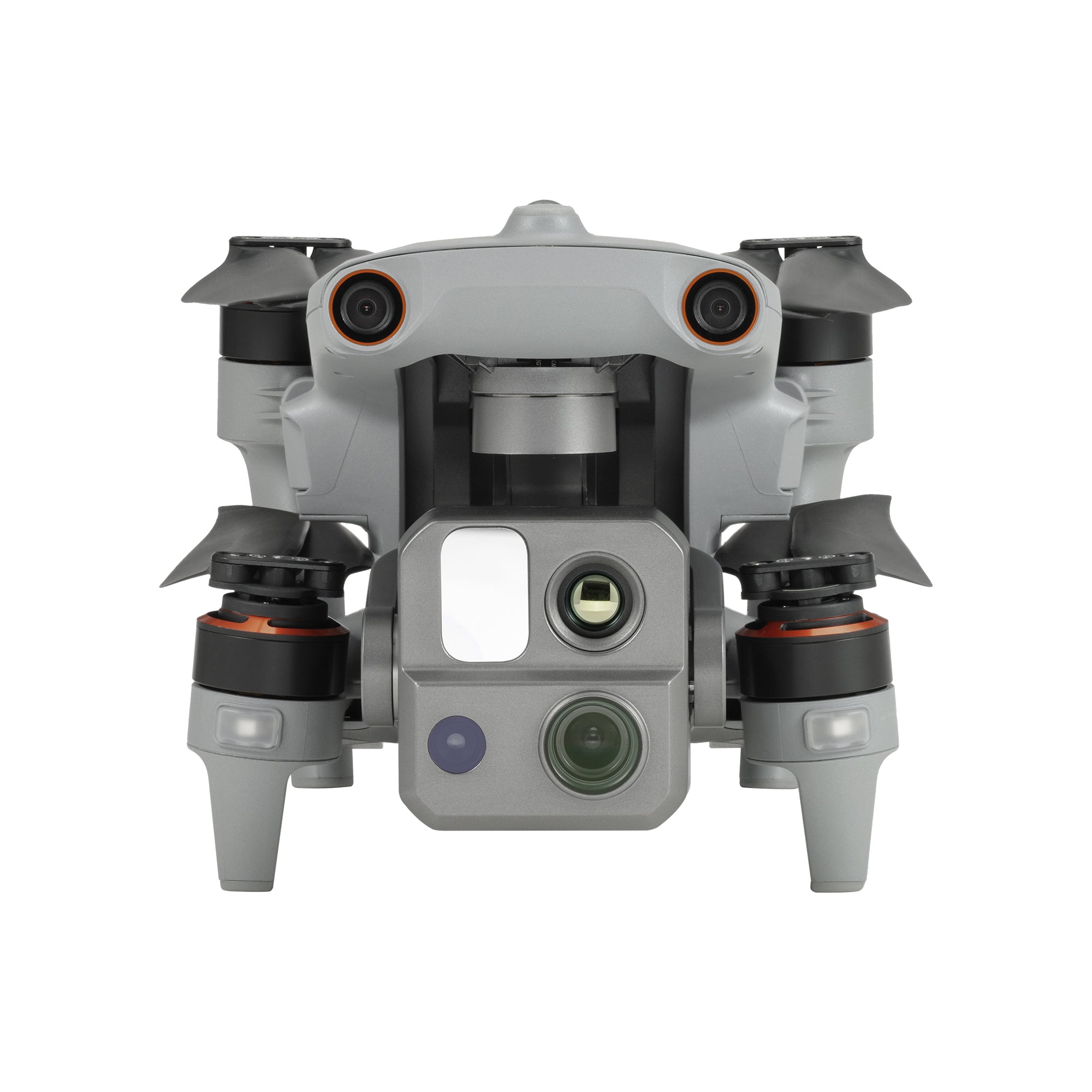

Mission Ready Payload
The payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.
Laser RangefinderMeasuring Range:
Measurement Accuracy:
Wide Camera50MP1/1.28" CMOSAperture: f/1.9DFVO: 85°Equivalent: 23 mm
Zoom Camera
48MP
8K 10x Optical Zoom
160x Max. Hybrid Zoom
Aperture: f/2.8-f/4.8
Thermal Camera
640x512
Aperture: 13mm
16x Digital Zoom
Temperature Measurement
Range: -20°C to 550°C
Chase the Heat and Explore the NightStarlight Camera(4N*)Super Zoom*SupersensitivityStrong Infrared PerceptionAccurate RangingStarlight camera only exists in EVO MAX 4N, use this new camera to explore the night of locking and tracking targets.Autel Enterprise App PlatformThe Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features
Plan, create, and execute 3D waypoint mission plan on a 3D map.
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
Supports helical flight search in a designated area for SAR.
Perform vertical surveys for building facades, open pit walls, and towers.
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.
Supports one-click automatic generation of polygon flight areas.
Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Supports one-click automatic generation of a rectangular flight area.
Data Security
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
Accessories
Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Aircraft
| Weight |
3.5 lbs (1600g, battery and gimbal included) |
| Dimensions |
576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers) |
| Diagonal Wheelbase |
1.52 ft (464mm) |
| Max Ascent Speed |
8m/s |
| Max Descent Speed |
6m/s |
| Max Horizontal Speed (windless near sea level) |
22m/s |
| Max Service Ceiling Above Sea Level |
23000ft (7000m) |
| Max Flight Time (windless) |
42 mins |
| Max Hovering Time (windless) |
40 mins |
| Max Wind Resistance |
27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
|
| IP Rating |
IP43 |
| Max Tilt Angle |
35° |
| Max Angular Velocity |
Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature |
-4°F to 122°F (-20℃ - 50℃) |
| Operating Frequency |
2.4G/5.2G*/5.8G/900MHz* |
| Transmitter Power (EIRP) |
2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC) |
| Hovering Accuracy |
Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); |
Gimbal
| Mechanical Range |
Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100° |
| Controllable Range |
-90° to 45° |
| Stable system |
3-axis mechanical gimbal (pitch, tilt, roll) |
| Max Control Speed (pitch) |
200º/s |
| Angular Vibration Range |
<0.005° |
Zoom Camera (Telephoto)
| Sensor |
1/2" CMOS, Effective pixels: 48M |
| Lens |
Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 |
| Exposure Compensation |
±3EV 0.3EV/step |
| ISO Range |
Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400 |
| Shutter Speed |
Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max Photo Size |
8000×6000 |
| Max Video Resolution |
7680×4320 |
Wide Camera
| Sensor |
1/1.28 CMOS, Effective pixels: 50M |
| Lens |
DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation |
±3EV 0.3EV/step |
| ISO Range |
Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Shutter Speed |
Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max. Video Resolution |
3840×2160 |
| Photo Size |
8192*6144 4096*3072 |
Thermal Camera
| Thermal Imager |
Uncooled VOx Microbolometer |
| Lens |
DFOV: 64°
Aperture: 13mm
Focus: f/1.2 |
Infrared Temperature Measurement
Accuracy |
26.6~37.4 ℉ or reading ±3% (using
the larger value) @ambient
temperature -4℉ to 140℉ |
| Video Resolution |
640*512 |
| Photo Size |
640*512 |
| Pixel Pitch |
12 um |
| Temperature Measurement Method |
Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range |
-4℉ to 302℉, 32℉ to 1022℉ (-20°C to
150°C, 0 to 550°C) |
| Temperature Alert |
High and low temperature alarm thresholds, reporting coordinates and temperaturevalues |
Laser Range Finder
| Measurement Accuracy |
±1m |
| Measuring Range |
1.2km |
Image Transmission
| Operating Frequency |
2.4G/5.2G*/5.8G/900MHz* |
| Max Transmission Distance (unobstructed, free of interference) |
20km |
| Independent Networking |
7.9-inch Smart Controller |
| Transmitter Power (EIRP) |
2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC) |
Autonomy
| Non-GPS Hovering and Manual Flight |
Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home |
Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting |
High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m |
| Multi-target Recognition and Tracking |
Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
Millimeter-wave Radar
| Frequency |
60Ghz~64Ghz |
| Size |
38*14*2mm |
| Weight |
2g |
| EIRP |
18dbm |
| Distance Detection Range |
For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m |
| Ranging Accuracy |
For Obstacle Avoidance：0.1m For Height Measurement：0.02m |
| Speed Measurement Range |
± 60m/s（4D Mode）；±28m/s（3D Mode）； |
| Speed Measurement Accuracy |
≤1% |
| Max. Tracking Target Number |
32 |
Visual Sensing System
| Obstacle Sensing Range |
Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV |
Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
7.9-inch smart controller
| Screen |
7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery |
Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time |
3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) |
FCC: 20km CE: 7km |
| Storage |
128G |
| GNSS |
GPS+GLONASS+Galileo+Beidou |
| Operating Temperature |
-20℃ to 40℃ |
| Protocol |
WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency |
2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) |
2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
Aircraft Battery
|
Capacity
|
8070mAh |
| Voltage |
14.88V |
| Battery Type |
LiPo 4S |
| Energy |
120wh |
| Net Weight |
520g |
| Charging Temperature |
5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap |
Support |

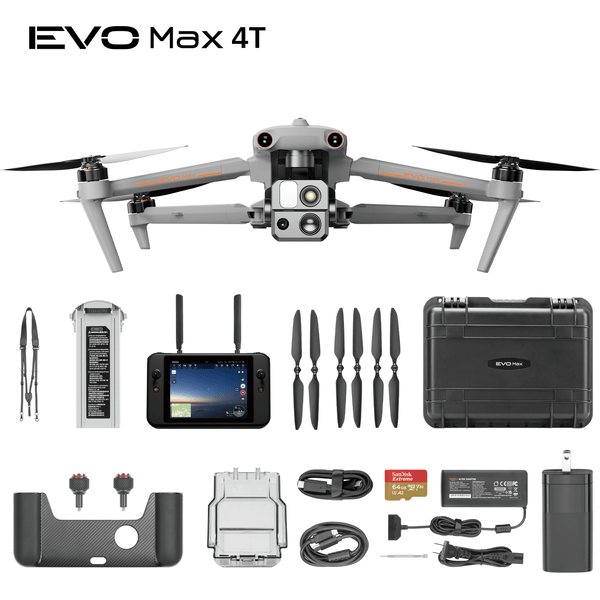

Autel EVO Max 4T Package List
