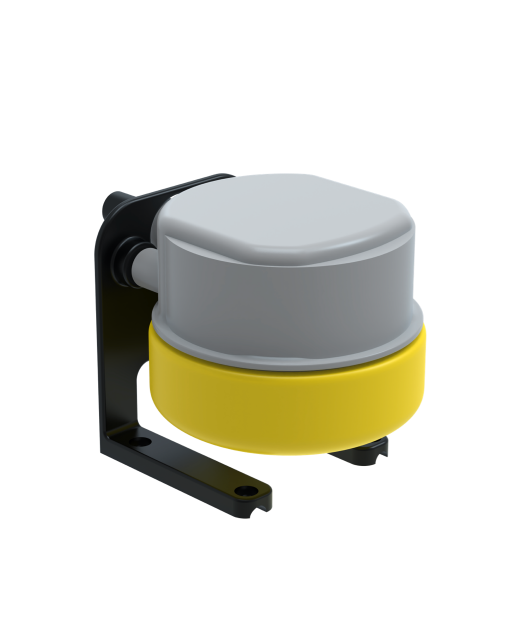

CHASING Distance Lock Sonar

CHASING Distance Lock Sonar is specially designed for CHASING M2 and CHASIGN M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.

Product Description

CHASING Distance Lock Sonar

Lock the Distance in Four Directions Separately

The sonar can automatically calculate the distance between it and the obstacles in the front, left, right, and bottom of the ROV. After setting the distance to the obstacles on the App, ROV can perform automatic lock-distance inspection and automatic collision avoidance.

Efficient Automatic Inspection

In the lock-distance mode, the ROV can automatically inspect from top to bottom around the fishing nets or any column-shaped facilities, thereby reducing the difficulty of underwater operations and making various inspections more accurate and efficient.

Specifications

ApplicationUnderwater collision avoidance and Underwater fixed range
Range0.25m - 5m
Blind SpotLess than 20 cm
Measurement Accuracy±25mm
Resolution1 mm
Launch Angle13° ± 2°, 26° between axis-1 and axis-2
Power Supply 10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage)
Storage Temperature -20 ℃ - 60 ℃ (non-frozen environment)
Probe InstallationFixed installation
Protection LevelIP68
Sonar Installation Base (default)64 × 64.8 × 79mm
Sonar Installation Base (optional)64 × 64.8 × 153mm
Sonar Installation Base Weight (default)54g
Sonar Installation Base Weight (optional)108g
Maximum Diving Depth150 m
Size of Distance Lock SonarUpper cover: 81.3 × 30mm, Housing: 79.3 × 55.9mm
Weight of Distance Lock Sonar286 ± 5 g
CommunicationTTL communication
