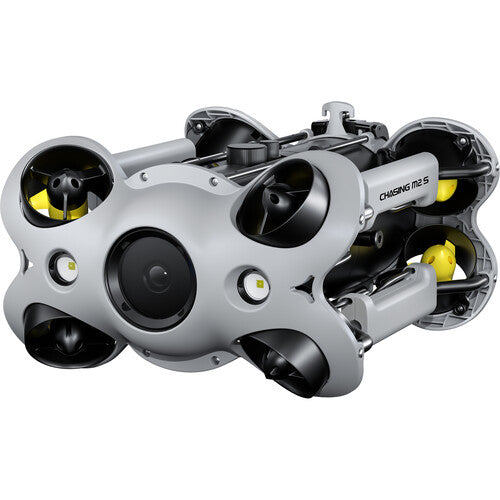

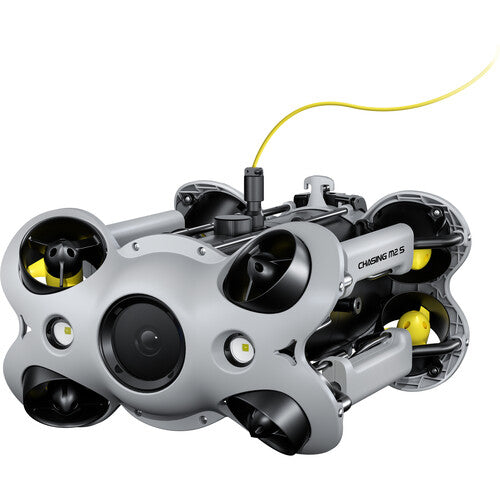

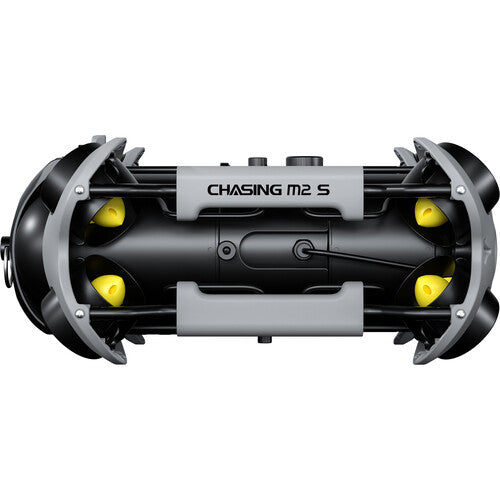

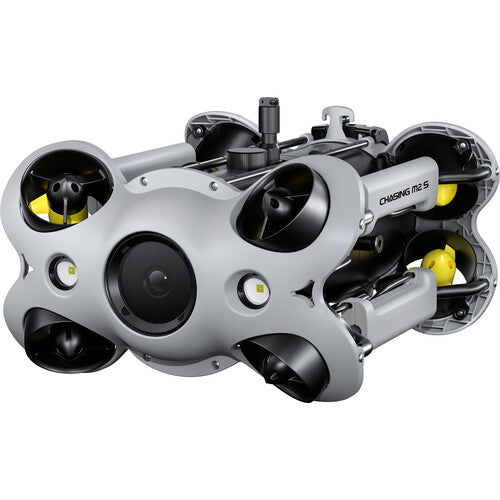

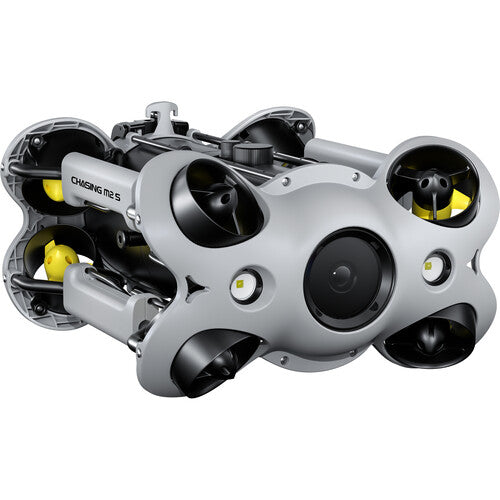

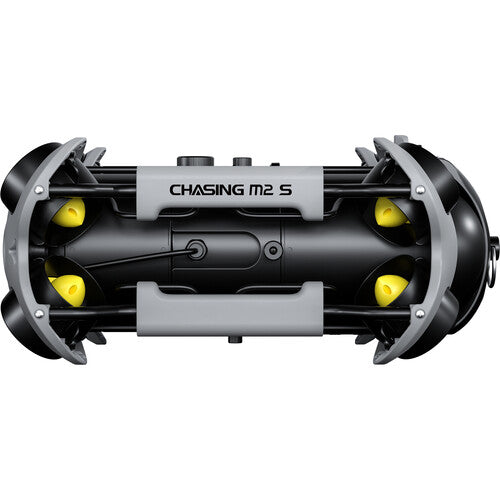

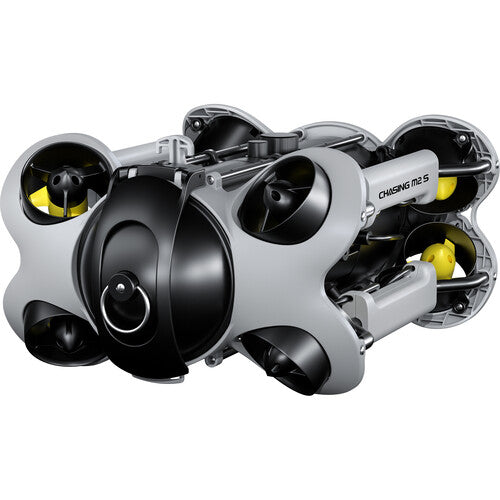

CHASING M2 S Lite

    Description

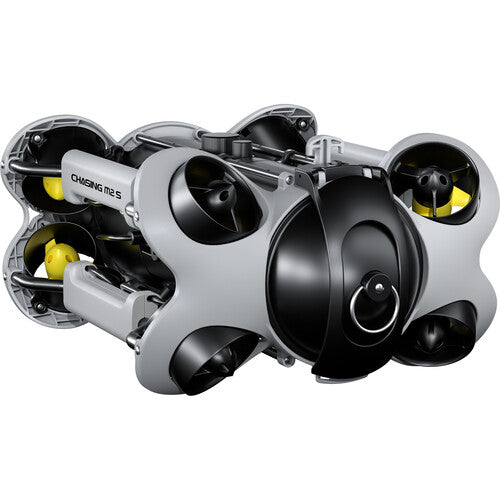

    Industrial-Grade Underwater ROV

    • Flexible

    • Stable

    • Endless exploration

    CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.

    C-Sense Control System, Flexible and Stable

    • NeptuneX intelligent flight control system

    • 8 vectored-thrusters and Butterfly wing outline

    • Apex anti-stuck C-Motor 3.0

    • Flagship airtight structure

    • NeptuneX Intelligent Flight Control System

      The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.



    • NeptuneX Intelligent Flight Control System

      The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.

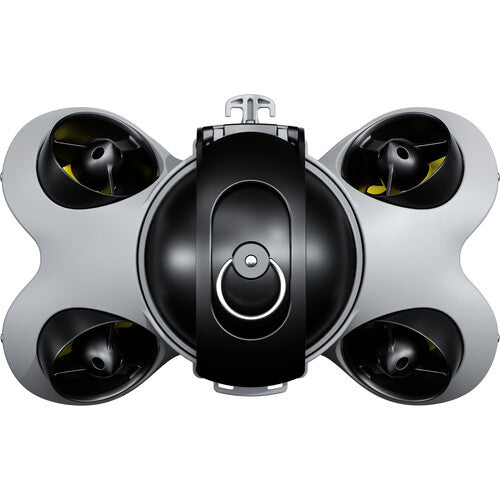

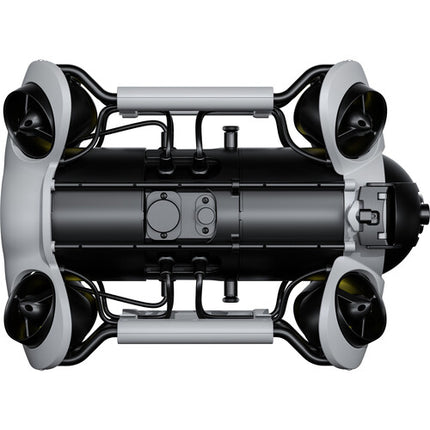

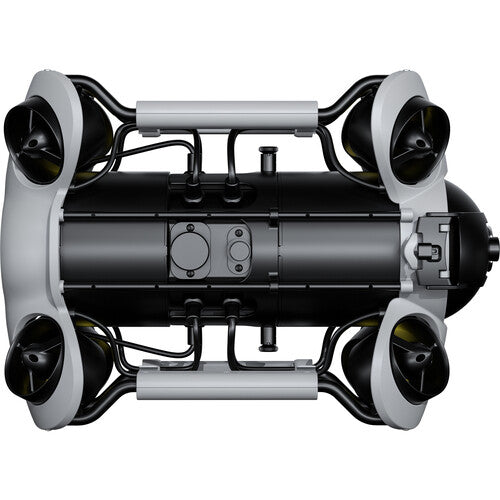

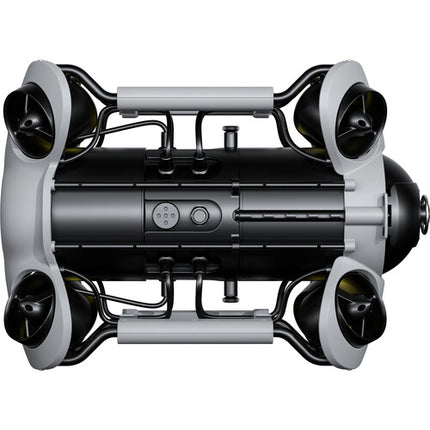

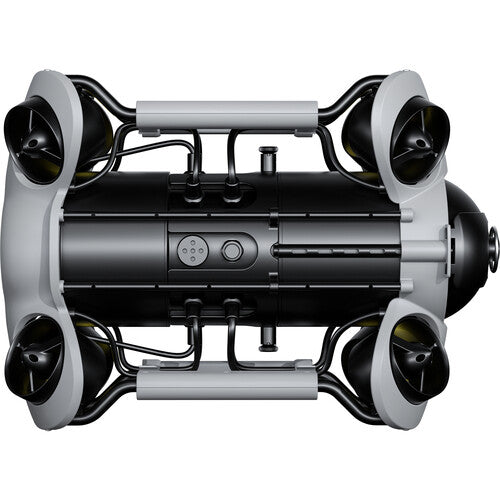

    • 8 Vectored-Thrusters and Butterfly Wing Outline

      CHASING M2 S remains the symmetrical vector layout of the eight thrusters and the streamlined design of the butterfly wing outline at front and rear to protect the propellers. It supports 360-degree omnidirectional movement that has high posture response speed and great stability.

      Apex Anti-stuck C-Motor 3.0

      The third-generation Apex Anti-stuck C-Motor 3.0 used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.

      • Flagship Airtight Structure

        Fully innovate the waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations.

      C-Sense Control System, Flexible and Stable

      • Multiple accessories

      • Swappable battery

      • A wide working range

      • Portable and convenient

      • All scenarios application

      Multiple Accessories

      Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.

      Swappable Battery

      CHASING M2 S has a default 97.68Wh battery that can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optinal to meet the needs of long-time operation.

      A Wide Working Range

      CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance.

      • 400m

        Maximum movement radius

      • 200m

        Movement radius

      • 100m

        Maximum depth to dive

      Portable and Convenient

      CHASING M2 S is portable and has a compact body. Single-person operation and quick deployment brings an effective operating experience under a variety of scenarios.

      HD Visual Image Transmission System

      • 4K EIS Image Stabilization Camera

      • Upgraded CHASING Aquavision image algorithm

      • User friendly interaction

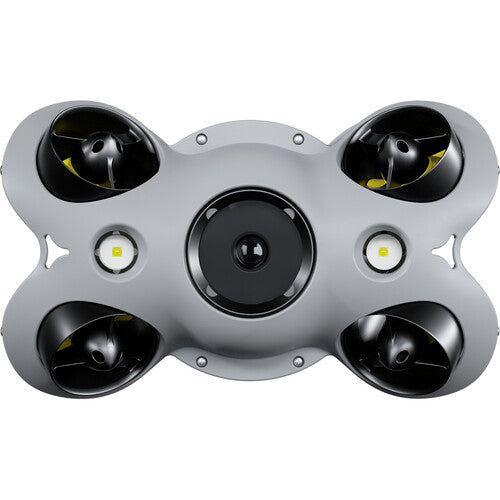

      4K EIS Image Stabilization Camera and 4000lm LED Lights

      CHASING M2 S has 4K EIS image stabilization camera and two 2000lm LED lights, which can clearly capture every detail underwater.

      • 4K Video
      • 12 Megapixel
      • 1/2.3 SONY CMOS
      • F2.8 Aperture
      • EIS Image Stabilization
      • 4000lm LED lights

      Upgraded CHASING Aquavision Image Algorithm

      The color restoration algorithm design based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade image transparency, clarity, color layering, and noise.




      CHASING M2 S Specs

      Camera
      Image Sensor
      12 MP CMOS
      Resolution
      Video Capture: 4K
      Streaming: 60 Mb/s Video Resolution: 3840 x 2160 (4K), 30 fps; 1920 x 1080 (1080p), 30/60/120 fps
      Lens
      Aperture: f/2.8
      Angle of View: 150°
      Lights
      2 x 2000-Lumen LEDs
      Color Temperature: 5000-5500 k
      Memory
      64 GB
      ROV
      Depth Rating
      328' / 100 m
      Connectivity
      328' / 100 m Tether
      Battery Capacity
      ROV: 97.68 Wh

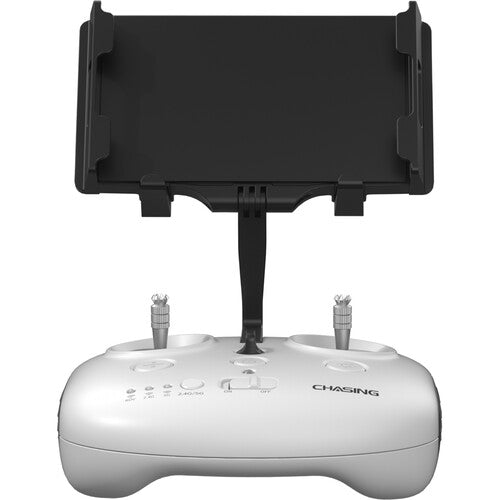

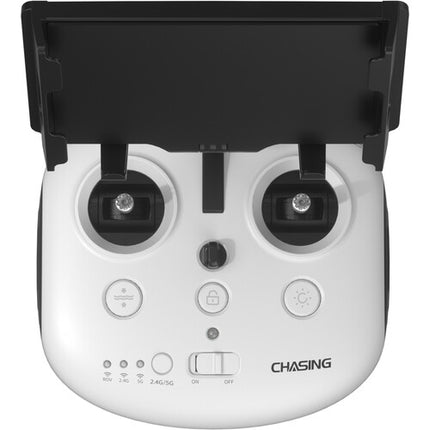

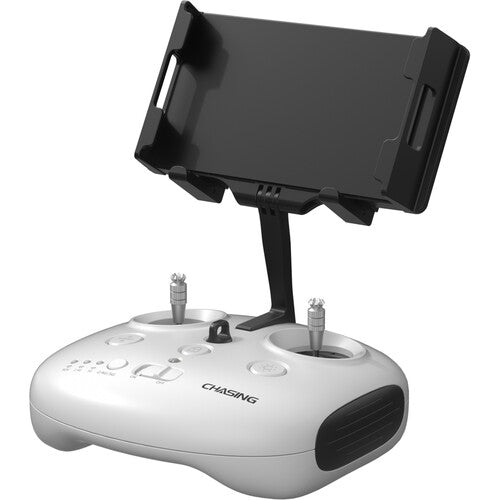

      Remote Controller: 2500 mAh
      Operating Temperature
      14 to 113° / -10 to 45°C
      Dimensions
      ROV: 14.9 x 10.5 x 6.5" / 38.0 x 26.7 x 16.5 cm

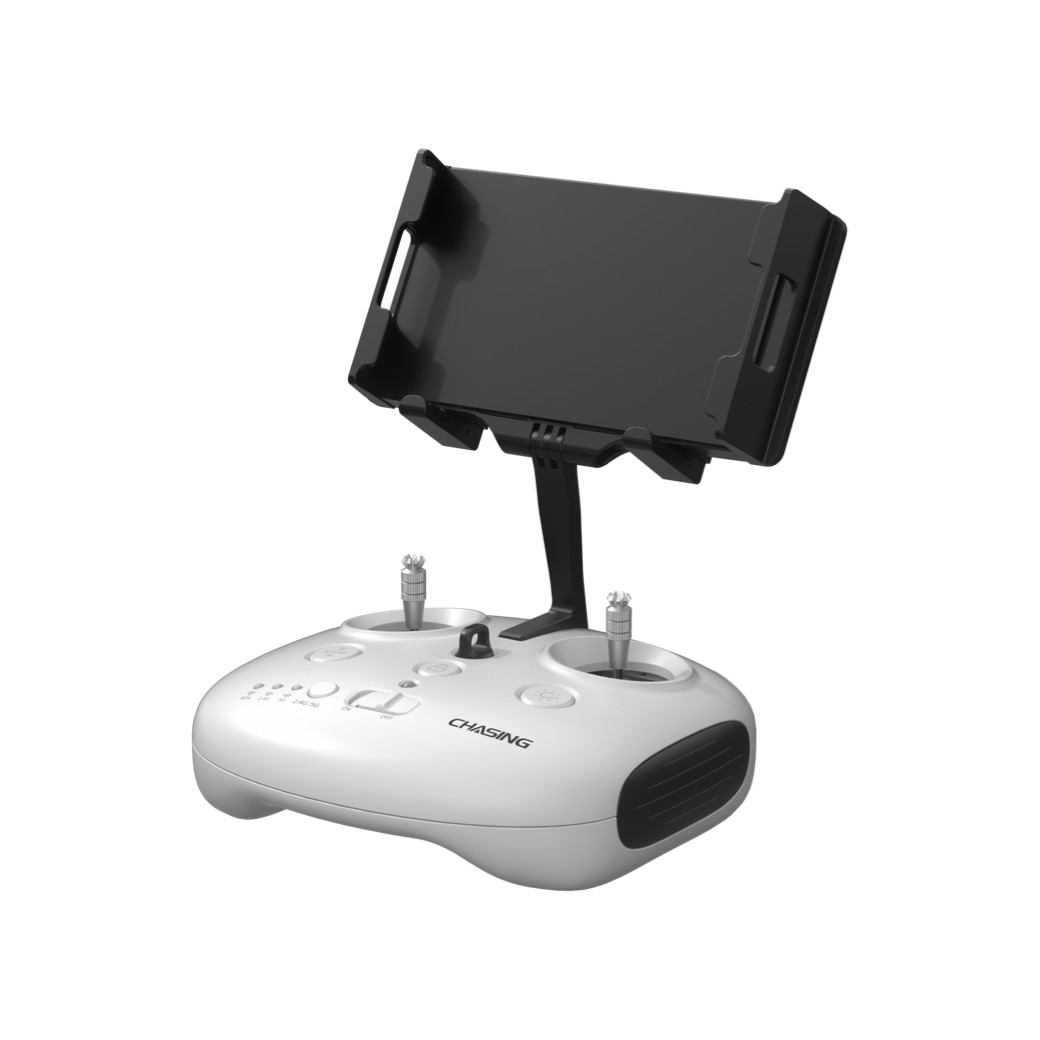

      Remote Controller: 6.3 x 6.1 x 4.9" / 16.0 x 15.5 x 12.5 cm
      Weight
      ROV: 9.9 lb / 4.5 kg
      Remote Controller: 1.5 lb / 685 g
      Packaging Info
      Package Weight
      32.685 lb
      Box Dimensions (LxWxH)
      22.7 x 19.2 x 18.7"

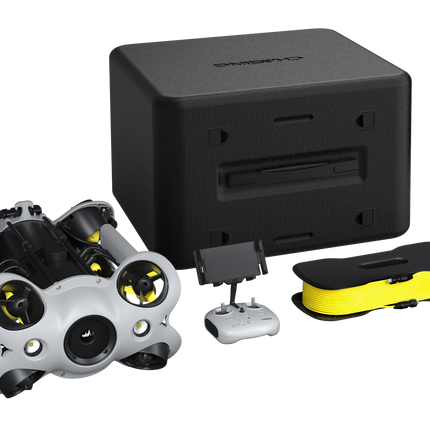

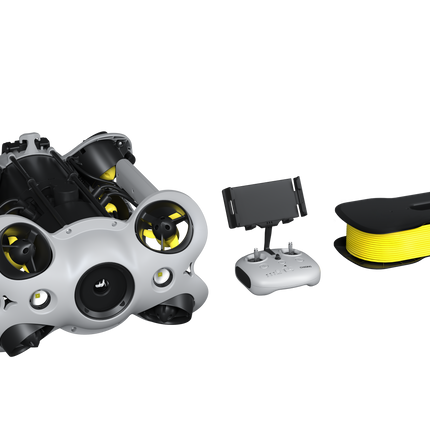

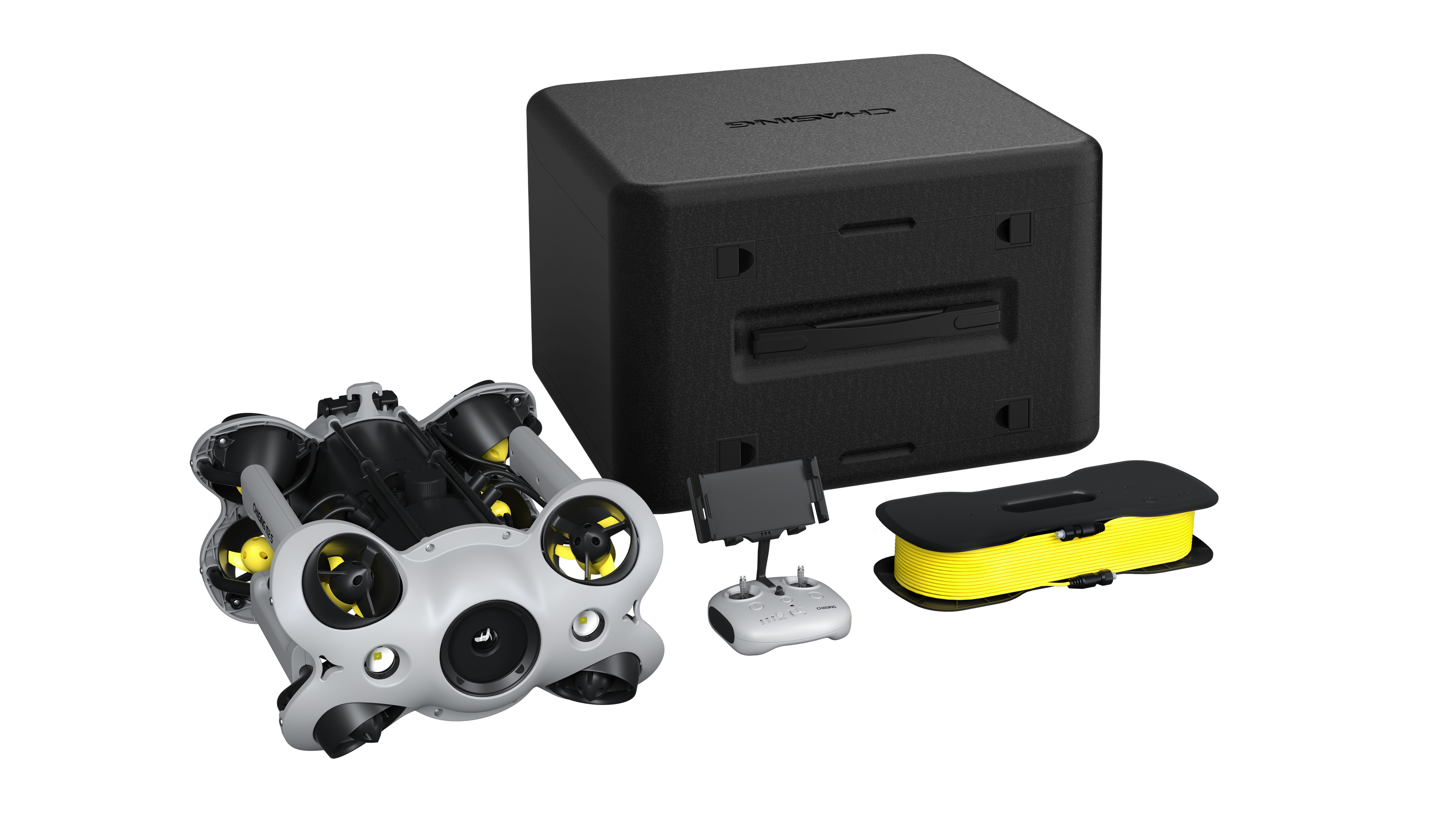

      In the Box

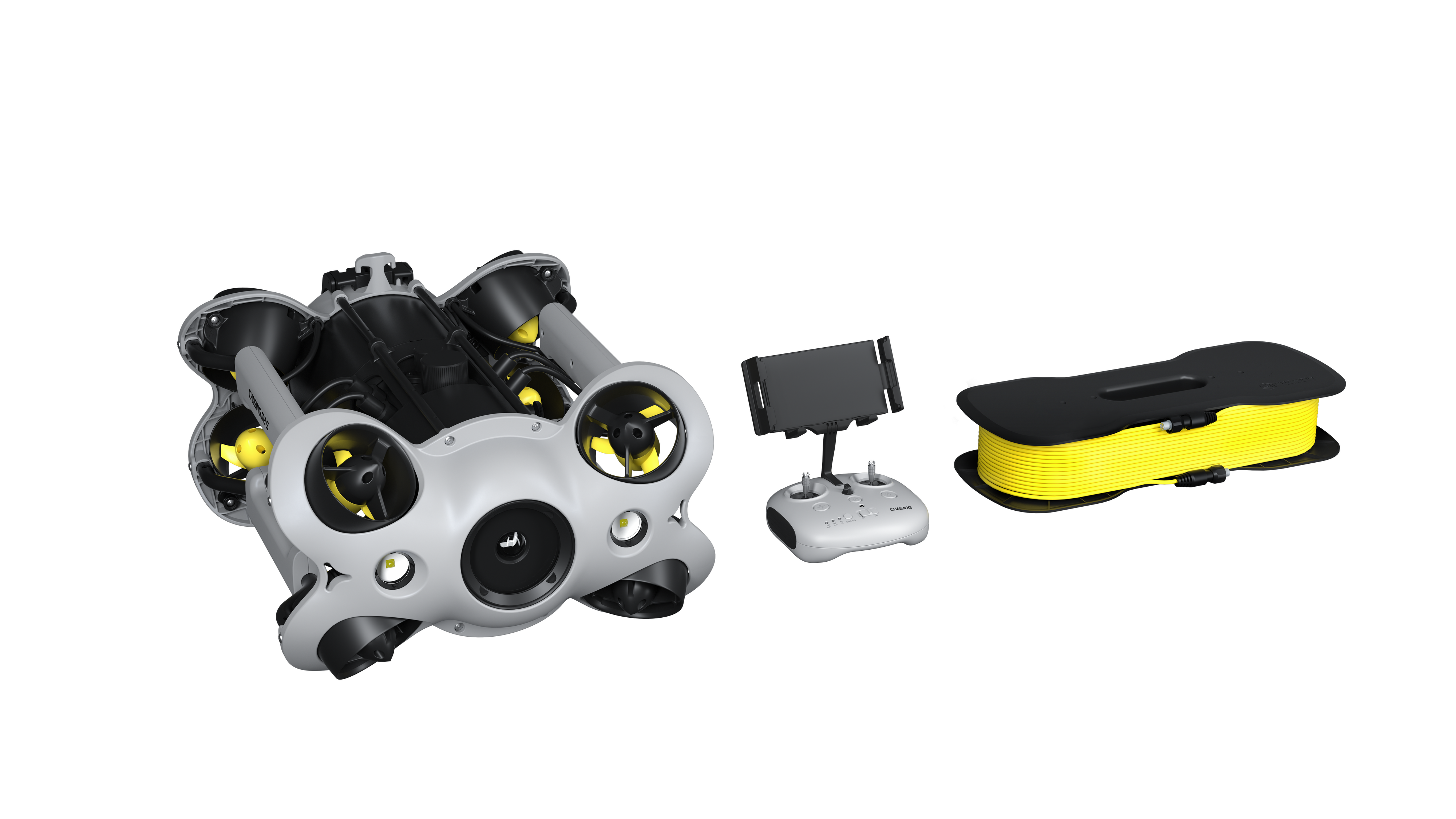

      M2 S ROV VEHICLE *1

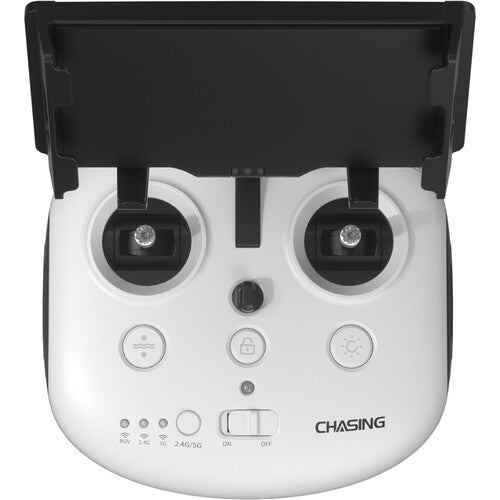

      M2 S REMOTE CONTROL *1
      Spare M2 S LEFT THRUSTER *1
      Spare M2 S RIGHT THRUSTER *1
      M2 UNIVERSAL CHARGER *1
      ADAPTER CABLE (NZ) *1
      EPP CASE *1
      M2 CHARGING ADAPTER CABLE *1
      TOWEL *1
      GOPRO MOUNT *1
      ROV MAINTENANCE MANUAL (GENERAL EDITION) *1
      RC3 CONTROLLER USER MANUAL (GENERAL EDITION) *1
      WARRANTY CARD *1

    Product form

    Industrial-Grade Underwater ROV Flexible Stable Endless exploration CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight... Read more

    Free pickup in our shop(s)

    • Free Shipping on orders over $300

    SKU: C-M2S-LITE

    Out of stock

    $4,399.00
