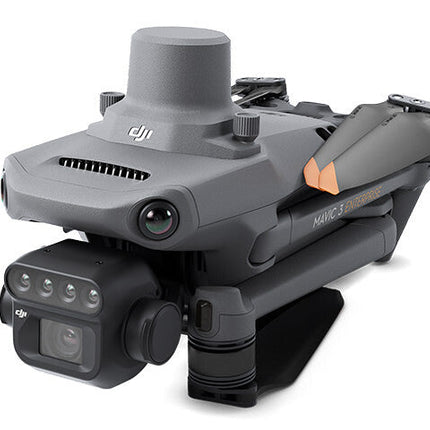

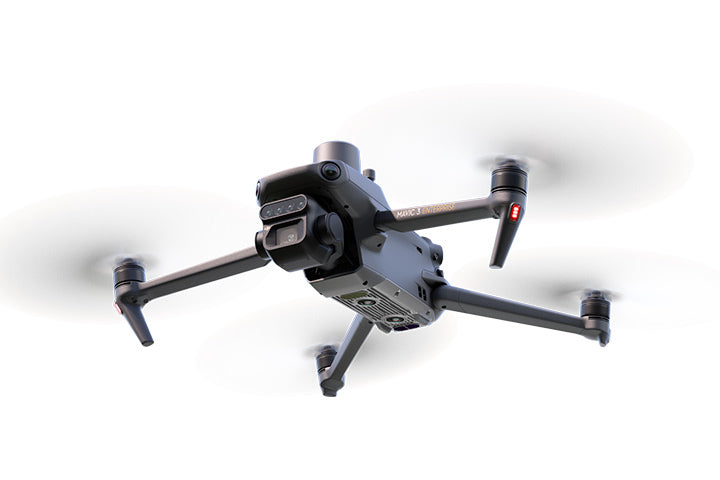

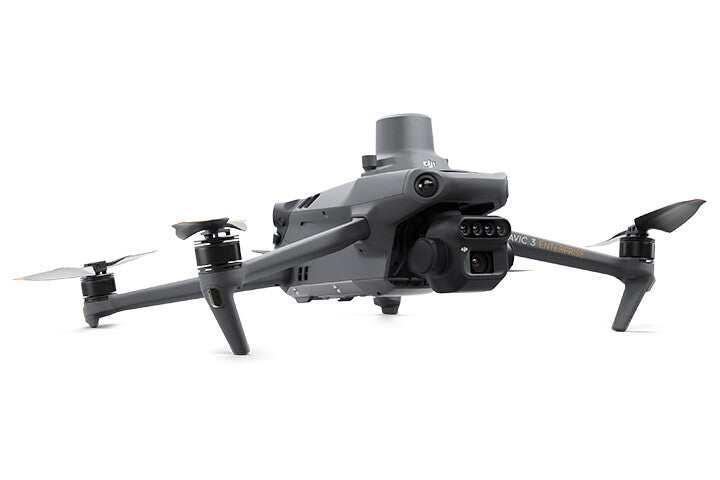

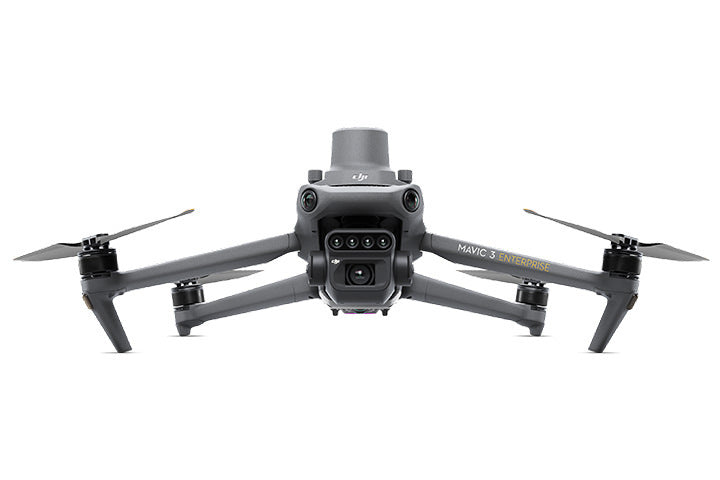

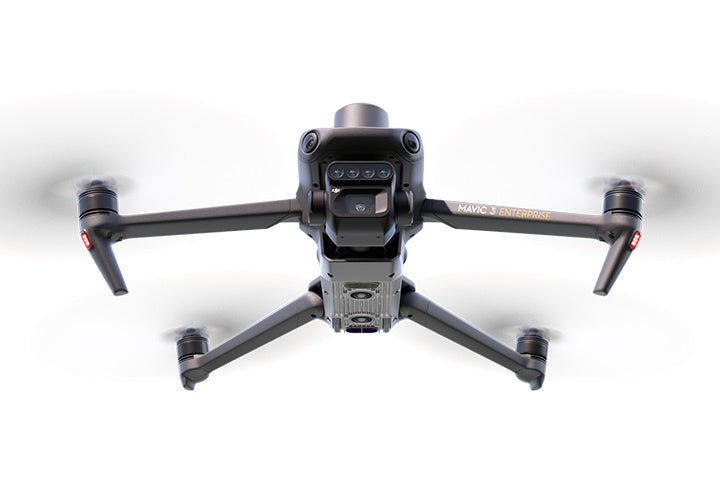

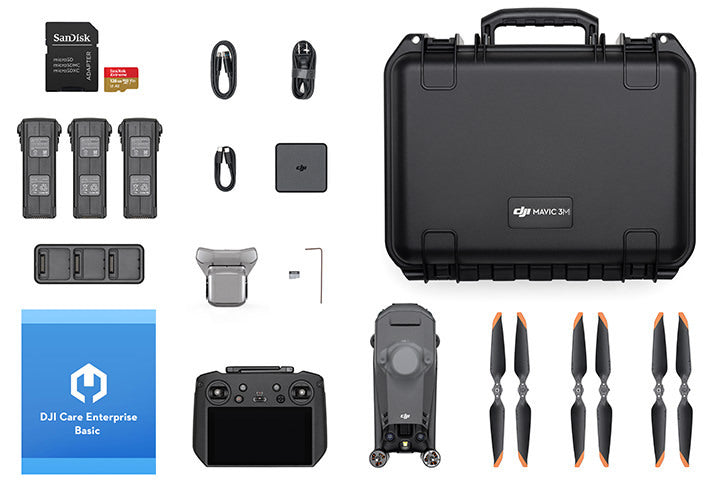

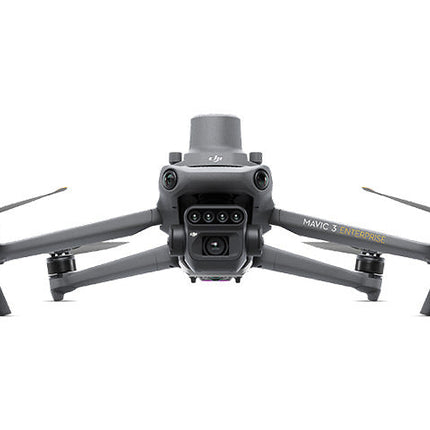

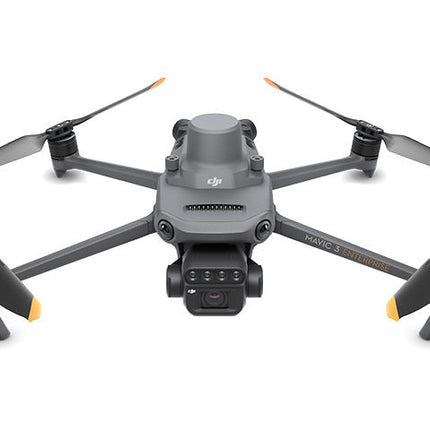

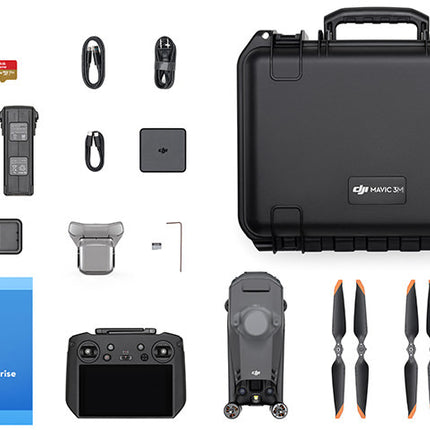

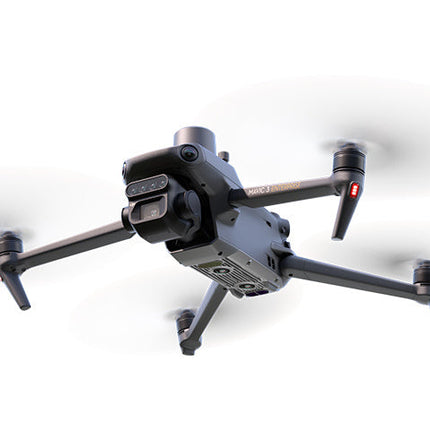

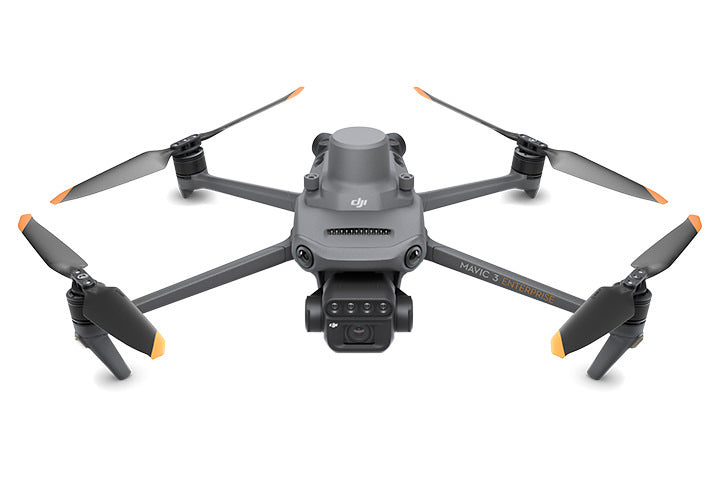

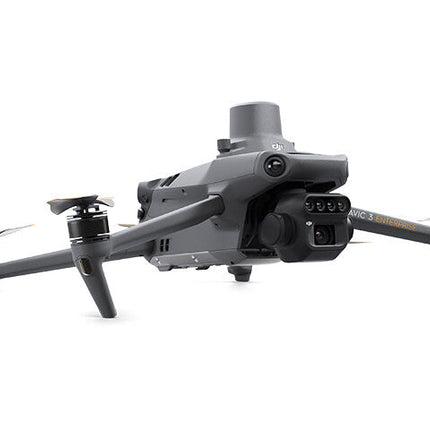

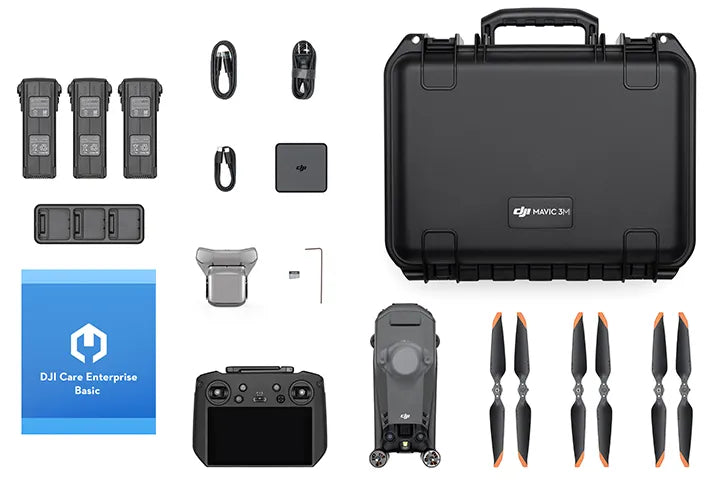

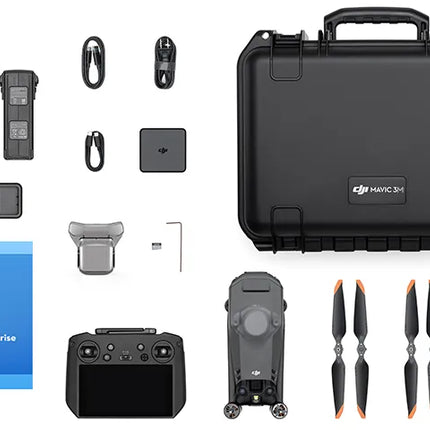

DJI Mavic 3 Multispectral Combo

    Description

    FEATURES
    NEW STANDARD FOR PORTABLE MULTISPECTRAL DRONES
    The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.
    It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.
    The Mavic 3M includes an RTK module that achieves centimetre-level positioning.
    The Mavic 3 Multispectral is a highly-portable drone: It's foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.


    MAVIC 3M CAMERAS

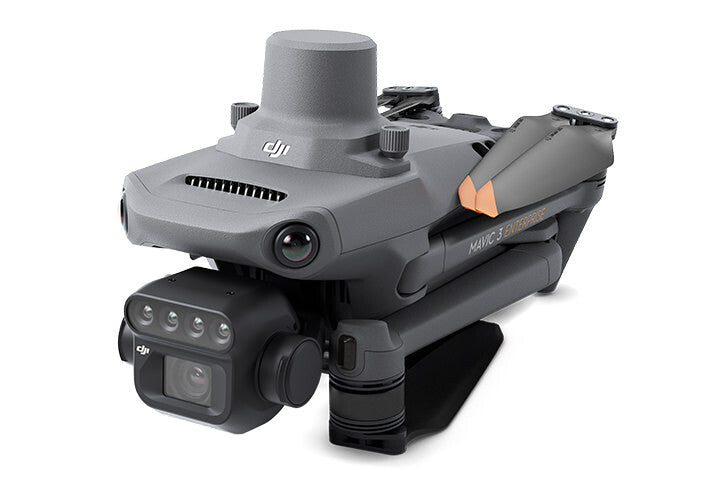

    The DJI Mavic 3M has a newly-upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras. This enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.
    It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.

    MULTISPECTRAL CAMERAS
    The Mavic 3M has four 5MP multispectral cameras. Infact, the Mavic 3M is the world’s smallest 4-band multispectral drone camera.
    Its built-in camera array combines Green, Red, Red Edge, and Near Infrared sensors.
    • Near Infrared: 860 nm ± 26 nm
    • Red: 650 nm ± 16 nm
    • Red Edge: 730 nm ± 16 nm
    • Green: 560nm ± 16 nm
    These sensors support the NDVI, GNDVI, and NDRE vegetation indexes to provide farmers with vital information.
    • NDVI: Makes it possible to detect plants under stress, differentiate between crops, and determine at which stage they are in their growing cycle.
    • NDRE: Provides insights on chlorophyll content in leaves.
    • GNDVI: Useful for estimating photosynthetic activity, as well as water and nitrogen content in the plant canopy.

    RGB CAMERA
    Beyond its multispectral capabilities, the Mavic 3M has a visual camera to empower agriculture and mapping workflows.
    It features:
    • 20MP wide camera; 4/3 CMOS
    • Mechanical shutter (1/2000s fastest mechanical shutter speed)
    • 0.7 second interval shooting - high-speed burst when RGB camera is used
    • Large pixel size: 3.3μm pixels
    • Improved low-light software
    With these key features, the Mavic 3M is engineered for rapid aerial surveys and data quality.
    These camera specs, together with the drone’s 43 minute maximum flight time, mean that the Mavic 3M can capture data across up to 2 square kilometers in a single flight.

    SUNLIGHT SENSOR
    The Mavic 3M has a built-in sunlight sensor that captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction.
    This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.


    RTK MODULE INCLUDED
    The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and - crucially - without the need for Ground Control Points.
    The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre.


    ENHANCED SAFETY FEATURES
    The Mavic 3M has an advanced suite of safety features.
    Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and - when using Avoid mode - reroute your flight path accordingly.
    Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.
    AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.
    O3 Transmission: The Mavic 3M comes with DJI’s O3 transmission technology. It sets the standard for video and control stability and provides a reliable link between pilot and aircraft. The Mavic 3M has a transmission range of 8km (CE).
    The Mavic 3M comes with Enterprise Shield cover (Basic, 1 year).


    SMART TERRAIN FOLLOW
    The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.
    By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.
    For situations when you weren't able to import a DSM or local elevation data pre-flight, the Mavic 3M's collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.

    INTELLIGENT FIELD SCOUTING
    The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.
    It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.
    It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.


    MAVIC 3E CUSTOMISATION
    Build a solution tailored to your needs with Cloud API and MSDK.
    Cloud API
    The Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2's built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.
    MSDK
    The Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.


    FULL SOFTWARE SUITE
    The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.
    SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.
    Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.
    The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.
    *Please note that the DJI Smart Agricultural Platform will be supported in Q2 of 2023.

    PRODUCT SPECIFICATIONS
    AIRCRAFT
    NET WEIGHT (WITH PROPELLERS AND RTK MODULE) [1]
    951 g
    MAX TAKEOFF WEIGHT
    1,050 g
    DIMENSIONS (FOLDED/UNFOLDED)
    Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
    Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
    DIAGONAL LENGTH
    Diagonal: 380.1 mm
    MAX ASCENT SPEED
    6 m/s (Normal Mode)
    8 m/s (Sport Mode)
    MAX DESCENT SPEED
    6 m/s (Normal Mode)
    6 m/s (Sport Mode)
    MAX FLIGHT SPEED (AT SEA LEVEL, NO WIND)
    15 m/s (Normal Mode)
    Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) [2]
    MAX WIND SPEED RESISTANCE
    12 m/s [3]
    MAX TAKE-OFF ALTITUDE ABOVE SEA LEVEL
    6000 m (without a payload)
    MAX FLIGHT TIME (WITHOUT WIND)
    43 minutes [4]
    MAX HOVER TIME (WITHOUT WIND)
    37 minutes [4]
    MAX FLIGHT DISTANCE
    32 km [6]
    MAX TILT ANGLE
    30° (Normal Mode)
    35° (Sport Mode)
    MAX ANGULAR VELOCITY
    200°/s
    GNSS
    GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
    HOVERING ACCURACY RANGE
    Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
    Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
    OPERATING TEMPERATURE
    -10° to 40° C (14° to 104° F)
    INTERNAL STORAGE
    N/A
    MOTOR MODEL NUMBER
    2008
    PROPELLER MODEL NUMBER
    9453F Enterprise Edition
    LIGHT SENSOR
    Built-in module

    RGB CAMERA
    IMAGE SENSOR
    4/3 CMOS
    Effective Pixels: 20 MP
    LENS
    FOV: 84°
    Equivalent focal length: 24 mm
    Aperture: f/2.8 to f/11
    Focus: 1 m to ∞
    ISO RANGE
    100-6400
    SHUTTER SPEED
    Electronic shutter: 8-1/8000 s
    Mechanical shutter: 8-1/2000 s
    MAX IMAGE SIZE
    5280×3956
    PHOTO SHOOTING MODE
    Single shot: 20 MP
    Timelapse: 20 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    JPEG + RAW: 3/5/7/10/15/20/30/60 s
    Panorama: 20 MP (original material)
    VIDEO RESOLUTION
    H.264:
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps
    MAX VIDEO BITRATE
    4K: 130Mbps
    FHD: 70Mbps
    SUPPORTED FILE SYSTEM
    exFAT
    IMAGE FORMAT
    JPEG/DNG (RAW)
    VIDEO FORMAT
    MP4 (MPEG-4 AVC/H.264)

    MULTISPECTRAL CAMERA
    IMAGE SENSOR
    1/2.8-inch CMOS, effective pixels: 5 MP
    LENS
    FOV: 73.91° (61.2° x 48.10°)
    Equivalent focal length: 25 mm
    Aperture: f/2.0
    Focus: Fixed Focus
    MULTISPECTRAL CAMERA BAND
    Green (G): 560 ± 16 nm;
    Red (R): 650 ± 16 nm;
    Red Edge (RE): 730 ± 16 nm;
    Near infrared (NIR): 860 ± 26 nm;
    GAIN RANGE
    1x-32x
    SHUTTER SPEED
    Electronic Shutter: 1/30~1/12800 s
    MAX IMAGE SIZE
    2592×1944
    IMAGE FORMAT
    TIFF
    VIDEO FORMAT
    MP4 (MPEG-4 AVC/H.264)
    PHOTO SHOOTING MODE
    Single shot: 5 MP
    Timelapse: 5 MP
    TIFF: 2/3/5/7/10/15/20/30/60 s
    VIDEO RESOLUTION
    H.264
    FHD: 1920 x 1080@30fps
    Video content: NDVI/GNDVI/NDRE
    MAX VIDEO BITRATE
    Stream: 60 Mbps

    GIMBAL
    STABILIZATION SYSTEM
    3-axis mechanical gimbal (tilt, roll, pan)
    MECHANICAL RANGE
    Tilt: -135° to 45°
    Roll: -45° to 45°
    Pan: -27° to 27°
    CONTROLLABLE RANGE
    Tilt: -90° to 35°
    Pan: Uncontrollable
    MAX CONTROL SPEED (TILT)
    100°/s
    ANGULAR VIBRATION RANGE
    ±0.007°

    SENSING SYSTEM
    SENSING SYSTEM TYPE
    Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
    FORWARD
    Distance Measuring Range: 0.5 m to 20 m
    Detection Range: 0.5 m to 200 m
    Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
    FOV: Horizontal 90°, vertical 103°
    BACKWARD
    Distance Measuring Range: 0.5 m to 16 m
    Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
    FOV: Horizontal 90°, vertical 103°
    LATERAL
    Distance Measuring Range: 0.5 m to 25 m
    Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
    FOV: Horizontal 90°, vertical 85°
    UPWARD
    Distance Measuring Range: 0.2 m to 10 m
    Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
    FOV: Front and rear 100°, left and right 90°
    DOWNWARD
    Distance Measuring Range: 0.3 m to 18 m
    Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
    FOV: Front and rear 130°, left and right 160°
    OPERATING ENVIRONMENT
    Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
    Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)

    VIDEO TRANSMISSION
    VIDEO TRANSMISSION SYSTEM
    DJI O3 Image Transmission Industry Edition
    LIVE VIEW QUALITY
    Remote Controller: 1080p/30fps
    OPERATING BAND [7]
    2.400-2.4835 GHz
    5.725-5.850 GHz
    MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 km
    MAX TRANSMISSION DISTANCE (OBSTRUCTED) [9]
    Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
    Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
    MAX DOWNLOAD SPEED
    15 MB/s (with DJI RC Pro Industry Edition)
    LATENCY (DEPENDING ON ENVIRONMENT AND MOBILE DEVICE)
    Approximately 200 milliseconds
    ANTENNAS
    4 antennas, 2 transmitting and 4 receiving
    TRANSMITTER POWER (EIRP)
    2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
    OTHER
    Supports the DJI Cellular module

    DJI RC PRO ENTERPRISE EDITION
    IMAGE TRANSMISSION SYSTEM
    DJI O3 Image Transmission Industry Edition
    MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 km
    OPERATING BAND OF IMAGE TRANSMISSION [7]
    2.400-2.4835 GHz
    5.725-5.850 GHz
    ANTENNAS
    4 antennas, 2 transmitting and 4 receiving
    OPERATING BAND OF IMAGE TRANSMISSION AND TRANSMITTER POWER (EIRP)
    2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
    WI-FI PROTOCOL
    802.11 a/b/g/n/ac/ax
    Support 2×2 MIMO Wi-Fi
    WI-FI OPERATING BAND [7]
    2.400-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
    WI-FI OPERATING BAND AND TRANSMITTER POWER (EIRP)
    2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
    5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
    BLUETOOTH PROTOCOL
    Bluetooth 5.1
    BLUETOOTH OPERATING BAND
    2.400-2.4835 GHz
    BLUETOOTH TRANSMITTER POWER (EIRP)
    <10 dBm
    SCREEN RESOLUTION
    1920×1080
    SCREEN SIZE
    5.5 inches
    SCREEN FRAME RATE
    60 fps
    SCREEN BRIGHTNESS
    1,000 nits
    TOUCH-SCREEN
    10-point multi-touch
    BATTERY
    Lithium-ion battery (5000 mAh, 7.2 V)
    CHARGING TYPE
    100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
    RATED POWER
    12 Watts
    STORAGE CAPACITY
    Internal Memory (ROM): 64 GB
    Supports microSD card usage to increase storage capacity
    CHARGING TIME
    Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
    Approximately 2 hours (measured using a 12V USB charger)
    Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
    OPERATING TIME
    Approx. 3 hours
    VIDEO OUTPUT PORT
    Mini-HDMI Port
    OPERATING TEMPERATURE
    -10° to 40° C (14° to 104°F)
    STORAGE TEMPERATURE RANGE
    <1 month: -30° to 60° C (-22° to 140° F)
    One to three months: -30° to 45° C (-22° to 113° F)
    Three to six months: -30° to 35° C (-22° to 95° F)
    More than six months: -30° to 25° C (-22° to 77° F)
    CHARGING TEMPERATURE
    5° to 40° C (41° to 104° F)
    SUPPORTED DJI AIRCRAFT [10]
    DJI Mavic 3E
    DJI Mavic 3T
    DJI Mavic 3M
    GNSS
    GPS + Galileo + GLONASS
    DIMENSIONS
    Antenna is folded and no control sticks are installed:
    183.27×137.41×47.6 mm (Length×Width×Height)
    Antenna unfolded and control sticks are installed:
    183.27×203.35×59.84 mm (Length×Width×Height)
    WEIGHT
    Approx. 680 g
    MODEL NUMBER
    RM510B
    STORAGE
    SUPPORTED MICROSD CARDS
    Aircraft:
    Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
    RECOMMENDED MICROSD CARDS
    Remote Controller:
    SanDisk Extreme PRO 64GB V30 A2 microSDXC
    SanDisk High Endurance 64GB V30 microSDXC
    SanDisk Extreme 128GB V30 A2 microSDXC
    SanDisk Extreme 256GB V30 A2 microSDXC
    SanDisk Extreme 512GB V30 A2 microSDXC
    Lexar 667x 64GB V30 A2 microSDXC
    Lexar High-Endurance 64GB V30 microSDXC
    Lexar High-Endurance 128GB V30 microSDXC
    Lexar 667x 256GB V30 A2 microSDXC
    Lexar 512GB V30 A2 microSDXC
    Samsung EVO Plus 64GB V30 microSDXC
    Samsung EVO Plus 128GB V30 microSDXC
    Samsung EVO Plus 256GB V30 microSDXC
    Samsung EVO Plus 512GB V30 microSDXC
    Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
    Kingston Canvas React Plus 128GB V90 A1 microSDXC

    Aircraft:
    SanDisk Extreme 32GB V30 A1 microSDHC
    SanDisk Extreme PRO 32GB V30 A1 microSDHC
    SanDisk Extreme 512GB V30 A2 microSDXC
    Lexar 1066x 64GB V30 A2 microSDXC
    Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
    Kingston Canvas React Plus 64GB V90 A1 microSDXC
    Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
    Kingston Canvas React Plus 128GB V90 A1 microSDXC
    Kingston Canvas React Plus 256GB V90 A2 microSDXC
    Samsung PRO Plus 256GB V30 A2 microSDXC

    BATTERY
    CAPACITY
    5000 mAh
    STANDARD VOLTAGE
    15.4 V
    MAX CHARGING VOLTAGE
    17.6 V
    BATTERY TYPE
    LiPo 4S
    CHEMICAL SYSTEM
    Lithium Cobalt
    ENERGY
    77 watt-hours
    WEIGHT
    335.5 g
    CHARGING TEMPERATURE
    5° to 40° C (41° to 104° F)

    BATTERY CHARGER
    INPUT
    100V to 240V (AC), 50Hz to 60Hz, 2.5A
    OUTPUT POWER
    100 Watts
    OUTPUT
    Maximum output power of 100 Watts (total)
    When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.

    CHARGING HUB
    INPUT
    USB-C: 5V to 20V, 5.0A
    OUTPUT
    Battery Port: 12V to 17.6V, 8.0A
    RATED POWER
    100 Watts
    CHARGING TYPE
    3 batteries on charging rotation
    CHARGING TEMPERATURE
    5° to 40° C (41° to 104° F)

    RTK MODULE
    DIMENSIONS
    50.2×40.2×66.2 mm (Length×Width×Height)
    WEIGHT
    24±2 g
    INTERFACE
    USB-C
    POWER
    Approximately 1.2 watts
    RTK POSITION ACCURACY
    Fixed RTK:
    Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm


    FOOTNOTES
    1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
    2. The max speed in the EU cannot exceed 19 m/s.
    3. Max wind resistance during takeoff and landing.
    4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
    5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
    6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
    7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
    8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
    9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
    10. The DJI RC Plus will support more DJI aircraft in the future.
    IN THE BOX
    DJI MAVIC 3 MULTISPECTRAL
    Aircraft × 1
    Intelligent Flight Battery × 1
    RTK Module × 1
    MicroSD card × 1
    Remote Controller × 1
    Propeller (pair) × 3
    Charger × 1
    Power Cable × 1
    USB-C Cable × 1
    USB-C to USB-C Cable × 1
    Carrying Case × 1
    Screwdriver × 1
    Manuals × 1

    DJI CARE ENTERPRISE BASIC (MAVIC 3M) NZ
    DJI Care Enterprise Basic (Mavic 3M) NZ  × 1

    DJI MAVIC 3 ENTERPRISE SERIES BATTERY KIT
    DJI Mavic 3 Intelligent Flight Battery × 3
    DJI Mavic 3 Battery Charging Hub (100W) × 1

    SANDISK EXTREME 128GB MICRO SD CARD WITH ADAPTER
    SanDisk Extreme 128GB Micro SD Card × 1
    MicroSD/microSDHC/microSDXC Adapter × 1
    Product form

    FEATURES NEW STANDARD FOR PORTABLE MULTISPECTRAL DRONES The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.... Read more

    Free pickup in our shop(s)

    • Free Shipping on orders over $300

    SKU: MAV3M_1

    $10,199.00

      Description

      FEATURES
      NEW STANDARD FOR PORTABLE MULTISPECTRAL DRONES
      The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.
      It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.
      The Mavic 3M includes an RTK module that achieves centimetre-level positioning.
      The Mavic 3 Multispectral is a highly-portable drone: It's foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.


      MAVIC 3M CAMERAS
      The DJI Mavic 3M has a newly-upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras. This enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.
      It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.

      MULTISPECTRAL CAMERAS
      The Mavic 3M has four 5MP multispectral cameras. Infact, the Mavic 3M is the world’s smallest 4-band multispectral drone camera.
      Its built-in camera array combines Green, Red, Red Edge, and Near Infrared sensors.
      • Near Infrared: 860 nm ± 26 nm
      • Red: 650 nm ± 16 nm
      • Red Edge: 730 nm ± 16 nm
      • Green: 560nm ± 16 nm
      These sensors support the NDVI, GNDVI, and NDRE vegetation indexes to provide farmers with vital information.
      • NDVI: Makes it possible to detect plants under stress, differentiate between crops, and determine at which stage they are in their growing cycle.
      • NDRE: Provides insights on chlorophyll content in leaves.
      • GNDVI: Useful for estimating photosynthetic activity, as well as water and nitrogen content in the plant canopy.

      RGB CAMERA
      Beyond its multispectral capabilities, the Mavic 3M has a visual camera to empower agriculture and mapping workflows.
      It features:
      • 20MP wide camera; 4/3 CMOS
      • Mechanical shutter (1/2000s fastest mechanical shutter speed)
      • 0.7 second interval shooting - high-speed burst when RGB camera is used
      • Large pixel size: 3.3μm pixels
      • Improved low-light software
      With these key features, the Mavic 3M is engineered for rapid aerial surveys and data quality.
      These camera specs, together with the drone’s 43 minute maximum flight time, mean that the Mavic 3M can capture data across up to 2 square kilometers in a single flight.

      SUNLIGHT SENSOR
      The Mavic 3M has a built-in sunlight sensor that captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction.
      This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.


      RTK MODULE INCLUDED
      The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and - crucially - without the need for Ground Control Points.
      The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre.


      ENHANCED SAFETY FEATURES
      The Mavic 3M has an advanced suite of safety features.
      Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and - when using Avoid mode - reroute your flight path accordingly.
      Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.
      AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.
      O3 Transmission: The Mavic 3M comes with DJI’s O3 transmission technology. It sets the standard for video and control stability and provides a reliable link between pilot and aircraft. The Mavic 3M has a transmission range of 8km (CE).
      The Mavic 3M comes with Enterprise Shield cover (Basic, 1 year).


      SMART TERRAIN FOLLOW
      The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.
      By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.
      For situations when you weren't able to import a DSM or local elevation data pre-flight, the Mavic 3M's collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.

      INTELLIGENT FIELD SCOUTING
      The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.
      It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.
      It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.


      MAVIC 3E CUSTOMISATION
      Build a solution tailored to your needs with Cloud API and MSDK.
      Cloud API
      The Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2's built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.
      MSDK
      The Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.


      FULL SOFTWARE SUITE
      The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.
      SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.
      Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.
      The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.
      *Please note that the DJI Smart Agricultural Platform will be supported in Q2 of 2023.

      PRODUCT SPECIFICATIONS
      AIRCRAFT
      NET WEIGHT (WITH PROPELLERS AND RTK MODULE) [1]
      951 g
      MAX TAKEOFF WEIGHT
      1,050 g
      DIMENSIONS (FOLDED/UNFOLDED)
      Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
      Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
      DIAGONAL LENGTH
      Diagonal: 380.1 mm
      MAX ASCENT SPEED
      6 m/s (Normal Mode)
      8 m/s (Sport Mode)
      MAX DESCENT SPEED
      6 m/s (Normal Mode)
      6 m/s (Sport Mode)
      MAX FLIGHT SPEED (AT SEA LEVEL, NO WIND)
      15 m/s (Normal Mode)
      Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) [2]
      MAX WIND SPEED RESISTANCE
      12 m/s [3]
      MAX TAKE-OFF ALTITUDE ABOVE SEA LEVEL
      6000 m (without a payload)
      MAX FLIGHT TIME (WITHOUT WIND)
      43 minutes [4]
      MAX HOVER TIME (WITHOUT WIND)
      37 minutes [4]
      MAX FLIGHT DISTANCE
      32 km [6]
      MAX TILT ANGLE
      30° (Normal Mode)
      35° (Sport Mode)
      MAX ANGULAR VELOCITY
      200°/s
      GNSS
      GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
      HOVERING ACCURACY RANGE
      Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
      Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
      OPERATING TEMPERATURE
      -10° to 40° C (14° to 104° F)
      INTERNAL STORAGE
      N/A
      MOTOR MODEL NUMBER
      2008
      PROPELLER MODEL NUMBER
      9453F Enterprise Edition
      LIGHT SENSOR
      Built-in module

      RGB CAMERA
      IMAGE SENSOR
      4/3 CMOS
      Effective Pixels: 20 MP
      LENS
      FOV: 84°
      Equivalent focal length: 24 mm
      Aperture: f/2.8 to f/11
      Focus: 1 m to ∞
      ISO RANGE
      100-6400
      SHUTTER SPEED
      Electronic shutter: 8-1/8000 s
      Mechanical shutter: 8-1/2000 s
      MAX IMAGE SIZE
      5280×3956
      PHOTO SHOOTING MODE
      Single shot: 20 MP
      Timelapse: 20 MP
      JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
      JPEG + RAW: 3/5/7/10/15/20/30/60 s
      Panorama: 20 MP (original material)
      VIDEO RESOLUTION
      H.264:
      4K: 3840×2160@30fps
      FHD: 1920×1080@30fps
      MAX VIDEO BITRATE
      4K: 130Mbps
      FHD: 70Mbps
      SUPPORTED FILE SYSTEM
      exFAT
      IMAGE FORMAT
      JPEG/DNG (RAW)
      VIDEO FORMAT
      MP4 (MPEG-4 AVC/H.264)

      MULTISPECTRAL CAMERA
      IMAGE SENSOR
      1/2.8-inch CMOS, effective pixels: 5 MP
      LENS
      FOV: 73.91° (61.2° x 48.10°)
      Equivalent focal length: 25 mm
      Aperture: f/2.0
      Focus: Fixed Focus
      MULTISPECTRAL CAMERA BAND
      Green (G): 560 ± 16 nm;
      Red (R): 650 ± 16 nm;
      Red Edge (RE): 730 ± 16 nm;
      Near infrared (NIR): 860 ± 26 nm;
      GAIN RANGE
      1x-32x
      SHUTTER SPEED
      Electronic Shutter: 1/30~1/12800 s
      MAX IMAGE SIZE
      2592×1944
      IMAGE FORMAT
      TIFF
      VIDEO FORMAT
      MP4 (MPEG-4 AVC/H.264)
      PHOTO SHOOTING MODE
      Single shot: 5 MP
      Timelapse: 5 MP
      TIFF: 2/3/5/7/10/15/20/30/60 s
      VIDEO RESOLUTION
      H.264
      FHD: 1920 x 1080@30fps
      Video content: NDVI/GNDVI/NDRE
      MAX VIDEO BITRATE
      Stream: 60 Mbps

      GIMBAL
      STABILIZATION SYSTEM
      3-axis mechanical gimbal (tilt, roll, pan)
      MECHANICAL RANGE
      Tilt: -135° to 45°
      Roll: -45° to 45°
      Pan: -27° to 27°
      CONTROLLABLE RANGE
      Tilt: -90° to 35°
      Pan: Uncontrollable
      MAX CONTROL SPEED (TILT)
      100°/s
      ANGULAR VIBRATION RANGE
      ±0.007°

      SENSING SYSTEM
      SENSING SYSTEM TYPE
      Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
      FORWARD
      Distance Measuring Range: 0.5 m to 20 m
      Detection Range: 0.5 m to 200 m
      Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
      FOV: Horizontal 90°, vertical 103°
      BACKWARD
      Distance Measuring Range: 0.5 m to 16 m
      Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
      FOV: Horizontal 90°, vertical 103°
      LATERAL
      Distance Measuring Range: 0.5 m to 25 m
      Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
      FOV: Horizontal 90°, vertical 85°
      UPWARD
      Distance Measuring Range: 0.2 m to 10 m
      Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
      FOV: Front and rear 100°, left and right 90°
      DOWNWARD
      Distance Measuring Range: 0.3 m to 18 m
      Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
      FOV: Front and rear 130°, left and right 160°
      OPERATING ENVIRONMENT
      Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
      Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)

      VIDEO TRANSMISSION
      VIDEO TRANSMISSION SYSTEM
      DJI O3 Image Transmission Industry Edition
      LIVE VIEW QUALITY
      Remote Controller: 1080p/30fps
      OPERATING BAND [7]
      2.400-2.4835 GHz
      5.725-5.850 GHz
      MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
      FCC: 15 km
      CE: 8 km
      SRRC: 8 km
      MIC: 8 km
      MAX TRANSMISSION DISTANCE (OBSTRUCTED) [9]
      Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
      Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
      Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
      MAX DOWNLOAD SPEED
      15 MB/s (with DJI RC Pro Industry Edition)
      LATENCY (DEPENDING ON ENVIRONMENT AND MOBILE DEVICE)
      Approximately 200 milliseconds
      ANTENNAS
      4 antennas, 2 transmitting and 4 receiving
      TRANSMITTER POWER (EIRP)
      2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
      5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
      OTHER
      Supports the DJI Cellular module

      DJI RC PRO ENTERPRISE EDITION
      IMAGE TRANSMISSION SYSTEM
      DJI O3 Image Transmission Industry Edition
      MAX EFFECTIVE SIGNAL DISTANCE (UNOBSTRUCTED, NO INTERFERENCE) [8]
      FCC: 15 km
      CE: 8 km
      SRRC: 8 km
      MIC: 8 km
      OPERATING BAND OF IMAGE TRANSMISSION [7]
      2.400-2.4835 GHz
      5.725-5.850 GHz
      ANTENNAS
      4 antennas, 2 transmitting and 4 receiving
      OPERATING BAND OF IMAGE TRANSMISSION AND TRANSMITTER POWER (EIRP)
      2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
      5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
      WI-FI PROTOCOL
      802.11 a/b/g/n/ac/ax
      Support 2×2 MIMO Wi-Fi
      WI-FI OPERATING BAND [7]
      2.400-2.4835 GHz
      5.150-5.250 GHz
      5.725-5.850 GHz
      WI-FI OPERATING BAND AND TRANSMITTER POWER (EIRP)
      2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
      5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
      5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
      BLUETOOTH PROTOCOL
      Bluetooth 5.1
      BLUETOOTH OPERATING BAND
      2.400-2.4835 GHz
      BLUETOOTH TRANSMITTER POWER (EIRP)
      <10 dBm
      SCREEN RESOLUTION
      1920×1080
      SCREEN SIZE
      5.5 inches
      SCREEN FRAME RATE
      60 fps
      SCREEN BRIGHTNESS
      1,000 nits
      TOUCH-SCREEN
      10-point multi-touch
      BATTERY
      Lithium-ion battery (5000 mAh, 7.2 V)
      CHARGING TYPE
      100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
      RATED POWER
      12 Watts
      STORAGE CAPACITY
      Internal Memory (ROM): 64 GB
      Supports microSD card usage to increase storage capacity
      CHARGING TIME
      Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
      Approximately 2 hours (measured using a 12V USB charger)
      Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
      OPERATING TIME
      Approx. 3 hours
      VIDEO OUTPUT PORT
      Mini-HDMI Port
      OPERATING TEMPERATURE
      -10° to 40° C (14° to 104°F)
      STORAGE TEMPERATURE RANGE
      <1 month: -30° to 60° C (-22° to 140° F)
      One to three months: -30° to 45° C (-22° to 113° F)
      Three to six months: -30° to 35° C (-22° to 95° F)
      More than six months: -30° to 25° C (-22° to 77° F)
      CHARGING TEMPERATURE
      5° to 40° C (41° to 104° F)
      SUPPORTED DJI AIRCRAFT [10]
      DJI Mavic 3E
      DJI Mavic 3T
      DJI Mavic 3M
      GNSS
      GPS + Galileo + GLONASS
      DIMENSIONS
      Antenna is folded and no control sticks are installed:
      183.27×137.41×47.6 mm (Length×Width×Height)
      Antenna unfolded and control sticks are installed:
      183.27×203.35×59.84 mm (Length×Width×Height)
      WEIGHT
      Approx. 680 g
      MODEL NUMBER
      RM510B
      STORAGE
      SUPPORTED MICROSD CARDS
      Aircraft:
      Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
      RECOMMENDED MICROSD CARDS
      Remote Controller:
      SanDisk Extreme PRO 64GB V30 A2 microSDXC
      SanDisk High Endurance 64GB V30 microSDXC
      SanDisk Extreme 128GB V30 A2 microSDXC
      SanDisk Extreme 256GB V30 A2 microSDXC
      SanDisk Extreme 512GB V30 A2 microSDXC
      Lexar 667x 64GB V30 A2 microSDXC
      Lexar High-Endurance 64GB V30 microSDXC
      Lexar High-Endurance 128GB V30 microSDXC
      Lexar 667x 256GB V30 A2 microSDXC
      Lexar 512GB V30 A2 microSDXC
      Samsung EVO Plus 64GB V30 microSDXC
      Samsung EVO Plus 128GB V30 microSDXC
      Samsung EVO Plus 256GB V30 microSDXC
      Samsung EVO Plus 512GB V30 microSDXC
      Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
      Kingston Canvas React Plus 128GB V90 A1 microSDXC

      Aircraft:
      SanDisk Extreme 32GB V30 A1 microSDHC
      SanDisk Extreme PRO 32GB V30 A1 microSDHC
      SanDisk Extreme 512GB V30 A2 microSDXC
      Lexar 1066x 64GB V30 A2 microSDXC
      Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
      Kingston Canvas React Plus 64GB V90 A1 microSDXC
      Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
      Kingston Canvas React Plus 128GB V90 A1 microSDXC
      Kingston Canvas React Plus 256GB V90 A2 microSDXC
      Samsung PRO Plus 256GB V30 A2 microSDXC

      BATTERY
      CAPACITY
      5000 mAh
      STANDARD VOLTAGE
      15.4 V
      MAX CHARGING VOLTAGE
      17.6 V
      BATTERY TYPE
      LiPo 4S
      CHEMICAL SYSTEM
      Lithium Cobalt
      ENERGY
      77 watt-hours
      WEIGHT
      335.5 g
      CHARGING TEMPERATURE
      5° to 40° C (41° to 104° F)

      BATTERY CHARGER
      INPUT
      100V to 240V (AC), 50Hz to 60Hz, 2.5A
      OUTPUT POWER
      100 Watts
      OUTPUT
      Maximum output power of 100 Watts (total)
      When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.

      CHARGING HUB
      INPUT
      USB-C: 5V to 20V, 5.0A
      OUTPUT
      Battery Port: 12V to 17.6V, 8.0A
      RATED POWER
      100 Watts
      CHARGING TYPE
      3 batteries on charging rotation
      CHARGING TEMPERATURE
      5° to 40° C (41° to 104° F)

      RTK MODULE
      DIMENSIONS
      50.2×40.2×66.2 mm (Length×Width×Height)
      WEIGHT
      24±2 g
      INTERFACE
      USB-C
      POWER
      Approximately 1.2 watts
      RTK POSITION ACCURACY
      Fixed RTK:
      Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm


      FOOTNOTES
      1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
      2. The max speed in the EU cannot exceed 19 m/s.
      3. Max wind resistance during takeoff and landing.
      4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
      5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
      6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
      7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
      8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
      9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
      10. The DJI RC Plus will support more DJI aircraft in the future.
      IN THE BOX
      DJI MAVIC 3 MULTISPECTRAL
      Aircraft × 1
      Intelligent Flight Battery × 1
      RTK Module × 1
      MicroSD card × 1
      Remote Controller × 1
      Propeller (pair) × 3
      Charger × 1
      Power Cable × 1
      USB-C Cable × 1
      USB-C to USB-C Cable × 1
      Carrying Case × 1
      Screwdriver × 1
      Manuals × 1

      DJI CARE ENTERPRISE BASIC (MAVIC 3M) NZ
      DJI Care Enterprise Basic (Mavic 3M) NZ  × 1

      DJI MAVIC 3 ENTERPRISE SERIES BATTERY KIT
      DJI Mavic 3 Intelligent Flight Battery × 3
      DJI Mavic 3 Battery Charging Hub (100W) × 1

      SANDISK EXTREME 128GB MICRO SD CARD WITH ADAPTER
      SanDisk Extreme 128GB Micro SD Card × 1
      MicroSD/microSDHC/microSDXC Adapter × 1

      © 2024 Actiontech, Powered by Shopify

          Login

          Forgot your password?

          Don't have an account yet?
          Create account
