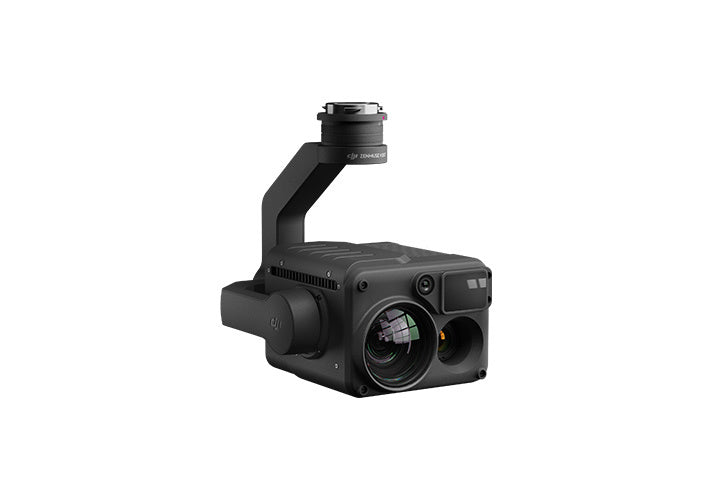

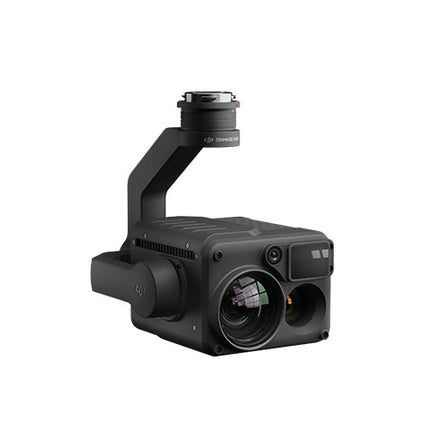

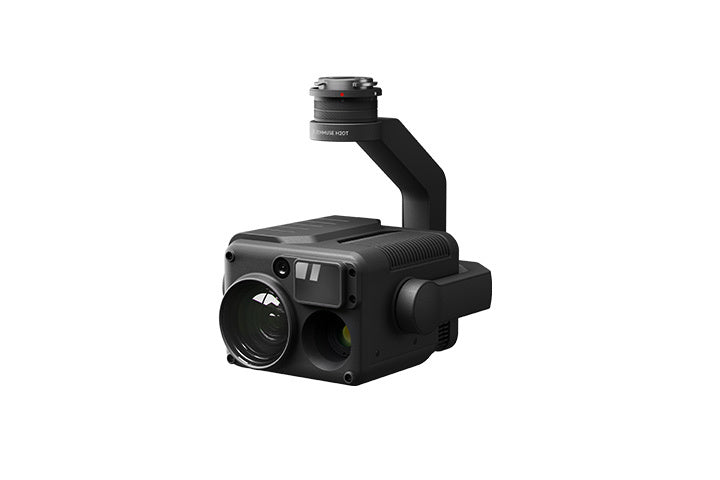

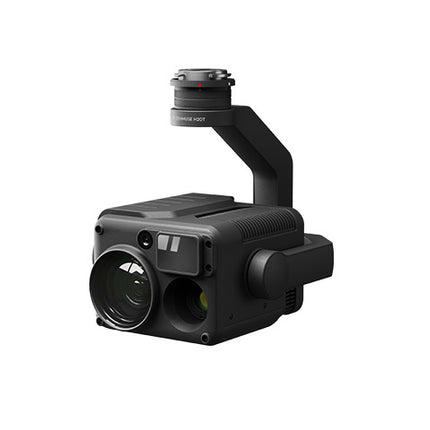

Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
Product Description
All the Sensors You Need - In One
Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.
THERMAL SENSITIVITY
|
VISUAL SENSOR
|
LASER RANGE FINDER
|
INGRESS PROTECTION
|
| < 50 MK |
12 MP |
3m - 1200m |
Level IP44 |
ALL-IN-ONE
INTELLIGENT WAYS TO COLLECT DATA
AI SPOT-CHECK
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
HIGH-RES GRID PHOTO
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
VISUALIZE TEMPERATURES IMMEDIATELY
INTELLIGENT FEATURES
TEMP ALARM
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
COLOUR PALETTES
Adjust the colours applied to the thermal data based on the needs of specific scenarios.
R-JPEG IMAGES
Images captured by the Zenmuse H20T are in the R-Jpeg format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
ISOTHERMS
Visualize a specific band of temperatures to find what is important.
GAIN MODES
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences: Low Gain Mode covers a wider temperature range.
APPLICATION
.jpg)
Product Specifications
PRODUCT SPECIFICATIONS
GENERAL
Weight: Zenmuse H20T: 828±5 g
Dimensions: Zenmuse H20T: 167×135×161 mm
Ingress Protection Rating: IP44
Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature: -20° to 60° C
Laser Safety: Class 1M (IEC 60825-1:2014)

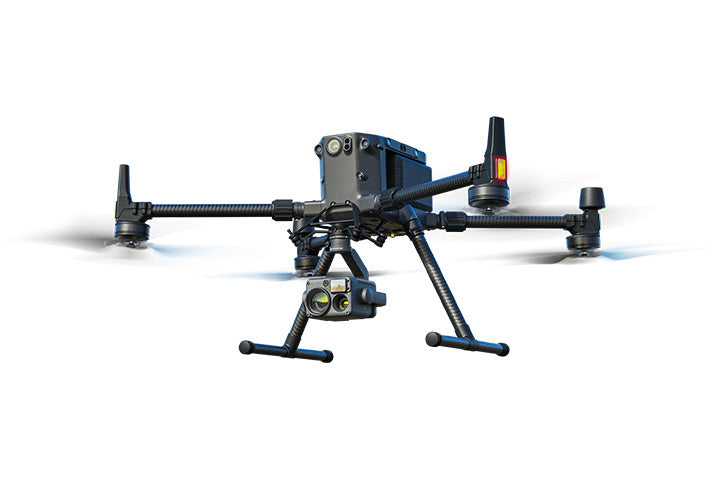

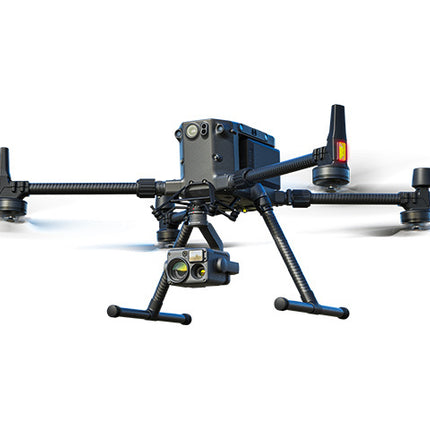

Supported Aircraft: Matrice 300 RTK
GIMBAL
Angular Vibration Range: ±0.01°
Mount: Detachable
Controllable Range
Pitch: -120° to +30°
Yaw: ±320°
Mechanical Range
Pitch: -132.5° to +42.5°
Yaw: ±330°
Roll: -90° to +60°
ZOOM CAMERA
Sensor: 1/1.7" CMOS, 20 MP
Lens
DFOV: 66.6°-4°
Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus Mode: MF/AF-C/AF-S
Exposure Mode: Auto, Manual
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot metering, Center-weighted metering
AE LOCK: Supported
Electronic Shutter Speed: 1 ~ 1/8000 s
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution
3840x2160@30fps, 1920x1080@30fps
Video Format: MP4
Video subtitles: Supported
Photo Size: 5184 × 3888
Photo Format: JPEG
WIDE CAMERA
Sensor: 1/2.3" CMOS, 12 MP
Lens
DFOV: 82.9°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode: Auto
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot metering, Center-weighted metering
AE LOCK: Supported
Shutter Speed: 1 ~ 1/8000
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution: 1920×1080@30fps
Video Format: MP4
Video subtitles: Supported
Photo Size: 4056 x 3040
Photo Format: JPEG
THERMAL CAMERA
Sensor: Uncooled VOx Microbolometer
Lens
DFOV: 40.6°
Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Digital Zoom: 1x, 2x, 4x, 8x
Video Resolution: 640×512 @ 30 Hz
Video Format: MP4
Image Resolution: 640×512
Image Format: R-JPEG (16 bit)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement
Scene Range
-40 °C to 150 °C (High Gain)
-40 °C to 550 °C (Low Gain)
Temperature alert: Supported
FFC: Auto/ manual
Palette: White-hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
LASER RANGEFINDER
Wavelength: 905 nm
Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy
± (0.2 m + D×0.15%)
D is the distance to a vertical surface
FEATURES
Hybrid Optical Zoom: 23×
Max. Zoom: 200×
One-Click Capture
One-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim
Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene: Supported (zoom camera)
Timestamp: Including GPS, date, and time
STORAGE
Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards
TOSHIBA EXCERIA PRO 32GB micro SD HC II
SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
TOSHIBA EXCERIA PRO 64GB micro SD XC II
SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
SAMSUNG_EVO_128GB_micro SD 3 XC I
TOSHIBA EXCERIA M303E 32GB micro SD HC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303 128GB micro SD XC I
SAMSUNG_EVO_64GB_micro SD 3 XC I
In The Box
IN THE BOX
Gimbal and Camera x 1
