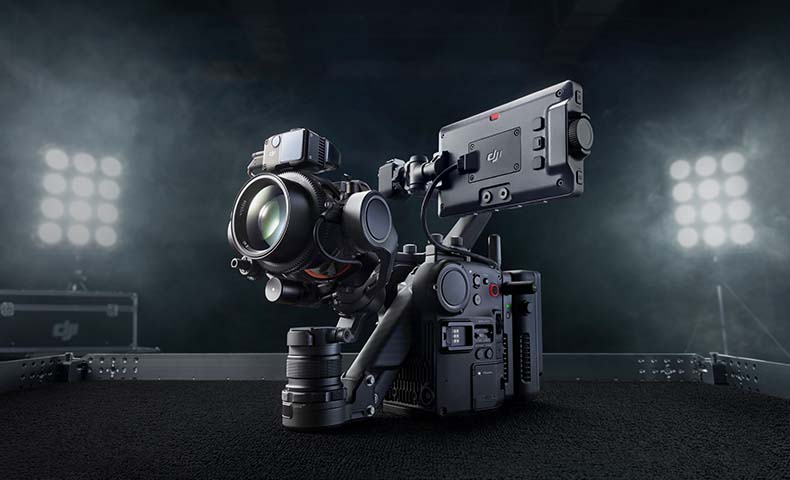

With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.

Availability: Pre Order

Product Description

INTEGRATED AND MODULAR: BOTH REALIZED IN ONE CAMERA

DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting. Users can now enjoy compact convenience along with the expansive possibilities from modular accessories.

Main Body
Zenmuse X9-8K Gimbal Camera
DL 35mm F2.8 Lens
Top Handle
High-Bright Main Monitor
Hand Grips
4D Expansion Plate (SDI/XLR/TC)
4D Video Transmitter
TB50 Battery Compartment
TB50 Intelligent Battery
LiDAR Range Finder
X9 Focus Motor

PROCESSING POWER

Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a cinema camera today. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.

	X9-8K	X9-6K
Max Recording Specs	8K/75fps	6K/60fps 4K/120fps
Dynamic Range	14+ Stops	14+ Stops
Native ISO	800/4000	800/5000

RESOLUTION

DCI 8K (8192×4320)/60fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 8K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.

HIGH ISO

Zenmuse X9 supports dual native ISO (X9-8K: 800/4000), which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.

DYNAMIC RANGE

With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.

COLOR SCIENCE

With the DJI Cinema Color System (DCCS) and robust computing power provided by CineCore 3.0, Zenmuse X9 is able to give images a cinematic look by retaining authentic and accurate colors. It also supports the industry-standard ACES workflow for effortless compatibility with the color tones of other cinema cameras.

BUILT-IN 9-STOP ND FILTERS

X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.

DL LENSES

X9’s standard DL mount supports three compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just about 180 g. More DJI lenses will be available in the future.

INTERCHANGEABLE MOUNTS

X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica M. Ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.

WIRELESS CONTROL

Whether you’re using manual or autofocus lenses, dedicated modules mounted to X9 can achieve wireless lens control and even autofocusing.

4-AXIS STABILIZATION

DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.

When this compact body combines with its powerful stabilization capabilities, complex camera movements that used to be very costly to achieve are now easily attainable.

INTEGRATED GIMBAL CAMERA

Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.

The compact and portable gimbal system allows shooting to begin without the need for tedious manual balancing. This also delivers stable footage, even with lenses that have a shifting center of gravity during use.

With a highly integrated body and robust motor force, Ronin 4D offers the best stabilizing and tracking performance of the entire Ronin Series so far at an incredibly light weight. Additionally, it can switch to Sport mode with the press of a button, allowing the gimbal to react quickly to the cinematographer's movements.

It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.

ACTIVETRACK PRO

DJI’s proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 combine in ActiveTrack Pro, which enables cinema-standard tracking shots, even in just one take. This technology also allows subjects to be tracked from longer distances and features composition adjustment with continuous autofocusing to keep subjects in focus during tracking shots.

LIDAR WAVEFORM

DJI Ronin 4D makes manual focusing easier than ever. The visualized focus assistance technology displays the ranging points on the main and remote monitors in a simplified top-down view. This provides an innovative and intuitive LiDAR Waveform to locate focus points quickly and allow focus adjustments with extreme precision. Even operators with little or no experience can become adept at manual focusing quickly.

LIDAR RANGE MEASUREMENT

The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.

AUTOFOCUS

With the new LiDAR Focusing System, Ronin 4D is able to maintain focus even when there is severe motion blur caused by subjects moving quickly. With the focus motor mounted, autofocus is available even on manual lenses. Continuous autofocusing on subjects can be enabled together with ActiveTrack Pro, making it especially convenient for solo operators.

AUTOMATED MANUAL FOCUS

Automated Manual Focus (AMF) mode gives you the accuracy and flexibility of manual focus with the convenience of autofocus. The focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point. The focus wheel on the right hand grip even features dynamic damping with electromagnetic technology. This gives cinematographers a physical sense of focus changes, providing a more intuitive and modern focusing experience that is unrivaled in the industry today.

VIDEO TRANSMISSION PERFORMANCE

Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, which offers a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4GHz and 5.8GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.

DJI's proprietary chip powers the imaging system, video transmitter, video receiver, and remote monitor of Ronin 4D. Together, these components form a streamlined wireless transmission system, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.
Integrated Design
The 4D Video Transmitter can be directly mounted onto Ronin 4D and powered by the battery of the main body. With a built-in wireless video receiver, the High-Bright Remote Monitor has a 7-inch, 1,500-nit high-bright, wide color gamut touchscreen display that can output both HDMI and SDI signals through the expansion module. Its compact and lightweight body provides optimum portability and efficient setup so users can start shooting immediately.

COORDINATED SHOOTING

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds. Two transmission modes are available. The first is Broadcast mode, which sets no limit on the number of receivers and is suitable for monitoring with large crews. The second is Control mode, which supports the coordinated operation of two receivers.

The High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus. This enables remote control of focus and gimbal movements with high precision, starting and stopping of recording, and camera setting adjustments to meet the highest standards of coordinated shooting on sets. In addition, the built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.

MONITORING

High-Bright Main Monitor: The 5.5-inch 1000-nit adjustable screen can be mounted to various points on the main body.
Exposure Assistance: Exposure waveform, false color, and zebra.
Focus Assistance: LiDAR waveform, peaking (aperture and color peaking), and focus magnification (2x and 4x).
Tools Overlay: Customizable frame guides, safe zone, and center marker.
Color Preview: Supports customizable LUT input.
Multi-link independent monitoring: video recording, main monitor, main body HDMI, and remote monitor feeds can load independent LUTs.

STORAGE

Ronin 4D has a built-in CFexpress Type-B slot along with a USB 3.1 Type-C expansion port for recording directly to an external media disk. It also offers internal recording of the highest-specification videos with DJI PROSSD 1TB, which can be directly connected to a computer via USB-C cable to access media without a traditional SSD reader. These storage choices provide solutions for high cost-effectiveness and to those who want an unrivaled combination of performance and stability.

SOUND RECORDING

Ronin 4D is equipped with built-in microphones that support dual-channel 24-bit audio recording. It also provides 3.5mm jacks and XLR microphone ports for more audio input solutions.

BATTERY LIFE

Just like Ronin 2 and Inspire 2, DJI Ronin 4D uses TB50 Intelligent Batteries, which offer up to 2.5 hours of shooting time and can be fully charged in just 1.5 hours. Auto-heating is also supported to enable reliable functionality in severely cold conditions.

MAIN BODY PORTS

Main Monitor Port: Connect to the main monitor via a designated cable.
3.5mm Stereo Jack: Monitor audio in real time.
Microphone Jack: For 3.5mm microphone or line input.
HDMI Type-A Output Port: Supports output of 1080p/60fps.
Power Input Port: Supports 12 V to 30 V power input.
Timecode Port: For timecode input and output.
SDI Port: Supports 3D-SDI signal output.
XLR Port: For microphone and line input, supports 48 V phantom power.

REMOTE MONITOR PORTS

3.5mm Stereo Jack: Monitor audio in real time.
microSD Card Slot: For internal recording of video feed.
HDMI Type-A Input Port: Supports input of 1080p/60fps.
Type-C Port: For UVC live streaming and firmware updates.
Power Input Port: 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro).
HDMI Type-A Output Port: Supports output of 1080p/60fps.
SDI Port: 3D-SDI signal output.

Product Specifications

PRODUCT SPECIFICATIONS

GENERAL

Main Body Dimensions (length×width×height): 235×115×160 mm
Overall Dimensions (length×width×height): 309×290×277 mm* ( *Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.)
Gimbal Weight: Approx. 1.04 kg
Main Body Weight: Approx. 1.45 kg
Overall Weight: Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)
Max Operating Time: Approx. 150 minutes* (*Measured with a fully charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-Axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-Axis will reduce operating time.)
Intelligent Features: ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
Storage Temperature : -20° to 60° C (-4° to 140° F)
Operating Temperature: -10° to 40° C (14° to 104° F)

CAMERA

Sensor Size: 35mm full-frame CMOS image sensor
Base Lens Mount: DX Mount, and support for other mount units
Supported Lens Mounts: DL Mount (standard), M Mount, and E Mount
DL Lens: DJI DL 24mm F2.8 LS ASPH, DJI DL 35mm F2.8 LS ASPH, DJI DL 50mm F2.8 LS ASPH
Dynamic Range: 14+ stops
White Balance: Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
Gamma: D-Log, Rec.709, HLG
EI Range: X9-8K: EI 200-12800, Dual Native ISO 800/4000
X9-6K: EI 200-12800, Dual Native ISO 800/5000
Shutter Speed: Electronic Rolling Shutter 1/24s-1/8000s
ND: Built-in 9-stop ND filters:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5)，64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
Focus Control*: Autofocus, Manual Focus, Automated Manual Focus (* Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.)
X9-6K Max Bit Rate: 6008×3168, 48fps
RAW 3.4Gbps
X9-8K Max Bit Rate: 8192×4320, 60fps
RAW 3.95Gbps
Supported File System: exFAT
Recording Format: Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422*
H.264 (4:2:0 10-bit)
(* Supported through a future firmware update.)
Storage Media: DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
DJI PROSSD 1TB Recording Format: No restriction on recording format
CFexpress 2.0 Type B Recording Format*: ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
USB-C SSD Recording Format*: ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
Built-in Mic: Built-in 2-ch stereo
Audio Format: LPCM 2-ch, 24-bit 48kHz

GIMBAL

Mechanical Range: Pan: ±330°, Tilt: -75° to 175°, Roll: -90° to 230°, Z-Axis Range: approx 130mm* (* Stabilization range of the Z-Axis is subject to change based on Z-Axis modes and usage scenarios and may be smaller than the mechanical range.)
Controllable Range: Pan: ±285°, Tilt: -55° to +155°, Roll: ±35°,
Max Control Speed (°/s): DJI Master Wheels or DJI Force Pro:
Tilt: 360°/s
Roll: 360°/s
Pan: 360°/s
Ronin 4D Hand Grip:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s
Maximum Z-axis Payload: 2000 g (including 1040 g gimbal)
Angular Vibration Range: ±0.01°

LIDAR RANGE FINDER

Weight: 88 g
Dimensions (length×width×height): 71×47×34 mm
Operating Temperature: -10° to 40° C (14° to 104° F)
LiDAR Range Measurement Precision: 0.3-1m (±1%）
1-10m (±1.5%）
FOV*: 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)
30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)
Safety Rating: Class 1 (IEC 60825-1:2014) (safe for human eyes)
Operating Environment: Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
Laser Wavelength: 940 nm
Single Pulse Width: Two kinds of pulses emit in circulation: 5ns and 33.4ns.
Max Laser Power: 6 W

MAIN MONITOR

Screen Size: 5.5 inches (diagonal)
Resolution: 1920×1080
Refresh Rate: 60Hz
Max Brightness: 1000 cd/m²
Screen: Rotational LCD touchscreen

BATTERY

Battery Type: TB50 Intelligent Battery
Capacity: 4280 mAh
Energy: 97.58 Wh
Voltage: 22.8 V
Max Charging Voltage: 26.1 V
Max Charging Power: 180 W
Charging Temperature Range: 5° to 40° C (41° to 104° F)
Charging Time: Approx. 1.5 hours (with standard 86W power adapter)

DJI O3 PRO VIDEO TRANSMISSION

Max Transmission Distance: 20,000 ft (approx. 6km, FCC-compliant)* (* Unobstructed, free of interference.)
Max Transmission Resolution and Frame Rate: 1920×1080 @60fps
Minimum End-to-End Latency: 100 ms or 68 ms* (* 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.)
Wireless Frequency: Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz:

DFS Frequency Band*:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz (* Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.)
Transmitter Power (EIRP): 2.400-2.4835 GHz:
≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz
<23 dBm (FCC/SRRC/CE/MIC)
5.250-5.350 GHz:
<30 dBm (FCC); <23 dBm (SRRC/CE/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC);<23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Max Bandwidth: 40 MHz
Max Bitrate: 50 Mbps

INTERFACE

Main Body: 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack × 1
USB3.1 Type-C Data Port × 1
6-pin 1B DC-IN (DC 12-30 V) × 1
Battery Mount Power Port (female) × 1
4D Expansion Plate Data Port (female) × 1
High-Bright Main Monitor Port × 1
Hand Grips Port × 2
Top Handle Port × 1
HDMI Type-A Video Output Port × 1*
X9 Gimbal: LiDAR Range Finder/ Focus Motor Port × 2
TB50 Battery Mount: Battery Mount Power Port (male) × 1
TB50 Battery Port × 1

4D VIDEO TRANSMITTER

Dimensions: 89×21×137 mm
4D Video Transmitter Port: 4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1

REMOTE MONITOR

Dimensions: 216×58×166 mm (includes monitor cage)
Screen Size: 7 inches (diagonal)
Max Brightness: 1500 cd/m²
Screen Resolution: 1920×1200
Refresh Rate: 60Hz
Max Battery Life: Approx. 2 hours*
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° C to 60° C (-4° to 140° F)
Power System: DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
Remote Monitor Port: 3.5mm Stereo Jack × 1
microSD Card Slot × 1* (*This port is currently not available. Will support internal recording in a future firmware update.)
HDMI Type-A Video Input Port × 1* (*This port is currently not available. Will support HDMI 1.4 in a future firmware update.)
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
Remote Monitor Expansion Port: Remote Monitor Expansion High-Speed Port (male) × 1
HDMI 1.4 Type-A Video Output Port × 1
6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
3G-SDI (Level A) BNC Video Output Port × 1

In The Box

IN THE BOX

Zenmuse X9-8K Gimbal Camera × 1
DL Mount × 1
DL Mount Body Cap × 1
DL Mount Lens Cap × 1
X9 Gimbal Base Cap × 1
Ronin 4D Gimbal Base Cap × 1
Main Body × 1
Hand Grips × 2
Hand Grip Extended Control Sticks × 1
Top Handle × 1
High-Bright Main Monitor × 1
TB50 Battery Mount × 1
TB50 Intelligent Battery × 1
Hand Grip Straps × 2
Power Adapter × 1
AC Power Cable × 8
TB50 Charging Adapter × 1
Base Plate × 1
LiDAR Range Finder/Focus Motor Cable × 1
USB-A to USB-C Cable × 1
Ronin 4D Carrying Case × 1
3mm Ball-End Hex Key × 1
10mm 1/4"-20 Screw × 6
LiDAR Range Finder × 1
LiDAR Range Finder Holder × 1
C-Shaped DL Mount Ring × 1
3mm M2-3 Screw × 2
1.5mm Ball-End Hex Key × 1
LiDAR Range Finder Quick Start Guide × 1
DJI Ronin 4D Quick Start Guide × 1
PROSSD 1TB × 1
PROSSD Mount × 1
USB-C to USB-C Cable × 1
