High-Brightness Touch Scree

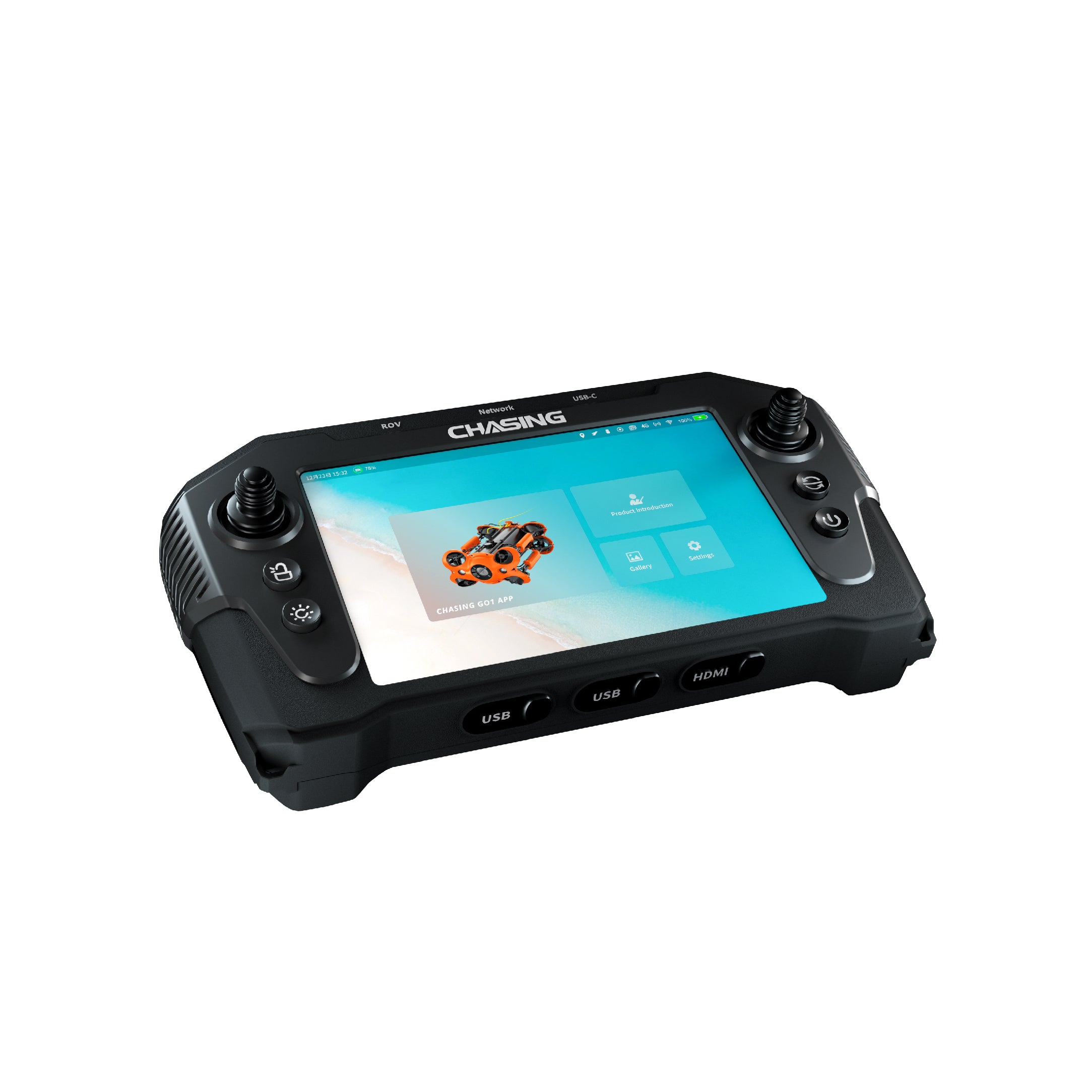

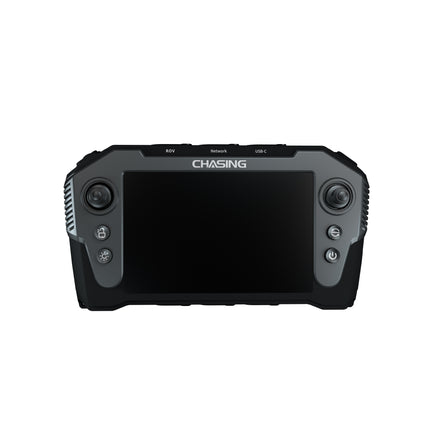

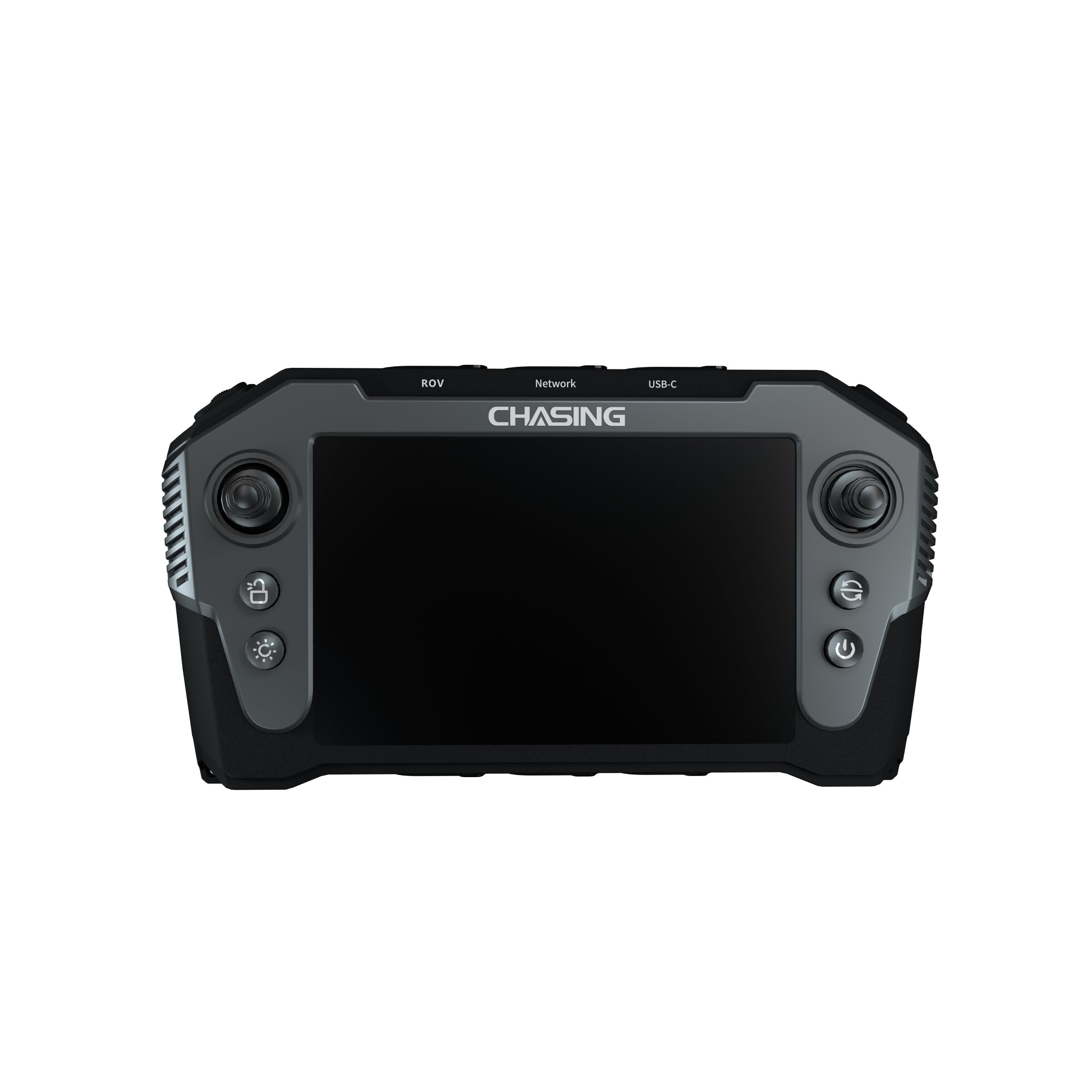

CHASING Waterproof Remote Controller with Screen is provided with a 7-inch touch screen with a brightness maximally up to 700nit.
5-Point Industrial Touch Design

The touch screen adopts 5-point industrial touch design, which is easy to operate and responsive. The remote controller is equipped with a light shield, making the screen still clear under the direct sunlight.
IP65 Waterproof Rating

CHASING Waterproof Remote Controller with Screen has IP65 waterproof rating, sustainable in short-light rain, moderate rain, and seawater splash causing by waves.
Multiple Uncomplicated Shortcut Keys to Achieve Human-Computer Integration

The remote controller has 6 uncomplicated shortcut keys. The new spring-based control sticks are used with screen-side keys and wavy wheel to flexibly adjust the floodlight brightness, complete underwater motions, switch the photo/video mode, and perform other shortcut actions. The multi-functional key is used to switch the right lever to control the ROV horizontal rolling angle / the grabber arm to achieve human-machine integration and smooth operation.
6 Commonly Used Ports, Satisfying Various Requirement

In addition to the ROV connection port, the remote controller is also equipped with 1 network port (used for network cable connection or connection to two remote controllers through the network port to enter the "Observer Mode"), 1 USB-C port (used to charge the remote controller), 2 USB ports (used to insert a USB flash drive and connect a mobile phone for data transmission), and 1 HDMI port (used to connect an external display screen).
Extreme Temperature Endurance

CHASING Waterproof Remote Controller with Screen maintains stable performance at -10℃ to 55℃ environment.
Intelligent and Energy-Saving

Equipped with intelligent high temperature warning interface, which will give a prompt warning if the controller is overheating in case of outdoor service to ensure the best user experience. You can choose the energy-saving mode, the controller will automatically shut down after 5 minutes of standby.
Ultra-Long Battery Life

CHASING Waterproof Remote Controller with Screen, has a built-in 7000mAh battery, can work continuously for about 5 hours at 20℃-25℃ at full load.
3 Modes of Connection, Multiple Entertainment Function

The remote controller supports three connection methods: WIFI, external mobile network card and wired network. It can not only complete work tasks, but also can be used as a tablet computer - listening to music, watching movies, etc., without interference from complex signal environments, and keeping the transmitted data confidential.

Specifications

Basic Parameters
- External Dimension
  - 292×156×79mm (without light shield)
- Total Weight
  - 1.3kg
- Display
  - 7.02 inches, 700cd/m², 1920×1200
- Touch Screen
  - 5-point industrial touch
- I/O Interface
  - USB2.0×2, Ethernet port, Type-C, HDMI, ROV port
- Remote-control Lever, Key Type and Quantity
  - Single-shaft leverx3, dual-shaft hall control stickx2, key switchx6
- Applicable Adapter Specification
  - Output: 5.0V 3.0A 15.0W/9V 3A/15V 3A/20.0V 3.25A

What’s in the Box

Remote controller

×1
Light shield of remote controller

×1
USB-C to USB-C connector data cable

×1
USB-A to USB-C connector data cable

×1
HDMI socket cover

×1
Network interface socket cover

×2
ROV socket cover

×1
USB socket cover

×2
Document package

×1
