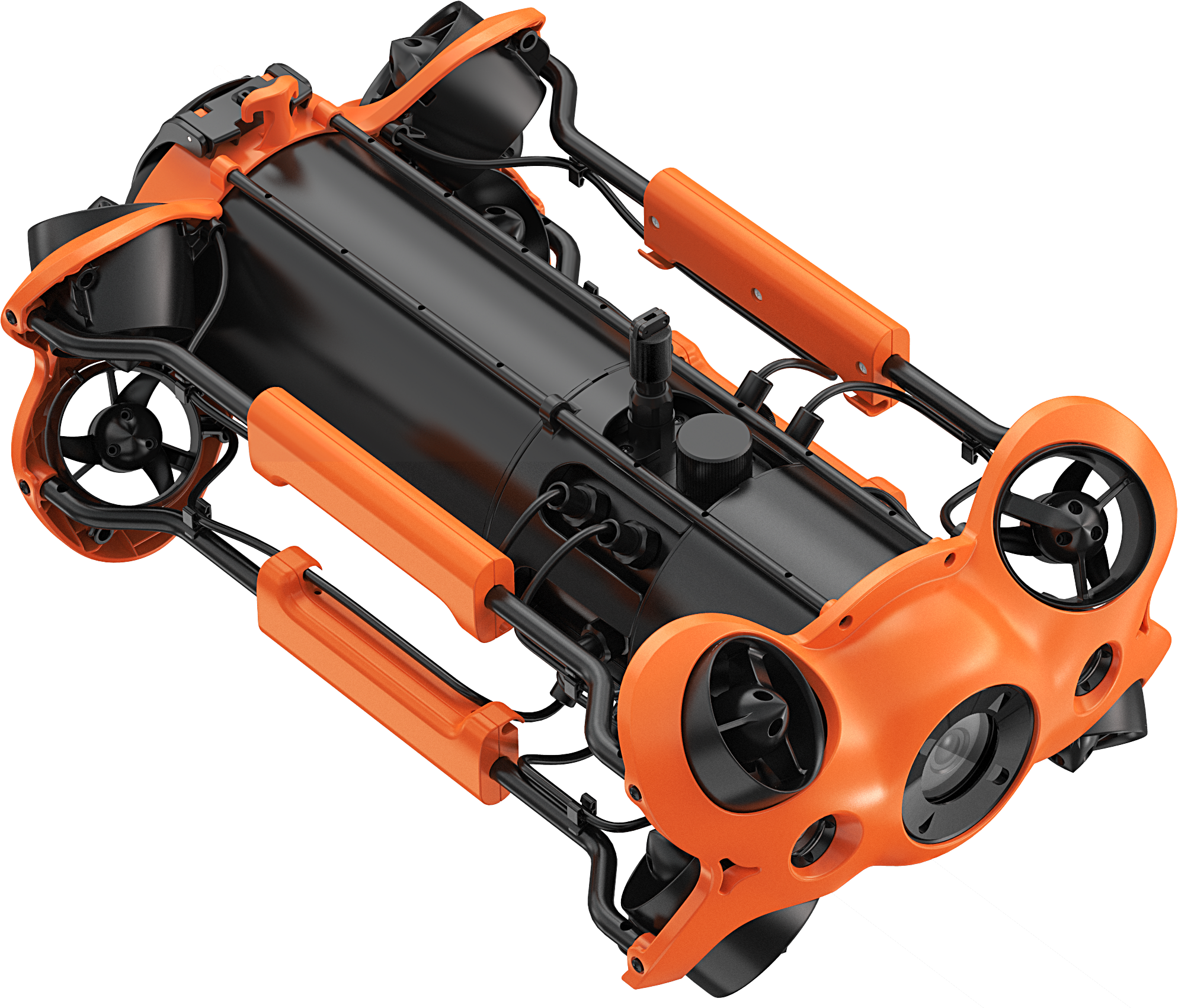

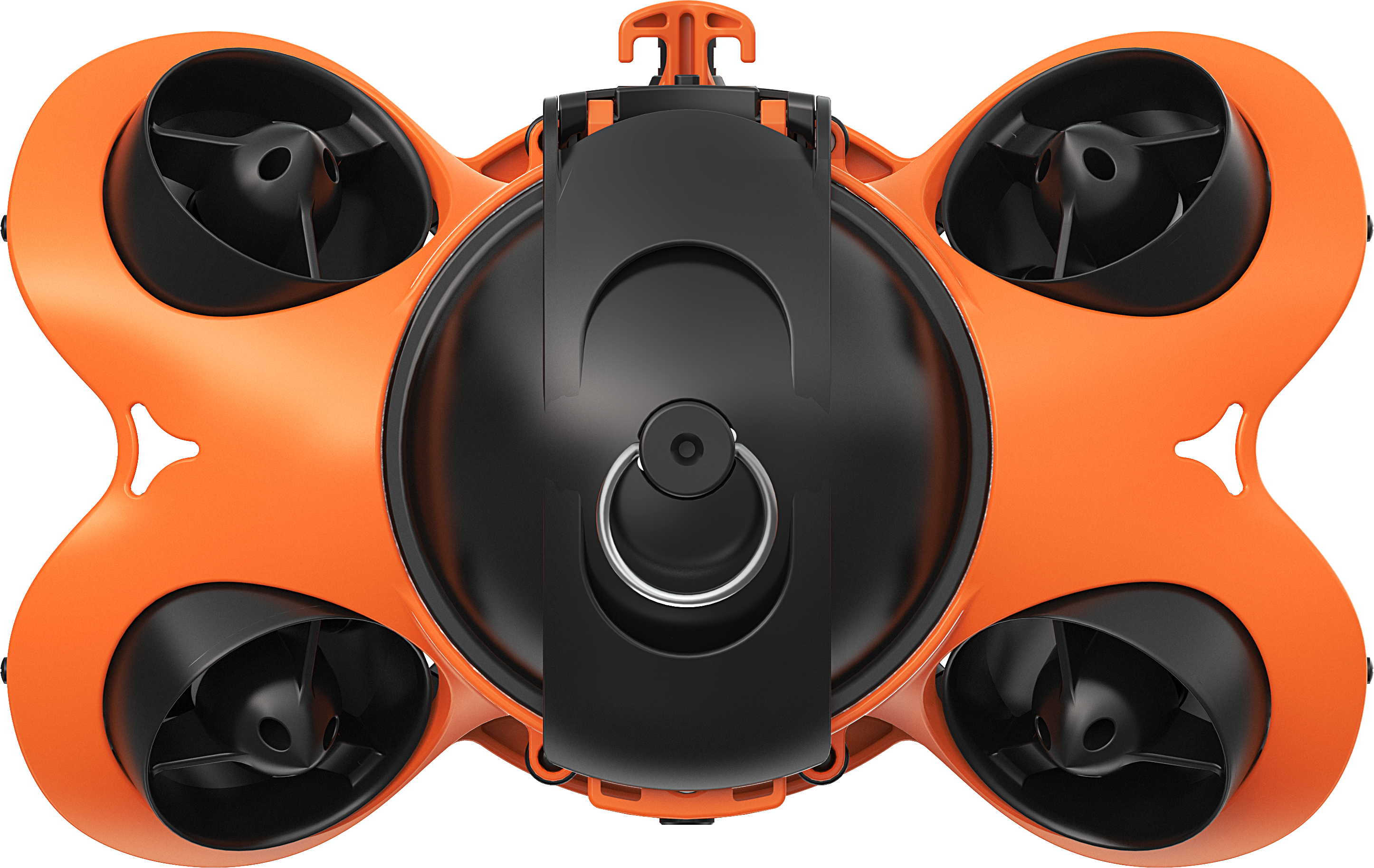

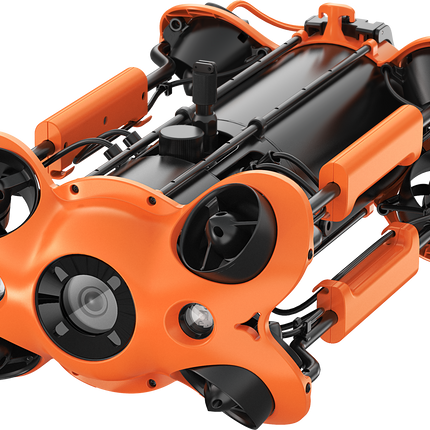

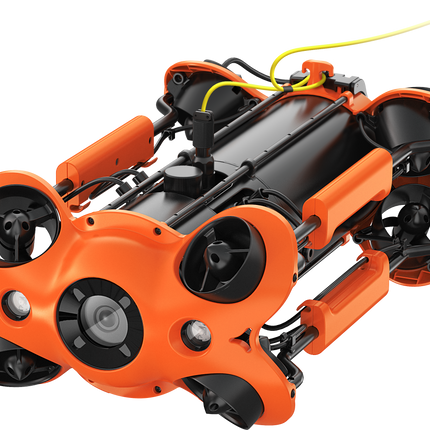

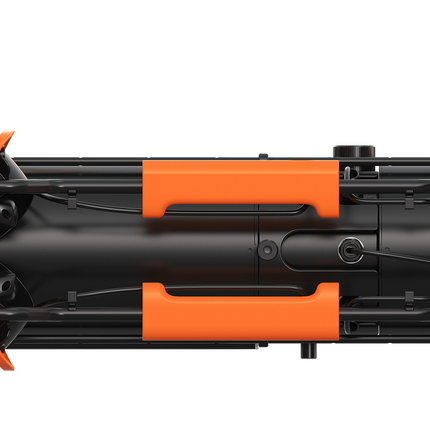

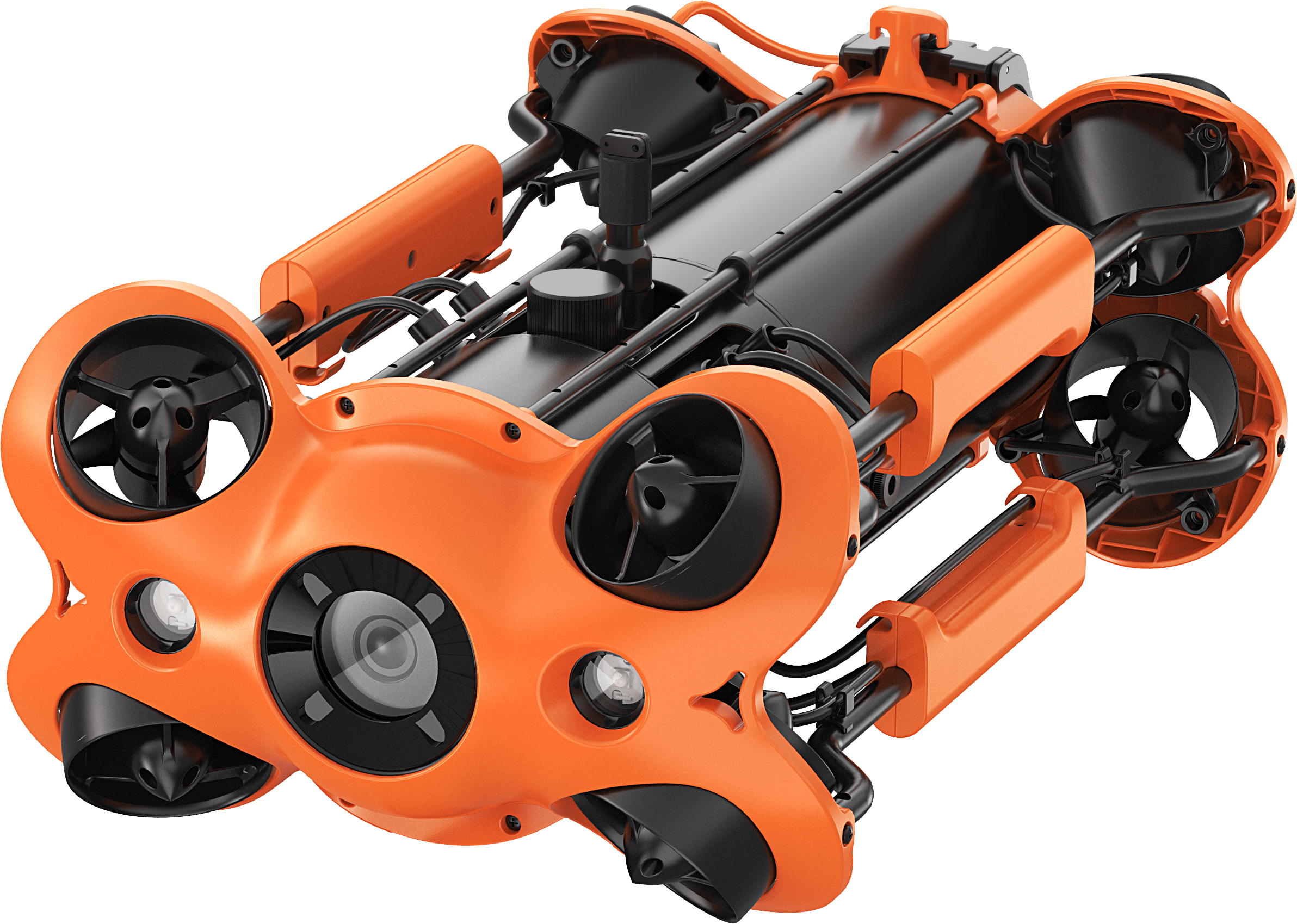

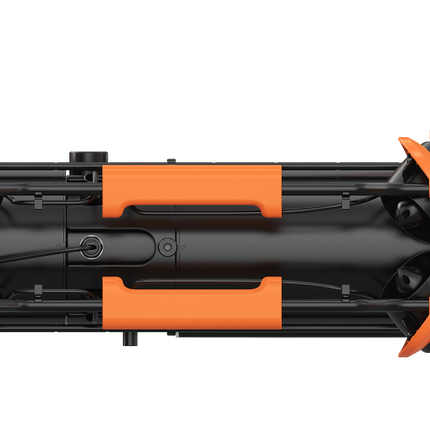

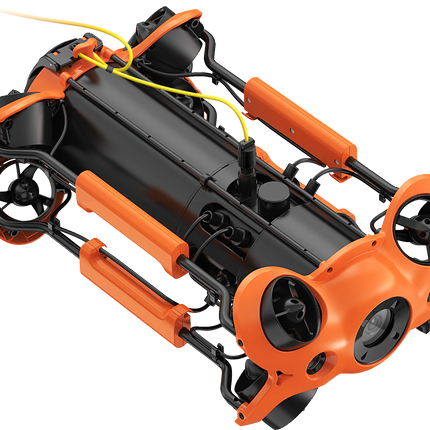

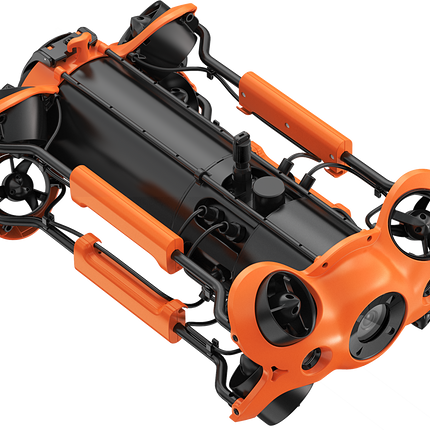

Chasing M2 Pro ROV Professional Package

    Description

    Industrial-Grade Underwater Drone for Professional Scenario

    • Stronger Power, 4 Knots Speed
    • Up to 2 Hours of Battery Life with 300Wh Battery (Standard)
    • Up to 5 Hours of Battery Life with 700Wh Battery (Optional)
    • Unlimited Battery Life with AC Power
    • More Advanced Exclusive Accessories
    • Depth Rating 490ft / 150m
    • 4K UHD EIS Camera

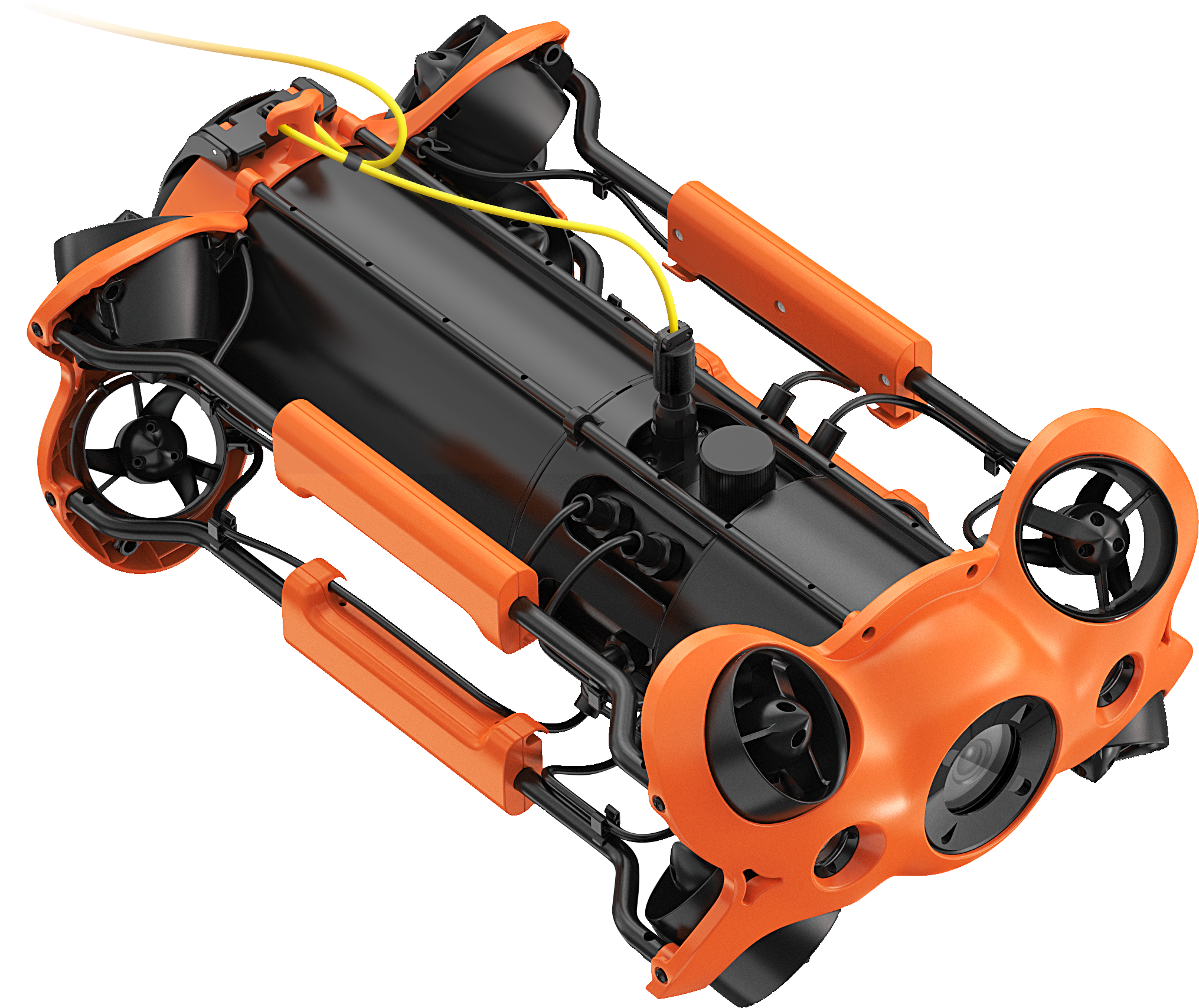

    CHASING M2 PRO is a light industrial underwater ROV designed for professional users and industrial applications. It works with various power supply and has stronger powered motors. The drone can be mounted more so as to greatly meet the needs of various scenarios.

    Stronger Power, More Accessories, Various Power Supply (AC & DC)

    Industrial Application

    Underwater Search and Rescue

    Water Conservancy and Hydropower Inspection

    Scientific Exploration

    Hull & Dock Inspection

    Aquaculture Inspection

    Omni Movement, Multi-Angle Shooting

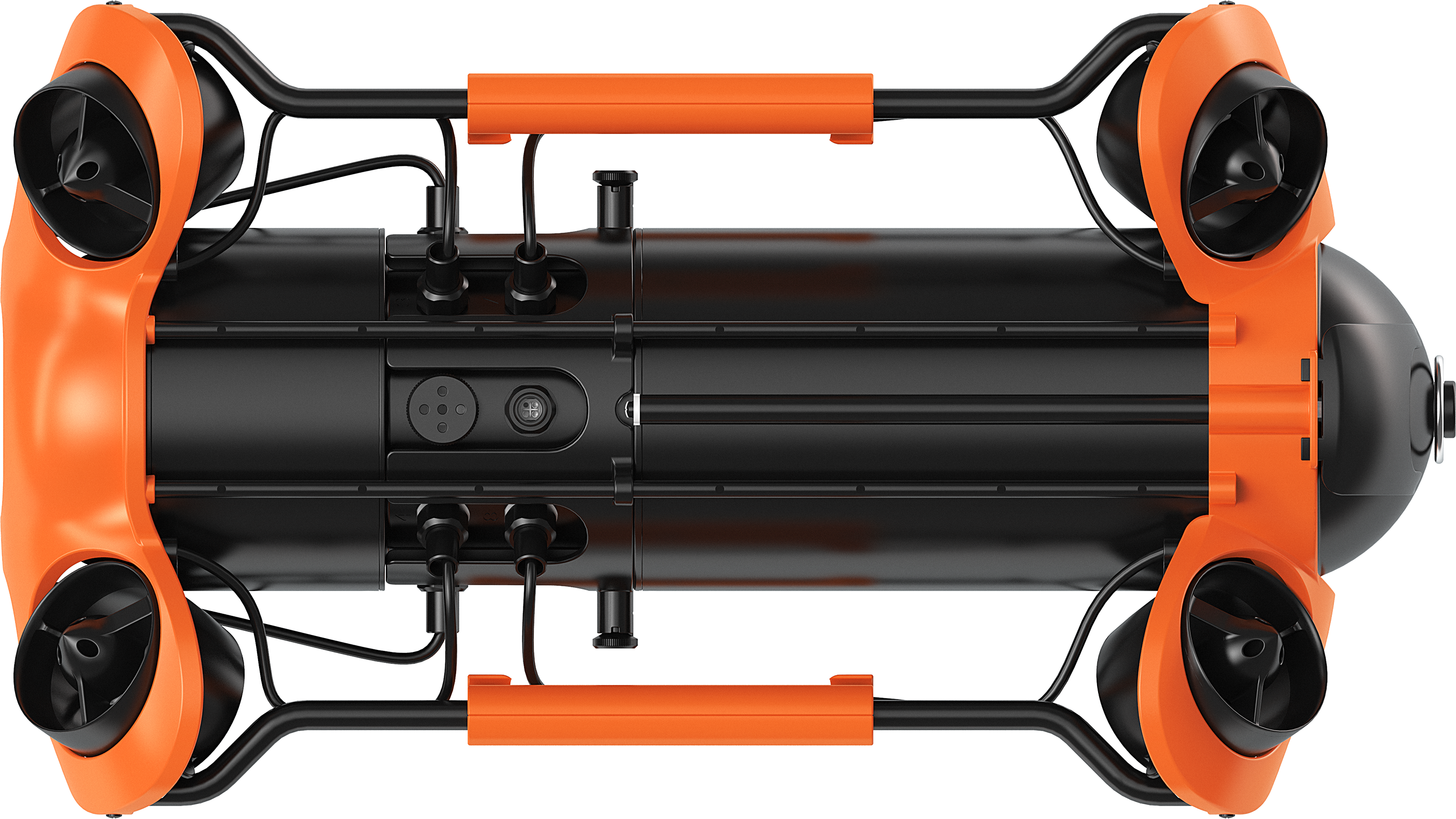

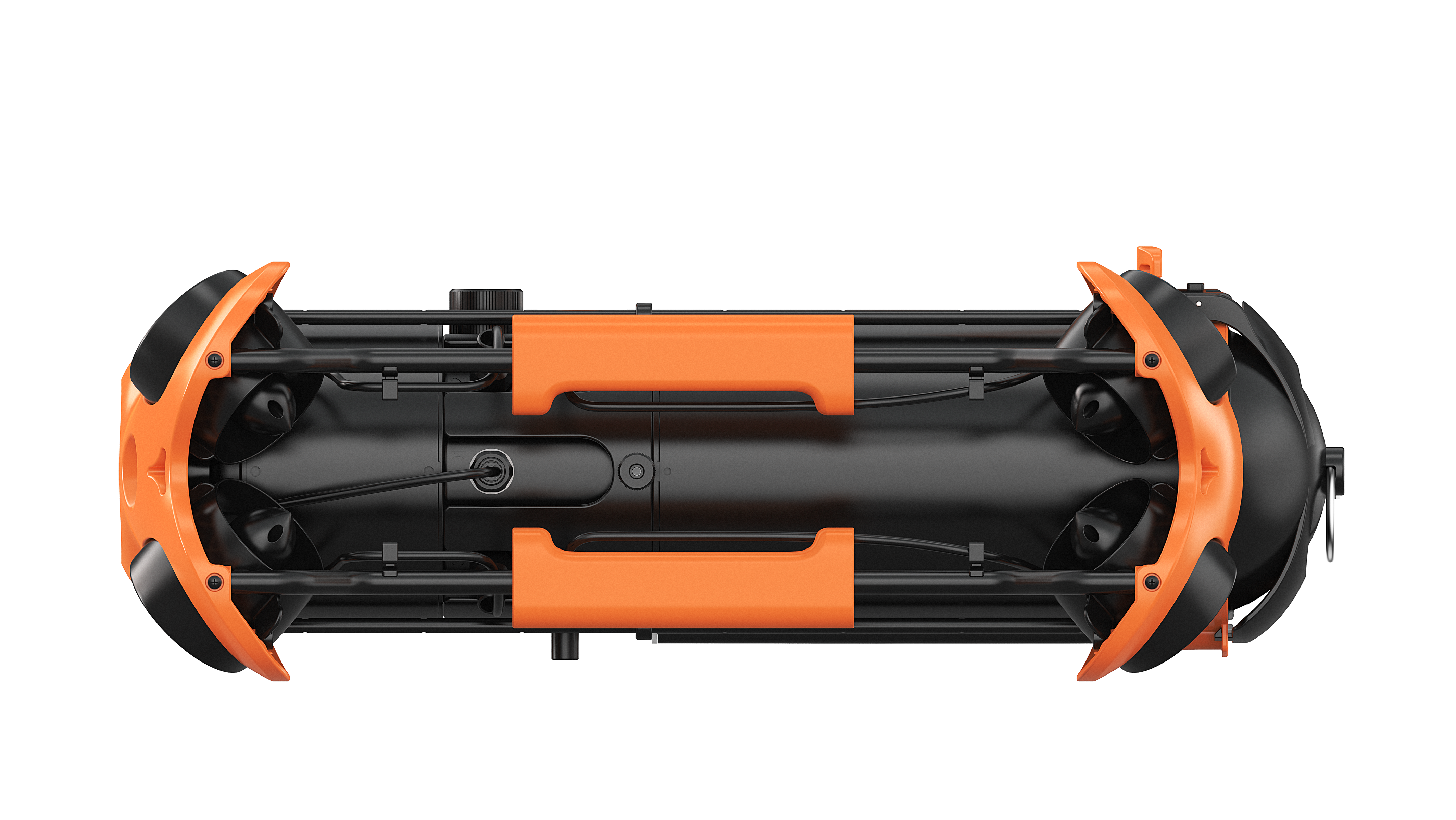

    CHASING M2 PRO has 8 vectored thrusters layout which allows OMNI movement in all directions. Under any posture, the depth can be set with one key, which can ensure the drone to accurately hover to to achieve any perspective shooting, observation and operation needs of any angle of view.

    Forward and Backward
    Floating and Diving
    Lateral Movement
    Turn Left / Turn Right
    ±90° Pitch and Tilt
    Rolling 360°
    ( Side-to-side & Forward and back)

    More Exclusive Accessories to Meet More Professional Scenarios

    Not only compatible with CHASING M2's attachments such as Grabber Claw, Diving Light and Laser Scaler etc, but also compatible with Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and other M2 PRO exclusive enhanced accessories.

    Control ConsoleUSBL Underwater PositioningMultibeam SonarAuxiliary Camera

    The control console is used for operating the underwater ROV and all accessories. The keys are well laid out for more professional control. With the high brightness screen, the picture is clearly visible even in daylight.

    It can accurately locate the location of underwater drones and record their movement tracks. Combination solution: USBL + Unmanned Surface Vehicle + Control Console + Docking Station.

    It generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water.Combination solution: Multibeam Sonar (support other brands) + Sonar Tether + Docking Station.

    Observe objects simultaneously in dual-view with two cameras. Combination solution: Auxiliary Camera and Docking Station.

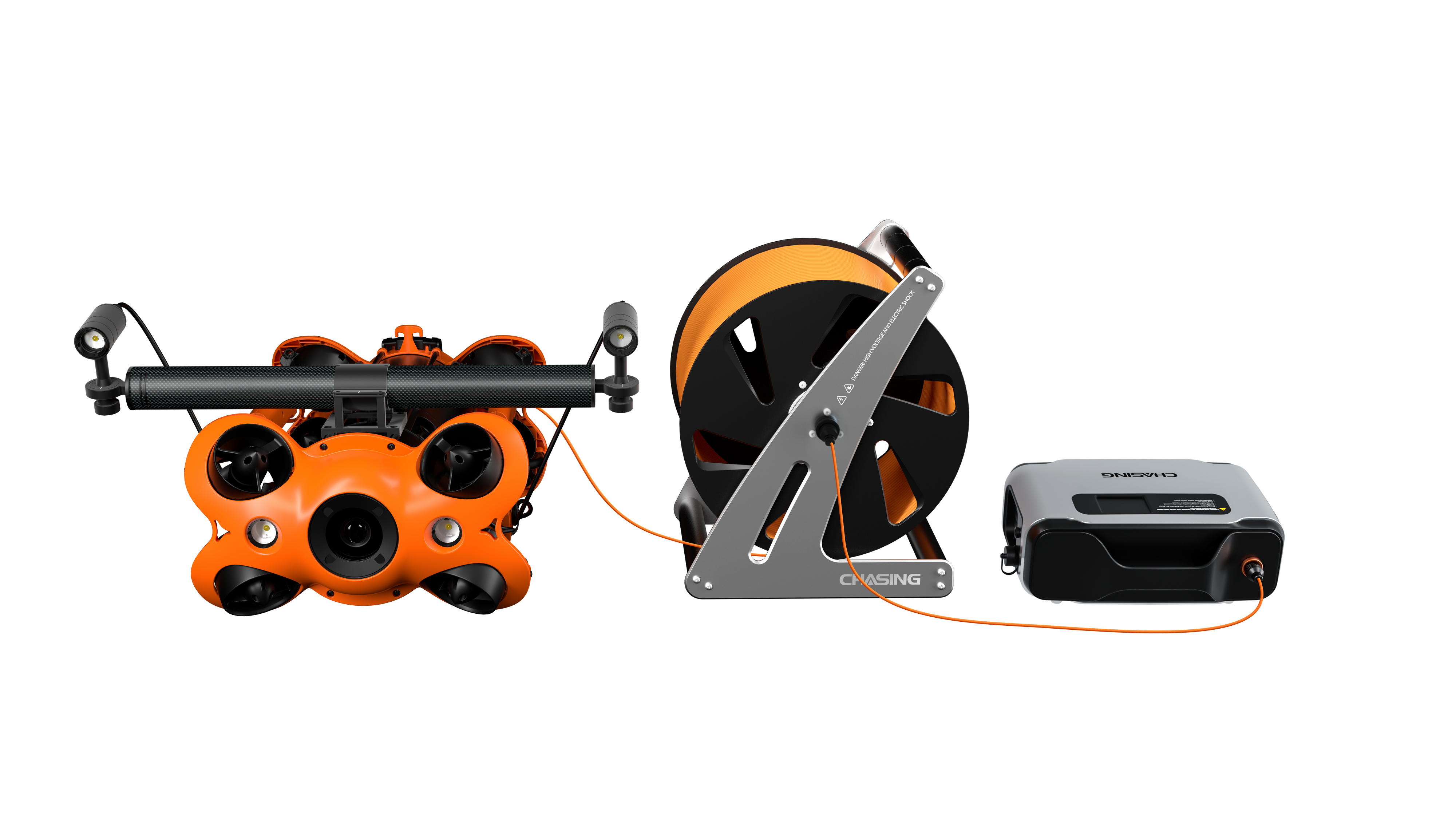

    Unlimited Battery Life with AC & DC Power Supply

    CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable, The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.

    Removable batteryAC power supply

    Stronger Power Anti-Stuck Motor, 4 Knots Anti-Flow

    The anti-stuck motor is 150W and the power has been upgraded by 50% compared to the Chasing M2 motor, which can resist the flow of water at 4 knots (2m/s) in all directions.

    Dive Up to 150 Meters to Explore More Unknowns

    The waterproof level of CHASING M2 PRO has been upgraded to 150 meters (490 FT), diving deeper and exploring more underwater unknowns.

    • 150 Meters

      Maximum working depth

    • -10℃~45℃

      Operating temperature

    • 2 m/s(4 Knots)

      Maximum speed

    • Up to 5 Hours

      Runtime

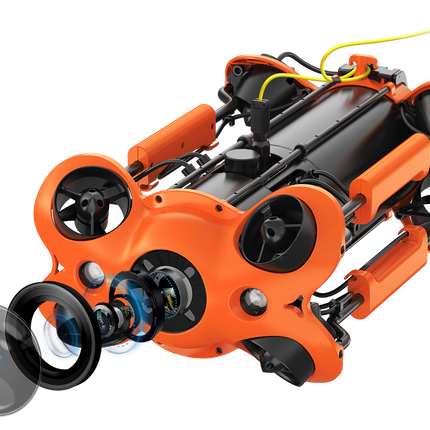

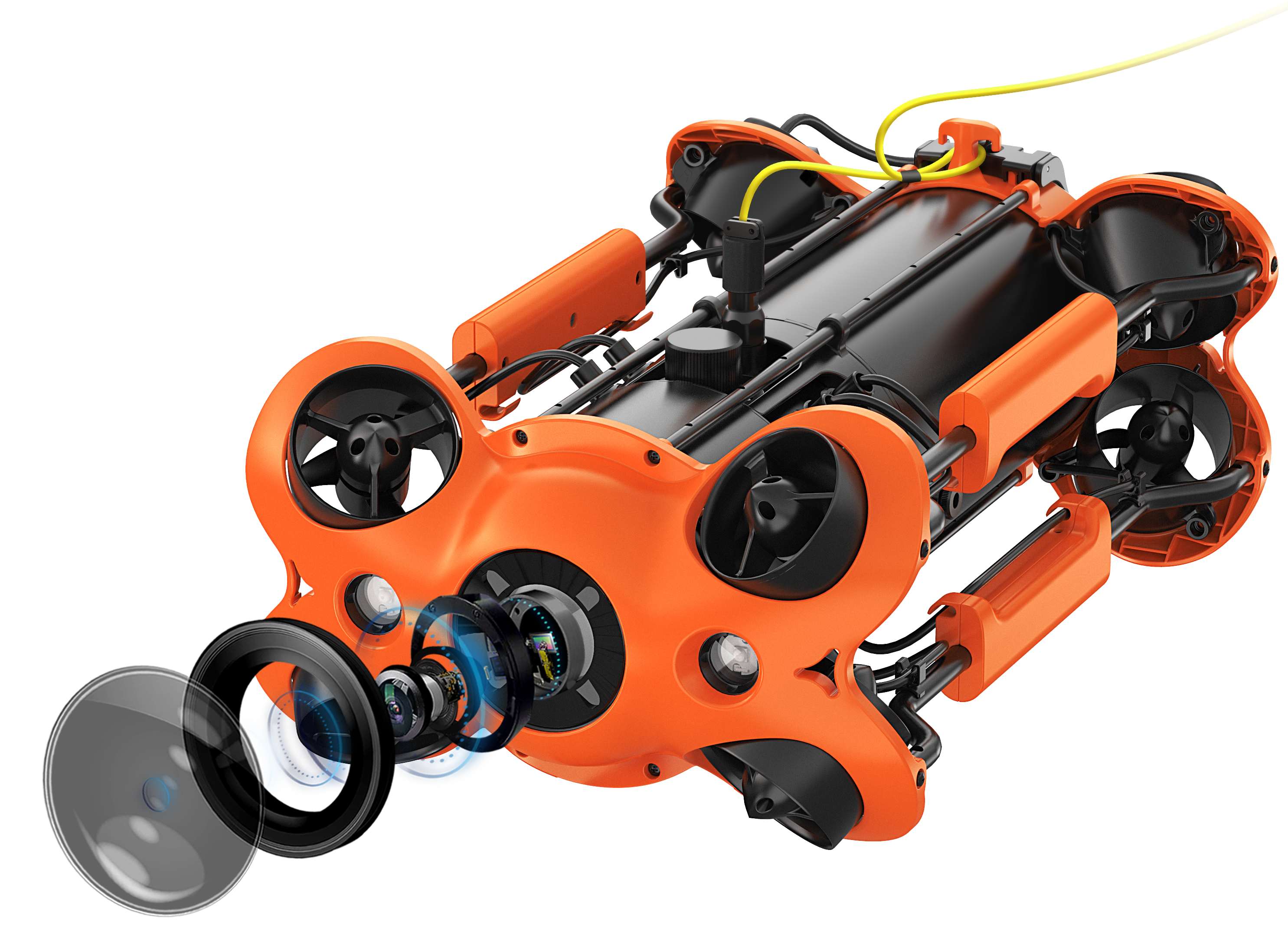

    4K EIS Image Stabilization Camera for Clearer Shooting

    Built-in 4K/12M pixel camera, 1/2.3 SONY CMOS, EIS stabilization feature. With 4000 lumens LED lights, the camera of CHASING M2 PRO can capture every detail clearly underwater.

    • 4K

      Video resolution

    • 12M

      Max. photo pixel

    • 152°

      FOV

    • F1.8

      Lens

    User Friendly Interaction

    • Live broadcast

    • Social media sharing

    • HDMI output

    • Taking photos while recording video

    • Time-lapse photography & Slow motion

    • Quick editing features

    • Three Devices Shared at the Same Time

      CHASING M2 PRO supports three devices to watch underwater images simultaneously and meet the needs for multiple viewers.

    • Removable SD Memory Card, Download Anytime and Anywhere

      The 128G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.



    Product Specifications

    CHASING M2 PRO

    Max Depth

    490 ft (150 m)

    Video Bitrate

    60 M

    Tether Length

    656 ft / 984 ft / 1312 ft

    SD Card Storage

    128 G

    Video Resolution

    3840 x 2160 (UHD)

    Photo Resolution

    12 M

    Drone
    18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
    ≈5.7 kg
    490 ft (150 m)
    4 Knots (2 m/s)
    Up to 4 hours
    300 Wh
    -10℃~45℃

    Control Console
    19" x 14.8" x 7" (484 x 375 x 178 mm)
    8 kg
    1920 x 1080, 1000 cd/m2
    -10 ℃ ~ 45 ℃
    21.6 V
    RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1,
    AC output to ROV x 1

    Camera
    1/2.3 inch
    F1.8
    1m
    100-6400
    152°
    12 Meg pixel
    JPEG/DNG
    UHD: 3840*2160 (4K) 30fps
    FHD: 1920*1080 (1080p) 30/60/120fps
    720p: 8x (240 fps)
    1080p: 4x (120 fps)
    4K / 1080p supported
    60 M
    MP4
    128 G

    Remote Controller
    6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
    685 g
    2500 mAh
    ≥ 6 hours (depending on the environment)
    Wi-Fi supported
    Support
    Maximum support 10 inch

    Sensor
    3 axis gyro & accelerometer & compass
    < ± 0.25 m
    < ± 2 ℃

    Charger
    2.9A / 25.2V
    4.5 H
    2 H

    LED
    2 x 2000 Lumens
    5000 K - 5500 K
    85
    Three gears

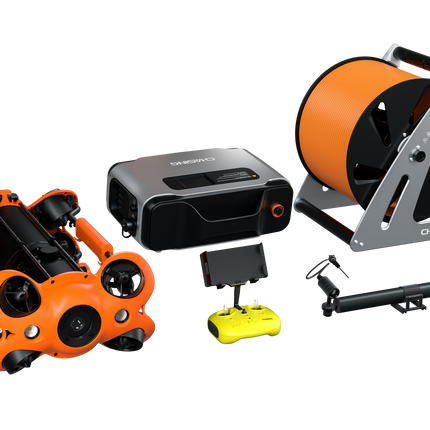

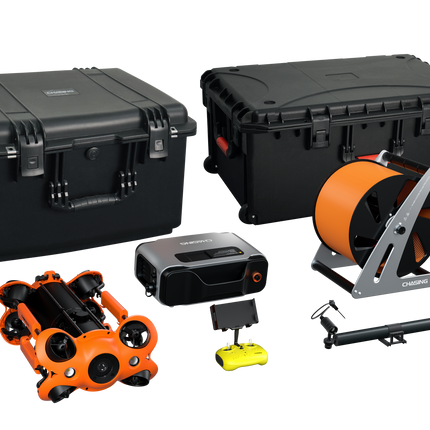

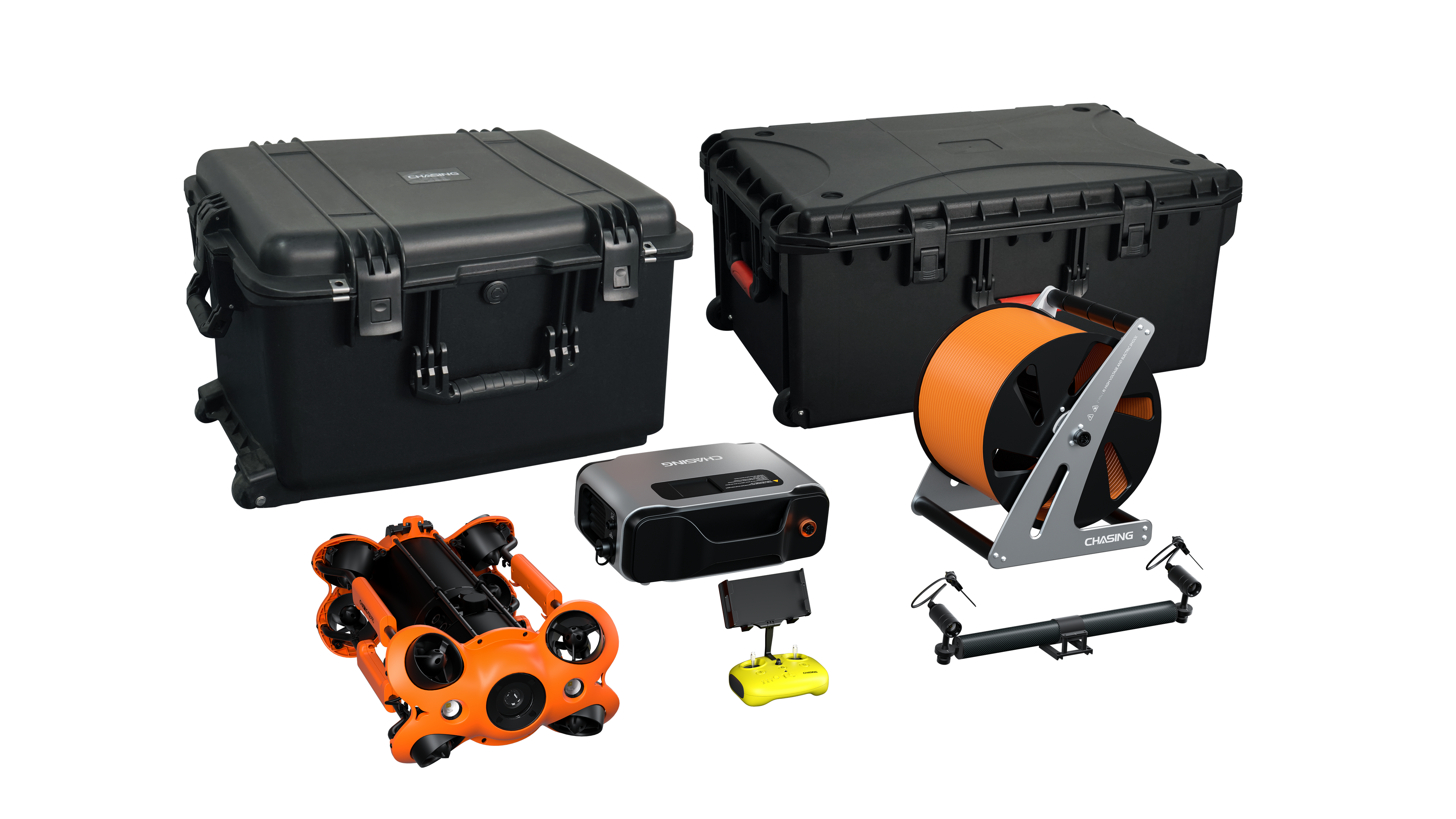

    In The Box
    • Drone (Excl Battery) ×1
    • Remote Controller ×1
    • GoPro Mounting Base ×1
    • Power Cord ＆ 3 in 1 Charger ×1
    • Carrying Case ×1
    • Type-C to Type-C Data Cable ×1
    • Type-C to Lighting Data Cable ×1
    • Type-C to Micro-USB Data Cable ×1
    • Sun Shade ×1
    • M3X8 Screws ×4
    • Support Documents ×4
    • O-rings ×18
    • Towel×1
    • Shorebase Power Supply System with 200m Tether x1
    • Floodlight 2 ×1
    Product form

    Industrial-Grade Underwater Drone for Professional Scenario Stronger Power, 4 Knots Speed Up to 2 Hours of Battery Life with 300Wh... Read more

    Free pickup in our shop(s)

    • Free Shipping on orders over $300

    SKU: M2PRO-PRO

    Out of stock

    $17,999.00
