Zenmuse Commercial

Capture everything up close or from a distance in true living colour. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities. Product Description All the Sensors You Need - In One Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.   Zoom Camera VISUAL SENSOR LASER RANGE FINDER INGRESS PROTECTION 20 MP 12 MP 3m - 1200m Level IP44    "H" FOR HYBRID Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.    ALL-IN-ONE   INTELLIGENT WAYS TO COLLECT DATA     AI SPOT-CHECK Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.   HIGH-RES GRID PHOTO Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.   APPLICATION   Product Specifications PRODUCT SPECIFICATIONS GENERAL Weight: Zenmuse H20: 678±5 gDimensions: Zenmuse H20: 150×114×151 mmIngress Protection Rating: IP44Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)Storage Temperature: -20° to 60° CLaser Safety: Class 1M (IEC 60825-1:2014)Supported Aircraft: Matrice 300 RTK   GIMBAL Angular Vibration Range: ±0.01°Mount: DetachableControllable RangePitch: -120° to +30°Yaw: ±320°Mechanical RangePitch: -132.5° to +42.5°Yaw: ±330°Roll: -90° to +60°   ZOOM CAMERA Sensor: 1/1.7" CMOS, 20 MPLensDFOV: 66.6°-4°Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)Focus Mode: MF/AF-C/AF-SExposure Mode: Auto, ManualExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedElectronic Shutter Speed: 1 ~ 1/8000 sISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution3840x2160@30fps, 1920x1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 5184 × 3888Photo Format: JPEG   WIDE CAMERA Sensor: 1/2.3" CMOS, 12 MPLensDFOV: 82.9°Focal length: 4.5 mm (equivalent: 24 mm)Aperture: f/2.8Focus: 1 m to ∞Exposure Mode: AutoExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedShutter Speed: 1 ~ 1/8000ISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution: 1920×1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 4056 x 3040Photo Format: JPEG   LASER RANGEFINDER Wavelength: 905 nmMeasurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)Measurement accuracy± (0.2 m + D×0.15%)D is the distance to a vertical surface   FEATURES Hybrid Optical Zoom: 23×Max. Zoom: 200×One-Click CaptureOne-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneouslyPoint to AimDouble click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interestHigh-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.Night Scene: Supported (zoom camera)Timestamp: Including GPS, date, and time   STORAGE Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)Recommended Micro SD CardsTOSHIBA EXCERIA PRO 32GB micro SD HC IISanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC ITOSHIBA EXCERIA PRO 64GB micro SD XC IISanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC ISAMSUNG_EVO_128GB_micro SD 3 XC ITOSHIBA EXCERIA M303E 32GB micro SD HC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303 128GB micro SD XC ISAMSUNG_EVO_64GB_micro SD 3 XC I   In The Box IN THE BOX Gimbal and Camera x 1

Read more less

Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities. Product Description All the Sensors You Need - In One Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.   THERMAL SENSITIVITY VISUAL SENSOR LASER RANGE FINDER INGRESS PROTECTION < 50 MK 12 MP 3m - 1200m Level IP44      ALL-IN-ONE   INTELLIGENT WAYS TO COLLECT DATA   AI SPOT-CHECK Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.   HIGH-RES GRID PHOTO Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.   VISUALIZE TEMPERATURES IMMEDIATELY   INTELLIGENT FEATURES   TEMP ALARM Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values. COLOUR PALETTES Adjust the colours applied to the thermal data based on the needs of specific scenarios. R-JPEG IMAGES Images captured by the Zenmuse H20T are in the R-Jpeg format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp. ISOTHERMS Visualize a specific band of temperatures to find what is important. GAIN MODES Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences: Low Gain Mode covers a wider temperature range.   APPLICATION   Product Specifications PRODUCT SPECIFICATIONS GENERAL Weight: Zenmuse H20T: 828±5 gDimensions: Zenmuse H20T: 167×135×161 mmIngress Protection Rating: IP44Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)Storage Temperature: -20° to 60° CLaser Safety: Class 1M (IEC 60825-1:2014)Supported Aircraft: Matrice 300 RTK   GIMBAL Angular Vibration Range: ±0.01°Mount: DetachableControllable RangePitch: -120° to +30°Yaw: ±320°Mechanical RangePitch: -132.5° to +42.5°Yaw: ±330°Roll: -90° to +60°   ZOOM CAMERA Sensor: 1/1.7" CMOS, 20 MPLensDFOV: 66.6°-4°Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)Focus Mode: MF/AF-C/AF-SExposure Mode: Auto, ManualExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedElectronic Shutter Speed: 1 ~ 1/8000 sISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution3840x2160@30fps, 1920x1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 5184 × 3888Photo Format: JPEG   WIDE CAMERA Sensor: 1/2.3" CMOS, 12 MPLensDFOV: 82.9°Focal length: 4.5 mm (equivalent: 24 mm)Aperture: f/2.8Focus: 1 m to ∞Exposure Mode: AutoExposure Compensation: ±3.0 (1/3 increments)Metering Mode: Spot metering, Center-weighted meteringAE LOCK: SupportedShutter Speed: 1 ~ 1/8000ISO RangeVideo: 100 - 25600Photo: 100 - 25600Video Resolution: 1920×1080@30fpsVideo Format: MP4Video subtitles: SupportedPhoto Size: 4056 x 3040Photo Format: JPEG   THERMAL CAMERA Sensor: Uncooled VOx MicrobolometerLensDFOV: 40.6°Focal length: 13.5 mm (equivalent: 58 mm)Aperture: f/1.0Focus: 5 m to ∞Digital Zoom: 1x, 2x, 4x, 8xVideo Resolution: 640×512 @ 30 HzVideo Format: MP4Image Resolution: 640×512Image Format: R-JPEG (16 bit)Pixel Pitch: 12 μmSpectral Band: 8-14 μmSensitivity (NETD): ≤50 mK @ f/1.0Temperature Measurement Method: Spot Meter, Area MeasurementScene Range-40 °C to 150 °C (High Gain)-40 °C to 550 °C (Low Gain)Temperature alert: SupportedFFC: Auto/ manualPalette: White-hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot   LASER RANGEFINDER Wavelength: 905 nmMeasurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)Measurement accuracy± (0.2 m + D×0.15%)D is the distance to a vertical surface   FEATURES Hybrid Optical Zoom: 23×Max. Zoom: 200×One-Click CaptureOne-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneouslyPoint to AimDouble click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interestHigh-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.Night Scene: Supported (zoom camera)Timestamp: Including GPS, date, and time   STORAGE Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)Recommended Micro SD CardsTOSHIBA EXCERIA PRO 32GB micro SD HC IISanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC ITOSHIBA EXCERIA PRO 64GB micro SD XC IISanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC ISAMSUNG_EVO_128GB_micro SD 3 XC ITOSHIBA EXCERIA M303E 32GB micro SD HC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303E 64GB micro SD XC ITOSHIBA EXCERIA M303 128GB micro SD XC ISAMSUNG_EVO_64GB_micro SD 3 XC I     In The Box IN THE BOX Gimbal and Camera x 1

Read more less

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level. Product Description Due to be released Q1 2021   The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level. Key Features Accuracy without GCPs: 3cm horizontally/5cm vertically. High Efficiency 3 km2 covered in a single flight. 45 MP Full-frame Sensor Smart Oblique Capture Global Mechanical Shutter, Shutter Speed 1/2000 Seconds TimeSync 2.0 - synchronization at the microsecond level   Product Specifications PRODUCT SPECIFICATIONS   Dimensions: 198×166×129 mm Weight Approx:. 787 g Power: 13 W IP Rating: IP4X Supported Aircraft: Matrice 300 RTK Operating Temperature Range: -20° to 50° C (-4° to 122° F) Storage Temperature Range: -20° to 60° C (-4° to 140° F) Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm * * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.   CAMERA Sensor: Sensor size (Still): 35.9×24 mm (Full frame) Sensor size (Max video recording area): 34×19 mm Effective Pixels: 45MP Pixel size: 4.4 μm Supported Lenses: DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8° Supported SD Cards: SD: UHS-1 rating or above; Max capacity: 128 GB Storage Files: Photo / GNSS Raw Observation Data/ Image Log File Photo Size: 3:2 (8192×5460) Operation Modes Capture, Record, Playback Minimum photo interval: 0.7 s Shutter Speed: Mechanical Shutter Speed: 1/2000-1/8 s Electronic Shutter Speed: 1/8000-8 s Aperture Range: f/2.8-f/16 ISO Range: Photo: 100-25600 Video: 100-3200   VIDEO Video Format: MP4 Video Resolution: 16:9 (3840×2160) Frame Rate: 60fps   GIMBAL Stabilized System: 3-axis (tilt, roll, pan) Angular Vibration Range: 0.01° Mount: Detachable DJI SKYPORT Mechanical Range: Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320

Read more less

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. Product Description Due to be released Q1 2021   The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.   Key Features Integrates a Lidar module, an RGB camera, and a high-accuracy IMU Point Rate: 240,000pts/s IP44 Ingress Protection Level High Accuracy: Vertical: 5 cm / Horizontal: 10 cm Supports 3 Returns Point Cloud LiveView High Efficiency 2 km2 covered in a single flight Detection Range: 450 m (80% reflectivity, 0 klx)   Visualise Data As You Fly Livox Lidar Module •Frame Lidar with up to 100% effective point cloud results •Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)  •Point Rate: 240,000 pts/s •Supports 3 returns •Line Scan Mode and Non-repetitive Petal Scan Mode   Product Specifications   PRODUCT SPECIFICATIONS GENERAL Dimensions: 152×110×169 mm Weight Approx: 900 g Power: 30 W IP Rating: IP44 Supported Aircraft: Matrice 300 RTK Operating Temperature Range: -20° to 50° C (-4° to 122° F) Storage Temperature Range: -20° to 60° C (-4° to 140° F)   SYSTEM PERFORMANCE Detection Range: 450 m @ 80% reflectivity, 0 klx <br>;190 m @ 10% reflectivity, 100 klx Point Rate Single return: 240,000 pts/s <br>;Multiple return: 480,000 pts/s System Accuracy Horizontal: 10 cm @ 50 m <br>;Vertical: 5 cm @ 50 m Real-time Point Cloud Coloring Modes: True color; coloring by reflectivity; coloring by elevation   LIDAR Ranging Accuracy: 3 cm @ 100 m Maximum Returns Supported: 3 Scan Modes: Repetitive line scan mode, non-repetitive petal scan mode FOV: Repetitive line scan: 70.4°×4.5°<br>； Non-repetitive petal scan: 70.4°×77.2° Laser Safety: Class 1   INERTIAL NAVIGATION SYSTEM IMU Update Frequency: 200 Hz Accelerometer Range: ±8 g Angular Velocity Meter Range: ±2000 dps Yaw Accuracy: Real-time: 0.18°, Post-processing: 0.08° Pitch / Roll Accuracy: Real-time: 0.03°, Post-processing: 0.025°   AUXILIARY POSITIONING VISION SENSOR Resolution: 1280×960 FOV: 95°   RGB MAPPING CAMERA Sensor Size: 1 inch Effective Pixels: 20 MP Photo Size: 4864×3648 (4:3); 5472×3648 (3:2) Focal Length: 8.8 mm / 24 mm (Equivalent) Shutter Speed: Mechanical Shutter Speed: 1/2000 - 8 s / Electronic Shutter Speed: 1/8000 - 8 s ISO: Video: 100 – 3200 (Auto), 100 – 6400 (Manual)  Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)" Aperture Range: f/2.8 - f/11   GIMBAL Stabilized System: 3-axis (tilt, roll, pan) Angular Vibration Range: 0.01° Mount: Detachable DJI SKYPORT Mechanical Range: Tilt: -120° to +30°; Pan: ±320° Operation Modes: Follow/Free/Re-center   DATA STORAGE Raw Data Storage: Photo/IMU/Point cloud data storage Point Cloud Data Storage: Real-time modeling data storage Supported microSD Cards: microSD: Class 10 or UHS-1 rating or above; Max capacity: 256 GB   POST-PROCESSING SOFTWARE Supported Software: DJI Terra Data Format: DJI Terra supports exporting standard format point cloud models: Point cloud format: PNTS/LAS/PLY/PCD/S3MB format Reconstruction model format: B3DM/OSGB/PLY/OBJ/S3MB format

Read more less

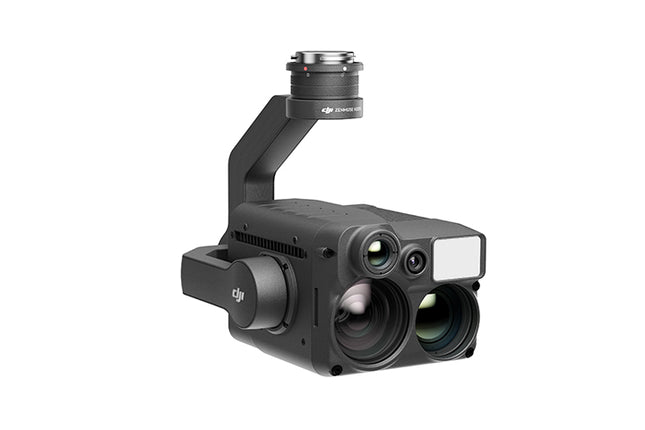

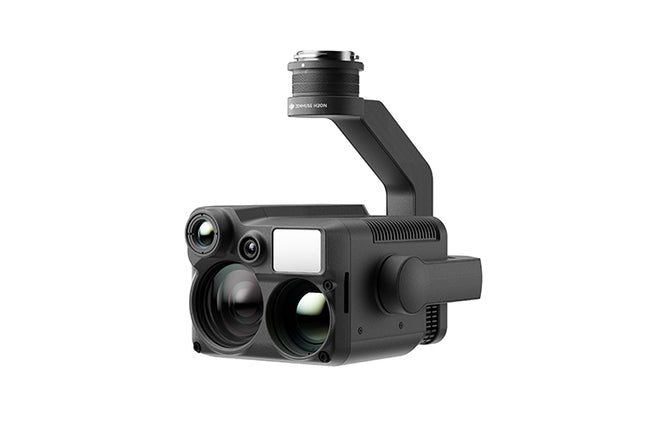

Now get FREE Care Enterprise Basic Cover with your H20N     The Zenmuse H20N is the latest payload from DJI that is compatible with the DJI Matrice 300 RTK that give pilots vision beyond darkness. The Zenmuse H20N integrates starlight sensors into its zoom and wide angle cameras. Pairing this with dual zoom thermal cameras and a laser rangefinder, the H20N is now the most versatile hybrid payload on the market.   What are the image resolutions of the cameras?  Radiometric thermal camera: R-JPEG, 640×512 pxWide-angle camera: JPEG, 2 MPZoom camera: JPEG, 4 MP Key Features20x Hybrid Optical Zoom and 128x Maximum Zoom.2x, 8x Optical Zoom on Dual Thermal Cameras.4 MP Nigh Vision Zoom Camera and 2 MP Night Vision Wide Camera.Up to 1200m range for the Laser Rangefinder. 640 x 512 at 30 fps are the specifications of the thermal camera.      SEE THROUGH THE NIGHT The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments. INFRARED ZOOM Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in. SYNCHRONIZED SPLIT-SCREEN ZOOM H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.     INTELLIGENT FEATURES ONE-TAP PANORAMA Create 360 views of the site you are on with the one-tap panorama, perfect to capture the vision around the drone for easy surveying.  HIGH-RES GRID PHOTO Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail. PINPOINT A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates. SMART TRACK Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location. ACCURATE TEMPERATURE MEASUREMENT Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air. SPOT METER Tap a point to get real-time reading of surface temperature. AREA MEASUREMENT Select an area to view the lowest, highest and average temperatures.   PRODUCT SPECIFICATIONS GENERAL Product Name: Zenmuse H20N Dimensions: 178x135x161 mm Weight: 878±5 g Protection Rating: IP44 Laser Safety: Class 1M (IEC 60825-1:2014) Supported Aircraft: Matrice 300 RTK   GIMBAL Angular Vibration Range: ±0.01° Mount: Detachable   ZOOM CAMERA Sensor: 1/1.8" CMOS; Effective Pixels: 4M Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night)Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)   WIDE CAMERA Sensor: 1/2.7" CMOS; Effective Pixels: 2M Lens: DFOV: 73.6°Focal Length: 4.5 mm (equivalent: approximately 29 mm)Aperture: f/2.8Focus: 1 m to ∞   TELE INFRARED THERMAL CAMERA Thermal Imager: Uncooled VOx Microbolometer Lens: DFOV: 12.5°Focal Length: 44.5 mm (equivalent: approximately 196 mm)Aperture: f/1.2Focus: 45 m to ∞   WIDE INFRARED THERMAL CAMERA Thermal Imager: Uncooled VOx Microbolometer Lens: DFOV: 45.5°Focal Length: 12 mm (equivalent: approximately 53 mm)Aperture: f/1.0Focus: 5 m to ∞   LASER RANGE FINDER Wavelength: 905 nm Maximum Power: 3.5 mW Single Pulse Width: 6 ns Measuring Accuracy: ± (0.2 m + target distance x 0.15%) Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)   STORAGE Supported microSD Cards: Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB Supported File System: exFAT   ENVIRONMENT Operating Temperature: -20° to 50° C (-4 to 122°F) Storage Temperature: -20° to 60° C (-4 to 140°F) IN THE BOX DJI Zenmuse H20N x 1

Read more less
