Description

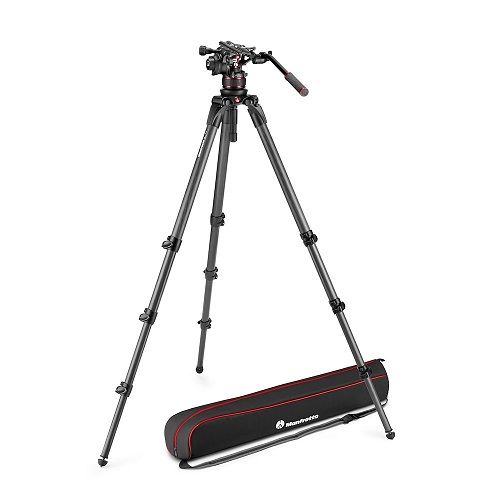

The video system includes the NITROTECH 612 fluid video head (flat base) and the 536 carbon fibre single leg tripod.
Product Description
Fluid video head with continuous counterbalance system (4-12 Kg) Variable continuous fluid pan & tilt drag system Flat base mount ideal for various applications Lightweight single CF leg tripod versatile operating height
The NITROTECH 612 fluid video head features continuous counterbalance system that enables precise control of a camera and accessories from 4 up to 12 Kg at 55mm center of gravity. No matter the camera gear weight you are using you can have constant control despite the tilt degrees you will select. Camera operation will be much easier and effort free! The variable continuous fluid drag system is powered by a brand new fluid technology that with Its formula sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements. The head also features a 3/8" Easy Link equipped with an anti-rotation systems both to accommodate Manfrotto arms equipped with an anti-rotation system or arms equipped with ARRI locating pins in order to enable an external monitor or other accessories to be fitted securely. The sliding plate attachment side-lock mechanism allows safe quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8" thread that is highly versatile for different support combinations (tripod slider jib or crane). The head attaches to the tripod thanks to a dedicated 100mm half ball. The 536 carbon fibre tripod has 4 sections and ensures great stability combined with an impressive maximum height of 203cm/79.9in. The single tube structure makes it lightweight ergonomic and easy to use. The 536's leg angle selectors allow each leg to be set quickly and easily and independently of each other (3 steps: 23¡-50¡-70¡). Among the tripodÕs key benefits users enjoy its flexibility in terms of operating height (from 26 cm/10.2 in all the way up to 203 cm/79.9in). Supplied with its own padded carrying bag.
Specifications
Weight: 6.27 kg
Safety Payload Uni/Pdr 105:2021: 18 kg
Counterbalance System: Variable Continuous
Counterbalance Weight: 4 → 12 kg
Maximum Height: 218 cm
Min Height: 42 cm
Base Diameter: 75 mm
Bubble Spirit Level (No.): 1
Center Of Gravity: 55 mm
Carrying Bag Included: yes
Center Column: no centre column
Closed Length: 87 cm
Colour: Black
Top Attachment: 1/4″ screw, 3/8″ screw
Ball Flat: 0
Safety Payload Weight: 12 kg
Powered By (Batteries): Lithium
Easy Link: Yes (with antirotation)
Front Tilt: -70° / +90°
Head Type: Video/Fluid Head
Leg Type: Single
Leg Angles: 23°, 50°, 70°
Leg Lock Type: Flip Lock
Leg Sections: 4
Material: Aluminium, Carbon Fiber
Maximum Working Temperature: 50 °C
Minimum Working Temperature: -20 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONGRL
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: 114; 127V; 127VS; MVAPANBARM; MVAPANBARL
