Description

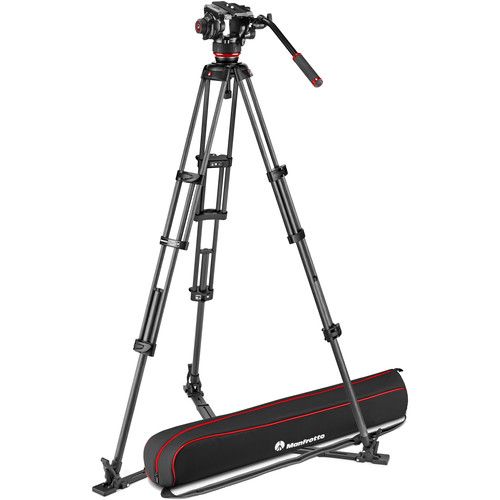

This innovative video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINGC carbon fiber twin leg with ground spreader tripod.
Product Description
Fluid video head with 4-step counterbalance system up to 6.5 kg. Maximum versatility thanks to flat base Carbon Fiber twin leg tripod for greater rigidity Side lock plate & two 3/8 inch easy link connectors for accessories Adjustable ground spreader for extra stability and versatility.
The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G. The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg. It is a compact and light head with a flat base (base diameter 75 mm) that lets you choose from a wide variety of different shooting options. It also features two 3/8" Easy Link connectors equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe quick and easy camera attachment. The head attaches to the tripod via a dedicated 75mm half ball. The MVTTWINGC carbon fiber twin leg with ground spreader video tripod is a professional-quality tripod with a two-stage extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm. The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. Leg locks are secure and reliable and twin spiked feet are provided for external use e.g. in the grass. For maximum versatility the tripod can be used with various dollies (114MV and 181B). With its combination of robust construction and compatibility options this tripod definitely has it all. Supplied with its own padded carrying bag.
Specifications
Weight: 5.57 kg Safety Payload Uni/Pdr 105:2021: 12 kg Counterbalance System: Variable Steps Counterbalance Weight: 2.2 4.4 6.5 kg Maximum Height: 175 cm Min Height: 49 cm Base Diameter: 75 mm Bubble Spirit Level (No.): 1 Center Of Gravity: 55 mm Carrying Bag Included: yes Center Column: no centre column Closed Length: 85 cm Colour: Black Top Attachment: 1/4" screw 3/8" screw Ball Flat: Flat Safety Payload Weight: 12 kg Powered By (Batteries): Lithium Easy Link: Yes (with antirotation) Front Tilt: -70¡ / +90¡ Head Type: Video/Fluid Head Leg Type: Twin Leg Lock Type: Flip Lock Leg Sections: 3 Material: Carbon Fiber Maximum Working Temperature: 60 ¡C Minimum Working Temperature: -30 ¡C Pan Bar Included: Yes Pan Drag: continuously adjustable from 0 to max level Panoramic Rotation: 360 ¡ Plate Type: 504PLONGR-1 Quick Release: Yes Spreader: low level - variable arm len
