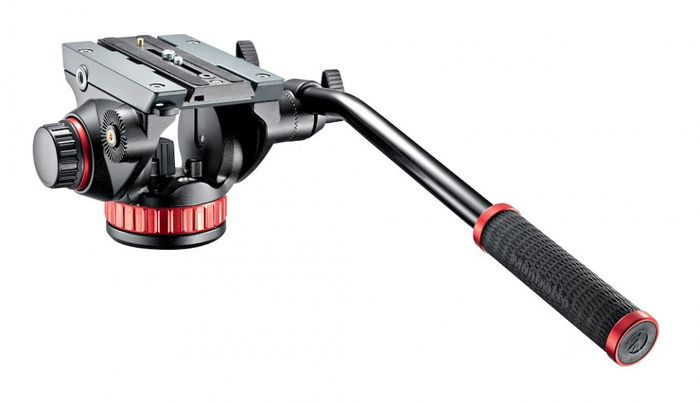

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.

Product Description

Variable Fluid Drag System on PAN and TILT movements Fixed Counterbalance system Sliding plate for the fastest camera connection and set up Flat base for multiple support combinations 3/8" easy link connectors for accessories

It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a 75mm half ball connection to ensure compatibility with most equipment today. This video head also has a fixed counterbalance system of 4 Kg Last but not least 3/8 inch Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.

Specifications

Weight: 1.691 kg Safety Payload UNI/PdR 105:2021: 10 kg Counterbalance System: Fixed Counterbalance Weight: 4 kg Base Diameter: 75 mm Material: Aluminium Bubble Spirit Level (No.): 1 Center Of Gravity: 55 mm Safety Payload Weight: 7 kg Powered By (Batteries): 0 Certifications: None Top Attachment: 1/4 inch screw 3/8 inch screw Colour: Black Easy Link: Yes Front Tilt: -80¡ / +90¡ Ball Flat: Flat Head Type: Video/Fluid Head Maximum Working Temperature: 60 ¡C Minimum Working Temperature: -20 ¡C Pan Bar Included: Yes Pan Drag: continuously adjustable from 0 to max level Panoramic Rotation: 360 ¡ Plate Type: 504PLONG Quick Release: Yes Tilt Drag: continuously adjustable from 0 to max level Working Height: 13 cm
