Description

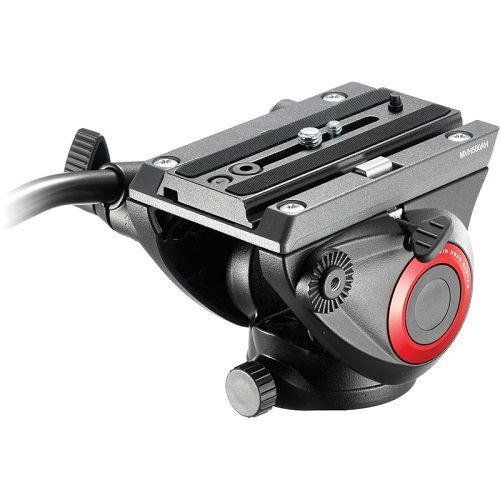

The Manfrotto 500 Fluid Video Head with flat base is lightweight and built with a wider platform for HDSLR bodies and a sliding plate which travels to balance your camera. It ensures smooth shots and fine control with up to 5kg of equipment.
Product Description
Fixed Fluid Drag System on PAN and TILT movements 2.4kg pre-set counterbalance system on tilt movement Sliding plate for rapid camera connection and set up Flat base supports multiple support combinations 3/8" easy link connector for accessories
The head has professional fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth controlled and precise. It's the most compact head in Manfrotto's successful Bridging Technology range. It comes with a side lock system allowing the camera and sliding plate to click quickly into the head from above instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above. The head has a pre-set counterbalance of 2.4kg but is able to support equipment of up to 5kg. It has one Easy Link 3/8 inch connector to allow an external monitor or other accessory equipment to be fitted. The flat base mount with a standard 3/8 inch thread makes the head versatile for different support combinations (tripod slider jib or crane).
Specifications
Weight: 0.9 kg Safety Payload Uni/Pdr 105:2021: 8 kg Counterbalance System: Fixed Counterbalance Weight: 2.4 kg Base Diameter: 60 mm Material: Aluminium Bubble Spirit Level (No.): 1 Center Of Gravity: 55 mm Safety Payload Weight: 5 kg Powered By (Batteries): 0 Certifications: None Top Attachment: 1/4" screw 3/8" screw Colour: Black Easy Link: Yes Front Tilt: -70¡ / +90¡ Ball Flat: Flat Head Type: Video/Fluid Head Maximum Working Temperature: 60 ¡C Minimum Working Temperature: -20 ¡C Pan Bar Included: Yes Pan Drag: fluid cartridge with fixed drag Panoramic Rotation: 360 ¡ Plate Type: 500PLONG Quick Release: Yes Tilt Drag: fluid cartridge with fixed drag Working Height: 10.5 cm Accessory Compatibility: 500HLV 560BALLSH
