Description

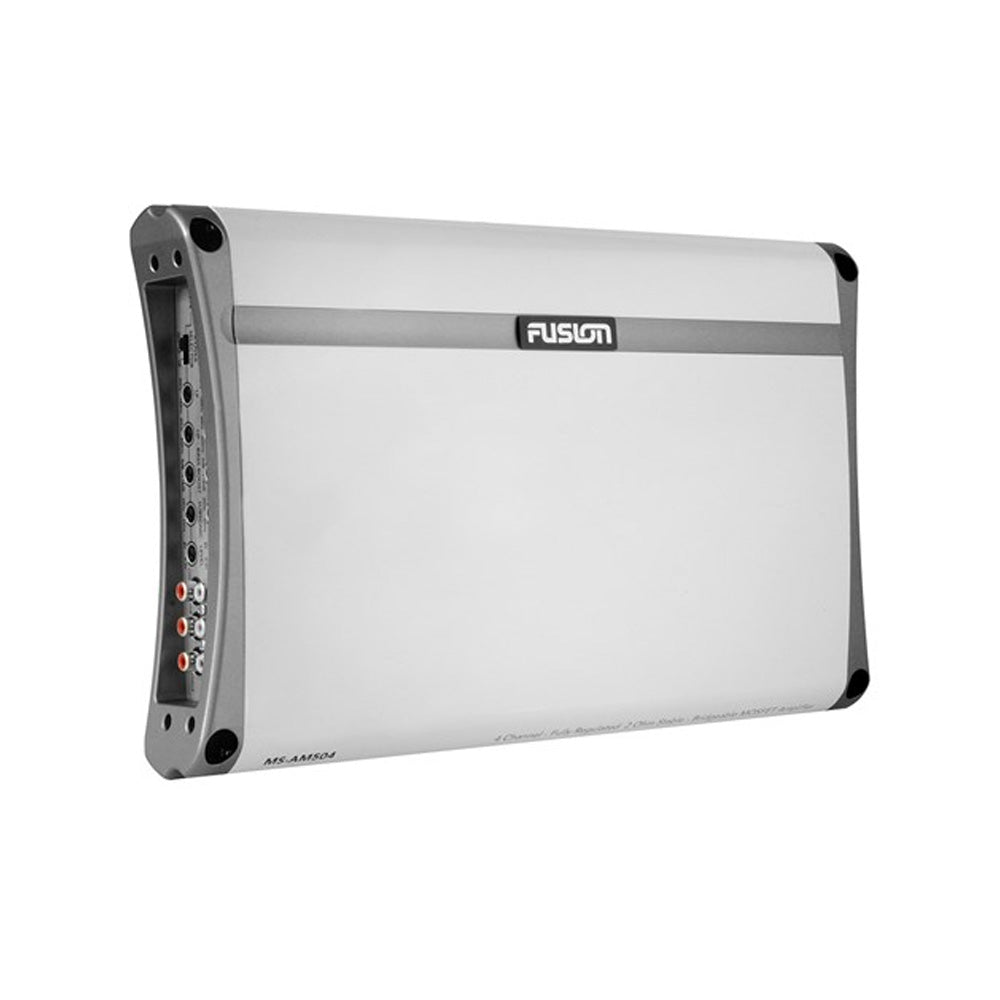

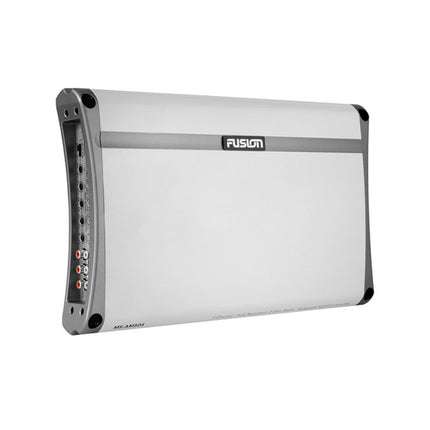

The FUSION MS-AM504 is a 4-Channel Amplifier with marine grade chassis build quality. The amplifier is a 500 Watt 2-Ohm stable (per channel) design which ensures clean and powerful amplification. There is a pass through RCA output which enables linking of multiple amplifiers for enhanced system performance. The Conformal Coated Circuitry provides protection from salt air and moisture and Heat Sink technology transfers heat more efficiently. It is capable of powering 4 speakers, a sub and a pair of speakers or 8 speakers in parallel.
MS-AM504 Features:
Marine Amplifier
4 Channels
Signal-to-Noise Ratio: 95 dB
Variable Bass Boost: 0 - +18dB
CLASS-AB MOSFET Design
Marine Grade Chassis
Heat Sink
Conformal Coated Circuitry
2 Ohm Stable MOSFET Amplifier Design
Variable LP and HP Electronic X-OVER @ 18dB/octave
4 Gauge Power and Ground Connections
Nickel Plated Audio Input and Output RCA Connections
Nickel Plated RCA Output for Multi-Amp Installations
Connections:
- RCA
