Description
DESIGNED AND ENGINEERED TO TRUE-MARINEª STANDARDS:
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available Ñ delivering a Signature performance out on the water.
Built on the True-Marine design philosophy from Fusion, the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.
STAINLESS STEEL MIRROR FINISH

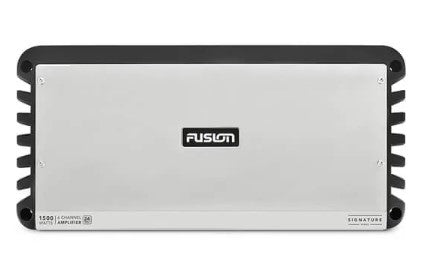

The polished stainless steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.
MARINE-READY DESIGN WITH CONFORMAL COATED PCBS
Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.
Physical dimensions (LxWxH) Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm)
6/8 channels and 24-Volt 6 channel: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier class D
Peak power (Watts) Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel/24-Volt 6 channel: 1500 W
8 channel: 2000 W
Total rated power output - 4 Ohm (Watts) Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD
24-Volt 6 channel: 100 W RMS x 6 @ 28.8 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD
24-Volt 6 channel: 140 W RMS x 6 @ 28.8 V input - 2 Ohm < 1% THD
Total rated power output (Watts) Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
5 channel: 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 280 W RMS x 3 @ 14.4 V input - 4 Ohm Bridged < 1% THD
8 channel: 280 W RMS x 4 @ 14.4 V input - 4 Ohm Bridged < 1% THD
24-Volt 6 channel: 280 W RMS x 3 @ 28.8 V input - 4 Ohm Bridged < 1% THD
