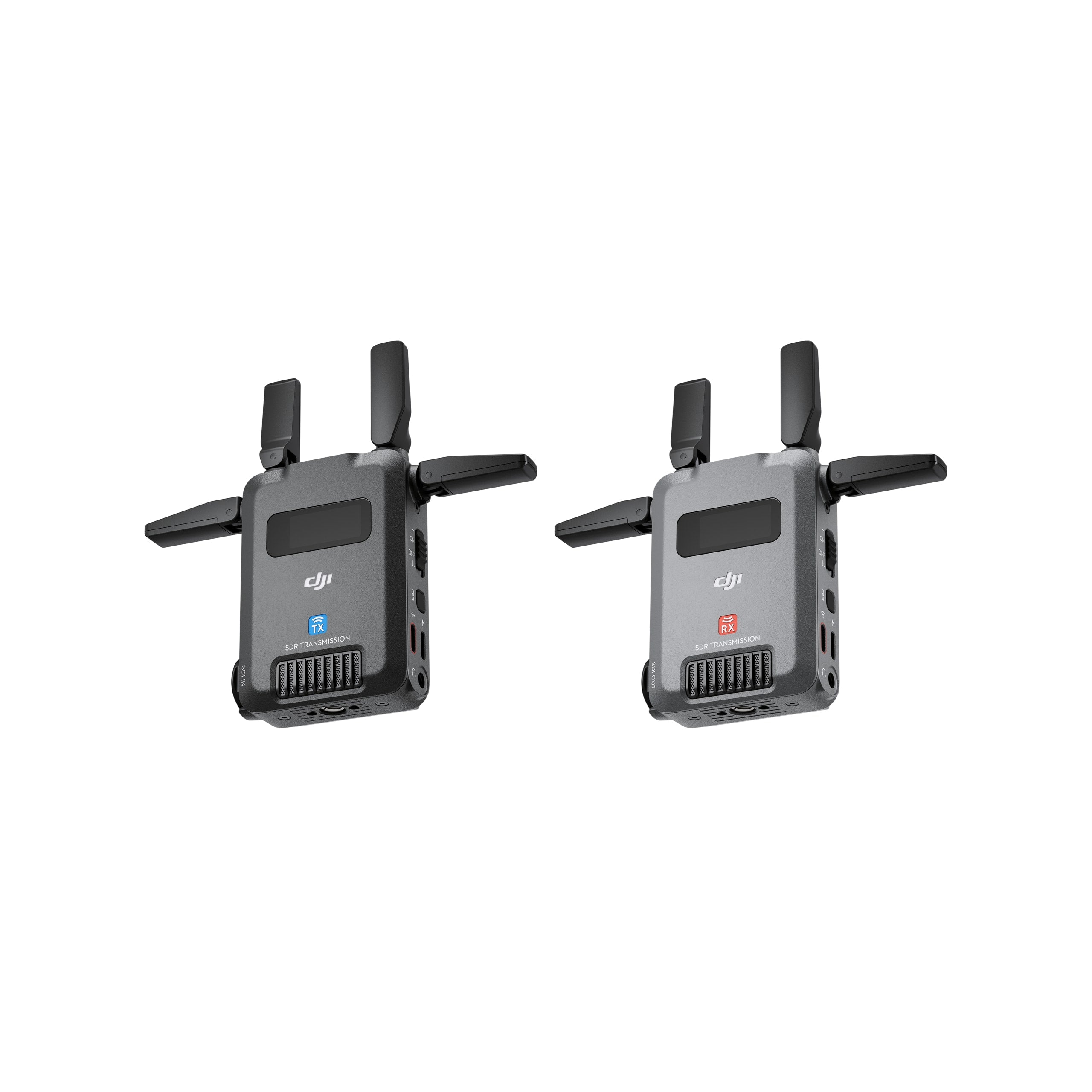

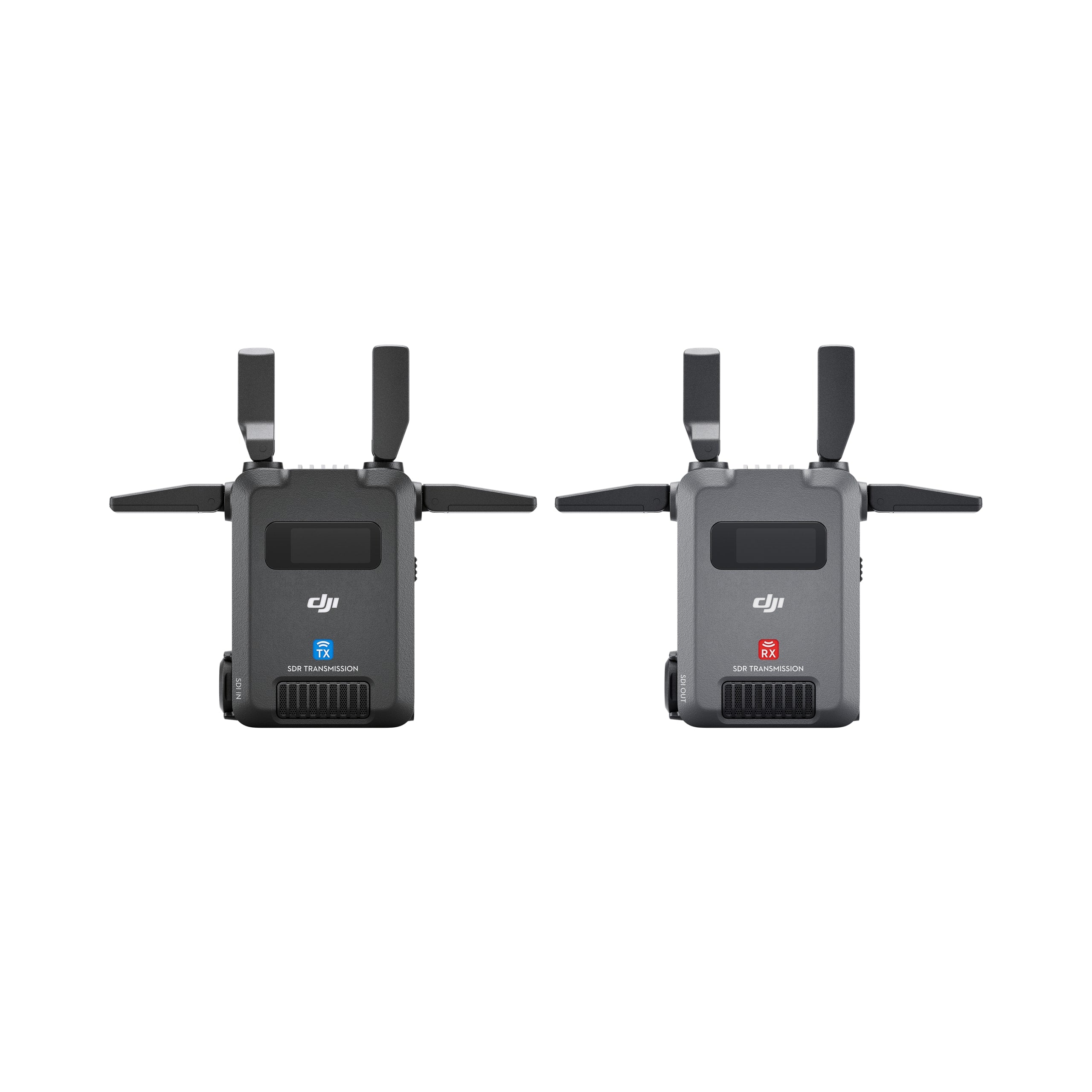

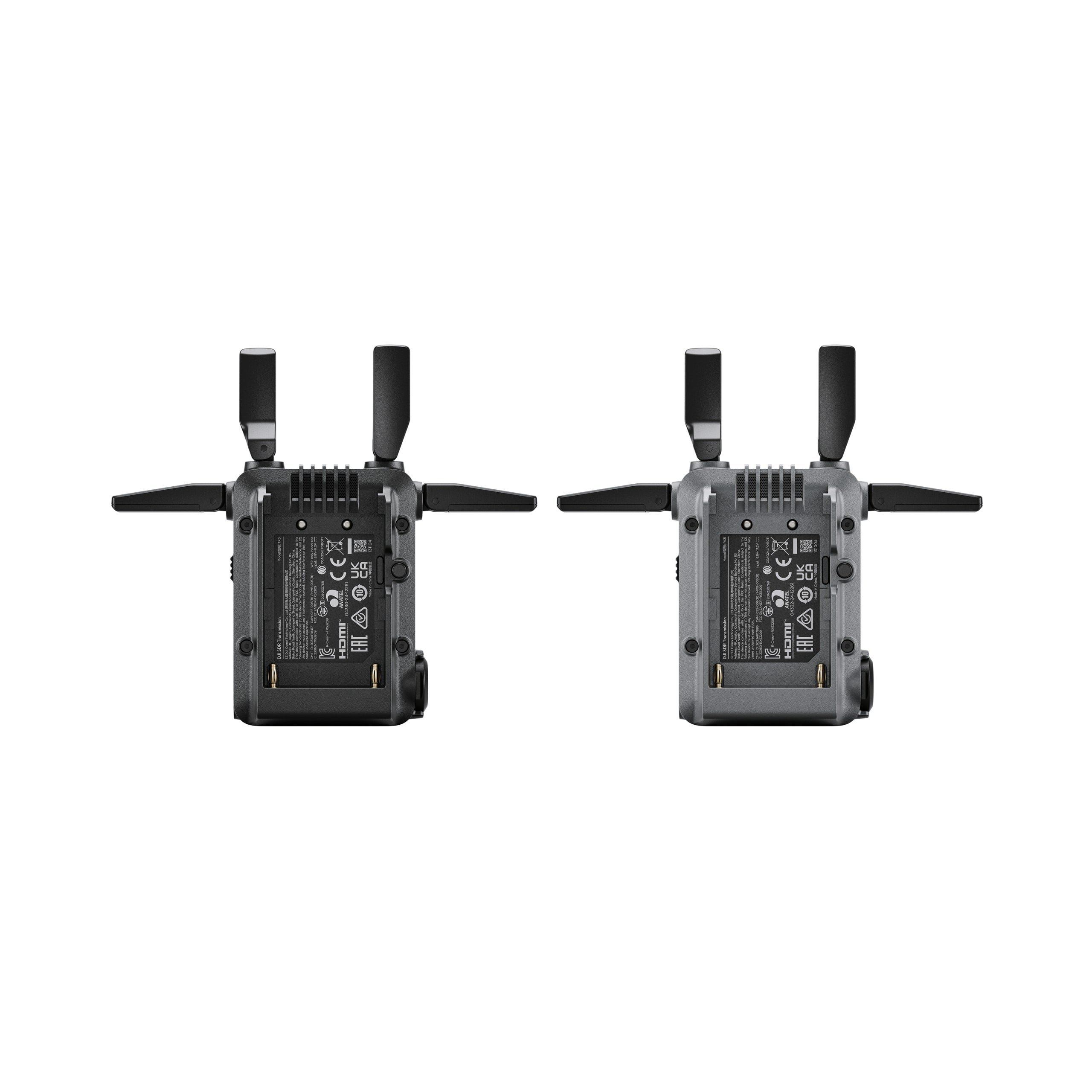

DJI SDR Transmission Combo

    Description



    • SDR Transmission, Stable & Anti-Interference

      DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

    • Strong Penetration, Extended Transmission Distance

      DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

    • 20Mbps High Bitrate, 1080p FHD Image Quality

      DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

    • Innovative USB-C Monitoring Experience

      DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

    • Broadcast Mode, Unlimited Number of Receivers

      In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

    Specs




    Transmitter

    • Weight

    • Approx. 145 g (including antennas)

    • Dimensions

    • 86.5×64×32 mm (L×W×H, excluding antennas)

    • Ports

    • SDI Input Port
      HDMI Input Port
      3.5mm Stereo Jack
      USB-C Firmware Update Port
      USB-C Power and Gimbal Communication Port

    • Operating Frequency

    • SDR Operating Frequency
      Non-DFS Frequency Band:
      2.4000-2.4835 GHz
      5.725-5.850 GHz
      DFS Frequency Band:
      5.470-5.725 GHz

      5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

      Wi-Fi Operating Frequency
      2.4000-2.4835 GHz
      5.150-5.250 GHz

    • Transmitter Power (EIRP)

    • SDR:
      2.4000-2.4835 GHz:
      < 30 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.470-5.725 GHz:
      < 30 dBm (FCC)
      < 23 dBm (CE/MIC)

      5.725-5.850 GHz:
      < 30 dBm (FCC)
      < 14 dBm (CE)
      ＜30 dBm (SRRC)

      Wi-Fi:
      2.4000-2.4835 GHz:
      < 26 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.150-5.250 GHz:
      < 26 dBm (FCC)
      < 23 dBm (SRRC/CE/MIC)

    • Wi-Fi Protocol

    • 802.11b/a/g/n/ac/ax
      Supports 2×2 MIMO Wi-Fi

    • Max Bandwidth

    • SDR:
      20 MHz

      Wi-Fi:
      20 MHz

    • Max Bitrate

    • SDR:
      20 Mbps*

      Wi-Fi:
      8 Mbps

      * Measured in Control mode, with Broadcast mode turned off.

    • Power Consumption

    • 8.2 W

      Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

    • Power Supply

    • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
      USB-C Power Supply Type 2: 6.8-17.2 V DC
      NP-F Battery Power Supply Voltage: 6.8-8.4 V

    • Input Video Format

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
      1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
      720p: 50/59.94/60fps

    • Input Audio Format

    • SDI embedded, HDMI embedded

    • Video Transmission System

    • SDR + Wi-Fi

    • Video Transmission Latency

    • SDR:
      80 ms* (including camera and screen display latency)
      35 ms* (excluding camera and screen display latency)
      Wi-Fi:
      110 ms**

      * Measured when shooting 1080p/60fps video with Broadcast mode turned off.
      ** Measured when shooting 1080p/60fps video.

    • Video Coding Format

    • H.264

    • Max Transmission Distance

    • SDR:
      3 km (FCC)*
      2 km (CE/SRRC/MIC)*
      Wi-Fi:
      200 m

      * Measured in Control mode, with Broadcast mode turned off.

    • Operating Temperature

    • -10° to 40° C (14° to 104° F)

    Receiver

    • Weight

    • Approx. 145 g (including antennas)

    • Dimensions

    • 86.5×64×32 mm (L×W×H, excluding antennas)

    • Ports

    • SDI Output Port
      HDMI Output Port
      3.5mm Stereo Jack
      USB-C Firmware Update and Video Output Port
      USB-C Power Port

    • Operating Frequency

    • SDR Operating Frequency
      Non-DFS Frequency Band:
      2.4000-2.4835 GHz
      5.725-5.850 GHz

      5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.

    • Transmitter Power (EIRP)

    • SDR:
      2.4000-2.4835 GHz:
      < 30 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.725-5.850 GHz:
      < 30 dBm (FCC)
      < 14 dBm (CE)
      < 23 dBm (SRRC)

    • Max Bandwidth

    • 20 MHz

    • Max Bitrate

    • 20 Mbps

      Measured in Control mode, with Broadcast mode turned off.

    • Power Consumption

    • 8.3 W

      Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

    • Power Supply

    • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
      USB-C Power Supply Type 2: 6.8-17.2 V DC
      NP-F Battery Power Supply Voltage: 6.8-8.4V

    • Output Video Format

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
      1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
      720p: 50/59.94/60fps

    • Output Audio Format

    • PCM

    • Video Transmission System

    • SDR

    • Video Transmission Latency

    • 80 ms (including camera and screen display latency)
      35 ms (excluding camera and screen display latency)

      Measured when shooting 1080p/60fps video with Broadcast mode turned off.

    • Video Coding Format

    • H.264

    • Max Transmission Distance

    • 3 km (FCC)
      2 km (CE/SRRC/MIC)

      Measured in Control mode, with Broadcast mode turned off.

    • Operating Temperature

    • -10° to 40° C (14° to 104° F)

    In the Box


    • DJI SDR Transmission Transmitter (TX) × 1


    • DJI SDR Transmission Receiver (RX) × 1


    • USB-A to USB-C Cable (43 cm) × 1


    • TX Camera Mounting Adapter Plate × 1


    • TX Gimbal Mounting Adapter Plate × 1

    Product form

      SDR Transmission, Stable & Anti-Interference DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration... Read more

    Free pickup in our shop(s)

    • Free Shipping on orders over $300

    SKU: CP-RN-00000397
    Barcode: 190021109117

    Out of stock

    $1,109.00

      Description



      • SDR Transmission, Stable & Anti-Interference

        DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

      • Strong Penetration, Extended Transmission Distance

        DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

      • 20Mbps High Bitrate, 1080p FHD Image Quality

        DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

      • Innovative USB-C Monitoring Experience

        DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

      • Broadcast Mode, Unlimited Number of Receivers

        In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

      Specs




      Transmitter

      • Weight

      • Approx. 145 g (including antennas)

      • Dimensions

      • 86.5×64×32 mm (L×W×H, excluding antennas)

      • Ports

      • SDI Input Port
        HDMI Input Port
        3.5mm Stereo Jack
        USB-C Firmware Update Port
        USB-C Power and Gimbal Communication Port

      • Operating Frequency

      • SDR Operating Frequency
        Non-DFS Frequency Band:
        2.4000-2.4835 GHz
        5.725-5.850 GHz
        DFS Frequency Band:
        5.470-5.725 GHz

        5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

        Wi-Fi Operating Frequency
        2.4000-2.4835 GHz
        5.150-5.250 GHz

      • Transmitter Power (EIRP)

      • SDR:
        2.4000-2.4835 GHz:
        < 30 dBm (FCC)
        < 20 dBm (SRRC/CE/MIC)

        5.470-5.725 GHz:
        < 30 dBm (FCC)
        < 23 dBm (CE/MIC)

        5.725-5.850 GHz:
        < 30 dBm (FCC)
        < 14 dBm (CE)
        ＜30 dBm (SRRC)

        Wi-Fi:
        2.4000-2.4835 GHz:
        < 26 dBm (FCC)
        < 20 dBm (SRRC/CE/MIC)

        5.150-5.250 GHz:
        < 26 dBm (FCC)
        < 23 dBm (SRRC/CE/MIC)

      • Wi-Fi Protocol

      • 802.11b/a/g/n/ac/ax
        Supports 2×2 MIMO Wi-Fi

      • Max Bandwidth

      • SDR:
        20 MHz

        Wi-Fi:
        20 MHz

      • Max Bitrate

      • SDR:
        20 Mbps*

        Wi-Fi:
        8 Mbps

        * Measured in Control mode, with Broadcast mode turned off.

      • Power Consumption

      • 8.2 W

        Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

      • Power Supply

      • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
        USB-C Power Supply Type 2: 6.8-17.2 V DC
        NP-F Battery Power Supply Voltage: 6.8-8.4 V

      • Input Video Format

      • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
        1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
        720p: 50/59.94/60fps

      • Input Audio Format

      • SDI embedded, HDMI embedded

      • Video Transmission System

      • SDR + Wi-Fi

      • Video Transmission Latency

      • SDR:
        80 ms* (including camera and screen display latency)
        35 ms* (excluding camera and screen display latency)
        Wi-Fi:
        110 ms**

        * Measured when shooting 1080p/60fps video with Broadcast mode turned off.
        ** Measured when shooting 1080p/60fps video.

      • Video Coding Format

      • H.264

      • Max Transmission Distance

      • SDR:
        3 km (FCC)*
        2 km (CE/SRRC/MIC)*
        Wi-Fi:
        200 m

        * Measured in Control mode, with Broadcast mode turned off.

      • Operating Temperature

      • -10° to 40° C (14° to 104° F)

      Receiver

      • Weight

      • Approx. 145 g (including antennas)

      • Dimensions

      • 86.5×64×32 mm (L×W×H, excluding antennas)

      • Ports

      • SDI Output Port
        HDMI Output Port
        3.5mm Stereo Jack
        USB-C Firmware Update and Video Output Port
        USB-C Power Port

      • Operating Frequency

      • SDR Operating Frequency
        Non-DFS Frequency Band:
        2.4000-2.4835 GHz
        5.725-5.850 GHz

        5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.

      • Transmitter Power (EIRP)

      • SDR:
        2.4000-2.4835 GHz:
        < 30 dBm (FCC)
        < 20 dBm (SRRC/CE/MIC)

        5.725-5.850 GHz:
        < 30 dBm (FCC)
        < 14 dBm (CE)
        < 23 dBm (SRRC)

      • Max Bandwidth

      • 20 MHz

      • Max Bitrate

      • 20 Mbps

        Measured in Control mode, with Broadcast mode turned off.

      • Power Consumption

      • 8.3 W

        Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

      • Power Supply

      • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
        USB-C Power Supply Type 2: 6.8-17.2 V DC
        NP-F Battery Power Supply Voltage: 6.8-8.4V

      • Output Video Format

      • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
        1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
        720p: 50/59.94/60fps

      • Output Audio Format

      • PCM

      • Video Transmission System

      • SDR

      • Video Transmission Latency

      • 80 ms (including camera and screen display latency)
        35 ms (excluding camera and screen display latency)

        Measured when shooting 1080p/60fps video with Broadcast mode turned off.

      • Video Coding Format

      • H.264

      • Max Transmission Distance

      • 3 km (FCC)
        2 km (CE/SRRC/MIC)

        Measured in Control mode, with Broadcast mode turned off.

      • Operating Temperature

      • -10° to 40° C (14° to 104° F)

      In the Box


      • DJI SDR Transmission Transmitter (TX) × 1


      • DJI SDR Transmission Receiver (RX) × 1


      • USB-A to USB-C Cable (43 cm) × 1


      • TX Camera Mounting Adapter Plate × 1


      • TX Gimbal Mounting Adapter Plate × 1
