Description
NEXT-GEN 1/1.3″ SENSOR
Our new sensor captures your best. From city nights to dramatic sunrises, get crystal-clear images with a 4nm chip. Experience vibrant imagery with 2.4 μm pixels and 13.5 stops of dynamic range, rivalling pro cameras.
Shoot in 4K/60fps for breathtaking high-dynamic low-light video, maintaining a balance of highlights and shadows without overexposure.
SuperNight mode [2] uses AI noise reduction algorithms for sharper, cleaner footage in extreme low-light.
CRYSTAL CLEAR OLED TOUCHSCREENS
Catching the day's action? See it clearly thanks to the rear OLED screen's peak brightness now reaching a whopping 1000 nits. Make sure each shot has rich colours and high contrast with the front and rear OLED high-brightness touchscreens. The screens are larger with narrower bezels increasing the screen-to-body ratio by 16%. [3]
Tempered glass ensures durability, and the AF coating keeps touch controls responsive, even when wet. [4] With Always On Display enabled, both screens show recording duration and specifications for lower power consumption. Get essential information at a glance, without being disturbed by bright lights at night.
COLOUR ALL THE BASES WITH 10-BIT D-LOG M
Action 5 Pro's front and rear touchscreens let you preview 10-bit D-Log M footage with colour recovery, so you can adjust colour and brightness for top-quality raw footage at a glance.
Get more colour depth with 10-bit D-Log M and 10-bit HLG modes. [5] Detailed highlights and shadows ensure your footage will stand out from the crowd.
BURSTING WITH 40MP OF ACTION
Simply press the shutter for stunning shots and crop with confidence. Each photo boasts approximately 4x the clarity of the previous generation with roughly 40 megapixels (7294×5472) or 8K (16:9) resolution.
155° ULTRA-WIDE FOV
Bring more life into every shot with the 155° ultra-wide FOV [6] and capture video with a dynamic perspective.
4:3 ASPECT RATIO POWERS ALL THE PIXELS
Get more compositional space and cropping flexibility now that the maximum video specification has been upgraded to 4K/120fps in a 4:3 aspect ratio with full-pixel recording at 4K (3840×2880).
SLOW-MOTION GOES SUPER, 32 TIMES
Make the WOW last longer with 32x Super Slow Motion. The Action 5 Pro's powerful 4nm chip enables frame-by-frame analysis and 4x frame interpolation achieving up to 32x slow-motion; [7] shoot at 1080p/240fps and produce the video equivalent of 960fps in post.
EVERYTHING'S ON TRACK NOW
DJI brings subject tracking to an action camera. Action 5 Pro now intelligently detects the subject's position and dynamically adjusts the composition. Keep the subject centred in every frame, during horizontal or vertical shots. [8]
4-HOUR POWER
We're setting a new benchmark for action camera battery performance. A single battery now delivers up to four hours of continuous use. [1] Never miss awesome with 50% more operating time compared to Action 4.
Even in low-temperature conditions get up to 3.6 hours [9] recording time at temperatures as low as -20° C.
360° HORIZONSTEADY
HorizonSteady not only effectively reduces shakes but also corrects horizontal tilts within a 360° range, handling intense bumps and rotations effortlessly.
HorizonBalancing only corrects horizontal tilts within a ±45° range and supports video recording up to 4K/60fps.
ROCKSTEADY 3.0
This mode effectively reduces shakes while retaining the dynamic impact of motion, delivering a more immersive first-person perspective and supports video recording up to 4K/120fps.
BUILT-IN PROFESSIONAL WATER PRESSURE GAUGE FOR INTELLIGENT RECORDING
Action 5 Pro allows you to check real-time underwater depth and duration while diving or swimming [11]. You can also enhance your footage by adding depth data in the Mimo app. The camera automatically starts or stops recording upon entering or exiting the water [12], allowing you to capture every thrilling moment while facilitating crisp and efficient shooting.
20M WATERPROOF
The rugged, waterproof camera body innovatively advances the Osmo Action's waterproof capabilities. Moreover, it is certified with EN13319, meeting the globally recognized standard for diving accessories. Simply power on with one button and dive up to 20 metres, [13] without additional accessories.
VIVID UNDERWATER
Action 5 Pro delivers true-to-life colours with the built-in colour temperature sensor. Pair it with Mimo's Vivid Underwater feature for even clearer and more natural underwater footage.
OSMOAUDIO™ CONNECTIVITY ECOSYSTEM, PROFESSIONAL AUDIO RECORDING
Action 5 Pro connects directly to the DJI Mic 2 Transmitter [14] via Bluetooth with the DJI OsmoAudio™ connectivity ecosystem, enabling ultra-high-sample-rate audio recording. This setup provides studio-quality sound while eliminating the need for a receiver, so you don't need to worry about gear falling off during your ride. When paired with two transmitters, conversations are captured clearly. Additionally, with Built-in Mic Audio Backup enabled, Action 5 Pro simultaneously records ambient sounds, adding a rich layer of authenticity to your video.
ALWAYS ON DISPLAY
Both the front and rear screens display only essential recording specifications and duration at reduced brightness to conserve battery life and minimise distractions from screen glare, allowing you to focus entirely on your ride.
THIRD-PARTY SPORTS DATA INTEGRATION
Cycling/motorcycling data recorded with Apple Watch, Garmin devices, or other third-party FIT files can be added to your footage in a dashboard format, showcasing your professional edge.
MAGNETIC QUICK-RELEASE & NATIVE VERTICAL SHOOTING
With diverse accessories, the camera can be mounted flexibly under the bike seat, on the handlebar, on the helmet chin, or on the wrist, capturing the excitement of your ride from different angles. Moreover, it can instantly switch to vertical shooting [15] for lossless vertical videos on the go.
STEREO RECORDING & WIND NOISE REDUCTION
Featuring three built-in microphones, Action 5 Pro captures immersive stereo sound from all directions. It supports both Mono and Stereo modes, with noise reduction algorithms that effectively minimise wind noise during cycling/motorcycling, ensuring clear and vibrant audio.
GPS BLUETOOTH REMOTE CONTROLLER [14]
Worn on the wrist or mounted on the handlebar, it allows easy control of camera start/stop recording and wake/sleep functions. A single remote controller can control up to 16 cameras simultaneously, making multi-camera setups a breeze. The built-in multi-GNSS chip tracks various sports data, which can be overlaid on your video in a dashboard format for added detail.
QUICKLY LOCATE HIGHLIGHT MOMENTS
Effortlessly mark important moments during recording or playback. Even with long-distance one takes, you can quickly locate key moments in post-production, saving time spent searching for footage.
32X SUPER SLOW MOTION
Surpassing traditional 8x slow-motion video, 32x super-slow-motion video [5] captures richer details of jumps, spins, and flips, highlighting your unrivalled prowess.
INVISISTICK
Remove the selfie stick in the Mimo app [16] to keep the focus on you, not the selfie stick. Additionally, you can quickly produce clean and vibrant slow-motion videos.
COLD-RESISTANT BATTERY
Even in frigid conditions down to -20° C, the battery won't let you down, offering up to 3.6 hours [9] of continuous recording in the cold.
155° ULTRA-WIDE FOV [6]
Capture the scenery and your arms simultaneously, showcasing your speed and technique like never before. During vertical shooting [15], the skis/snowboard can also be included to immerse your audience in your adventure.
OSMOAUDIO™ CONNECTIVITY ECOSYSTEM, PROFESSIONAL AUDIO RECORDING
After connecting to the DJI Mic 2 Transmitter [14] via Bluetooth, Osmo Action 5 Pro can record at ultra-high sampling rates without needing a receiver. This ensures pristine, studio-quality sound while simplifying your gear setup and workflow. For dual-person vlogs or interviews, you can directly connect two transmitters to simultaneously capture both your and your partner's voices. Additionally, with Built-in Mic Audio Backup enabled, Action 5 Pro simultaneously records ambient sounds, adding a richer layer of authenticity to your video.
BUILT-IN PROFESSIONAL AIR PRESSURE GAUGE FOR INTELLIGENT SHOOTING
The camera, with a built-in professional air pressure gauge, records and displays altitude data in real-time while shooting [17], giving you precise control for both creations and activities. After shooting, you can use the Mimo app to add a data dashboard to your final footage, enhancing the sense of immersion.
STEREO SOUND THAT DEFEATS WIND NOISE
Featuring three built-in microphones, Action 5 Pro can capture sound from all directions, making playback feel like you are back on the scene. It supports switching between Mono and Stereo modes, with excellent wind noise reduction capabilities to tackle wind interference.
COMPATIBILITY WITH THIRD-PARTY SPORTS DATA
The Mimo app allows you to directly import sports data from Apple Watch, Garmin devices, and third-party FIT files. This data can be converted into sports dashboards, making your footage even more engaging.
QUICK-RELEASE FOR INSTANT VERTICAL SHOOTING
The camera mounts securely and detaches easily, allowing you to switch angles and accessories in seconds, enriching the visual language of your footage. Simply remove the camera, rotate it, and snap it back in place to capture lossless vertical footage [15].
AI EDITOR WITH EXTENSIVE TEMPLATES
After filming, simply select your preferred editing template within the Mimo app to create a stunning video with one tap, ready to share the highlights of your travels and daily life instantly.
- As of September 19, 2024, the conclusion of "Elevate Action Camera Image Quality" is derived from comparisons of video resolution, dynamic range, colour performance, low-light performance, and night scene performance under laboratory conditions; the conclusion of "setting a new benchmark for battery performance" is derived from battery life data under the conditions of 25°C laboratory environment, with RockSteady on, Wi-Fi off, recording 1080p/24fps (16:9) video, and screen off; and the statement "DJI brings subject tracking to an action camera" is made based on this date.
** Data in the Osmo Action Series Product Comparison was collected in a controlled environment. Actual experience may vary. For details, refer to the corresponding product page on the official DJI website.
1. Measured under laboratory conditions at 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only. When activating and using Osmo Action 5 Pro in the EU and the UK, actual battery life may vary due to local regulations on product operating temperatures. Refer to the actual user experience.
2. SuperNight mode only supports 8-bit colour depth and frame rates up to 30fps. It does not support HorizonBalancing, HorizonSteady, 155° ultra-wide FOV, or 4:3 aspect ratio.
3. Compared with Osmo Action 4.
4. The hydrophobic performance of the front and rear screens and the Glass Lens Cover is achieved through AF coating, which may be compromised if scratched.
5. The 10-bit D-Log M and 10-bit HLG colour modes can be enabled in standard video mode, Slow Motion mode, and Hyperlapse mode.
6. The 155° FOV requires disabling stabilisation modes.
7. To use 32x Super Slow Motion, you need to record a standard video at 1080p/240fps. After recording, you can apply the slow-motion effect with just one tap in the camera's playback interface. You can also apply the slow-motion effect to 4K/2.7K/1080p standard videos shot at 100fps or higher.
8. Subject Tracking mode is only available in horizontal shooting and supports shooting up to 2.7K/60fps video in both 16:9 and 9:16 aspect ratios.
9. Measured under laboratory conditions at -20° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only.
10. EIS is not supported in Time Lapse and Slow Motion modes. HorizonSteady only supports 1080p/2.7K video (≤ 60fps) in a 16:9 aspect ratio, and HorizonBalancing only supports 1080p/2.7K/4K video (≤ 60fps) in a 16:9 aspect ratio.
11. The water pressure gauge activates at a depth of 1 metre underwater and is only effective when the camera is submerged without a waterproof case.
12. With the Auto Record and Auto Stop functions enabled, the camera will automatically start recording at a depth of 1 metre underwater and stop recording upon exiting the water.
13. Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 5 Pro and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.
14. Sold separately.
15. The Horizontal-Vertical Protective Frame is required for vertical shooting.
16. InvisiStick supports up to 1080p video output when using cloud processing, and up to 720p for local processing.
17. Altitude measurements by the air pressure gauge may vary under different atmospheric conditions.
18. For USB 3.0 high-speed transfer, a USB 3.0 compatible cable is required and sold separately. In an interference-free environment, the wireless transfer speed of photos/videos stored in the built-in storage can reach up to 80 MB/s, while that of photos/videos stored on the SD card can reach up to 50 MB/s.
19. The charging time was measured under laboratory conditions at 25° C, while using the DJI 30W USB-C Charger, with the photo taking/video recording functions off and screens off. The usage time was measured under laboratory conditions at 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only.
20. Only applicable on iOS devices.
21. Use with caution when engaging in certain extreme sports like rock climbing or diving. Ensure that no foreign objects get caught around your neck to avoid the risk of suffocation.
22. Supports round handlebars with a diameter of 8-35 mm.
23. Measured under laboratory conditions at 25° C, while recording 1080p/30fps video in standard video mode, with Enhanced Image Quality off, EIS off, and screens off, and should be taken as reference only.
PRODUCT SPECIFICATIONS
Dimensions: 70.5×44.2×32.8 mm (L×W×H)
Weight: 146 g
Waterproof: 20 m without the Waterproof Case, 60 m with the Waterproof Case
Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 5 Pro and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.
Number of Microphones: 3
Touchscreens: Front Screen: 1.46-inch 331 ppi 342×342
800 cd/㎡ max brightness (typical)
Rear Screen: 2.5-inch 326 ppi 400×712
800 cd/㎡ max brightness (typical), 1000 cd/㎡ peak brightness
Supported SD Cards: microSD (up to 1 TB)
Recommended microSD Cards: Recommended Models:
SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC
Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS React Plus 64GB U3 A1 V90 microSDXC
Kingston CANVAS React Plus 128GB U3 A1 V90 microSDXC
Kingston CANVAS React Plus 256GB U3 A1 V90 microSDXC
Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 1T U3 A2 V30 microSDXC
Sensor: 1/1.3-inch CMOS
Lens: FOV: 155°
Aperture: f/2.8
Focus Range: 0.35 m to ∞
ISO Range: Photo: 100-25600
Video: 100-51200
Electronic Shutter Speed: Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second
Max Photo Resolution: 7296×5472
Zoom: Digital Zoom
Photo: Max 2x
Video: Max 2x
Slow Motion/Timelapse: Not available
Still Photography Modes: Single: Approx. 40 MP
Countdown: Off/0.5/1/2/3/5/10 s Burst: Up to 30 images/3 seconds
Standard Recording: 4K (4:3): 3840×2880@100/120fps
4K (4:3): 3840×2880@24/25/30/48/50/60fps
4K (16:9): 3840×2160@100/120fps
4K (16:9): 3840×2160@24/25/30/48/50/60fps
2.7K (4:3): 2688×2016@100/120fps
2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
2.7K (16:9): 2688×1512@100/120fps
2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
1080p (16:9): 1920×1080@100/120/200/240fps
1080p (16:9): 1920×1080@24/25/30/48/50/60fps
SuperNight: 4K (16:9): 3840×2160@24/25/30fps
2.7K (16:9): 2688×1512@24/25/30fps
1080p (16:9): 1920×1080@24/25/30fps
Subject Tracking: 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
2.7K (9:16): 2688×1512@24/25/30/48/50/60fps
1080p (16:9): 1920×1080@24/25/30/48/50/60fps
1080p (9:16): 1920×1080@24/25/30/48/50/60fps
Slow Motion: 4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)
Hyperlapse: 4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30
Timelapse: 4K/2.7K/1080p@25/30fps
Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 mins
Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞
Stabilization: EIS:
RockSteady 3.0
RockSteady 3.0+
HorizonBalancing
HorizonSteady
EIS is not supported in Timelapse and Slow Motion modes. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9) with a frame rate of 60fps or below. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.
Pre-Rec: Pre-Recording Duration: 5/10/15/30/60 s
Max Video Bitrate: 100 Mbps
Supported File System: exFAT
Photo Format: JPEG/RAW
Video Format: MP4 (HEVC)
Built-in Storage Capacity: The camera features 64 GB of built-in storage, with 47 GB available for use. The storage capacity can be expanded by inserting a microSD card.
Audio Recording: 48 kHz 16-bit; AAC
Type: Li-ion 1S
Capacity: 1950 mAh
Energy: 7.5 Wh
Voltage: 3.87 V
Operating Temperature: -20° to 45° C
Charging Temperature: 5° to 40° C
Operating Time: 240 mins
Measured at a room temperature of 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment. Please refer to your actual experience.
Wi-Fi Operating Frequency: 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Wi-Fi Protocol: Wi-Fi 6.0
802.11 a/b/g/n/ac/ax
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)
Bluetooth Operating Frequency: 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP): < 13 dBm
Bluetooth Protocol: BLE 5.1

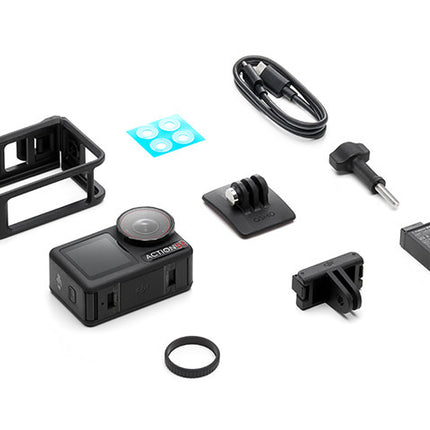

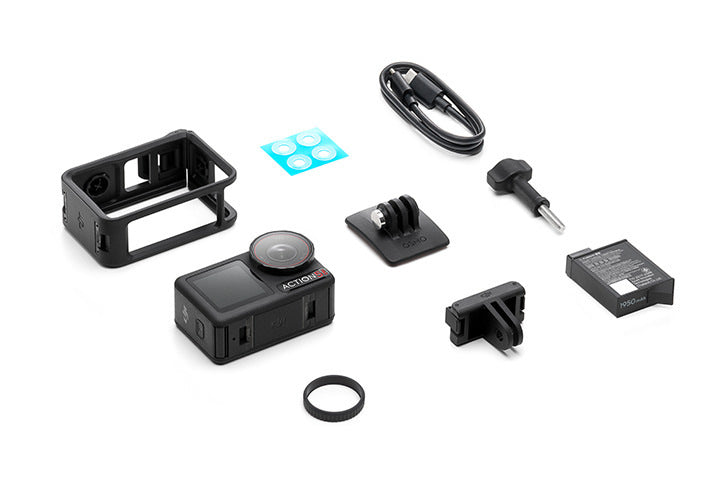

IN THE BOX
Osmo Action 5 Pro × 1
Osmo Action Extreme Battery Plus (1950 mAh) × 1
Osmo Action Horizontal-Vertical Protective Frame × 1
Osmo Action Quick-Release Adapter Mount × 1
Osmo Action Curved Adhesive Base × 1
Osmo Locking Screw × 1
Type-C to Type-C PD Cable × 1
Osmo Locking Screw × 1
Osmo Action 5 Pro Glass Lens Cover × 1
Osmo Action Anti-Slip Pad × 1
DJI Logo Sticker × 1
Quick Start Guide × 1
Disclaimer × 1
Warranty Card × 1
