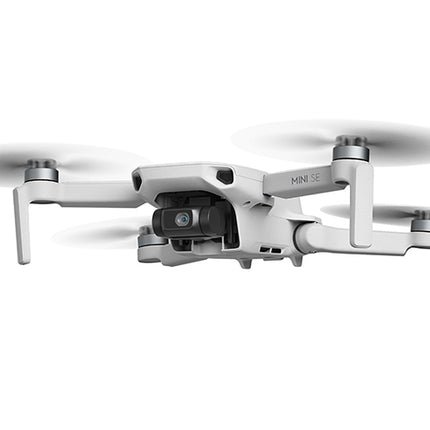

AIRCRAFT
Takeoff Weight: <249 g
Dimensions

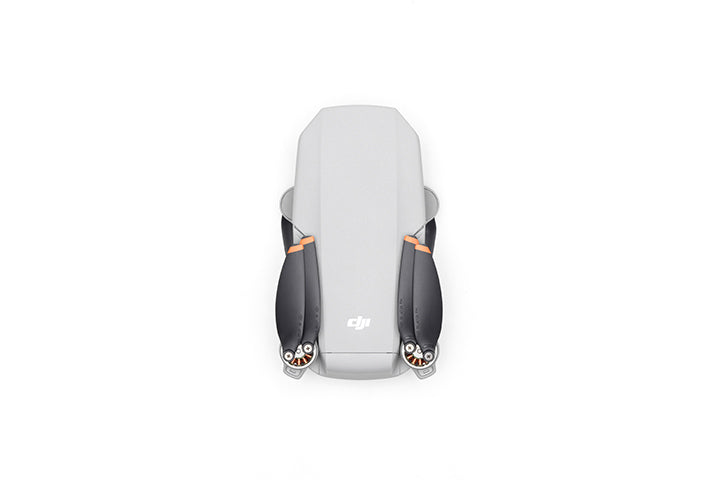

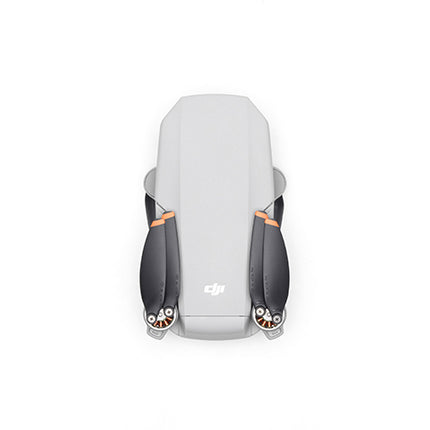

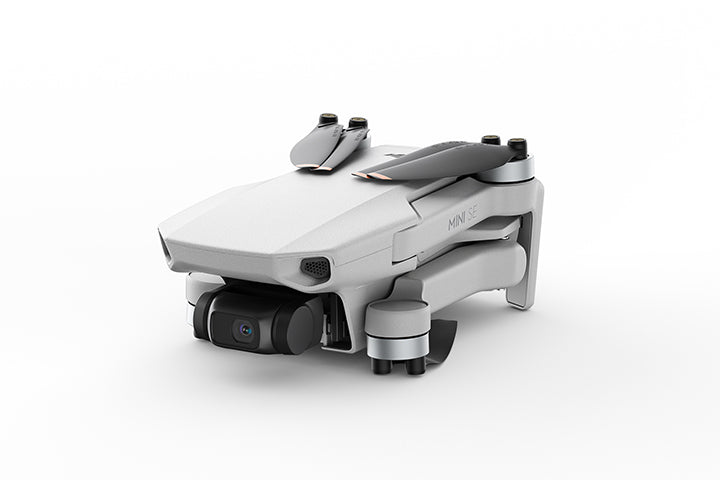

Folded: 138×81×58 mm (L×W×H)

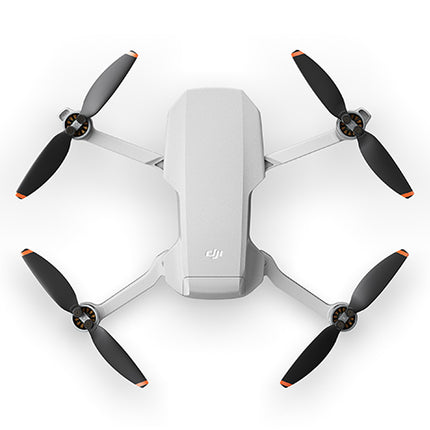

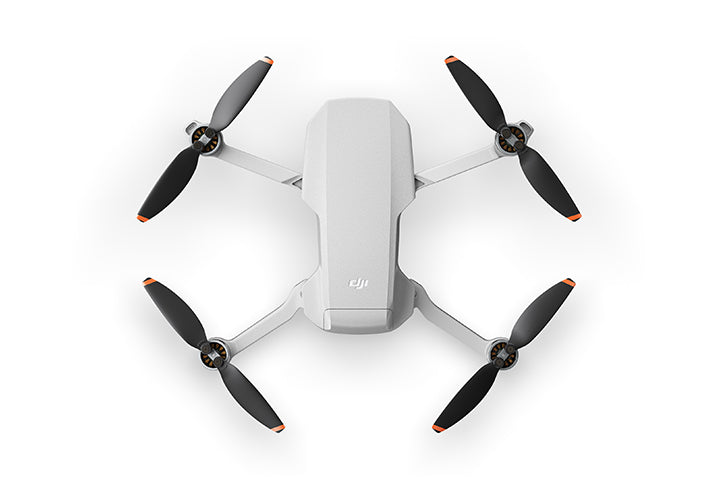

Unfolded: 159×203×56 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)
Diagonal Distance: 213 mm
Max Ascent Speed
4 m/s (S Mode)
2 m/s (P Mode)
1.5 m/s (C Mode)
Max Descent Speed
3 m/s (S Mode)
1.8 m/s (P Mode)
1 m/s (C Mode)
Max Speed (near sea level, no wind)
13 m/s (S Mode)
8 m/s (P Mode)
4 m/s (C Mode)
Max Service Ceiling Above Sea Level
3000 m
Max Flight Time: 30 minutes (measured while flying at 14 kph in windless conditions)
Max Wind Speed Resistance: 8.5 m/s to 10.5m/s (Scale 5)
Max Tilt Angle
30° (S Mode)
20° (P Mode)
20° (C Mode)
Max Angular Velocity
150°/s (S Mode)
130°/s (P Mode)
30°/s (C Mode)
Operating Temperature Range
0° to 40°C (32° to 104°F)
Operating Frequency
Model MT2SS5: 5.725-5.850 GHz
Model MT2SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
Transmission Power (EIRP)
Model MT2SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MT2SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)
GNSS
GPS+GLONASS
Hovering Accuracy Range
Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)
GIMBAL
Mechanical Range
Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°
Controllable Range
Tilt: -90° to 0° (default setting) -90° to +20° (extended)
Stabilization: 3-axis (tilt, roll, pan)
Max Control Speed: (tilt) 120°/s
Angular Vibration Range: ±0.01°
SENSING SYSTEM
Downward: Operating Range: 0.5-10 m
Operating Environment:
Non-reflective, discernable surfaces
Diffuse reflectivity (>20%)
Adequate lighting (lux>15)
CAMERA
Sensor:
1/2.3” CMOS
Effective Pixels: 12 MP
Lens:
FOV: 83°
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 1 m to ∞
ISO Range:
Video:
100-3200 (Auto)
Photo:
100-1600 (Auto)
100-3200 (Manual)
Shutter Speed: Electronic Shutter: 4-1/8000s
Still Image Size:
4:3: 4000×3000
16:9: 4000×2250
Still Photography Modes:
Single shot
Interval: 2/3/5/7/10/15/20/30/60 s
Video Resolution:
2.7 K: 2720×1530 24/25/30 p
FHD: 1920×1080 24/25/30/50/60 p
Max Video Bitrate: 40 Mbps
Supported File System:
FAT32（≤32 GB）
exFAT（>32 GB）
Photo Format: JPEG
Video Format: MP4 (H.264/MPEG-4 AVC）
REMOTE CONTROLLER & VIDEO TRANSMISSION
Operating Frequency:
Model MR1SS5: 5.725-5.850 GHz
Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
Model MR1SS5
5.8 GHz: 4000 m (FCC); 2500 m (SRRC)
Model MR1SD25
2.4 GHz: 2000 m (MIC/CE)
5.8 GHz: 500 m (CE)
Operating Temperature Range: 0° to 40°C (32° to 104°F)
Transmission Power (EIRP):
Model MR1SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MR1SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)
Battery Capacity: 2600 mAh
Operating Current/Voltage:
1200 mA 3.6 V (Android)
700 mA 3.6 V (iOS)
Supported Mobile Device Size:
Max length: 160 mm
Max thickness: 6.5-8.5 mm
Supported USB Port Types: Lightning, Micro USB (Type-B), USB Type-C
Video Transmission System: Enhanced Wi-Fi
Live View Quality
720p/30fps
Max. Bitrate: 4 Mbps
Latency (depending on environmental conditions and mobile device): 170-240 ms
CHARGER
Input: 100-240 V, 50/60 Hz, 0.5A
Output: 12V 1.5 A / 9V 2A / 5V 3A
Rated Power: 18 W
INTELLIGENT FLIGHT BATTERY
Capacity: 2250 mAh
Voltage: 7.7 V
Max Charging Voltage: 8.8 V
Battery Type: LiPo 2S
Energy: 17.32 Wh
Net Weight: 82.5 g
Charging Temperature Range: 5° to 40°C (41° to 104°F)
Max Charging Power: 29 W
INTELLIGENT FLIGHT BATTERY (1100 MAH)
Capacity: 1100 mAh
Voltage: 7.6 V
Max Charging Voltage: 8.7 V
Battery Type: LiPo 2S
Energy: 8.36 Wh
Net Weight: 50 g
Charging Temperature Range: 5° to 40°C (41° to 104°F)
Max Charging Power: 18 W
APP
Name: DJI Fly
Required Operating System: iOS v10.0 or later Android v6.0 or later
SUPPORTED SD CARDS
Supported SD Cards: UHS-I Speed Class 3 or above is required. A list of recommended microSD cards below.
Recommended microSD Cards:
16 GB: SanDisk Extreme, Lexar 633x
32 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial, Sandisk Extreme V30 A1, SanDisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme Pro V30 A2, Lexar 633x, Lexar 667x
64 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
128 GB: Samsung Pro Plus, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
256 GB: SanDisk Extreme V30 A1,SanDisk Extreme V30 A2
FOOTNOTES
Footnotes
1. Aircraft takeoff weight (includes battery and propellers). Registration not required in some countries and regions. Check local rules and regulations before use. These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
