Description

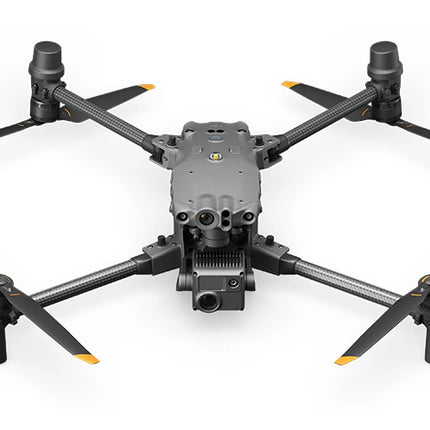

The M30 is a lightweight & portable all in one drone that comes with a 12MP Wide Camera, 48MP Zoom Camera and a Laser Rangefinder.
Product Description

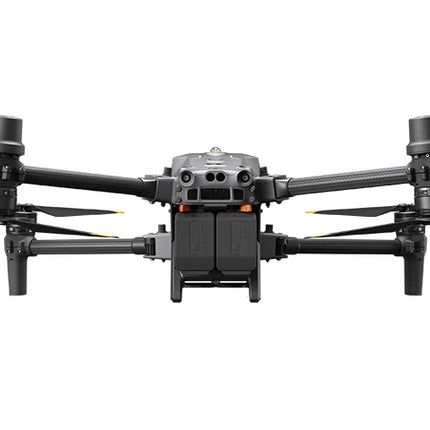

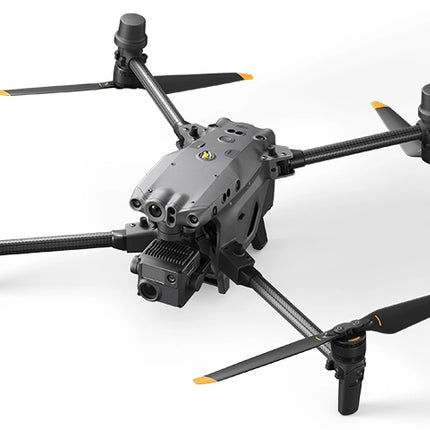

The DJI Matrice 30 is an all new all in one solution that combines all of DJI's latest transformational technologies into one portable, lightweight drone that is capable of next level flights. The M30 drone has new integrated high performance sensors with a wide, zoom camera along with an laser range finder.
- 41 Minute maximum flight time.
- 15 m/s maximum wind resistance & 23 m/s maximum speed.
- AI Intelligence for easier operations including smart pin and track & Waypoints 2.0
- 7000m service ceiling to allow for high altitude operations
- IP55 ingress protection.
ENVIRONMENTAL ADAPTABILITY
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
SAFE & RELIABLE.
The DJI M30 has dual-vision and ToF sensors on all six sides of the aircraft, keeping it and your mission safe. There is also a built in ADS-B receiver that provides timely warnings of any incoming aircraft.
ENHANCED TRANSMISSION
Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.
CAPTURE EVERYTHING
The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
PRO FLIGHT

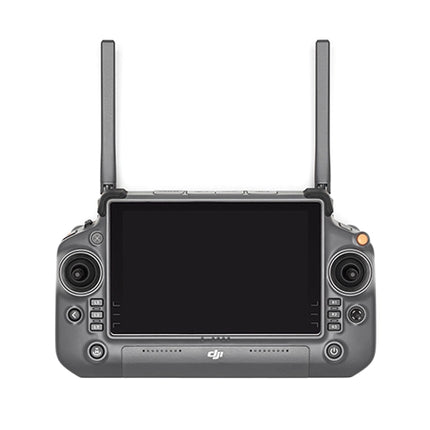

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.
DJI PILOT 2
Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.
Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.
GROUND TO CLOUD
FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.
ADVANCED INTELLIGENCE
Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.
DJI DOCK (SOLD SEPARATELY)
The DJI Dock (M30 Series Dock Version7) has flagship-level performance with a maximum operation range of 7 km8, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃.
Product Specifications
PRODUCT SPECIFICATIONS
AIRCRAFT
Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
Dimensions (folded): 365×215×195 mm (L×W×H)
Diagonal Wheelbase: 668 mm
Weight (incl. two batteries): 3770 ± 10 g
Max Takeoff Weight: 4000 g
Operation Frequency[1]: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP):
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Hovering Accuracy (windless or breezy):
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
RTK Positioning Accuracy (fixed RTK enabled):
1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)
Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.
Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed: 6 m/s, 5 m/s
Max Tilt Descent Speed: 7 m/s
Max Horizontal Speed: 23 m/s
Max Service Ceiling Above Sea Level (without other payload):
5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)
Max Wind Resistance: 15 m/s, 12 m/s during taking off and landing
Max Hover Time [2]: 36 min
Max Flight Time[2]: 41 min
Motor Model: 3511
Propeller Model: 1671, 1676 High Altitude (not included)
Ingress Protection Rating[3]: IP55
GNSS: GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
Operating Temperature: -20° to 50° C (-4° to 122° F)
GIMBAL
Angular Vibration Range: ±0.01°
Controllable Range:
Pan: ±90°
Tilt: -120° to +45°
Mechanical Range:
Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°
ZOOM CAMERA
Sensor: 1/2" CMOS, Effective pixels: 48M
Lens:
Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞
WIDE CAMERA
Sensor: 1/2" CMOS, Effective pixels: 12M
Lens:
DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
THERMAL CAMERA (ONLY AVAILABLE ON MATRICE 30T)
Thermal Imager: Uncooled VOx Microbolometer
Lens:
DFOV: 64°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Infrared Temperature Measurement Accuracy[4]: ±2°C or ±2% (using the larger value)
FPV CAMERA
Resolution: 1920×1080
DFOV: 161°
Frame Rate: 30 fps
LASER MODULE
Wavelength: 905 nm
Max Laser Power: 3.5 mW
Single Pulse Width: 6 ns
Measurement Accuracy: ± (0.2 m + D×0.15%)D is the distance to a vertical surface
Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
VISION SYSTEMS
Obstacle Sensing Range:
Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m
FOV: 65° (H), 50° (V)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
INFARED SENSING SYSTEMS
Obstacle Sensing Range: 0.1 to 10 m
FOV: 30°
Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)
TB30 INTELLIGENT FLIGHT BATTERY
Capacity: 5880 mAh
Voltage: 26.1 V
Battery Type: LiPo 6S
Energy: 131.6 Wh
Net Weight: Approx. 685 g
Operating Temperature: -20° to 50° C (-4° to 122° F)
Storage Temperature: 20° to 30° C (68° to 86° F)
Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System: LiNiMnCoO2
AUXILIARY LIGHTS
Effective Illumination Distance: 5 m
Illumination Type: 60 Hz, solid glow
REMOTE CONTROLLER
Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Internal Battery:
Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2
External Battery(WB37 Intelligent Battery):
Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Operating Time[5]: Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
Ingress Protection Rating[3]: IP54
GNSS: GPS+Galileo+BeiDou
Operating Temperature: -20° to 50° C (-4° to 122° F)
O3 ENTERPRISE
Operating Frequency[1]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference): 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference):
Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
Transmitter Power (EIRP):
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
WI-FI
Protocol: Wi-Fi 6
Operating Frequency[1]: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP):
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)
BLUETOOTH
Protocol: Bluetooth 5.1
Operating Frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
BS30 Intelligent Battery Station
Dimensions: 353×267×148 mm
Net Weight: 3.95 kg
Compatible Battery Type: TB30 Intelligent Flight Battery, WB37 Intelligent Battery
Input: 100-240 VAC, 50/60 Hz
Output:
TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A
Output Power: 525 W
USB-C port: Max. output power of 65 W
USB-A port: Max. output power of 10 W (5 V, 2 A)
Power Consumption (when not charging battery): < 8 W
Output Power (when warming up battery): Approx. 30 W
Operating Temperature: -20° to 40° C (-4° to 104° F)
Ingress Protection Rating[3]: IP55 (with the cover closed properly)
Charging Time[6]:
Approx. 30 min (charging two TB30 batteries from 20%-90%)
Approx. 50 min (charging two TB30 batteries from 0%-100%)
Protection Features:
Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection
OTHER
Footnotes:
[1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.
[2] The maximum flight time and the hover time were tested in a lab environment and is for reference only.
[3] This protection rating is not permanent and may reduce over time after long-term use.
[4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.
[5] The maximum operating time was tested in a lab environment and is for reference only.
[6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.

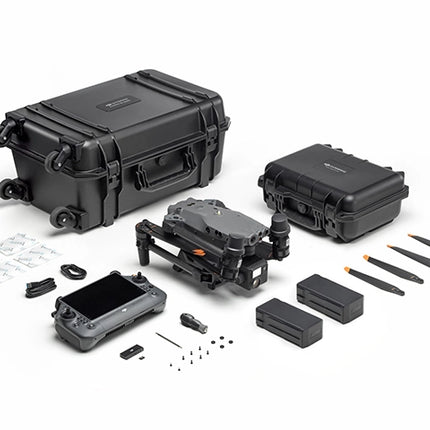

In The Box

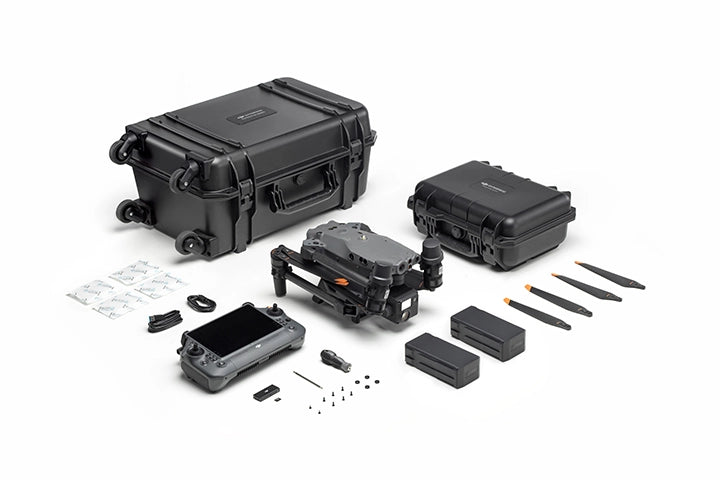

IN THE BOX
Aircraft Body x 1
DJI RC Plus Remote Controller x 1
1671 Propeller (CW) x 2
1671 Propeller (CCW) x 2
USB-C Cable x 1
USB-C to USB-C Cable x 1

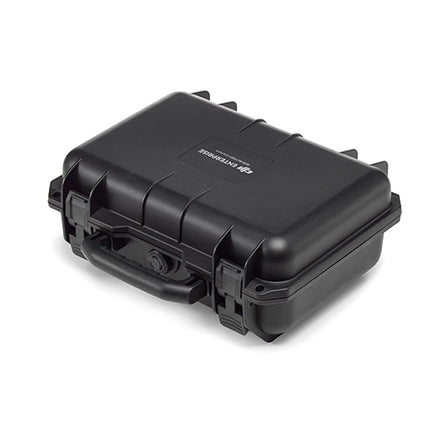

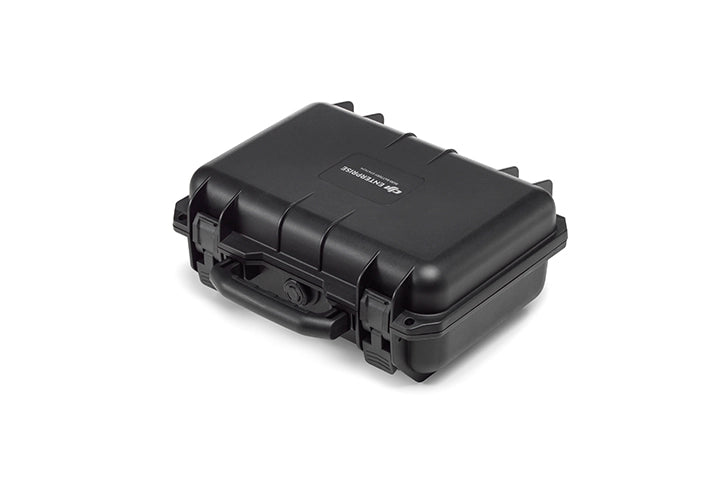

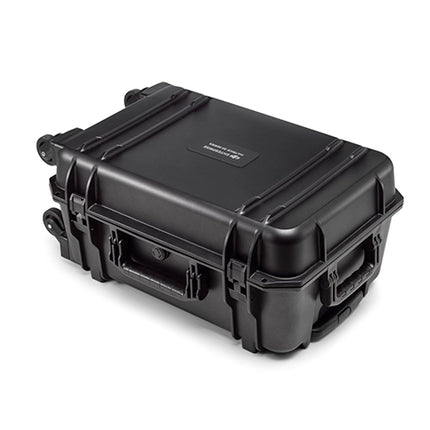

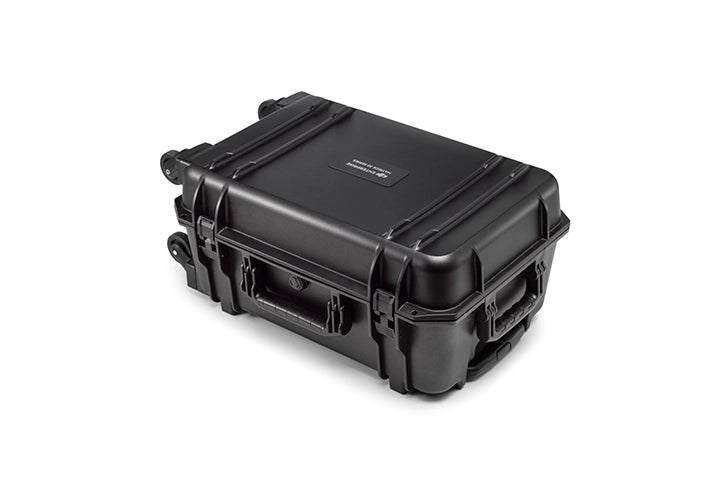

Carrying Case x 1
Screws and Tools x 1
BS30 Battery Station x 1
TB30 Battery x 2
