Description

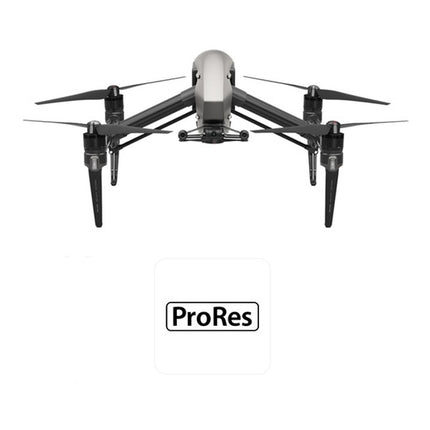

DJI Inspire 2 with Apple ProRes License. Image quality, power and intelligence to meet the needs of professional filmmakers and enterprises around the globe.
Availability: Special Order
Product Description
FLIGHT TIME
|
MAX SPEED
|
SENSOR RANGE
|
CONTROL RANGE
|
VIDEO RESOLUTION
|
OBSTACLE SENSING
|
| 25-27 min |
94km/h |
30m |
7km |
5.2k/4k |
1080p |
Product Specifications
PRODUCT SPECIFICATIONS
AIRCRAFT
Model: T650
Weight: 7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera)
Max Takeoff Weight: 8.82 lbs (4000 g)
GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°
Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s)
Max Descent Speed Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s)
Max Takeoff Sea Level: 1.55 mi (2500 m), 3.1 mi (5000 m) with specially-designed propeller
Max Wind Speed Resistance: 10 m/s
Max Flight Time: Approx. 27 min (with Zenmuse X4S)
Motor Model: DJI 3512
Propeller Model: DJI 1550T
Indoor Hovering: Enabled by default
Operating Temperature: -4°F to 104° F (-20°C to 40° C)
Diagonal Distance: (propeller excluded) 23.8 inch (605 mm, Landing Mode)
Max Speed: 58 mph or 94 kph(Sport mode)
REMOTE CONTROLLER
Model: GL6D10A
Operating Frequency: 2.400-2.483 GHz, 5.725-5.850 GHz
Max Transmitting Distance: (unobstructed, free of interference)
2.4 GHz:
FCC: 4.3 miles (7 km);
CE: 2.2 miles (3.5 km);
SRRC: 2.5 miles (4 km);
MIC: 2.5 miles (4 km);
5.8 GHz:
FCC: 4.3 miles (7 km);
CE: 1.2 miles (2 km);
SRRC: 3.1 miles (5 km);
MIC: - ;
EIRP 2.4 GHz:
FCC: 26 dBm;
CE: 17 dBm;
SRRC: 20 dBm;
MIC: 17dBm;
5.8 GHz:
FCC: 28 dBm;
CE:14 dBm;
SRRC: 20 dBm;
MIC: - ;
Video Output Ports: USB, HDMI
Power Supply: Built-in battery
Charging: DJI charger
Dual User Capability: Host-and-Slave connection
Mobile Device Holder: Tablet or Smart Phone
Max Mobile Device Width: 170 mm
Output Power: 9 W (Without supplying power to smart device)
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature: 32° to 104° F (0° to 40° C)
Battery: 6000mAh 2S LiPo
USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
INTELLIGENT FLIGHT BATTERY
Model: TB50
Capacity: 4280 mAh
Voltage: 22.8 V
Battery Type: LiPo 6S
Energy: 97.58 Wh
Net Weight: 515 g
Charging Temperature: 41° to 104° F (5° to 40° C)
Operating Temperature: -4° to 104° F (-20° to 40° C)
Max Charging Power: 180 W
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
DOWNWARD VISION SYSTEM
Velocity Range: <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range: <32.8 feet (10 m)
Operating Range: <32.8 feet (10 m)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range: 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)
UPWARD INFARED SENSOR
Obstacle Sensing Range: 0-16.4 feet (0-5 m)
FOV: ±5°
Operating Environment: Large-size non-reflective obstacles
GIMBAL
Model: ZENMUSE X4S(optional), ZENMUSE X5S(optional)
Angular Vibration Range: ±0.01°
Controllable Range Pitch: -130° to+40°
Roll: ±20°
Pan: ±320°
Max Controllable Speed Pitch: 180°/s
Roll: 180°/s
Pan: 270°/s
Interface Type: Detachable
Mechanical Range Pitch: -140° to+50°
Roll: -50° to+90°
Pan: ±330°
CHARGER
Model: IN2C180
Voltage: 26.1 V
Rated Power: 180 W
CHARGING HUB
Model: IN2CH
Input Voltage: 26.1 V
Input Current: 6.9 A
FORWARD VISION SYSTEM
Obstacle Sensing Range: 2.3-98.4 feet (0.7-30 m)
FOV Horizontal: 60°; Vertical: 54°
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
APP
Name: DJI GO 4
Mobile Device System Requirements: iOS 9.0 or later,Android 4.4.0 or later
Warranty
WARRANTY DETAILS
Gimbal Camera (including X4S, X5S): 12 Months
Whole Units (except for gimbal camera, and battery): 12 Months and Flight Hour less than 200 Hours
Battery: 6 Months and Charge Cycle less than 200 Times
Battery Charger: 9 Months
Battery Charging Hub: 9 Months
Propeller and Propeller Mounting Plates: No Warranty
Remote Controller: 12 Months
CINESSD (480G): 12 Months and the Total Bytes Written (TBW) less than 150TB
CINESSD (240G, 120G): 12 Months and the Total Bytes Written (TBW) less than 75TB
CINESSD Card Reader: 12 Months
In The Box
IN THE BOX
Inspire 2 Aircraft x 1
Remote Controller x 1
Propellers (Pair) x 4
Intelligent Flight Battery x 2
Charger x 1
Battery Charging Hub x 1
Power Cable x 1
USB Cable (with Double A Ports) x 1
microSD Card (16GB) x 1
Vision System Calibration Plate x 1
Gimbal Damper x 3
Propeller Mounting Plates (Pair) x 1
Carrying Case x 1
Battery Insulation Sticker x 4
Apple ProRes Activation Key x 1
