Description

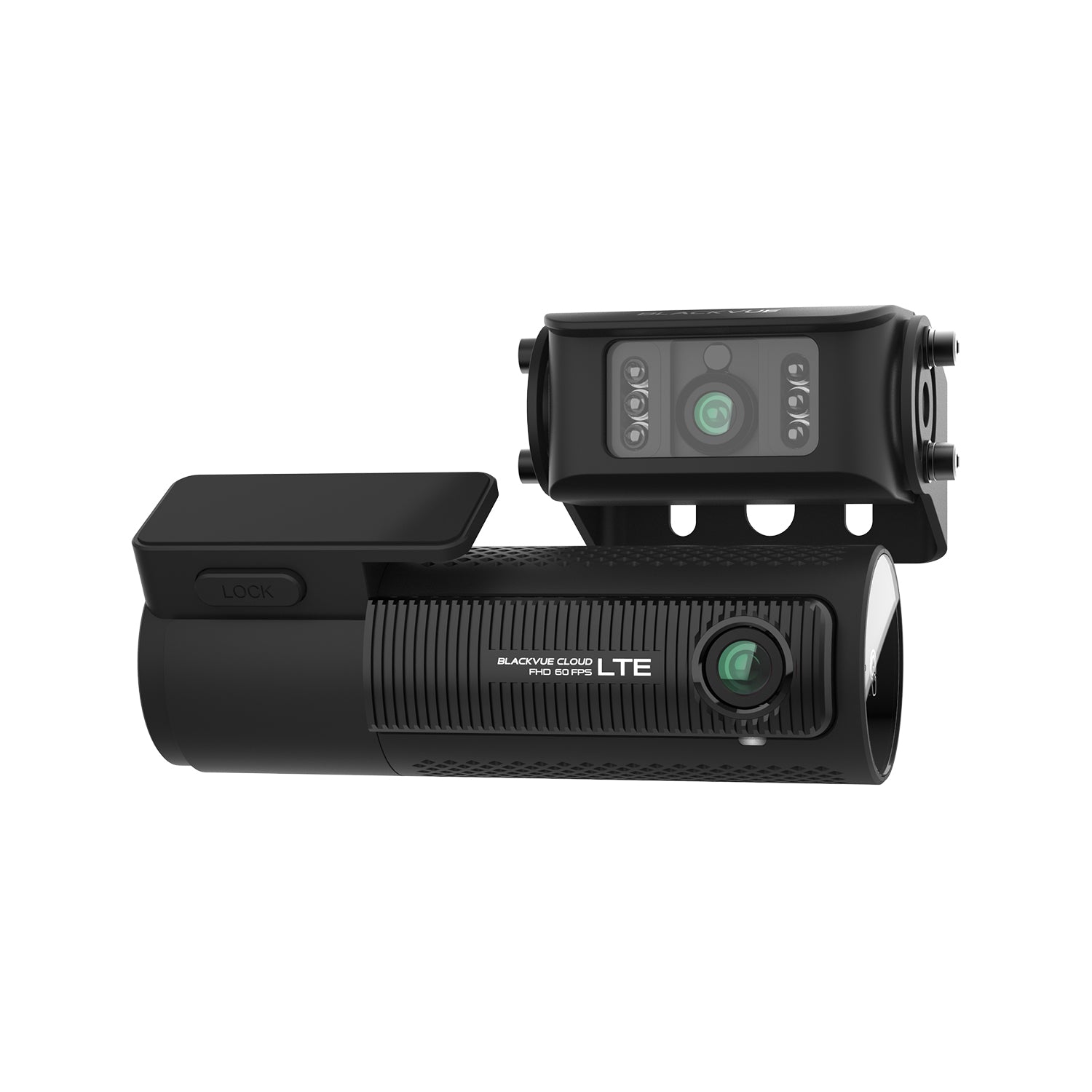

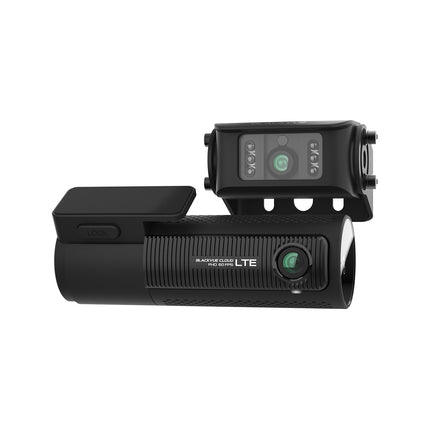

he DR770X-2CH TRUCK LTE is a Cloud dash cam with built-in LTE and waterproof rear camera. The rear camera is connected by a 15-meter (49ft) video cable so you can mount it externally on a variety of trucks and heavy vehicles. Best image quality night and day with Full HD Sony STARVIS™ image sensors front and rear. Easy Cloud connectivity with built-in Nano SIM card reader*, making it a dash cam of choice for commercial vehicle protection and fleet tracking.
Effortless set up with the BlackVue App.
(*) Data plan not included. BlackVue SIM card included in select models.
A truck dashcam built for the cloud
Built-in 4G LTE connectivity makes connecting to the cloud hassle-free.
Dual Full HD 1080p camera (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your vehicle.
View angle: front camera 139 degrees; rear camera: 116 degrees.
STARVIS imaging sensors- a reference in video clarity under low light-equip both front and rear camera, so whether you are driving or parked, crucial details are captured perfectly.
Infrared external rear camera
With rugged metal casting
With its metal waterproof casing the rear camera of the DR770X-2CH-TRUCK is built to withstand most weather conditions. Its ingress protecting rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in the place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
Specifications
Model Name: DR770X-2CH Truck LTE
Channel: 2CH
Product Dimensions :
Front: Black / Width 137.6mm x Height 43mm / 161g
Rear: Black / Width 70.4mm x Height 36mm / 157g
Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 512GB
Recording Modes:
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor:
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle:
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate :
Front: Full HD (1920×1080) @ 60 fps
Rear: Full HD (1920×1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear:
Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES (up to 50)
SD Card Failure Alert : YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible: YES
GPS: Built-in
Microphone: Built-in
Speaker: Built-in
Impact Sensor : 3-Axis Acceleration Sensor
Rear Camera IR Illumination: 940 nm (4 Infrared (IR) LEDs)
Operation Temperature: -20? – 70? (-4°F – 158°F)
Storage Temperature: -20? – 70? (-4°F – 158°F)
High Temp Cut Off: Approx. 80 °C (176 °F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V
Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V
Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V
Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
* Model DR770X-2CH Truck LTE should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).)
