CHASING Floodlight 2
CHASING Floodlight 2 is an accessory specially engineered and developed for the CHASING underwater drones. The external illumination has adjustable beam angles ranging from 0° to 360°, significantly decreasing the visual interference of floating debris reflection.
0° - 360° Adjustable Beam Angle
Dual lamp sources allow the adjustment from 0° to 360° horizontal beam angles, adjustment spacing is 15°, meeting various needs of underwater applications with maximized illumination area.
External Illumination, Minimized Visual Interference of Floating Debris
The external illumination can minimize the visual interference of floating debris and significantly increase the image quality.
Aircraft-Grade Aluminium & Carbon Fiber, Lightweight & Corrosion-Resistant
The HA III Military grade hard-anodized surface makes CHASING Floodlight 2 lightweight, corrosion-resistant and perfectly working at 150m deep water. The slim-shaped unit only weighs 432g (15.3oz), which is easy to carry and store.
Specifications
Floodlight
Dimensions
418mm
Weight
≈432g
Angle of Depression
-10°
Horizontal Angle
360° adjustable
Pressure Resistance Depth
150m
Brightness
2 x 2000lm
What’s in the Box
Floodlight
×1
Brass separator
×4
M3x8 screws
×8
CHASING Grabber Claw B is used for GLADIUS MINI S underwater drone. The maximum drag force is 12 kg and the force is adjustable. It is suitable for multiple uses such as sampling detection.
Product Description
CHASING Grabber Claw B
CHASING Grabber Claw B is used for GLADIUS MINI S underwater drone. The maximum drag force is 12 kg and the force is adjustable. It is suitable for multiple uses such as sampling detection.
6kg Clamping Force, 12kg Drag Force
With maximum 6kg clamping force and 12kg drag force, the grabber claw can easily complete underwater operations. Adjust different forces on the App to avoid damage to the clamped items.
Smooth Experience and Powerful Functions
With a 120mm opening and closing distance and a 2.8-second single opening and closing time, the grabber claw operates smoothly and can grab a variety of items.
10° Elevation Angle on Holder, Improving the Vision Intergrity
The holder increases the angle between the grabber claw and the underwater drone by 10°, avoiding the obstruction of the view and enhancing the experience of the operation effectively.
Aluminum Alloy Material, Compact Size
Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.
Specifications
Size460 x 33.5 mm
Weight370g
Weight in Water50g
Max Grasping Force6kg
Max Drag Force12kg
Opening and Closing Distance120mm
Max Depth100 meters
Single Opening / Closing Time2.8s
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Product Description
CHASING M2 Battery
CHAISNG M2 lithium battery, large capacity and swappable, can be independently charged unlimited expansion of underwater working hours.
Independent Charging
The battery can be charged independently after removing from the M2, and the underwater working time is unlimitedly expanded.
Two Optional Specifications
97.68Wh Battery
Battery Capacity: 4400mAh
Diameter: 120mm
Length:183.5mm
Weight:1.4kg
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
Product Description
CHASING Robot Arm
CHASING Robot Arm is small and easy to install. The maximum drag force is 12 kg. It is suitable for multiple uses such as sampling detection.
3kg Clamping Force, 12kg Drag Force
With maximum 3kg clamping force and 12kg drag force, the robot arm can easily complete underwater operations.
Smooth Experience and Powerful Functions
With a 120mm opening and closing distance and a 1.5-second single opening and closing time, the robot arm operates smoothly and can grab a variety of items.
Aluminum Alloy Material, Compact Size
Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.
Product Specifications
Size: 460 x 33.5 mm
Weight: 370g
Weight in Water: 50g
Max Grasping Force: 3kg
Max Drag Force: 12kg
Opening and Closing Distance: 120mm
Max Depth: 100 meters
Single Opening / Closing Time: 1.5s
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Product Description
CHASING Laser Scaler
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Quickly Complete Underwater Range-Finding
CHASING Laser Scaler can quickly measure the size and distance of underwater objects, cracks, and so on, thereby reducing the risk and cost of manual operations.
Specifications
Size132x70x36.5 mm
Weight≈190 g
Working Temperature-10 ℃ - 45 ℃
Beam Exit Diameter3-5 mm
Laser Spacing10±0.5 cm
Laser ColorRed
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Product Description
CHASING Laser Scaler
CHASING Laser Scaler is specially designed for users who need to perform underwater range-finding. It uses a pair of red laser beams with a spacing of 10 cm to estimate the size of aquaculture products, the length of cracks in boats and dams, and so on.
Quickly Complete Underwater Range-Finding
CHASING Laser Scaler can quickly measure the size and distance of underwater objects, cracks, and so on, thereby reducing the risk and cost of manual operations.
Specifications
Size132x70x36.5 mm
Weight≈190 g
Working Temperature-10 ℃ - 45 ℃
Beam Exit Diameter3-5 mm
Laser Spacing10±0.5 cm
Laser ColorRed
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Availability: In Stock
Product Description
CHASING Reel
CHASING Reel with IP65 waterproof and dustproof grade supports tether up to 200 meters. Simple structure and reliable performance give you more fun.
Anti-blast Automatic Wiring Design
The CHASING Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-blast technology. It can ensure automatic wiring smooth, and has good explosion-proof wire effet.
IP65 Waterproof
Waterproofing is added to the structure, and the comprehensive waterproofing grade reaches IP65, which can prevent water splashing. Users can use it safely on the shore or on the ship.
Replaceable Cable
Users can replace 50 meters, 100 meters or 200 meters tether as needed and use with GLADIUS MINI, GLADIUS MINI S, CHASING M2 or CHASING M2 PRO.
Specifications
Size:296*189*279 mm
Weight:2.56 kg
Max Storage Length:200 meters
Waterproof Grade:IP65
CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users.
It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.
Product Specifications
CHASING M2 PRO MAX
Maximum Depth
200m
Video Maximum Stream
60M
Maximum Battery Life
>4h
Micro SD Card Memory
128G
Maximum Image Resolution
12 M
Normal Video
FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
ROV
Size
608 x 294 x 196 mm (Excluding the floodlight)
Weight
≈8 KG
Maximum Depth
200m
Pull (forward / drift upwards / traverse)
5.7 / 4.0 / 3.6 KG
Maximum Battery Life
>4h
Battery
302.4Wh
Operating Temperature
-10 ℃ ~ 45 ℃
E-Reel
Size
296x189x279 mm
Weight
3.5 KG
Max Storage Length
200 meters
Battery Capacity
4800 mAh
Number of Cycles
>300 times
Runtime
30 times
Wiping Speed
3 gears
Take-Up Speed (200m)
Fast speed 220 s Low speed 9 min
Operating Temperature
-10℃~45℃
Charging Time
2 H (12 V ) / 4 H (25.2 V)
Remote Controller
Size
160 x 155 x 125 mm
Weight
685 g
Battery Capacity
2500 mAh
Battery Life
≥6H (Depend on working condition)
Wi-Fi
Support
HDMI
support
USB
support
Phone / Tablet Clip
Maximum support 10 inches
LED Lights
Brightness
2 x 4000 lm
Color Temperature
5000 K ~ 5500 K
CRI
85
Dimming
Three adjustable
Sensor
IMU
Three-axis gyroscope acceleration compass
Depth Sensor
<±0.25 m
Temperature Sensor
<±2 ℃
Adapter
Adapter
8 A / 25.2 V
ROV Charging Time
2.5 H
Remote Controller Charging Time
2 H
Camera
CMOS
1/2.3’’
Aperture
f/1.8
Focal Length
0.3m~∞
ISO Range
100-6400
Field of View
150°
Maximum Image Resolution
12 M
Image File Types
JPEG / DNG
Normal Video
UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
Slow Motion Video
720p: 8x (240fps) 1080p: 4x (120fps)
Time-Lapse Video
4K / 1080p
Video Maximum Stream
60 M
Video Type
MP4
Micro SD Card Memory
128 G
In The Box:
Drone ×1
CHASING E-Reel 200m ×1
Charging cable & 3-in-1 Charger ×1
Remote Controller ×1
Data cable ×3
Carrying case ×1
Backpack for accessories ×1
Towel ×1
23.6X1.8 O-rings ×2
19X1.8 O-rings ×4
12.5X1.5 O-rings ×4
M3X8 Combination screw ×10
M3X8 Machine screw ×5
M5 small flat washer ×6
M5 spring washer ×6
Cross/Hexagon dual-purpose screwdriver ×1
Flat wrench ×1
Sealing cover of the tether socket ×1
Sealing cover of the peripheral socket ×2
Thruster shield ×8
Left/Right floodlight Spare parts for mounting support ×2
Information Kit ×1
300Wh Battery ×2
CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users.
It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.
Product Specifications
CHASING M2 PRO MAX
Maximum Depth
200m
Video Maximum Stream
60M
Maximum Battery Life
>4h
Micro SD Card Memory
128G
Maximum Image Resolution
12 M
Normal Video
FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
ROV
Size
608 x 294 x 196 mm (Excluding the floodlight)
Weight
≈8 KG
Maximum Depth
200m
Pull (forward / drift upwards / traverse)
5.7 / 4.0 / 3.6 KG
Maximum Battery Life
>4h
Battery
302.4Wh
Operating Temperature
-10 ℃ ~ 45 ℃
E-Reel
Size
296x189x279 mm
Weight
3.5 KG
Max Storage Length
200 meters
Battery Capacity
4800 mAh
Number of Cycles
>300 times
Runtime
30 times
Wiping Speed
3 gears
Take-Up Speed (200m)
Fast speed 220 s Low speed 9 min
Operating Temperature
-10℃~45℃
Charging Time
2 H (12 V ) / 4 H (25.2 V)
Remote Controller
Size
160 x 155 x 125 mm
Weight
685 g
Battery Capacity
2500 mAh
Battery Life
≥6H (Depend on working condition)
Wi-Fi
Support
HDMI
support
USB
support
Phone / Tablet Clip
Maximum support 10 inches
LED Lights
Brightness
2 x 4000 lm
Color Temperature
5000 K ~ 5500 K
CRI
85
Dimming
Three adjustable
Sensor
IMU
Three-axis gyroscope acceleration compass
Depth Sensor
<±0.25 m
Temperature Sensor
<±2 ℃
Adapter
Adapter
8 A / 25.2 V
ROV Charging Time
2.5 H
Remote Controller Charging Time
2 H
Camera
CMOS
1/2.3’’
Aperture
f/1.8
Focal Length
0.3m~∞
ISO Range
100-6400
Field of View
150°
Maximum Image Resolution
12 M
Image File Types
JPEG / DNG
Normal Video
UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
Slow Motion Video
720p: 8x (240fps) 1080p: 4x (120fps)
Time-Lapse Video
4K / 1080p
Video Maximum Stream
60 M
Video Type
MP4
Micro SD Card Memory
128 G
In The Box:
Drone (Excl Battery) ×1
Shorebase Power Supply System ×1
Charging cable & 3-in-1 Charger ×1
Remote Controller ×1
Data cable ×3
Carrying case ×1
Backpack for accessories ×1
Towel ×1
23.6X1.8 O-rings ×2
19X1.8 O-rings ×4
12.5X1.5 O-rings ×4
M3X8 Combination screw ×10
M3X8 Machine screw ×5
M5 small flat washer ×6
M5 spring washer ×6
Cross/Hexagon dual-purpose screwdriver ×1
Flat wrench ×1
Sealing cover of the tether socket ×1
Sealing cover of the peripheral socket ×2
Thruster shield ×8
Left/Right floodlight Spare parts for mounting support ×2
Information Kit ×1

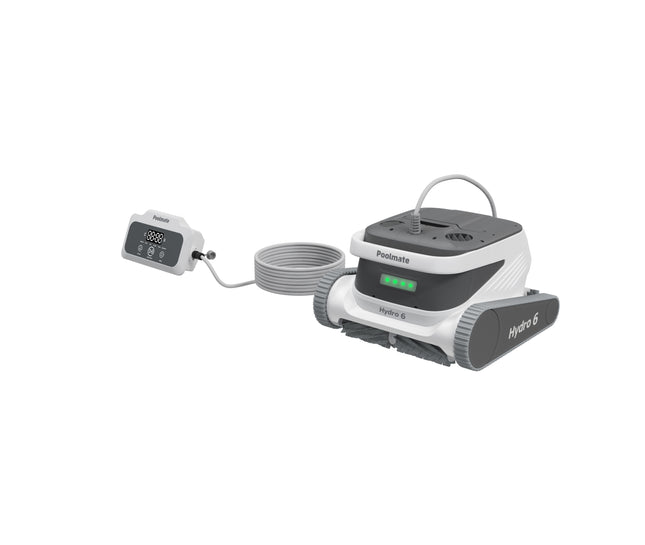

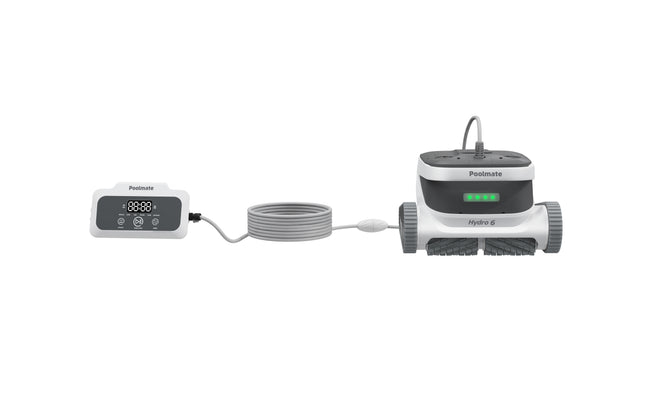

Maximum Power Motor
Poolmate Robotic Pool Cleaner deliver powerful suction to remove debris and dirt from the pool. Our advanced motor design ensures thorough cleaning of large areas quickly, reducing overall cleaning time and operating costs.
Anti-resonance Technology
Poolmate Robotic Pool Cleaner uses anti-resonance improves cleaning accuracy and energy efficiency, ensuring thorough debris removal and a more polished finish.
Advanced Filtration System
Featuring a large-capacity filter basket and precise filtration, can pick up and store debris as small as 1 microns in the massive 6.7-liter debris basket.
Smart Control
Poolmate Hydro-Cloud App Control
App control is only accessible when the device is out of the water. The dedicated app makes your pool maintenance mobile like never before.
Enjoy easy, convenient control from anywhere at anytime. All within the Poolmate App.
Get Your Pool Cleaner Than Ever
Premium Cleaning Performance
With 8800 GPH suction power from dual brushless motors, it ensures efficient, low-noise operation with enhanced durability. The Dual Inlet Patent increases the cleaning area and boosts efficiency, providing a powerful flow while ensuring smooth vertical movement. Its double proactive brushes amplify scrubbing power, while maintaining wall-climbing and waterline cleaning performance, even when the filter chamber is full of debris. The advanced filtration system can capture and store even the smallest particles, delivering a superior clean for your pool.
Get Your Pool Cleaner Than Ever
6.7L Large Dual-Zoned Filtration System
The Poolmate HyPro 6 features an industry-leading 6.7L dual-zoned filtration system, designed to capture debris with precision and reduce the risk of clogging. Its replaceable double-material filters ensure more thorough cleaning by effectively concentrating dirt and impurities, allowing for longer cleaning sessions without frequent maintenance. Experience superior filtration that keeps your pool water crystal clear.
Superior Mobility
Dual Inlet Patent Design
Effectively increases cleaning area and efficiency.Ensures unobstructed filter water flow, maintaining wall-climbing and lateral waterline cleaning performance even when the main filter chamber is full of debris.The Poolmate Hypro 6 will conquer all types of pools and navigate the natural obstacles present in your pool.
Easy Access
Makes Pool Care A Breeze
Maintaining your pool becomes effortless with Poolmate Hypro 6. It's easy to use, retrieve, and maintain, making the entire cleaning process a breeze.
Perfect For All Types Of Pools
Random
Rectangle
Special-shaped
Round
Technical Specifications
Dimension of robot
485 x 475 x 342 mm
Weight of robot
12 kg (exclude cable)
Dimension of control box
352 x 82 x 211 mm
Weight of control box
2.3 kg (exclude cable)
Filter precision
180 μm + 1 μm
Cable length
18m
Rated input voltage
AC 100 - 240 V
Rated output voltage
DC 24 V
Power
Average input power 250W / Maximum input power 320W
Use depth
0.8~5 m
Dimension of swimming pool
Up to 15m
Cleaning area
Pool bottom, pool wall and waterline
Cloud service
Support
Movement speed
15 m/min
Protection grade of robot
IP68
Protection grade of control box
IP54
Anti-tangling cable
Support
Quantity of active brushes
2
Quantity of pumps
2
APP
Support
Appointment enabled
Support
Manual mode
Support
Water temperature display
Support
Working temperature
5-35°C
Storage temperature
5-45°C
What's In The Box
Robot (including buoyancy) x1
Control box (including power line) x1
Screw -x3
Front strainer (1F) x1
Left strainer (3L) x1
Right strainer (4R) x1
