BlackVue DR770X Box Truck Pro features front, rear and interior protection for your vehicle, with a waterproof external rear camera. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
Total Video Protection for Trucks and Heavy Vehicles
The DR770X BOX TRUCK PRO is ideal to secure most large commercial trucks. The waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.
The ultrawide interior camera is also equipped with infrared LEDs to capture clear video of the cabin under any light.
You can also connect the optional Connectivity Module to keep the dashcam connected to the Cloud at all times.
• Seamless Pairing with the BlackVue App
• Infrared external rear camera
• Waterproof coaxial cable
• GPS, Wi-Fi and Optional LTE
• Ultrawide Infrared Interior Camera
• Built-in Speaker, Impact Sensor and Motion Detection
• SOS Button
• BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web).
Model Name DR770X Box Truck
Channel
3CH
Highlights
2K (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g
Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear Truck : Black / Length 70.4 mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 256GB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear Truck : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Front / Rear / Interior
Highest(Extreme): 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 51)
SD Card Failure Alert
YES
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
External (Dual Band : GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
Rear Camera IR Illumination
Rear Truck : 940nm (6 Infrared (IR) LEDS)
Interior IR : 940nm (2 Infrared (IR) LEDS)
Input Power
DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.
* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
This models supports BlackVue Cloud
Read more about BlackVue Cloud here

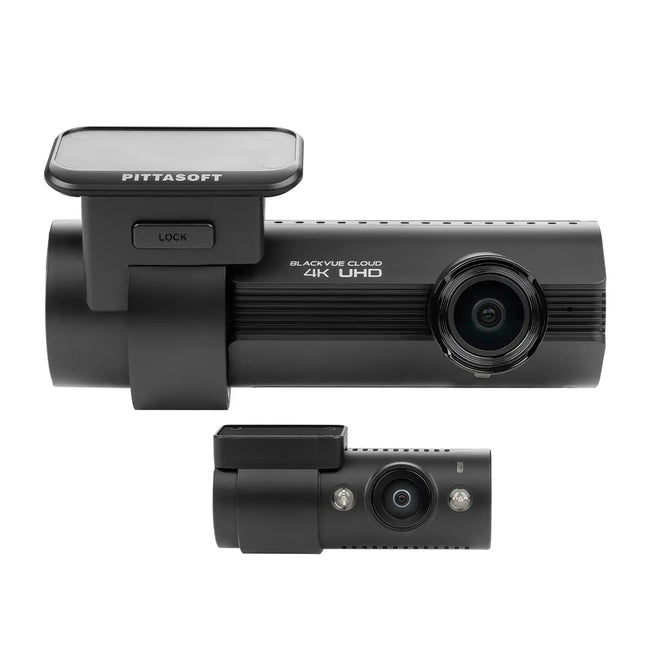

The front camera of DR970X-2CH IR Plus records the road ahead in 4K UHD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.
The perfect camera for Uber, Lyft drivers and anyone looking to secure the interior of their vehicle.
The driver-facing ultrawide-angle camera captures the entire field of view from the driver’s side to the passenger’s side.
• Cloud-compatible: Built-in GNSS,Wi-Fi and optional LTE module
• Game-changing 4K visual fidelity: Powered by an 8.4-megapixel Sony STARVIS 2 image sensor
• Ultrawide infrared interior camera: Record everything from the driver's side to the passenger's side.
• Best compression and high bitate: High efficiency video coding(HEVC/H.265) and AVC(H.264) support
• Easy installation: 12V adapter and hardwiring kit both included in the box
• Seamless Pairing: Easy setup with the BlackVue App. Secure and passwordless
• Sleek interface: and tons of smart features in a compact design
Specifications
Model Name: DR970X-2CH IR Plus
Channel: 2CH
Highlights
4K UHD (Front) + Full HD (Interior), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)
Product Dimensions
Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g
Interior: Black / 67.3mm(L) x 28mm(W) x 25mm(H) / 26g
Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 512GB
Imaging Sensor:
Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel)
Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel
Viewing Angle:
Front: Diagonal 146°, Horizonal 125°, Vertical 68°
Interior: Diagonal 178°, Horizonal 150°, Vertical 80°
Resolution Frame Rate:
Front: 4K (3840 x 2160) @ 30 fps
Interior: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
Operation Temperature: -20 °C - 70 °C (-4 °F - 158 °F)
Storage Temperature: -20 °C - 80 °C (-4 °F - 176 °F )
This models supports BlackVue Cloud
Read more about BlackVue Cloud here
he DR770X-2CH TRUCK LTE is a Cloud dash cam with built-in LTE and waterproof rear camera. The rear camera is connected by a 15-meter (49ft) video cable so you can mount it externally on a variety of trucks and heavy vehicles. Best image quality night and day with Full HD Sony STARVIS™ image sensors front and rear. Easy Cloud connectivity with built-in Nano SIM card reader*, making it a dash cam of choice for commercial vehicle protection and fleet tracking.
Effortless set up with the BlackVue App.
(*) Data plan not included. BlackVue SIM card included in select models.
A truck dashcam built for the cloud
Built-in 4G LTE connectivity makes connecting to the cloud hassle-free.
Dual Full HD 1080p camera (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your vehicle.
View angle: front camera 139 degrees; rear camera: 116 degrees.
STARVIS imaging sensors- a reference in video clarity under low light-equip both front and rear camera, so whether you are driving or parked, crucial details are captured perfectly.

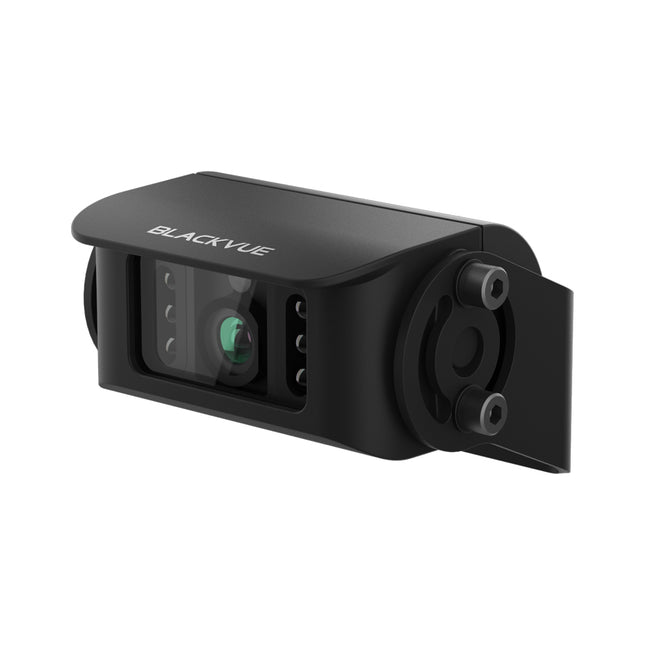

Infrared external rear camera
With rugged metal casting
With its metal waterproof casing the rear camera of the DR770X-2CH-TRUCK is built to withstand most weather conditions. Its ingress protecting rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in the place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
Specifications
Model Name: DR770X-2CH Truck LTE
Channel: 2CH
Product Dimensions :
Front: Black / Width 137.6mm x Height 43mm / 161g
Rear: Black / Width 70.4mm x Height 36mm / 157g
Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 512GB
Recording Modes:
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor:
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle:
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate :
Front: Full HD (1920×1080) @ 60 fps
Rear: Full HD (1920×1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear:
Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES (up to 50)
SD Card Failure Alert : YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible: YES
GPS: Built-in
Microphone: Built-in
Speaker: Built-in
Impact Sensor : 3-Axis Acceleration Sensor
Rear Camera IR Illumination: 940 nm (4 Infrared (IR) LEDs)
Operation Temperature: -20? – 70? (-4°F – 158°F)
Storage Temperature: -20? – 70? (-4°F – 158°F)
High Temp Cut Off: Approx. 80 °C (176 °F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V
Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V
Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V
Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
* Model DR770X-2CH Truck LTE should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).)
Full HD STARVIS Sensor Front and InteriorThe front camera captures the road at 60 frames per second (139-degree view angle) and the infrared AI-powered DMC200 (115-degreee view angle) analyses and alerts the driver in case of drowsiness or distraction while recording clear video of the vehicle’s interior.Both cameras feature Full HD Sony STARVIS image sensors for best image quality under any light.The back-illuminated STARVIS image sensor produces clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.AI-powered Driver-Monitoring CameraThe infrared Driver-Monitoring Camera (DMC200) is designed to improve driver’s safety by helping prevent risky behaviours. Its algorithm can detect statuses such as”• Drowsy driving• Distracted driving• Hand distraction• Driver detected/undetected• Mask on/offAI-specific Driving ReportsView driving behaviour trends at a glanceWhen connected to BlackVue Cloud, the DMC200 generated additional driving report data under the label “inattentive driving”Those can be seen in the BlackVue App under Connect to cloud > Select your camera > Report tab.In the BlackVue Web Viewer (blackvuecloud.com), simply click the Report tab.SpecificationsModel Name: DR770X-2CH DMSChannel: 2CHHighlights: Full HD (Front + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module, AI-powered Driver Monitoring SystemProduct Dimensions: Front: Diagonal 139°, Horizontal 116°, Vertical 61°DMS: Diagonal 115°, Horizontal 95°, Vertical 49°Rear Camera Connection: Coaxial cableMemory Support: microSD card up to 256GBRecording Modes: Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.Parking Mode :YES (hardwiring cable included)Parking Mode Event Voice Notifications: YESImaging Sensor: Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)Interior (DMS): Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)Viewing Angle: Front: Diagonal 139°, Horizontal 116°, Vertical 61°DMS: Diagonal 115°, Horizontal 95°, Vertical 49°Resolution Frame Rate : Front: Full HD (1920 x 1080) @ 60 fpsDMS: Full HD (1920 x 1080) @ 30 fps* Frame rate may vary during Wi-Fi streaming.Video Codec: H.264 (AVC)Image Quality and Bitrate Front/Rear: Highest (Extreme): 25+10 MbpsHighest: 12+10 MbpsHigh: 10+8 MbpsNormal: 8+6 MbpsFormat Free: YES (Adaptive)Event File Overwrite Protection: YES (up to 50)SD Card Failure Alert: YESScheduled Reboot: YESVideo File Extension: MP4Wi-Fi: Built-in (802.11 b.g.n)Cloud Compatible: YESGPS: Built-in (Dual Band : GPS, GLONASS)Microphone: Built-inSpeaker: Built-inImpact Sensor : 3-Axis Acceleration SensorLED Indicators : Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LEDDMS: Detection LED (Green / Red / Blue)Rear Camera IR Illumination: 940nm (4 Infrared LEDs)Button : Front (Touch sensor): Pressing the touch sensor triggers manual recording depending on the firmware settings.DMS (Touch sensor): Press once to turn on/off beep alerts.Operation Temperature: -20 °C - 70 °C (-4 °F - 158 °F)Storage Temperature: -20 °C - 80 °C (-4 °F - 176 °F )Input Power: Front: DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)DMS: DC 12V –24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)Power Consumption Hour: Normal Mode (GPS On/2CH) : Avg. 570mA/12VParking Mode (GPS Off/2CH) : Avg. 520mA/12V* Actual power consumption may vary depending on use conditions and environment.Software: BlackVue Viewer* Windows 7 or higher, Mac Sierra OS X (10.12) or higherBlackVue Web Viewer: * Chrome 71 or higher, Safari 13.0 or higherApplication: BlackVue Application* Android 8.0 or higher, iOS 13.0 or higherOthers : Adaptive Format-Free File Management SystemBluetooth: Built-in (V2.1+EDR/4.2)
Outstanding 4K HDR Clarity, Stay Connected
Powered by the Best Dash Cam Sensor, Fine-tuned by BLACKVUE
Hassle-Free Installation
1. Mount the front and rear cams
2. Plug the power and video cables
3. Start driving
Simple and Secure: With Seamless Pairing, connecting to your dash cam with the BlackVue App is easy as 1, 2, 3.
1. Tap + Camera
2. Select your BlackVue in the list
3. Tap the touch sensor
That’s it! Your camera is added a ready for use.
All Features At Your Fingertips
The BlackVue App is designed with simplicity and ease of use in mind.
No convoluted menus. Access all the key features from the main screen.
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.
24/7 Protection for your vehicle
With the Parking Mode Accessories
Native Parking Mode
Let your BLACKVUE watch over your vehicle 24/7
What's in the box?
• Front Camera
• Rear Camera
• Hardwiring Power Cable
• USB-C Power cable
• USB-C 12V Adapter
• Rear camera connection cable
• MicroSD Card
• Double-sided tape for the mounting brackets
• Pry tool / Trim Remover
• Cable clips (5 EA)
• Alcohol Pad

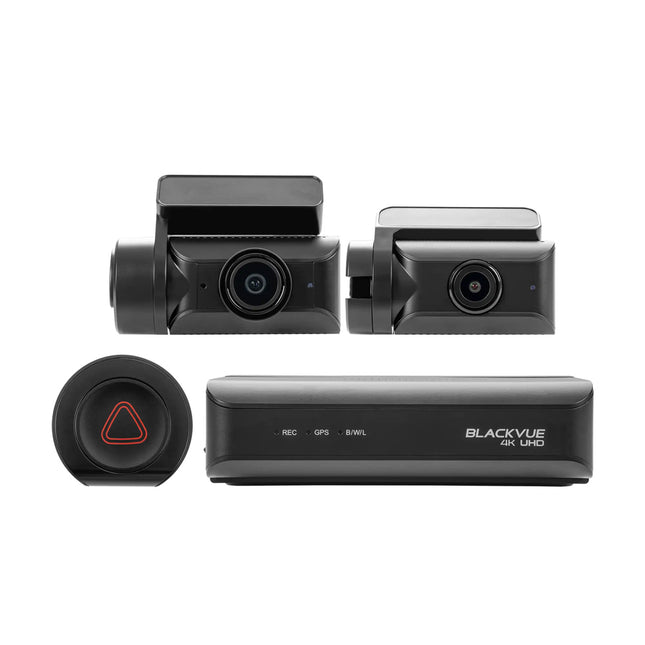

The Best Connected Dash Cam Solution for Stealth, Security, Heat Mitigation and Image Quality.
• Cloud-Compatible: Built-in GNSS, Wi-Fi and optional LTE module
• Game-changing 4K visual fidelity: Powered by an 8.4-megapixel Sony STARVIS 2 image sensor
• Naturally heat-resistant: You can install the box away from the sun. No more worrying about overheating.
• Designed for stealth: Smaller cameras and secure recording box unit
• Security-enhanced: Designed from the ground up to prevent tampering
• Seamless Pairing: Easy setup with the BlackVue app. Secure and passwordless.
Specifications
Model Name: DR970X Box-2CH Plus
Channel: 2CH
Highlights: 4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)
Product Dimensions:
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g
Front : Black / Length 77.5mm x Width 41.9mm x Height 55.3mm / 68 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 512GB
Imaging Sensor:
Front: STARVIS 2 CMOS Sensor (Approx. 8.3 M Pixel)
Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front: Diagonal 146°, Horizontal 125°, Vertical 68°
Rear: Diagonal 131°, Horizontal 107°, Vertical 55°
LED Indicators
Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
Front : Front & Rear Security LED
Rear : Front & Rear Security LED
EB-1 : Operating/Battery low voltage LED
This models supports BlackVue Cloud
Read more about BlackVue Cloud here
BlackVue DR770X Box-3CH Pro features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
What's Included?
• Main Unit
• Front Camera
• Rear Camera
• Rear Infrared Camera
• SOS Button
• Main unit cigarette lighter power cable (4.5M)
• Main unit hard wiring power cable (4.5m)
• Camera connection cable (6m, 3EA)
• Micro SD with Card Reader
• Quick start Guide
• Mounting Tape and Main unit key
Specifications
Model Name DR770X Box-3CH Pro
Channel
3CH
Highlights
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions
Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
Interior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 512GB
Recording Modes
Normal recording, Event recording (when the impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Imaging Sensor
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°

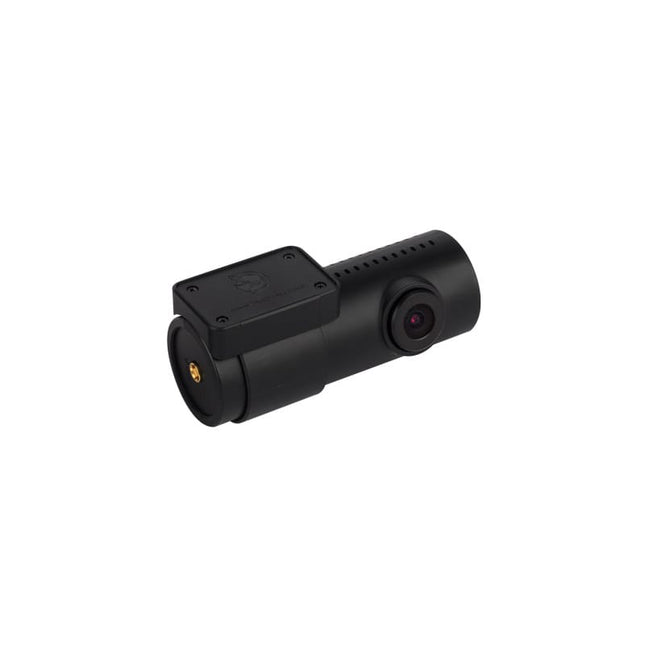

Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution Frame Rate
Front / Rear / Interior IR
Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Front / Rear / Interior
Extreme: 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High: 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 51)
Specifications
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS External (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Front: Front & Rear Security LED
Rear: Front & Rear Security LED
Interior IR: Front & Rear Security LED
EB-1: Operating / Battery low voltage LED
Rear Camera IR Illumination Interior IR: 940nm (2 Infrared (IR) LEDs)
Button EB-1 button : Press the button – manual recording.
Operation Temperature -20°C – 70°C (-4°F – 158°F )
Storage Temperature -20°C – 80°C (-4°F – 176°F )
High Temp Cut Off Approx. 75 °C (167 °F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (GPS On/3CH) : Avg. 750mA/12V
Parking Mode (GPS Off/3CH) : Avg. 600mA/12V
* Approx.40mA increase in current when Interior Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Certifications Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC
Software BLACKVUE Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BLACKVUE Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application BLACKVUE Application
* Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
Built for Stealth and Security
Up to Triple Camera Protection and Secure Recording Unit (FRONT CAMERA INCLUDED ONLY)
The DR770X Box Pro is a triple-channel-capable dash cam with BlackVue Cloud connectivity.
The compact cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for outstanding image quality under any light, and the infrared cameras can record clear videos in full darkness.
The wireless button lets you manually and safely bookmark videos (tagged as “Manual Event”) while driving.
Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App.
Cloud support via optional LTE Connectivity module or Wi-Fi hotspot.
• Up to Three Cameras and Secure Recording Box
• Standard Rear Camera
• Ultrawide Infrared Interior Camera
• AI-Powered Driver-Monitoring Camera
Color / Size / Weight:
Main unit : Black / Length 130.0mm x Width 101.0 mm x Height 33 mm / 209 g
Front : Black / Length 62.5mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Rear Truck : Black / Length 70.4mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
DMS : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g:
EB-1 (Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

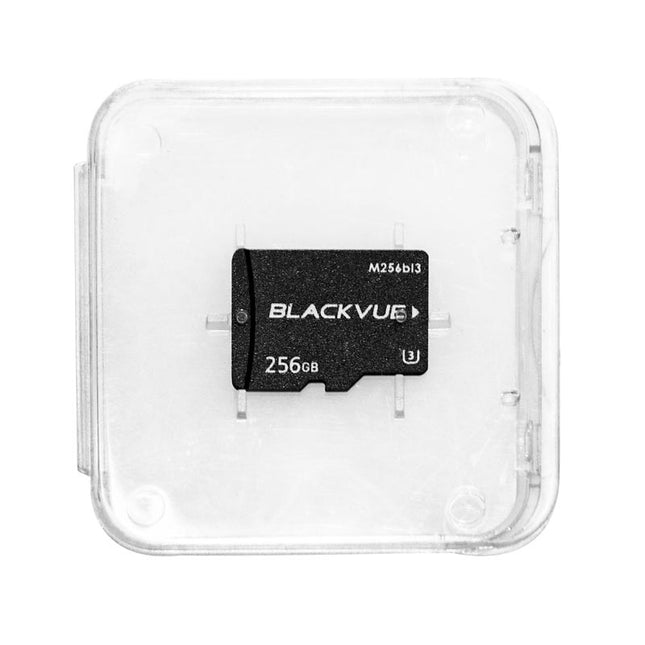

Memory: microSD Card (64 GB/128 GB/256 GB/512GB)
Recording Mode:
Normal recording, Event recording (when impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode.When using other methods, G-sensor will trigger parking mode.
Camera:
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear/Rear Truck : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR/DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle:
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear Truck(ERC1) : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR(RC1-IR) : Diagonal 180°, Horizontal 150°, Vertical 93°
DMS(RC1-DMS) : Diagonal 109°, Horizontal 94°, Vertical 52°
Resolution / Frame Rate:
Full HD (1920x1080) @ 60 fps - Full HD (1920x1080) @ 30 fps- Full HD (1920x1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality (Mbps): Extreme: 16 + 10 + 10 Mbps / Highest: 12 + 10 + 10 Mbps
Video Compression: Mode MP4
Wi-Fi: Built-in (802.11 b.g.n)
GNSS: External (Dual Band : GPS, GLONASS)
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: External (Optional)
Microphone: Built-in
This models supports BlackVue Cloud
Read more about BlackVue Cloud here
The perfect camera for Uber, Lyft drivers and anyone looking to secure the interior of their vehicle.The driver-facing ultrawide-angle camera captures the entire field of view from the driver’s side to the passenger’s side.• Cloud-compatible: Built-in GNSS, Wi-Fi and optional LTE module• Game-changing 4K visual fidelity: Powered by an 8.4-megapixel Sony STARVIS 2 image sensor• Ultrawide infrared interior camera: Record everything from the driver's side to the passenger's side• Naturally heat-resistant: you can install the box away from the sun. No more worrying about overheating• Designed for stealth: Smaller cameras and secure recording box unit• Security-enhanced: Designed from the gorund up to prevent tampering• Seamless Pairing: Easy setup with the BlackVue App. Secure and passwordlessSpecificationsModel Name: DR970X Box-2CH IR PlusChannel: 2CHHighlights : 4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)Product DimensionsMain unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 gFront : Black / Length 77.5mm x Width 41.9mm x Height 55.3mm / 68 gInterior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 gWireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 gRear Camera Connection: Coaxial cableMemory Support: microSD card up to 512GBImaging SensorFront : STARVIS 2 CMOS Sensor (Approx. 8.3 M Pixel)Interior IR : STARVISTM CMOS Sensor (Approx. 2.1 M Pixel)Viewing AngleFront: Diagonal 146°, Horizontal 125°, Vertical 68°Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°Resolution Frame RateFront: 4K (3840 x 2160) @ 30 fpsInterior IR: Full HD (1920 x 1080) @ 30 fps* Frame rate may vary during Wi-Fi streaming.Video CodecH.265 (HEVC) /H.264 (AVC)ButtonEB-1 button : Press the button – manual recording.Operation Temperature: -20 °C - 70 °C (-4 °F - 158 °F)
Outstanding 4K HDR Clarity
Powered by the Best Dash Cam Sensor Fine-tuned by BLACKVUE
Imaging Excellence
DR970X Plus II blends top-of-the-line components with BlackVue’s imaging know how and expert tuning.
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.
24/7 Protection for your vehicle
With the Parking Mode Accessories
What's Included?
• Front Camera
• Rear Camera
• Harding Power Cable
• USB-C Power Cable
• USB-C 12V Adapter
• Rear camera connection cable
• MicroSD card
• Double-sided tape for the mounting brackets
• Pry Tool / Trimp Remover
• Cable clips (5 EA)
• Alcohol Pad
18 Years of BlackVue Imaging Mastery

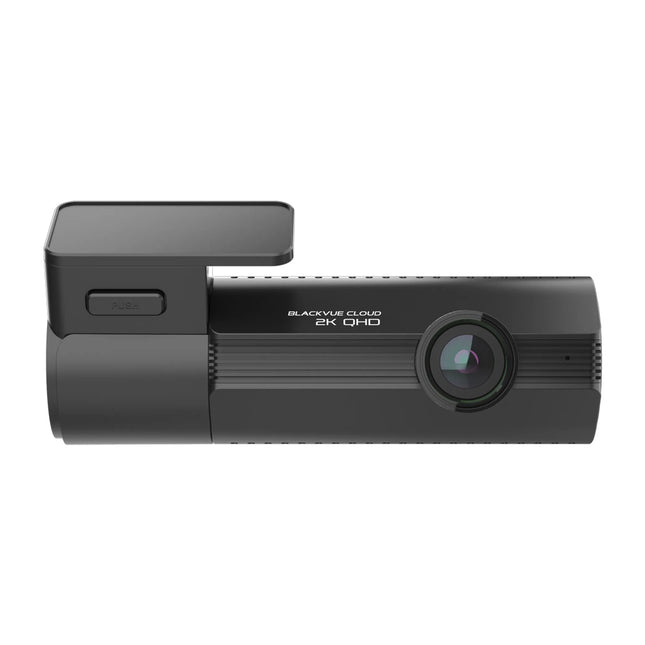

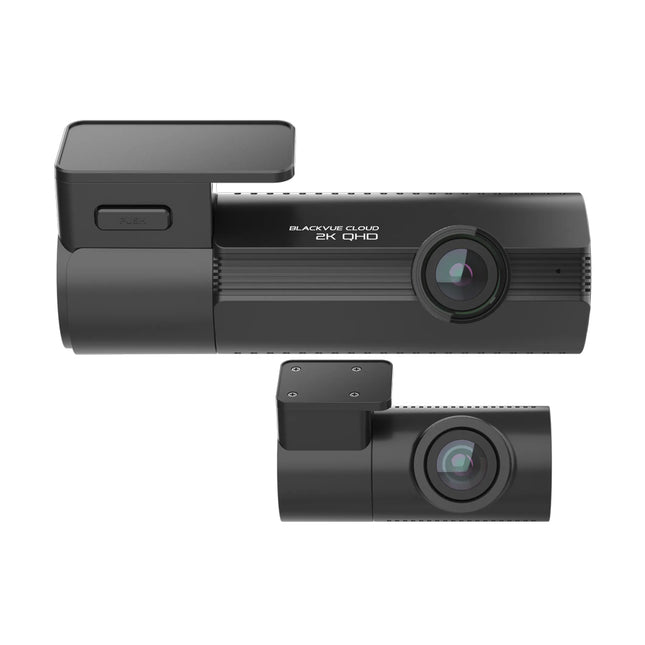

ELITE 8 redefines dash cam clarity by combining the best components with BlackVue’s expert image tuning mastery acquired over 18 years of experience.
Redefined Clarity with Dual HDR
ELITE 8 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.
24/7 Protection for your vehicle
With the Parking Mode Accessories
Up to Over 12 Months of Protection!
In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.
Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.
Your Most Important Clips are Protected
Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage.
With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.
Hassle-Free Installation
1. Mount the front and rear cams
2. Plug the power and video cables
3. Start driving
Simple and Secure
With Seamless Pairing, connecting to your dash cam with the BlackVue App is easy as 1, 2, 3.
All Features At Your Fingertips
The BlackVue App is designed with simplicity and ease of use in mind.
No convoluted menus. Access all the key features from the main screen.
Stealthy, Reliable and Functional
BlackVue ELITE 8 is designed with stealth, durability and functionality in mind.
What's Included:
• Front Camera
• Rear Camera
• USB-C Cable
• USB-C 12V Adapter
• Rear camera connection cable
• MicroSD Card
• Double-sided tape for the mounting brackets
• Pry tool / Trim Remover
• Cable clips(5 EA)
• Alcohol Pad
Imaging Excellence Since 2007

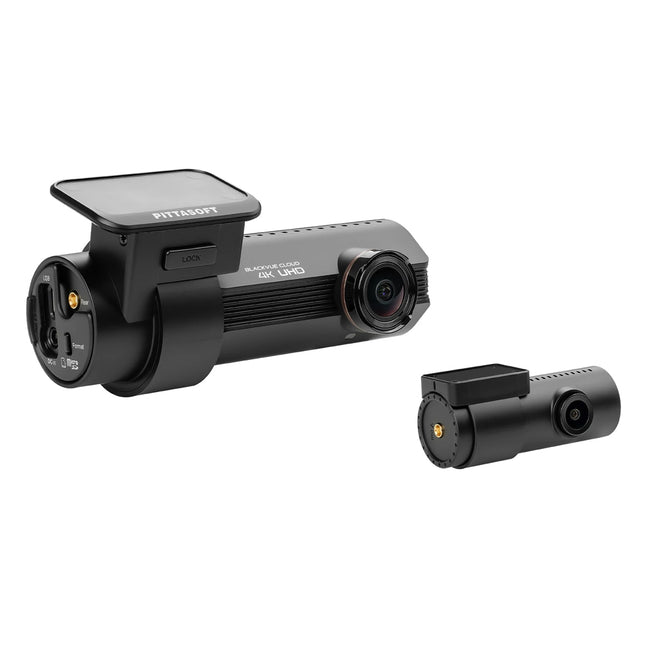

DR970X Plus II blends top-of-the-line components with BlackVue's imaging know how and expert tuning.
4K STARVIS 2 HDR Clarity
Series II brings improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.
Hassle-Free Installation
1. Mount the camera
2. Plug the power cable
3. Start driving
Install and forget: With the included USB-C cable and 12V auxiliary adapter
Hardwiring Cable Included: Connect to your car’s fuse panel to enable Parking Mode
Simple and Secure
With Seamless Pairing, connecting to your dash cam with the BlackVue App is easy as 1, 2, 3.
1. Tap + Camera
2. Select your BlackVue in the list
3. Tap the touch sensor
That’s it! Your camera is added a ready for use.
All Features At Your Fingertips
The BlackVue App is designed with simplicity and ease of use in mind. No convoluted menus. Access all the key features from the main screen.
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.
24/7 Protection for your vehicle
With the Parking Mode Accessories
What's included?
• Front Camera
• Hardwiring Power Cable
• USB-C Power Cable
• USB-C 12V Adapter
• MicroSD Card
• Double-sided tape for the mounting bracket
• Pry tool / Trim Remover
• Cable clips (3 EA)
• Alcohol Pad

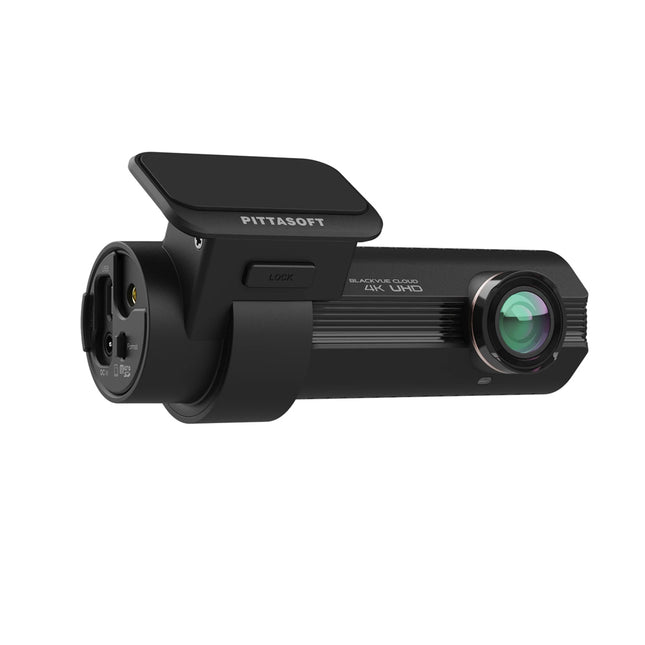

DR970X, 4K resolution and single channel. Cloud compatible and External LTE module is optional.• Cloud-compatible: Built-in GNSS, Wi-Fi and optional LTE module• Game-changing 4K visual fidelity: Powered by an 8.4-megapixel Sony STARVIS 2 image sensor• Best compression and high bitrate: High efficiency video coding (HEVC/H.265)• Easy installation: 12V adapter and hardwiring kit both included in the box.• Seamless Pairing: Easy setup with the BlackVue app. Secure and passwordless• Sleek interface: Tons of smart features in a compact designModel Name: DR970X-1CH PlusChannel: 1CHHighlights: 4K UHD, 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)Product Dimensions: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108gMemory Support: microSD card up to 512GBParking Mode: YES (hardwiring cable included)Imaging Sensor: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel)Viewing Angle: Diagonal 146°, Horizonal 125°, Vertical 68°Resolution Frame Rate: 4K (3840 x 2160) @ 30 fps* Frame rate may vary during Wi-Fi streaming.Operation Temperature: -20 °C - 70 °C (-4 °F - 158 °F)Storage Temperature: -20 °C - 80 °C (-4 °F - 176 °F )

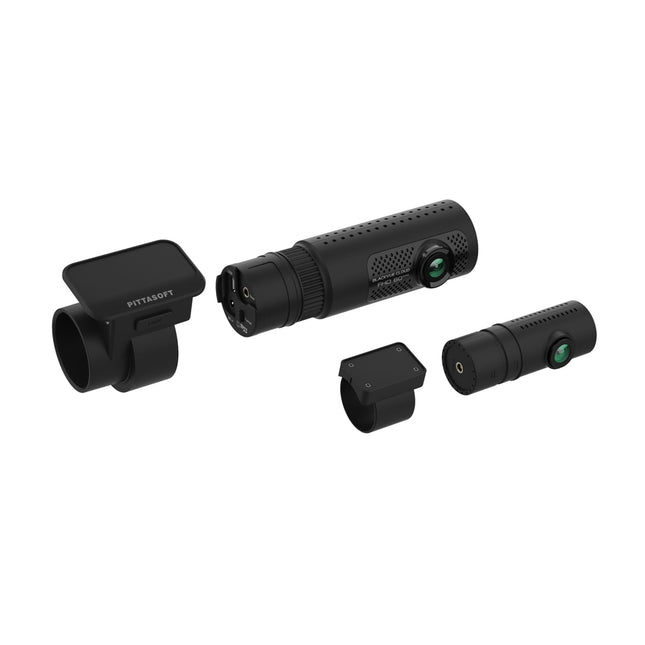

BlackVue DR770X-2CH Plus offers Full HD front and rear protection for your vehicle, powered by Sony STARVISª image sensors for better image quality in any light. GPS recorder, built-in Wi-Fi, Cloud connectivity, impact and motion detection are also included.
Native parking mode with built-in voltage monitor to protect your vehicle's battery (hardwired cable included).
INTEGRATED GPS AND WI-FI
GPS ADDS LOCATION AND SPEED DATA TO YOUR VIDEOS
Speed: Speed ??data will be overlaid in the video (can be disabled in settings).
You can set the speed display to Kilometers per hour (Km/h) or Miles per hour (Mph).
Location: View your vehicle's location in the BlackVue app or in the user map.
BUILT-IN IMPACT AND MOTION DETECTION
MARK IMPORTANT FILES AND ENABLE PARKING MODE
While driving, your BlackVue detects impacts and sudden changes in speed. When parked, it also detects movement*.
Model name
DR770X-2CH
Channel
2CH
Strong points
Full HD, Cloud, Wi-Fi, GPS, Sony sensor, external LTE module
product dimensions
Front: W 118.5mm (4.67″) x H 36mm (1.42″) / 105g (3.70oz)Rear: W 67.4mm (2.65″) x H 25mm ( 0.98″) / 25g (0.88oz)
memory medium
microSD card up to 256 GB
Recording Modes
- Normal,- Event (Impact Detection / Speed ??Limit / Manual),- Parking Mode (Impact-Based Motion Detection + By Region, Timelapse + Events)
Parking mode
YES (with 3-wire hardwired cable – included)
Voice event notifications in parking mode
YES
Imaging sensor
Front: Sigmastar SAV837GW (approx. 2.1 MP)Rear: Sony STARVIS™ CMOS sensor (approx. 2.1 MP)
viewing angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate
Full HD @ 60fps* Frame rate may vary during Wi-Fi streaming
Video codecs
H.264 (AVC)
Image quality and forward/reverse bit rate
Highest (extreme): 25 MbpsHighest: 12 MbpsHigh: 10 MbpsNormal: 8 Mbps
Free Format
YES (adaptive)
Event file overwrite protection
YES (up to 50)
SD card failure alert
YES
Scheduled restart
YES
Video file extension
MP4
Wireless
Integrated (802.11 bgn)
Cloud-ready
YES
GPS
Integrated (Dual Band: GPS, GLONASS)
Full HD Cloud Dashcams
Powered by Sony STARVIS Sensors
Native Parking Mode
Let your BLACKVUE watch over your vehicle 24/7
Easily manage your video files and connect to the cloud.
BlackVue App available on iOS and Andriod Viewer available for Windows and macOS
What's Included?
• Front Camera
• Rear Camera
• Hardwiring Power Cable
• USB-C Power Cable
• USB-C 12V Adapter
• Rear Camera Connection Cable
• MicroSD
• Double-sided tape for the mounting brackets
• Pry tool / Trim Remover
• Cable clips (5 EA)
• Alcohol Pad
BlackVue Ultra Battery B-130A, The Ultimate Parking Mode Battery.
Power your dash cam in Parking Mode Protect your vehicle's battery.
Features:
Fast Charging
BlackVue Ultra Battery reaches a full charge in 50 minutes when hardwired (90 mints if connect to the 12V auxiliary power socket).
Long Lasting
Parking Mode can last more than 30 hours with a single-channel dash cam (15-20 hours with a dual-channel model).
Fuel Gauge IC
The fuel gauge integrated circuit tracks charge and discharge to give you the most accurate readings at all times.
USB-A port
To charge additional devices(5V 2A max output) 12V-24V Compatibility
Safe Battery
Lithium Iron Phosphate (LiFePO4) Cell Technology for Maximum Safety High Capacity: 12.8V/7,500mAh/96Wh
BlackVue App Support
Check battery info wirelessly with the Blackvue App. Pair with a Cloud-connected BlackVue dash cam for remote access and low-voltage push notifications.
Color / Size / Weight: Black / 152.7(W) X 206.0(L) X 33.6(H) / 1,520(g)
Battery Cell Type: Safe Lithium Iron Phosphate (LiFePO4)
Input Voltage / Current:
12V system:
Cigarette lighter plug: 11 V–18 V / 7.2 A (max)
Hardwired: 11 V–18 V / 13.0 A (max)
24V system:
Cigarette lighter plug: 22.5 V–30 V / 3.6
Charging Voltage / Current: Cigarette lighter plug: 14.2V / 5A
Hardwired: 14.2V / 9A
Charging Time: Cigarette lighter plug (standard 5 A charging): Approx. 90 mins
Hardwired (rapid 9 A charging): Approx. 50 mins
Hours of Use: Approx. 30 Hours (based on a single dashcam that comsumes 3W)
Operating Temperature: Charging Temperature: 0 °C − 45 °C (32 °F − 113 °F)
Discharging Temperature: -10 °C − 60 °C (14 °F − 140 °F)
Storage Temperature: -20 °C ~ 45 °C (-4 °F ~ 113 °F)
Temperature Cut-Off: High temperature: Approx. 80 °C (176 °F) / Low temperature: Below 0 °C (32 °F)
Capacity: 12.8 V / 7,500 mAh / 96 Wh
Output Voltage / Current:
Dashcam port: 11.0V–14.2V / 2A (max)
USB port: 4.75V–5.2 V / 2A (max)
The All-Inclusive Dash Cam
Redefined Clarity with Dual HDR
ELITE 8 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.
18 Years of BlackVue Imaging Mastery
ELITE 8 redefines dash cam clarity by combining the best components with BlackVue’s expert image tuning mastery acquired over 18 years of experience.
24/7 Protection for your vehicle With the Parking Mode Accessories
Up to Over 12 Months of Protection!
In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording. Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.
Your Most Important Clips are Protected
Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage.
With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.
Hassle-Free Installation
1. Mount the front and rear cams
2. Plug the power and video cables
3. Start driving
Simple and Secure
With Seamless Pairing, connecting to your dash cam with the BlackVue App is easy as 1, 2, 3.
All Features At Your Fingertips
The BlackVue App is designed with simplicity and ease of use in mind.
No convoluted menus. Access all the key features from the main screen.
What's Included:
• Front Camera
• USB-C Power Cable
• USB-C 12V Adapter
• MicroSD Card
• Double-sided tape for the mounting bracket
• Pry tool/ Trim Remover
• Cable clips (3 EA)
• Alcohol Pad

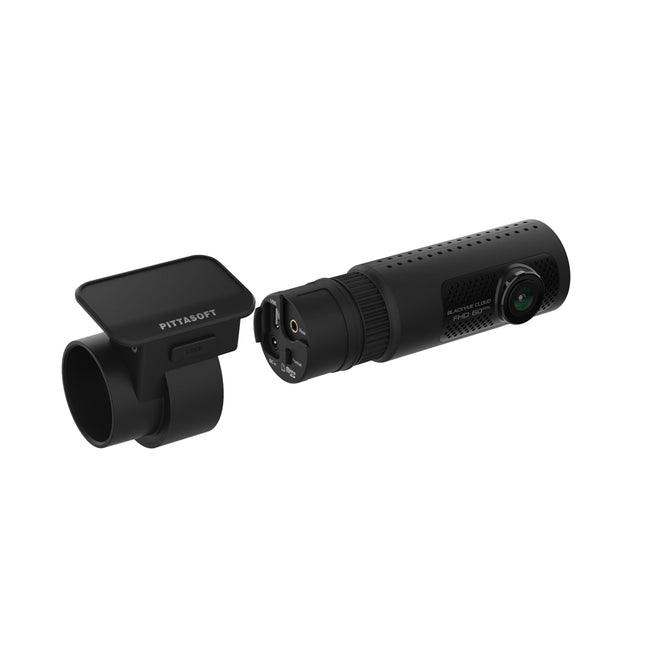

BlackVue DR770X-1CH II features Full HD Sony STARVIS™ image sensor for best image quality under any light.
Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.
Full HD Cloud Dashcams
Powered by Sony STARVIS Sensors
Native Parking Mode
Let your BLACKVUE watch over your vehicle 24/7
What's Included?
• Front Camera
• Hardwiring Power Cable
• USB-C Power Cable
• USB-C 12V Adapter
• MicroSD Card
• Double-sided tape for the mounting bracket
• Pry tool / Trim Remover
• Cable clips (3 EA)
• Alcohol Pad
Specifications
Model Name DR770X-1CH II
Channel
1CH (upgradable to 2CH)
Highlights
Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions
Black /length 135.0mm x Width 101.0mm x Height 37.5mm / 209g
Memory Support
microSD card up to 1TB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (hardwiring cable included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Diagonal 139°, Horizontal 116°, Vertical 62°
Resolution Frame Rate
Full HD @60fps
* Frame rate may vary during Wi-Fi streaming
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 50)
SD Card Failure Alert
YES
Scheduled Reboot
YES
Video File Extension
MP4
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
Built-in (Dual Band : GPS, GLONASS)
Specifications
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
LED Indicators
Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature
-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature
-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off
Approx. 80 °C (176 °F)
Backup Battery
Built-in supercapacitor
Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
* Actual power consumption may vary depending on use conditions and environment
Certifications
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application
BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher
Others
Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)

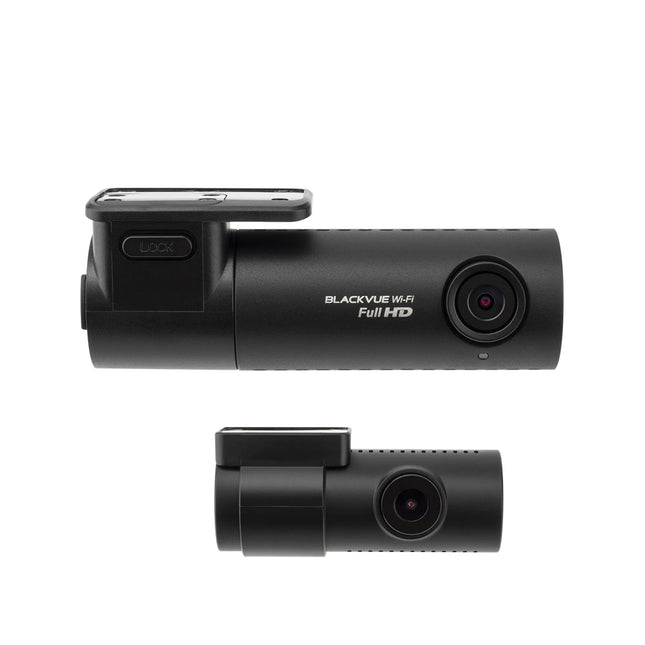

Simple Dual Full HD Wi-Fi Dashcam
Outstanding Dual Full HD quality in a small form factor, featuring Sony’s STARVIS™ image sensor in the front camera for better clarity in low light.
The DR590X-2CH Plus records both front and back or interior of your vehicle in Full HD 1080p.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
Dual Full HD Wi-Fi Dashcam
Full HD front and rear @30fps: the DR590X-2CH-PLUS records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 131-degree wide view angle. With the front camera’s Sony STARVIS imaging sensor. You get awesome image clarity day and night.
Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view the front and rear cameras or transfer files to your mobile device.
Native Parking Mode
With included Hardwiring cable
DR590X Plus can be hardwired to your vehicles’ fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR5950X Plus Series is also compatible with all BlackVue Parking Mode kits and batteries.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS
What's included?
• Front Camera
• Rear Camera
• Quick start guide
• Cable clips (5EA)
• microSD card
• microSD card reader
• Analog Video Cable
• Hardwiring power cable
• Cigarette lighter power adapter
Specifications
Model Name: DR590X-2CH Plus
Channel: 2CH
Highlights: Full HD (Front + Rear), Wi-Fi, Sony Sensor
Product Dimensions: Front: Black / Width 111.8 mm x Height 34 mm / 87.8 g
Rear: Black / Width 67.4 mm x Height 25 mm / 20.3 g
Rear Camera Connection: Analog cable
Memory Support: microSD Card (32 GB / 64 GB / 128 GB / 256GB / 512GB)
Recording Modes:
– Normal,
– Event recording (when impact is detected in normal and parking mode)
– Parking Mode (when motion is detected)
Parking Mode : YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: CMOS Sensor (Approx. 2M Pixel)
Viewing Angle:
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°
Resolution Frame Rate : Front / Rear
Full HD @30fps – Full HD @30fps
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear:
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES
SD Card Failure Alert: YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11 b.g.n)
GPS: External (Dual Band: GPS, GLONASS) (Optional not included in the box)
Microphone: Built-in
Speaker: Built-in
Impact Sensor: 3-Axis Acceleration Sensor
LED Indicators: Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Rear: Rear Security LED
Button: Wi-Fi button: * Press once to turn on/off Wi-Fi.
Operation Temperature: -20℃ – 70℃ (-4°F – 158°F)
Storage Temperature: -20℃ – 80℃ (-4°F – 176°F)
High Temp Cut Off: Approx. 70℃ (158°F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Power Consumption Hour: Normal Mode (WiFi On / GPS On / 2CH) : 370mA / hour
Normal Mode (WiFi Off / GPS On / 2CH) : 330mA / hour
Parking Mode (WiFi On / GPS Off / 2CH) : 340mA / hour
Parking Mode (WiFi Off / GPS Off / 2CH) : 300mA / hour
Certifications : Front: FCC, CE, RoHS, Telec, WEEE, IC, RCM
Rear: FCC, CE, RoHS, WEEE
Software: BlackVue Viewer
Application: BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others: Adaptive Format-Free File Management System
Power Magic Battery Pack for Parking Mode 1-hour charge/12-hour operation Capacity 3000mA/12.8V Input 12V-24V Cigarette Lighter Output 12V/1A, 2 USB
Quick and Easy Installation: No hardwiring needed. Simply plugs into your vehicle's accessory (cigarette lighter) power socket.
Hassle-free Operation: Recharges while driving. Powers your dashcam while parked. 1 hour charge / 12 hours powered*.
*Based on power consumption of single-channel dashcam.*
Charge Any USB Accessory: 1 female accessory (Cigarette Lighter) power socket for your dashcam and 2 USB (5V) ports to power a phone, mobile hotspot, etc.
12V and 24V Compatibility: Supports most vehicles' electrical systems (cars and trucks or commercial heavy vehicles)
The Blackvue ERC1-C External Dash Cam is a Full HD accessory camera that can be used with the Blackvue DR770X Range of cameras including the Box Pro. It features a wide field of view and can be used to capture footage from the rear, side, or interior of your vehicle. The ERC1-C is also weatherproof and can be used in all conditions.
If you are looking for a versatile and durable external dash cam for your Blackvue DR770X Box Pro, the Blackvue ERC1-C is a great option.
1. External Rear Camera for DR770X / DR770X Box / DR770X Box Pro (ERC1-C)
15m Waterproof Coaxial cable INCLUDED
Full HD (1920 x 1080) @30fps
2. Dimension
Length 70.4 mm (2.77″) x Width 56.6 mm (2.23″) x Height 36.1 mm (1.42″)
Weight: 0.35 lb / 157 g
3. Compatible Models
Compatible with the DR770X front cameras and DR770X Box recording box.

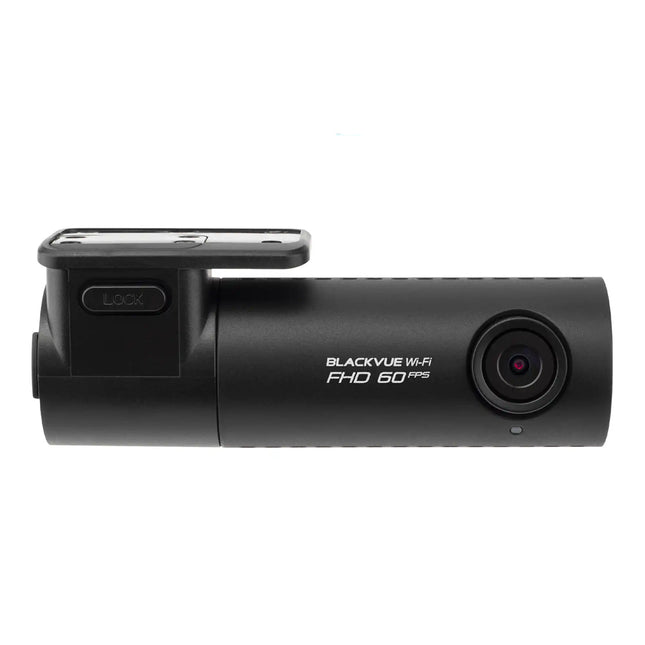

Full HD 60FPS video and Wi-Fi connectivity
The DR590X-1CH Plus records Full HD 1080p 60FPS videos at a 139-degree wide view angle.
With the Sony STARVISTM imaging sensor, you get awesome image clarity day and night.
Full HD Wi-Fi dashcam
Full HD Sony STARVISTM CMOS sensor recording at 60 frames per second.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
60 frames per second recording
The DR590X-1CH-PLUS records super fluid videos at a high frame rate of 60 frames per second. This means videos look lifelike and the dashcam can better catch details in fast moving objects thanks to reduced motion blur.
Native Parking Mode
With included Hardwiring cable
DR590X Plus can be hardwired to your vehicle’s fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR590X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
What's included
• Front Camera
• Quick start guide
• Cable clips (3EA)
• microSD card
• microSD card reader
• Hardwiring power cable
• Cigarette lighter power adapter
Specifications
Model Name: DR590X-1CH Plus
Channel: 1CH
Highlights: Full HD 1080p @60fps, Wi-Fi, Sony Sensor
Product Dimensions: Black / Width 111.8 mm x Height 34 mm / 86.3 g
Memory Support: microSD Card (32 GB / 64 GB / 128 GB / 256GB / 512GB)
Recording Modes:
– Normal recording
– Event recording (when impact is detected in normal and parking mode)
– Parking recording (when motion is detected)
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle: Diagonal 131°, Horizontal 116°, Vertical 61°
Resolution Frame Rate : Full HD @60fps
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear :
Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection :YES
SD Card Failure Alert: YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11n (2.4~2.4835 GHz))
GPS: External (Optional not included)
Microphone: Built-in
Speaker: Built-in
Impact Sensor: 3-Axis Acceleration Sensor
LED Indicators :Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Button: Wi-Fi button: Press once to turn on/off Wi-Fi
Operation Temperature: -20℃ – 70℃ (-4°F – 158°F)
Storage Temperature: -20℃ – 80℃ (-4°F – 176°F)
High Temp Cut Off: Approx. 70℃ (158°F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Power Consumption Hour:
Normal Mode (WiFi On/GPS On): 240mA/hour
Normal Mode (WiFi Off/GPS On): 200mA/hour
Parking Mode (WiFi On/GPS Off): 220mA/hour
Parking Mode (WiFi Off/GPS Off): 180mA/hour
Certifications: FCC, CE, RoHS, Telec, WEEE, IC, RCM
Software: BlackVue Viewer
* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
Application: BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others: Adaptive Format Free File Management System
External 4G LTE Module
The CM100LTE connects to your compatible BlackVue X or X Plus Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrierÕs network. Not compatible with DR590X Series.
LTE Connectivity Module
With DR900X/DR900X Plus and DR750X/DR750X Plus models, you can connect the LTE Connectivity Module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100LTE running out of power like you might with a self-powered router.
Note: Not compatible with DR590X Series.
The CM100LTE can also enable Mobile Hotspot Function for your compatible BlackVue.
Mobile Hotspot Function
for BlackVue ÒX PlusÓ models
With Mobile Hotspot Function, your compatible BlackVue can now turn into a mobile internet router for up to five devices* concurrently. This means you and your passengers can now use your BlackVueÕs internet on your laptop, portable game console, tablet or mobile. To connect to the BlackVue, simply open your devicesÕ Wi-Fi menu, select the BlackVue and enter the dashcamÕs Wi-Fi password.
Supported models: BlackVue X Plus Series models. Requires an active data plan.
(*) To ensure the reliability of critical BlackVue Cloud features (Live Event Upload, Push notifications, Remote Live View, etc.), connecting a BlackVue to another BlackVue is not possible at the moment.
CM100LTE version
Supported bands
Main Carrier
GL (Global)
B1, B3, B7, B20
Europe: most of the main carriers.Suitable for Africa, Middle-East, Russia, Brazil, Asia. May be suitable for South America.
The BlackVue microSD cards are optimized to work with all BlackVue dashcams.
The 128GB is compatible with all of the following dashcams:
DR900S - 1CH / 2H / 2CH IR
DR900X - 1CH / 2H / 2CH IR
DR750S - 1CH / 2CH / 2CH IR
DR750X - 1CH / 2CH / 2CH IR
DR750X TRUCK - 1CH / 2CH / 2CH IR
DR590W - 1CH / 2CH / 2CH IR
DR590X - 1CH / 2CH / 2CH IR
DR590 - 1CH / 2CH / 2CH IR
Please note regarding compatibility with older BlackVue dashcam models: although it may seem to work, we cannot fully guarantee compatibility and performance with older models.
